Dolbynoise reduction
Dolbynoise reduction
operates in tape mode.
Dolbynoise reduction
reduces the amount of
hiss and static during tape playback.
Press the
control to activate (and deactivate)
the Dolbynoise reduction.
Dolbynoise reduction is manufactured under
license from DolbyLaboratories Licensing
Corporation.“Dolby”and the double-D symbol
are registered trademarks of DolbyLaboratories
Licensing Corporation.
Compression adjust
Compression adjust
brings soft and loud
CD passages together
for a more consistent listening level.
Press the COMP control to activate and deactivate
compression adjust.
Shuffle feature
The shuffle feature
operates in CD mode
and plays all tracks on
the current disc in random order. If equipped with
the CD changer, the shuffle feature continues to the
next disc after all tracks on the current disc are
played.
Press to start this feature. Random order play will
continue until the control is pressed again.
4
COMP5
SHUFFLE6
Entertainment Systems
27

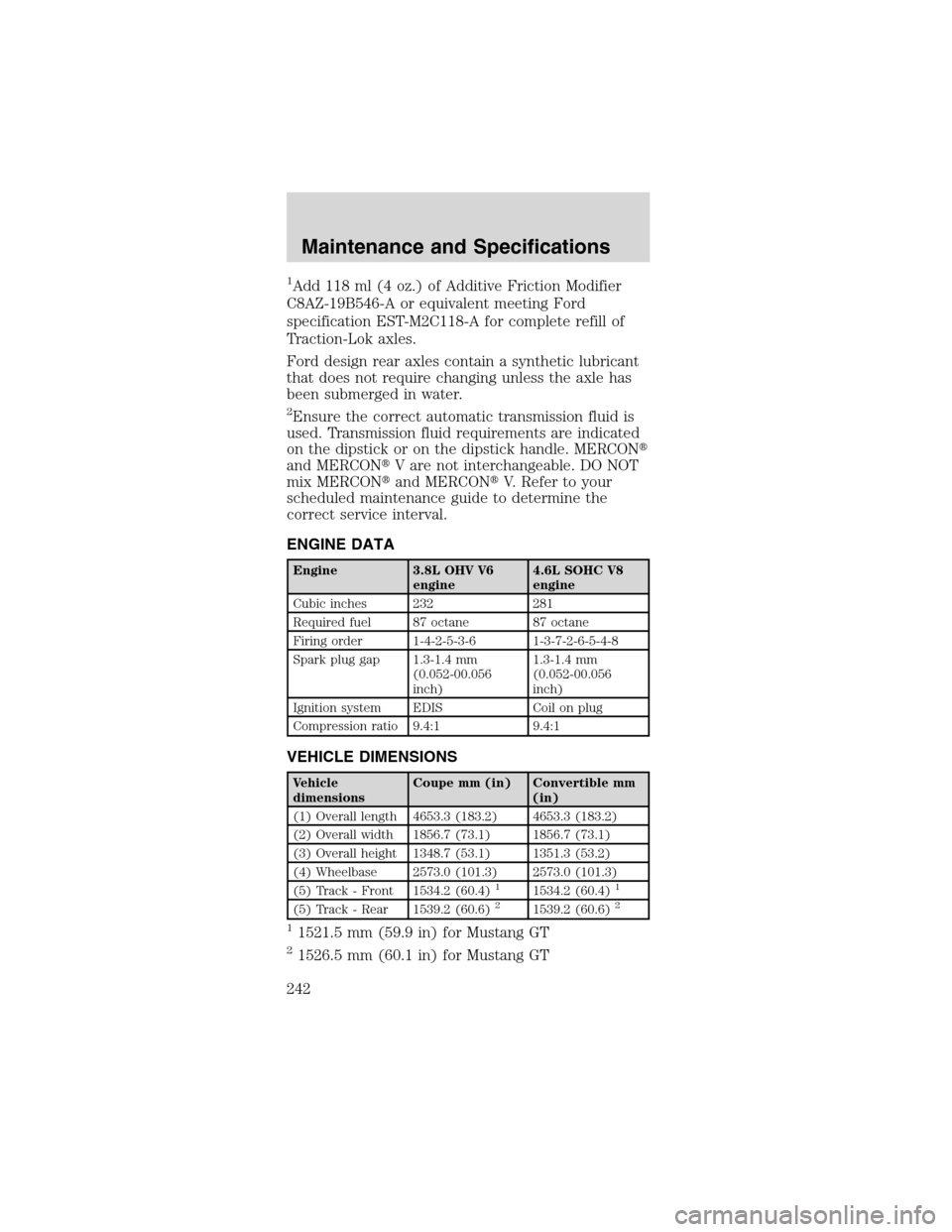

1Add 118 ml (4 oz.) of Additive Friction Modifier
C8AZ-19B546-A or equivalent meeting Ford
specification EST-M2C118-A for complete refill of
Traction-Lok axles.
Ford design rear axles contain a synthetic lubricant
that does not require changing unless the axle has
been submerged in water.
2Ensure the correct automatic transmission fluid is
used. Transmission fluid requirements are indicated
on the dipstick or on the dipstick handle. MERCON
and MERCONV are not interchangeable. DO NOT
mix MERCONand MERCONV. Refer to your
scheduled maintenance guide to determine the
correct service interval.
ENGINE DATA
Engine 3.8L OHV V6
engine4.6L SOHC V8
engine
Cubic inches 232 281
Required fuel 87 octane 87 octane
Firing order 1-4-2-5-3-6 1-3-7-2-6-5-4-8
Spark plug gap 1.3-1.4 mm
(0.052-00.056
inch)1.3-1.4 mm
(0.052-00.056
inch)
Ignition system EDIS Coil on plug
Compression ratio 9.4:1 9.4:1
VEHICLE DIMENSIONS
Vehicle
dimensionsCoupe mm (in) Convertible mm
(in)
(1) Overall length 4653.3 (183.2) 4653.3 (183.2)
(2) Overall width 1856.7 (73.1) 1856.7 (73.1)
(3) Overall height 1348.7 (53.1) 1351.3 (53.2)
(4) Wheelbase 2573.0 (101.3) 2573.0 (101.3)
(5) Track - Front 1534.2 (60.4)
11534.2 (60.4)1
(5) Track - Rear 1539.2 (60.6)21539.2 (60.6)2
11521.5 mm (59.9 in) for Mustang GT
21526.5 mm (60.1 in) for Mustang GT
Maintenance and Specifications
