remote start FORD MUSTANG 2003 4.G Owners Manual

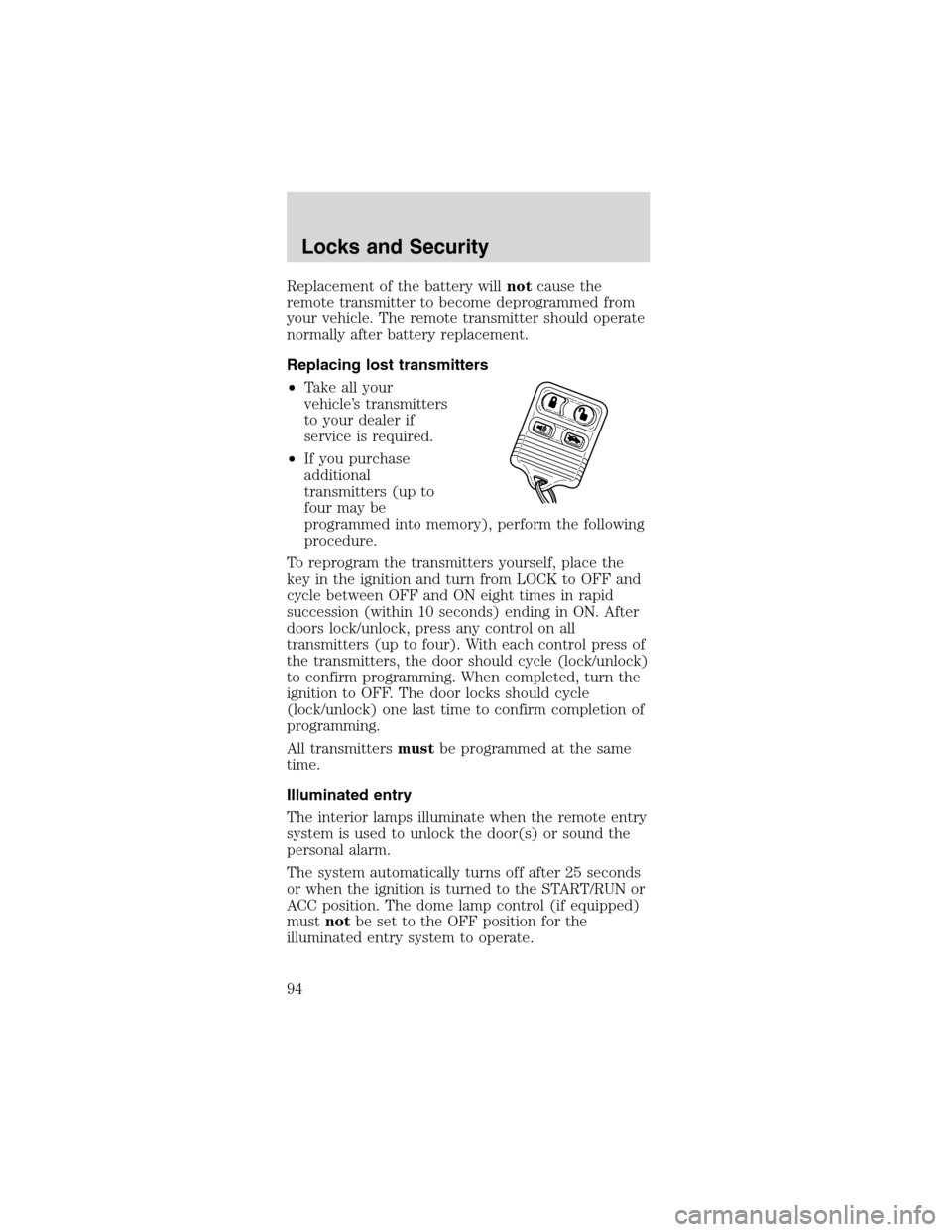

Replacement of the battery willnotcause the
remote transmitter to become deprogrammed from
your vehicle. The remote transmitter should operate
normally after battery replacement.
Replacing lost transmitters
•Take all your
vehicle’s transmitters
to your dealer if
service is required.
•If you purchase
additional
transmitters (up to
four may be
programmed into memory), perform the following
procedure.
To reprogram the transmitters yourself, place the
key in the ignition and turn from LOCK to OFF and
cycle between OFF and ON eight times in rapid
succession (within 10 seconds) ending in ON. After
doors lock/unlock, press any control on all
transmitters (up to four). With each control press of
the transmitters, the door should cycle (lock/unlock)
to confirm programming. When completed, turn the
ignition to OFF. The door locks should cycle
(lock/unlock) one last time to confirm completion of
programming.
All transmittersmustbe programmed at the same
time.
Illuminated entry
The interior lamps illuminate when the remote entry
system is used to unlock the door(s) or sound the
personal alarm.
The system automatically turns off after 25 seconds
or when the ignition is turned to the START/RUN or
ACC position. The dome lamp control (if equipped)
mustnotbe set to the OFF position for the
illuminated entry system to operate.
Locks and Security
94

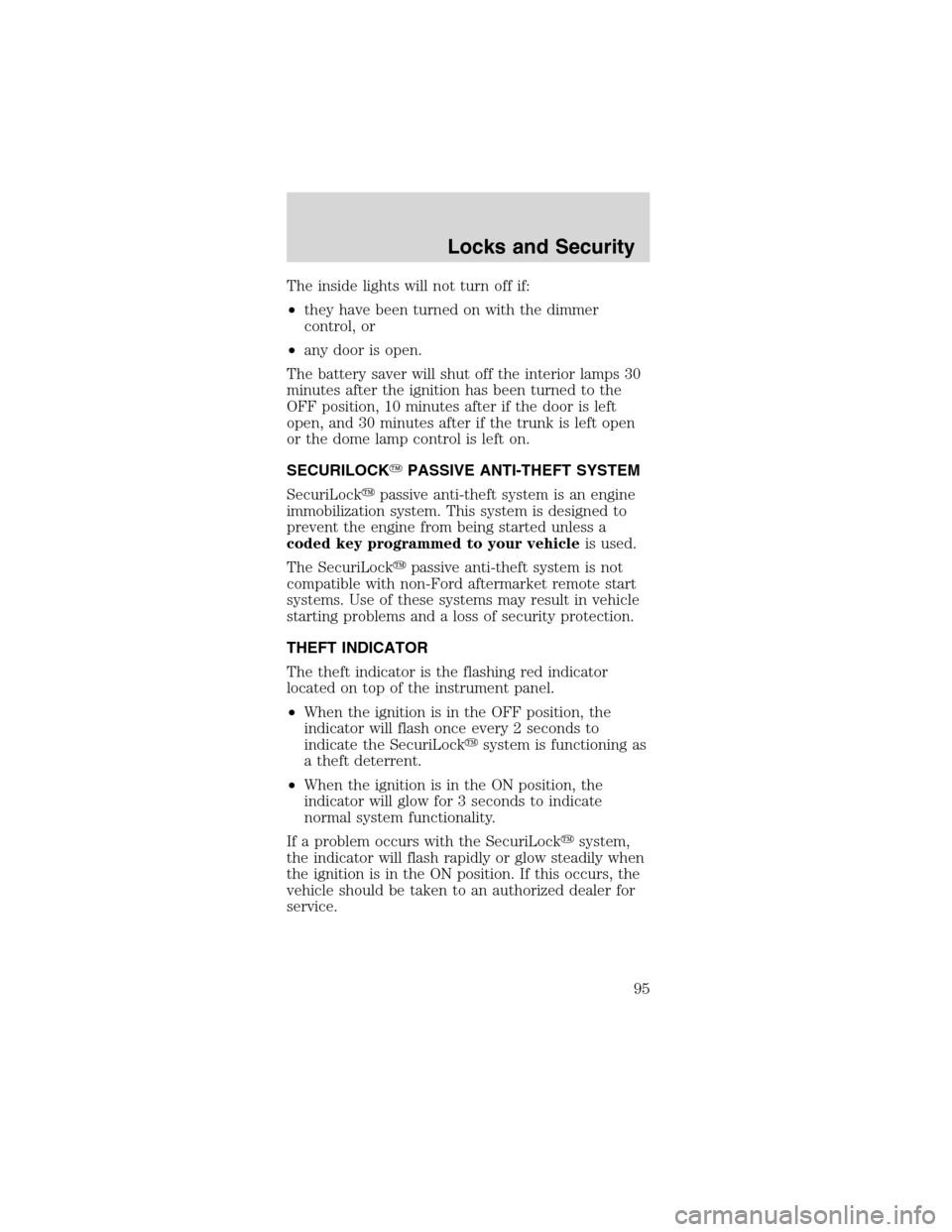

The inside lights will not turn off if:
•they have been turned on with the dimmer
control, or
•any door is open.
The battery saver will shut off the interior lamps 30
minutes after the ignition has been turned to the
OFF position, 10 minutes after if the door is left
open, and 30 minutes after if the trunk is left open
or the dome lamp control is left on.
SECURILOCKPASSIVE ANTI-THEFT SYSTEM
SecuriLock
passive anti-theft system is an engine
immobilization system. This system is designed to
prevent the engine from being started unless a
coded key programmed to your vehicleis used.
The SecuriLock
passive anti-theft system is not
compatible with non-Ford aftermarket remote start
systems. Use of these systems may result in vehicle
starting problems and a loss of security protection.
THEFT INDICATOR
The theft indicator is the flashing red indicator
located on top of the instrument panel.
•When the ignition is in the OFF position, the
indicator will flash once every 2 seconds to
indicate the SecuriLock
system is functioning as
a theft deterrent.
•When the ignition is in the ON position, the
indicator will glow for 3 seconds to indicate
normal system functionality.
If a problem occurs with the SecuriLock
system,
the indicator will flash rapidly or glow steadily when
the ignition is in the ON position. If this occurs, the
vehicle should be taken to an authorized dealer for
service.
Locks and Security
95

Dash trim
Electrochromic mirror with compass
Electrochromic mirror with compass and
temperature display
Engine block heaters
Remote keyless entry system
Remote start system
Travel equipment
Auto headlamps with daytime running lights (DRL)
Daytime running lights (DRL)
First aid kit
Fog lights
Highway safety kit
Removable luggage rack
Removable luggage rack adapters (Bike, ski,
snowboard)
Speed control
Protection and appearance equipment
All-weather vinyl floor mats
Car cover
Cargo liners, interior
Carpet floor mats
Door edge guards
Door sill scuff plates, stainless
Flat splash guards
Front end covers (full and mini)
Gearshift knob
Leather steering wheel
Molded splash guards
Pedal covers
Seat belt extenders
Accessories
246

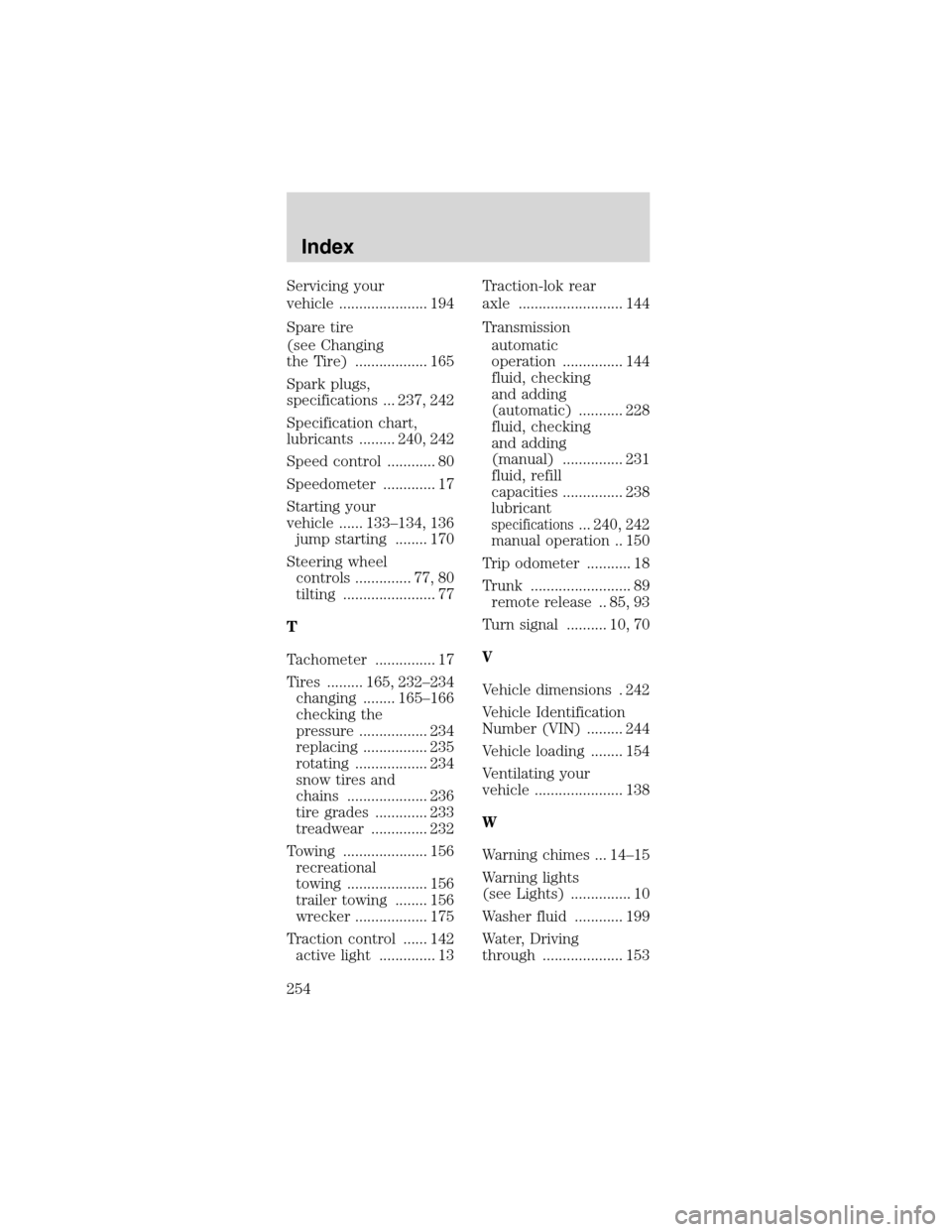

Servicing your
vehicle ...................... 194
Spare tire
(see Changing
the Tire) .................. 165
Spark plugs,
specifications ... 237, 242
Specification chart,
lubricants ......... 240, 242
Speed control ............ 80
Speedometer ............. 17
Starting your
vehicle ...... 133–134, 136
jump starting ........ 170
Steering wheel
controls .............. 77, 80
tilting ....................... 77
T
Tachometer ............... 17
Tires ......... 165, 232–234
changing ........ 165–166
checking the
pressure ................. 234
replacing ................ 235
rotating .................. 234
snow tires and
chains .................... 236
tire grades ............. 233
treadwear .............. 232
Towing ..................... 156
recreational
towing .................... 156
trailer towing ........ 156
wrecker .................. 175
Traction control ...... 142
active light .............. 13Traction-lok rear
axle .......................... 144
Transmission
automatic
operation ............... 144
fluid, checking
and adding
(automatic) ........... 228
fluid, checking
and adding
(manual) ............... 231
fluid, refill
capacities ............... 238
lubricant
specifications... 240, 242
manual operation .. 150
Trip odometer ........... 18
Trunk ......................... 89
remote release .. 85, 93
Turn signal .......... 10, 70
V
Vehicle dimensions . 242
Vehicle Identification
Number (VIN) ......... 244
Vehicle loading ........ 154
Ventilating your
vehicle ...................... 138
W
Warning chimes ... 14–15
Warning lights
(see Lights) ............... 10
Washer fluid ............ 199
Water, Driving
through .................... 153
Index
254
