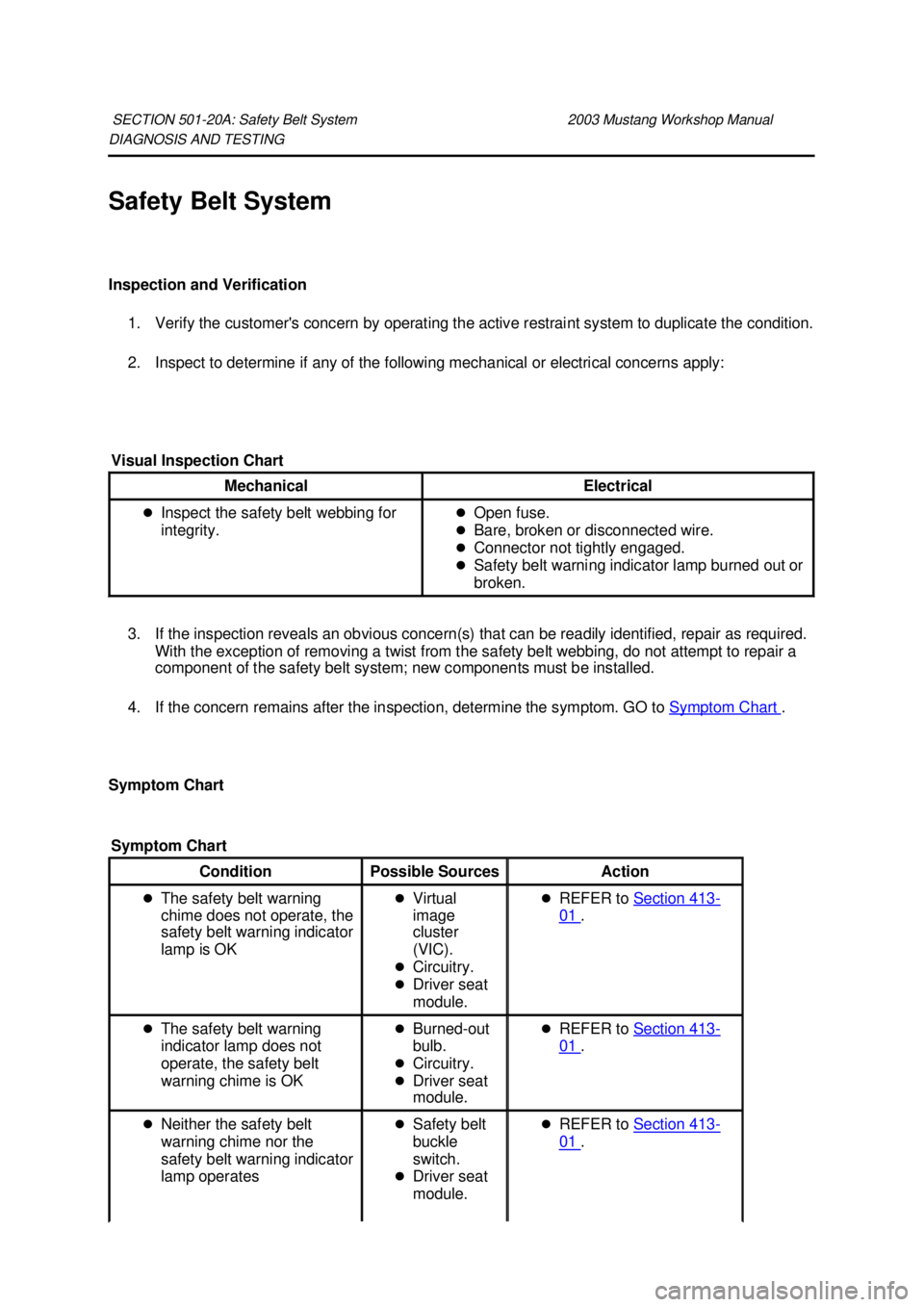

DIAGNOSIS AND TESTING
Safety Belt System
Inspection and Verification
1. Verify the customer's concern by operating the active restraint system to duplicate the condition.
2. Inspect to determine if any of the following mechanical or electrical concerns apply:
3. If the inspection reveals an obvious concern(s) that can be readily identified, repair as required. With the exception of removing a twist from the safety belt webbing, do not attempt to repair a
component of the safety belt system; new components must be installed.
4. If the concern remains after the inspection, determine the symptom. GO to Symptom Chart .
Symptom Chart SECTION 501-
20A: Safety Belt System 2003 Mustang Workshop Manual Visual Inspection Chart
Mechanical Electrical
z
Inspect the safety belt webbing for
integrity. z
Open fuse.
z Bare, broken or disconnected wire.
z Connector not tightly engaged.
z Safety belt warning indicator lamp burned out or
broken.
Symptom Chart Condition
Possible Sources Action
z The safety belt warning
chime does not operate, the
safety belt warning indicator
lamp is OK z
Virtual
cluster
(VIC).
z Circuitry.
z Driver seat
module. z
REFER to Section 413 -
01 .
z The safety belt warning
indicator lamp does not
operate, the safety belt
warning chime is OK z
Burned- out
bulb.
z Circuitry.
z Driver seat
module. z
REFER to Section 413 -
01 .
z Neither the safety belt
warning chime nor the
safety belt warning indicator
lamp operates z
Safety belt
buckle
switch.
z Driver seat
module. z
REFER to Section 413 -
01 . Klj . 1 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

a
DTC: Diagnostic Trouble Code, retrieved using a scan tool.
b LFC: Lamp fault code, flashed on air bag indicator.
c Tone will sound only if additional DTCs are present.
Inspection and Verification 1. Verify the customer concern by checking the air bag indicator in the instrument cluster. Refer to Prove Out the System in this section.
2. Visually inspect for obvious signs of mechanical and electrical damage using the following chart:
3. If the concern is not visually evident, use the scan tool to retrieve diagnostic trouble codes (DTCs) and perform the on- demand self test.
4. WARNING: The restraint system diagnostic tool is for restraint system service only.
Remove from vehicle prior to road use. Failure to remove could result in injury and
possible violation of vehicle safety standards.
If the on- demand self test is passed and no DTCs are retrieved, GO to Symptom Chart .
5. If DTCs are retrieved, proceed to the Restraints Control Module (RCM) Diagnostic Trouble Code (DTC) Priority Table.
Symptom Chart — — — No Communication with the Restraints Control Module Go To Pinpoint
Test P .
Visual Inspection Chart Mechanical Electrical
z
Damaged restraints control module (RCM) bracket z
Open fuse(s)
z Damaged wiring harness
z Loose or corroded connectors
z Circuitry open/shorted Symptom Chart
Condition
Possible Sources Action
z Air bag warning indicator is
illuminated continuously z
Circuitry.
z Worn or damaged
connector component.
z RCM.
z Instrument cluster. z
Go To Pinpoint Test A .
z Air bag indicator flashing zAir bag SRS system
fault. z
REFER to DTC
Priority Table.
z Audible tone — DTCs
retrieved z
Air bag SRS system
fault. z
Go To Pinpoint Test N .
z Go To Pinpoint Test O .
z No communication with the zScan Tool. zGo To Pinpoint Klj . 4 ba
52003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
