FORD MUSTANG 2003 Workshop Manual

DESCRIPTION AND OPERATION
Identification Codes
Vehicle Identification Number (VIN) Locator
The vehicle identification number (VIN) is a seventeen-
digit alphanumeric code. The VIN is stamped
on a metal tab riveted to the instrument panel, top upper left of the dash. The VIN number is also found
on the vehicle certification (VC) label. SECTION 100-
01: Identification Codes 2003 Mustang Workshop Manual Item Description
1 World manufacturer identifier (WMI)
2 Restraint type code
3 Line, series, body type (passenger car)
4 Engine code Klj . 1 ba
162003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4920/S3B~us~en~ ...

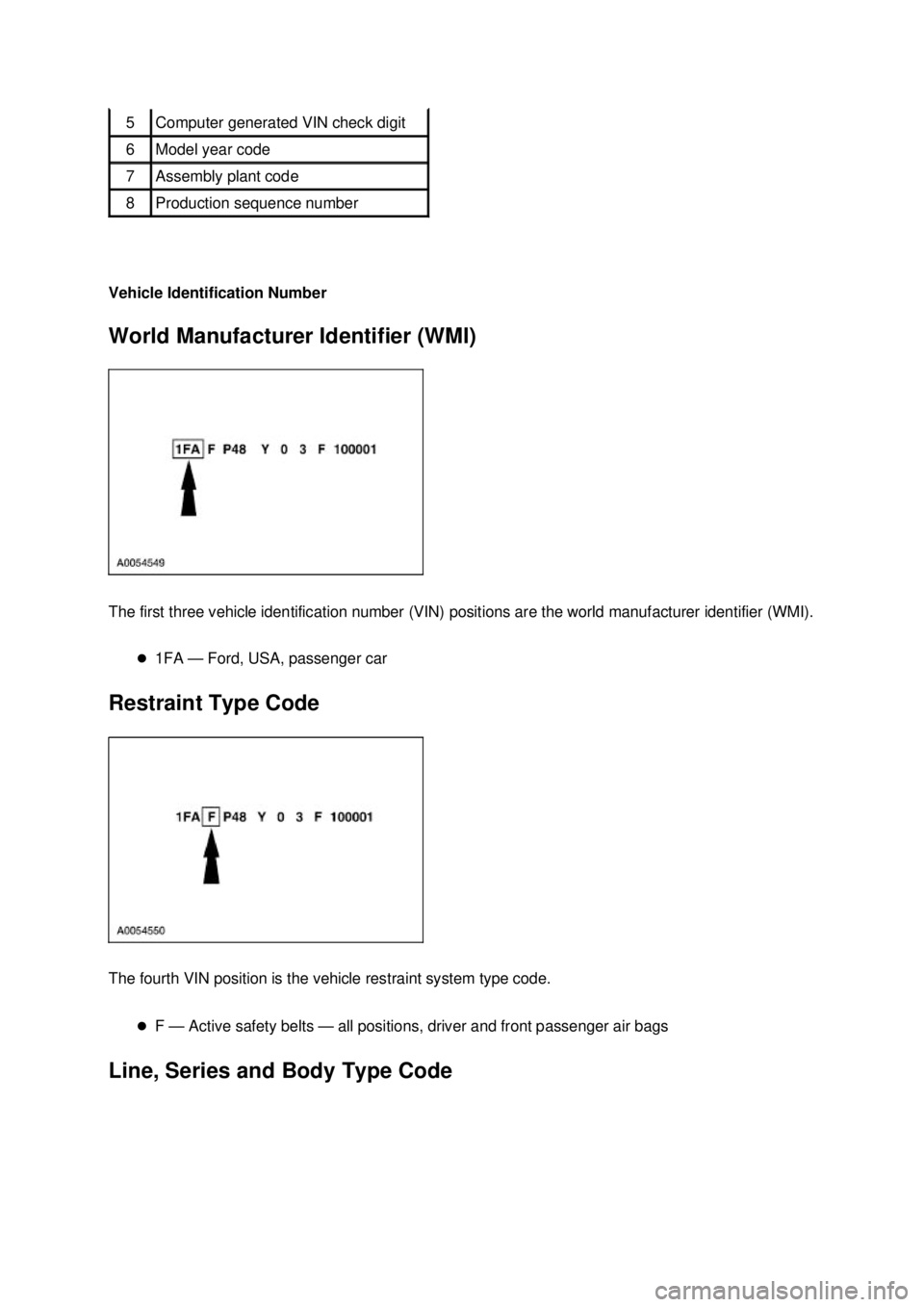

Vehicle Identification Number
World Manufacturer Identifier (WMI)
The first three vehicle identification number (VIN) positions are the world manufacturer identifier (WMI).
z1FA — Ford, USA, passenger car
Restraint Type Code
The fourth VIN position is the vehicle restraint system type code.
zF — Active safety belts — all positions, driver and front passenger air bags Line, Series and Body Type Code 5 Computer generated VIN check digit
6 Model year code
7 Assembly plant code
8 Production sequence number Klj . 2 ba
162003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4920/S3B~us~en~ ...

Positions 5 through 7 indicate vehicle line, series and body type.
zP40 — Two-door coupe
z P42 — Two-door coupe, GT (Mach One available in GT Coupe only)
z P44 — Two-door convertible
z P45 — Two-door convertible, GT
z P48 — Two-door coupe, Cobra
z P49 — Two-door convertible, Cobra
Engine Code
The eighth VIN position is the engine displacement and number of cylinders code.
z4 — 3.8L, OHV, EFI, six cylinder
z R — 4.6L, DOHC, EFI, eight cylinder (Mach One)
z X — 4.6L, SOHC, EFI, eight cylinder
z Y— 4.6L, DOHC, S/C, EFI, eight cylinder (Cobra) Computer Generated Check Digit Klj . 3 ba
162003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4920/S3B~us~en~ ...

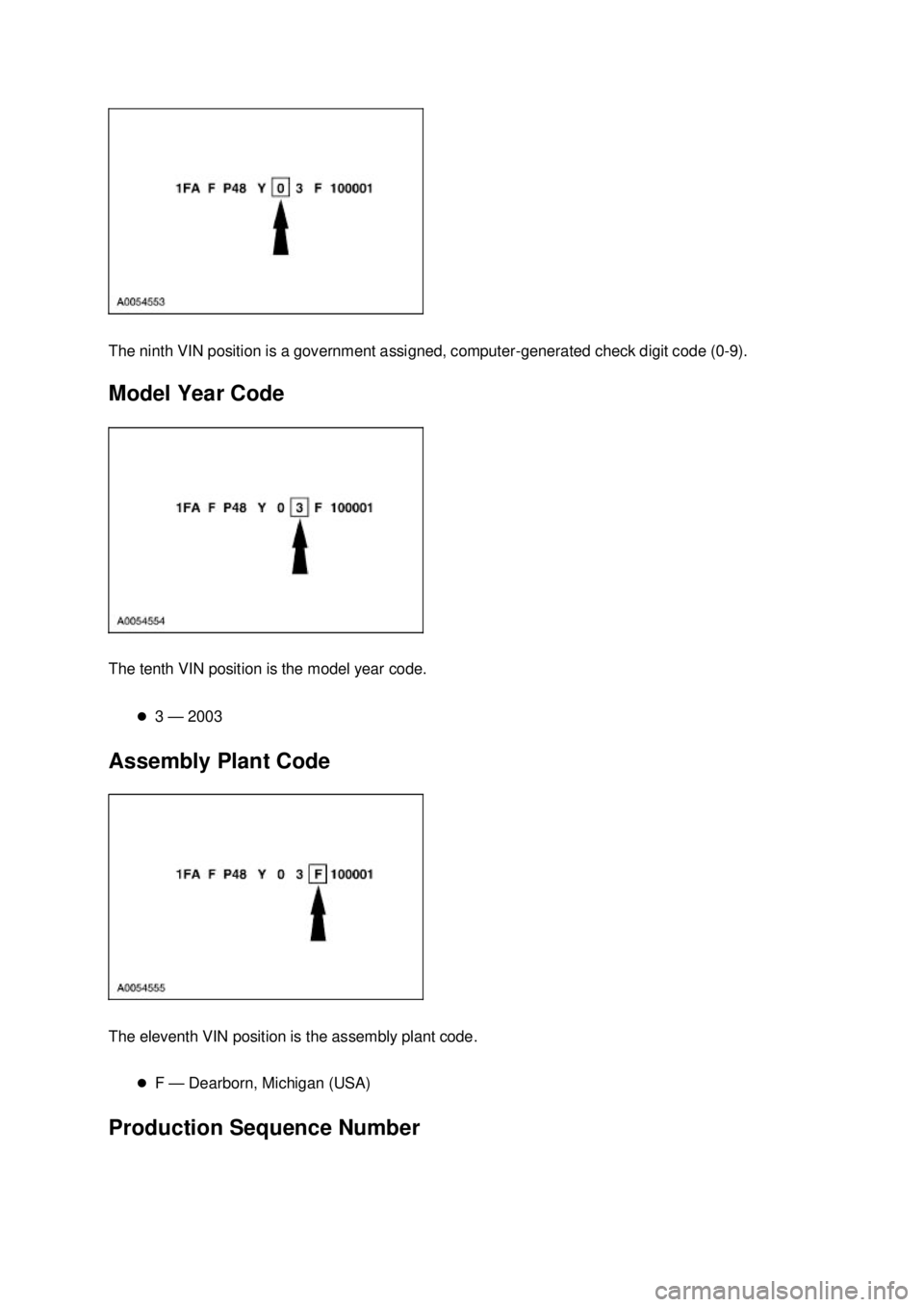

The ninth VIN position is a government assigned, computer-
generated check digit code (0-9).
Model Year Code
The tenth VIN position is the model year code.
z3 — 2003
Assembly Plant Code
The eleventh VIN position is the assembly plant code. zF — Dearborn, Michigan (USA) Production Sequence Number Klj . 4 ba
162003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4920/S3B~us~en~ ...

The last six VIN positions are the production sequence number. This number is also used as the
vehicle serial and warranty number.
z100001- 599999
Vehicle Certification (VC) Label
Vehicle Certification (VC) Label Locator
The upper portion of the vehicle certification (VC) label contains the manufacturer name, the month
and year of manufacture, the certification statement and the VIN. It also includes gross vehicle weight
ratings (GVWR). The VC label is located on the left- hand door jamb. Klj . 5 ba
162003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4920/S3B~us~en~ ...

Vehicle Certification (VC) Label Reference
Paint Codes Item Description
1 Exterior paint color code
2 Region code
3 Special order code
(DSO —
domestic special order
FSO — foreign special order
PTO — paint, tire option special order) 4 Brake type code
5 Interior trim code
6 Tape/paint stripe code
7 Radio type code
8 Axle ratio code
9 Transmission code
10 Spring code
11 Powertrain calibration code Klj . 6 ba
162003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4920/S3B~us~en~ ...

The first set of paint code letters/numbers listed indicate the vehicle primary body color. The second
set of paint code letters/numbers listed (if applicable) indicate a two-
tone or accent body color.
z B7 — Zinc Yellow (clear coat)
z CX — Dark Shadow Gray Metallic
z D3 — Colorado Red (clear coat)
z G2 — Redfire (water based) clear coat
z L2 — True Blue (water based) clear coat
z L5 — Azure Blue (water based) clear coat (Mach One only)
z SN — Sonic Blue (water based) clear coat
z SU — Amazon Green (water based) clear coat
z UA — Ebony (clear coat)
z YN — Silver Metallic (water based) clear coat
z Z1 — Oxford White (clear coat) Brake Codes Klj . 7 ba
162003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4920/S3B~us~en~ ...

The brake type codes are:
z2 — Four- wheel disc with anti- lock brake system (ABS)
z 3 — Traction control
z 5 — Four- wheel disc with anti- lock brake system (ABS) and traction control
Interior Trim Codes Klj . 8 ba
162003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4920/S3B~us~en~ ...

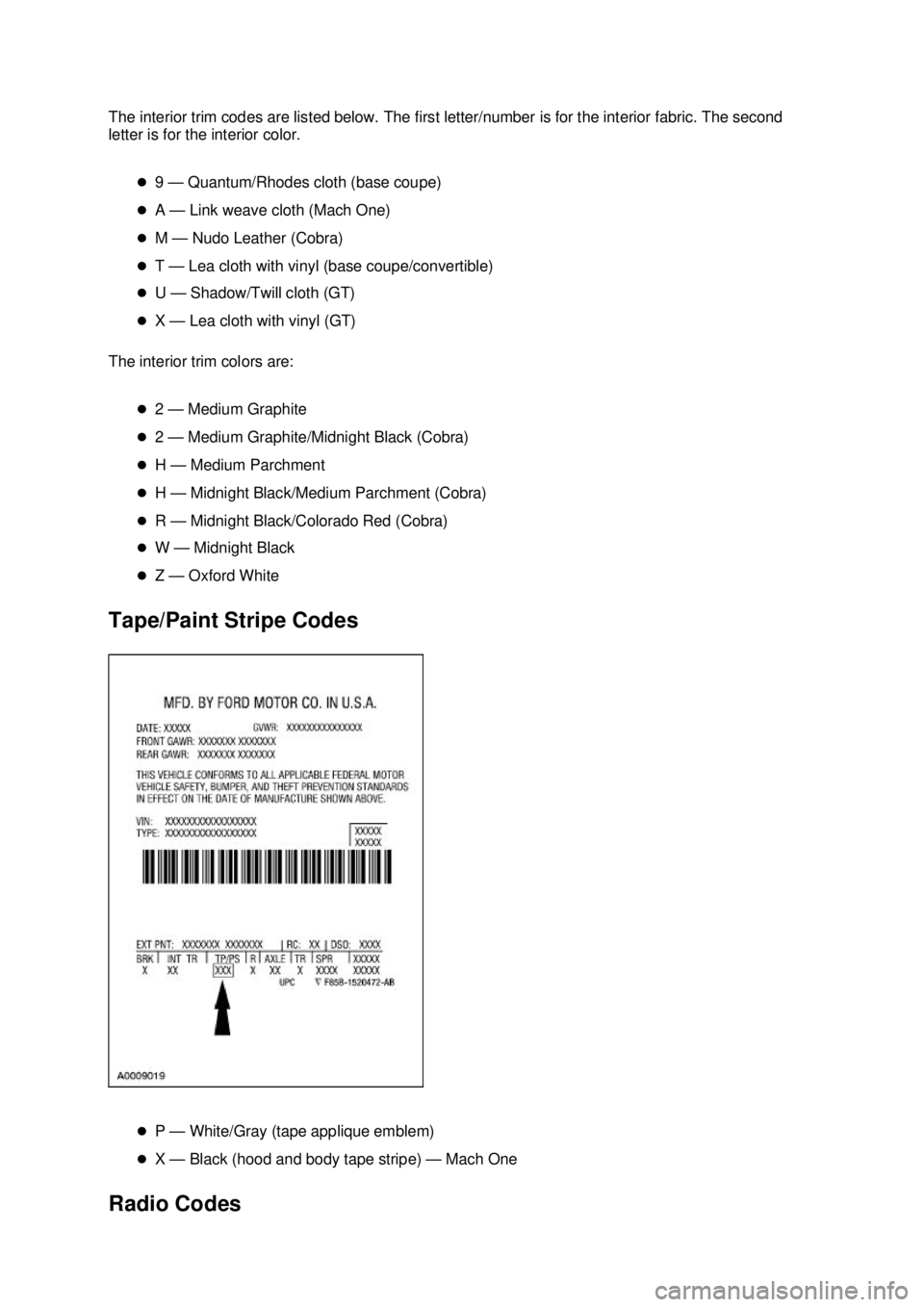

The interior trim codes are listed below. The first letter/number is for the interior fabric. The second
letter is for the interior color.
z9 — Quantum/Rhodes cloth (base coupe)
z A — Link weave cloth (Mach One)
z M — Nudo Leather (Cobra)
z T — Lea cloth with vinyl (base coupe/convertible)
z U — Shadow/Twill cloth (GT)
z X — Lea cloth with vinyl (GT)
The interior trim colors are:
z2 — Medium Graphite
z 2 — Medium Graphite/Midnight Black (Cobra)
z H — Medium Parchment
z H — Midnight Black/Medium Parchment (Cobra)
z R — Midnight Black/Colorado Red (Cobra)
z W — Midnight Black
z Z — Oxford White
Tape/Paint Stripe Codes
zP — White/Gray (tape applique emblem)
z X — Black (hood and body tape stripe) — Mach One Radio Codes Klj . 9 ba
162003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4920/S3B~us~en~ ...

The radio type codes are:
z2 — Premium electronic AM/FM stereo with compact disc (CD) player and clock
z 9 — CDX6+, AM/FM stereo with 6- disc compact disc (CD) changer and MACH 460 subwoofer
sound system
z Z — AM/FM stereo, dual media (MP3) with compact disc (CD) player
Axle Ratio Codes Klj . 10 ba
