Fig. 52: A/T Circuit
TRUNK, TAILGATE, FUEL DOOR
2003 Ford Mustang GT
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:50:34Page 53 © 2006 Mitchell Repair Information Company, LLC.
Page 4264 of 4378
Fig. 53: Trunk, Tailgate, Fuel Door Circuit
WARNING SYSTEMS
2003 Ford Mustang GT
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:50:34Page 54 © 2006 Mitchell Repair Information Company, LLC.
Page 4301 of 4378

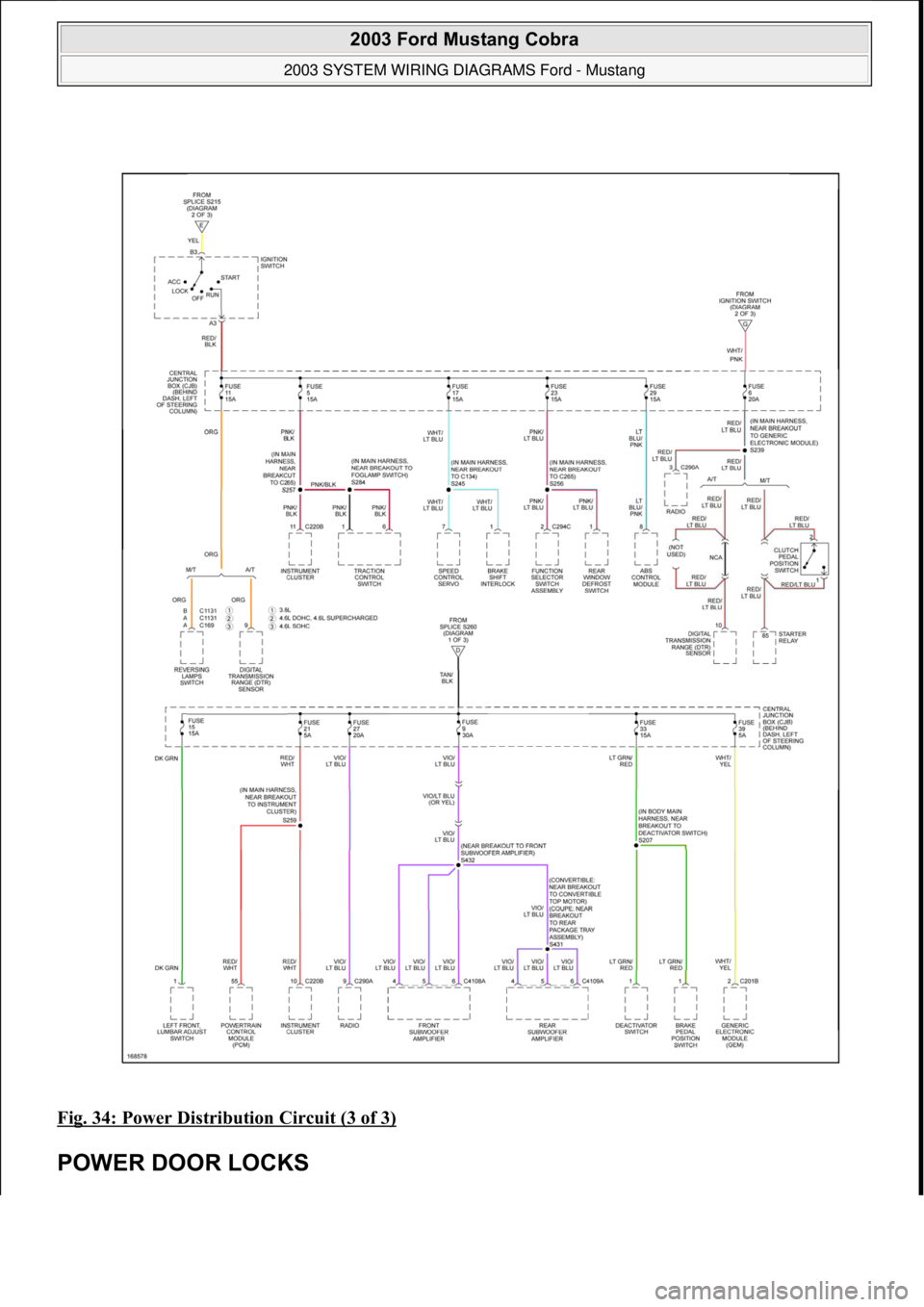

Fig. 34: Power Distribution Circuit (3 of 3)
POWER DOOR LOCKS
2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 35 © 2006 Mitchell Repair Information Company, LLC.
Page 4302 of 4378
Fig. 35: Power Door Locks Circuit
POWER MIRRORS
2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:06Page 36 © 2006 Mitchell Repair Information Company, LLC.
Page 4319 of 4378
Fig. 52: A/T Circuit
TRUNK, TAILGATE, FUEL DOOR
2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:07Page 53 © 2006 Mitchell Repair Information Company, LLC.
Page 4320 of 4378
Fig. 53: Trunk, Tailgate, Fuel Door Circuit
WARNING SYSTEMS
2003 Ford Mustang Cobra
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:47:07Page 54 © 2006 Mitchell Repair Information Company, LLC.
Page 4357 of 4378
Fig. 34: Power Distribution Circuit (3 of 3)
POWER DOOR LOCKS
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 35 © 2006 Mitchell Repair Information Company, LLC.
Page 4358 of 4378
Fig. 35: Power Door Locks Circuit
POWER MIRRORS
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 36 © 2006 Mitchell Repair Information Company, LLC.
Page 4375 of 4378
Fig. 52: A/T Circuit
TRUNK, TAILGATE, FUEL DOOR
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 53 © 2006 Mitchell Repair Information Company, LLC.
Page 4376 of 4378
Fig. 53: Trunk, Tailgate, Fuel Door Circuit
WARNING SYSTEMS
2003 Ford Mustang Mach 1
2003 SYSTEM WIRING DIAGRAMS Ford - Mustang
111
18 ноября 2011 г. 12:54:33Page 54 © 2006 Mitchell Repair Information Company, LLC.
