17. Remove the axle from the vehicle.
18.
CAUTION: Align the index marks on the driveshaft centering socket yoke and the
pinion flange.
CAUTION: Install the driveshaft with new bolts. If new bolts are not available, apply
Threadlock and Sealer EOAZ-19554- AA or equivalent meeting Ford specification WSK-
M2G351- A5 to the threads of the original bolts.
CAUTION: The driveshaft centering socket yoke fits tightly on the pinion flange
pilot. To make sure that the yoke seats squarely on the flange, tighten the bolts evenly in
a cross pattern as shown.
CAUTION: Raise the suspension to the reference marks on the rear shock
absorbers before tightening the suspension fasteners.
NOTE: Apply High Temperature Nickel Anti- Sieze Lubricant F6AZ-9L494-AA meeting Ford
specification ESE-M124A- A to the rear anti-lock brake sensor body where it will make contact
when installed.
Follow the removal procedure in reverse order.
zRefer to Section 204 - 02 for rear suspension fastener tightening specifications.
z Refer to Section 204 - 04 for wheel nut tightening specification. Klj . 5 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

5.
CAUTION: Do not under any circumstance loosen the nut to reduce preload. If it is
necessary to reduce preload, install a new differential drive pinion collapsible spacer
(4662) and nut.
Tighten the nut to set the preload.
zRotate the pinion occasionally to make sure the pinion bearings (4630) (4621) seat
correctly. Take frequent pinion bearing torque preload readings by rotating the drive
pinion gear with a Nm (inch/pound) torque wrench.
z If the preload recorded prior to disassembly is lower than the specification for used
bearings, then tighten the nut to specification. If the preload recorded prior to
disassembly is higher than the specification for used bearings, then tighten the nut to the
original reading as recorded.
z Refer to the torque specification for used pinion bearings in the Specifications portion of
this section.
6. CAUTION: Align the index- marks.
CAUTION: Install the driveshaft with new bolts. If new bolts are not available, apply
Threadlock and Sealer EOAZ-19554- AA or equivalent meeting Ford specification WSK-
M2G351- A5 to the threads of the original bolts.
CAUTION: The driveshaft centering socket yoke fits tightly on the rear axle pinion
flange pilot. To make sure that the yoke seats squarely on the flange, tighten the bolts
evenly in a cross pattern as shown.
Connect the driveshaft. For additional information, refer to Section 205 - 01 . Klj . 4 ba
52003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

5.
CAUTION: Align the index- marks.
CAUTION: Install the driveshaft with new bolts. If new bolts are not available, apply
Threadlock and Sealer EOAZ-19554- AA or equivalent meeting Ford specification WSK-
M2G351- A5 to the threads of the original bolts.
CAUTION: The driveshaft centering socket yoke fits tightly on the rear axle pinion
flange pilot. To make sure that the yoke seats squarely on the flange, tighten the bolts
evenly in a cross pattern as shown.
Connect the driveshaft and install the bolts.
6. Install the pinion nose crossmember.
7. NOTE: The following halfshaft and knuckle assembly installation steps apply to both sides of
the vehicle.
Remove the special tool. Klj . 8 ba
142003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

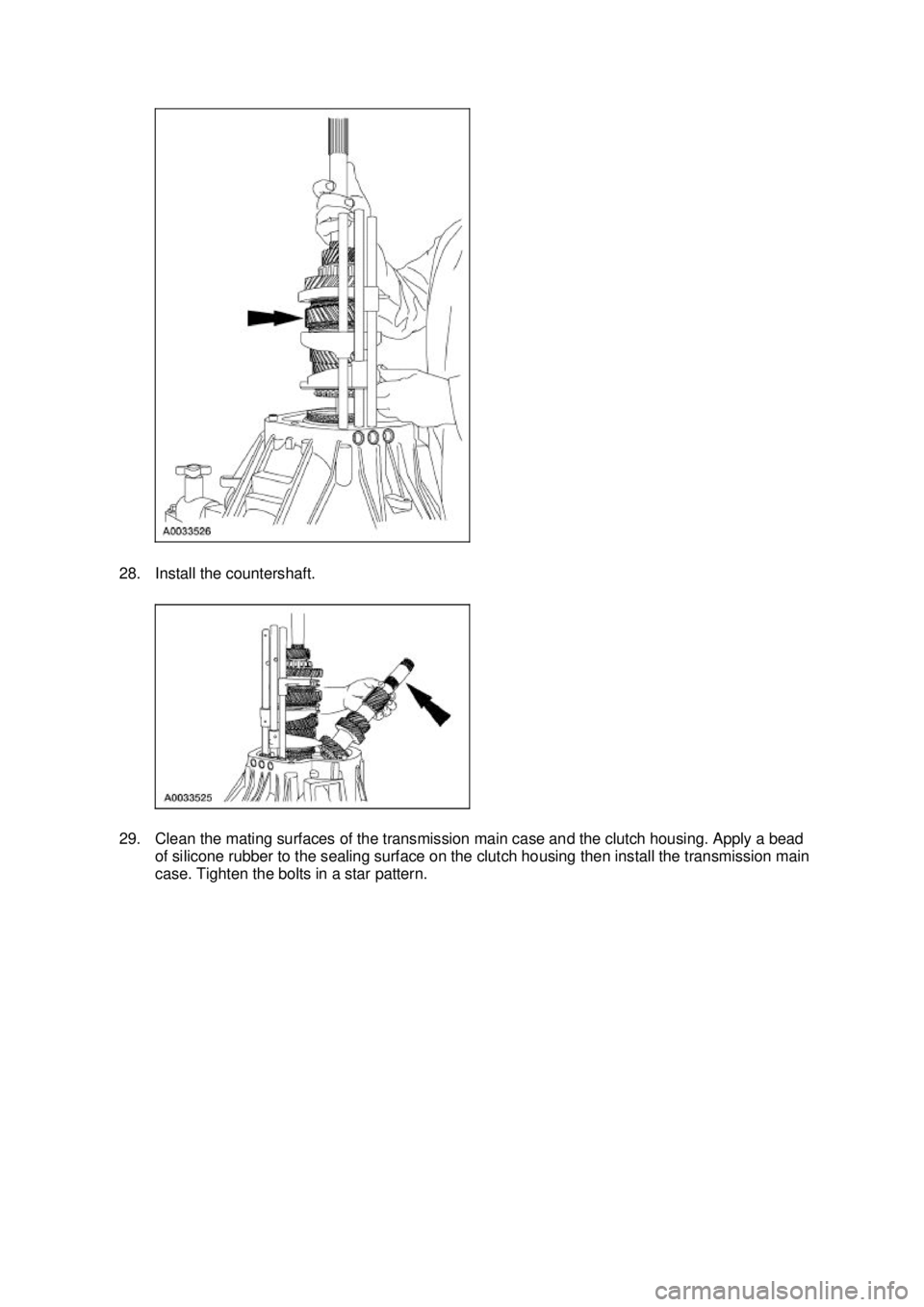

28. Install the countershaft.
29. Clean the mating surfaces of the transmission main case and the clutch housing. Apply a bead
of silicone rubber to the sealing surface on the clutch housing then install the transmission main
case. Tighten the bolts in a star pattern. Klj . 10 ba
192003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

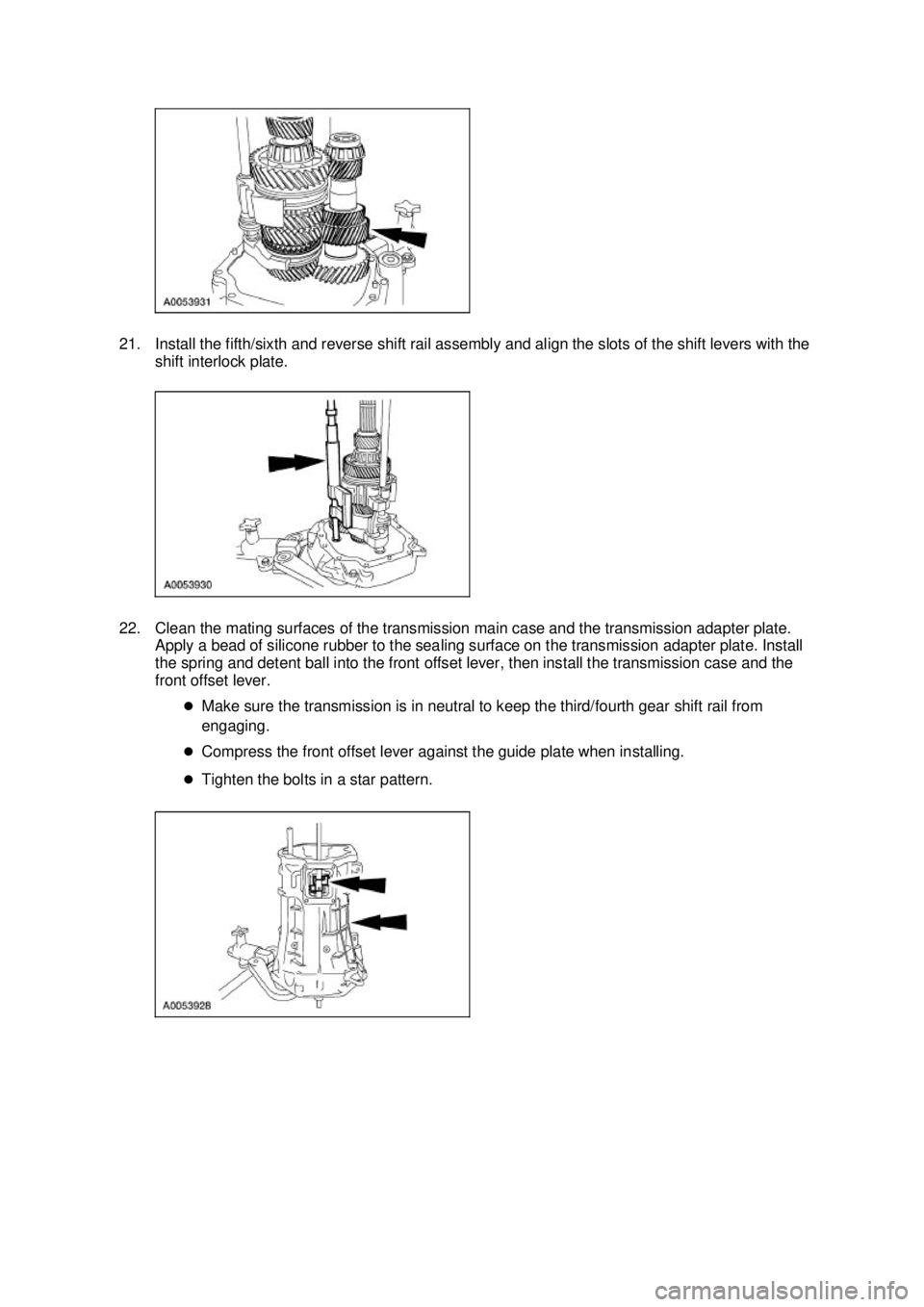

21. Install the fifth/sixth and reverse shift rail assembly and align the slots of the shift levers with the
shift interlock plate.
22. Clean the mating surfaces of the transmission main case and the transmission adapter plate. Apply a bead of silicone rubber to the sealing surface on the transmission adapter plate. Install
the spring and detent ball into the front offset lever, then install the transmission case and the
front offset lever.
zMake sure the transmission is in neutral to keep the third/fourth gear shift rail from
engaging.
z Compress the front offset lever against the guide plate when installing.
z Tighten the bolts in a star pattern. Klj . 9 ba
182003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
