gas type FORD MUSTANG 2003 Owner's Manual

REMOVAL AND INSTALLATION
Throttle Body
Removal and Installation
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when
working on or near any fuel related components. Highly flammable mixtures are always present
and can ignite. Failure to follow these instructions can result in personal injury.
CAUTION: The throttle body bore and plate area have a special coating and cannot be
cleaned.
1. Remove the air cleaner outlet tube. For additional information, refer to Section 303 - 12 .
2. Disconnect the throttle position (TP) sensor and the idle air control (IAC) valve electrical connectors.
3. Disconnect the accelerator controls. zDisconnect the accelerator cable.
z If equipped, disconnect the speed control cable.
4. NOTE: Discard the throttle body gasket after removing the throttle body. Remove the bolts and the throttle body. SECTION 303-
04C: Fuel Charging and Controls — Cobra 4.6L (4V) 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Fuel Charging Wiring Harness
Removal and Installation
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when
working on or near any fuel related components. Highly flammable mixtures are always present
and can ignite. Failure to follow these instructions can result in personal injury.
1. Disconnect the battery ground cable.
2. Remove the exhaust gas recirculation (EGR) valve and the exhaust manifold to EGR valve tube. For additional information, refer to Section 303 - 08 .
3. Remove the bolts and the LH ignition coil cover.
4. Disconnect the LH ignition coil electrical connectors. 5. Disconnect the barometric pressure (BARO) sensor electrical connector. SECTION 303-
04C: Fuel Charging and Controls — Cobra 4.6L (4V) 2003 Mustang Workshop Manual Klj . 1 ba
72003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Fuel Injection Supply Manifold and Fuel Injector
Removal and Installation
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when
working on or near any fuel related components. Highly flammable mixtures are always present
and can ignite. Failure to follow these instructions can result in personal injury.
WARNING: Fuel in the fuel system remains under high pressure even when the engine is
not running. Before working on or disconnecting any of the fuel lines or fuel system
components, the fuel system pressure must be relieved. Failure to follow these instructions
can result in personal injury.
1. Disconnect the battery ground cable.
2. Remove the air cleaner outlet tube. For additional information, refer to Section 303 - 12 .
3. Release the fuel pressure. For additional information, refer to Section 310 - 00 .
4. Disconnect the fuel supply hose spring lock coupling. For additional information, refer to Section 310 - 00 .
5. Remove the exhaust gas recirculation (EGR) valve and the exhaust manifold- to-EGR valve
tube. For additional information, refer to Section 303 - 08 .
6. Remove the throttle body and spacer assembly.
7. Disconnect the vacuum hose.
SECTION 303-
04C: Fuel Charging and Controls — Cobra 4.6L (4V) 2003 Mustang Workshop Manual Material
Item Specification
SAE 5W-
20 Premium Synthetic
Blend Motor Oil
XO- 5W20- QSP WSS-
M2C153-
H Klj . 1 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

REMOVAL AND INSTALLATION
Throttle Body
Removal
WARNING: Do not smoke or carry lighted tobacco or open flame of any type when
working on or near any fuel related components. Highly flammable mixtures are always present
and can ignite. Failure to follow these instructions can result in personal injury.
CAUTION: The throttle body bore and plate area have a special coating and cannot be
cleaned.
1. Remove the air intake scoop bracket. For additional information, refer to Section 303 - 12 .
2. Remove the air cleaner outlet tube. For additional information, refer to Section 303 - 12 .
3. Disconnect the throttle position (TP) sensor electrical connector.
4. Disconnect the accelerator controls. zDisconnect the accelerator cable.
z Disconnect the speed control cable.
z Disconnect the return spring.
5. NOTE: Discard the throttle body gasket after removing the throttle body.
Remove the throttle body. zRemove the four bolts.
SECTION 303-
04D: Fuel Charging and Controls — Mach I 4.6L (4V) 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Engine Emission Control
CAUTION: Do not remove any part of the engine emission control system. Operating the
engine without the engine emission control system will reduce fuel economy and engine
ventilation. This will weaken engine performance and shorten engine life.
The engine emission control consists of the:
zpositive crankcase ventilation (PCV) system.
z exhaust gas recirculation (EGR) system.
Typical Vehicle Emission Control Information (VECI) Decal
The Vehicle Emission Control Information (VECI) decal shows:
zthe components of the emission control system.
z the correct vacuum hose routing.
SECTION 303-
08: Engine Emission Control 2003 Mustang Workshop Manual Item Part Number Description
1 — Adjustment procedure notes
2 — Ignition timing specification
3 — Engine vacuum hose routing (typical)
4 — Spark plug gap specification
5 — Engine type Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

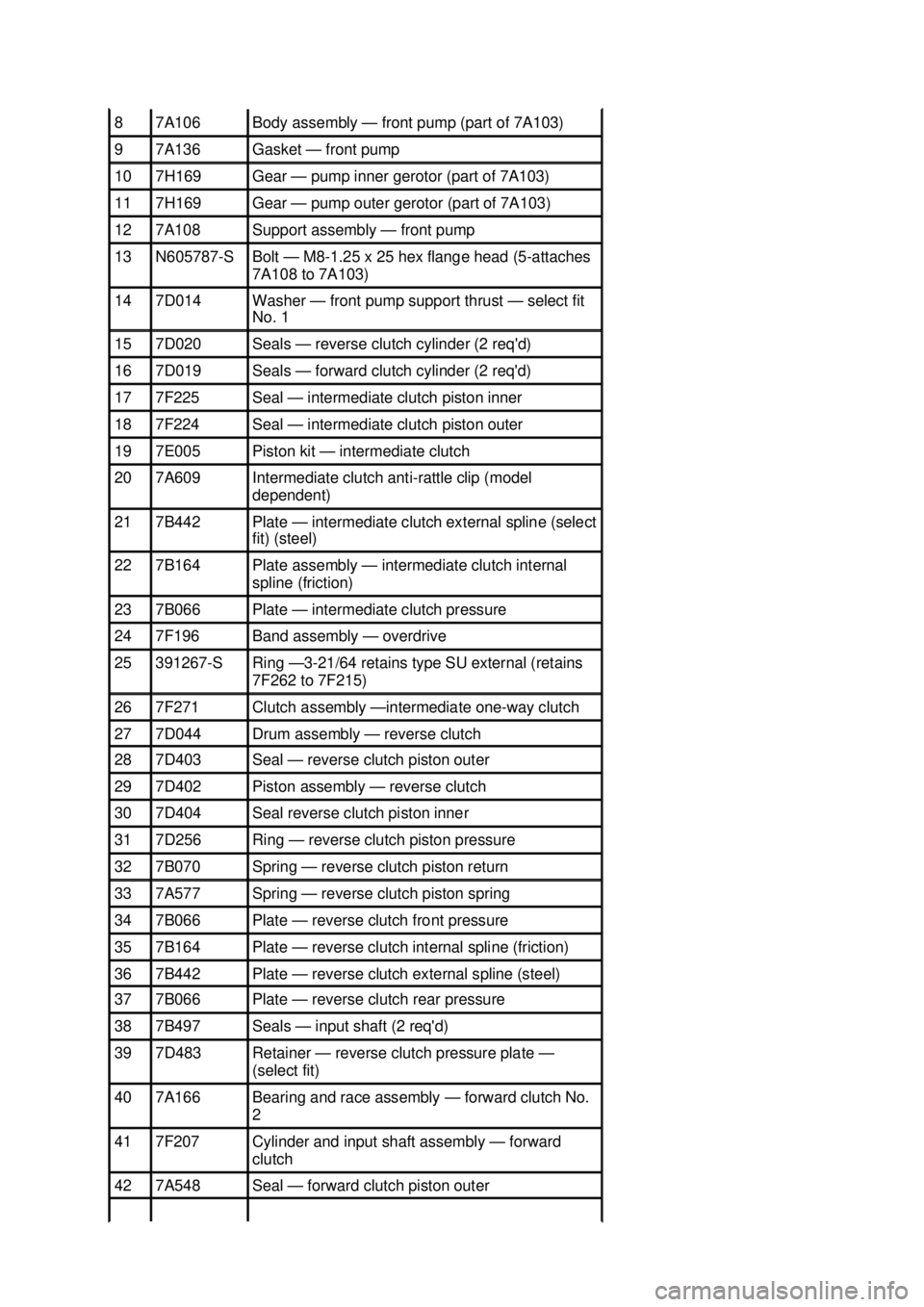

8 7A106 Body assembly —
front pump (part of 7A103) 9 7A136 Gasket —
front pump 10 7H169 Gear —
pump inner gerotor (part of 7A103) 11 7H169 Gear —
pump outer gerotor (part of 7A103) 12 7A108 Support assembly —
front pump 13 N605787-
S Bolt —
M8-1.25 x 25 hex flange head (5- attaches
7A108 to 7A103) 14 7D014 Washer —
front pump support thrust — select fit
No. 1 15 7D020 Seals —
reverse clutch cylinder (2 req'd) 16 7D019 Seals —
forward clutch cylinder (2 req'd) 17 7F225 Seal —
intermediate clutch piston inner 18 7F224 Seal —
intermediate clutch piston outer 19 7E005 Piston kit —
intermediate clutch 20 7A609 Intermediate clutch anti-
rattle clip (model
dependent) 21 7B442 Plate —
intermediate clutch external spline (select
fit) (steel) 22 7B164 Plate assembly —
intermediate clutch internal
spline (friction) 23 7B066 Plate —
intermediate clutch pressure 24 7F196 Band assembly —
overdrive 25 391267-
S Ring —3-
21/64 retains type SU external (retains
7F262 to 7F215) 26 7F271 Clutch assembly —intermediate one-
way clutch 27 7D044 Drum assembly — reverse clutch
28 7D403 Seal —
reverse clutch piston outer 29 7D402 Piston assembly —
reverse clutch 30 7D404 Seal reverse clutch piston inner
31 7D256 Ring —
reverse clutch piston pressure 32 7B070 Spring —
reverse clutch piston return 33 7A577 Spring —
reverse clutch piston spring 34 7B066 Plate —
reverse clutch front pressure 35 7B164 Plate —
reverse clutch internal spline (friction) 36 7B442 Plate —
reverse clutch external spline (steel) 37 7B066 Plate —
reverse clutch rear pressure 38 7B497 Seals —
input shaft (2 req'd) 39 7D483 Retainer —
reverse clutch pressure plate —
( select fit) 40 7A166 Bearing and race assembly —
forward clutch No.
2 41 7F207 Cylinder and input shaft assembly —
forward
clutch 42 7A548 Seal —
forward clutch piston outer Klj . 3 ba
82003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

144 7G326 Nested spring
— 1-2 (inner spring) (vehicle
dependent) 145 7F247 Cover and seal assembly — 1-
2 accumulator 146 7384 Ring — 2-
1/16 retaining type HU internal (retains
7H300 to 7005) 147 N807178-
S1000 Bolt —
M6-1.0 x 18 hex head (12- attaches
reinforcing plate to valve body) 148 7F282 Plate —
valve body reinforcing (part of 7A100) 149 7C155 Gasket —
valve body separator upper 150 7A008 Plate —
control valve body separator (part of
7A100) 151 7D100 Gasket —
valve body separator lower 152 7D174 Valve —
converter drainback 153 7A091 Body assembly —
main control 154 7H173 Gasket —
valve body cover plate 155 7C034 Plate —
valve body cover (part of 7A100) 156 N807178-
S1000 Bolt —
M6-1.0 x 18 hex head (11- attaches 7C034
to 7A100 (part of 7A100) 157 7A100 Control assembly —
main (model dependent) 158 7A098 Filter and seal assembly —
fluid 159 7A191 Gasket —
transmission pan 160 7A194 Pan — transmission
161 N605785-
S1036 Bolt —
M8-1.25 x 18 hex flange head (14-
attaches 7A194 to 7005) 162 7L027 Magnet —
ceramic case (part of 7A194) 163 N808947-
S1300 Bolt —
M8-1.25 x 46 hex shoulder pilot (2-
attaches 7C034 to 7A100) 164 N807179-
S1000 Bolt —
M6-1.0 x 52 hex flange head (12- attaches
7A100 to 7005) 165 7H111 Retainer — solenoid
166 7E195 Ball —
1/4 diameter coast booster valve shuttle (8
req'd) 167 7H187 Screen —
solenoid pressure supply 168 N800670-
S1000 Bolt —
M6-1.0 x 40 hex flange head (13- attaches
7A100 to 7005) 169 7E332 Spring assembly —
manual valve detent 170 7Z276 Seal —
0.864 x 0.070 O- ring (2 req'd) 171 7G276 Bulkhead assembly — wiring connector
172 7G276 Bulkhead assembly —
connector (molded lead
frame) 173 7Z484 Seal —
6.07 x 1.70 O- ring (2 req'd) 174 7G484 Solenoid valve —
transmission shift 175 7G136 Solenoid valve —
transmission torque converter
clutch 176 N807178-
S1000 Bolt —
M6-1.0 x 16 hex head (retains 7D136 and
7G484 to 7A100) Klj . 7 ba
82003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

following areas of possible leakage should also be checked to determine if engine oil leakage is
causing the concern.
a. Leakage at the engine valve cover gasket may allow oil to flow over the torque converter housing or seep down between the torque converter housing and cylinder block causing oil to
be present in or at the bottom of the torque converter housing.
b. Oil galley plug leaks will allow oil to flow down the rear face of the cylinder block to the bottom of the torque converter housing.
c. Leakage at the crankshaft rear oil seal will work back to the flexplate, and then into the torque converter housing.
d. Leakage at engine oil pressure sensor.
Leak Check Test 1. Remove the fluid level indicator and note the color of the fluid. Original factory fill fluid is dyed red to aid in determining if leakage is from the engine or transmission. Unless a considerable
amount of makeup fluid has been added or the fluid has been changed, the red color should
assist in pinpointing the leak.
2. Remove the torque converter housing cover. Clean off any fluid from the top and bottom of the torque converter housing, front of the case and rear face of the engine and oil pan. Clean the
torque converter area by washing with a suitable nonflammable solvent and blow dry with
compressed air.
3. Wash out the torque converter housing, the front of the flexplate and the converter drain plugs. The torque converter housing may be washed out using cleaning solvent and a squirt- type oil
can. Blow all washed areas dry with compressed air.
4. Start and run the engine until the transmission reaches its normal operating temperature. Observe the back of the cylinder block and top of the torque converter housing for evidence of
fluid leakage. Raise the vehicle on a hoist; refer to Section 100 - 02 and run the engine at fast
idle, then at engine idle, occasionally shifting to the Overdrive and Reverse ranges to increase
pressure within the transmission. Observe the front of the flexplate, back of the cylinder block
(in as far as possible), and inside the torque converter housing and front of the case. Run the
engine until fluid leakage is evident and the probable source of leakage can be determined.
Leak Check Test With Black Light Used With 12 Volt Master UV Diagnostic Inspection Kit
Oil soluble aniline or fluorescent dyes premixed at the rate of 2.5ml (1/2 teaspoon) of dye powder to
0.235L (1/2 pint) of transmission fluid have proved helpful in locating the source of fluid leakage. Such
dyes may be used to determine whether an engine oil or transmission fluid leak is present, or if the
fluid in the fluid cooler leaks into the engine cooling system. A black light must be used with the
fluorescent dye solution. Klj . 4 ba
52003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2748/S3B~us~en~ ...

DESCRIPTION AND OPERATION

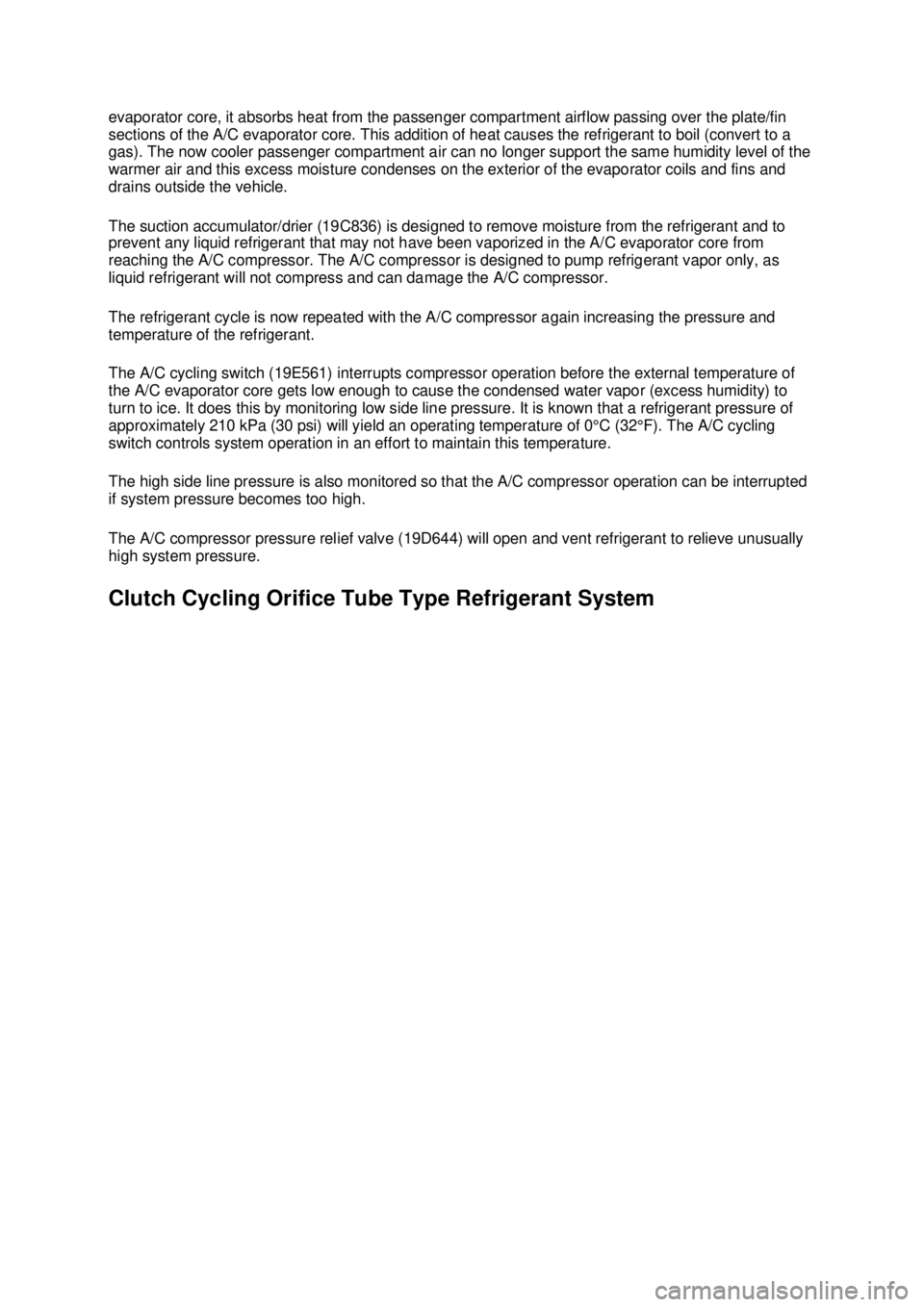

Climate Control System
WARNING: To avoid accidental deployment and possible injury, the air bag system
backup power supply must be depleted before repairing any climate control components. To
deplete the backup power supply, disconnect the battery ground cable and wait one minute.
Failure to follow these instructions may result in personal injury.
WARNING: Carbon monoxide is colorless, odorless and dangerous. If it is necessary to
operate the engine with the vehicle in a closed area such as a garage, always use an exhaust
collector to vent the exhaust gases outside the closed area.
WARNING: R- 134a is classified as a safe refrigerant, but misuse can make it dangerous.
The following precautions must be observed:
zAlways wear safety goggles when repairing an air conditioning system.
z Avoid contact with liquid refrigerant R- 134a. R-134a vaporizes at approximately - 25°C (-
13°F) under atmospheric pressure and it will freeze skin tissue.
z Never allow refrigerant R- 134a gas to escape in quantity in an occupied space. R- 134a is
non- toxic, but it will displace the oxygen needed to support life.
z Never use a torch in an atmosphere containing R- 134a gas. R-134a is non-toxic at all
normal conditions, but when it is exposed to high temperatures, such as a torch flame, it
decomposes. During decomposition it releases irritation and toxic gases (as described in
the MSDS sheet from the manufacturer). Decomposition products are hydrofluoric acid,
carbon dioxide and water.
z Do not allow any portion of the charged air conditioning system to become too hot. The
pressure in an air conditioning system rises as the temperature rises and temperatures
of approximately 85°C (185°F) can be dangerous.
z Allow the engine to cool sufficiently prior to carrying out maintenance or serious burns
and injury can occur.
CAUTION: To avoid damaging the vehicle or A/C components, the following precautions
must be observed:
zThe A/C refrigerant of all vehicles must be identified and analyzed prior to refrigerant
charging. Failure to due so can contaminate the shop bulk refrigerant and other vehicles.
z Do not add R- 12 refrigerant to an A/C system that requires the use of R- 134a refrigerant.
These two types of refrigerant must never be mixed. Doing so can damage the A/C
system.
z Charge the A/C system with the engine running only at the low- pressure side to prevent
refrigerant slugging from damaging the A/C compressor.
z Use only R- 134a refrigerant. Due to environmental concerns, when the air conditioning
system is drained, the refrigerant must be collected using refrigerant recovery/recycling
equipment. Federal law REQUIRES that R- 134a be recovered into appropriate recovery
equipment and the process be conducted by qualified technicians who have been
certified by an approved organization, such as MACS, ASI etc. Use of a recovery machine
dedicated to R- 134a is necessary to reduce the possibility of oil and refrigerant
incompatibility concerns. Refer to the instructions provided by the equipment manufacturer when removing refrigerant from or charging the air conditioning system. SECTION 412-
00: Climate Control System - General Information 2003 Mustang Workshop Manual Klj . 1 ba
112003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...

evaporator core, it absorbs heat from the passenger compartment airflow passing over the plate/fin
sections of the A/C evaporator core. This addition of heat causes the refrigerant to boil (convert to a
gas). The now cooler passenger compartment air can no longer support the same humidity level of the
warmer air and this excess moisture condenses on the exterior of the evaporator coils and fins and
drains outside the vehicle.
The suction accumulator/drier (19C836) is designed to remove moisture from the refrigerant and to
prevent any liquid refrigerant that may not have been vaporized in the A/C evaporator core from
reaching the A/C compressor. The A/C compressor is designed to pump refrigerant vapor only, as
liquid refrigerant will not compress and can damage the A/C compressor.
The refrigerant cycle is now repeated with the A/C compressor again increasing the pressure and
temperature of the refrigerant.
The A/C cycling switch (19E561) interrupts compressor operation before the external temperature of
the A/C evaporator core gets low enough to cause the condensed water vapor (excess humidity) to
turn to ice. It does this by monitoring low side line pressure. It is known that a refrigerant pressure of
approximately 210 kPa (30 psi) will yield an operating temperature of 0°C (32°F). The A/C cycling
switch controls system operation in an effort to maintain this temperature.
The high side line pressure is also monitored so that the A/C compressor operation can be interrupted
if system pressure becomes too high.
The A/C compressor pressure relief valve (19D644) will open and vent refrigerant to relieve unusually
high system pressure.
Clutch Cycling Orifice Tube Type Refrigerant System Klj . 4 ba
112003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_2308/S3B~us~en~ ...
