coolant FORD MUSTANG 2003 Owner's Guide

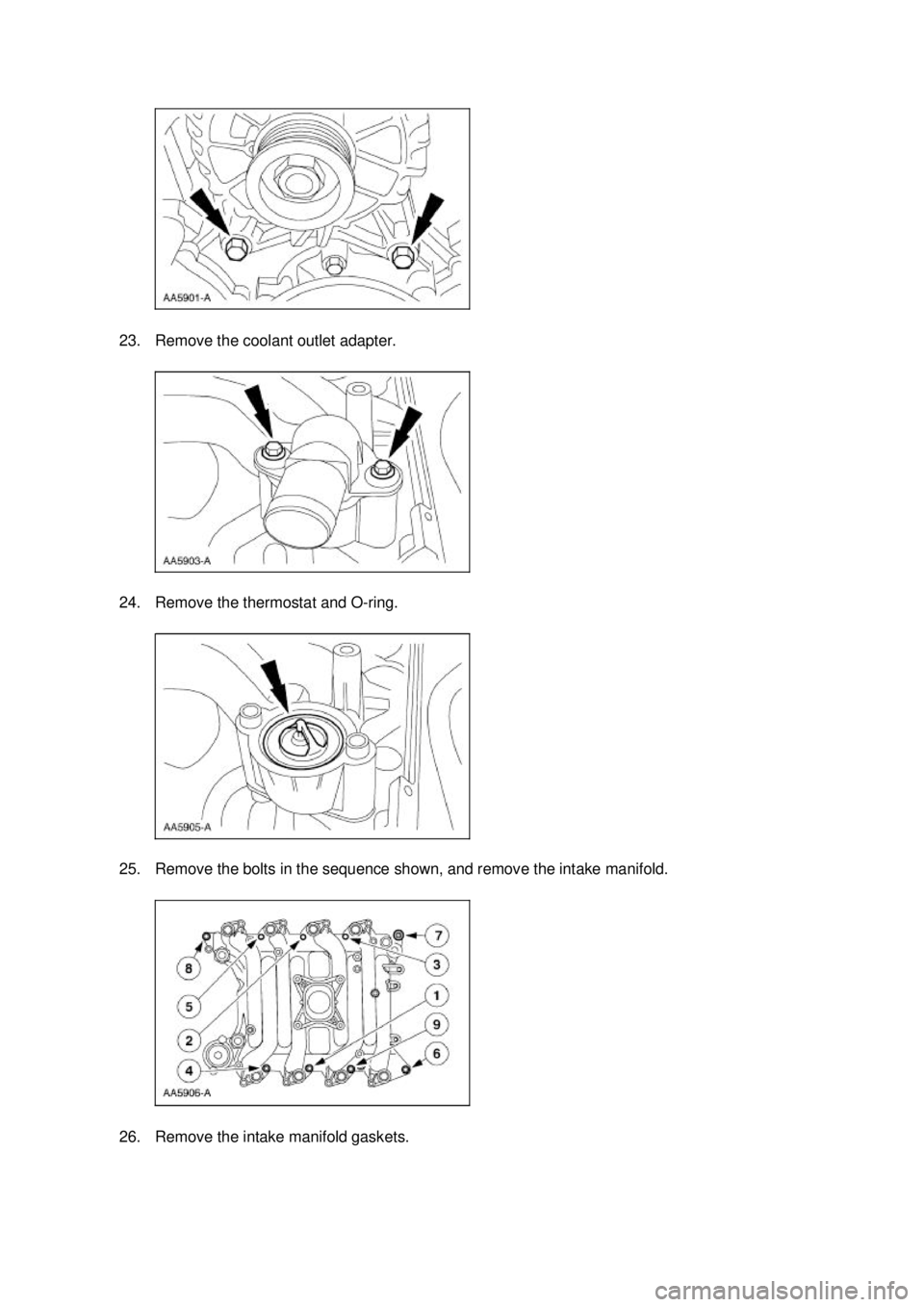

23. Remove the coolant outlet adapter.
24. Remove the thermostat and O-
ring.
25. Remove the bolts in the sequence shown, and remove the intake manifold.
26. Remove the intake manifold gaskets. Klj . 8 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

27.
CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other
abrasive means to clean sealing surfaces. These tools will cause scratches and gouges
which make leak paths.
Clean the sealing surfaces.
28. Remove the coolant bypass tube. 1. Remove the nut.
2. Remove the coolant bypass tube.
29. Remove the RH engine mount. Klj . 9 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

30.
NOTE: LH shown; RH similar.
Using a suitable container, drain coolant from the engine block. zInstall the drain plugs when finished.
31. Remove the four bolts and the power steering pump.
RH cylinder head 32. Remove the RH exhaust manifold. 1. Remove the RH exhaust manifold nuts.
2. Remove the RH exhaust manifold.
3. Remove the RH exhaust manifold gasket and discard. Klj . 10 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

43. Using the special tool, remove the crankshaft pulley.
44. Remove the coolant pump pulley.
1. Remove the coolant pump pulley bolts.
2. Remove the coolant pump pulley.
45. Remove the bolts and belt idler pulleys.
46. Using the special tool, remove the engine front cover seal. Klj . 14 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Both cylinder heads
58. CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other
abrasive means to clean the sealing surfaces. These tools cause scratches and gouges
that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.
CAUTION: Observe all warnings or cautions and follow all application directions
contained on the packaging of the silicone gasket remover and the metal surface prep.
NOTE: If there is no residual gasket material present, metal surface prep can be used to clean
and prepare the surfaces.
Clean the cylinder head- to-cylinder block mating surfaces of both the cylinder head and the
cylinder block. 1. Remove any large deposits of silicone or gasket material with a plastic scraper.
2. Apply silicone gasket remover, following package directions, and allow to set for several minutes.
3. Remove the silicone gasket remover with a plastic scraper. A second application of silicone gasket remover may be required if residual traces of silicone or gasket material
remain.
4. Apply metal surface prep, following package directions, to remove any remaining traces of oil or coolant, and to prepare the surfaces to bond with the new gasket. Do not attempt
to make the metal shiny. Some staining of the metal surfaces is normal.
59. NOTE: The straightedge used must be flat within 0.0051 mm (0.0002 in) per foot of tool length.
Support the cylinder head on a bench with the head gasket side up. Inspect all areas of the
deck face with a straightedge, paying particular attention to the oil pressure feed area. The
cylinder head must not have depressions deeper than 0.0254 mm (0.001 in) across a 38.1 mm
(1.5 in) square area, or scratches more than 0.0254 mm (0.001 in) . Klj . 20 ba
212003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

16. Disconnect the vacuum line to the fuel pressure sensor. Item Part Number Description
1 — To crankshaft position sensor
2 — To A/C compressor
3 — To radio ignition interference capacitor (2)
4 — To fuel injectors (8)
5 — To ignition coils (8)
6 — To engine coolant temperature sensor
7 — To throttle position sensor
8 — To idle air control valve
9 — To EGR vacuum regulator
10 — To differential pressure feedback EGR
11 — To fuel pressure regulator
12 — Fuel injection ground
13 — To generator
14 — To camshaft position sensor
15 — To body
16 — To heated oxygen sensor (2)
17 — Engine bulkhead connector
18 — To low coolant sensor
19 — To body
20 — To power distribution box
21 — To body Klj . 6 ba
242003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

31.
NOTE: One side shown, other side similar.
Using a suitable container, drain coolant from the engine block. zInstall the drain plugs when finished.
32. Remove the four bolts and the power steering pump.
33. Remove the compressor. 1. Remove the bolts.
2. Remove the compressor. Klj . 11 ba
242003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

NOTE:
Before assembling the cylinder block, all sealing surfaces must be free from chips, dirt, paint
and foreign material. Also, make sure the coolant and oil passages are clear.
5. Install the crankshaft upper main bearings into the cylinder block and lubricate them with clean engine oil.
6. NOTE: Do not install the upper thrust washer until the crankshaft is installed. Refer to Step 3.
NOTE: Do not install the upper thrust washer until the crankshaft (6303) is installed. Refer to
Step 3.
Install the crankshaft onto the upper main bearings. Klj . 5 ba
362003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

96. Install the RH and LH special tools.
97. Using the special tool, remove the engine from the stand.
98. Using the special tool, install the crankshaft rear main seal.
zLubricate the oil seal using clean engine oil. 5 — To ignition coils (8)
6 — To engine coolant temperature sensor
7 — To throttle position sensor
8 — To idle air control valve
9 — To EGR vacuum regulator
10 — To differential pressure feedback EGR
11 — To fuel pressure regulator
12 — Fuel injection ground
13 — To generator
14 — To camshaft position sensor
15 — To body
16 — To heated oxygen sensor (2)
17 — Engine bulkhead connector
18 — To low coolant sensor
19 — To body
20 — To power distribution box
21 — To body Klj . 34 ba
362003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

z
Stage 3: Tighten an additional 60 degrees.
29. Install the belt idler pulleys.
30. Lubricate the engine front cover and the front oil seal inner lip with clean engine oil.
31. Using the special tool, install the front oil seal.
32. Install the coolant pump pulley and bolts. Klj . 12 ba
