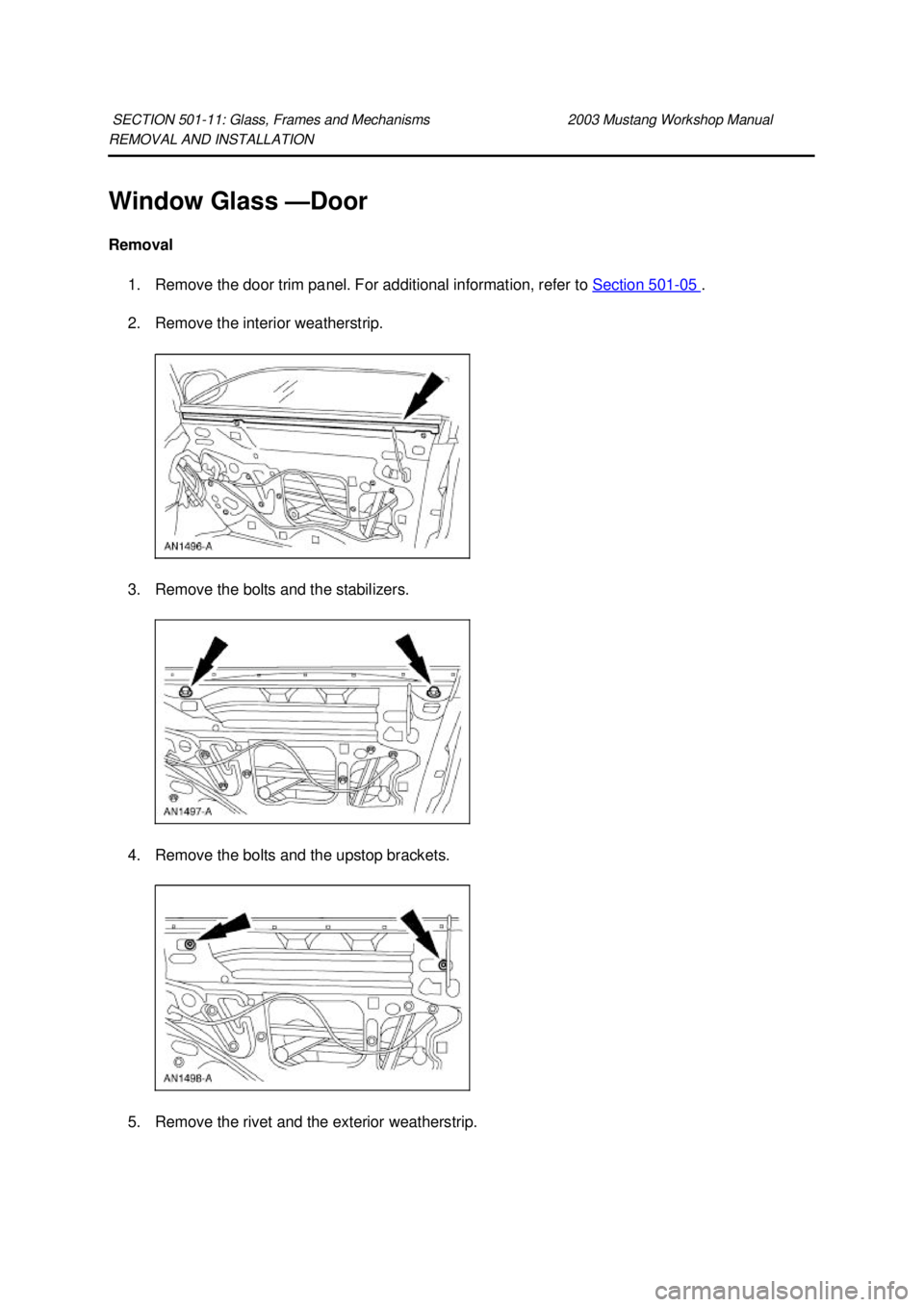

REMOVAL AND INSTALLATION
Window Glass —
Door
Removal 1. Remove the door trim panel. For additional information, refer to Section 501 - 05 .
2. Remove the interior weatherstrip.
3. Remove the bolts and the stabilizers.
4. Remove the bolts and the upstop brackets.
5. Remove the rivet and the exterior weatherstrip.
SECTION 501-
11: Glass, Frames and Mechanisms 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

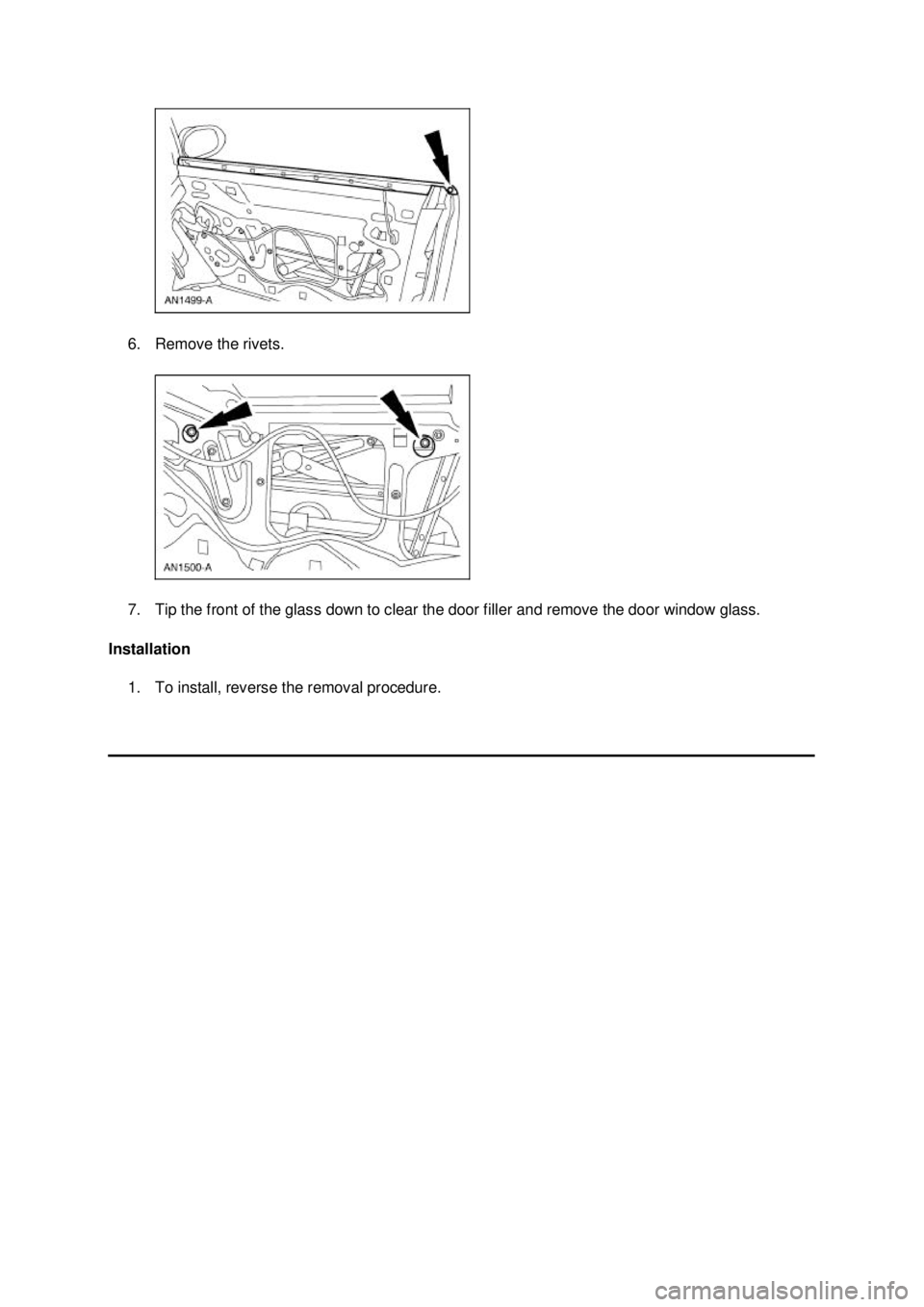

6. Remove the rivets.
7. Tip the front of the glass down to clear the door filler and remove the door window glass.
Installation 1. To install, reverse the removal procedure. Klj . 2 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

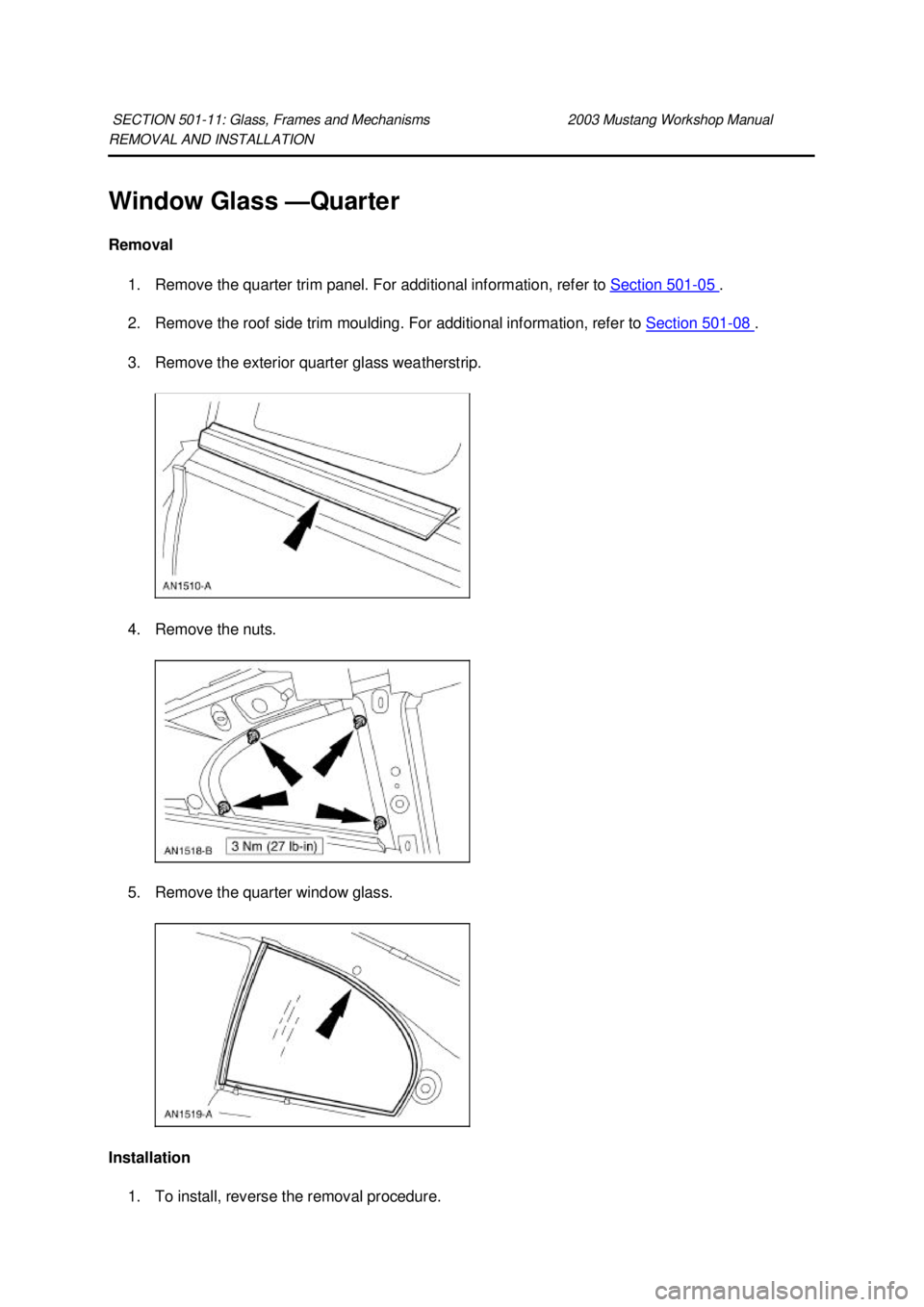

REMOVAL AND INSTALLATION
Window Glass —
Quarter
Removal 1. Remove the quarter trim panel. For additional information, refer to Section 501 - 05 .
2. Remove the roof side trim moulding. For additional information, refer to Section 501 - 08 .
3. Remove the exterior quarter glass weatherstrip.
4. Remove the nuts.
5. Remove the quarter window glass.
Installation 1. To install, reverse the removal procedure.
SECTION 501-
11: Glass, Frames and Mechanisms 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

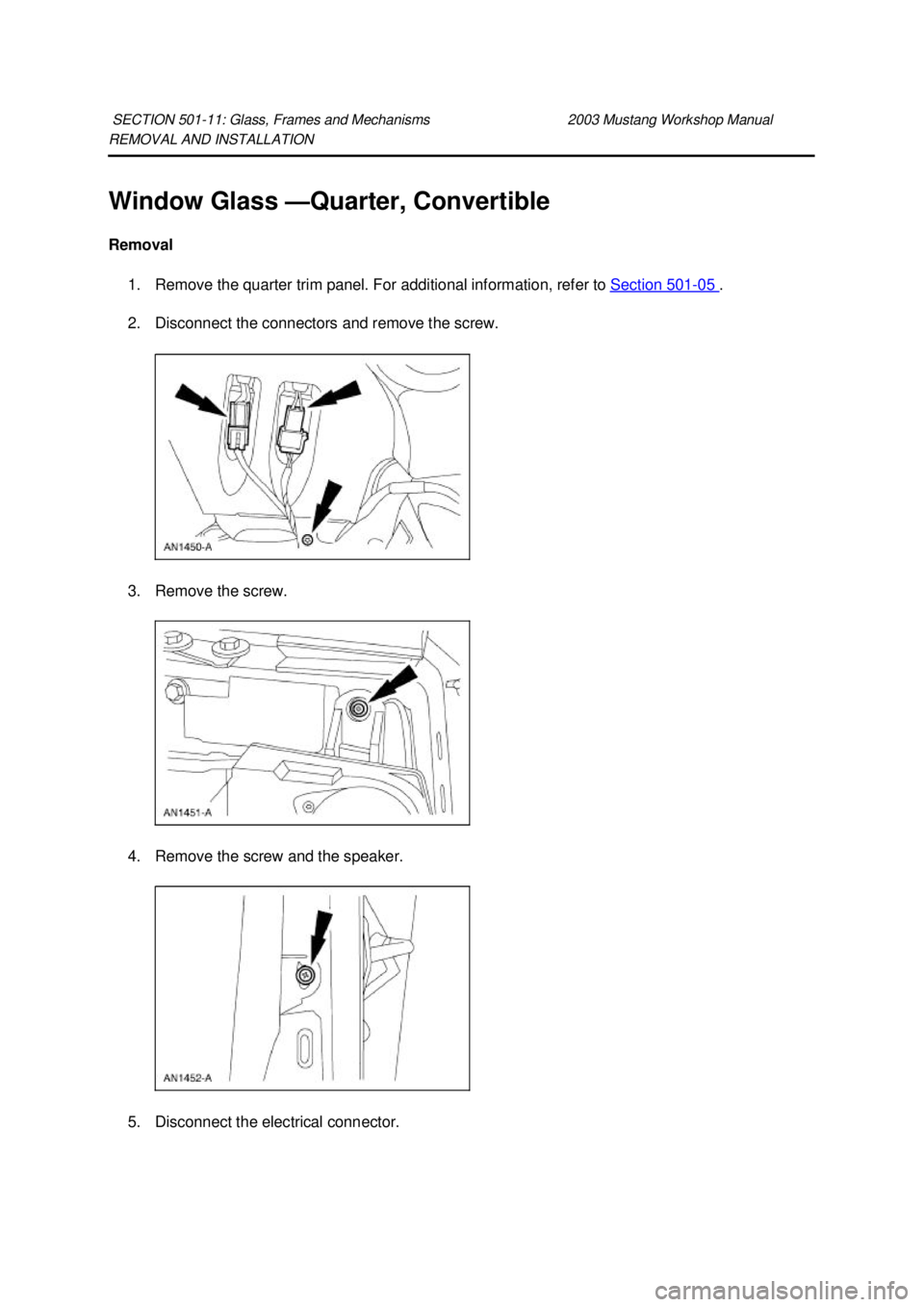

REMOVAL AND INSTALLATION
Window Glass —
Quarter, Convertible
Removal 1. Remove the quarter trim panel. For additional information, refer to Section 501 - 05 .
2. Disconnect the connectors and remove the screw.
3. Remove the screw.
4. Remove the screw and the speaker.
5. Disconnect the electrical connector.
SECTION 501-
11: Glass, Frames and Mechanisms 2003 Mustang Workshop Manual Klj . 1 ba
32003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

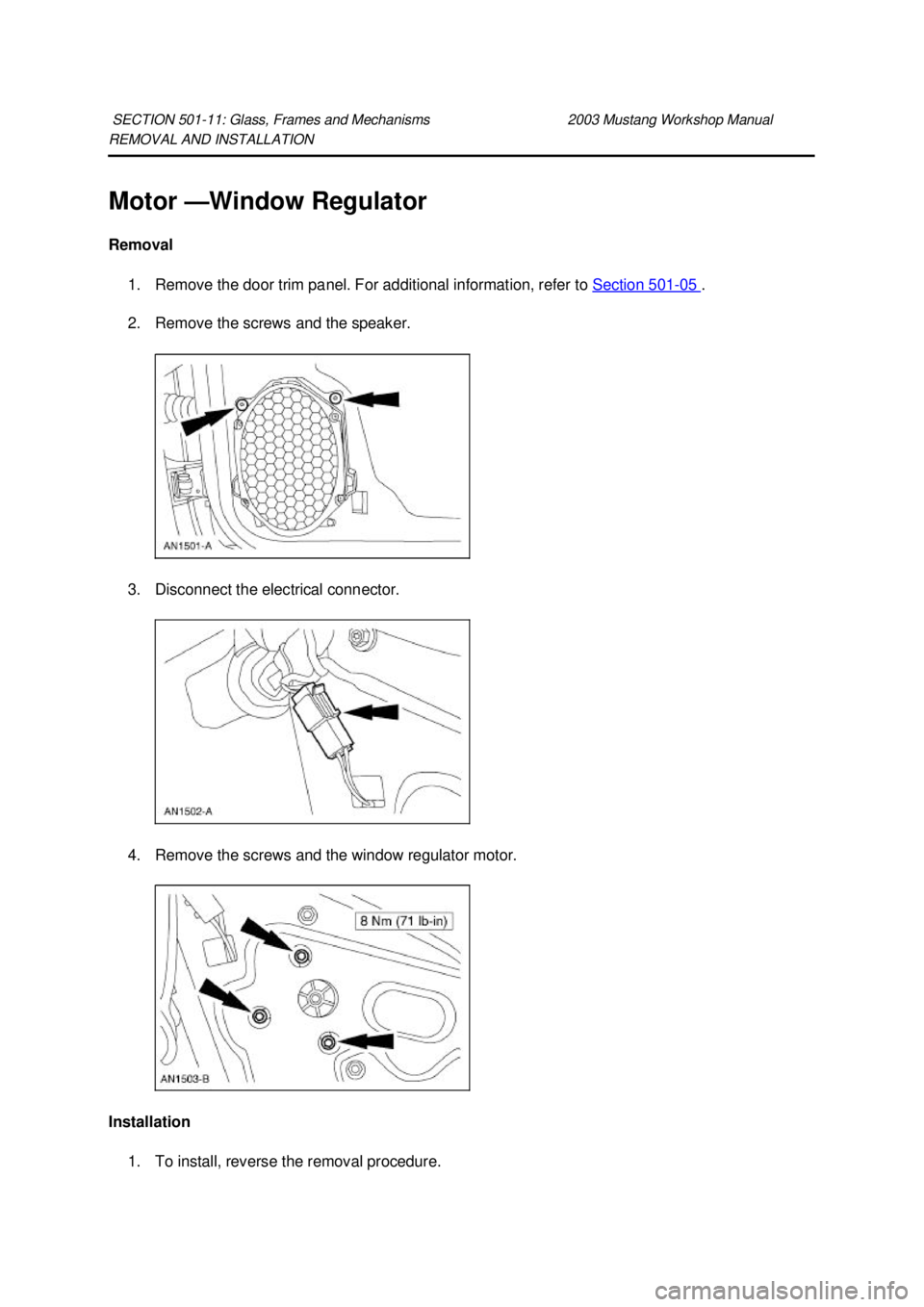

REMOVAL AND INSTALLATION
Motor —
Window Regulator
Removal 1. Remove the door trim panel. For additional information, refer to Section 501 - 05 .
2. Remove the screws and the speaker.
3. Disconnect the electrical connector.
4. Remove the screws and the window regulator motor.
Installation 1. To install, reverse the removal procedure.
SECTION 501-
11: Glass, Frames and Mechanisms 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

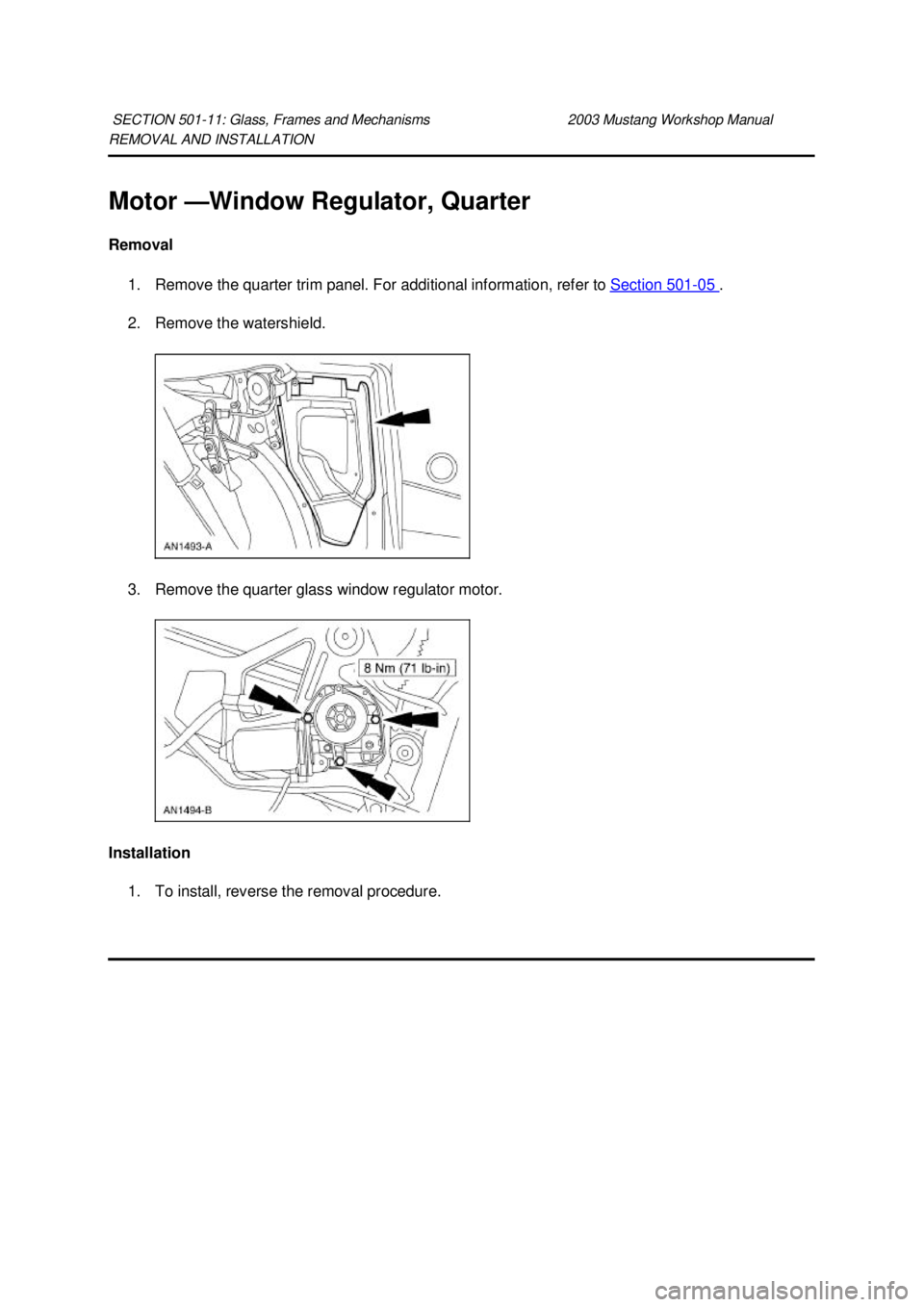

REMOVAL AND INSTALLATION
Motor —
Window Regulator, Quarter
Removal 1. Remove the quarter trim panel. For additional information, refer to Section 501 - 05 .
2. Remove the watershield.
3. Remove the quarter glass window regulator motor.
Installation 1. To install, reverse the removal procedure.
SECTION 501-
11: Glass, Frames and Mechanisms 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

REMOVAL AND INSTALLATION

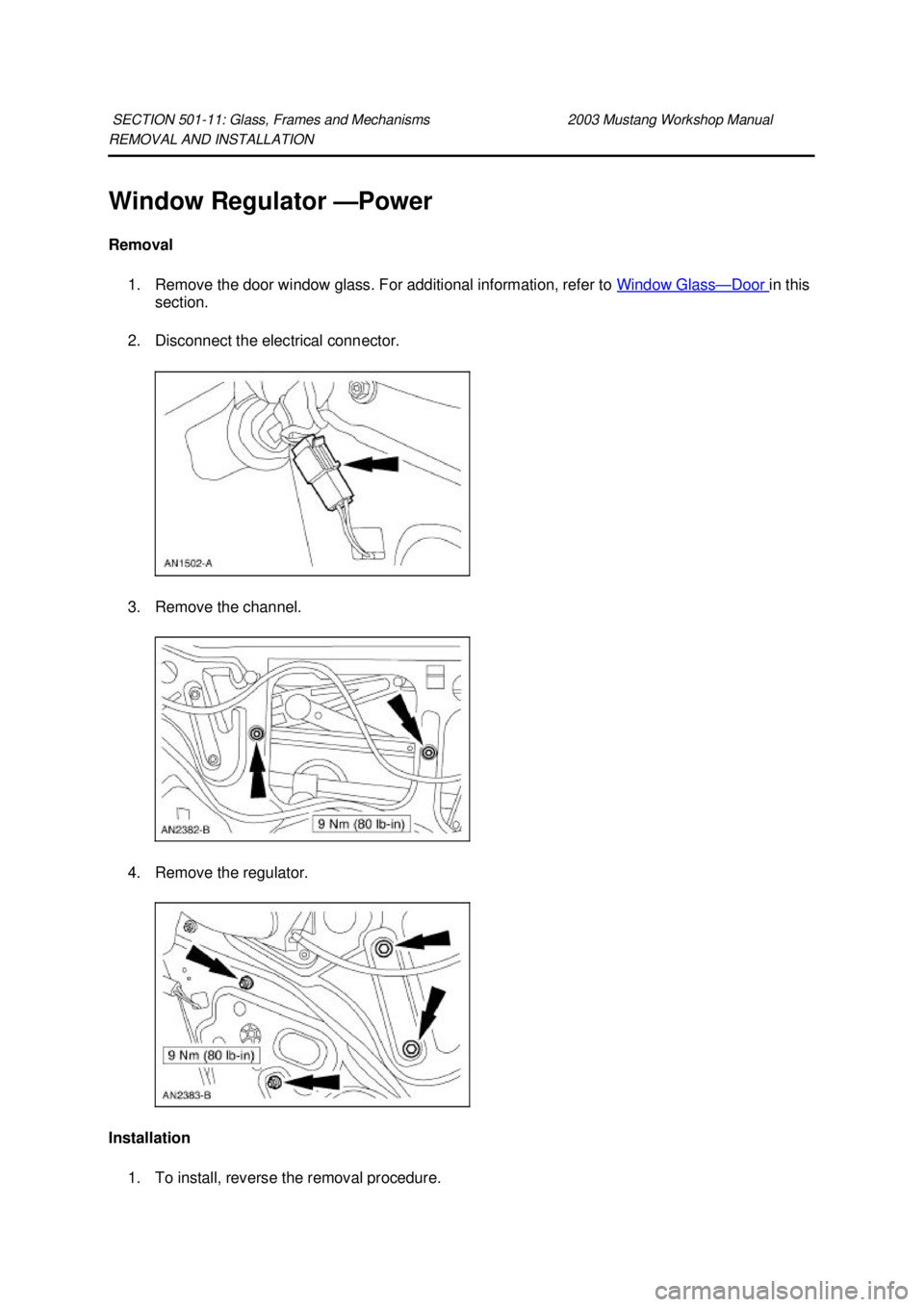

Window Regulator —
Power
Removal 1. Remove the door window glass. For additional information, refer to Window Glass — Door in this
section.
2. Disconnect the electrical connector.
3. Remove the channel.
4. Remove the regulator.
Installation 1. To install, reverse the removal procedure. SECTION 501-
11: Glass, Frames and Mechanisms 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

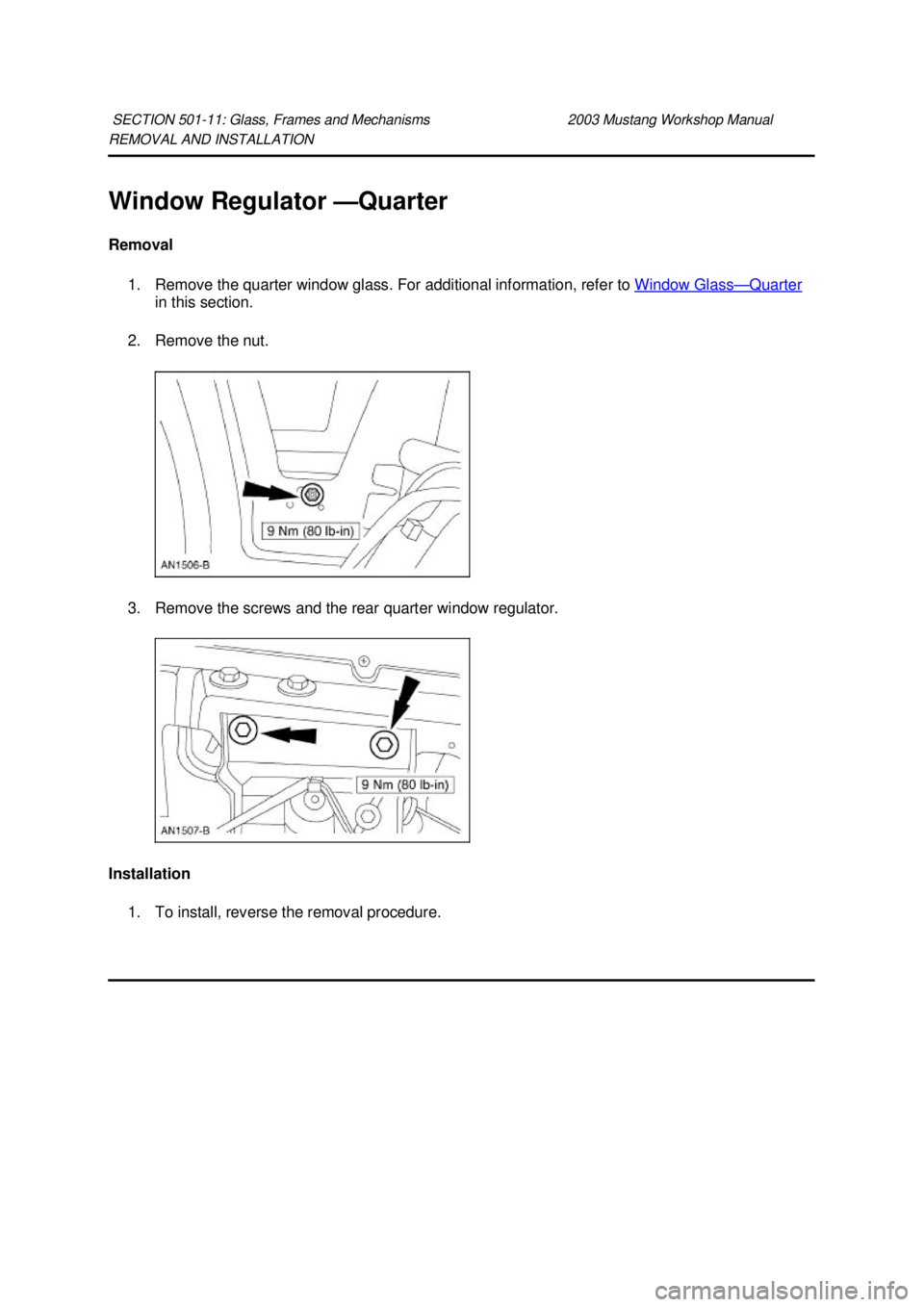

REMOVAL AND INSTALLATION
Window Regulator —
Quarter
Removal 1. Remove the quarter window glass. For additional information, refer to Window Glass — Quarter
in this section.
2. Remove the nut.
3. Remove the screws and the rear quarter window regulator.
Installation 1. To install, reverse the removal procedure.
SECTION 501-
11: Glass, Frames and Mechanisms 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

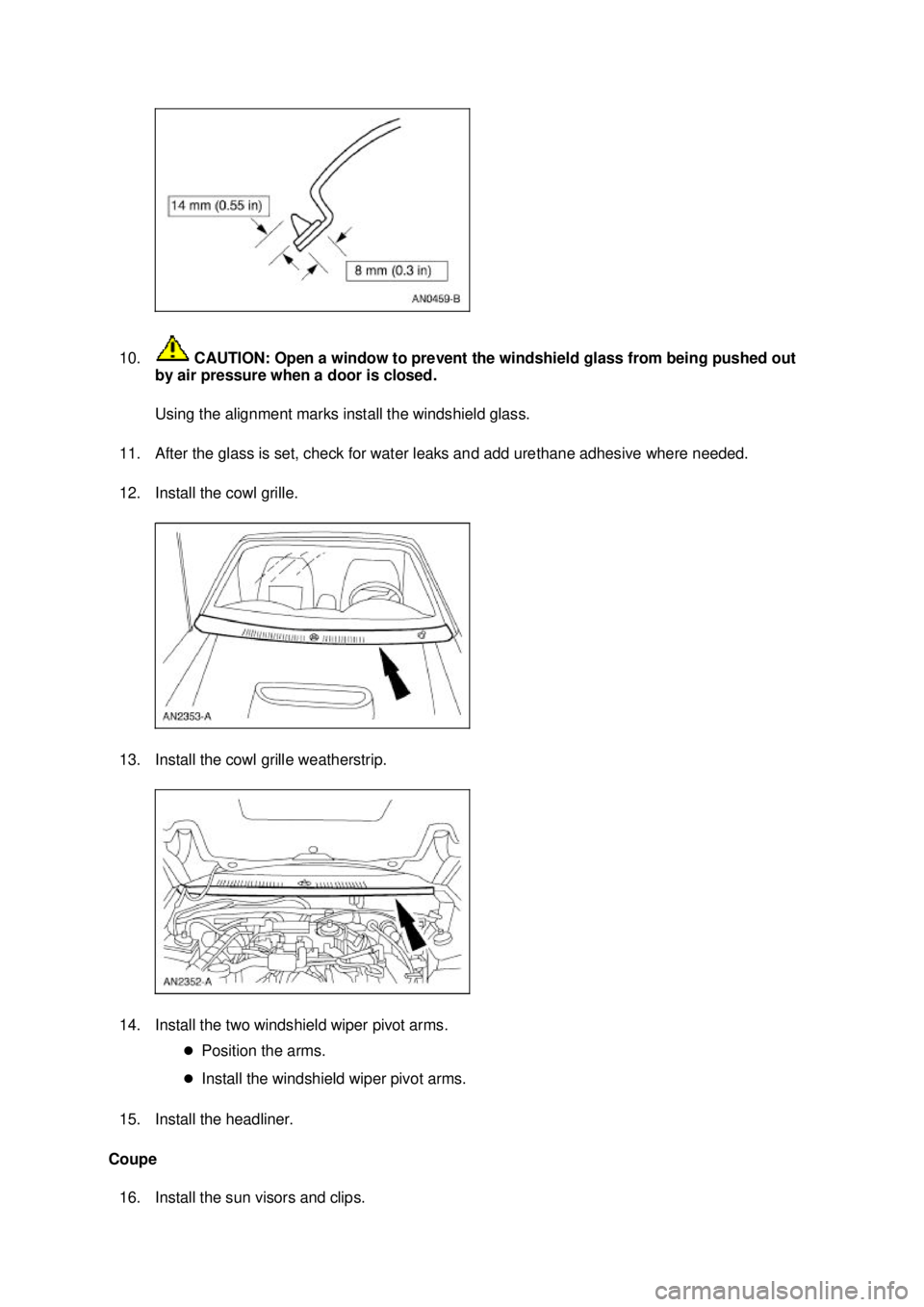

10.
CAUTION: Open a window to prevent the windshield glass from being pushed out
by air pressure when a door is closed.
Using the alignment marks install the windshield glass.
11. After the glass is set, check for water leaks and add urethane adhesive where needed.
12. Install the cowl grille.
13. Install the cowl grille weatherstrip.
14. Install the two windshield wiper pivot arms. zPosition the arms.
z Install the windshield wiper pivot arms.
15. Install the headliner.
Coupe 16. Install the sun visors and clips. Klj . 7 ba
102003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

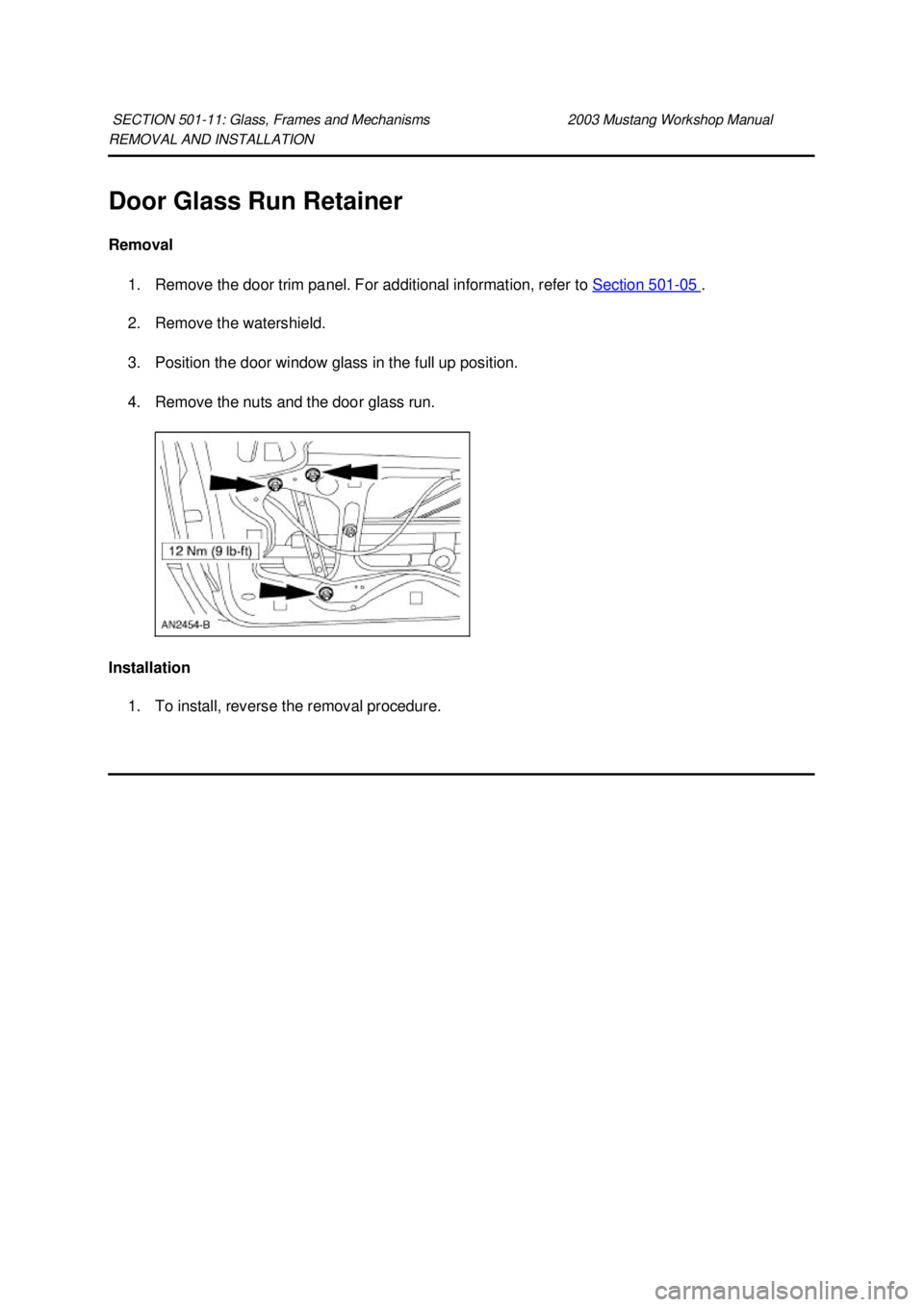

REMOVAL AND INSTALLATION
