REMOVAL AND INSTALLATION
Switch —
Traction Control
Removal and Installation 1. NOTE: If the vehicle is equipped with an automatic transmission, position the shift lever in the 1
position before detaching the floor console finish panel.
Lifting from both sides, detach the floor console finish panel.
2. Disconnect the electrical connector and position the finish panel out of the way.
3. Reaching behind the center finish panel, push and detach the switch from the finish panel.
4. Disconnect the electrical connector and remove the switch.
SECTION 206-
09B: Anti-Lock Control — Traction Control 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 3808 of 4378

REMOVAL AND INSTALLATION

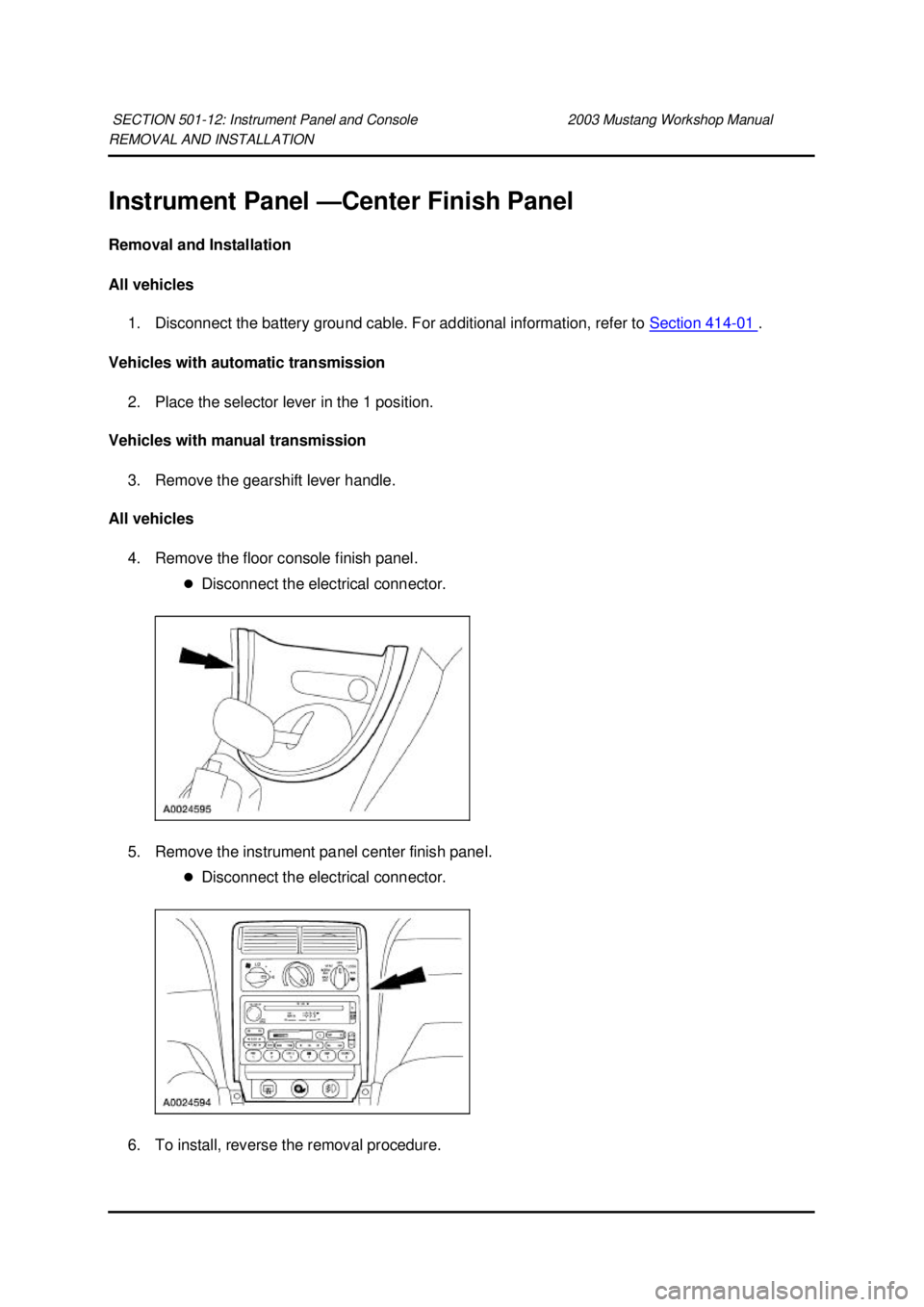

Instrument Panel —
Center Finish Panel
Removal and Installation
All vehicles 1. Disconnect the battery ground cable. For additional information, refer to Section 414 - 01 .
Vehicles with automatic transmission 2. Place the selector lever in the 1 position.
Vehicles with manual transmission
3. Remove the gearshift lever handle.
All vehicles
4. Remove the floor console finish panel. zDisconnect the electrical connector.
5. Remove the instrument panel center finish panel. zDisconnect the electrical connector.
6. To install, reverse the removal procedure.
SECTION 501-
12: Instrument Panel and Console 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
Page 4098 of 4378

REMOVAL AND INSTALLATION
Restraints Control Module (RCM)
Removal
WARNING: The restraints control module (RCM) orientation is critical for proper system
operation. If a vehicle equipped with an air bag supplemental restraint system (SRS) has been
involved in a collision in which the center tunnel area has been damaged, inspect the mounting
and bracket for deformation. If damaged, the RCM must be replaced whether or not the air bags
have deployed. In addition, make sure the area of the RCM mounting is restored to its original
condition.
WARNING: Vehicle sensor orientation is critical for proper system operation. If a vehicle
equipped with an air bag supplemental restraint system (SRS) is involved in a collision, inspect
the sensor mounting bracket and wiring pigtail for deformation. Replace and properly position
the sensor or any other damaged supplemental restraint system (SRS) components whether or
not the air bag is deployed.
WARNING: The restraint system diagnostic tool is for restraint system service only.
Remove from vehicle prior to road use. Failure to remove could result in injury and possible
violation of vehicle safety standards.
CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to
these charges, damage can result.
NOTE: Repair is made by installing a new part only. If the new part does not correct the condition,
install the original part and perform the diagnostic procedure again.
1. Prepare the vehicle for restraints control module (RCM) removal. 1. WARNING: To avoid accidental deployment and possible personal injury, the
backup power supply must be depleted before repairing or replacing any front or
side air bag supplemental restraint system (SRS) components and before
servicing, replacing, adjusting or striking components near the front or side air
bag sensors, such as doors, instrument panel, console, door latches, strikers,
seats and hood latches.
Please refer to the appropriate vehicle shop manual to determine location of the
front air bag sensors.
The side air bag sensors are located at or near the base of the B- pillar. To deplete the backup power supply energy, disconnect the battery ground cable SECTION 501-
20B: Supplemental Restraint System 2003 Mustang Workshop Manual Special Tool(s)
Diagnostic Tool, Restraint
System (2 Req'd)
418-
F088 (105- R0012) Klj . 1 ba
42003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...
