remote control FORD MUSTANG 2003 Workshop Manual

DIAGNOSIS AND TESTING
Starting System
Refer to Wiring Diagrams Cell
20 , Starting System for schematic and connector information.
Inspection and Verification WARNING: When servicing starter motor or carrying out other underhood work in the
vicinity of the starter motor, be aware that the heavy gauge battery input lead at the starter
solenoid is "electrically hot" at all times. A protective cap or boot is provided over this terminal
that must be installed after servicing. Be sure to disconnect the battery negative cable before
servicing the starter. Failure to follow these instructions may result in personal injury.
WARNING: When working in area of the starter motor, be careful to avoid touching hot
exhaust components. Failure to follow these instructions may result in personal injury.
WARNING: When using a remote starter switch or jumper wire, be sure the ignition switch
is in the OFF position and the transmission is in PARK (A/T) or Neutral (M/T) with the parking
brake control fully applied.
1. Verify the customers concern by operating the starting system to duplicate the conditions.
2. Inspect to determine if any of the following mechanical or electrical concerns apply.
3. If the inspection reveals an obvious concern that can be readily identified, repair as necessary.
4. If the concern remains after the inspection, determine the symptom. GO to Symptom Chart .
SECTION 303-
06: Starting System 2003 Mustang Workshop Manual Special Tool(s)
Digital Multimeter
105-
R0051 or equivalent Visual Inspection Chart
Mechanical Electrical
z
Starter motor
z Brackets z
Battery
z Battery junction box (BJB) fuse ignition switch (40A)
z Central junction box (CJB) Fuse 6 (20A)
z Fuse 24 (10A)
z Damaged wiring harness
z Starter Relay
z Loose or corroded connections Klj . 1 ba
112003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

Component Tests
Starter Motor —Voltage Drop Test
WARNING: When servicing starter motor or carrying out other underhood work in the
vicinity of the starter motor, be aware that the heavy gauge battery input lead at the starter
solenoid is "electrically hot" at all times. A protective cap or boot is provided over this terminal
that must be installed after servicing. Be sure to disconnect the battery negative cable before
servicing the starter. Failure to follow these instructions may result in personal injury.
WARNING: When using a remote starter switch or jumper wire, be sure the ignition switch
is in the OFF position and the transmission is in PARK (A/T) or Neutral (M/T) with the parking
brake control fully applied.
Always make the Digital Multimeter connections at the component terminal rather than at the wiring
end connector. Making a connection at the wiring end connector could result in false readings because
the meter will not pick up a high resistance between the wiring connector and the component.
Starter Motor— Motor Feed Circuit
1. Make sure the battery is fully charged. Perform a battery load test. For additional information, refer to Section 414 - 00 .
2. Disconnect the inertia fuel shut off (IFS) switch.
3. Connect a remote starter switch between the starter solenoid S- terminal and the battery positive
(+) terminal.
4. Connect the Digital Multimeter positive lead to the battery positive (+) post. Connect negative lead to the starter solenoid M- terminal. brackets for cracks.
z Check the starter motor mounting
bolts for looseness.
z Is the starter motor mounted
correctly? GO to
D2 .
No
REINSTALL the starter motor correctly. REFER to
Starter Motor — 3.8L or
Starter Motor — 4.6L in this
section. D2 INSPECT THE STARTER MOTOR
z
Remove the starter motor; refer to
Starter Motor — 3.8L or
Starter Motor — 4.6L in this section.
z Inspect the starter motor for
damage.
z Is the starter motor damaged? Yes
INSTALL a new starter motor. REFER to
Starter Motor — 3.8L or
Starter Motor — 4.6L in this section.
TEST the system for normal operation.
No
CHECK the starter drive. REFER to Component
Tests, Starter Drive Test in this section. INSTALL a
new starter motor. TEST the system for normal
operation. Klj . 8 ba
112003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...

DIAGNOSIS AND TESTING
Interior Lighting
Refer to Wiring Diagrams Cell
111 , Remote Control Alarm and Lock System for schematic and
connector information.
Refer to Wiring Diagrams Cell 59 , Generic Electronic Module for schematic and connector
information.
Refer to Wiring Diagrams Cell 89 , Courtesy Lamps for schematic and connector information.
Principles of Operation
Battery Saver
The battery saver feature provides automatic shut- off of power to demand and courtesy lamp circuitry.
When the generic electronic module (GEM) detects the ignition switch circuits are in the key OFF or
removed ignition key positions, power will be disabled after individual time- out periods of 30 minutes
for the demand lamps, and 10 minutes for the courtesy lamps. However, the time- out period for the
courtesy lamps changes to 30 minutes when the GEM detects that the luggage compartment lid is ajar
by means of the luggage compartment lid ajar circuit, or if the dome lamp is switched on by means of
the dome lamp circuit. When the GEM detects that the ignition switch is in the RUN, ACC, or START
positions, the battery saver feature is disabled.
The battery saver timer for the demand lamps is reset when the GEM detects that the ignition switch is
in the OFF or key out positions or when the GEM detects any one of the following conditions:
zthe driver or passenger door becomes ajar, as detected by the door ajar circuit
z the luggage compartment lid becomes ajar, as detected by the luggage compartment lid ajar
circuit
z the dome lamp switch is activated, as detected by the dome lamp switch circuit
The battery saver timer for the courtesy lamps is reset when the GEM detects that the ignition switch is
in the OFF or key out positions or when the GEM detects the driver or passenger door becomes ajar SECTION 417-
02: Interior Lighting 2003 Mustang Workshop Manual Special Tool(s)
73 Digital Multimeter or
equivalent
105-
R0051 Worldwide Diagnostic System
(WDS)
418-
F224,
New Generation STAR (NGS)
Tester
418- F052, or equivalent scan
tool Klj . 1 ba
162003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

as detected by the door ajar circuit. For vehicles equipped with the remote keyless entry feature, any
signal the GEM detects when a valid remote transmitter button is depressed will reset both the
demand and courtesy lamp battery saver timers. This battery saver relay then restores power to both
the demand and courtesy lamp circuits.
Base Courtesy and Extended Lighting
The base courtesy lighting feature provides interior lighting for the convenience of the vehicle's
occupants. The courtesy lamps consist of the map/dome lamps for the coupe and the map lamps for
the convertible. All lamps designated as courtesy lamps will be illuminated whenever the GEM detects
that the driver or passenger doors become ajar, by means of the driver or passenger door ajar circuits.
The courtesy lamps will also be illuminated when the GEM detects that the dome lamp switch has
been activated, by means of the dome lamp switch circuit.
The extended courtesy lighting feature provides temporary extended illumination of the courtesy lamps
after the customer has entered the vehicle. The courtesy lamps will remain illuminated for 25 seconds
after the GEM detects that the driver and passenger doors are closed, as detected by the door ajar
circuits. The extended courtesy lighting feature will be terminated after the 25 second time-
out period,
or if the GEM detects that the ignition switch has been moved from the OFF position to either the RUN,
ACC, or START positions.
Demand Lighting
The GEM does not provide any special features to the demand lighting group with the exception of
providing a power source when the battery saver feature is active. The demand lighting group consists
of the luggage compartment lamp, the driver and passenger vanity mirror lamps, and the map lamps.
Illuminated Entry with Remote Keyless Entry
The illuminated entry with remote keyless entry feature, provides power to the courtesy lamps when
the remote transmitter is used. When the GEM detects that the ignition switch is in the OFF or key out
positions, and it detects that a valid remote transmitter unlock button has been depressed, power to
the courtesy lamps will be enabled. The courtesy lamp circuit will remain powered until one of the
following occurs:
zThe GEM detects that the ignition switch has been moved from the OFF, to the RUN, START,
or ACC position.
z The GEM detects any valid remote transmitter lock button is depressed.
z The courtesy lamp circuit has been powered for 25 seconds.
If the GEM detects any valid remote transmitter unlock button has been depressed, and the ignition
switch is in the OFF or key out position during the 25 second time- out, the courtesy lamp circuits will
remain powered for an additional 25 seconds.
Inspection and Verification
1. The interior lighting system is a generic electronic module (GEM) controlled system.
2. Verify the customer concern by operating the interior lighting system.
3. Visually inspect for the following obvious signs of mechanical and electrical damage. Klj . 2 ba
162003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

DESCRIPTION AND OPERATION
Module Controlled Functions
The generic electronic module (GEM)(14B205) is the only multifunction control module on this vehicle.
The GEM controls the following functions:
zwarning chimes and warning lamps
z one- touch down window
z windshield washers and wipers
z battery saver
z illuminated entry with keyless remote entry
z interior lighting
SECTION 419-
10: Multifunction Electronic Control Modules 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

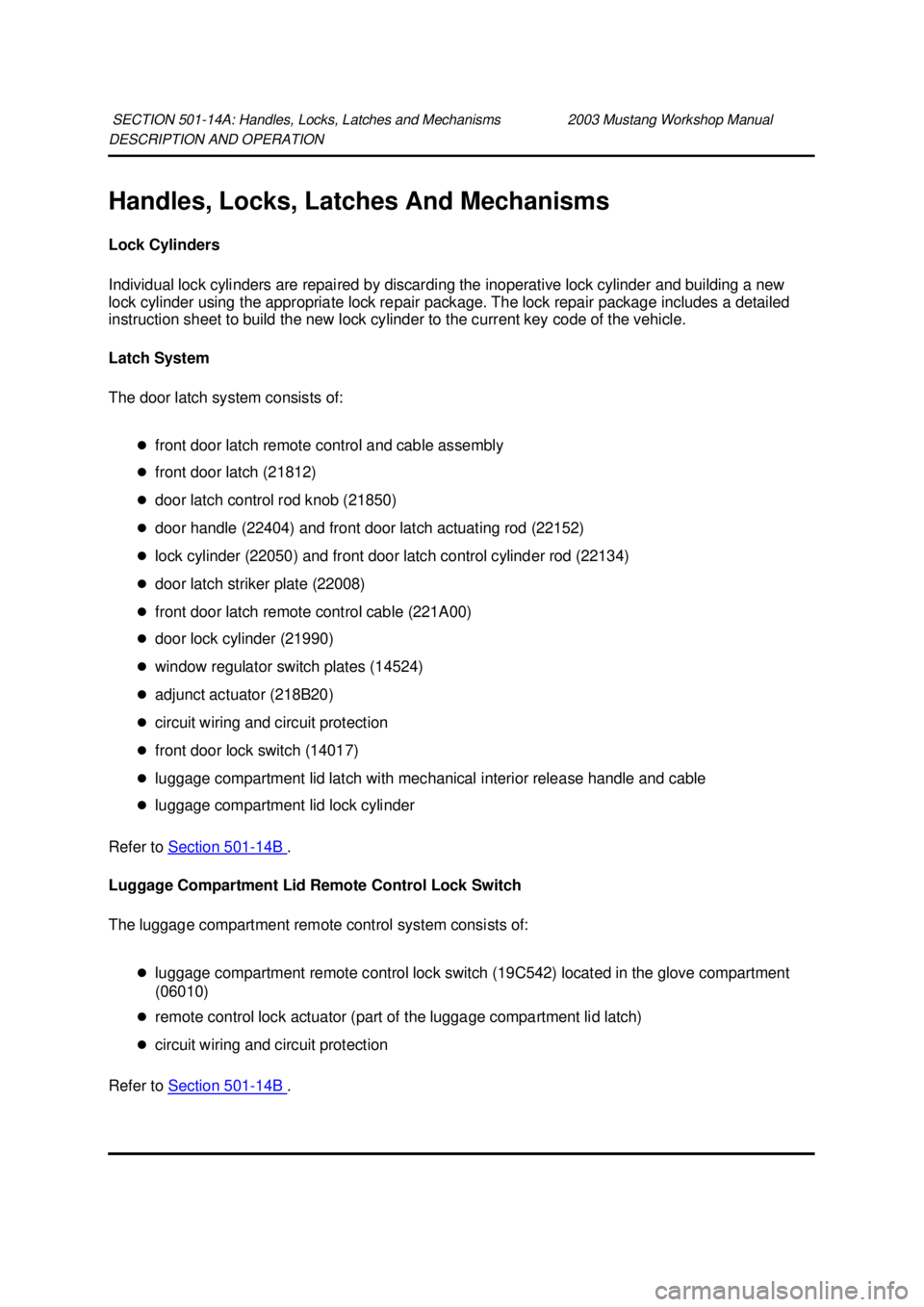

DESCRIPTION AND OPERATION
Handles, Locks, Latches And Mechanisms
Lock Cylinders
Individual lock cylinders are repaired by discarding the inoperative lock cylinder and building a new
lock cylinder using the appropriate lock repair package. The lock repair package includes a detailed
instruction sheet to build the new lock cylinder to the current key code of the vehicle.
Latch System
The door latch system consists of:
zfront door latch remote control and cable assembly
z front door latch (21812)
z door latch control rod knob (21850)
z door handle (22404) and front door latch actuating rod (22152)
z lock cylinder (22050) and front door latch control cylinder rod (22134)
z door latch striker plate (22008)
z front door latch remote control cable (221A00)
z door lock cylinder (21990)
z window regulator switch plates (14524)
z adjunct actuator (218B20)
z circuit wiring and circuit protection
z front door lock switch (14017)
z luggage compartment lid latch with mechanical interior release handle and cable
z luggage compartment lid lock cylinder
Refer to Section 501 - 14B .
Luggage Compartment Lid Remote Control Lock Switch
The luggage compartment remote control system consists of:
zluggage compartment remote control lock switch (19C542) located in the glove compartment
(06010)
z remote control lock actuator (part of the luggage compartment lid latch)
z circuit wiring and circuit protection
Refer to Section 501 - 14B .
SECTION 501-
14A: Handles, Locks, Latches and Mechanisms 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

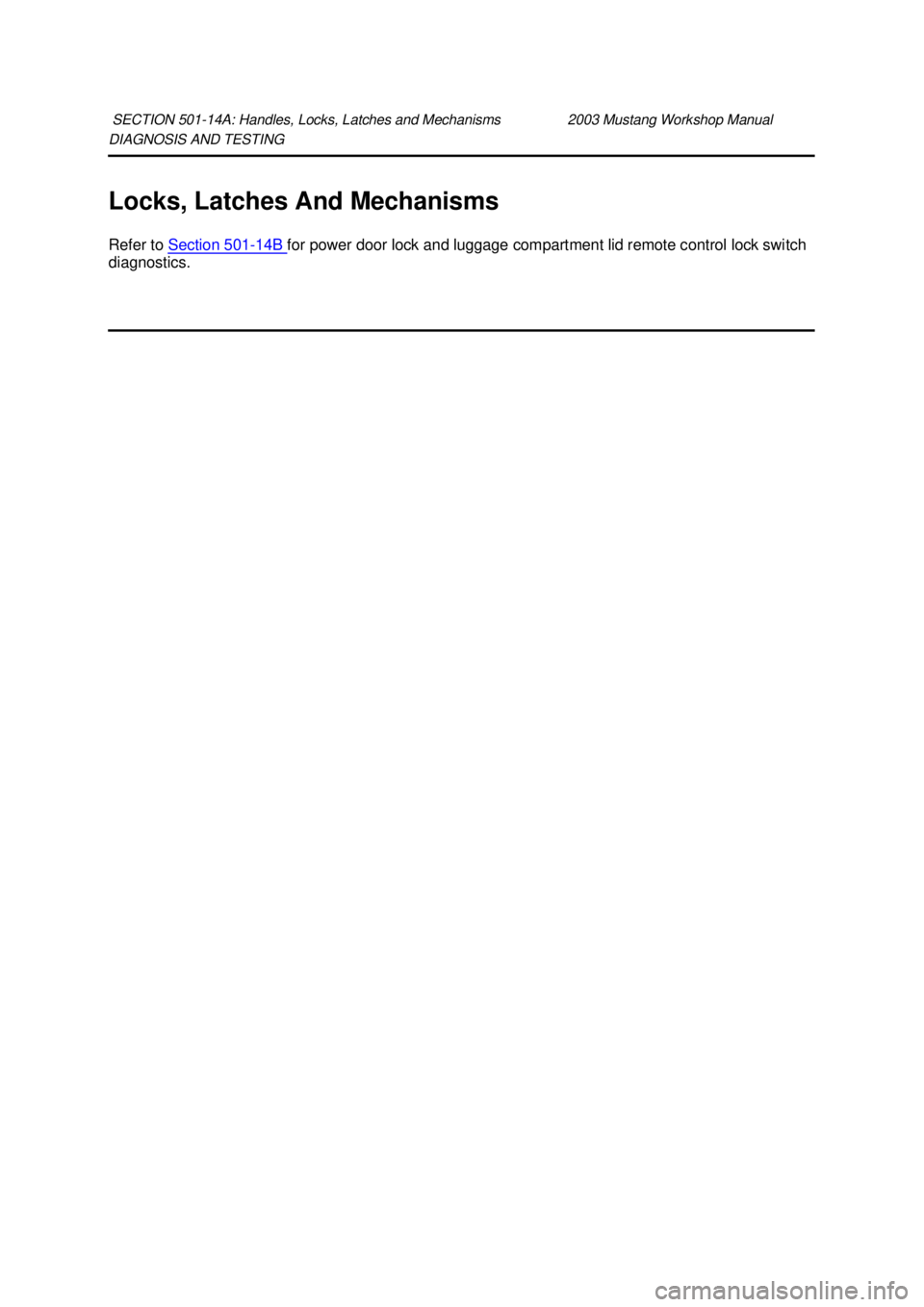

DIAGNOSIS AND TESTING
Locks, Latches And Mechanisms
Refer to
Section 501 - 14B for power door lock and luggage compartment lid remote control lock switch
diagnostics. SECTION 501-
14A: Handles, Locks, Latches and Mechanisms 2003 Mustang Workshop Manual Klj . 1 ba
12003 Mustang Workshop Manual
18. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_5108/S3B~us~en~ ...

Camshaft Position (CMP) SensorEngine Performance
Central Control ModuleAnti-Theft System
ClockspringAir Bag Restraint System; Cruise Control
Systems; Steering Column Switches
Clutch Pedal Position SwitchStarters
Clutch Start SwitchStarters
Combination MeterAnalog Instrument Panels
Constant Control Relay Module (CCRM)Engine Performance; Electric Cooling Fans
Convenience CenterPower Distribution; Illu mination/Interior Lights
Convertible Top MotorPower Convertible Top
Convertible Top SwitchPower Convertible Top
Crankshaft Position (CKP) SensorEngine Performance
Cruise Control ModuleCruise Control Systems
Cruise Control SwitchCruise Control Systems
Condenser Fan Relay(s)Electric Cooling Fans
Data Link Connector (DLC)Engine Performance
Daytime Running Lights ModuleDaytime Running Lights; Exterior Lights
Defogger RelayRear Window Defogger
Diagnostic Energy Reserve Module (DERM)Air Bag Restraint System
Discriminating Sensor (Air Bag)Air Bag Restraint System
DistributorEngine Performance
Door Lock ActuatorsPower Door Locks; Remote Keyless Entry
Door Lock Relay(s)Power Door Locks
Electrochromic MirrorPower Mirrors
Electronic Level Control (ELC) Height SensorElectronic Suspension
Electronic Level Control (ELC) ModuleElectronic Suspension
Engine Coolant Temper ature (ECT) Sending UnitAnalog Instrument Panels
Engine Coolant Temperature (ECT) SensorEngine Performance
Engine Control ModuleEngine Performance; Ge nerators & Regulators;
Starters
ETACS ECUWarning Systems; Power Windows; Remote Keyless Entry
Evaporative (EVAP) Emissions CanisterEngine Performance
EVAP Canister Purge SolenoidEngine Performance
EVAP Canister Vent SolenoidEngine Performance
Exhaust Gas Recirculation (EGR) ValveEngine Performance
Fuel Tank Vacuum SensorEngine Performance
Fog LightsHeadlight Systems; Daytime Running Lights
Fog Light RelayHeadlight Systems; Daytime Running Lights
Fuel Door Release SolenoidPower Fuel Door Release
Fuel Gauge Sending UnitAnalog Instrument Panels
Fuel InjectorsEngine Performance
Fuel PumpEngine Performance
Fuel Pump RelayEngine Performance; Power Distribution


111
15 ноября 2011 г. 20:18:43Page 6 © 2006 Mitchell Repair Information Company, LLC.

Fuse/Relay BlockPower Distribution
Fusible LinksPower Distribution; Generators & Regulators;
Starters
GeneratorGenerators & Regulators; Engine Performance;
Power Distribution
Generic Electronic Module (GEM)Body Control Modules; Electronic Suspension
Glow Plug RelayEngine Performance
Glow PlugsEngine Performance
GroundsGround Distribution
Headlight Door ModuleHeadlight Doors
Headlight RelayHeadlight Systems; Daytime Running Lights
HeadlightsHeadlight Systems; Daytime Running Lights
Heated Oxygen Sensor(s) (HO2S)Engine Performance
Heated Windshield Control ModuleHeated Windshields
Height SensorElectronic Suspension
HornsSteering Column Switches
Horn RelaySteering Column Switches
Idle Air Control (IAC) Motor/ValveEngine Performance
Ignition Coil(s)Engine Performance
Ignition Key Lock CylinderAnti-Theft System
Ignition ModuleEngine Performance
Ignition SwitchPower Distribution; Engine Performance; Generators & Regulators; Starters
Illuminated Entry ModuleIllumination/Interior Lights
Illumination LightsIllumination/Interior Lights
Impact SensorAir Bag Restraint System
Inertia Fuel Shutoff SwitchEngine Performance
Inhibit RelayStarters
Instrument ClusterAnalog Instrument Panels
Intake Air Temperature (IAT) SensorEngine Performance
Interior LightsIllumination/Interior Lights
Interlock SwitchStarters
Junction BlockPower Distribution
Keyless Entry ReceiverRemote Keyless Entry
Key Reminder SwitchStarters
Knock SensorEngine Performance
Lamp Control ModuleExterior Lights
License Plate LampExterior Lights
Lighting Control ModuleLighting Control Modules; Anti-Theft System; Daytime Running Lights; Headlight Systems
Lower RelayPower Convertible Top
Malfunction Indicator Light (MIL)Engine Performance; Instrument Panels
Manifold Absolute Pr essure (MAP) SensorEngine Performance
Mass Airflow (MAF) SensorEngine Performance


111
15 ноября 2011 г. 20:18:43Page 7 © 2006 Mitchell Repair Information Company, LLC.

Mega FuseGenerators & Regulators
Memory Seat/Mirror ModuleMemory Systems
Mirror DefoggerRear Window Defogger
Moon Roof MotorPower Moon Roof
Moon Roof RelayPower Moon Roof
Multi-Function Control ModuleWarning Systems
Neutral Safety SwitchStarters
Oil Level SwitchEngine Performance
Oil Pressure Switch/Sending UnitAnalog Instrument Panels; Engine Performance
Overhead ConsoleOverhead Console
Oxygen Sensor(s) (O2S)Engine Performance
Parking Brake SwitchAnalog Instrument Panels
Park LightsExterior Lights
Park/Neutral Position SwitchStarters; Engine Performance; Anti-Theft System;
Body Control Module
Perimeter Lighting Control RelayExterior Lights
Power AmplifierPower Antennas
Power Antenna ModulePower Antennas
Power Antenna MotorPower Antennas
Power Distribution CenterPower Distribution; Gene rators & Regulators;
Starters
Power Door Lock MotorsPower Door Locks
Power Mirror MotorsPower Mirrors; Memory Systems
Power Sliding Door ControllerPower Sliding Side Door
Power Seat MotorsPower Seats; Memory Systems
Power Steering Pressure SwitchEngine Performance
Power Top MotorPower Convertible Top
Power Top Relay(s)Power Convertible Top
Powertrain Control ModuleEngine Performance; Analog Instrument Panels; Cruise Control Systems; Data Link Connectors;
Generators & Regulators; Starters
Power Window MotorsPower Windows
Power Window Relay(s)Power Windows
Radiator Fan Motor(s)Electric Cooling Fans
Radiator Fan Relay(s)Engine Performance; Electric Cooling Fans;
Rainsense ModuleWiper/Washer Systems
Raise RelayPower Convertible Top
Remote Anti-Theft Personality (RAP) ModuleAnti-Theft System; Starters; Warning Systems
Seat Belt PretensionersAir Bag Restraint System
Seat Belt Retractor SolenoidPassive Restraints
Seat Belt SwitchAir Bag Restraint System; Passive Restraints
Shift Interlock SolenoidShift Interlock Systems
Shift Lock ActuatorShift Interlock Systems
Side Marker LightsExterior Lights


111
15 ноября 2011 г. 20:18:43Page 8 © 2006 Mitchell Repair Information Company, LLC.
