Page 59 of 4378
„
A wobble or shudder. GO to Symptom Chart — Tire Noise/Vibration .
2. Depends more on where the vehicle is operated 1. Bump/pothole, rough road or smooth road. GO to Symptom Chart — Suspension
Noise/Vibration .
„ Noise is random or intermittent occurring from road irregularities. GO to Symptom Chart — Squeak and Rattle .
„ Noise or vibration changes from one road surface to another. Normal sound
changes.
„ Noise or vibration associated with a hard/firm ride. GO to Symptom Chart —
Suspension Noise/Vibration .

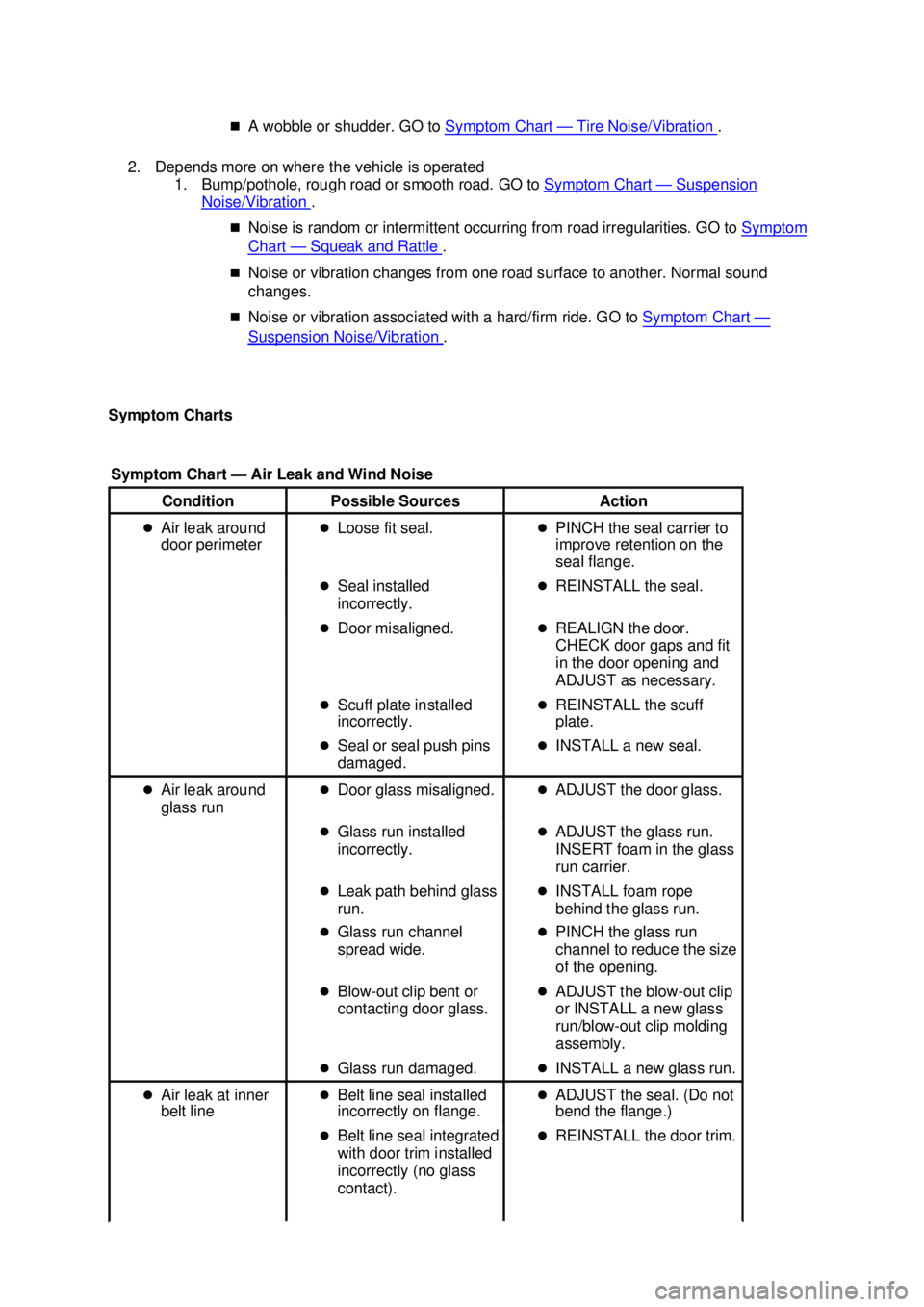

Symptom Charts Symptom Chart — Air Leak and Wind Noise Condition
Possible Sources Action
z Air leak around
door perimeter z
Loose fit seal. zPINCH the seal carrier to
improve retention on the
seal flange.
z Seal installed
incorrectly. z
REINSTALL the seal.
z Door misaligned. zREALIGN the door.
CHECK door gaps and fit
in the door opening and
ADJUST as necessary.
z Scuff plate installed
incorrectly. z
REINSTALL the scuff
plate.
z Seal or seal push pins
damaged. z
INSTALL a new seal.
z Air leak around
glass run z
Door glass misaligned. zADJUST the door glass.
z Glass run installed
incorrectly. z
ADJUST the glass run.
INSERT foam in the glass
run carrier.
z Leak path behind glass
run. z
INSTALL foam rope
behind the glass run.
z Glass run channel
spread wide. z
PINCH the glass run
channel to reduce the size
of the opening.
z Blow- out clip bent or
contacting door glass. z
ADJUST the blow- out clip
or INSTALL a new glass
run/blow- out clip molding
assembly.
z Glass run damaged. zINSTALL a new glass run.
z Air leak at inner
belt line z
Belt line seal installed
incorrectly on flange. z
ADJUST the seal. (Do not
bend the flange.)
z Belt line seal integrated
with door trim installed
incorrectly (no glass
contact). z
REINSTALL the door trim. Klj . 12 ba
702003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 91 of 4378
information, REFER to
Section 205
- 00 .
REPAIR as necessary.
z Transmission
rumble/growl— noise at
all speeds in forward
gears, more
pronounced in a heavy
acceleration condition z
Damaged or worn
transmission
bearing or gears
(high mileage
vehicles). z
CHECK transmission
fluid for excessive
metal particles.
REPAIR as necessary.
REFER to Section 308 -
03A for T50D
transmissions or
Section 308 - 03B for
TR3650 transmissions.
z Transfer case whine—
noise at all ranges z
Incorrect fluid level
or fluid quality. z
CHECK that the
transfer case is filled to
the correct level and
with the specified fluid.
REFER to Section 308 -
03A for T50D
transmissions or
Section 308 - 03B for
TR3650 transmissions.
z Worn oil pump. zDISASSEMBLE the
transfer case. CHECK
the oil pump for wear or
damage. REPAIR as
necessary.
z Under- inflated or
oversized tires. z
CONFIRM that the tires
and wheels are correct
for the vehicle. CHECK
that the tire inflation
pressures are correct.
z Transfer case
growl/rumble— noise at
all ranges (A small
amount of planetary
noise can be heard
when the transfer case
is operated in low
range.) z
Damaged or worn
bearings or
planetary gear. z
DISASSEMBLE the
transfer case. CHECK
the bearings or
planetary gear for wear
or damage. REPAIR as
necessary.
z Transfer case
scraping/grating—
noise at all ranges z
Excessively
stretched drive
chain hitting the
case. z
DISASSEMBLE the
transfer case. CHECK
the drive chain for wear
or damage. REPAIR as
necessary.
z Transfer case
howl/hum— noise at all
ranges or high range
only z
Worn or damaged
sun (input) gear,
clutch pack
(intermediate) gear
or output shaft gear. z
DISASSEMBLE the
transfer case. CHECK
the gears for wear or
damage. REPAIR as
necessary.
z Transfer case
howl/hum— noise at
low range only z
Worn or damaged
intermediate gear
and sliding gears
(clutch pack). z
DISASSEMBLE the
transfer case. CHECK
the gears for wear or
damage. REPAIR as
necessary.
z Transfer case
vibration— vibration felt
with vehicle in 4WD z
Transfer case
mounting.
z Driveshaft out of
balance.
z Excessive pinion z
Go To Pinpoint Test M . Klj . 44 ba
702003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 134 of 4378
DIAGNOSIS AND TESTING
Suspension System
Inspection and Verification
1. Road test. zVerify the customer's concern by performing a road test on a smooth road.
2. Inspect tires. zCheck the tire pressure with all normal loads in the vehicle and the tires cold. For
additional information, refer to the vehicle certification (VC) label.
z Verify that all tires are sized to specification.
z Inspect the tires for incorrect wear and damage.
3. Inspect chassis and underbody. zRemove any excessive accumulation of mud, dirt or road deposits from the chassis and
underbody.
4. Inspect for aftermarket equipment. zCheck for aftermarket changes to the steering, suspension, wheel and tire components
(such as competition, heavy duty, etc.) The specifications shown in this manual do not
apply to vehicles equipped with aftermarket equipment.
5. Inspect shock absorbers. All vehicles are equipped with gas- pressurized hydraulic shock absorbers. These shock
absorbers are not adjustable or refillable and cannot be repaired.
zOil Leak: A light film of oil (weepage) on the upper portion of the shock absorber is
permissible and is a result or correct shock lubrication. Weepage is a condition in which a
film of oil accumulates on the thin tube (body) and is normally noticed due to the
collection of dust in this area. If shock absorbers exhibit this weepage condition, they are
functional units and new shock absorbers should not be installed. Leakage is a condition
in which the entire shock absorber body is covered with oil and the oil will drip from the
shock absorber onto the pavement. If condition exists:
„Make sure fluid observed is not from sources other than the shock absorber.
„ Install a new shock absorber, if necessary.
z Vehicle Sag: Many times new shock absorbers are installed in an effort to solve a vehicle
sag concern. Shock absorbers by design are hydraulic damping units only and, unlike
suspension springs, do not support any suspension loads. Therefore, installing a new
shock absorber will not correct a vehicle sag concern.
z Installment in Pairs: In the past it was recommended that new shock absorbers be
installed in pairs if one unit became unrepairable. New shock absorbers no longer need
to be installed in pairs when only one unit is not repairable.
SECTION 204-
00: Suspension System — General Information 2003 Mustang Workshop Manual Visual Inspection Chart
Mechanical Klj . 1 ba
62003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 251 of 4378
DESCRIPTION AND OPERATION
Safety Precautions
WARNING: Never run the engine with one wheel off the ground, for example, when
changing a tire. The wheel(s) resting on the ground could cause the vehicle to move.
WARNING: The tire and wheel must always be correctly matched. It is very important to
determine the size of each component before any assembly operations commence. Failure to
adhere to these instructions can result in an explosive separation and cause serious bodily
injury or death.
WARNING: Aftermarket aerosol tire sealants are extremely flammable. Always question
the customer to make sure these products have not been used.
WARNING: Aftermarket wheel assemblies may not be compatible with the vehicle. Use of
incompatible wheel assemblies can result in equipment failure and possible injury. Use only
approved wheel assemblies.
WARNING: Use only wheels and wheel nuts that have been designed for current model
year Ford trucks. Aftermarket wheels or wheel nuts may not fit or function correctly, and can
cause personal injury or damage the vehicle.
WARNING: Always wear safety goggles or a face shield when performing any work with
tire and wheel assemblies.
CAUTION: Do not clean aluminum wheels with steel wool, abrasive- type cleaners or
strong detergents. Use Custom Bright Metal Cleaner 8A-19522- A or equivalent meeting Ford
specifications ESR- M5B194-B.
CAUTION: Reduce the air pressure as much as possible by pushing the valve core
plunger in prior to removing the valve core. Avoid working in a position in which the face or
body is directly over a tire in which there is pressure.
When performing any inspection or repair procedures on wheels (1007/1015) and tires, follow the
preceding safety precautions. SECTION 204-
04: Wheels and Tires 2003 Mustang Workshop Manual Klj . 1 ba
22003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 254 of 4378
DIAGNOSIS AND TESTING
Wheels And Tires
Inspection and Verification
WARNING: A vehicle equipped with a Traction- Lok® differential will always have both
wheels driving. If, while the vehicle is being serviced, only one wheel is raised off the ground
and the rear axle is driven by the engine, the wheel on the ground could drive the vehicle off
the stand or jack. Be sure both rear wheels are off the ground.
WARNING: Never run the engine with one wheel off the ground, for example, when
changing a tire. The wheel(s) resting on the ground could cause the vehicle to move.
WARNING: Do not balance the wheels and tires while they are mounted on the vehicle.
Possible tire disintegration or differential failure could result, causing personal injury and
extensive component damage. Use off- vehicle wheel and tire balancer only.
Be sure to follow the warnings when carrying out inspection and verification.
Road Test
Verify the customer concern by carrying out a road test on a smooth road. If any vibrations are
apparent, refer to Section 100 - 04 .
To maximize tire performance, inspect for signs of incorrect inflation and uneven wear, which may
indicate a need for balancing, rotation, or front suspension alignment.
Correct tire pressure and driving techniques have an important influence on tire life. Heavy cornering,
excessively rapid acceleration and unnecessary sharp braking increases tire wear.
Replacement tires must follow the recommended:
ztire sizes.
z speed rating.
z load range.
z tire construction type.
Use of any other tire size or type can seriously affect:
zride.
z handling.
z speedometer/odometer calibration.
z vehicle ground clearance.
z tire clearance between the body and chassis.
SECTION 204-
04: Wheels and Tires 2003 Mustang Workshop Manual Klj . 1 ba
42003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 255 of 4378
z
wheel bearing life.
z brake cooling.
New wheels need to be installed when vehicle's wheels:
zare bent.
z are cracked.
z are dented.
z are heavily corroded.
z are leaking.
z have elongated wheel hub bolt holes.
z have excessive lateral or radial runout.
Wheel and tire assemblies are attached by six wheel nuts.
It is mandatory to use only the tire sizes recommended on the tire chart attached to the vehicle. Larger
or smaller tires can damage the vehicle, affect durability, and require changing the speedometer
calibration. Make sure wheel size and offsets match those recommended for the tire in use. 1. Inspect for signs of uneven wear that may indicate a need for balancing, rotation, front suspension alignment, damaged tie- rod, or steering components.
2. Check tires for: zcuts.
z stone bruises.
z abrasions
z blisters.
z embedded objects.
3. Tread wear indicators are molded into the bottom of the tread grooves. Install a new tire when the indicator bands become visible.
Symptom Chart Symptom Chart Condition
Possible Sources Action
z Tires show
excess wear on
edge of tread z
Underinflated tires. zADJUST air pressure
in tires.
z Vehicle overloaded. zRETURN vehicle.
NOTIFY customer of
overload condition.
z High- speed cornering. zRETURN vehicle.
NOTIFY customer of
cause of condition.
z Incorrect ride height. zSET ride height.
z Incorrect wheel alignment. zSET alignment to
specification. REFER Klj . 2 ba
42003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 521 of 4378
PINPOINT TEST C: BRAKE LOCKUP DURING LIGHT BRAKE PEDAL
FORCE z
Is the resistance greater than 10,000 ohms? No
REPAIR the ground short in
circuit 128 (VT/YE). TEST the
system for normal operation.

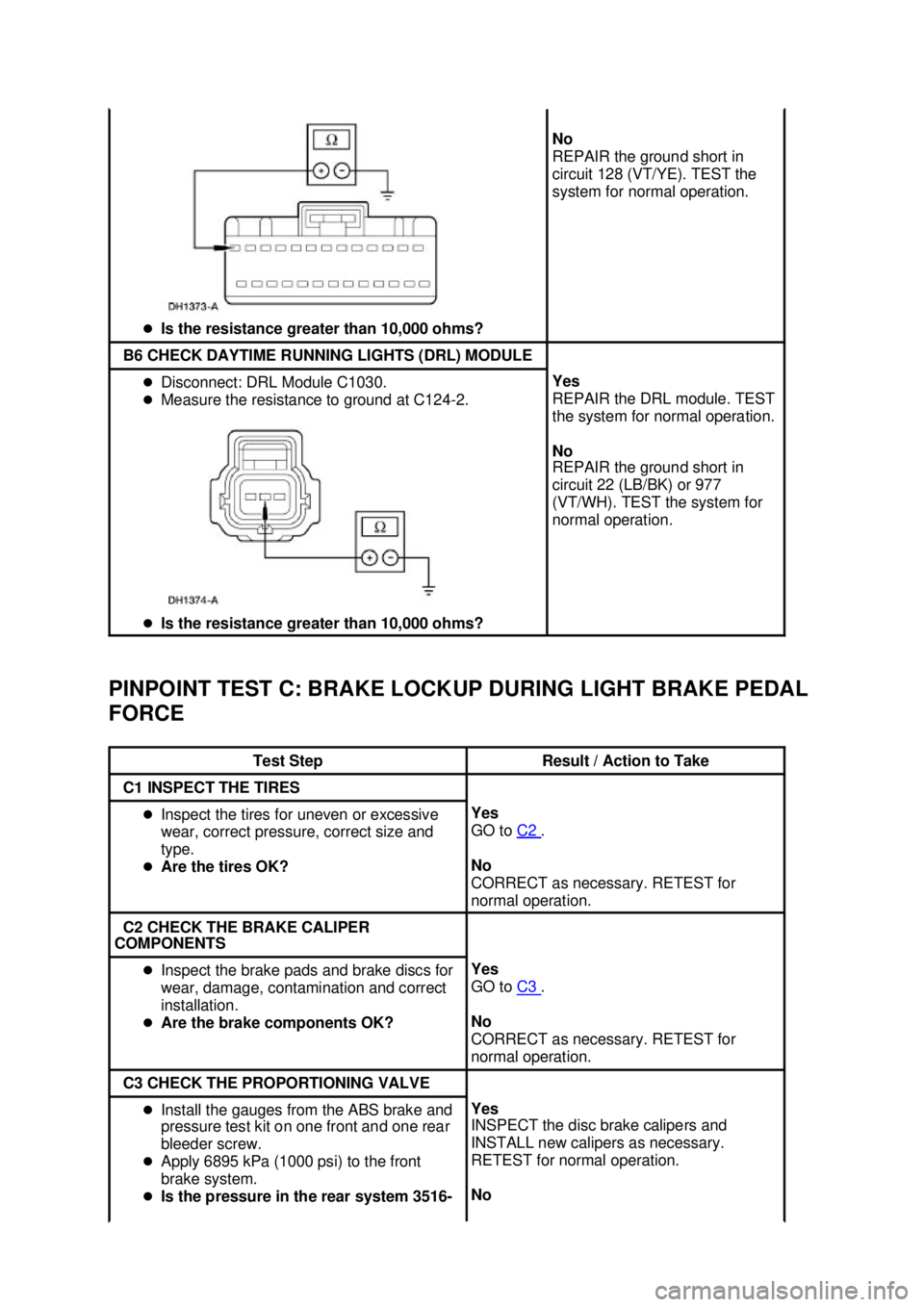

B6 CHECK DAYTIME RUNNING LIGHTS (DRL) MODULE
z
Disconnect: DRL Module C1030.
z Measure the resistance to ground at C124- 2.
z Is the resistance greater than 10,000 ohms? Yes
REPAIR the DRL module. TEST
the system for normal operation.
No
REPAIR the ground short in
circuit 22 (LB/BK) or 977
(VT/WH). TEST the system for
normal operation.
Test Step Result / Action to Take
C1 INSPECT THE TIRES
z
Inspect the tires for uneven or excessive
wear, correct pressure, correct size and
type.
z Are the tires OK? Yes
GO to
C2 .
No
CORRECT as necessary. RETEST for
normal operation. C2 CHECK THE BRAKE CALIPER
COMPONENTS z
Inspect the brake pads and brake discs for
wear, damage, contamination and correct
installation.
z Are the brake components OK? Yes
GO to
C3 .
No
CORRECT as necessary. RETEST for
normal operation. C3 CHECK THE PROPORTIONING VALVE
z
Install the gauges from the ABS brake and
pressure test kit on one front and one rear
bleeder screw.
z Apply 6895 kPa (1000 psi) to the front
brake system.
z Is the pressure in the rear system 3516- Yes
INSPECT the disc brake calipers and
INSTALL new calipers as necessary.
RETEST for normal operation.
No Klj . 9 ba
152003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 617 of 4378
Brake Pressure Control Valve
The brake pressure control valve proportions the pressure to the rear brakes.
zWhen the brake pedal is applied, brake fluid pressure passes through the proportioning valves
to the rear brake system until the valve split point is reached.
z Above its split point, the proportioning valve begins to reduce the hydraulic pressure to the rear
brakes, creating a balanced braking condition between the front and rear brakes.
Brake Tubes and Hoses CAUTION: Never use copper tubing. It is subject to fatigue, cracking and corrosion which
could result in brake tube failure.
Steel tubing is used throughout the brake hydraulic system. All brake tube fittings must be correctly
double flared to provide strong leakproof connections. When bending the tubing to fit the underbody or
rear axle contours, be careful not to kink or crack the tube.
If a section of brake tube is damaged, the entire section must be removed and a new tube of the same
type, size, shape and length installed.
When replacing hydraulic brake tubing, hoses, or connectors, tighten all connections securely. After
installation, bleed the brake system. For additional information, refer to Section 206 - 00 . Klj . 3 ba
32003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 658 of 4378

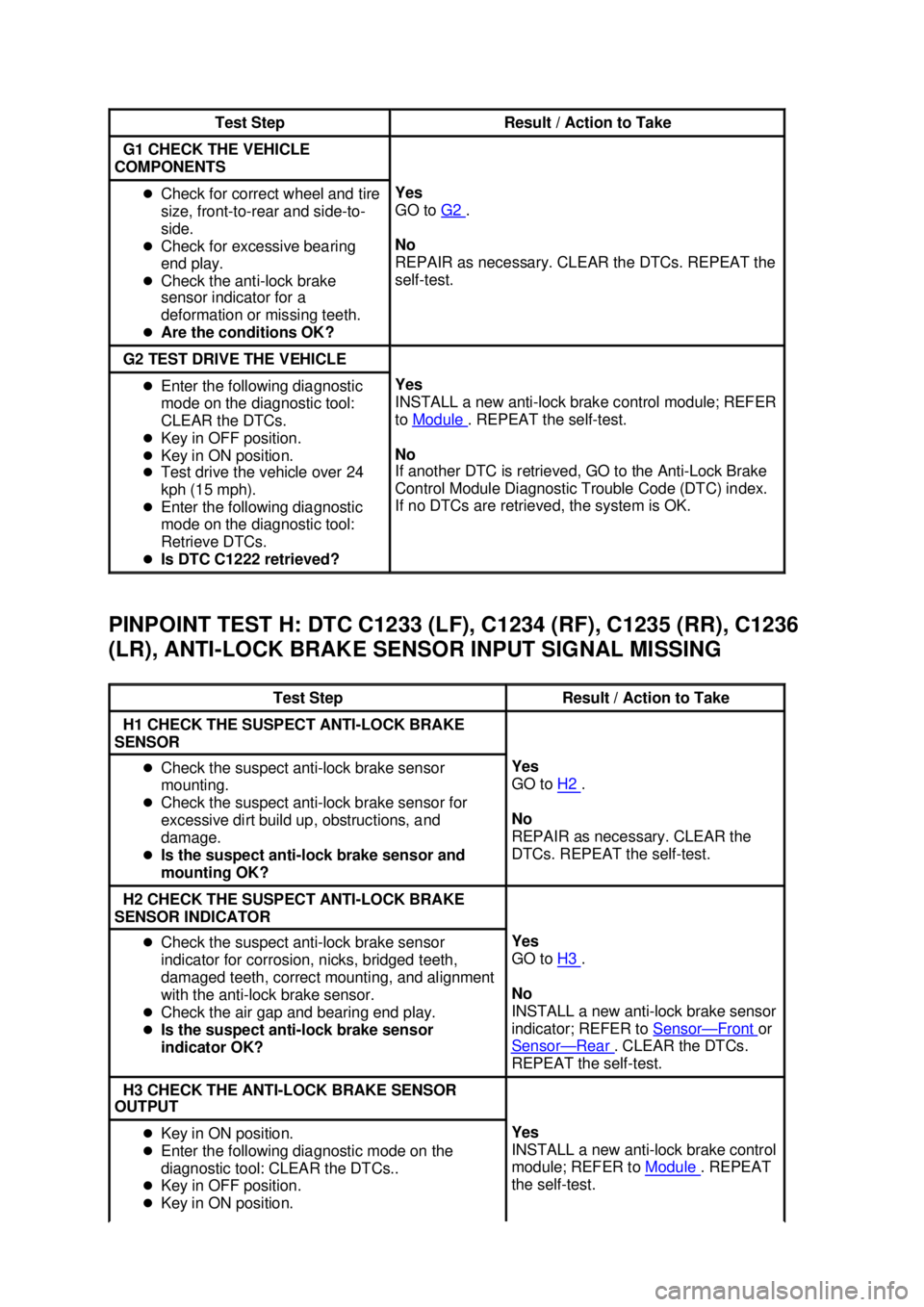

PINPOINT TEST H: DTC C1233 (LF), C1234 (RF), C1235 (RR), C1236
(LR), ANTI-
LOCK BRAKE SENSOR INPUT SIGNAL MISSING Test Step Result / Action to Take
G1 CHECK THE VEHICLE
COMPONENTS z
Check for correct wheel and tire
size, front- to-rear and side- to-
side.
z Check for excessive bearing
end play.
z Check the anti- lock brake
sensor indicator for a
deformation or missing teeth.
z Are the conditions OK? Yes
GO to
G2 .
No
REPAIR as necessary. CLEAR the DTCs. REPEAT the
self- test. G2 TEST DRIVE THE VEHICLE
z
Enter the following diagnostic
mode on the diagnostic tool:
CLEAR the DTCs.
z Key in OFF position.
z Key in ON position.
z Test drive the vehicle over 24
kph (15 mph).
z Enter the following diagnostic
mode on the diagnostic tool:
Retrieve DTCs.
z Is DTC C1222 retrieved? Yes
INSTALL a new anti-
lock brake control module; REFER
to Module . REPEAT the self-
test.
No
If another DTC is retrieved, GO to the Anti- Lock Brake
Control Module Diagnostic Trouble Code (DTC) index.
If no DTCs are retrieved, the system is OK. Test Step Result / Action to Take
H1 CHECK THE SUSPECT ANTI-
LOCK BRAKE
SENSOR z
Check the suspect anti- lock brake sensor
mounting.
z Check the suspect anti- lock brake sensor for
excessive dirt build up, obstructions, and
damage.
z Is the suspect anti- lock brake sensor and
mounting OK? Yes
GO to
H2 .
No
REPAIR as necessary. CLEAR the
DTCs. REPEAT the self-test. H2 CHECK THE SUSPECT ANTI-
LOCK BRAKE
SENSOR INDICATOR z
Check the suspect anti- lock brake sensor
indicator for corrosion, nicks, bridged teeth,
damaged teeth, correct mounting, and alignment
with the anti- lock brake sensor.
z Check the air gap and bearing end play.
z Is the suspect anti- lock brake sensor
indicator OK? Yes
GO to
H3 .
No
INSTALL a new anti- lock brake sensor
indicator; REFER to Sensor — Front or
Sensor — Rear . CLEAR the DTCs.
REPEAT the self- test. H3 CHECK THE ANTI-
LOCK BRAKE SENSOR
OUTPUT z
Key in ON position.
z Enter the following diagnostic mode on the
diagnostic tool: CLEAR the DTCs..
z Key in OFF position.
z Key in ON position. Yes
INSTALL a new anti-
lock brake control
module; REFER to Module . REPEAT
the self- test. Klj . 12 ba
162003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
Page 690 of 4378

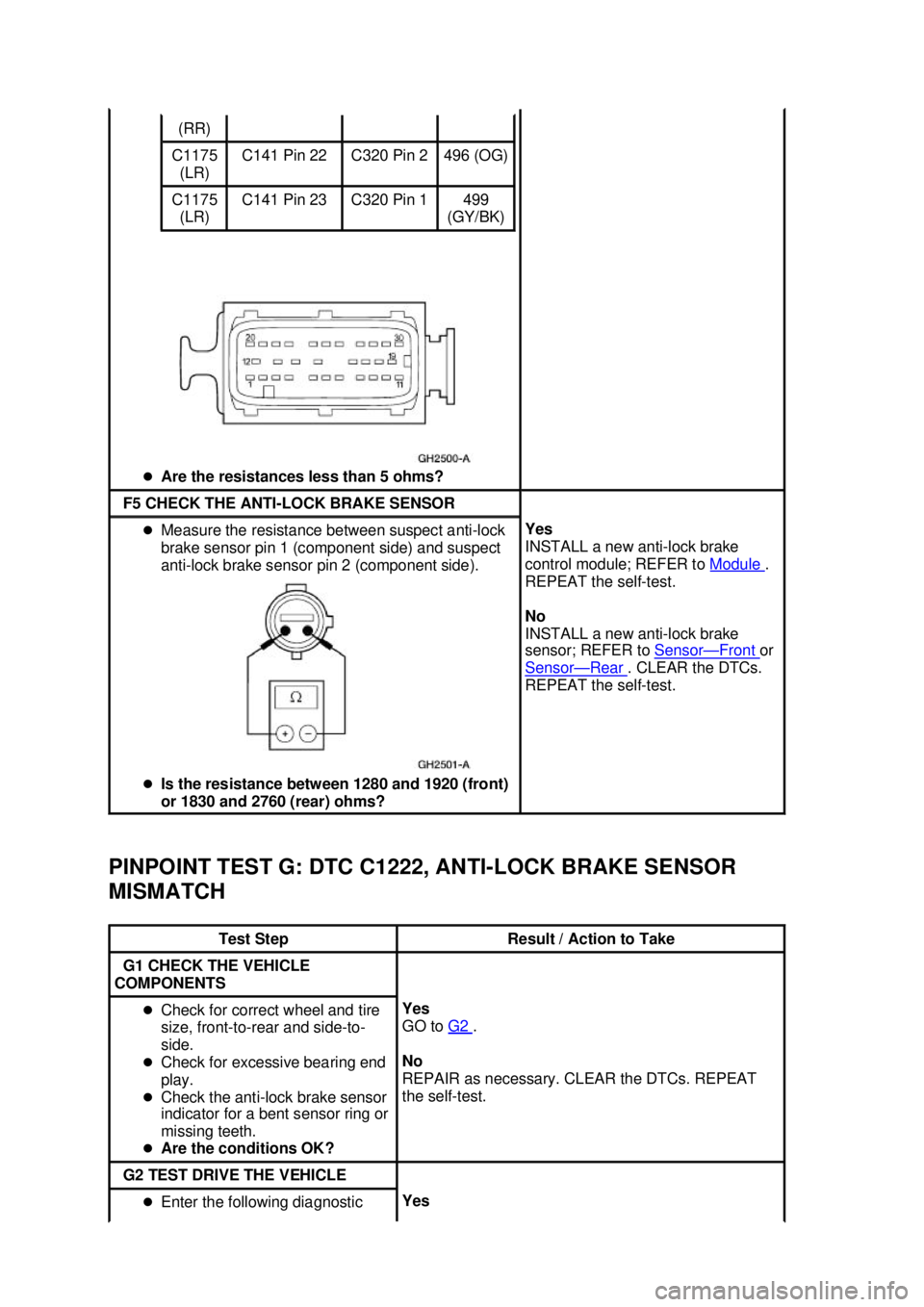

PINPOINT TEST G: DTC C1222, ANTI-
LOCK BRAKE SENSOR
MISMATCH z
Are the resistances less than 5 ohms? (RR)
C1175
(LR) C141 Pin 22 C320 Pin 2 496 (OG)
C1175
(LR) C141 Pin 23 C320 Pin 1 499
(GY/BK) F5 CHECK THE ANTI-
LOCK BRAKE SENSOR z
Measure the resistance between suspect anti- lock
brake sensor pin 1 (component side) and suspect
anti- lock brake sensor pin 2 (component side).
z Is the resistance between 1280 and 1920 (front)
or 1830 and 2760 (rear) ohms? Yes
INSTALL a new anti-
lock brake
control module; REFER to Module .
REPEAT the self- test.
No
INSTALL a new anti- lock brake
sensor; REFER to Sensor — Front or
Sensor — Rear . CLEAR the DTCs.
REPEAT the self- test. Test Step Result / Action to Take
G1 CHECK THE VEHICLE
COMPONENTS z
Check for correct wheel and tire
size, front- to-rear and side- to-
side.
z Check for excessive bearing end
play.
z Check the anti- lock brake sensor
indicator for a bent sensor ring or
missing teeth.
z Are the conditions OK? Yes
GO to
G2 .
No
REPAIR as necessary. CLEAR the DTCs. REPEAT
the self- test. G2 TEST DRIVE THE VEHICLE
z
Enter the following diagnostic Yes Klj . 13 ba
202003 Mustang Workshop Manual
17. 11. 2011file:///C:/Ford/2000 - 2004/tsocache/SHEF_4464/S3B~us~en~ ...
