FORD MUSTANG 2004 4.G Owners Manual

ENGINE DATA
Engine OHV V6
engine4.6L SOHC
V8 engine4.6L 4v V8
engine
(Mach 1)
Cubic inches 232 281 281
Required fuel 87 octane 87 octane 91 Octane
Firing order 1-4-2-5-3-6
1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8
Spark plug
gap1.3-1.4 mm
(0.052-00.056
inch)1.3-1.4 mm
(0.052-00.056
inch)1.3-1.4 mm
(0.052-00.056
inch)
Ignition
systemEDIS Coil on plug Coil on plug
Compression
ratio9.4:1 9.4:1 10.1 :1
VEHICLE DIMENSIONS
Vehicle
dimensionsCoupe mm (in) Convertible mm
(in)
(1) Overall length 4653.3 (183.2) 4653.3 (183.2)
(2) Overall width 1856.7 (73.1) 1856.7 (73.1)
(3) Overall height 1348.7 (53.1) 1351.3 (53.2)
(4) Wheelbase 2571.2 (101.2) 2571.2 (101.2)
(5) Track - Front 1521.5 (59.9) 1521.5 (59.9)
(5) Track - Rear 1526.5 (60.1) 1526.5 (60.1)
25
3
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
221

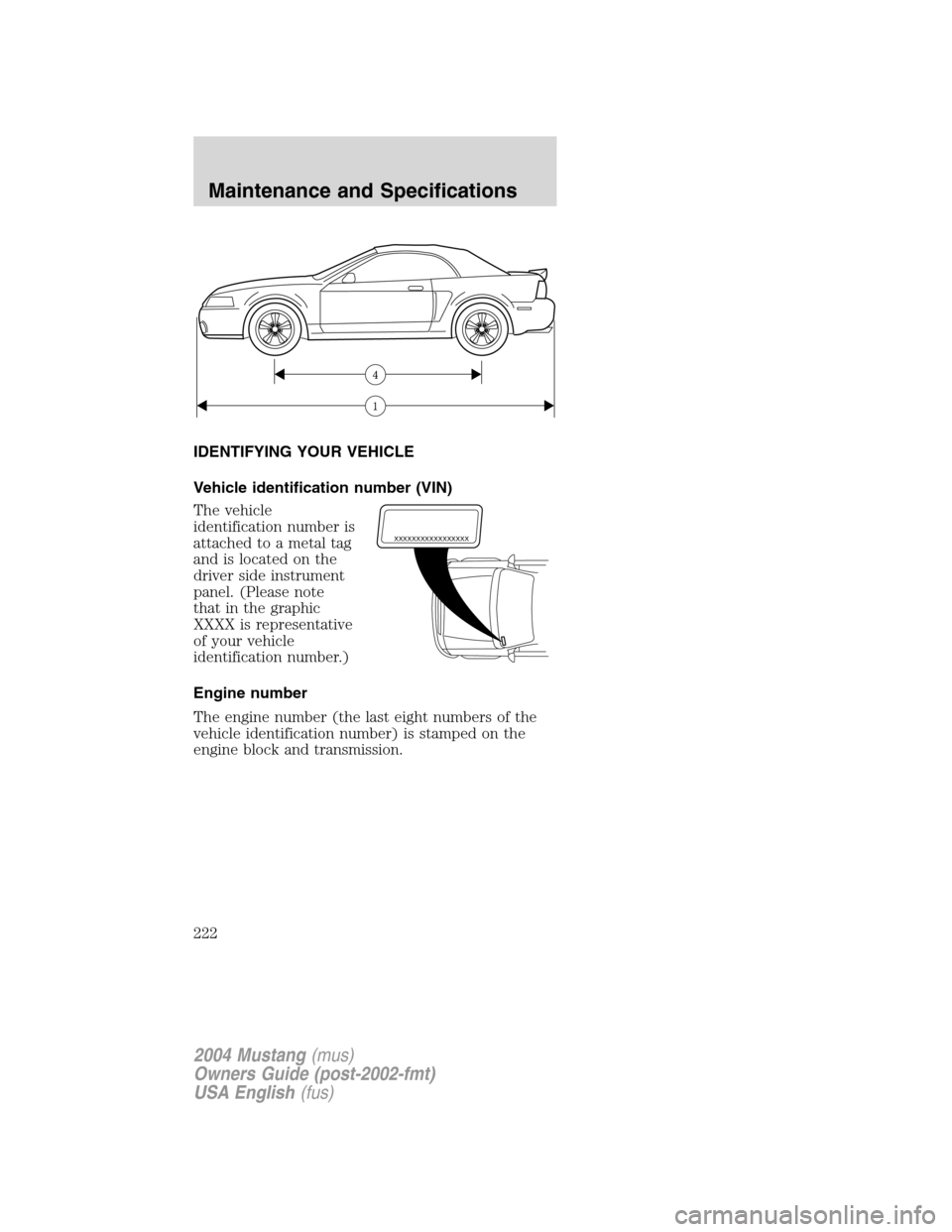

IDENTIFYING YOUR VEHICLE
Vehicle identification number (VIN)
The vehicle
identification number is
attached to a metal tag
and is located on the
driver side instrument
panel. (Please note
that in the graphic
XXXX is representative
of your vehicle
identification number.)
Engine number
The engine number (the last eight numbers of the
vehicle identification number) is stamped on the
engine block and transmission.
XXXXXXXXXXXXXXXXX
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
222

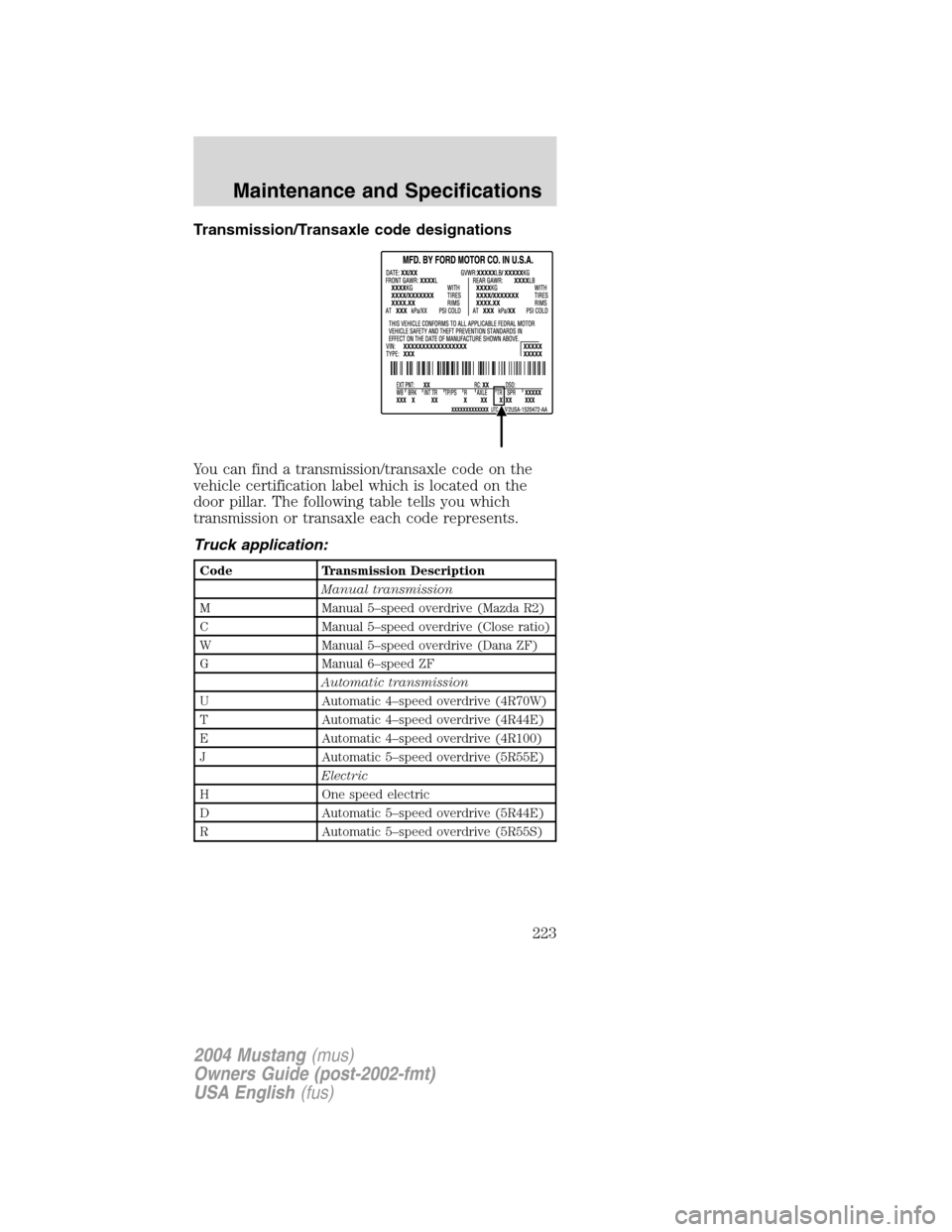

Transmission/Transaxle code designations
You can find a transmission/transaxle code on the
vehicle certification label which is located on the
door pillar. The following table tells you which
transmission or transaxle each code represents.
Truck application:
Code Transmission Description
Manual transmission
M Manual 5–speed overdrive (Mazda R2)
C Manual 5–speed overdrive (Close ratio)
W Manual 5–speed overdrive (Dana ZF)
G Manual 6–speed ZF
Automatic transmission
U Automatic 4–speed overdrive (4R70W)
T Automatic 4–speed overdrive (4R44E)
E Automatic 4–speed overdrive (4R100)
J Automatic 5–speed overdrive (5R55E)
Electric
H One speed electric
D Automatic 5–speed overdrive (5R44E)
R Automatic 5–speed overdrive (5R55S)
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
223

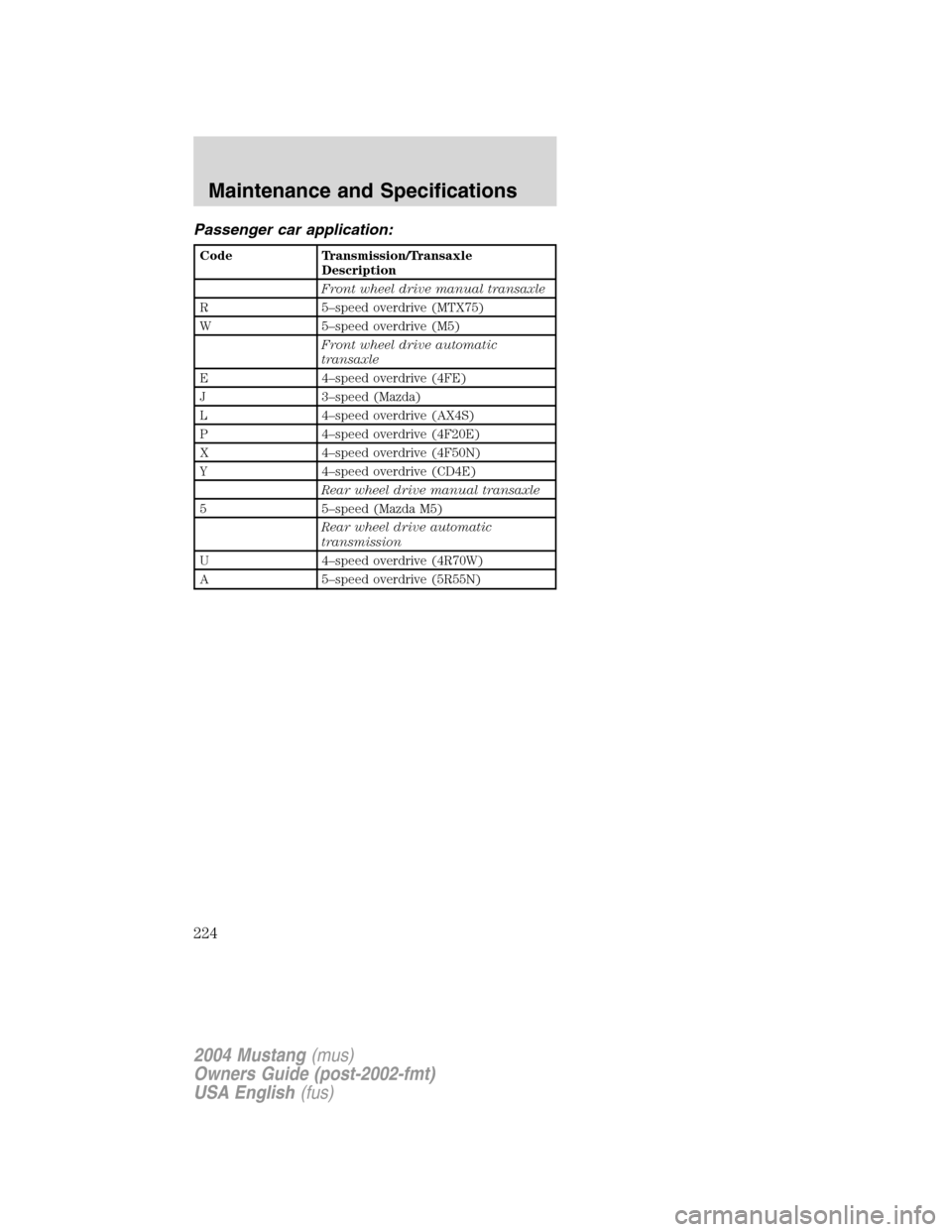

Passenger car application:
Code Transmission/Transaxle
Description
Front wheel drive manual transaxle
R5–speed overdrive (MTX75)
W5–speed overdrive (M5)
Front wheel drive automatic
transaxle
E4–speed overdrive (4FE)
J3–speed (Mazda)
L4–speed overdrive (AX4S)
P4–speed overdrive (4F20E)
X4–speed overdrive (4F50N)
Y4–speed overdrive (CD4E)
Rear wheel drive manual transaxle
55–speed (Mazda M5)
Rear wheel drive automatic
transmission
U4–speed overdrive (4R70W)
A5–speed overdrive (5R55N)
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
224

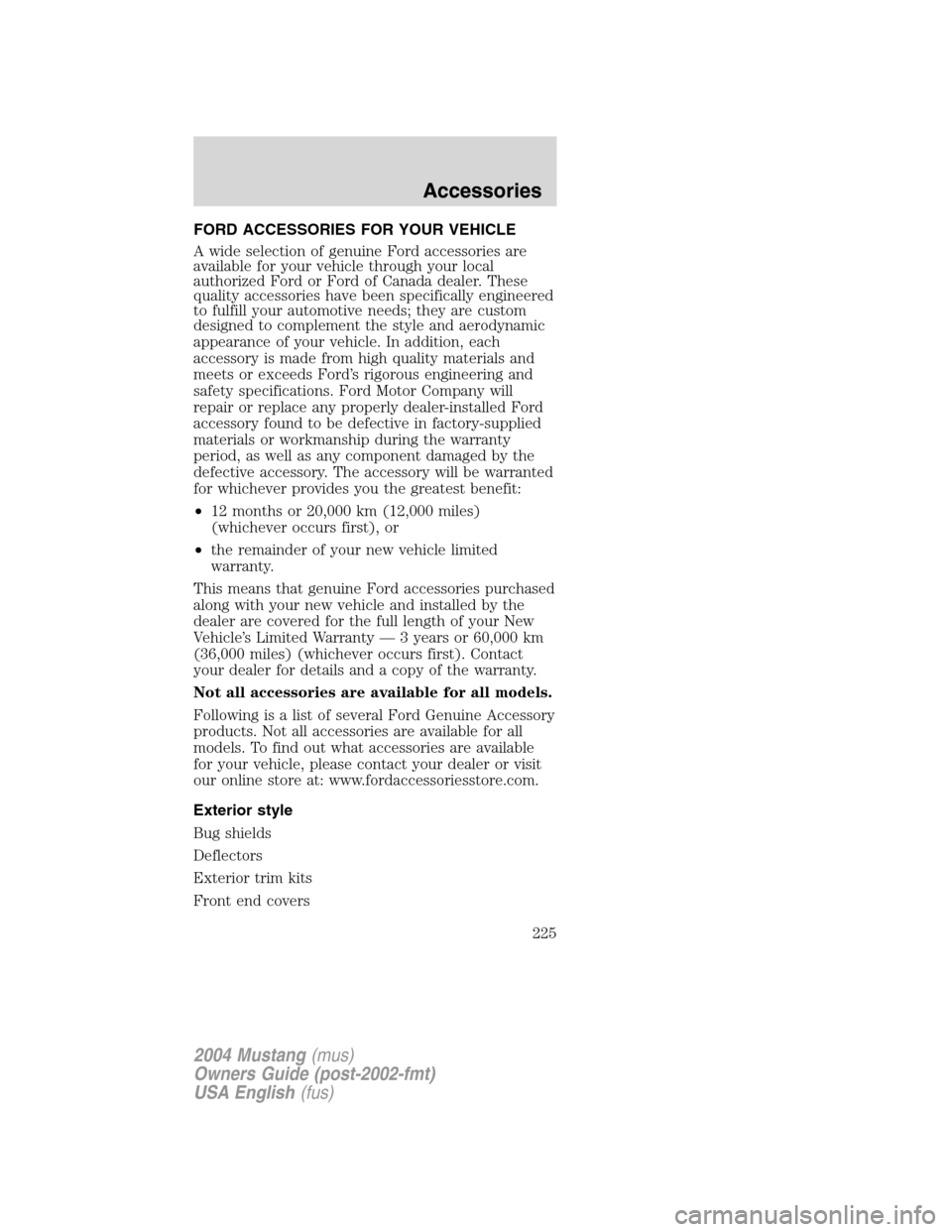

FORD ACCESSORIES FOR YOUR VEHICLE
A wide selection of genuine Ford accessories are
available for your vehicle through your local
authorized Ford or Ford of Canada dealer. These
quality accessories have been specifically engineered
to fulfill your automotive needs; they are custom
designed to complement the style and aerodynamic
appearance of your vehicle. In addition, each
accessory is made from high quality materials and
meets or exceeds Ford’s rigorous engineering and
safety specifications. Ford Motor Company will
repair or replace any properly dealer-installed Ford
accessory found to be defective in factory-supplied
materials or workmanship during the warranty
period, as well as any component damaged by the
defective accessory. The accessory will be warranted
for whichever provides you the greatest benefit:
•12 months or 20,000 km (12,000 miles)
(whichever occurs first), or
•the remainder of your new vehicle limited
warranty.
This means that genuine Ford accessories purchased
along with your new vehicle and installed by the
dealer are covered for the full length of your New
Vehicle’s Limited Warranty—3 years or 60,000 km
(36,000 miles) (whichever occurs first). Contact
your dealer for details and a copy of the warranty.
Not all accessories are available for all models.
Following is a list of several Ford Genuine Accessory
products. Not all accessories are available for all
models. To find out what accessories are available
for your vehicle, please contact your dealer or visit
our online store at: www.fordaccessoriesstore.com.
Exterior style
Bug shields
Deflectors
Exterior trim kits
Front end covers
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Accessories
225

Grille inserts
Headlamps, fog lights and Daytime Running Lamps
(DRLS)
Splash guards
Wheels
Interior style
Cell phone holders
Electrochromatic compass/temperature interior
mirrors
Floor mats
Interior trim kits
Leather wrapped steering wheels
Scuff plates
Speed control
Lifestyle
Bike racks
Cargo organization and management
Engine block heaters and blankets
Peace of mind
Airbag anti-theft locks
First aid and safety kits
Full vehicle covers
Locking gas cap
Navigation systems
Remote start
Vehicle security systems
For maximum vehicle performance, keep the
following information in mind when adding
accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers
and luggage to your vehicle, do not exceed the
total weight capacity of the vehicle or of the front
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Accessories
226

or rear axle (GVWR or GAWR as indicated on the
Safety Compliance Certification label). Consult
your dealer for specific weight information.
•The Federal Communications Commission (FCC)
and Canadian Radio Telecommunications
Commission (CRTC) regulate the use of mobile
communications systems—such as two-way
radios, telephones and theft alarms - that are
equipped with radio transmitters. Any such
equipment installed in your vehicle should comply
with FCC or CRTC regulations and should be
installed only by a qualified service technician.
•Mobile communications systems may harm the
operation of your vehicle, particularly if they are
not properly designed for automotive use.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Accessories
227

A
Air bag supplemental
restraint system .. 79–80
and child safety
seats ......................... 81
description .............. 80
disposal .................... 84
driver air bag .......... 82
indicator light ......... 83
operation ................. 82
passenger air bag ... 82
Air cleaner filter ..... 215
Antifreeze (see
Engine coolant) ...... 174
Anti-lock brake system
(see Brakes) .... 104–105
Audio system
(see Radio) .... 18, 20, 25
Automatic
transmission ............ 108
driving an automatic
overdrive ............... 111
fluid, adding .......... 196
fluid, checking ...... 196
fluid, refill
capacities ............... 215
fluid,
specification .......... 221
Auxiliary power
point ........................... 45
Axle
lubricant
specifications. 218, 221
refill capacities ...... 215
traction lok ............ 108
B
Battery ..................... 171acid, treating
emergencies .......... 171
jumping a disabled
battery ................... 136
maintenance-free .. 171
replacement,
specifications ........ 215
servicing ................ 171
BeltMinder ................. 74
Brakes .............. 104–105
anti-lock ......... 104–105
anti-lock brake
system (ABS)
warning light ......... 104
fluid, checking and
adding .................... 196
fluid, refill
capacities ............... 215
fluid,
specifications. 218, 221
lubricant
specifications 218, 221
parking .................. 106
shift interlock ........ 108
Bulbs .......................... 38
C
Capacities for
refilling fluids .......... 215
Cargo net ................... 44
Cassette tape
player ................... 18, 25
CD-single premium ... 20
Cell phone use .......... 49
Child safety
restraints ................... 85
child safety belts .... 85
Child safety seats ...... 88
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
228

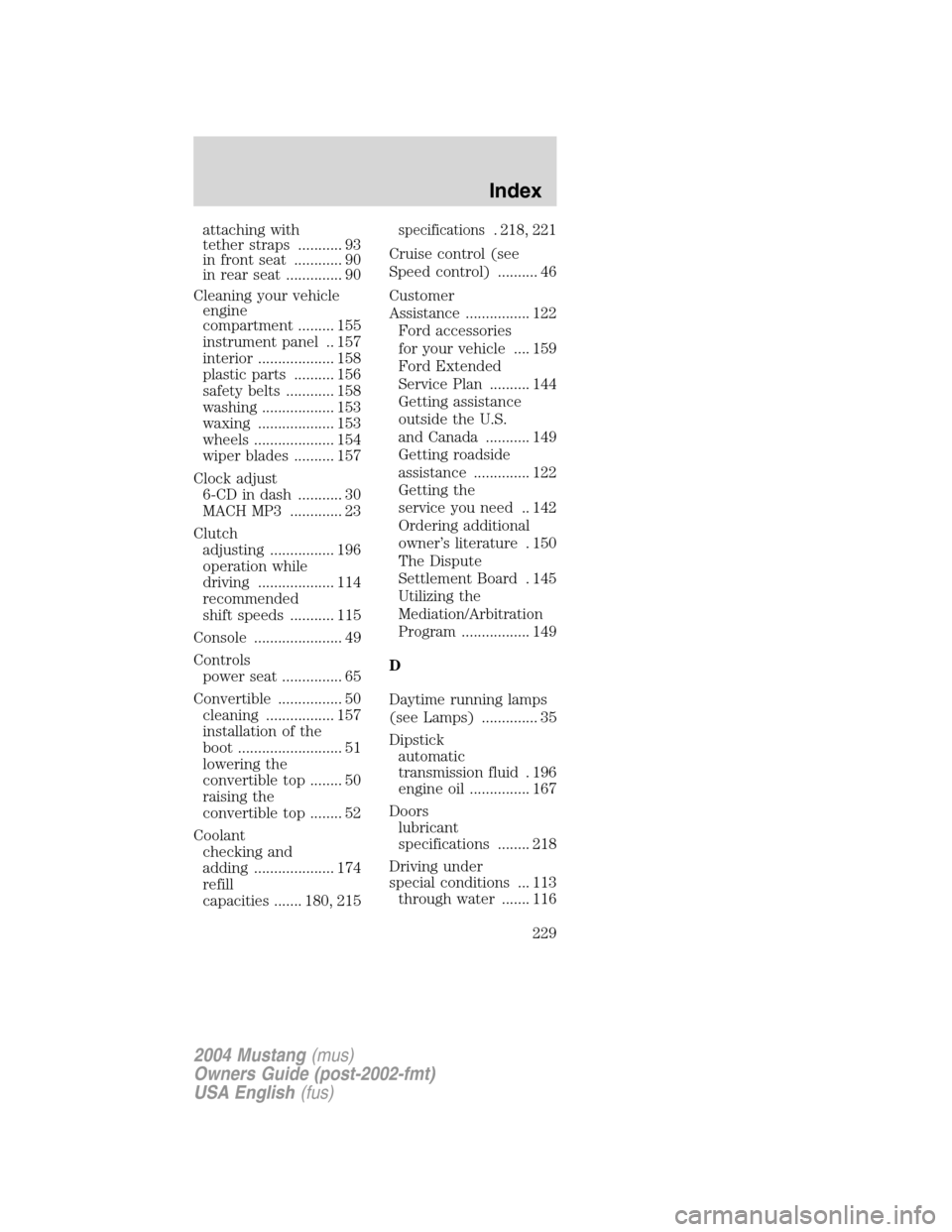

attaching with
tether straps ........... 93
in front seat ............ 90
in rear seat .............. 90
Cleaning your vehicle
engine
compartment ......... 155
instrument panel .. 157
interior ................... 158
plastic parts .......... 156
safety belts ............ 158
washing .................. 153
waxing ................... 153
wheels .................... 154
wiper blades .......... 157
Clock adjust
6-CD in dash ........... 30
MACH MP3 ............. 23
Clutch
adjusting ................ 196
operation while
driving ................... 114
recommended
shift speeds ........... 115
Console ...................... 49
Controls
power seat ............... 65
Convertible ................ 50
cleaning ................. 157
installation of the
boot .......................... 51
lowering the
convertible top ........ 50
raising the
convertible top ........ 52
Coolant
checking and
adding .................... 174
refill
capacities ....... 180, 215specifications. 218, 221
Cruise control (see
Speed control) .......... 46
Customer
Assistance ................ 122
Ford accessories
for your vehicle .... 159
Ford Extended
Service Plan .......... 144
Getting assistance
outside the U.S.
and Canada ........... 149
Getting roadside
assistance .............. 122
Getting the
service you need .. 142
Ordering additional
owner’s literature . 150
The Dispute
Settlement Board . 145
Utilizing the
Mediation/Arbitration
Program ................. 149
D
Daytime running lamps
(see Lamps) .............. 35
Dipstick
automatic
transmission fluid . 196
engine oil ............... 167
Doors
lubricant
specifications ........ 218
Driving under
special conditions ... 113
through water ....... 116
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
229

E
Emergencies, roadside
jump-starting ........ 136
Emergency Flashers 124
Emission control
system ...................... 191
Engine ...................... 221
cleaning ................. 155
coolant ................... 174
idle speed control . 171
lubrication
specifications. 218, 221
refill capacities ...... 215
service
points ............. 164–166
Engine block
heater ....................... 103
Engine oil ................ 167
checking and
adding .................... 167
dipstick .................. 167
filter,
specifications. 170, 215
recommendations . 170
refill capacities ...... 215
specifications. 218, 221
Exhaust fumes ........ 103
F
Floor mats ................. 50
Fluid capacities ....... 215
Foglamps ................... 35
Fuel .......................... 182
calculating fuel
economy ................ 187
cap ......................... 184
capacity ................. 215choosing the
right fuel ................ 185
comparisons with
EPA fuel economy
estimates ............... 191
detergent in fuel ... 187
filling your vehicle
with fuel. 182, 184, 188
filter,
specifications. 187, 215
improving fuel
economy ................ 187
octane
rating ..... 185–186, 221
quality .................... 186
running out of fuel 187
safety information
relating to automotive
fuels ....................... 182
Fuses ................ 125–126
G
Gas cap (see
Fuel cap) ................. 184
Gas mileage (see
Fuel economy) ........ 187
Gauges ....................... 14
H
Hazard flashers ....... 124
Head restraints ......... 64
Headlamps ................. 35
aiming ...................... 37
bulb specifications .. 39
daytime running
lights ........................ 35
flash to pass ............ 36
high beam ............... 36
replacing bulbs ....... 40
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
230
