Introduction 4
Instrument Cluster 10
Warning and control lights 10
Gauges 14
Entertainment Systems 18
AM/FM stereo with CD 18
AM/FM stereo with in-dash six CD 25
Climate Controls 33
Manual heating and air conditioning 33
Rear window defroster 34
Lights 35
Headlamps 35
Turn signal control 38
Bulb replacement 38
Driver Controls 43
Windshield wiper/washer control 43
Steering wheel adjustment 44
Power windows 45
Mirrors 46
Speed control 46
Locks and Security 54
Keys 54
Locks 54
Anti-theft system 57
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Table of Contents
1
Page 39 of 240

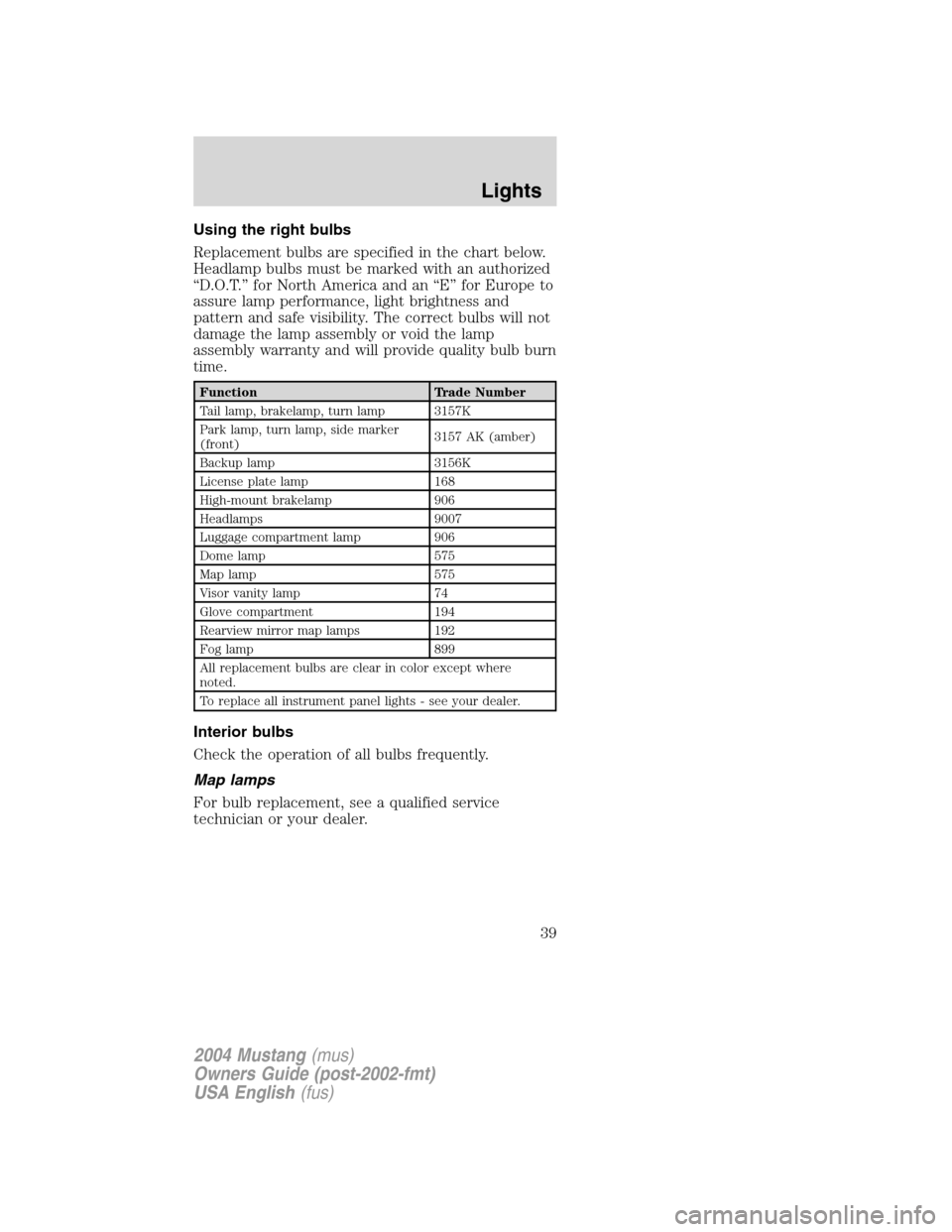

Using the right bulbs
Replacement bulbs are specified in the chart below.
Headlamp bulbs must be marked with an authorized
“D.O.T.”for North America and an“E”for Europe to
assure lamp performance, light brightness and
pattern and safe visibility. The correct bulbs will not
damage the lamp assembly or void the lamp
assembly warranty and will provide quality bulb burn
time.
Function Trade Number
Tail lamp, brakelamp, turn lamp 3157K
Park lamp, turn lamp, side marker
(front)3157 AK (amber)
Backup lamp 3156K
License plate lamp 168
High-mount brakelamp 906
Headlamps 9007
Luggage compartment lamp 906
Dome lamp 575
Map lamp 575
Visor vanity lamp 74
Glove compartment 194
Rearview mirror map lamps 192
Fog lamp 899
All replacement bulbs are clear in color except where
noted.
To replace all instrument panel lights - see your dealer.
Interior bulbs
Check the operation of all bulbs frequently.
Map lamps
For bulb replacement, see a qualified service
technician or your dealer.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
39
Page 46 of 240

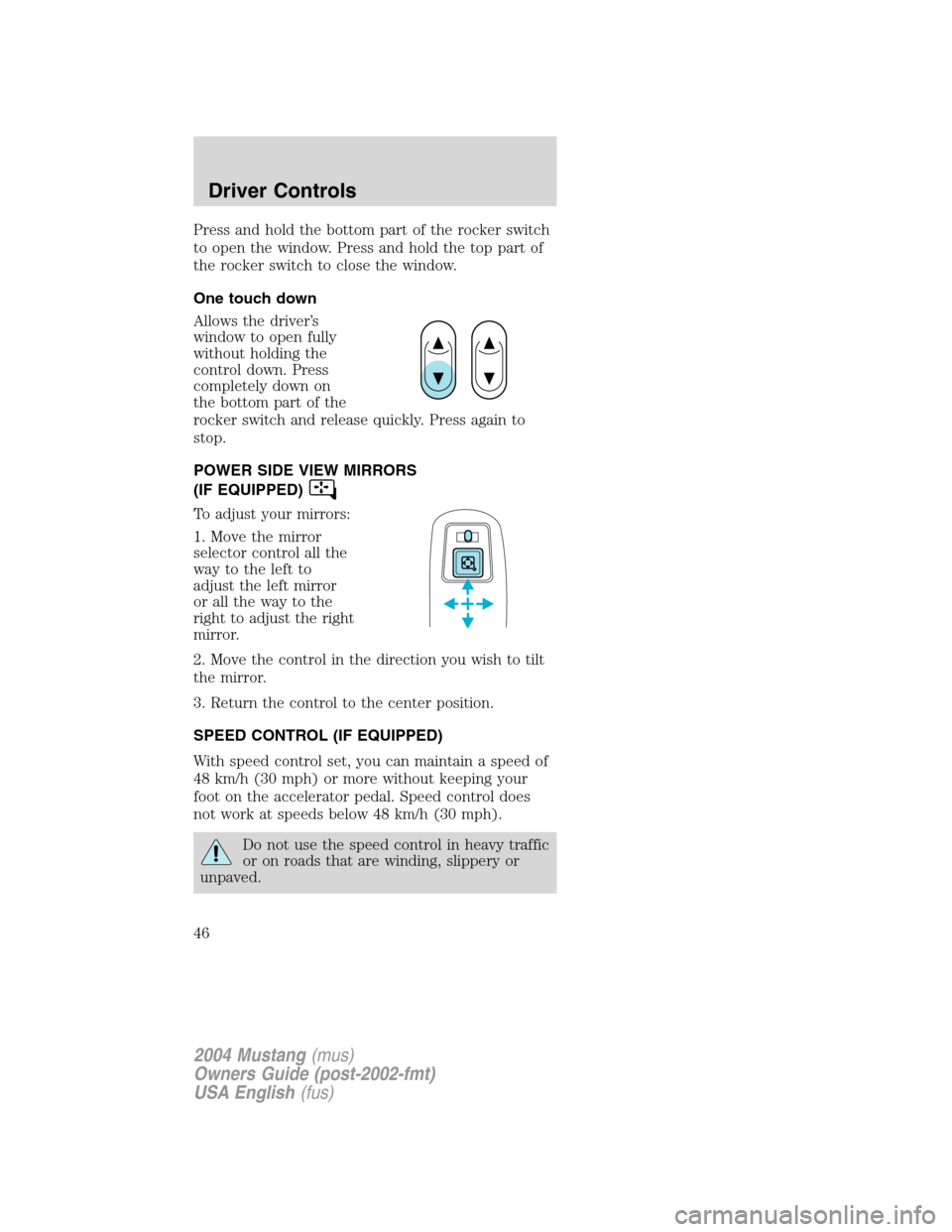

Press and hold the bottom part of the rocker switch
to open the window. Press and hold the top part of
the rocker switch to close the window.
One touch down
Allows the driver’s
window to open fully
without holding the
control down. Press
completely down on
the bottom part of the
rocker switch and release quickly. Press again to
stop.
POWER SIDE VIEW MIRRORS
(IF EQUIPPED)
To adjust your mirrors:
1. Move the mirror
selector control all the
way to the left to
adjust the left mirror
or all the way to the
right to adjust the right
mirror.
2. Move the control in the direction you wish to tilt
the mirror.
3. Return the control to the center position.
SPEED CONTROL (IF EQUIPPED)
With speed control set, you can maintain a speed of
48 km/h (30 mph) or more without keeping your
foot on the accelerator pedal. Speed control does
not work at speeds below 48 km/h (30 mph).
Do not use the speed control in heavy traffic
or on roads that are winding, slippery or
unpaved.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
46
Page 127 of 240

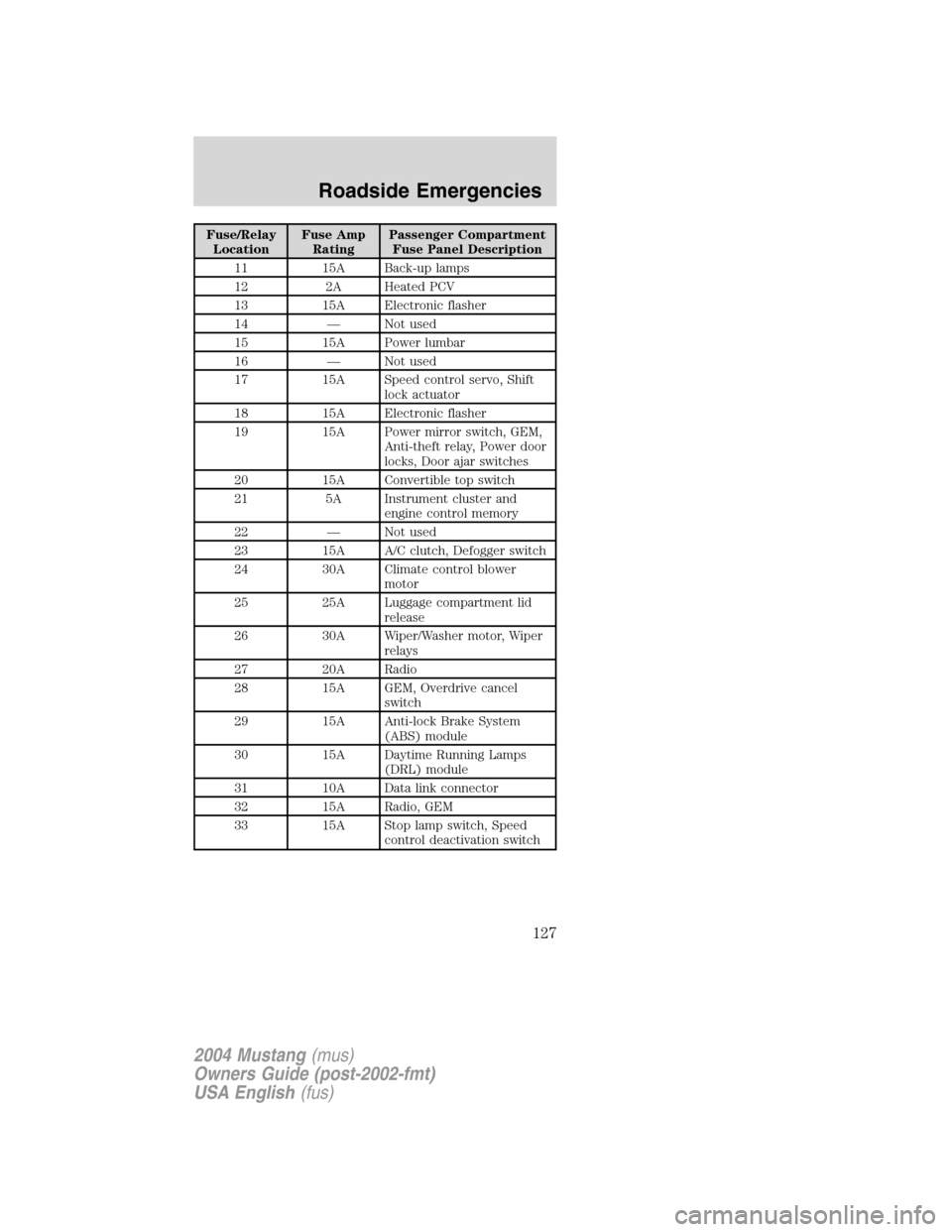

Fuse/Relay
LocationFuse Amp
RatingPassenger Compartment
Fuse Panel Description
11 15A Back-up lamps
12 2A Heated PCV
13 15A Electronic flasher
14—Not used
15 15A Power lumbar
16—Not used
17 15A Speed control servo, Shift
lock actuator
18 15A Electronic flasher
19 15A Power mirror switch, GEM,
Anti-theft relay, Power door
locks, Door ajar switches
20 15A Convertible top switch
21 5A Instrument cluster and
engine control memory
22—Not used
23 15A A/C clutch, Defogger switch
24 30A Climate control blower
motor
25 25A Luggage compartment lid
release
26 30A Wiper/Washer motor, Wiper
relays
27 20A Radio
28 15A GEM, Overdrive cancel
switch
29 15A Anti-lock Brake System
(ABS) module
30 15A Daytime Running Lamps
(DRL) module
31 10A Data link connector
32 15A Radio, GEM
33 15A Stop lamp switch, Speed
control deactivation switch
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Roadside Emergencies
127
Page 154 of 240

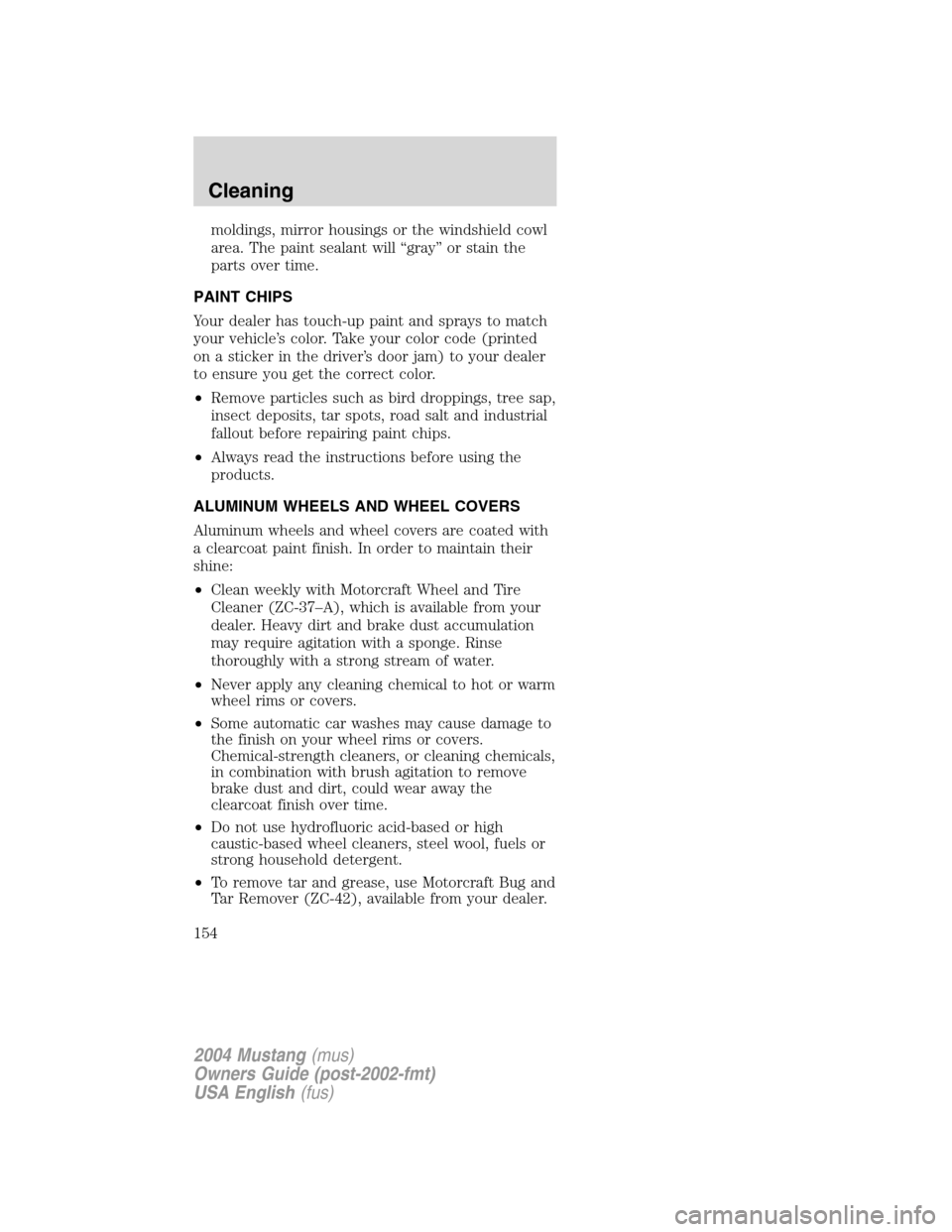

moldings, mirror housings or the windshield cowl
area. The paint sealant will“gray”or stain the
parts over time.
PAINT CHIPS
Your dealer has touch-up paint and sprays to match
your vehicle’s color. Take your color code (printed
on a sticker in the driver’s door jam) to your dealer
to ensure you get the correct color.
•Remove particles such as bird droppings, tree sap,
insect deposits, tar spots, road salt and industrial
fallout before repairing paint chips.
•Always read the instructions before using the
products.
ALUMINUM WHEELS AND WHEEL COVERS
Aluminum wheels and wheel covers are coated with
a clearcoat paint finish. In order to maintain their
shine:
•Clean weekly with Motorcraft Wheel and Tire
Cleaner (ZC-37–A), which is available from your
dealer. Heavy dirt and brake dust accumulation
may require agitation with a sponge. Rinse
thoroughly with a strong stream of water.
•Never apply any cleaning chemical to hot or warm
wheel rims or covers.
•Some automatic car washes may cause damage to
the finish on your wheel rims or covers.
Chemical-strength cleaners, or cleaning chemicals,
in combination with brush agitation to remove
brake dust and dirt, could wear away the
clearcoat finish over time.
•Do not use hydrofluoric acid-based or high
caustic-based wheel cleaners, steel wool, fuels or
strong household detergent.
•To remove tar and grease, use Motorcraft Bug and
Tar Remover (ZC-42), available from your dealer.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Cleaning
154
Page 226 of 240

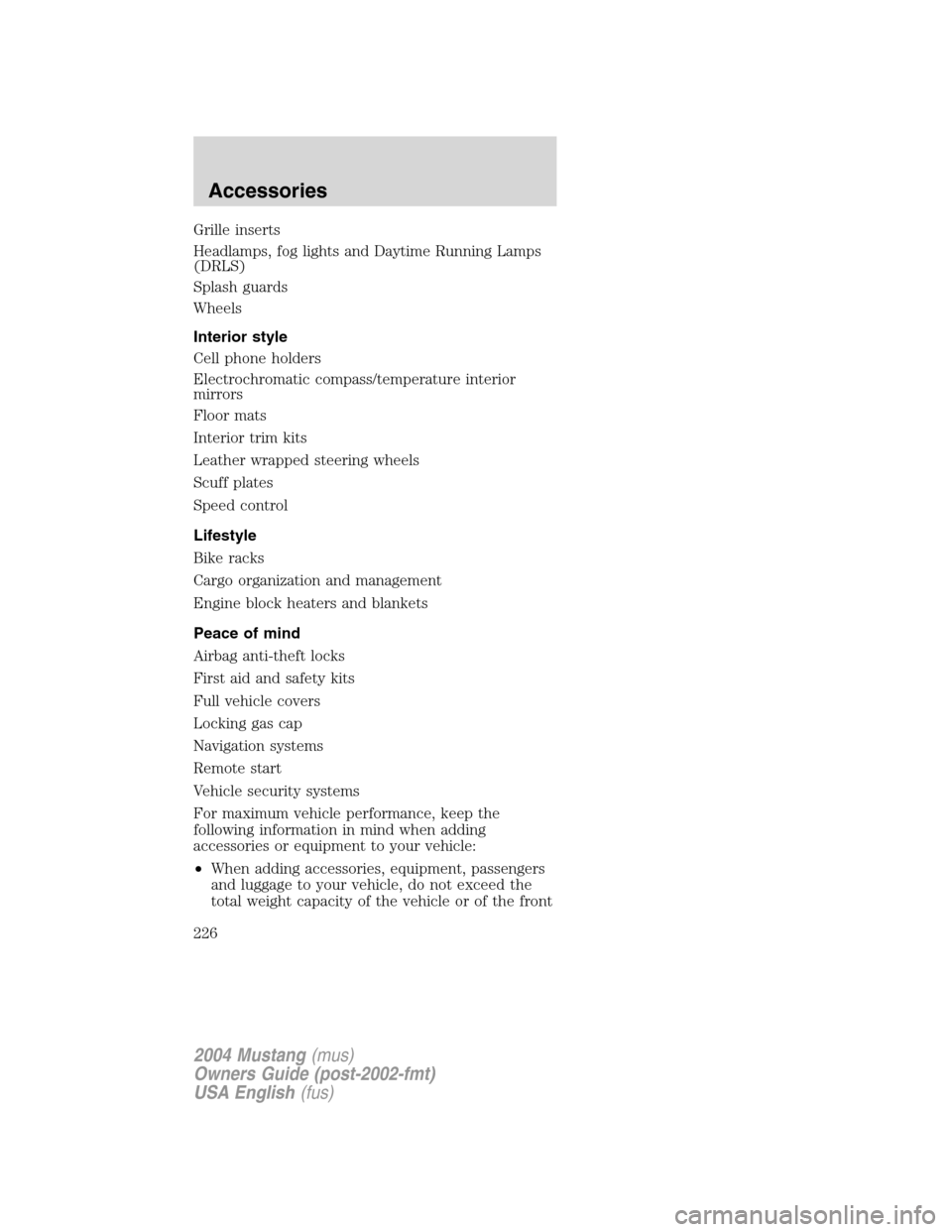

Grille inserts
Headlamps, fog lights and Daytime Running Lamps
(DRLS)
Splash guards
Wheels
Interior style
Cell phone holders
Electrochromatic compass/temperature interior
mirrors
Floor mats
Interior trim kits
Leather wrapped steering wheels
Scuff plates
Speed control
Lifestyle
Bike racks
Cargo organization and management
Engine block heaters and blankets
Peace of mind
Airbag anti-theft locks
First aid and safety kits
Full vehicle covers
Locking gas cap
Navigation systems
Remote start
Vehicle security systems
For maximum vehicle performance, keep the
following information in mind when adding
accessories or equipment to your vehicle:
•When adding accessories, equipment, passengers
and luggage to your vehicle, do not exceed the
total weight capacity of the vehicle or of the front
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Accessories
226
Page 231 of 240

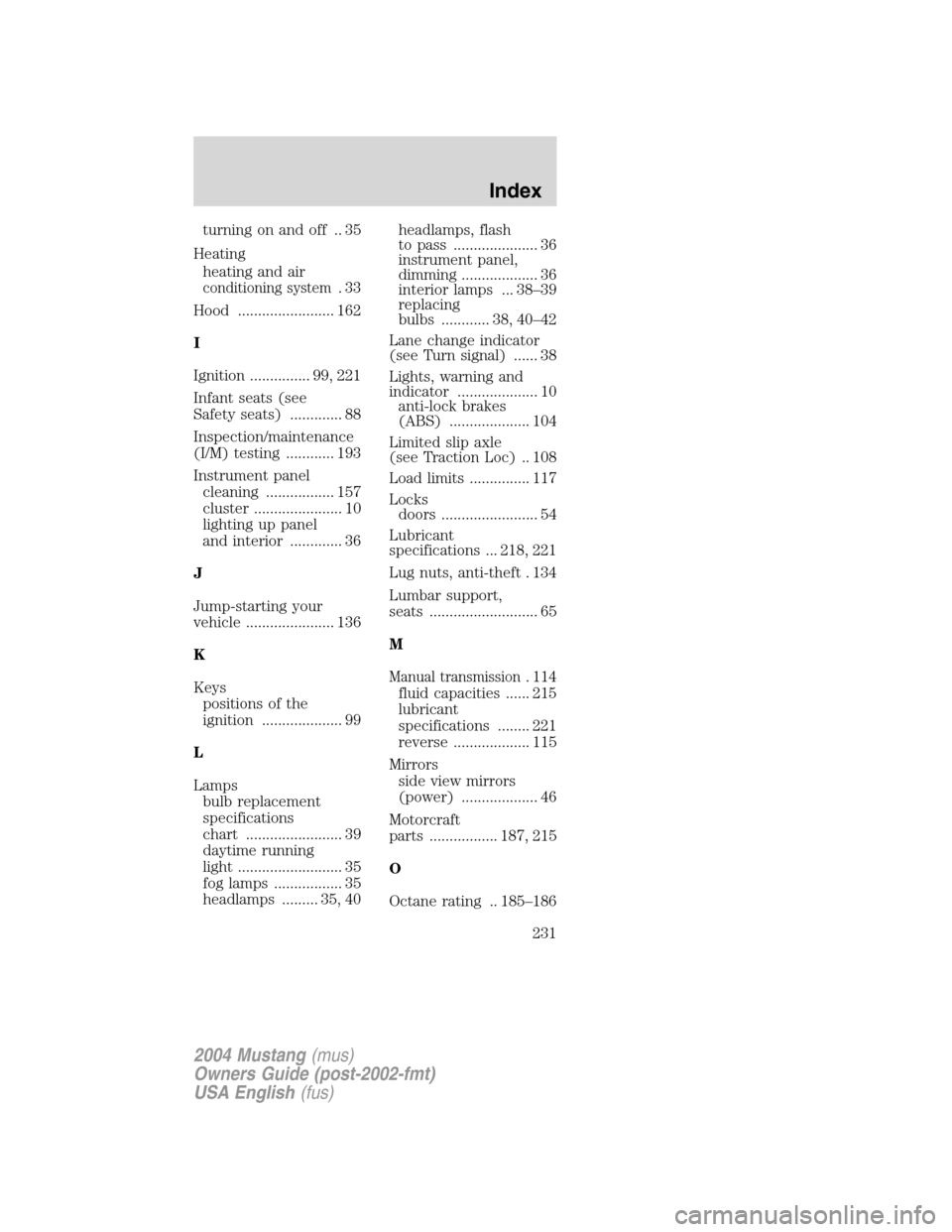

turning on and off .. 35
Heating
heating and air
conditioning system.33
Hood ........................ 162
I
Ignition ............... 99, 221
Infant seats (see
Safety seats) ............. 88
Inspection/maintenance
(I/M) testing ............ 193
Instrument panel
cleaning ................. 157
cluster ...................... 10
lighting up panel
and interior ............. 36
J
Jump-starting your
vehicle ...................... 136
K
Keys
positions of the
ignition .................... 99
L
Lamps
bulb replacement
specifications
chart ........................ 39
daytime running
light .......................... 35
fog lamps ................. 35
headlamps ......... 35, 40headlamps, flash
to pass ..................... 36
instrument panel,
dimming ................... 36
interior lamps ... 38–39
replacing
bulbs ............ 38, 40–42
Lane change indicator
(see Turn signal) ...... 38
Lights, warning and
indicator .................... 10
anti-lock brakes
(ABS) .................... 104
Limited slip axle
(see Traction Loc) .. 108
Load limits ............... 117
Locks
doors ........................ 54
Lubricant
specifications ... 218, 221
Lug nuts, anti-theft . 134
Lumbar support,
seats ........................... 65
M
Manual transmission. 114
fluid capacities ...... 215
lubricant
specifications ........ 221
reverse ................... 115
Mirrors
side view mirrors
(power) ................... 46
Motorcraft
parts ................. 187, 215
O
Octane rating .. 185–186
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
231
Page 232 of 240
Oil (see
Engine oil) ............... 167
Overdrive ................. 109
P
Parking brake .......... 106
Parts (see Motorcraft
parts) ....................... 215
Power distribution box
(see Fuses)
............. 128
Power door locks
...... 54
Power mirrors
........... 46
Power point
............... 45
Power steering
........ 106
fluid, checking and
adding
.................... 194
fluid, refill
capacity
................. 215
fluid,
specifications. 218, 221
Power Windows
......... 45
R
Radio
.............. 18, 20, 25
Relays
...................... 125
Remote entry
system
........................ 57
illuminated entry
.... 60
locking/unlocking
doors
........................ 54
opening the trunk
... 57
Roadside
assistance
................ 122S
Safety Belt
Maintenance .............. 78
Safety belts (see Safety
restraints) ............ 68–72
Safety defects,
reporting .................. 152
Safety restraints .. 68–72
belt minder ............. 74
extension
assembly .................. 78
for adults ........... 69–72
for children ....... 84–85
safety belt
maintenance ............ 78
warning light and
chime ................. 73–74
Safety seats for
children ...................... 88
Seat belts (see Safety
restraints) .................. 68
Seats .......................... 64
child safety seats .... 88
front seats ............... 64
Servicing your
vehicle ...................... 161
Setting the clock
AM/FM/In-dash
6 CD ......................... 30
MACH MP3
system ..................... 23
Spare tire (see
Changing the Tire) . 130
Spark plugs,
specifications ... 215, 221
Specification chart,
lubricants ......... 218, 221
