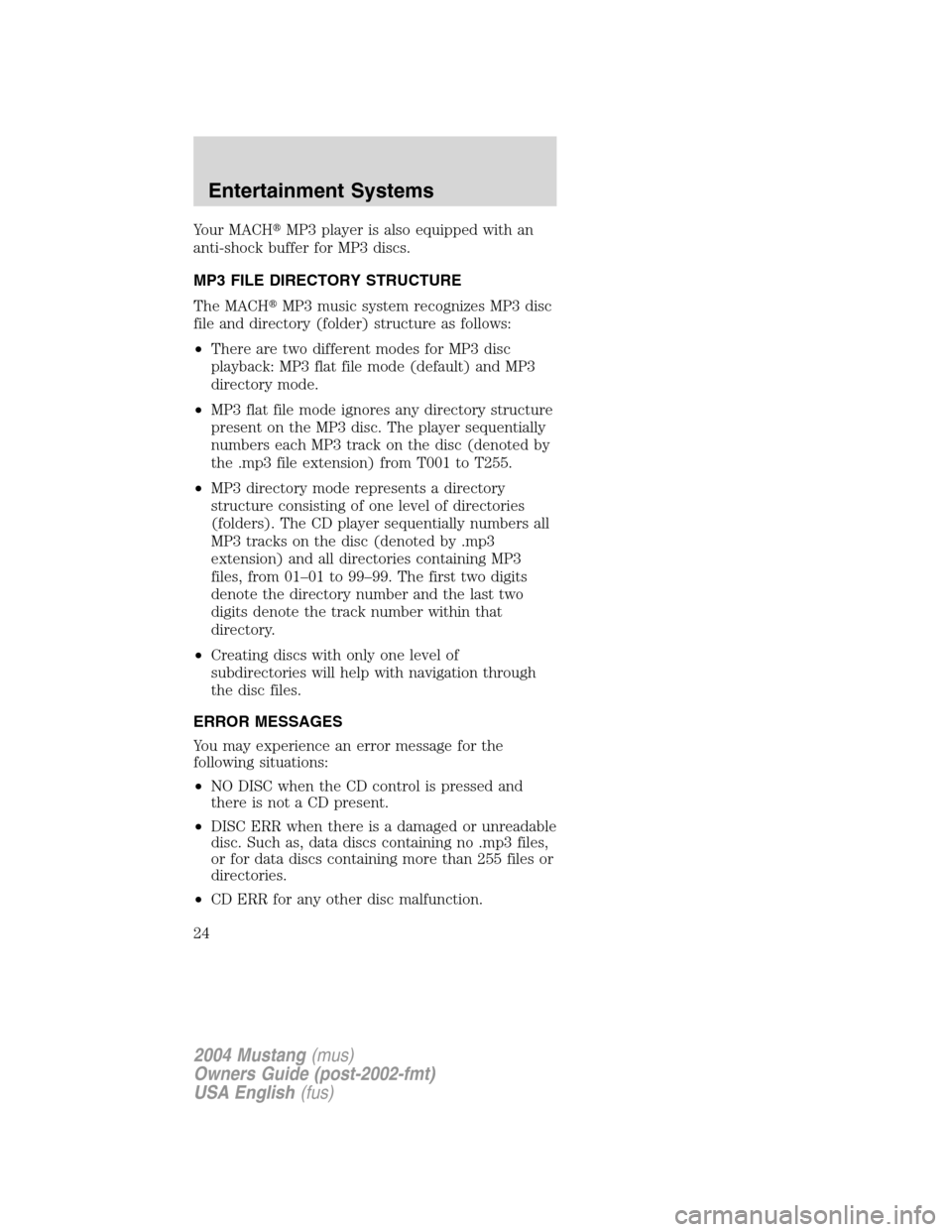

Your MACHMP3 player is also equipped with an
anti-shock buffer for MP3 discs.
MP3 FILE DIRECTORY STRUCTURE
The MACHMP3 music system recognizes MP3 disc
file and directory (folder) structure as follows:
•There are two different modes for MP3 disc
playback: MP3 flat file mode (default) and MP3
directory mode.
•MP3 flat file mode ignores any directory structure
present on the MP3 disc. The player sequentially
numbers each MP3 track on the disc (denoted by
the .mp3 file extension) from T001 to T255.
•MP3 directory mode represents a directory
structure consisting of one level of directories
(folders). The CD player sequentially numbers all
MP3 tracks on the disc (denoted by .mp3
extension) and all directories containing MP3
files, from 01–01 to 99–99. The first two digits
denote the directory number and the last two
digits denote the track number within that
directory.
•Creating discs with only one level of
subdirectories will help with navigation through
the disc files.
ERROR MESSAGES
You may experience an error message for the
following situations:
•NO DISC when the CD control is pressed and
there is not a CD present.
•DISC ERR when there is a damaged or unreadable
disc. Such as, data discs containing no .mp3 files,
or for data discs containing more than 255 files or
directories.
•CD ERR for any other disc malfunction.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
24

listening comfort and protection, it is not
recommended to listen to theMACH 1000audio
system at high volume levels for extended periods of
time.
1.Seek:Press and
release SEEK
/
for previous/next
strong station, selection or track.
2.Rewind:In CD
mode, press until
desired selection is
reached.
Fast forward:In CD mode, press until desired
selection is reached.
TEXT:TEXT is only available when equipped with
Satellite radio. Your Audiophile radio comes
equipped with Satellite ready capability. The kit to
enable Satellite reception is available through your
Ford dealer. Detailed Satellite instructions are
included with the dealer installed kit.
3.DSP (Digital
Signal Processing):
Press DSP to access
the Ambiance menu. Ambiance gives the feeling of
“being there”to your music, creating increased
clarity as well as an open and spacious feel to the
music. Press SEL to engage/disengage. Turn the
volume control to increase/decrease the level of
ambiance.
Occupancy:Press DSP again to change the
occupancy mode to optimize sound for:
•ALL SEATS—Enhances acoustic sound for all
seating locations.
•DRIVER SEAT—Enhances acoustic sound for
the driver. Rear seat and passenger seat
performance may be compromised in favor of the
driver.
•REAR SEAT - Enhances acoustic sound for the
rear seat passengers.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
26

Autostore:Allows you to set the strongest local
radio stations without losing your original manually
set preset stations for AM/FM1/FM2 . Press and
momentarily hold AM/FM. AUTOSTORE will flash on
the display. When the six strongest stations are
filled, the station stored in preset 1 will begin
playing. If there are less than six strong stations, the
system will store the last one in the remaining
presets. Press again to disengage.
13.Power/volume:
Press to turn ON/OFF;
turn to increase or
decrease volume levels.
Speed sensitive volume:Radio volume changes
automatically and slightly with vehicle speed to
compensate for road and wind noise. Recommended
level is 1–3. Level 0 turns the feature off and level 7
is the maximum setting.
Press and hold the volume control for five seconds.
Then press SEL to increase (
) or decrease ()
the volume setting. The level will appear in the
display.
14.Load:Press LOAD
and the corresponding
preset (1–6) to load a
CD into the desired slot. Press and hold to load up
to six discs at once.
15.CD AUX:Press to
access CD or AUX
mode.
CD units are designed to play commercially
pressed 12 cm (4.75 in) audio compact discs
only. Due to technical incompatibility, certain
recordable and re-recordable compact discs
may not function correctly when used in Ford
CD players. Irregular shaped CDs, CDs with a
scratch protection film attached, and CDs with
homemade paper (adhesive) labels should not
be inserted into the CD player. The label may
peel and cause the CD to become jammed. It is
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Entertainment Systems
29

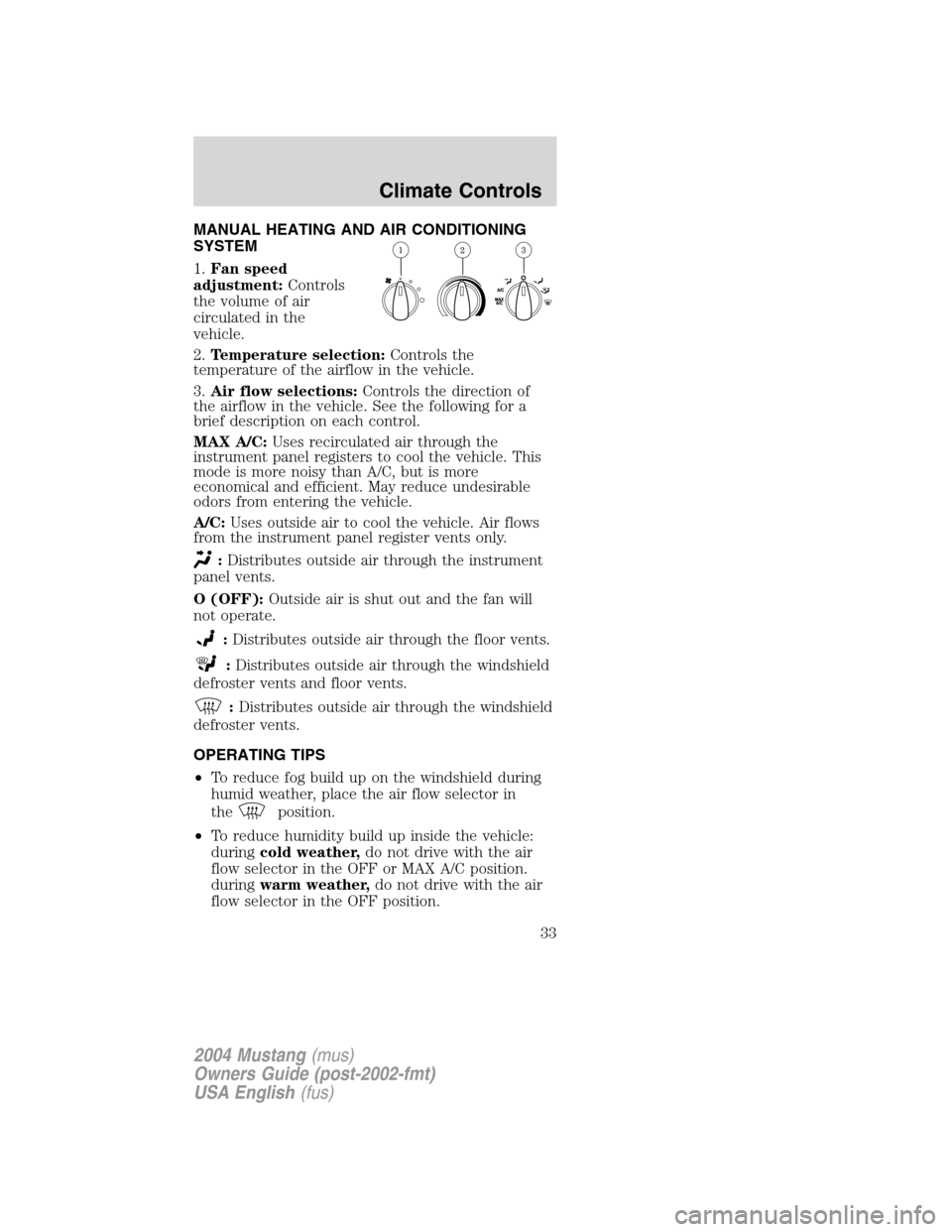

MANUAL HEATING AND AIR CONDITIONING
SYSTEM
1.Fan speed
adjustment:Controls
the volume of air
circulated in the
vehicle.
2.Temperature selection:Controls the
temperature of the airflow in the vehicle.
3.Air flow selections:Controls the direction of
the airflow in the vehicle. See the following for a
brief description on each control.
MAX A/C:Uses recirculated air through the
instrument panel registers to cool the vehicle. This
mode is more noisy than A/C, but is more
economical and efficient. May reduce undesirable
odors from entering the vehicle.
A/C:Uses outside air to cool the vehicle. Air flows
from the instrument panel register vents only.
:Distributes outside air through the instrument
panel vents.
O (OFF):Outside air is shut out and the fan will
not operate.
:Distributes outside air through the floor vents.
:Distributes outside air through the windshield
defroster vents and floor vents.
:Distributes outside air through the windshield
defroster vents.
OPERATING TIPS
•To reduce fog build up on the windshield during
humid weather, place the air flow selector in
the
position.
•To reduce humidity build up inside the vehicle:
duringcold weather,do not drive with the air
flow selector in the OFF or MAX A/C position.
duringwarm weather,do not drive with the air
flow selector in the OFF position.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Climate Controls
33

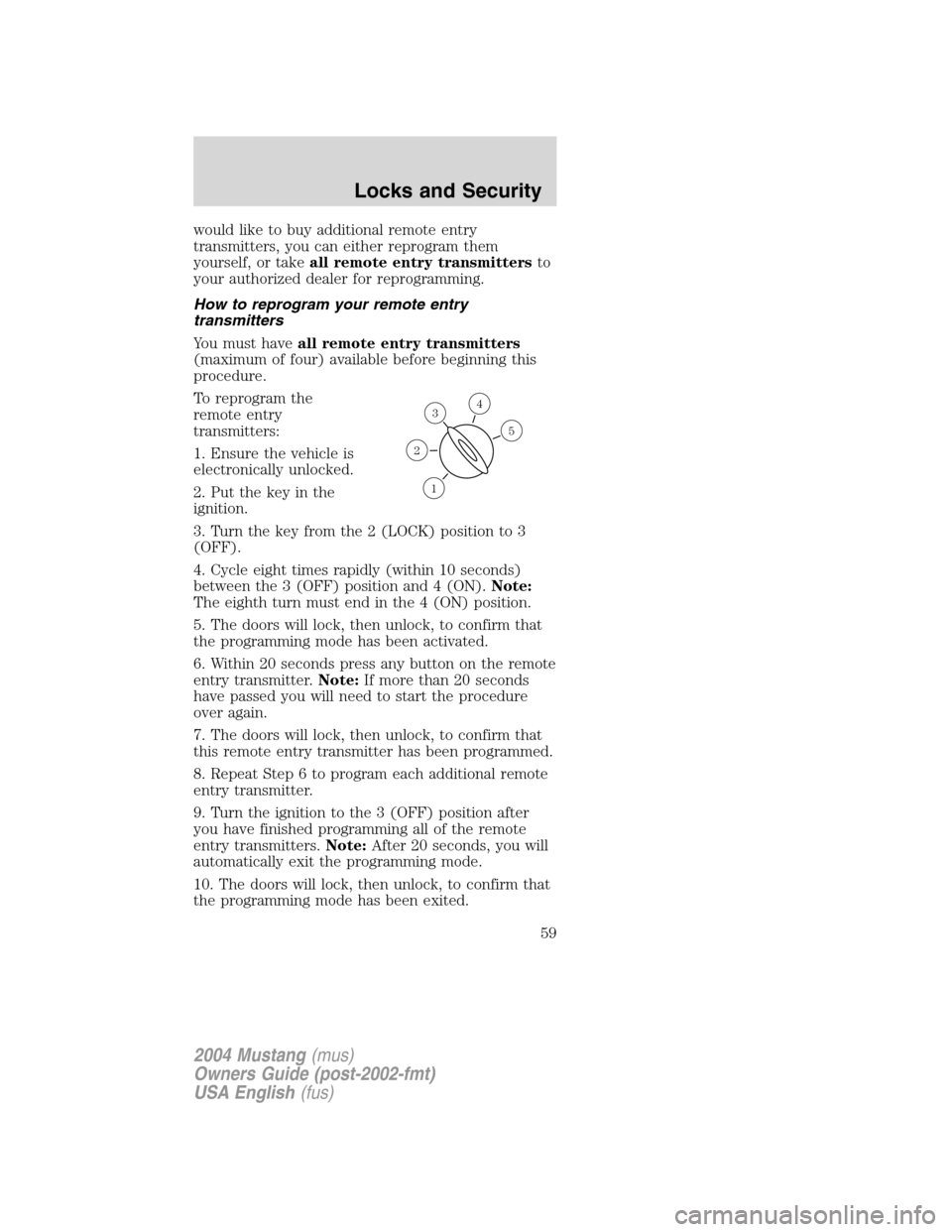

would like to buy additional remote entry
transmitters, you can either reprogram them
yourself, or takeall remote entry transmittersto
your authorized dealer for reprogramming.
How to reprogram your remote entry
transmitters
You must haveall remote entry transmitters
(maximum of four) available before beginning this
procedure.
To reprogram the
remote entry
transmitters:
1. Ensure the vehicle is
electronically unlocked.
2. Put the key in the
ignition.
3. Turn the key from the 2 (LOCK) position to 3
(OFF).
4. Cycle eight times rapidly (within 10 seconds)
between the 3 (OFF) position and 4 (ON).Note:
The eighth turn must end in the 4 (ON) position.
5. The doors will lock, then unlock, to confirm that
the programming mode has been activated.
6. Within 20 seconds press any button on the remote
entry transmitter.Note:If more than 20 seconds
have passed you will need to start the procedure
over again.
7. The doors will lock, then unlock, to confirm that
this remote entry transmitter has been programmed.
8. Repeat Step 6 to program each additional remote
entry transmitter.
9. Turn the ignition to the 3 (OFF) position after
you have finished programming all of the remote
entry transmitters.Note:After 20 seconds, you will
automatically exit the programming mode.
10. The doors will lock, then unlock, to confirm that
the programming mode has been exited.
3
1
2
5
4
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Locks and Security
59

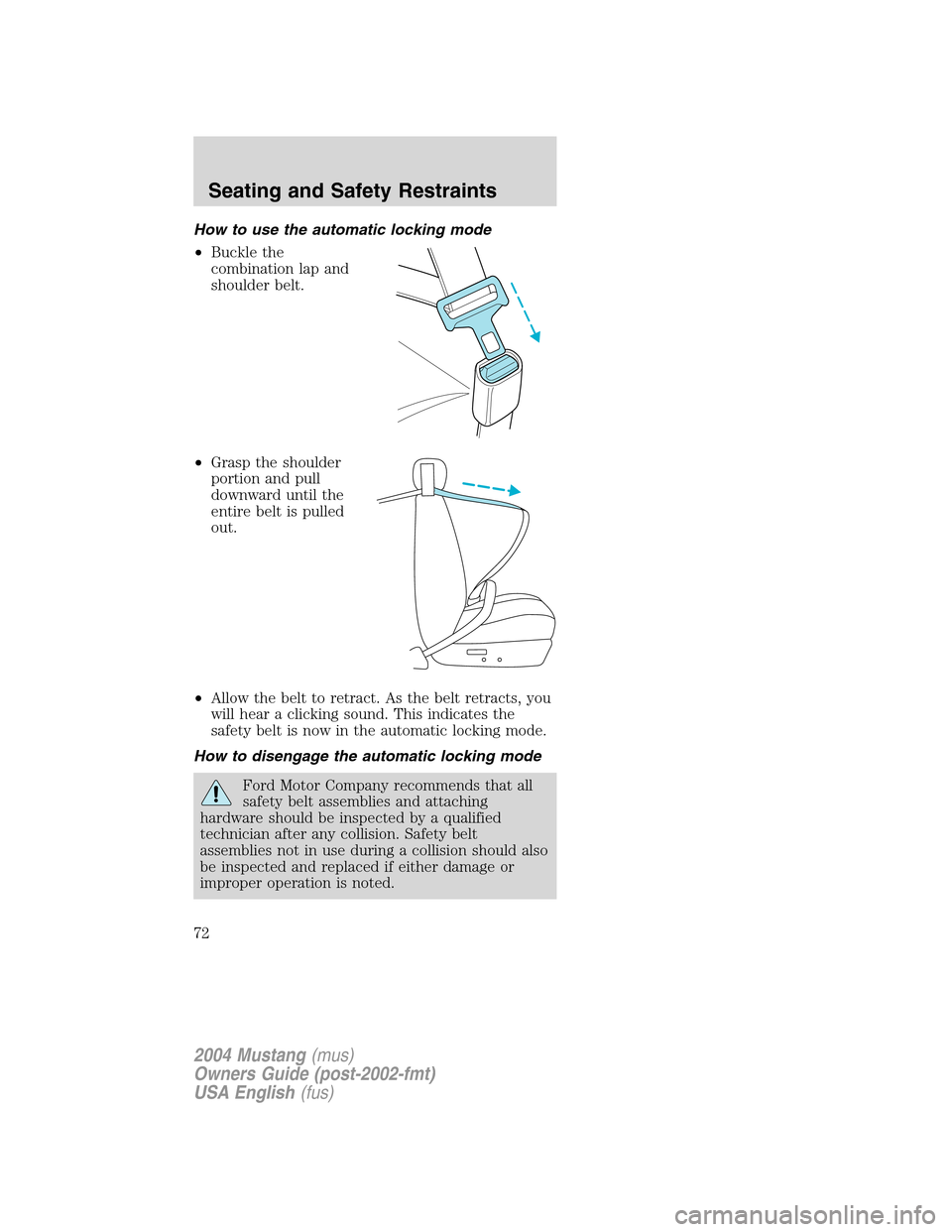

How to use the automatic locking mode
•Buckle the
combination lap and
shoulder belt.
•Grasp the shoulder
portion and pull
downward until the
entire belt is pulled
out.
•Allow the belt to retract. As the belt retracts, you
will hear a clicking sound. This indicates the
safety belt is now in the automatic locking mode.
How to disengage the automatic locking mode
Ford Motor Company recommends that all
safety belt assemblies and attaching
hardware should be inspected by a qualified
technician after any collision. Safety belt
assemblies not in use during a collision should also
be inspected and replaced if either damage or
improper operation is noted.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Seating and Safety Restraints
72

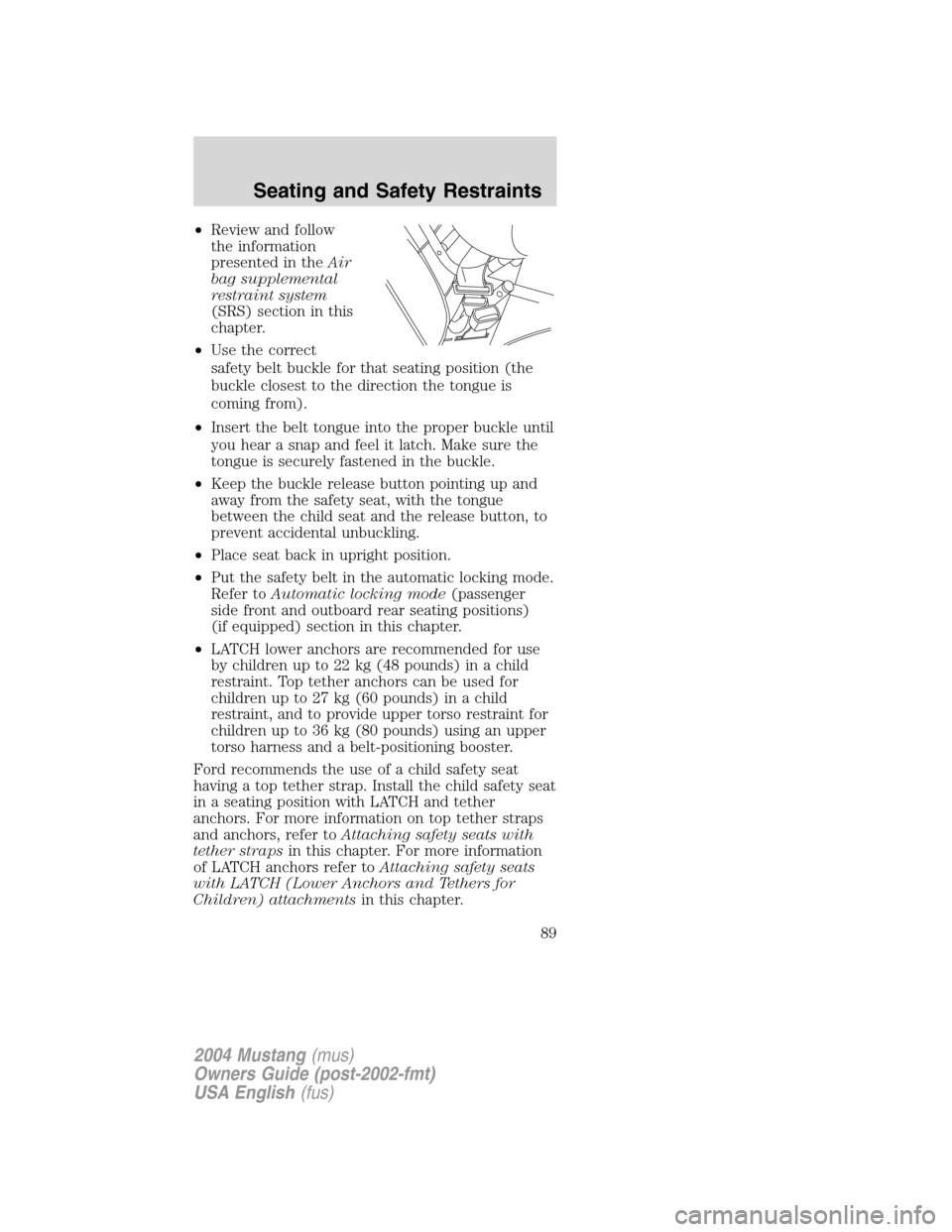

•Review and follow
the information
presented in theAir
bag supplemental
restraint system
(SRS) section in this
chapter.
•Use the correct
safety belt buckle for that seating position (the
buckle closest to the direction the tongue is
coming from).
•Insert the belt tongue into the proper buckle until
you hear a snap and feel it latch. Make sure the
tongue is securely fastened in the buckle.
•Keep the buckle release button pointing up and
away from the safety seat, with the tongue
between the child seat and the release button, to
prevent accidental unbuckling.
•Place seat back in upright position.
•Put the safety belt in the automatic locking mode.
Refer toAutomatic locking mode(passenger
side front and outboard rear seating positions)
(if equipped) section in this chapter.
•LATCH lower anchors are recommended for use
by children up to 22 kg (48 pounds) in a child
restraint. Top tether anchors can be used for
children up to 27 kg (60 pounds) in a child
restraint, and to provide upper torso restraint for
children up to 36 kg (80 pounds) using an upper
torso harness and a belt-positioning booster.
Ford recommends the use of a child safety seat
having a top tether strap. Install the child safety seat
in a seating position with LATCH and tether
anchors. For more information on top tether straps
and anchors, refer toAttaching safety seats with
tether strapsin this chapter. For more information
of LATCH anchors refer toAttaching safety seats
with LATCH (Lower Anchors and Tethers for
Children) attachmentsin this chapter.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Seating and Safety Restraints
89

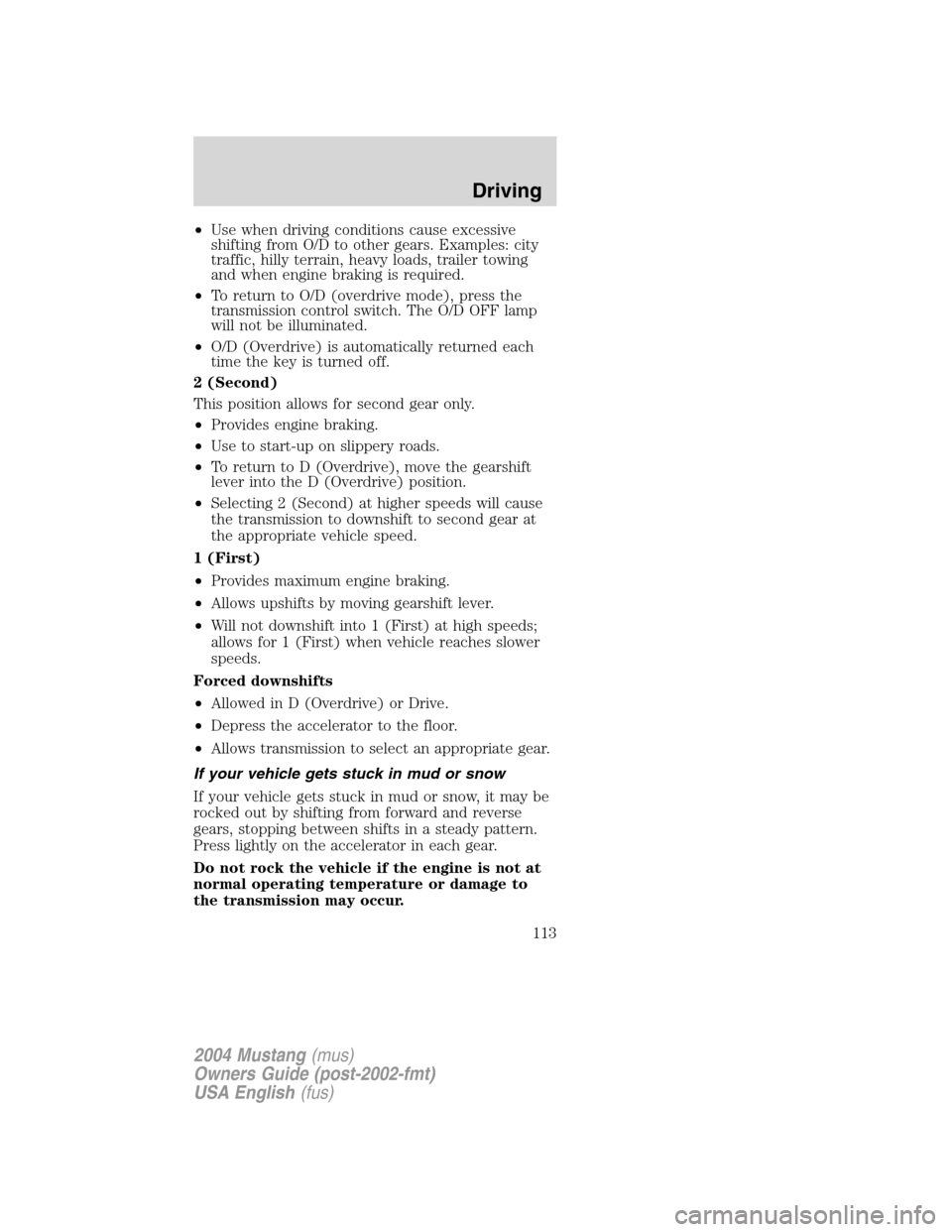

•Use when driving conditions cause excessive
shifting from O/D to other gears. Examples: city
traffic, hilly terrain, heavy loads, trailer towing
and when engine braking is required.
•To return to O/D (overdrive mode), press the
transmission control switch. The O/D OFF lamp
will not be illuminated.
•O/D (Overdrive) is automatically returned each
time the key is turned off.
2 (Second)
This position allows for second gear only.
•Provides engine braking.
•Use to start-up on slippery roads.
•To return to D (Overdrive), move the gearshift
lever into the D (Overdrive) position.
•Selecting 2 (Second) at higher speeds will cause
the transmission to downshift to second gear at
the appropriate vehicle speed.
1 (First)
•Provides maximum engine braking.
•Allows upshifts by moving gearshift lever.
•Will not downshift into 1 (First) at high speeds;
allows for 1 (First) when vehicle reaches slower
speeds.
Forced downshifts
•Allowed in D (Overdrive) or Drive.
•Depress the accelerator to the floor.
•Allows transmission to select an appropriate gear.
If your vehicle gets stuck in mud or snow
If your vehicle gets stuck in mud or snow, it may be
rocked out by shifting from forward and reverse
gears, stopping between shifts in a steady pattern.
Press lightly on the accelerator in each gear.
Do not rock the vehicle if the engine is not at
normal operating temperature or damage to
the transmission may occur.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Driving
113

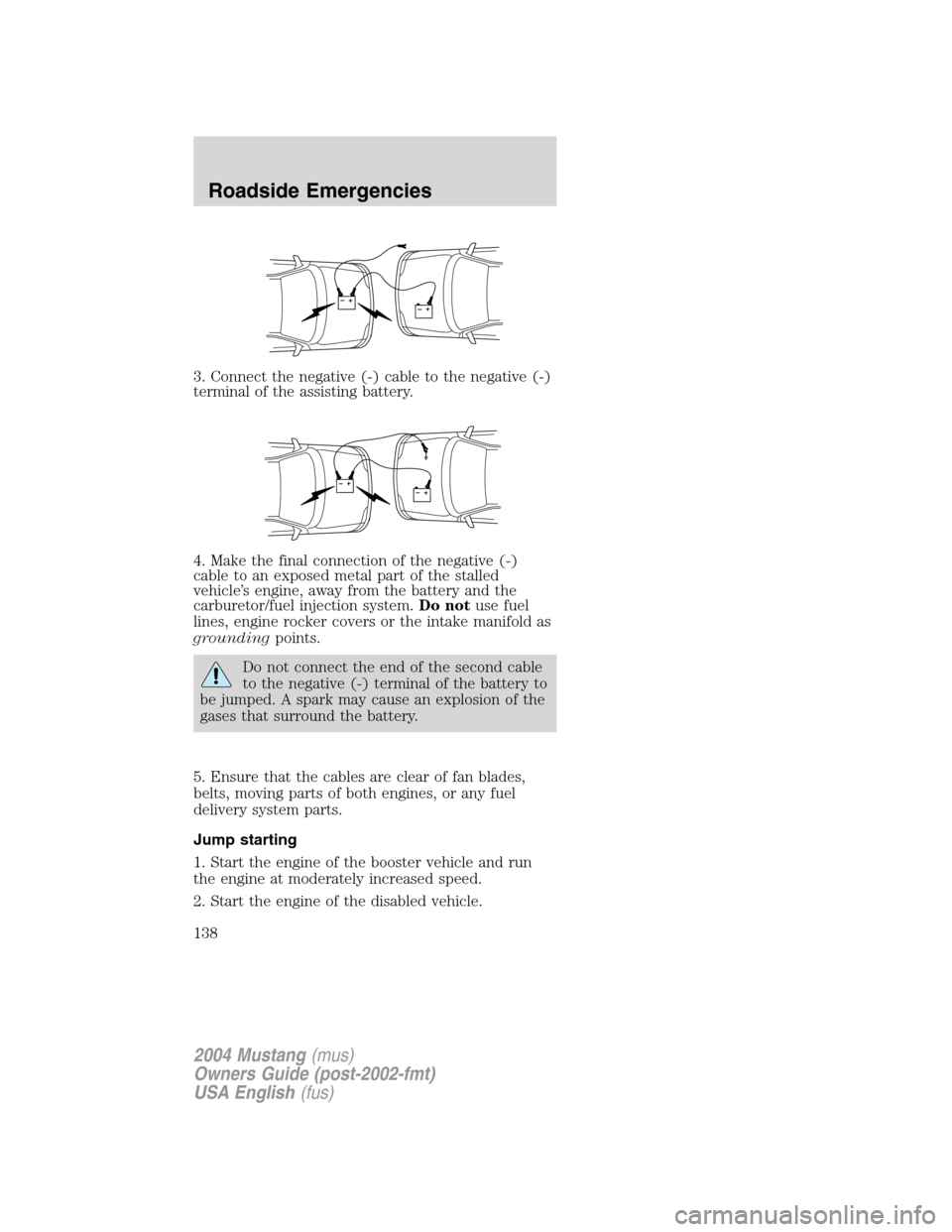

3. Connect the negative (-) cable to the negative (-)
terminal of the assisting battery.
4. Make the final connection of the negative (-)
cable to an exposed metal part of the stalled
vehicle’s engine, away from the battery and the
carburetor/fuel injection system.Do notuse fuel
lines, engine rocker covers or the intake manifold as
groundingpoints.
Do not connect the end of the second cable
to the negative (-) terminal of the battery to
be jumped. A spark may cause an explosion of the
gases that surround the battery.
5. Ensure that the cables are clear of fan blades,
belts, moving parts of both engines, or any fuel
delivery system parts.
Jump starting
1. Start the engine of the booster vehicle and run
the engine at moderately increased speed.
2. Start the engine of the disabled vehicle.
+–+–
+–+–
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Roadside Emergencies
138

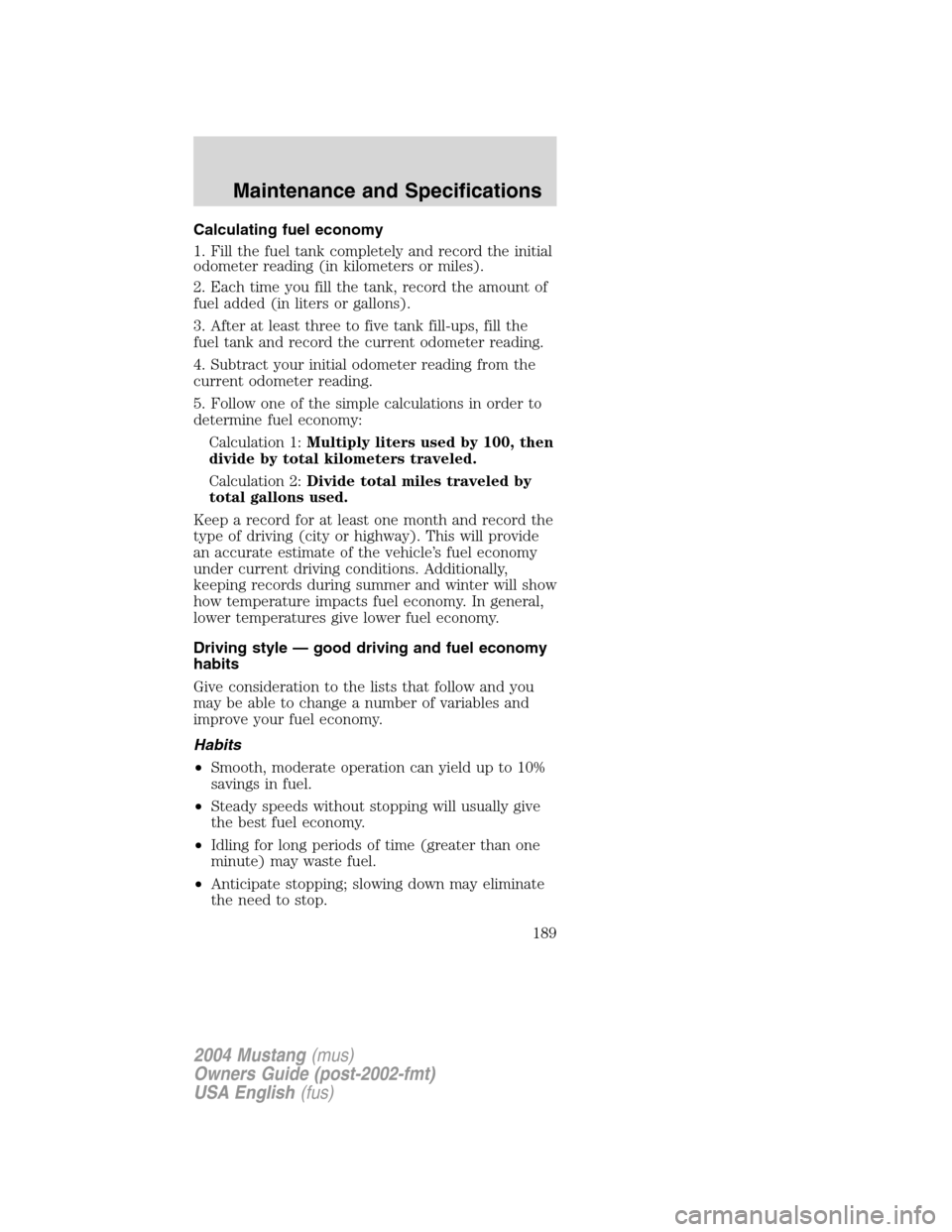

Calculating fuel economy
1. Fill the fuel tank completely and record the initial
odometer reading (in kilometers or miles).
2. Each time you fill the tank, record the amount of
fuel added (in liters or gallons).
3. After at least three to five tank fill-ups, fill the
fuel tank and record the current odometer reading.
4. Subtract your initial odometer reading from the
current odometer reading.
5. Follow one of the simple calculations in order to
determine fuel economy:
Calculation 1:Multiply liters used by 100, then
divide by total kilometers traveled.
Calculation 2:Divide total miles traveled by
total gallons used.
Keep a record for at least one month and record the
type of driving (city or highway). This will provide
an accurate estimate of the vehicle’s fuel economy
under current driving conditions. Additionally,
keeping records during summer and winter will show
how temperature impacts fuel economy. In general,
lower temperatures give lower fuel economy.
Driving style—good driving and fuel economy
habits
Give consideration to the lists that follow and you
may be able to change a number of variables and
improve your fuel economy.
Habits
•Smooth, moderate operation can yield up to 10%
savings in fuel.
•Steady speeds without stopping will usually give
the best fuel economy.
•Idling for long periods of time (greater than one
minute) may waste fuel.
•Anticipate stopping; slowing down may eliminate
the need to stop.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
189
