These are some of the symbols you may see on your
vehicle.
Vehicle Symbol Glossary
Safety Alert
See Owner’s Guide
Fasten Safety BeltAir Bag-Front
Air Bag-SideChild Seat
Child Seat
Installation WarningChild Seat Lower
Anchor
Child Seat Tether
AnchorBrake System
Anti-Lock Brake
SystemBrake Fluid -
Non-Petroleum
Based
Traction ControlAdvanceTrac

Master Lighting
SwitchHazard Warning
Flasher
Fog Lamps-FrontFuse Compartment
Fuel Pump ResetWindshield
Wash/Wipe
Windshield
Defrost/DemistRear Window
Defrost/Demist
Power Windows
Front/RearPower Window
Lockout
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Introduction
8

WARNING LIGHTS AND CHIMES
Base instrument cluster
Optional instrument cluster
Mach 1 instrument cluster
Warning lights and gauges can alert you to a vehicle
condition that may become serious enough to cause
expensive repairs. A warning light may illuminate
when a problem exists with one of your vehicle’s
functions. Many lights will illuminate when you start
your vehicle to make sure the bulb works. If any
light remains on after starting the vehicle, have the
respective system inspected immediately.
P! BRAKE
L
0
00000 00
C
E
FH
LH
10 203020 406080100
120
140
160
180
405060 70
80
90
100
11 0
1204
5
6
7 3
2
1
H
THEFT
RPMX1000
FUEL DOORSELECT/RESET
LOW
FUELO/D
OFF AIR
BAGSERVICE
ENGINE
SOON
MPH km/h
ABS
.
CHECK
FUEL
CAP
P! BRAKE
L
0
00000 00
C
E
FH
LH
102040608020 40608010 012 0 14 0
160
180
200
220
240
100
120
140
305070 90
110
13 0
1504
5
6
7
8 3
2
1
H
THEFT
RPMX1000
FUEL DOORSELECT/RESET
LOW
FUELO/D
OFF AIR
BAGSERVICE
ENGINE
SOONCHECK
FUEL
CAP
MPH km/h
ABS
.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Instrument Cluster
10

Service engine soon:
TheService engine
soonindicator light
illuminates when the
ignition is first turned to the ON position to check
the bulb. Solid illumination after the engine is
started indicates the On Board Diagnostics System
(OBD-II) has detected a malfunction. Refer toOn
board diagnostics (OBD-II)in theMaintenance
and Specificationschapter. If the light is blinking,
engine misfire is occurring which could damage your
catalytic converter. Drive in a moderate fashion
(avoid heavy acceleration and deceleration) and
have your vehicle serviced immediately.
Under engine misfire conditions, excessive
exhaust temperatures could damage the
catalytic converter, the fuel system, interior floor
coverings or other vehicle components, possibly
causing a fire.
Check fuel cap:
Illuminates when the
fuel cap may not be
properly installed.
Continued driving with this light on may cause the
Service engine soon light to come on. Refer toFuel
filler capin theMaintenance and Specifications
chapter.
Brake system
warning light:To
confirm the brake
system warning light is
functional, it will momentarily illuminate when the
ignition is turned to the ON position when the
engine is not running, or in a position between ON
and START, or by applying the parking brake when
the ignition is turned to the ON position. If the
brake system warning light does not illuminate at
this time, seek service immediately from your
dealership. Illumination after releasing the parking
SERVICE
ENGINE
SOON
CHECK
FUEL
CAP
P!
BRAKE
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Instrument Cluster
11

brake indicates low brake fluid level and the brake
system should be inspected immediately by your
servicing dealership.
Driving a vehicle with the brake system
warning light on is dangerous. A significant
decrease in braking performance may occur. It will
take you longer to stop the vehicle. Have the
vehicle checked by your dealer immediately.
Anti-lock brake
system:If the ABS
light stays illuminated
or continues to flash, a
malfunction has been detected, have the system
serviced immediately. Normal braking is still
functional unless the brake warning light also is
illuminated.
Air bag readiness:If
this light fails to
illuminate when
ignition is turned to ON, continues to flash or
remains on, have the system serviced immediately. A
chime will also sound when a malfunction in the
supplemental restraint system has been detected.
Safety belt:Reminds
you to fasten your
safety belt. A chime
will also sound to
remind you to fasten your safety belt.
Charging system:
Illuminates when the
battery is not charging
properly.
Low fuel:Illuminates
when the fuel level in
the fuel tank is at or
near empty. Refer to
Fuel gaugein this chapter).
ABS
AIR
BAG
LOW
FUEL
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Instrument Cluster
12

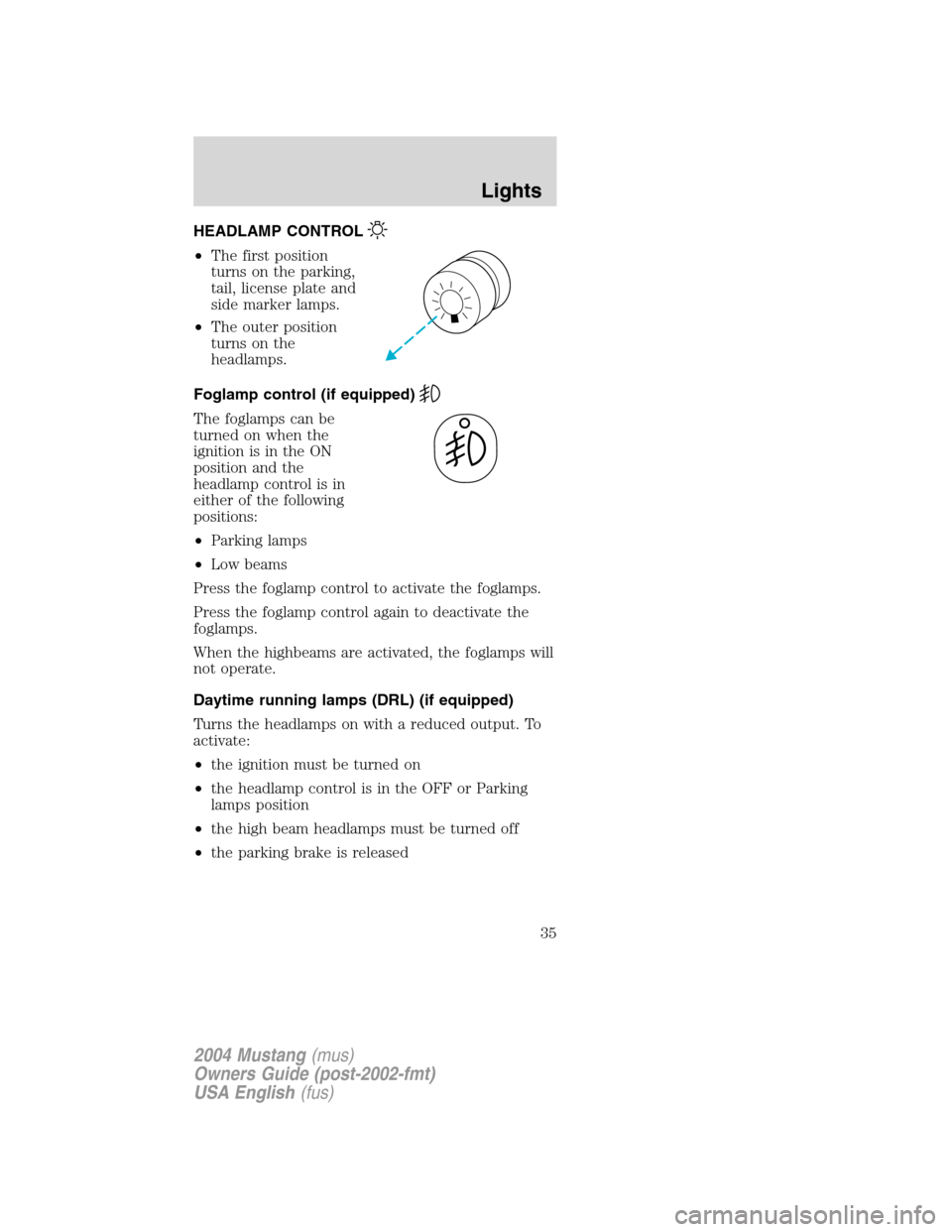

HEADLAMP CONTROL
•The first position
turns on the parking,
tail, license plate and
side marker lamps.
•The outer position
turns on the
headlamps.
Foglamp control (if equipped)
The foglamps can be
turned on when the
ignition is in the ON
position and the
headlamp control is in
either of the following
positions:
•Parking lamps
•Low beams
Press the foglamp control to activate the foglamps.
Press the foglamp control again to deactivate the
foglamps.
When the highbeams are activated, the foglamps will
not operate.
Daytime running lamps (DRL) (if equipped)
Turns the headlamps on with a reduced output. To
activate:
•the ignition must be turned on
•the headlamp control is in the OFF or Parking
lamps position
•the high beam headlamps must be turned off
•the parking brake is released
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
35

Using the right bulbs
Replacement bulbs are specified in the chart below.
Headlamp bulbs must be marked with an authorized
“D.O.T.”for North America and an“E”for Europe to
assure lamp performance, light brightness and
pattern and safe visibility. The correct bulbs will not
damage the lamp assembly or void the lamp
assembly warranty and will provide quality bulb burn
time.
Function Trade Number
Tail lamp, brakelamp, turn lamp 3157K
Park lamp, turn lamp, side marker
(front)3157 AK (amber)
Backup lamp 3156K
License plate lamp 168
High-mount brakelamp 906
Headlamps 9007
Luggage compartment lamp 906
Dome lamp 575
Map lamp 575
Visor vanity lamp 74
Glove compartment 194
Rearview mirror map lamps 192
Fog lamp 899
All replacement bulbs are clear in color except where
noted.
To replace all instrument panel lights - see your dealer.
Interior bulbs
Check the operation of all bulbs frequently.
Map lamps
For bulb replacement, see a qualified service
technician or your dealer.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
39

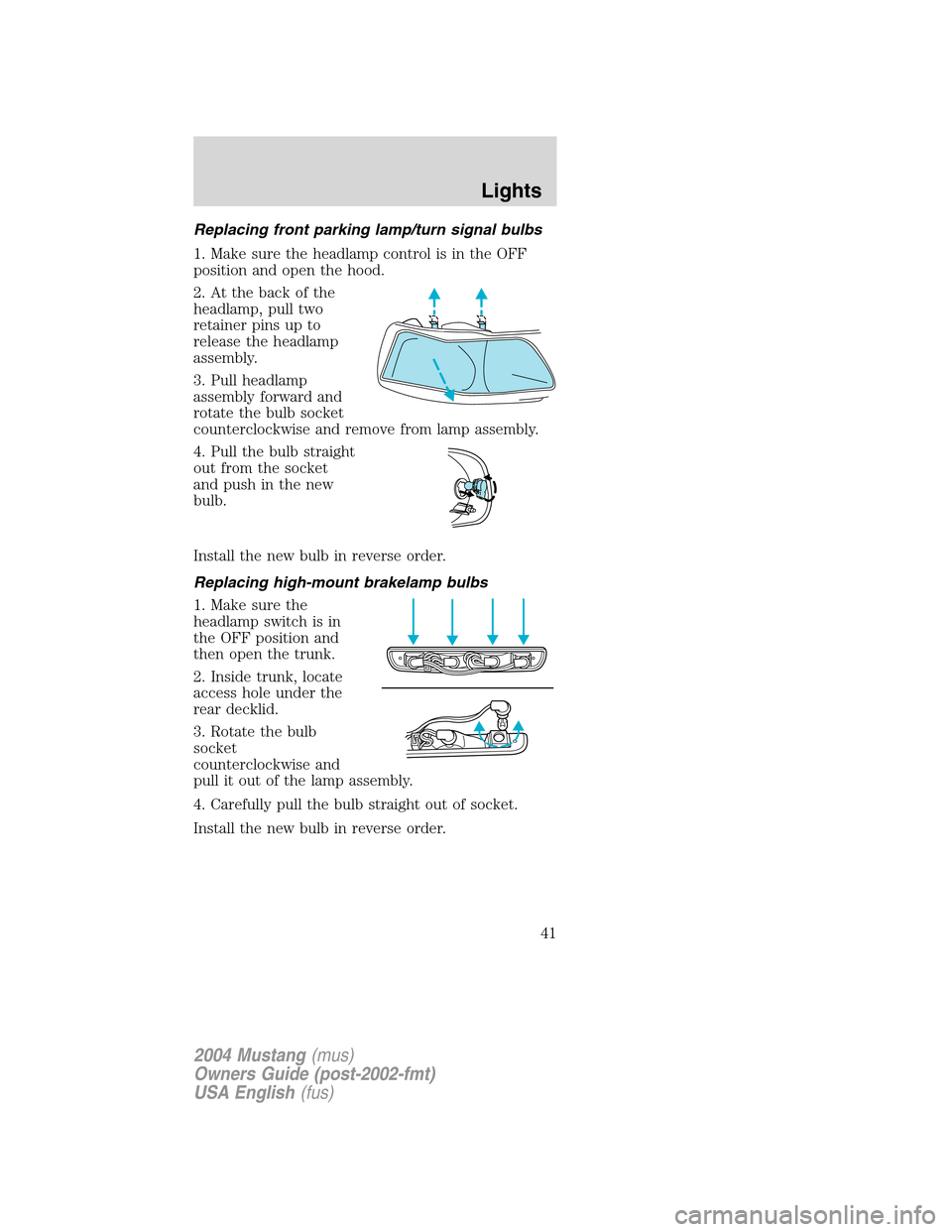

Replacing front parking lamp/turn signal bulbs
1. Make sure the headlamp control is in the OFF
position and open the hood.
2. At the back of the
headlamp, pull two
retainer pins up to
release the headlamp
assembly.
3. Pull headlamp
assembly forward and
rotate the bulb socket
counterclockwise and remove from lamp assembly.
4. Pull the bulb straight
out from the socket
and push in the new
bulb.
Install the new bulb in reverse order.
Replacing high-mount brakelamp bulbs
1. Make sure the
headlamp switch is in
the OFF position and
then open the trunk.
2. Inside trunk, locate
access hole under the
rear decklid.
3. Rotate the bulb
socket
counterclockwise and
pull it out of the lamp assembly.
4. Carefully pull the bulb straight out of socket.
Install the new bulb in reverse order.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
41

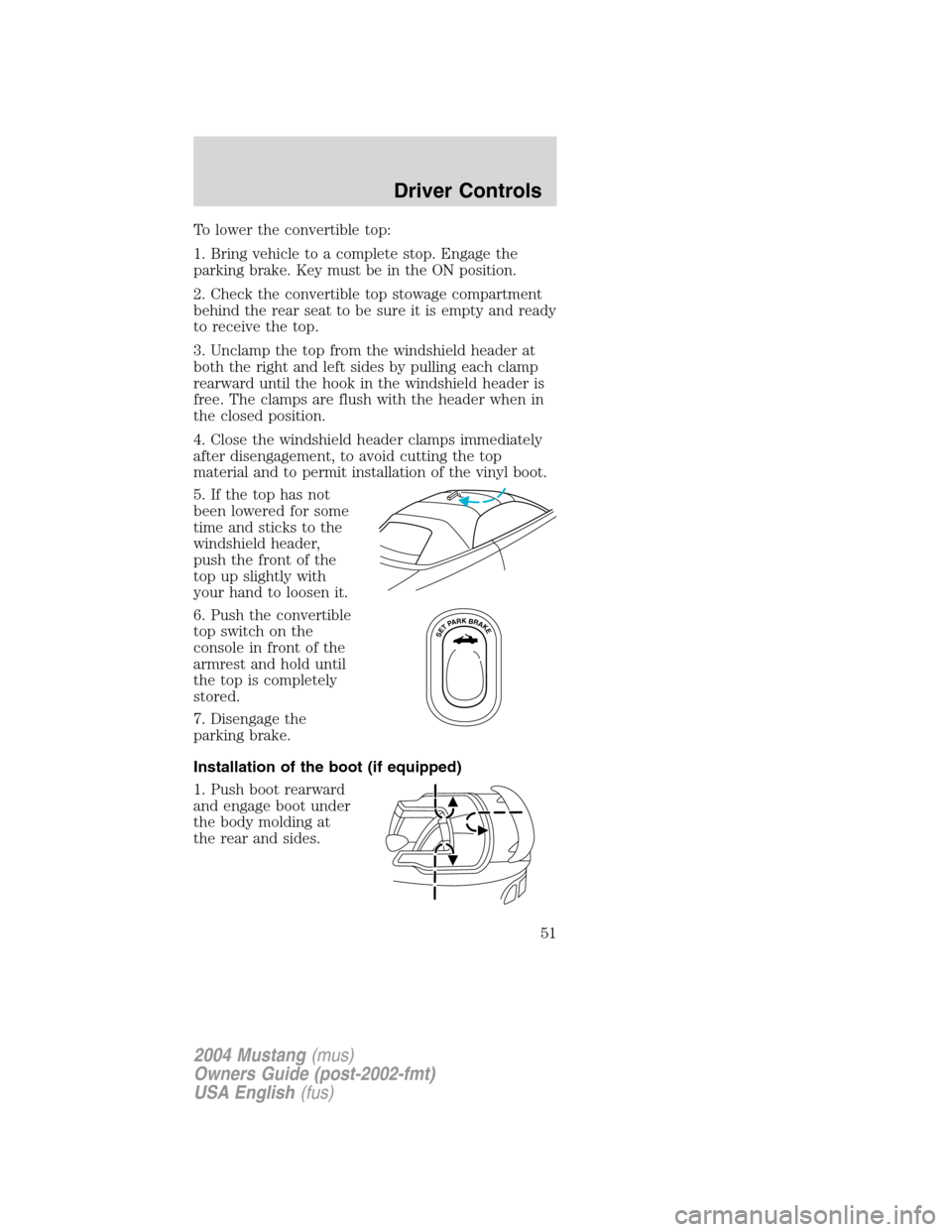

To lower the convertible top:
1. Bring vehicle to a complete stop. Engage the
parking brake. Key must be in the ON position.
2. Check the convertible top stowage compartment
behind the rear seat to be sure it is empty and ready
to receive the top.
3. Unclamp the top from the windshield header at
both the right and left sides by pulling each clamp
rearward until the hook in the windshield header is
free. The clamps are flush with the header when in
the closed position.
4. Close the windshield header clamps immediately
after disengagement, to avoid cutting the top
material and to permit installation of the vinyl boot.
5. If the top has not
been lowered for some
time and sticks to the
windshield header,
push the front of the
top up slightly with
your hand to loosen it.
6. Push the convertible
top switch on the
console in front of the
armrest and hold until
the top is completely
stored.
7. Disengage the
parking brake.
Installation of the boot (if equipped)
1. Push boot rearward
and engage boot under
the body molding at
the rear and sides.
SETPARKBRAKE
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Driver Controls
51

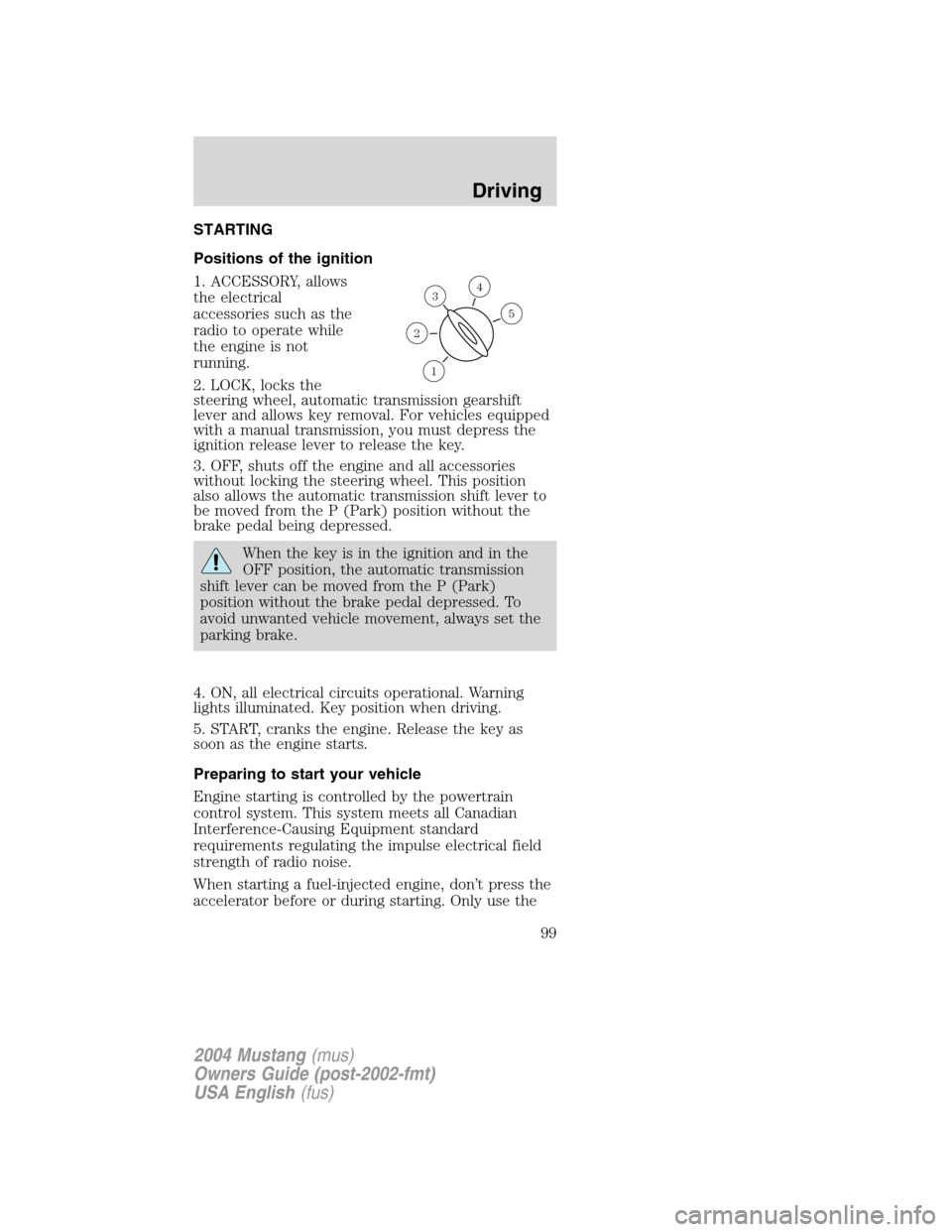

STARTING
Positions of the ignition
1. ACCESSORY, allows
the electrical
accessories such as the
radio to operate while
the engine is not
running.
2. LOCK, locks the
steering wheel, automatic transmission gearshift
lever and allows key removal. For vehicles equipped
with a manual transmission, you must depress the
ignition release lever to release the key.
3. OFF, shuts off the engine and all accessories
without locking the steering wheel. This position
also allows the automatic transmission shift lever to
be moved from the P (Park) position without the
brake pedal being depressed.
When the key is in the ignition and in the
OFF position, the automatic transmission
shift lever can be moved from the P (Park)
position without the brake pedal depressed. To
avoid unwanted vehicle movement, always set the
parking brake.
4. ON, all electrical circuits operational. Warning
lights illuminated. Key position when driving.
5. START, cranks the engine. Release the key as
soon as the engine starts.
Preparing to start your vehicle
Engine starting is controlled by the powertrain
control system. This system meets all Canadian
Interference-Causing Equipment standard
requirements regulating the impulse electrical field
strength of radio noise.
When starting a fuel-injected engine, don’t press the
accelerator before or during starting. Only use the
3
1
2
5
4
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Driving
99

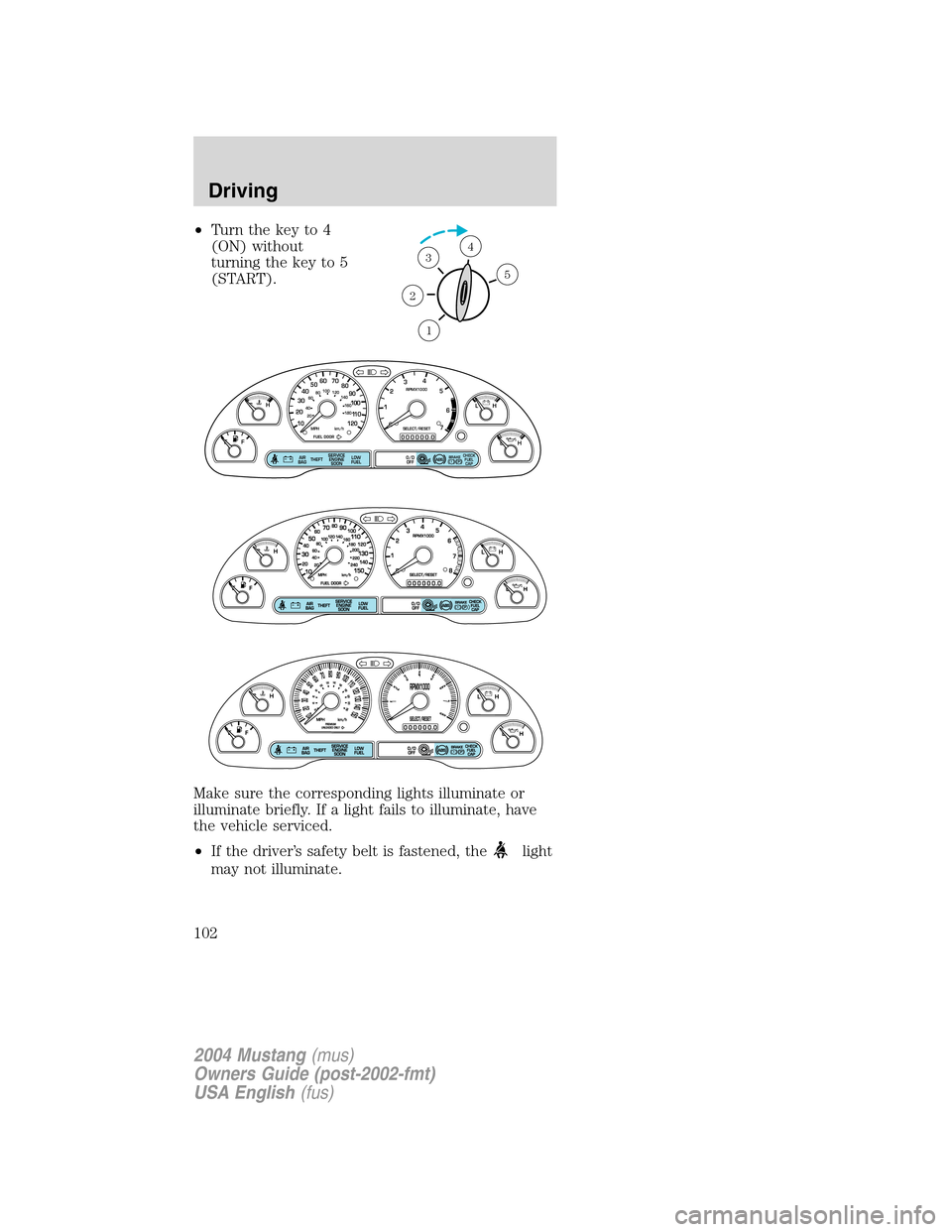

•Turn the key to 4
(ON) without
turning the key to 5
(START).
Make sure the corresponding lights illuminate or
illuminate briefly. If a light fails to illuminate, have
the vehicle serviced.
•If the driver’s safety belt is fastened, the
light
may not illuminate.
1
2
34
5
P! BRAKE
L
0
00000 00
C
E
FH
LH
10 203020 406080100
120
140
160
180
405060 70
80
90
100
11 0
1204
5
6
7 3
2
1
H
THEFT
RPMX1000
FUEL DOORSELECT/RESET
LOW
FUELO/D
OFF AIR
BAGSERVICE
ENGINE
SOON
MPH km/h
ABS
.
CHECK
FUEL
CAP
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Driving
102
