compression ratio FORD MUSTANG 2004 4.G Owners Manual

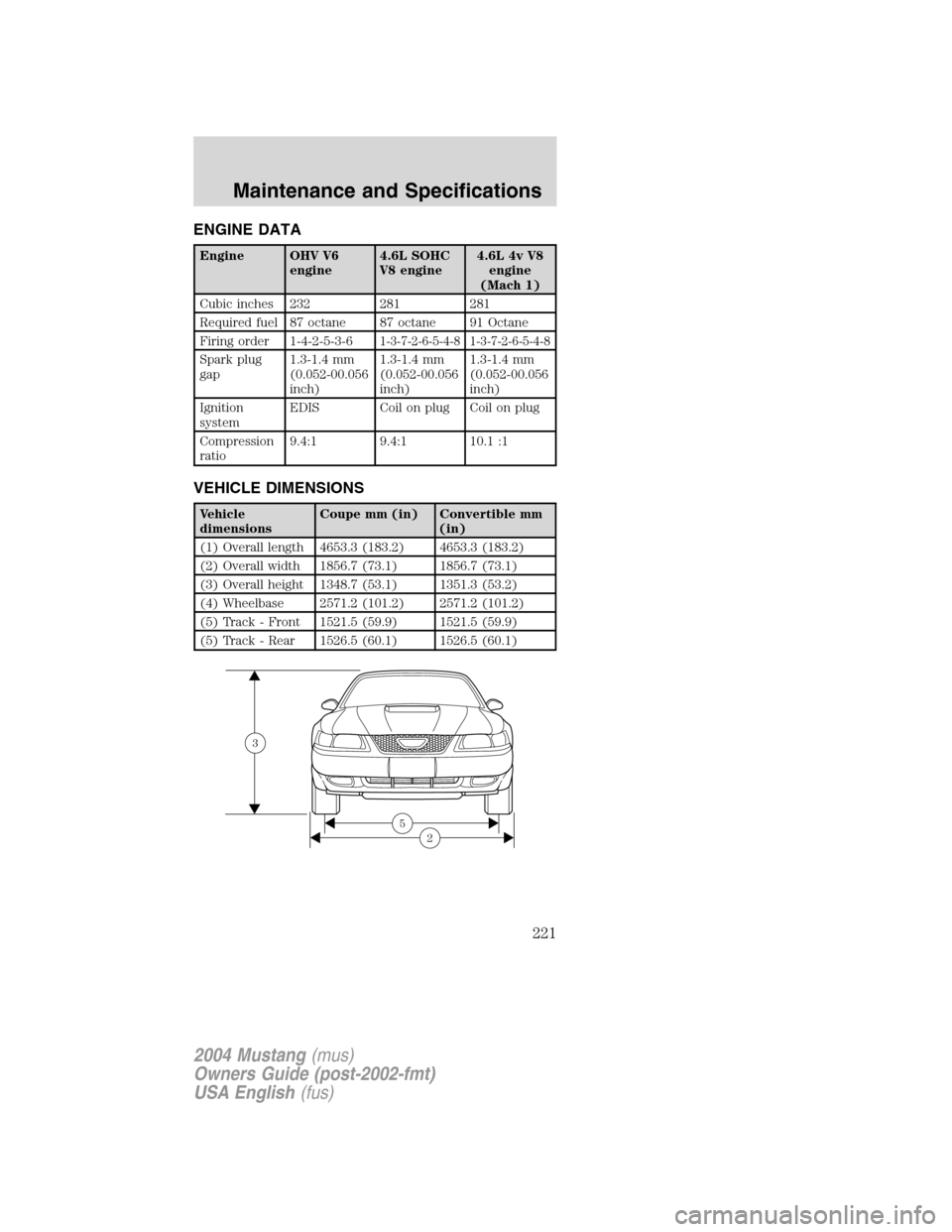

ENGINE DATA
Engine OHV V6
engine4.6L SOHC
V8 engine4.6L 4v V8
engine
(Mach 1)
Cubic inches 232 281 281
Required fuel 87 octane 87 octane 91 Octane
Firing order 1-4-2-5-3-6
1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8
Spark plug
gap1.3-1.4 mm
(0.052-00.056
inch)1.3-1.4 mm
(0.052-00.056
inch)1.3-1.4 mm
(0.052-00.056
inch)
Ignition
systemEDIS Coil on plug Coil on plug
Compression
ratio9.4:1 9.4:1 10.1 :1
VEHICLE DIMENSIONS
Vehicle
dimensionsCoupe mm (in) Convertible mm
(in)
(1) Overall length 4653.3 (183.2) 4653.3 (183.2)
(2) Overall width 1856.7 (73.1) 1856.7 (73.1)
(3) Overall height 1348.7 (53.1) 1351.3 (53.2)
(4) Wheelbase 2571.2 (101.2) 2571.2 (101.2)
(5) Track - Front 1521.5 (59.9) 1521.5 (59.9)
(5) Track - Rear 1526.5 (60.1) 1526.5 (60.1)
25
3
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
221
