fog light bulb FORD MUSTANG 2004 4.G Owners Manual

Using the right bulbs
Replacement bulbs are specified in the chart below.
Headlamp bulbs must be marked with an authorized
“D.O.T.”for North America and an“E”for Europe to
assure lamp performance, light brightness and
pattern and safe visibility. The correct bulbs will not
damage the lamp assembly or void the lamp
assembly warranty and will provide quality bulb burn
time.
Function Trade Number
Tail lamp, brakelamp, turn lamp 3157K
Park lamp, turn lamp, side marker
(front)3157 AK (amber)
Backup lamp 3156K
License plate lamp 168
High-mount brakelamp 906
Headlamps 9007
Luggage compartment lamp 906
Dome lamp 575
Map lamp 575
Visor vanity lamp 74
Glove compartment 194
Rearview mirror map lamps 192
Fog lamp 899
All replacement bulbs are clear in color except where
noted.
To replace all instrument panel lights - see your dealer.
Interior bulbs
Check the operation of all bulbs frequently.
Map lamps
For bulb replacement, see a qualified service
technician or your dealer.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
39

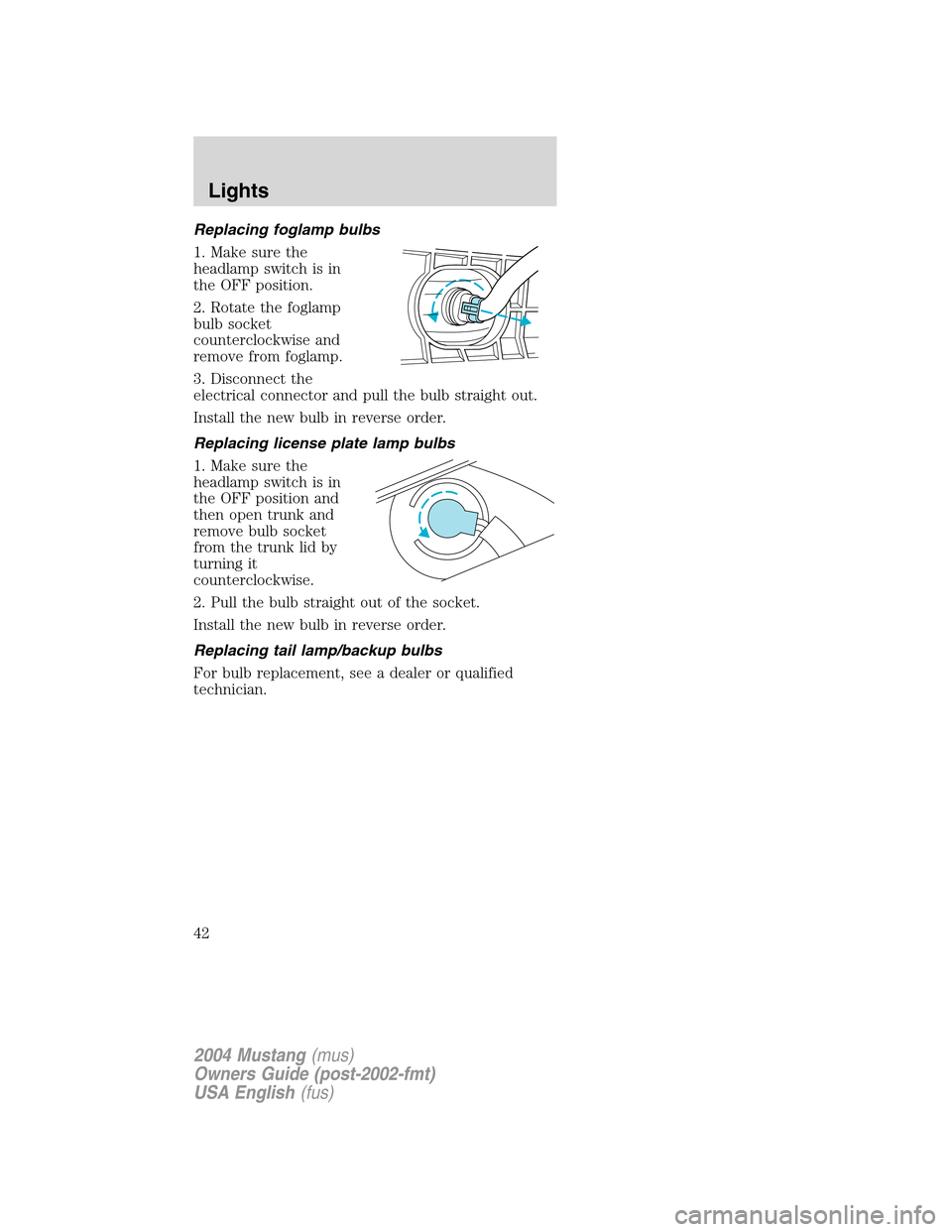

Replacing foglamp bulbs
1. Make sure the
headlamp switch is in
the OFF position.
2. Rotate the foglamp
bulb socket
counterclockwise and
remove from foglamp.
3. Disconnect the
electrical connector and pull the bulb straight out.
Install the new bulb in reverse order.
Replacing license plate lamp bulbs
1. Make sure the
headlamp switch is in
the OFF position and
then open trunk and
remove bulb socket
from the trunk lid by
turning it
counterclockwise.
2. Pull the bulb straight out of the socket.
Install the new bulb in reverse order.
Replacing tail lamp/backup bulbs
For bulb replacement, see a dealer or qualified
technician.
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Lights
42

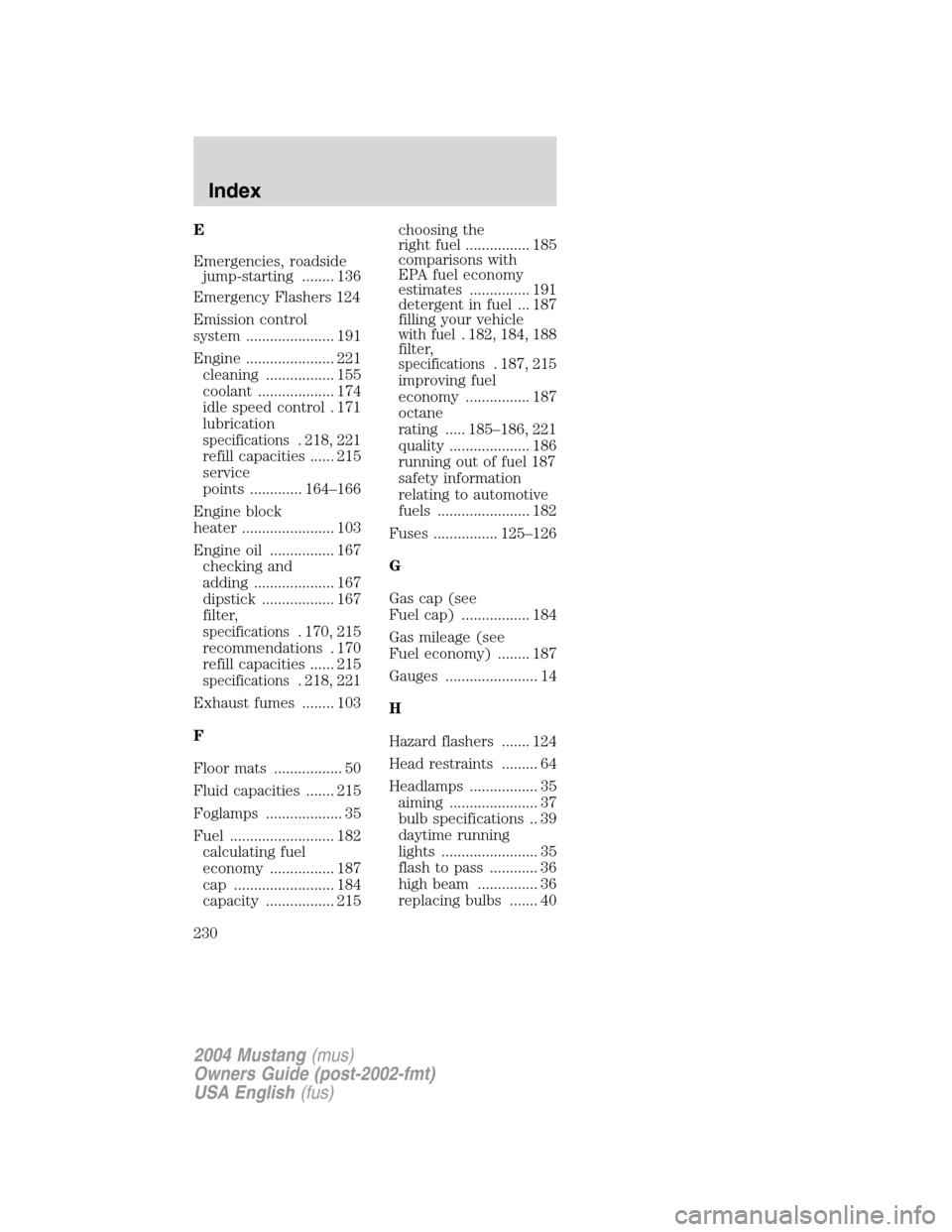

E
Emergencies, roadside
jump-starting ........ 136
Emergency Flashers 124
Emission control
system ...................... 191
Engine ...................... 221
cleaning ................. 155
coolant ................... 174
idle speed control . 171
lubrication
specifications. 218, 221
refill capacities ...... 215
service
points ............. 164–166
Engine block
heater ....................... 103
Engine oil ................ 167
checking and
adding .................... 167
dipstick .................. 167
filter,
specifications. 170, 215
recommendations . 170
refill capacities ...... 215
specifications. 218, 221
Exhaust fumes ........ 103
F
Floor mats ................. 50
Fluid capacities ....... 215
Foglamps ................... 35
Fuel .......................... 182
calculating fuel
economy ................ 187
cap ......................... 184
capacity ................. 215choosing the
right fuel ................ 185
comparisons with
EPA fuel economy
estimates ............... 191
detergent in fuel ... 187
filling your vehicle
with fuel. 182, 184, 188
filter,
specifications. 187, 215
improving fuel
economy ................ 187
octane
rating ..... 185–186, 221
quality .................... 186
running out of fuel 187
safety information
relating to automotive
fuels ....................... 182
Fuses ................ 125–126
G
Gas cap (see
Fuel cap) ................. 184
Gas mileage (see
Fuel economy) ........ 187
Gauges ....................... 14
H
Hazard flashers ....... 124
Head restraints ......... 64
Headlamps ................. 35
aiming ...................... 37
bulb specifications .. 39
daytime running
lights ........................ 35
flash to pass ............ 36
high beam ............... 36
replacing bulbs ....... 40
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
230

turning on and off .. 35
Heating
heating and air
conditioning system.33
Hood ........................ 162
I
Ignition ............... 99, 221
Infant seats (see
Safety seats) ............. 88
Inspection/maintenance
(I/M) testing ............ 193
Instrument panel
cleaning ................. 157
cluster ...................... 10
lighting up panel
and interior ............. 36
J
Jump-starting your
vehicle ...................... 136
K
Keys
positions of the
ignition .................... 99
L
Lamps
bulb replacement
specifications
chart ........................ 39
daytime running
light .......................... 35
fog lamps ................. 35
headlamps ......... 35, 40headlamps, flash
to pass ..................... 36
instrument panel,
dimming ................... 36
interior lamps ... 38–39
replacing
bulbs ............ 38, 40–42
Lane change indicator
(see Turn signal) ...... 38
Lights, warning and
indicator .................... 10
anti-lock brakes
(ABS) .................... 104
Limited slip axle
(see Traction Loc) .. 108
Load limits ............... 117
Locks
doors ........................ 54
Lubricant
specifications ... 218, 221
Lug nuts, anti-theft . 134
Lumbar support,
seats ........................... 65
M
Manual transmission. 114
fluid capacities ...... 215
lubricant
specifications ........ 221
reverse ................... 115
Mirrors
side view mirrors
(power) ................... 46
Motorcraft
parts ................. 187, 215
O
Octane rating .. 185–186
2004 Mustang(mus)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
231
