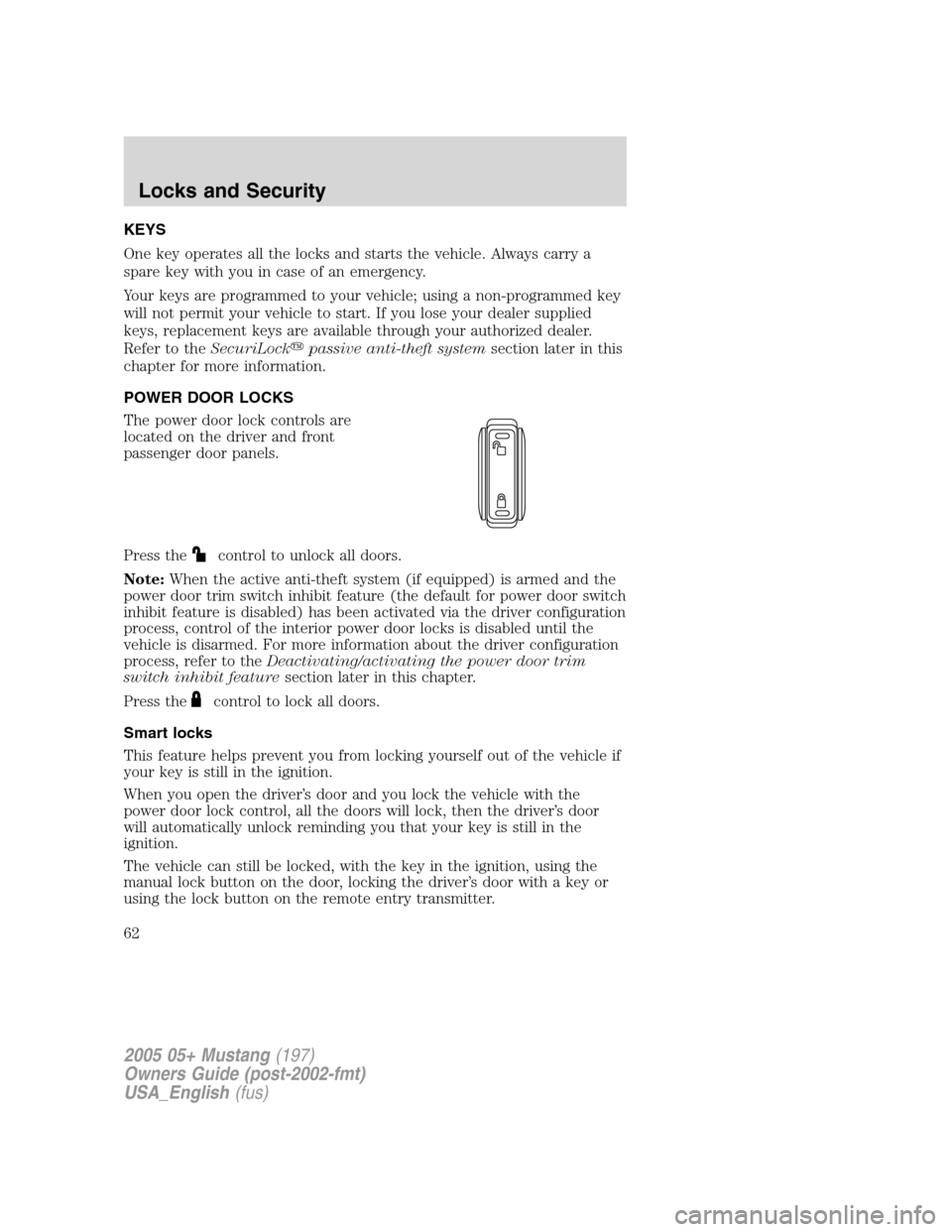

KEYS
One key operates all the locks and starts the vehicle. Always carry a
spare key with you in case of an emergency.
Your keys are programmed to your vehicle; using a non-programmed key
will not permit your vehicle to start. If you lose your dealer supplied
keys, replacement keys are available through your authorized dealer.
Refer to theSecuriLock
passive anti-theft systemsection later in this
chapter for more information.
POWER DOOR LOCKS
The power door lock controls are
located on the driver and front
passenger door panels.
Press the
control to unlock all doors.
Note:When the active anti-theft system (if equipped) is armed and the
power door trim switch inhibit feature (the default for power door switch
inhibit feature is disabled) has been activated via the driver configuration
process, control of the interior power door locks is disabled until the
vehicle is disarmed. For more information about the driver configuration
process, refer to theDeactivating/activating the power door trim
switch inhibit featuresection later in this chapter.
Press the
control to lock all doors.
Smart locks
This feature helps prevent you from locking yourself out of the vehicle if
your key is still in the ignition.
When you open the driver’s door and you lock the vehicle with the
power door lock control, all the doors will lock, then the driver’s door
will automatically unlock reminding you that your key is still in the
ignition.
The vehicle can still be locked, with the key in the ignition, using the
manual lock button on the door, locking the driver’s door with a key or
using the lock button on the remote entry transmitter.
2005 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA_English(fus)
Locks and Security
Locks and Security
62

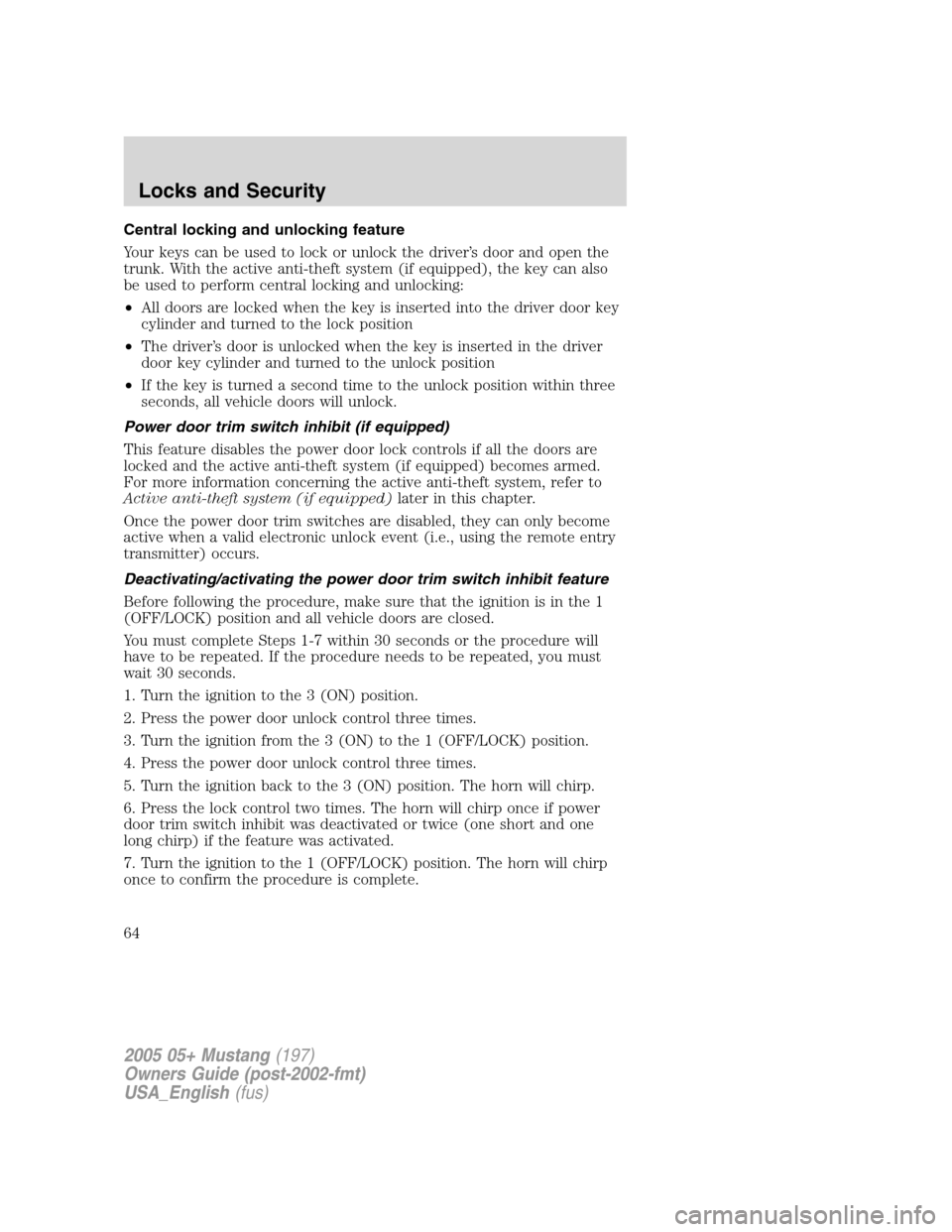

Central locking and unlocking feature
Your keys can be used to lock or unlock the driver’s door and open the
trunk. With the active anti-theft system (if equipped), the key can also
be used to perform central locking and unlocking:
•All doors are locked when the key is inserted into the driver door key
cylinder and turned to the lock position
•The driver’s door is unlocked when the key is inserted in the driver
door key cylinder and turned to the unlock position
•If the key is turned a second time to the unlock position within three
seconds, all vehicle doors will unlock.
Power door trim switch inhibit (if equipped)
This feature disables the power door lock controls if all the doors are
locked and the active anti-theft system (if equipped) becomes armed.
For more information concerning the active anti-theft system, refer to
Active anti-theft system (if equipped)later in this chapter.
Once the power door trim switches are disabled, they can only become
active when a valid electronic unlock event (i.e., using the remote entry
transmitter) occurs.
Deactivating/activating the power door trim switch inhibit feature
Before following the procedure, make sure that the ignition is in the 1
(OFF/LOCK) position and all vehicle doors are closed.
You must complete Steps 1-7 within 30 seconds or the procedure will
have to be repeated. If the procedure needs to be repeated, you must
wait 30 seconds.
1. Turn the ignition to the 3 (ON) position.
2. Press the power door unlock control three times.
3. Turn the ignition from the 3 (ON) to the 1 (OFF/LOCK) position.
4. Press the power door unlock control three times.
5. Turn the ignition back to the 3 (ON) position. The horn will chirp.
6. Press the lock control two times. The horn will chirp once if power
door trim switch inhibit was deactivated or twice (one short and one
long chirp) if the feature was activated.
7. Turn the ignition to the 1 (OFF/LOCK) position. The horn will chirp
once to confirm the procedure is complete.
2005 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA_English(fus)
Locks and Security
64

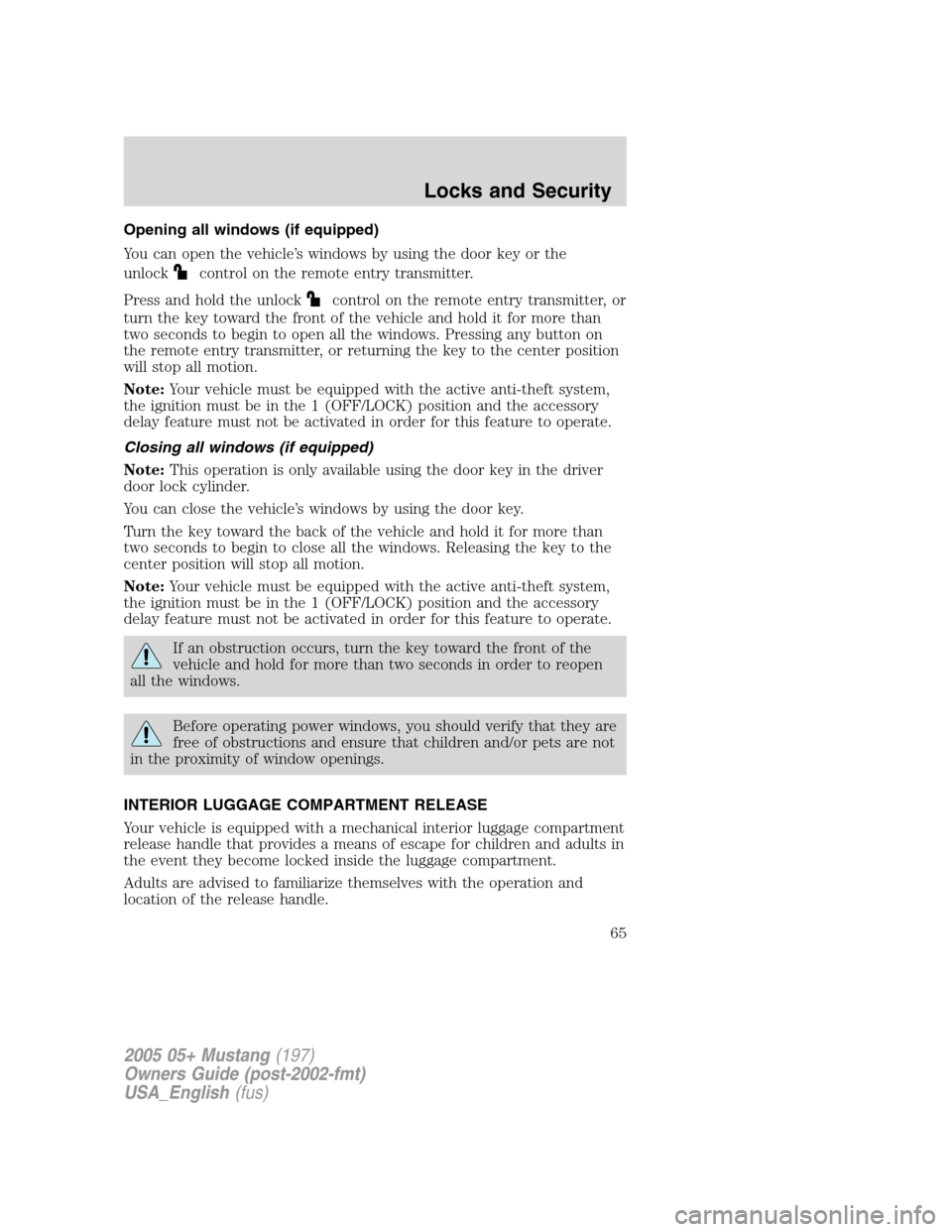

Opening all windows (if equipped)
You can open the vehicle’s windows by using the door key or the
unlock
control on the remote entry transmitter.
Press and hold the unlock
control on the remote entry transmitter, or
turn the key toward the front of the vehicle and hold it for more than
two seconds to begin to open all the windows. Pressing any button on
the remote entry transmitter, or returning the key to the center position
will stop all motion.
Note:Your vehicle must be equipped with the active anti-theft system,
the ignition must be in the 1 (OFF/LOCK) position and the accessory
delay feature must not be activated in order for this feature to operate.
Closing all windows (if equipped)
Note:This operation is only available using the door key in the driver
door lock cylinder.
You can close the vehicle’s windows by using the door key.
Turn the key toward the back of the vehicle and hold it for more than
two seconds to begin to close all the windows. Releasing the key to the
center position will stop all motion.
Note:Your vehicle must be equipped with the active anti-theft system,
the ignition must be in the 1 (OFF/LOCK) position and the accessory
delay feature must not be activated in order for this feature to operate.
If an obstruction occurs, turn the key toward the front of the
vehicle and hold for more than two seconds in order to reopen
all the windows.
Before operating power windows, you should verify that they are
free of obstructions and ensure that children and/or pets are not
in the proximity of window openings.
INTERIOR LUGGAGE COMPARTMENT RELEASE
Your vehicle is equipped with a mechanical interior luggage compartment
release handle that provides a means of escape for children and adults in
the event they become locked inside the luggage compartment.
Adults are advised to familiarize themselves with the operation and
location of the release handle.
2005 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA_English(fus)
Locks and Security
65

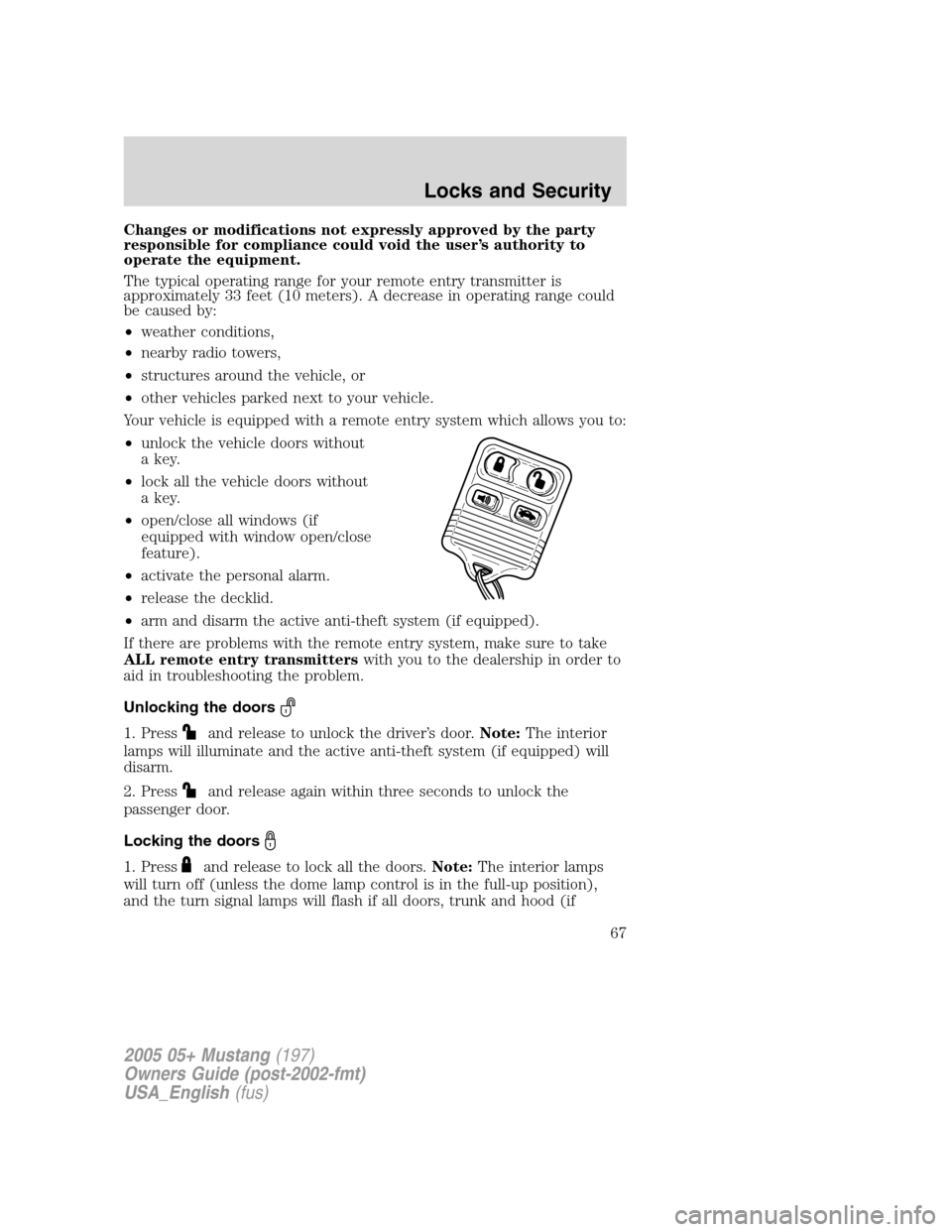

Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
The typical operating range for your remote entry transmitter is
approximately 33 feet (10 meters). A decrease in operating range could
be caused by:
•weather conditions,
•nearby radio towers,
•structures around the vehicle, or
•other vehicles parked next to your vehicle.
Your vehicle is equipped with a remote entry system which allows you to:
•unlock the vehicle doors without
a key.
•lock all the vehicle doors without
a key.
•open/close all windows (if
equipped with window open/close
feature).
•activate the personal alarm.
•release the decklid.
•arm and disarm the active anti-theft system (if equipped).
If there are problems with the remote entry system, make sure to take
ALL remote entry transmitterswith you to the dealership in order to
aid in troubleshooting the problem.
Unlocking the doors
1. Pressand release to unlock the driver’s door.Note:The interior
lamps will illuminate and the active anti-theft system (if equipped) will
disarm.
2. Press
and release again within three seconds to unlock the
passenger door.
Locking the doors
1. Pressand release to lock all the doors.Note:The interior lamps
will turn off (unless the dome lamp control is in the full-up position),
and the turn signal lamps will flash if all doors, trunk and hood (if
2005 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA_English(fus)
Locks and Security
67

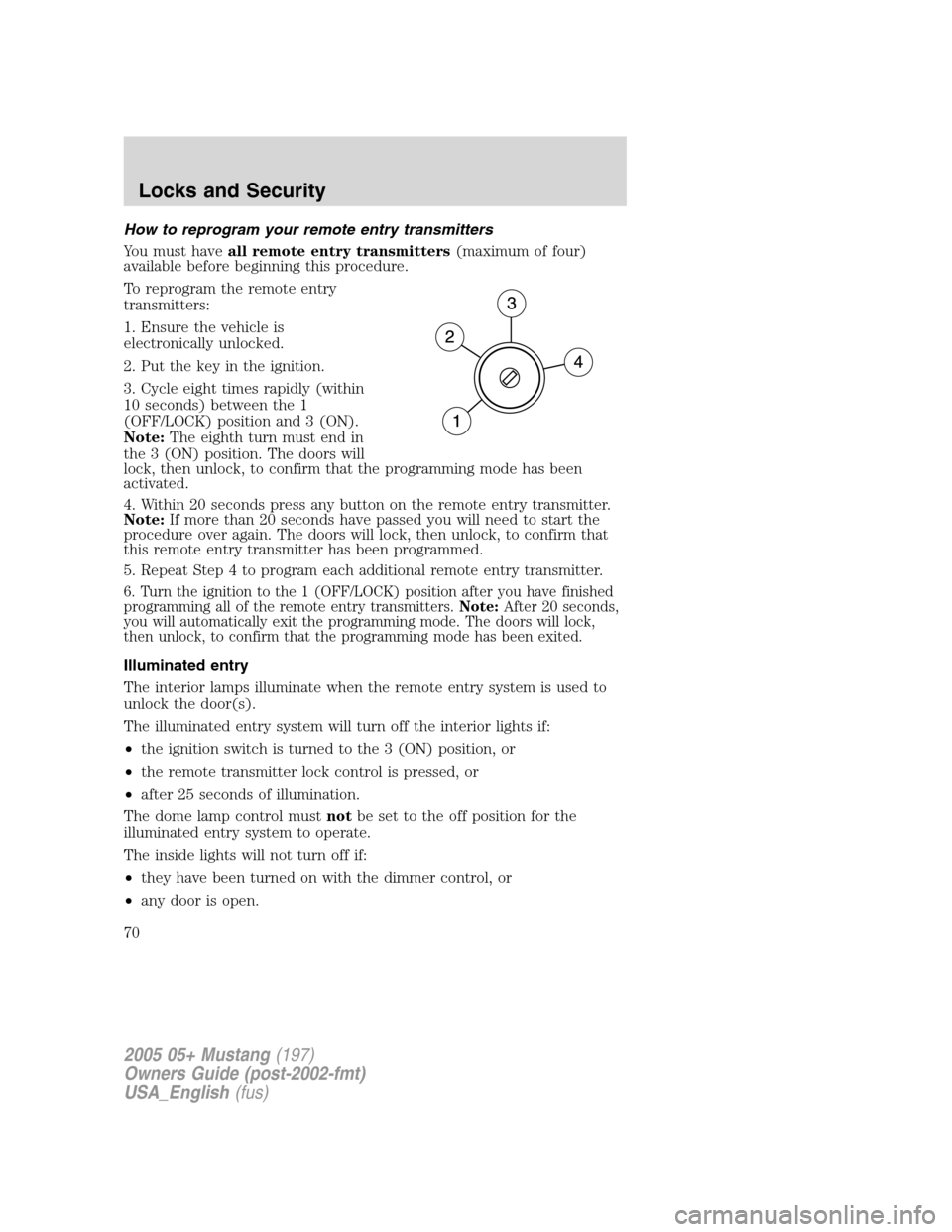

How to reprogram your remote entry transmitters
You must haveall remote entry transmitters(maximum of four)
available before beginning this procedure.
To reprogram the remote entry
transmitters:
1. Ensure the vehicle is
electronically unlocked.
2. Put the key in the ignition.
3. Cycle eight times rapidly (within
10 seconds) between the 1
(OFF/LOCK) position and 3 (ON).
Note:The eighth turn must end in
the 3 (ON) position. The doors will
lock, then unlock, to confirm that the programming mode has been
activated.
4. Within 20 seconds press any button on the remote entry transmitter.
Note:If more than 20 seconds have passed you will need to start the
procedure over again. The doors will lock, then unlock, to confirm that
this remote entry transmitter has been programmed.
5. Repeat Step 4 to program each additional remote entry transmitter.
6. Turn the ignition to the 1 (OFF/LOCK) position after you have finished
programming all of the remote entry transmitters.Note:After 20 seconds,
you will automatically exit the programming mode. The doors will lock,
then unlock, to confirm that the programming mode has been exited.
Illuminated entry
The interior lamps illuminate when the remote entry system is used to
unlock the door(s).
The illuminated entry system will turn off the interior lights if:
•the ignition switch is turned to the 3 (ON) position, or
•the remote transmitter lock control is pressed, or
•after 25 seconds of illumination.
The dome lamp control mustnotbe set to the off position for the
illuminated entry system to operate.
The inside lights will not turn off if:
•they have been turned on with the dimmer control, or
•any door is open.
2005 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA_English(fus)
Locks and Security
70

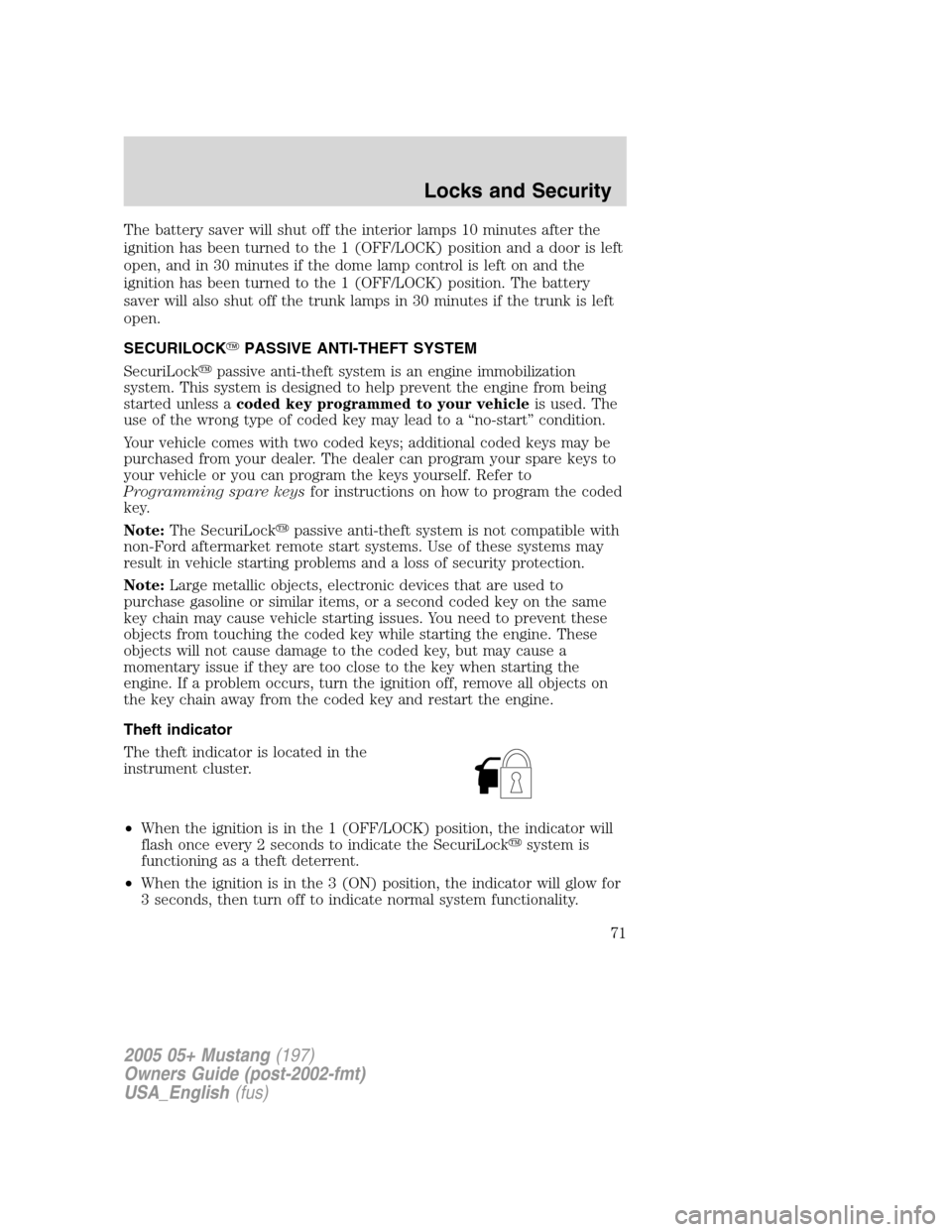

The battery saver will shut off the interior lamps 10 minutes after the
ignition has been turned to the 1 (OFF/LOCK) position and a door is left
open, and in 30 minutes if the dome lamp control is left on and the
ignition has been turned to the 1 (OFF/LOCK) position. The battery
saver will also shut off the trunk lamps in 30 minutes if the trunk is left
open.
SECURILOCKPASSIVE ANTI-THEFT SYSTEM
SecuriLock
passive anti-theft system is an engine immobilization
system. This system is designed to help prevent the engine from being
started unless acoded key programmed to your vehicleis used. The
use of the wrong type of coded key may lead to a“no-start”condition.
Your vehicle comes with two coded keys; additional coded keys may be
purchased from your dealer. The dealer can program your spare keys to
your vehicle or you can program the keys yourself. Refer to
Programming spare keysfor instructions on how to program the coded
key.
Note:The SecuriLock
passive anti-theft system is not compatible with
non-Ford aftermarket remote start systems. Use of these systems may
result in vehicle starting problems and a loss of security protection.
Note:Large metallic objects, electronic devices that are used to
purchase gasoline or similar items, or a second coded key on the same
key chain may cause vehicle starting issues. You need to prevent these
objects from touching the coded key while starting the engine. These
objects will not cause damage to the coded key, but may cause a
momentary issue if they are too close to the key when starting the
engine. If a problem occurs, turn the ignition off, remove all objects on
the key chain away from the coded key and restart the engine.
Theft indicator
The theft indicator is located in the
instrument cluster.
•When the ignition is in the 1 (OFF/LOCK) position, the indicator will
flash once every 2 seconds to indicate the SecuriLock
system is
functioning as a theft deterrent.
•When the ignition is in the 3 (ON) position, the indicator will glow for
3 seconds, then turn off to indicate normal system functionality.
2005 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA_English(fus)
Locks and Security
71

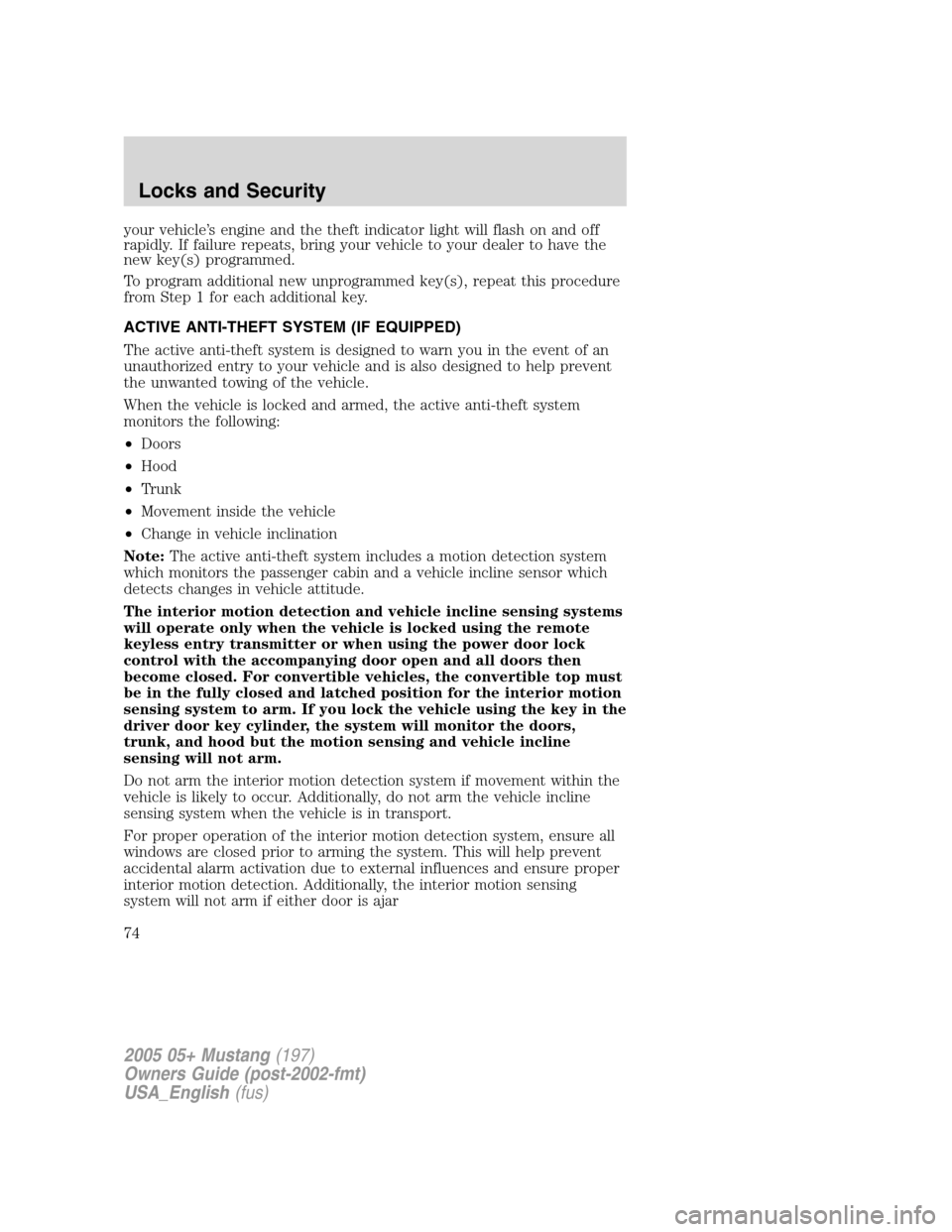

your vehicle’s engine and the theft indicator light will flash on and off
rapidly. If failure repeats, bring your vehicle to your dealer to have the
new key(s) programmed.
To program additional new unprogrammed key(s), repeat this procedure
from Step 1 for each additional key.
ACTIVE ANTI-THEFT SYSTEM (IF EQUIPPED)
The active anti-theft system is designed to warn you in the event of an
unauthorized entry to your vehicle and is also designed to help prevent
the unwanted towing of the vehicle.
When the vehicle is locked and armed, the active anti-theft system
monitors the following:
•Doors
•Hood
•Trunk
•Movement inside the vehicle
•Change in vehicle inclination
Note:The active anti-theft system includes a motion detection system
which monitors the passenger cabin and a vehicle incline sensor which
detects changes in vehicle attitude.
The interior motion detection and vehicle incline sensing systems
will operate only when the vehicle is locked using the remote
keyless entry transmitter or when using the power door lock
control with the accompanying door open and all doors then
become closed. For convertible vehicles, the convertible top must
be in the fully closed and latched position for the interior motion
sensing system to arm. If you lock the vehicle using the key in the
driver door key cylinder, the system will monitor the doors,
trunk, and hood but the motion sensing and vehicle incline
sensing will not arm.
Do not arm the interior motion detection system if movement within the
vehicle is likely to occur. Additionally, do not arm the vehicle incline
sensing system when the vehicle is in transport.
For proper operation of the interior motion detection system, ensure all
windows are closed prior to arming the system. This will help prevent
accidental alarm activation due to external influences and ensure proper
interior motion detection. Additionally, the interior motion sensing
system will not arm if either door is ajar
2005 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA_English(fus)
Locks and Security
74

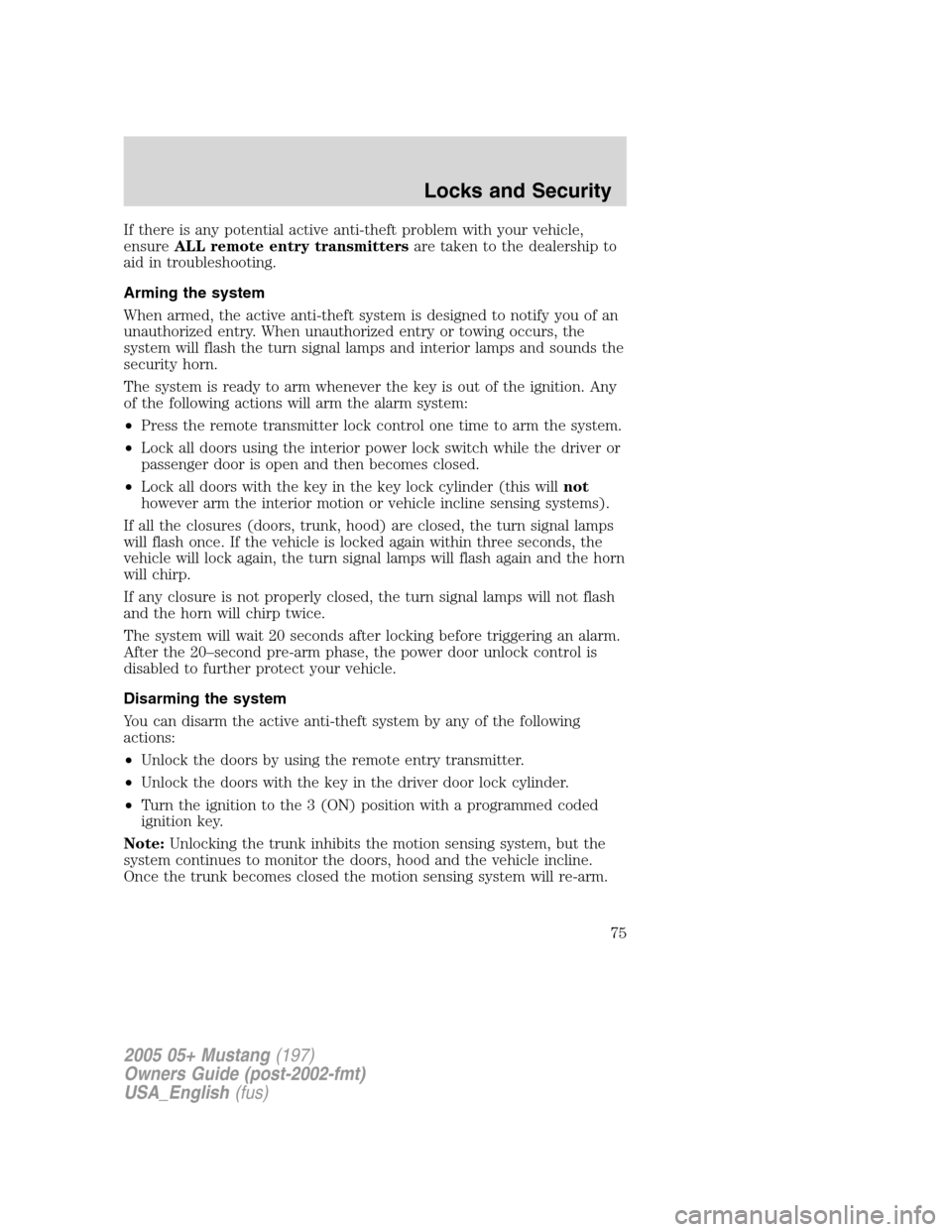

If there is any potential active anti-theft problem with your vehicle,
ensureALL remote entry transmittersare taken to the dealership to
aid in troubleshooting.
Arming the system
When armed, the active anti-theft system is designed to notify you of an
unauthorized entry. When unauthorized entry or towing occurs, the
system will flash the turn signal lamps and interior lamps and sounds the
security horn.
The system is ready to arm whenever the key is out of the ignition. Any
of the following actions will arm the alarm system:
•Press the remote transmitter lock control one time to arm the system.
•Lock all doors using the interior power lock switch while the driver or
passenger door is open and then becomes closed.
•Lock all doors with the key in the key lock cylinder (this willnot
however arm the interior motion or vehicle incline sensing systems).
If all the closures (doors, trunk, hood) are closed, the turn signal lamps
will flash once. If the vehicle is locked again within three seconds, the
vehicle will lock again, the turn signal lamps will flash again and the horn
will chirp.
If any closure is not properly closed, the turn signal lamps will not flash
and the horn will chirp twice.
The system will wait 20 seconds after locking before triggering an alarm.
After the 20–second pre-arm phase, the power door unlock control is
disabled to further protect your vehicle.
Disarming the system
You can disarm the active anti-theft system by any of the following
actions:
•Unlock the doors by using the remote entry transmitter.
•Unlock the doors with the key in the driver door lock cylinder.
•Turn the ignition to the 3 (ON) position with a programmed coded
ignition key.
Note:Unlocking the trunk inhibits the motion sensing system, but the
system continues to monitor the doors, hood and the vehicle incline.
Once the trunk becomes closed the motion sensing system will re-arm.
2005 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA_English(fus)
Locks and Security
75

Safety restraints ..............80, 84–88
belt minder ...............................90
extension assembly ..................93
for adults .............................85 –88
for children .............................104
Occupant Classification
Sensor ........................................82
safety belt maintenance ...........94
warning light and chime ..........89
Safety seats for children ..........107
Seat belts
(see Safety restraints) ...............80
Seats ............................................76 child safety seats ....................107
front seats .................................77
Servicing your vehicle ..............189
Setting the clock AM/FM/In-dash 6 CD ................24
Spark plugs, specifications ......219, 224–225
Specification chart,
lubricants ...........................222, 224
Speed control ..............................47
Starting your vehicle .......143 –144,
147
jump starting ..........................167
Steering wheel tilting .........................................43
T
Tilt steering wheel ......................43
Tires ...........................116 –117, 121
alignment ................................132
care ..........................................131
changing ..........................121 –122
checking the pressure ............119
inspecting and inflating .........118 label .........................................130
replacing ..................................121
rotating ....................................133
safety practices .......................132
sidewall information ...............125
snow tires and chains ............134
spare tire .................................121
terminology .............................117
tire grades ...............................117
treadwear ........................116, 131
Towing .......................................140 recreational towing .................142
trailer towing ..........................140
wrecker ....................................172
Traction control ........................150
Traction-lok rear axle ...............151
Transmission automatic operation ...............151
brake-shift interlock (BSI) ....151
fluid, checking and adding
(automatic) .............................217
fluid, checking and adding
(manual) .................................218
fluid, refill capacities ..............220
lubricant specifications ..222, 224
manual operation ....................156
Trunk ...........................................65 remote release ..........................68
Turn signal ..................................35
V
Vehicle dimensions ...................225
Vehicle Identification Number
(VIN) ..........................................227
Vehicle loading ..........................135
Ventilating your vehicle ...........147
2005 05+ Mustang (197)
Owners Guide (post-2002-fmt)
USA_English (fus)
Index
235
