FORD MUSTANG 2005 5.G Quick Reference Guide
Manufacturer: FORD, Model Year: 2005, Model line: MUSTANG, Model: FORD MUSTANG 2005 5.GPages: 12, PDF Size: 0.26 MB
Page 1 of 12
FORD MUSTANGJUNE 2004FIRST PRINTINGQUICK REFERENCE GUIDE
5F9J-19A321-AA
ESSENTIAL INFORMATION
FUSESIf your electrical components aren’t working properly, a fuse may have blown. For more detailed information, please refer to your Owner’s Guide.
FUEL PUMP SHUT-OFF SWITCHThis device stops the electric fuel pump from sending fuel to the engine when your vehicle has had a substantial jolt. After an accident, if the engine cranks but does not start, this switch may have been activated. The fuel pump shut-off switch is located in the driver’s footwell, by the hood release.
CHANGING THE TIRESYour vehicle is equipped with a temporary spare tire, which is smaller than a regular tire and designed for emergency use only. The jack, spare tire, jack handle and the lug nut wrench are located in the wheel well underneath the trunk floor.
TIRE PRESSURESafe operation of your Mustang requires your tires be properly inflated. The Ford recommended inflation pressure is found on the tire label or the certification label on the driver’s door. At least once a month and
before long trips, inspect each tire and check the air pressure with a tire gauge. Don’t forget the spare. Air pressure should be checked when the tires are cold. Inflate all tires to the inflation pressure recommended by Ford Motor Company.
FUEL TANK CAPACITYYour tank holds 16 gallons of fuel. For optimum performance use “Regular” unleaded fuel with a pump (R+M)/2 octane rating of at least 87.
ROADSIDE ASSISTANCEIn addition to your New Vehicle Limited Warranty, Ford provides new vehicle owners with a complimentary roadside assistance program. This service is available 24 hours, seven days a week for three years or 36,000 miles. It covers changing a flat tire, jump starts, limited fuel delivery, lockout assistance and towing of your vehicle.
This Quick Reference Guide is not intended to replace your vehicle Owner’s Guide which contains more detailed information concerning the features of your vehicle, as well as important safety warnings designed to help reduce the risk of injury to you and your passengers. Please read your entire Owner’s Guide carefully as you begin learning about your new vehicle and refer to the appropriate sections when questions arise.
All information contained in this Quick Reference Guide was accurate at the time of duplication. We reserve the right to change features, operation and/or functionality of any vehicle specification at any time. Your Ford dealer is the best source for the most current information. For detailed operating and safety information, please consult your Owner’s Guide.
Ford Motor Company | Customer Relationship Center | P.O. Box 6248 | Dearborn, MI 48121 1-800-392-3673 (FORD) | (TDD for the hearing impaired: 1-800-232-5952)
Page 2 of 12
AUDIO SYSTEMS
1
6
7
3
10
8
54
2
9
1 POWER / VOLUMEPress to turn ON or OFF. Turn to increase or decrease volume. If the volume is set above a certain level and the ignition is turned off, the volume will come back on at a “nominal” level when the ignition switch is turned back on.
2 LOAD BUTTONPress to begin the CD load sequence. When the radio prompts to select a slot, use the preset button to select the desired slot to load the CD. When the radio prompts to load a CD, press and hold to auto load up to 6 CDs in sequence.
3 CD BUTTONPress to enter CD mode. If a CD is already loaded into the system, the CD play will begin where it last ended.
4 SEEK BUTTONSPress to access the previous or next strong station or track. Also use it in menu mode to select various settings.
5 SCAN BUTTONPress for a brief sampling of radio stations or CD tracks. Press again to stop scanning.
6 UP/DOWN ARROWSPress to manually move up or down the radio frequency. Also, use in menu mode to adjust the quality of different modes.
7 MENU BUTTONUse the MENU button to cycle through the possible modes (Bass, Treble, Fade, and Balance, among others). Then use SEEK or up/down arrows to adjust the setting. Fade will adjust audio between the front and rear speakers and Balance adjusts between left and right speakers.
8 SETTING MEMORY PRESETSTo set a station: Select frequency band AM/FM; tune to a station, press and hold a preset button until the display reads PRESET SAVED.
9 MP3 TRACK / FOLDER MODE
Available only on MP3 discs in CD mode. Press to go into MP3 folder mode. Press again to access previous/next folder.
10 CD REWIND / FAST FORWARDPress REW to manually reverse within a CD track. Press FF to manually advance within a CD track.
Page 3 of 12
ADDITIONAL FEATURES
MUSTANG QUICK REFERENCE GUIDE 2005
POWER SIDE VIEW MIRRORSTo adjust your mirrors, rotate the control clockwise to adjust the right mirror or counterclockwise to adjust the left mirror. Move the control in the direction you wish to tilt the mirror. Then return the control to the center position
to lock the mirrors in place.
POWER WINDOWSPush or pull the rocker switches to open or close your windows. Push down (to the first detent) and hold the switch to open. Pull up (to the first detent) and hold the switch to close. Express Down and Express Up allows the driver’s and passenger’s window to open and close fully without holding the control down. Express Down: Push the switch completely down to the second detent and release quickly. The window will open fully. Momentarily press the switch to any position to stop the window operation. Express Up: Pull the switch completely up to the second detent and release quickly. The window will automatically fully close. Momentarily press the switch to any position to stop the window
operation. For more information, please refer to your Owner’s Guide.
AUTOLOCK (IF EQUIPPED)On vehicles equipped with an automatic transmission, this feature automatically locks all vehicle doors when all doors are closed, the ignition is in the ON position, the brake is pressed before reaching 3 mph (5 km/h) and the vehicle speed increases to more than 3 mph (5 km/h). To enable or disable this feature, please refer to your Owner’s Guide.
OPENING ALL WINDOWS (IF EQUIPPED)The vehicle windows can be opened using the remote transmitter by pressing and holding the Unlock button. Additionally, the windows can be opened or closed using the key in the driver door key cylinder. For more information, please refer to your Owner’s Guide.
Page 4 of 12
MUSTANG QUICK REFERENCE GUIDE 2005
SMART UNLOCKINGThis feature helps prevent you from locking yourself out of the vehicle if your key is still in the ignition. When you open the door, lock the vehicle, and then close the door, the driver’s door will automatically unlock, reminding you that your key is still in the ignition. For more information, please refer to your Owner’s Guide.
REMOTE ENTRY SYSTEMYour vehicle is equipped with a remote entry system which allows you to lock or unlock the vehicle’s doors without a key. It also allows you to release the trunk lid, activate a personal alarm, and arm or disarm the active anti-theft alarm system (if equipped). Note: The Panic function will not operate when the ignition is in the ON or START position; the trunk lid release function only operates when the vehicle speed is less than 3 mph (5 km/h). Up to four remote transmitters can be programmed to your vehicle. For programming instructions, please refer to your Owner’s Guide.
CENTRAL LOCKINGYour keys can be used to lock and unlock both doors from the driver’s door key cylinder. All doors are locked when the key is inserted and turned to the lock position. The driver’s door is unlocked when the key is inserted and turned to the unlock position. Turning to the unlock position again within three seconds unlocks the passenger side door.
ACTIVE ANTI-THEFT SYSTEM (IF EQUIPPED)This system is designed to sound the security horn and flash the directional indicators when unauthorized entry or towing is detected. This system is armed whenever the vehicle is electronically locked and disarmed when the vehicle is electronically unlocked. For more detailed information, please refer to your Owner’s Guide.
Page 5 of 12
CLIMATE CONTROL
12
3
576
4
1 TEMPERATURE CONTROLRotate the knob to adjust the temperature of the airflow in the vehicle.
2 MODE SELECTORControls the source of airflow into the vehicle. You can choose floor, instrument panel or windshield defroster air vents or combinations.
3 FAN SPEEDRotate the knob to adjust the volume of air circulated in the vehicle.
4 MAX A/CDistributes recirculated air through the instrument panel vents to cool the vehicle. This re-cooling of the interior air is more economical and efficient.
5 A/CPress to activate/deactivate air conditioning. Use with recirculated air to improve cooling performance. Engages automatically in MAX A/C, DEFROST and FLOOR/DEFROST.
6 RECIRCULATED AIR CONTROLPress to activate/deactivate recirculated air in the cabin. Recirculated air may reduce the amount of
time required to cool down the interior of the vehicle and may also help reduce undesired exterior odors from reaching the interior of the vehicle. Recirculated air engages automatically in MAX A/C or can be engaged manually in any other mode except defrost.
7 REAR DEFROST AND DEFOGGINGEnsure that the ignition is in the ON position. Press the control to clear the rear window of thin ice and fog. The LED will illuminate. The rear defroster turns off automatically after 10 minutes or when the ignition is turned OFF. To manually turn off the rear defroster, push the control again.
REDUCING FOG BUILDUPPlace the airflow selector in the DEFROST or FLOOR/ DEFROST position.
REDUCING HUMIDITY BUILDUPDo not drive with the airflow selector in the OFF position
or with recirculated air engaged.
Page 6 of 12
MUSTANG QUICK REFERENCE GUIDE 2005
Page 7 of 12
MUSTANG QUICK REFERENCE GUIDE 2005

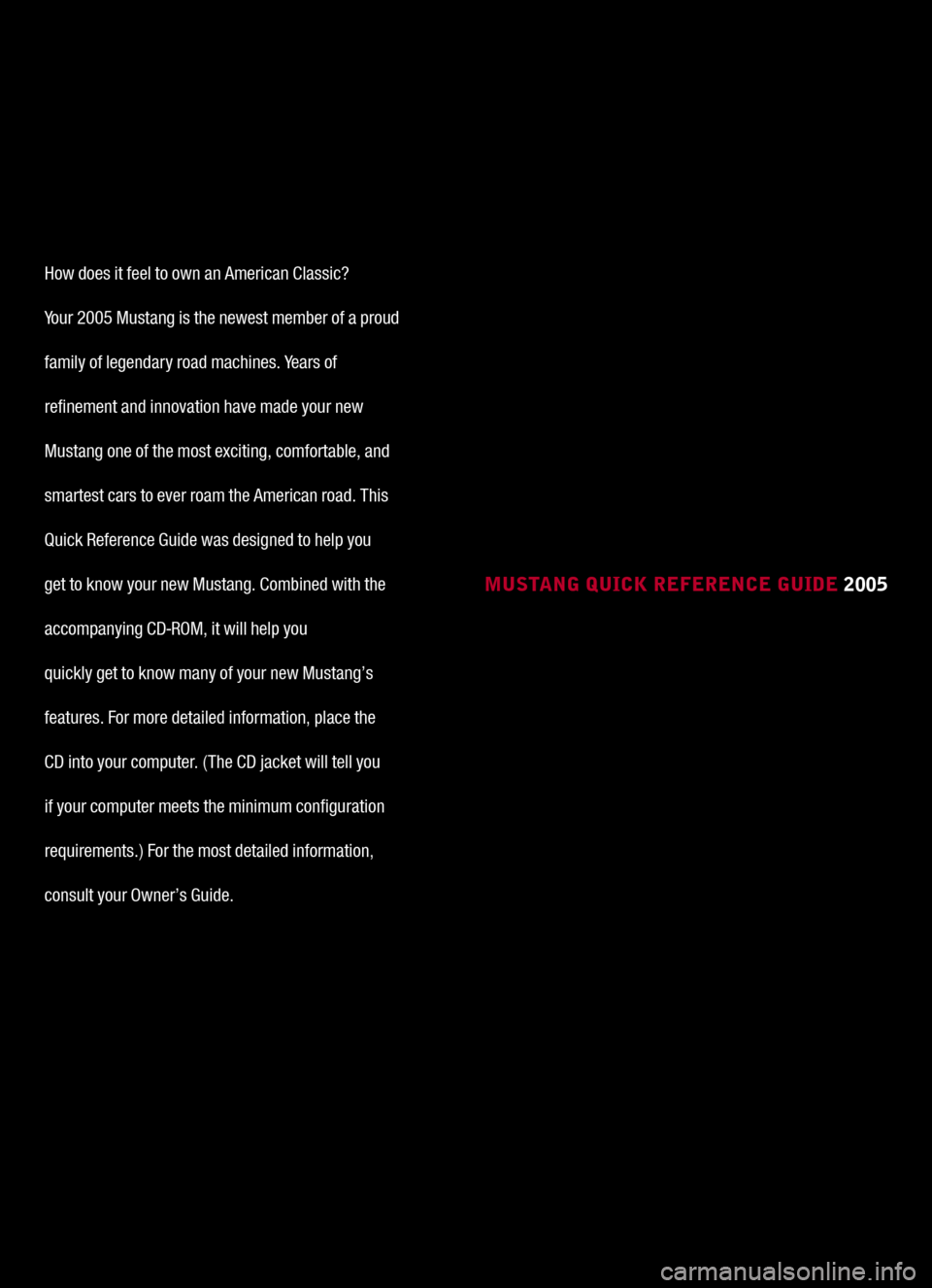

How does it feel to own an American Classic?
Your 2005 Mustang is the newest member of a proud
family of legendary road machines. Years of
refinement and innovation have made your new
Mustang one of the most exciting, comfortable, and
smartest cars to ever roam the American road. This
Quick Reference Guide was designed to help you
get to know your new Mustang. Combined with the
accompanying CD-ROM, it will help you
quickly get to know many of your new Mustang’s
features. For more detailed information, place the
CD into your computer. (The CD jacket will tell you
if your computer meets the minimum configuration
requirements.) For the most detailed information,
consult your Owner’s Guide.
Page 8 of 12
1
234
79
Page 9 of 12
5
6
8
10
11
1213

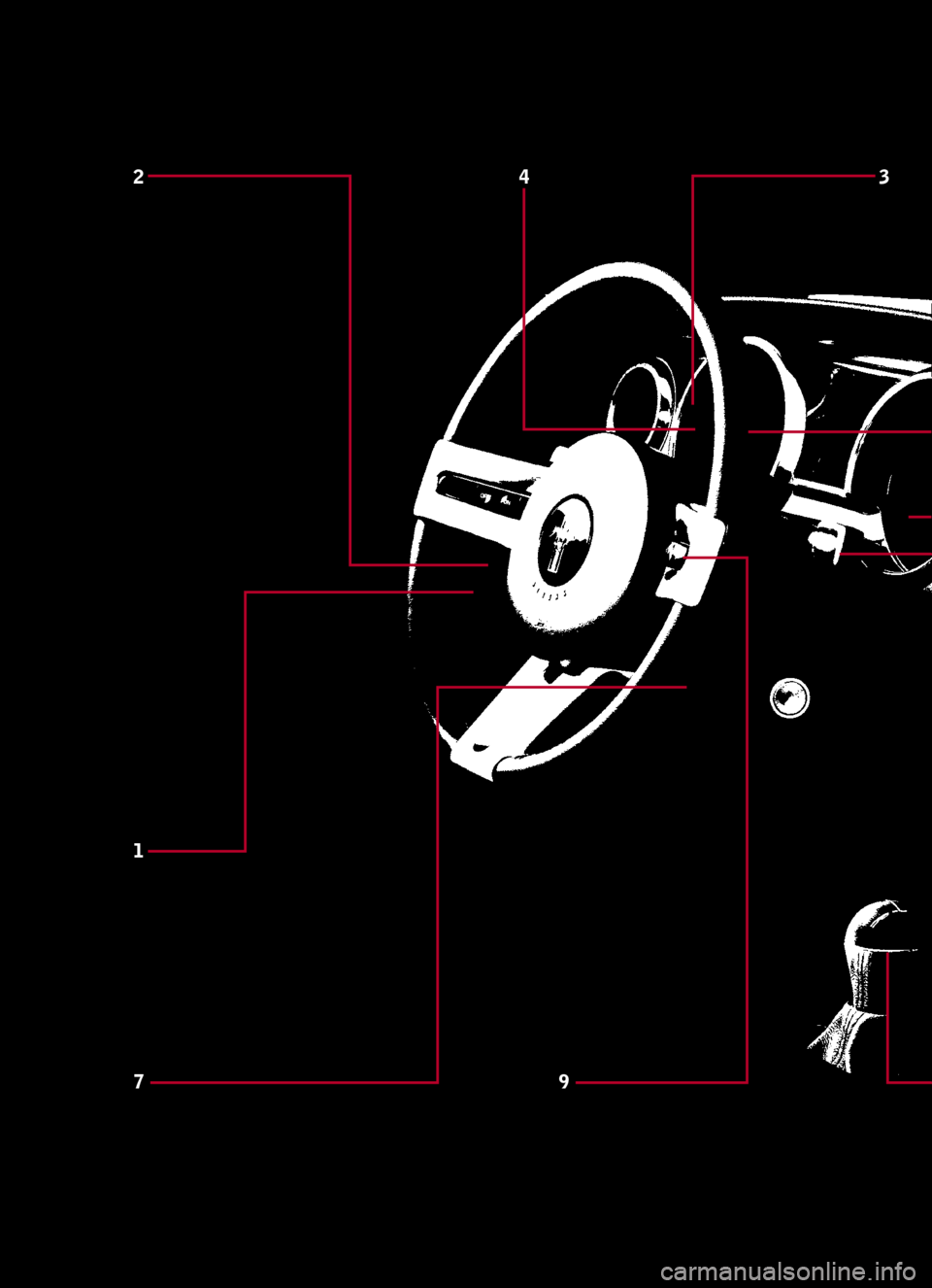

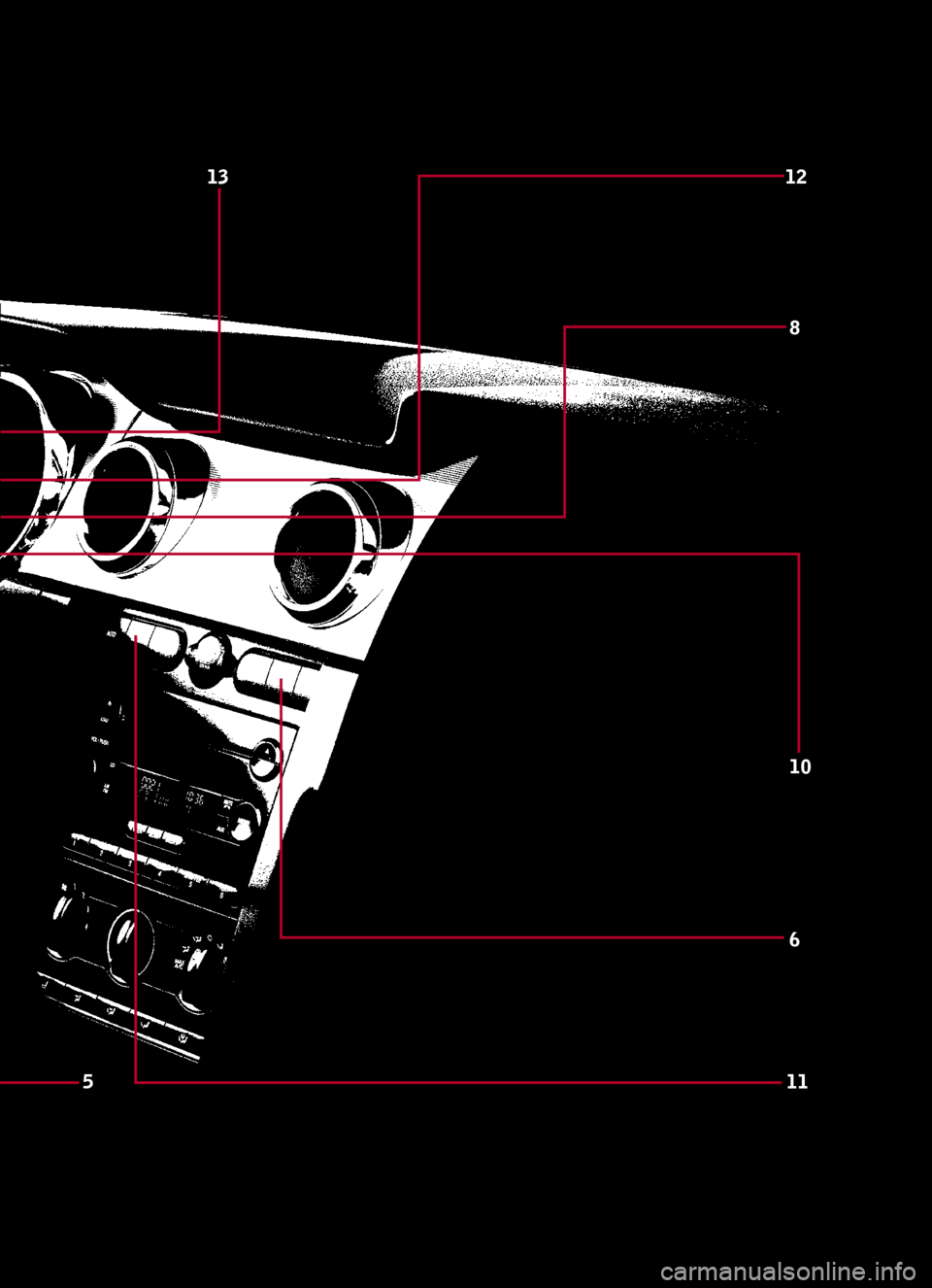

Page 10 of 12
1 HEADLAMP CONTROL AND FOGLAMPS (IF EQUIPPED)Turning the headlamp control clockwise to the first position turns on the parking lamps, instrument panel lamps, license plate lamps and the tail lamps. Continuing to turn the headlamp control to the second position turns on the headlamps in addition to the previous lamps. To activate the high beams, pull the turn signal lever toward you to the second detent. Pull the lever toward you again to deactivate them. Use the same lever to activate the “Flash to Pass” feature. Pull the lever toward you to the first detent to activate and release quickly to deactivate.
The fog lamps can be turned on when the headlamp control is in the parking lamp or headlamp position and the high beams are not on. Pull the headlamp control toward you to turn on the fog lamps. The fog lamp indicator light will illuminate. Remember, the fog lamps will not operate when the high beams are activated.
2 PANEL DIMMERUse to adjust the brightness of the instrument panel and all applcable switches in the vehicle during headlamp and park lamp operation. Rotate the control fully upward, past the detent, to turn on the interior lamps.
3 ANTI-LOCK BRAKE SYSTEM (IF EQUIPPED)
The ABS warning lamp will momentarily illuminate when the ignition is turned on. If the light stays on, flashes or doesn’t illuminate, have your vehicle serviced. In an emergency, apply continuous force to the brake pedal. Do not pump the brakes. Any pulsation or mechanical noise you may feel or hear is normal.
4 SERVICE ENGINE SOON LAMPThe Service Engine Soon indicator lamp illuminates when the ignition is first turned to the ON position. If the lamp stays on or blinks, the On Board Diagnostics System has detected a malfunction. Drive moderately (avoid heavy acceleration or deceleration) and have your vehicle serviced immediately.
5 GEARSHIFT/OVERDRIVE CONTROL (IF EQUIPPED)Use overdrive in the normal D (Drive) position for the best fuel economy. D (Drive) with Overdrive can be deactivated by pressing the transmission control switch on the right side of the gearshift. Use this position only when driving conditions cause excessive shifting from O/D to other gears. Examples: city traffic, hilly terrain, heavy loads, etc., or when engine braking is required.*
MUSTANG 2005 INSTRUMENT PANEL
