clock FORD MUSTANG 2005 5.G Quick Reference Guide

ADDITIONAL FEATURES
MUSTANG QUICK REFERENCE GUIDE 2005
POWER SIDE VIEW MIRRORSTo adjust your mirrors, rotate the control clockwise to adjust the right mirror or counterclockwise to adjust the left mirror. Move the control in the direction you wish to tilt the mirror. Then return the control to the center position
to lock the mirrors in place.
POWER WINDOWSPush or pull the rocker switches to open or close your windows. Push down (to the first detent) and hold the switch to open. Pull up (to the first detent) and hold the switch to close. Express Down and Express Up allows the driver’s and passenger’s window to open and close fully without holding the control down. Express Down: Push the switch completely down to the second detent and release quickly. The window will open fully. Momentarily press the switch to any position to stop the window operation. Express Up: Pull the switch completely up to the second detent and release quickly. The window will automatically fully close. Momentarily press the switch to any position to stop the window
operation. For more information, please refer to your Owner’s Guide.
AUTOLOCK (IF EQUIPPED)On vehicles equipped with an automatic transmission, this feature automatically locks all vehicle doors when all doors are closed, the ignition is in the ON position, the brake is pressed before reaching 3 mph (5 km/h) and the vehicle speed increases to more than 3 mph (5 km/h). To enable or disable this feature, please refer to your Owner’s Guide.
OPENING ALL WINDOWS (IF EQUIPPED)The vehicle windows can be opened using the remote transmitter by pressing and holding the Unlock button. Additionally, the windows can be opened or closed using the key in the driver door key cylinder. For more information, please refer to your Owner’s Guide.

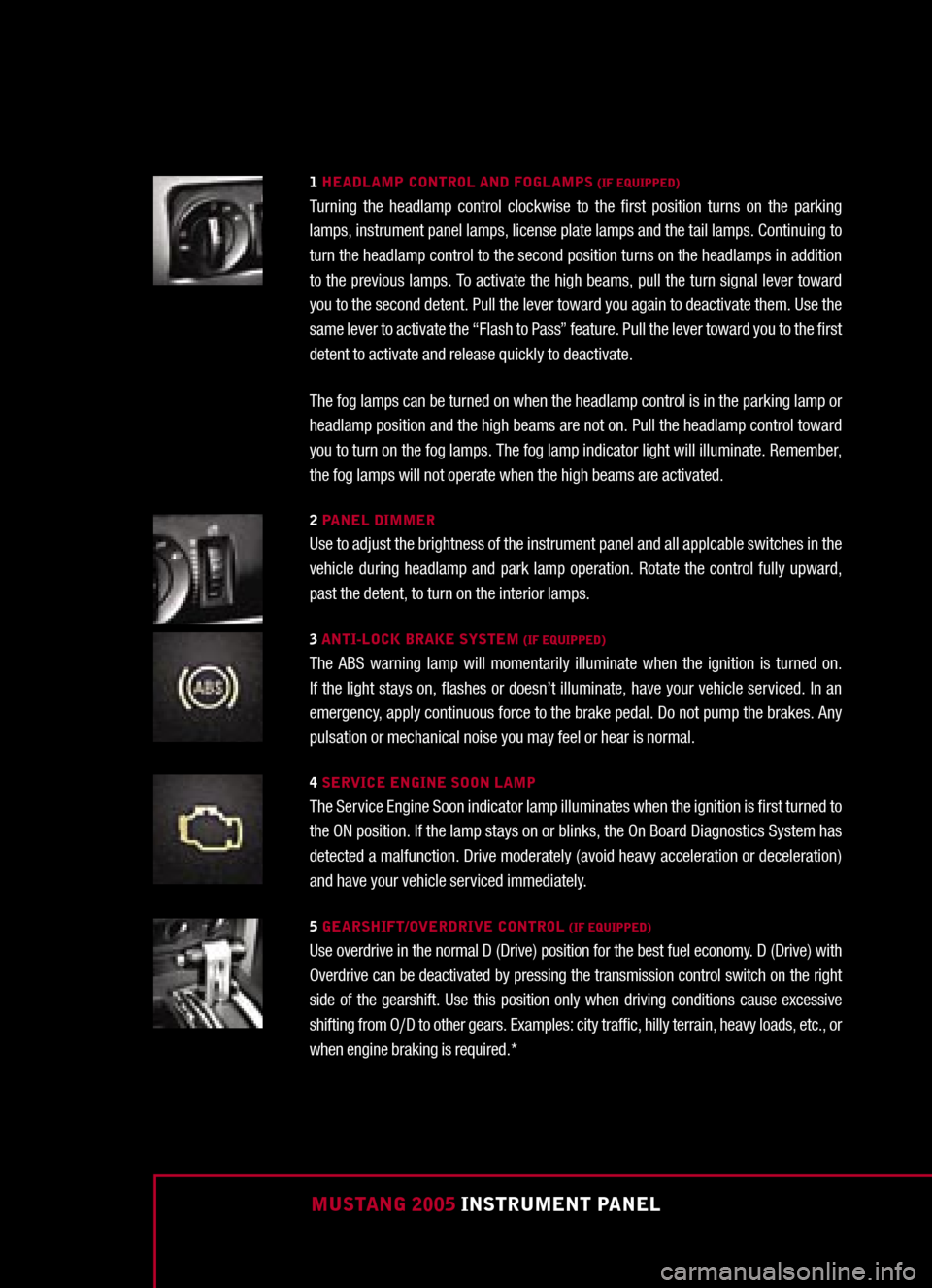

1 HEADLAMP CONTROL AND FOGLAMPS (IF EQUIPPED)Turning the headlamp control clockwise to the first position turns on the parking lamps, instrument panel lamps, license plate lamps and the tail lamps. Continuing to turn the headlamp control to the second position turns on the headlamps in addition to the previous lamps. To activate the high beams, pull the turn signal lever toward you to the second detent. Pull the lever toward you again to deactivate them. Use the same lever to activate the “Flash to Pass” feature. Pull the lever toward you to the first detent to activate and release quickly to deactivate.
The fog lamps can be turned on when the headlamp control is in the parking lamp or headlamp position and the high beams are not on. Pull the headlamp control toward you to turn on the fog lamps. The fog lamp indicator light will illuminate. Remember, the fog lamps will not operate when the high beams are activated.
2 PANEL DIMMERUse to adjust the brightness of the instrument panel and all applcable switches in the vehicle during headlamp and park lamp operation. Rotate the control fully upward, past the detent, to turn on the interior lamps.
3 ANTI-LOCK BRAKE SYSTEM (IF EQUIPPED)
The ABS warning lamp will momentarily illuminate when the ignition is turned on. If the light stays on, flashes or doesn’t illuminate, have your vehicle serviced. In an emergency, apply continuous force to the brake pedal. Do not pump the brakes. Any pulsation or mechanical noise you may feel or hear is normal.
4 SERVICE ENGINE SOON LAMPThe Service Engine Soon indicator lamp illuminates when the ignition is first turned to the ON position. If the lamp stays on or blinks, the On Board Diagnostics System has detected a malfunction. Drive moderately (avoid heavy acceleration or deceleration) and have your vehicle serviced immediately.
5 GEARSHIFT/OVERDRIVE CONTROL (IF EQUIPPED)Use overdrive in the normal D (Drive) position for the best fuel economy. D (Drive) with Overdrive can be deactivated by pressing the transmission control switch on the right side of the gearshift. Use this position only when driving conditions cause excessive shifting from O/D to other gears. Examples: city traffic, hilly terrain, heavy loads, etc., or when engine braking is required.*
MUSTANG 2005 INSTRUMENT PANEL
