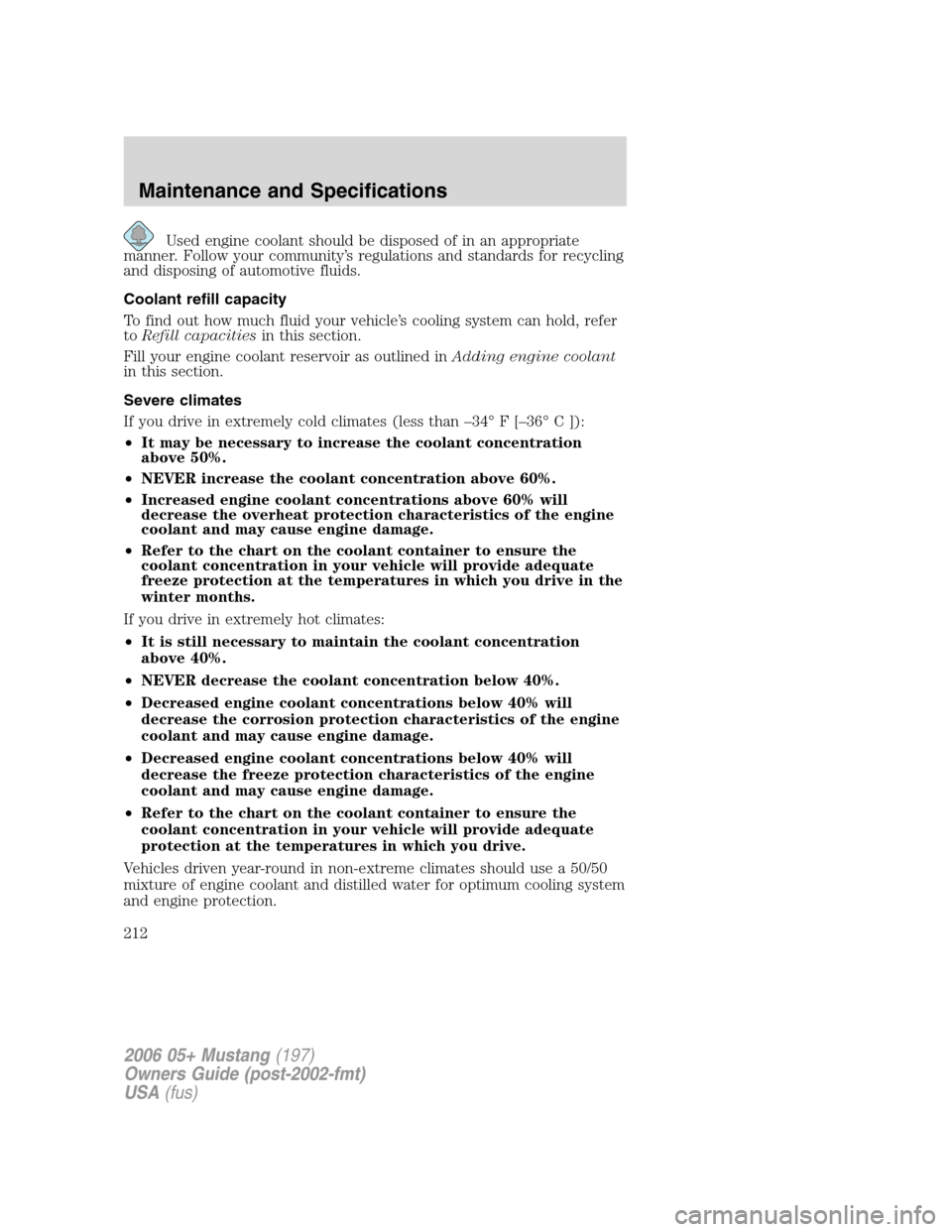

Used engine coolant should be disposed of in an appropriate
manner. Follow your community’s regulations and standards for recycling
and disposing of automotive fluids.
Coolant refill capacity
To find out how much fluid your vehicle’s cooling system can hold, refer
toRefill capacitiesin this section.
Fill your engine coolant reservoir as outlined inAdding engine coolant
in this section.
Severe climates
If you drive in extremely cold climates (less than –34° F [–36° C ]):
•It may be necessary to increase the coolant concentration
above 50%.
•NEVER increase the coolant concentration above 60%.
•Increased engine coolant concentrations above 60% will
decrease the overheat protection characteristics of the engine
coolant and may cause engine damage.
•Refer to the chart on the coolant container to ensure the
coolant concentration in your vehicle will provide adequate
freeze protection at the temperatures in which you drive in the
winter months.
If you drive in extremely hot climates:
•It is still necessary to maintain the coolant concentration
above 40%.
•NEVER decrease the coolant concentration below 40%.
•Decreased engine coolant concentrations below 40% will
decrease the corrosion protection characteristics of the engine
coolant and may cause engine damage.
•Decreased engine coolant concentrations below 40% will
decrease the freeze protection characteristics of the engine
coolant and may cause engine damage.
•Refer to the chart on the coolant container to ensure the
coolant concentration in your vehicle will provide adequate
protection at the temperatures in which you drive.
Vehicles driven year-round in non-extreme climates should use a 50/50
mixture of engine coolant and distilled water for optimum cooling system
and engine protection.
2006 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
212

REFILL CAPACITIES
Fluid Ford Part
NameApplication Capacity
Brake fluid and
(clutch fluid if
equipped)Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidAll Between MIN
and MAX lines
on reservoir
Engine oil
(includes filter
change)
6
Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)4.6L V8 engine 6.0 quarts (5.7
L)
Motorcraft SAE
5W-30 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-30 Super
Premium Motor
Oil (Canada)4.0L V6 engine 5.0 quarts
(4.7L)
Engine coolant
1Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)4.0L V6 engine 12.5 quarts
(11.8L)
4.6L V8 engine 13.6 quarts
(12.9L)
Power steering
fluidMotorcraft
MERCONAT FAll Fill to between
MIN and MAX
lines on
reservoir
Rear axle
lubricant
2Motorcraft SAE
75W-140 High
Performance
Rear Axle
Lubricant7.5 inch axle
(V6)3.25 pints (1.5L)
8.8 inch axle
(V8)4.25 pints (2.0L)
Fuel tank N/A All 16.0 gallons
(60.6L)
2006 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
230

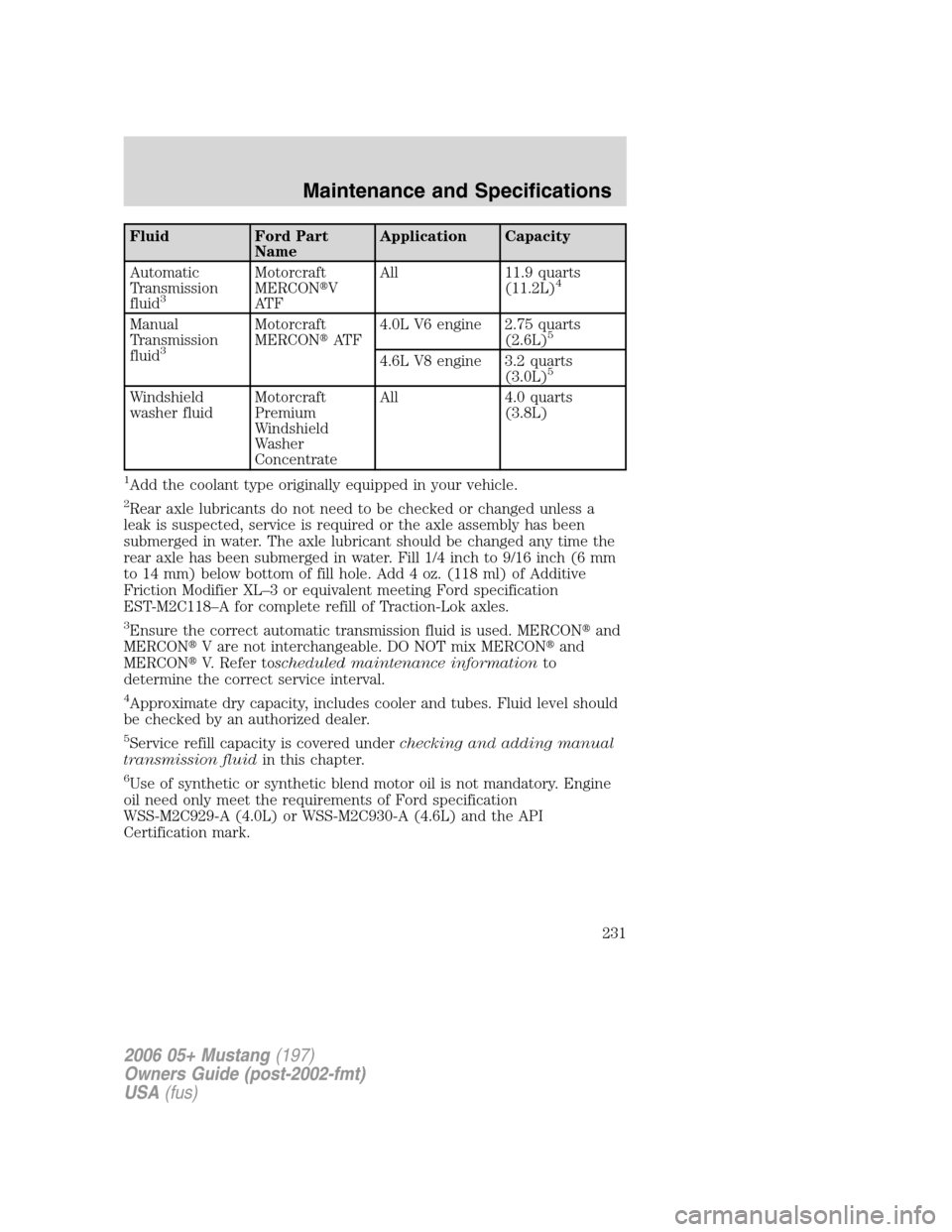

Fluid Ford Part
NameApplication Capacity
Automatic
Transmission
fluid
3
Motorcraft
MERCONV
AT FAll 11.9 quarts
(11.2L)4
Manual
Transmission
fluid
3
Motorcraft
MERCONAT F4.0L V6 engine 2.75 quarts
(2.6L)5
4.6L V8 engine 3.2 quarts
(3.0L)5
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateAll 4.0 quarts
(3.8L)
1Add the coolant type originally equipped in your vehicle.
2Rear axle lubricants do not need to be checked or changed unless a
leak is suspected, service is required or the axle assembly has been
submerged in water. The axle lubricant should be changed any time the
rear axle has been submerged in water. Fill 1/4 inch to 9/16 inch (6 mm
to 14 mm) below bottom of fill hole. Add 4 oz. (118 ml) of Additive
Friction Modifier XL–3 or equivalent meeting Ford specification
EST-M2C118–A for complete refill of Traction-Lok axles.
3Ensure the correct automatic transmission fluid is used. MERCONand
MERCONV are not interchangeable. DO NOT mix MERCONand
MERCONV. Refer toscheduled maintenance informationto
determine the correct service interval.
4Approximate dry capacity, includes cooler and tubes. Fluid level should
be checked by an authorized dealer.
5Service refill capacity is covered underchecking and adding manual
transmission fluidin this chapter.
6Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only meet the requirements of Ford specification
WSS-M2C929-A (4.0L) or WSS-M2C930-A (4.6L) and the API
Certification mark.
