Page 131 of 256

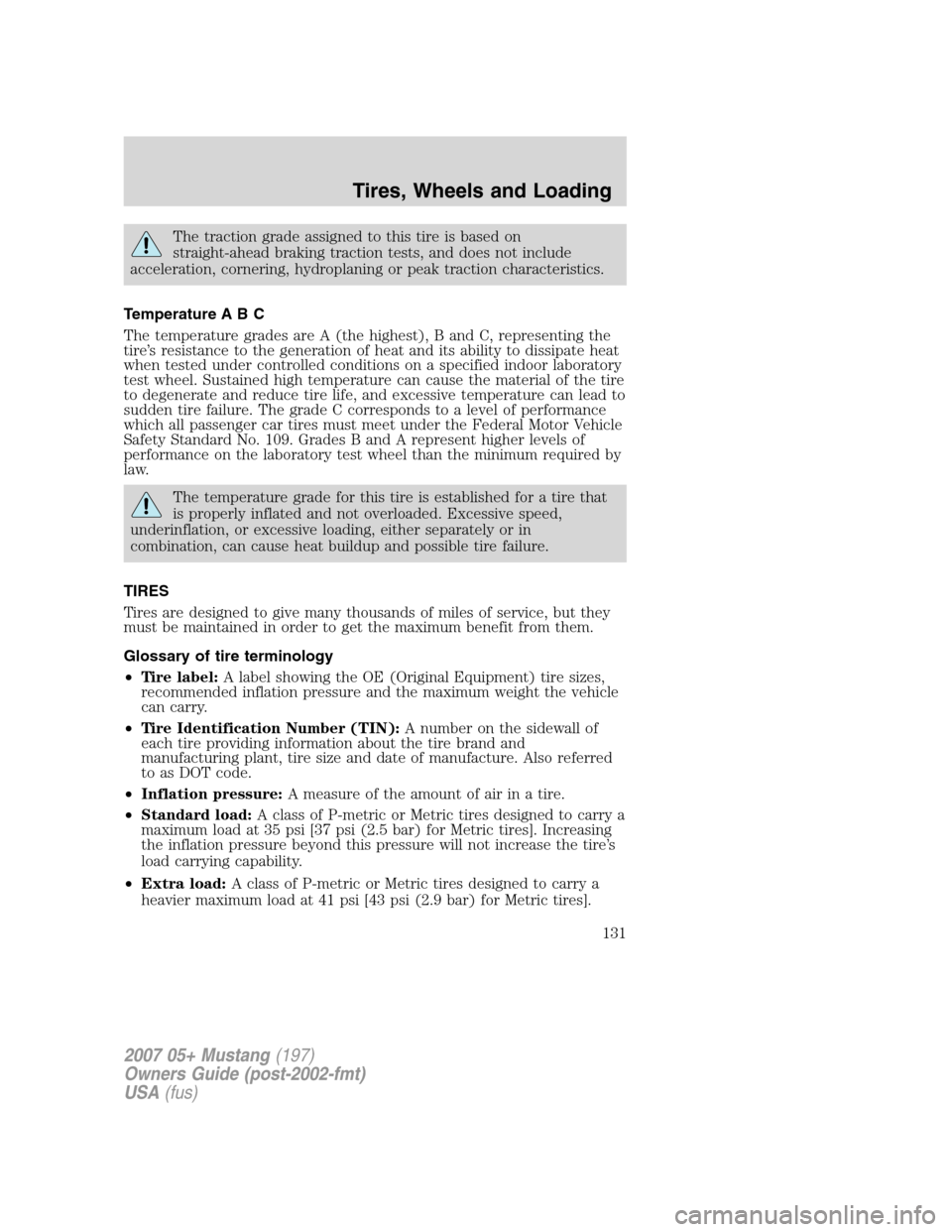

FORD MUSTANG 2007 5.G Owners Manual The traction grade assigned to this tire is based on
straight-ahead braking traction tests, and does not include
acceleration, cornering, hydroplaning or peak traction characteristics.
Temperature A B

Page 132 of 256

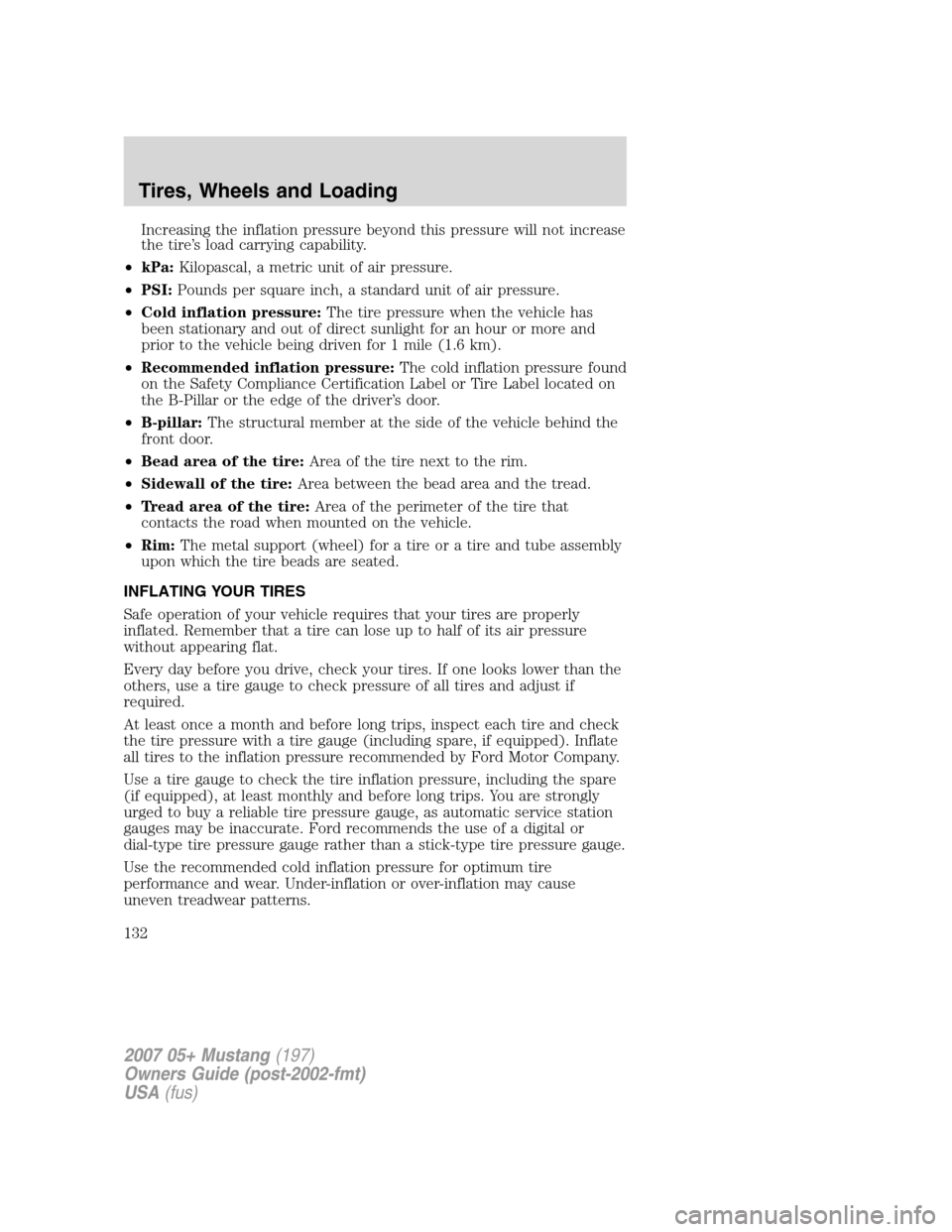

FORD MUSTANG 2007 5.G Owners Manual Increasing the inflation pressure beyond this pressure will not increase
the tire’s load carrying capability.
•kPa:Kilopascal, a metric unit of air pressure.
•PSI:Pounds per square inch, a stand

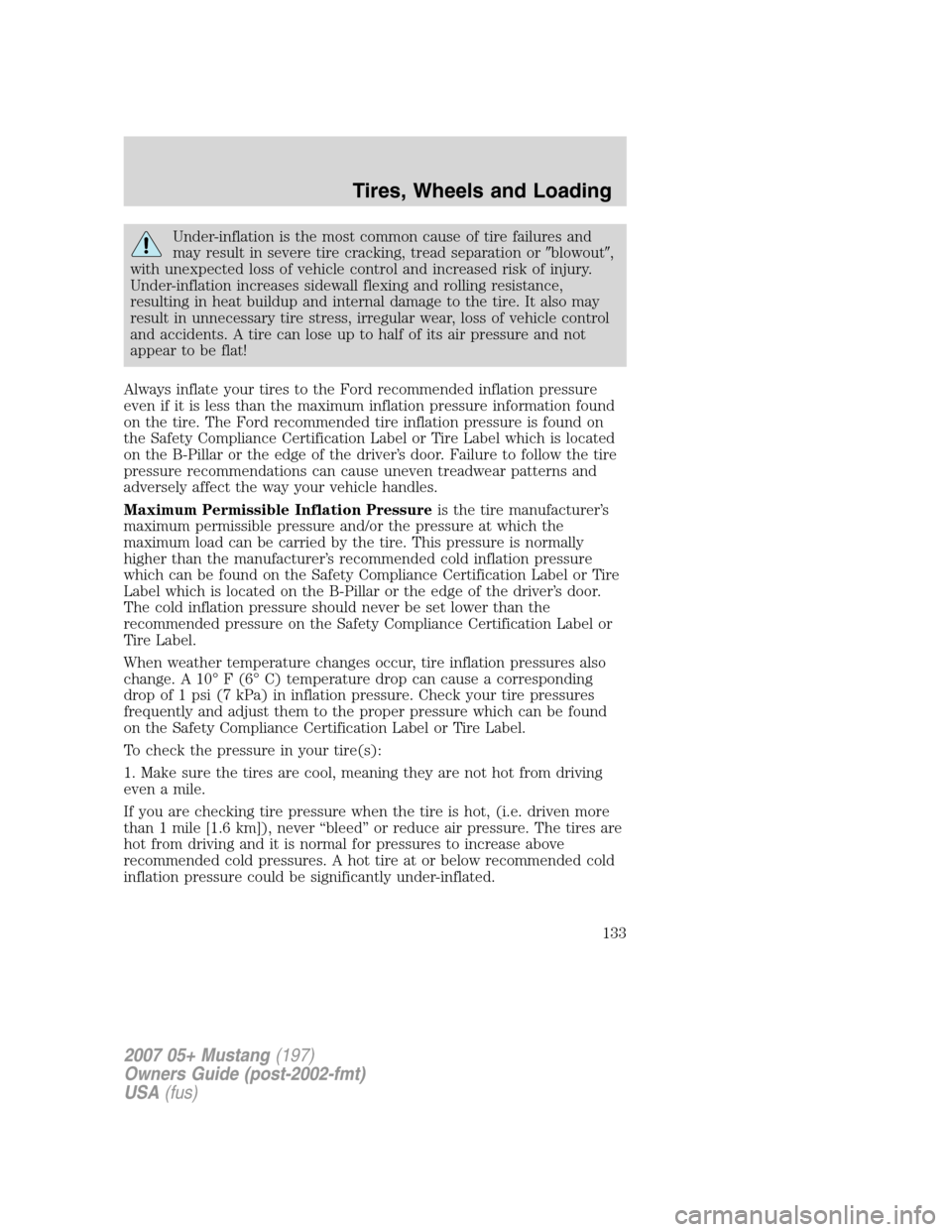

Page 133 of 256

FORD MUSTANG 2007 5.G Owners Manual Under-inflation is the most common cause of tire failures and
may result in severe tire cracking, tread separation orblowout,
with unexpected loss of vehicle control and increased risk of injury.
Un

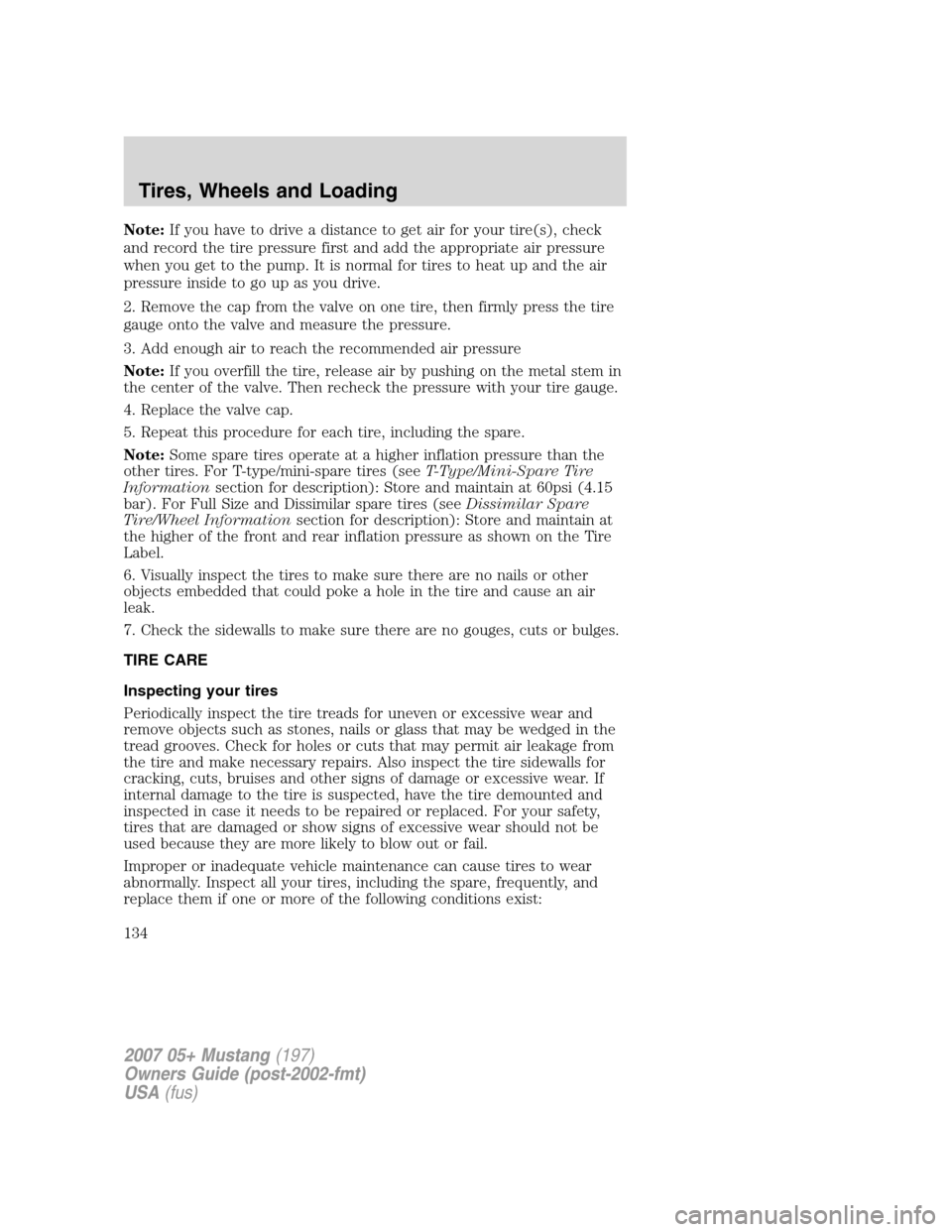

Page 134 of 256

FORD MUSTANG 2007 5.G Owners Manual Note:If you have to drive a distance to get air for your tire(s), check
and record the tire pressure first and add the appropriate air pressure
when you get to the pump. It is normal for tires to heat

Page 135 of 256

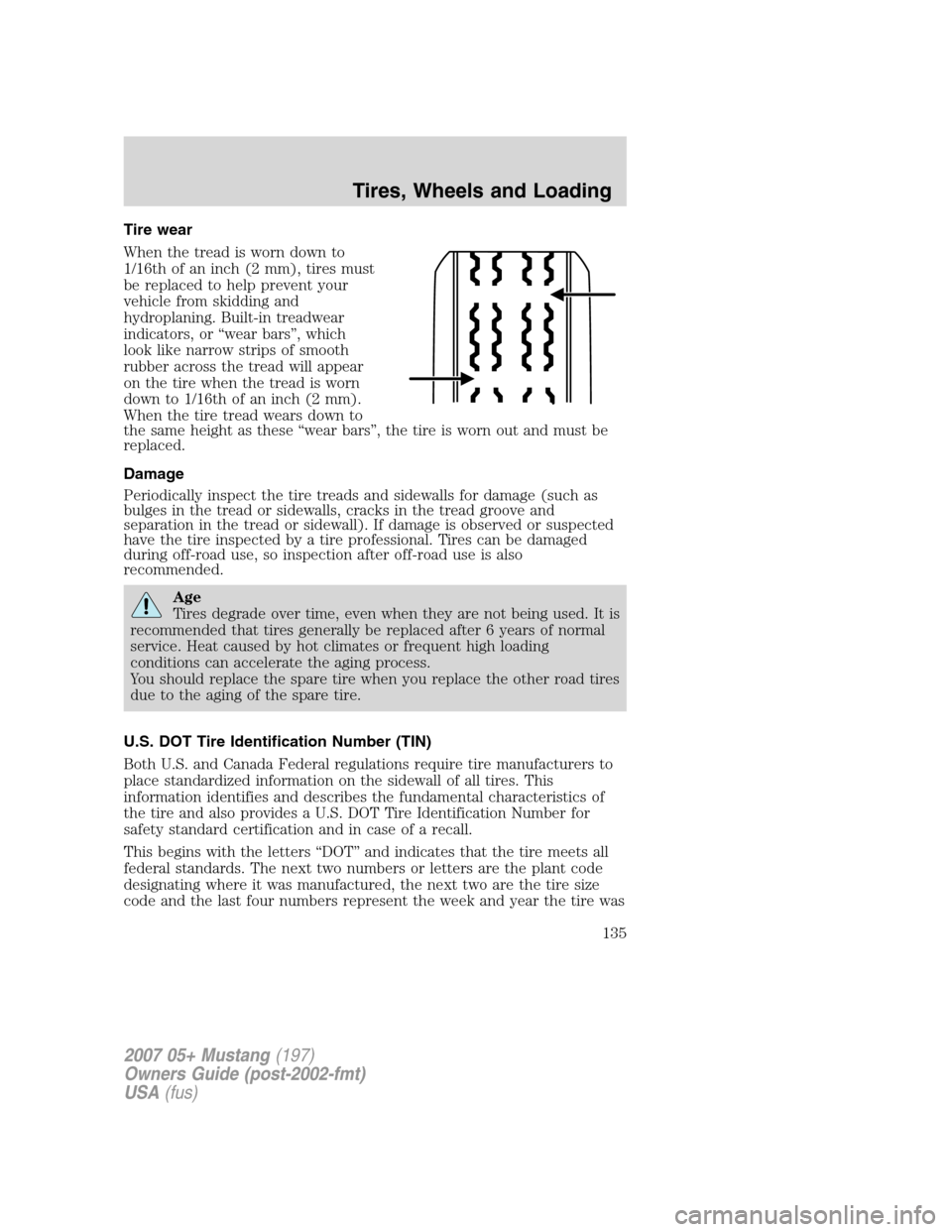

FORD MUSTANG 2007 5.G Owners Manual Tire wear
When the tread is worn down to
1/16th of an inch (2 mm), tires must
be replaced to help prevent your
vehicle from skidding and
hydroplaning. Built-in treadwear
indicators, or “wear bars”

Page 136 of 256

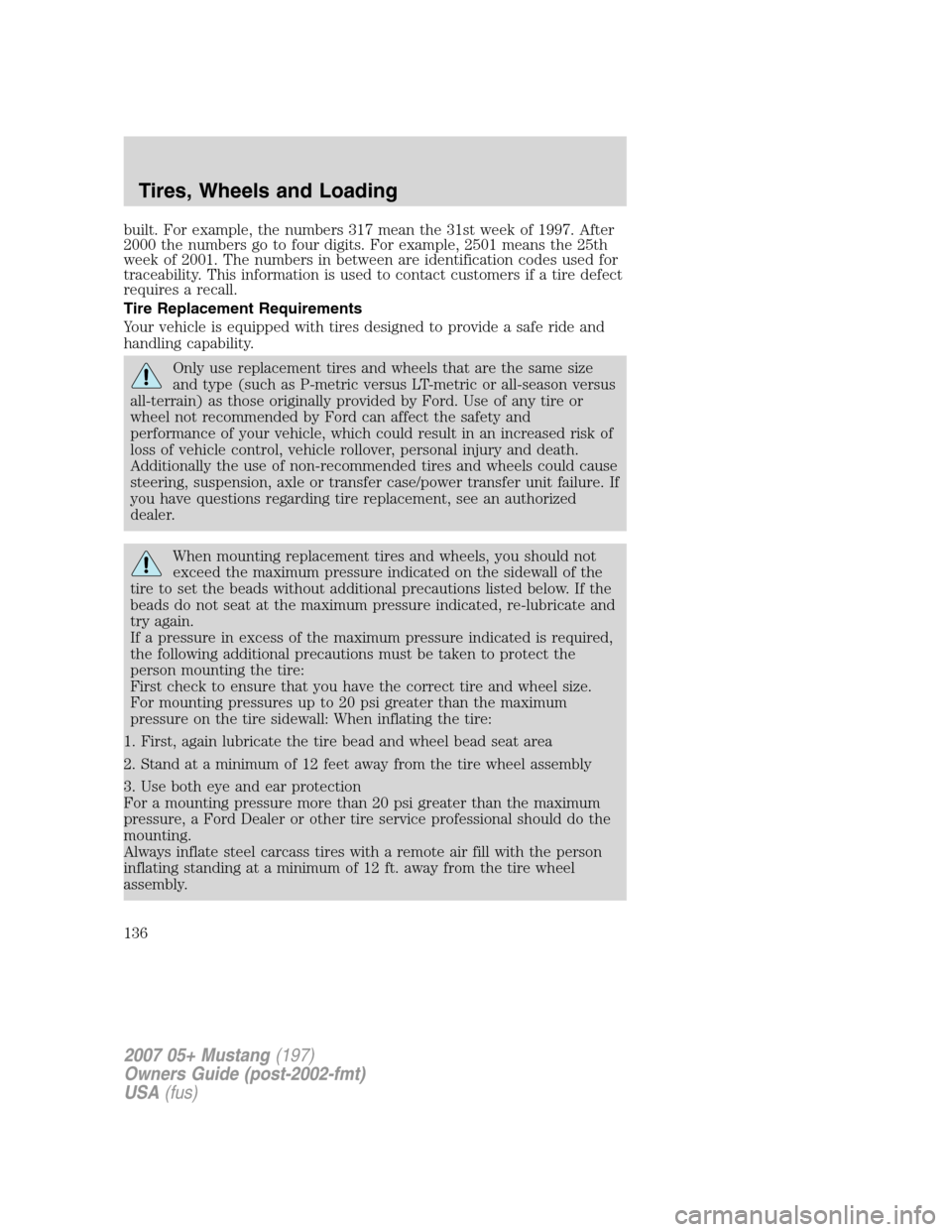

FORD MUSTANG 2007 5.G Owners Manual built. For example, the numbers 317 mean the 31st week of 1997. After
2000 the numbers go to four digits. For example, 2501 means the 25th
week of 2001. The numbers in between are identification codes

Page 137 of 256

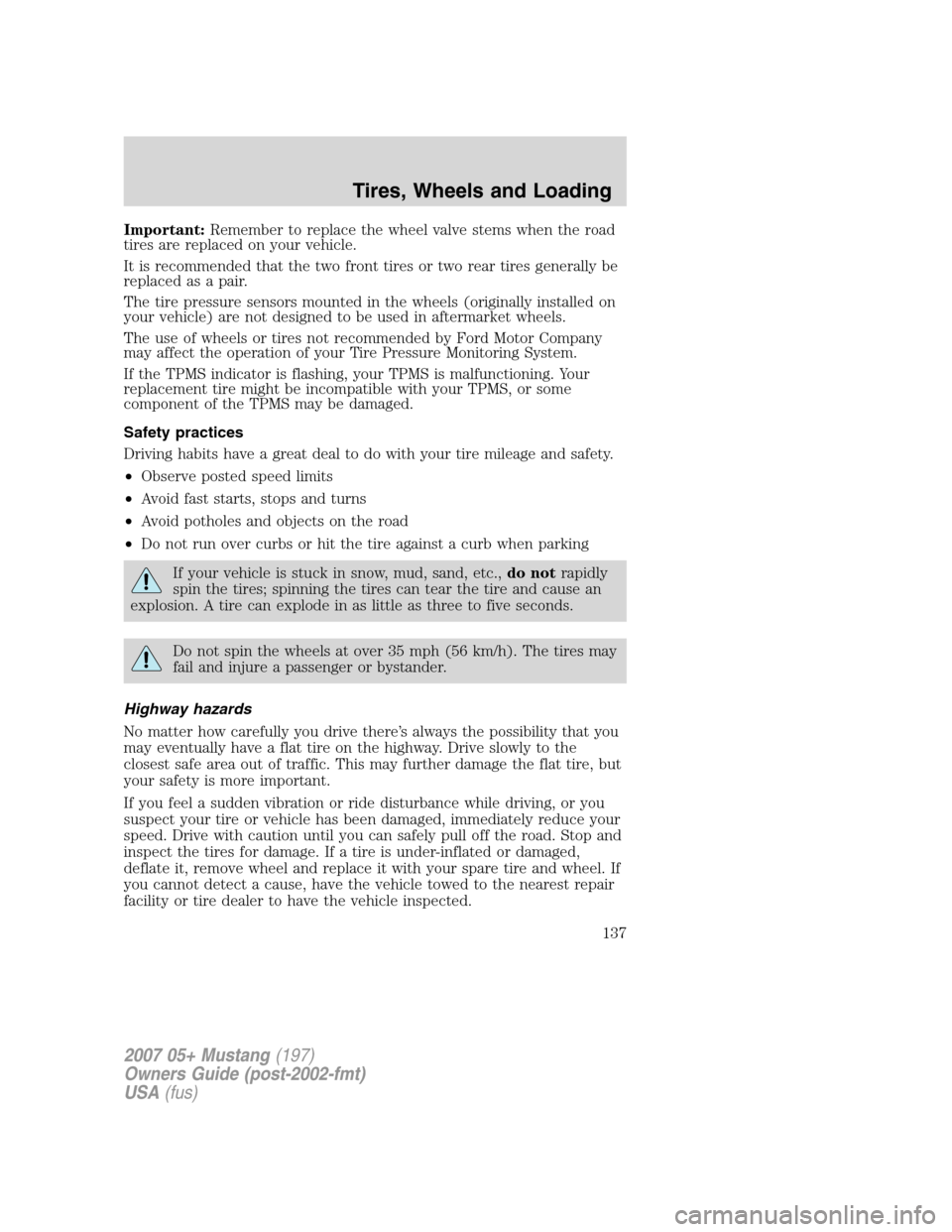

FORD MUSTANG 2007 5.G Owners Manual Important:Remember to replace the wheel valve stems when the road
tires are replaced on your vehicle.
It is recommended that the two front tires or two rear tires generally be
replaced as a pair.
The

Page 138 of 256

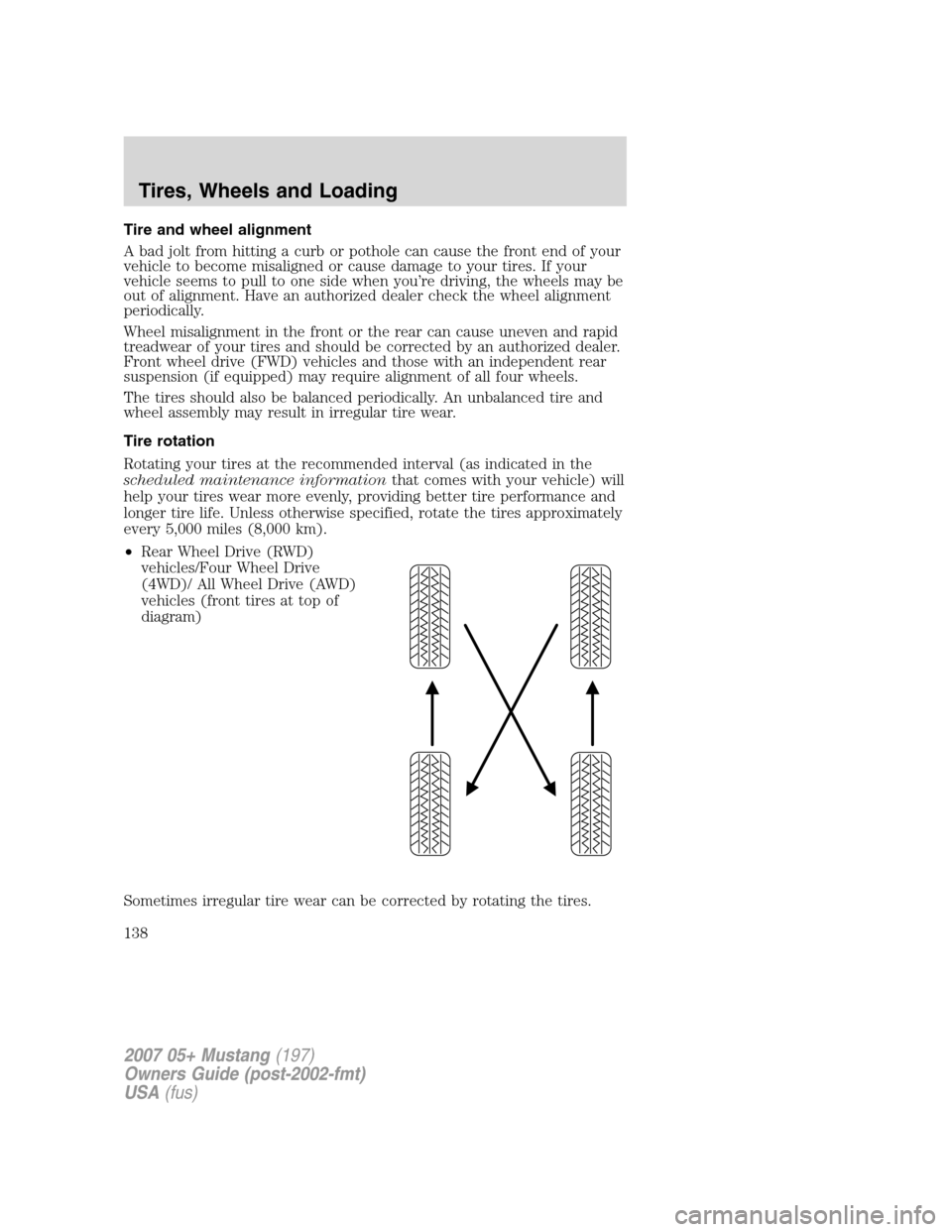

FORD MUSTANG 2007 5.G Owners Manual Tire and wheel alignment
A bad jolt from hitting a curb or pothole can cause the front end of your
vehicle to become misaligned or cause damage to your tires. If your
vehicle seems to pull to one side

Page 139 of 256

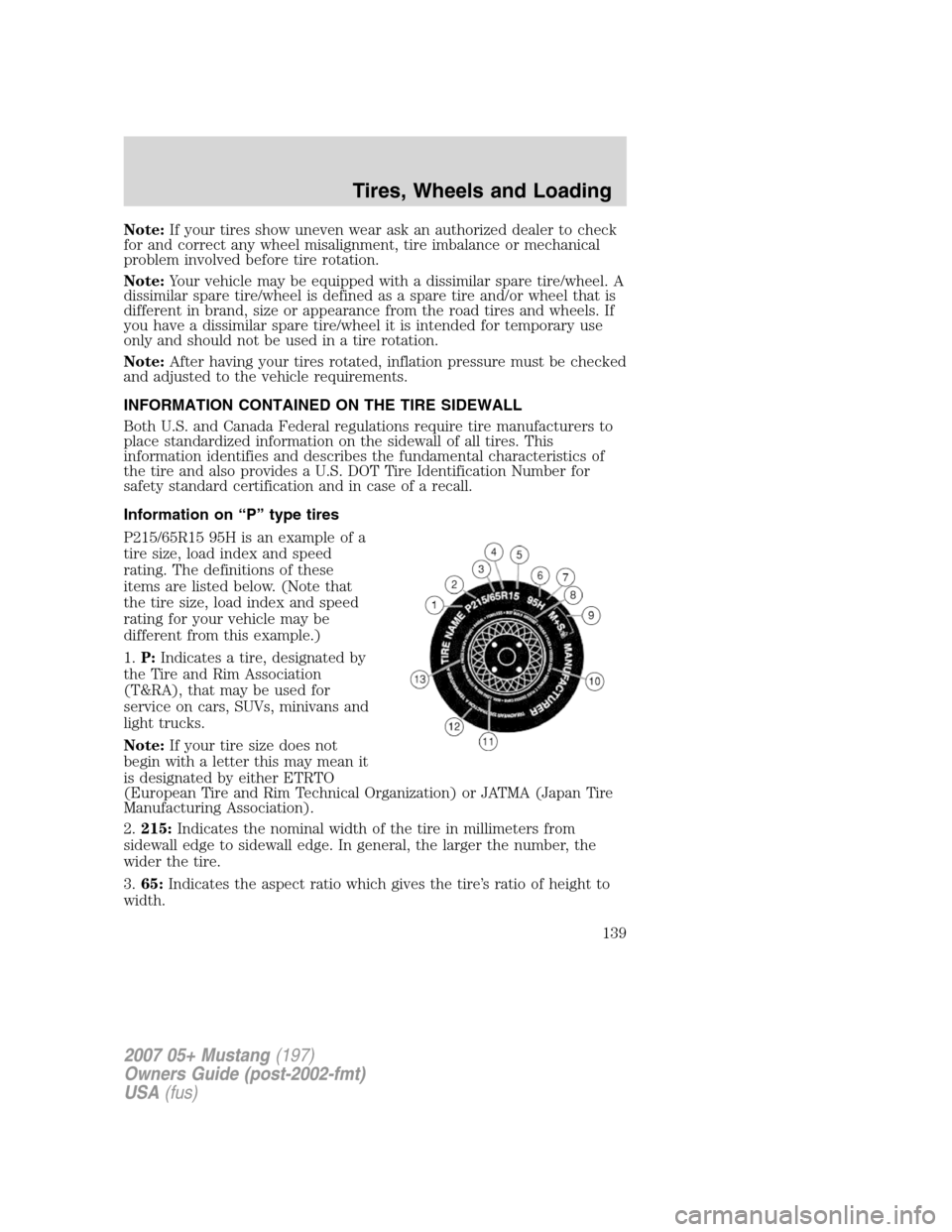

FORD MUSTANG 2007 5.G Owners Manual Note:If your tires show uneven wear ask an authorized dealer to check
for and correct any wheel misalignment, tire imbalance or mechanical
problem involved before tire rotation.
Note:Your vehicle may

Page 140 of 256

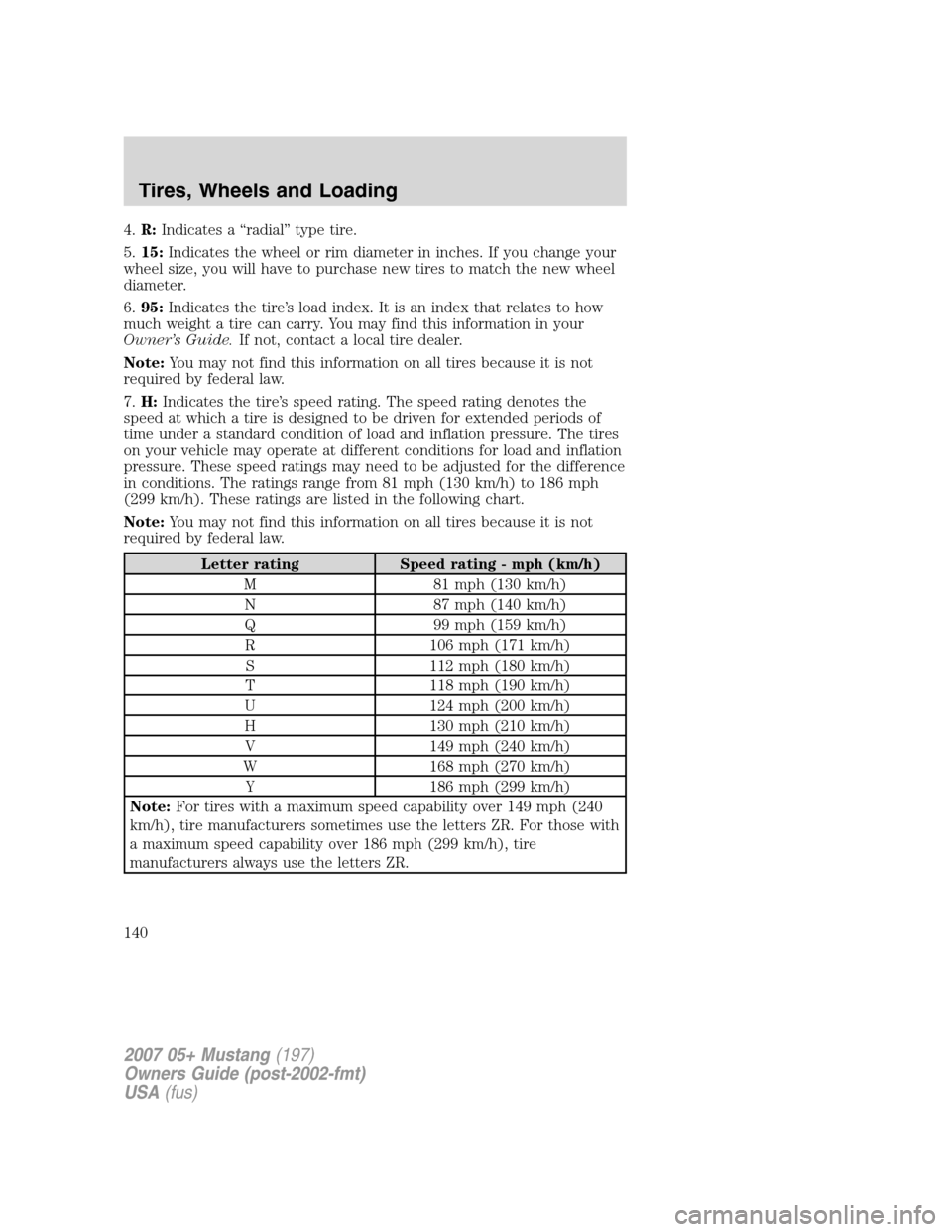

FORD MUSTANG 2007 5.G Owners Manual 4.R:Indicates a “radial” type tire.
5.15:Indicates the wheel or rim diameter in inches. If you change your
wheel size, you will have to purchase new tires to match the new wheel
diameter.
6.95:Ind
