torque FORD MUSTANG 2007 5.G Owners Manual

Seating and Safety Restraints 85
Seating 85
Safety restraints 91
Airbags 106
Child restraints 117
Tires, Wheels and Loading 130
Tire information 130
Tire inflation 132
Tire Pressure Monitoring System (TPMS) 144
Vehicle loading 148
Trailer towing 154
Recreational towing 156
Driving 157
Starting 157
Brakes 161
Traction Control™ 163
Transmission operation 165
Roadside Emergencies 173
Getting roadside assistance 173
Hazard flasher switch 175
Fuel pump shut-off switch 175
Fuses and relays 176
Changing tires 181
Lug nut torque 187
Jump starting 187
Wrecker towing 193
Customer Assistance 194
Reporting safety defects (U.S. only) 200
Cleaning 201
Table of Contents
2
2007 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)

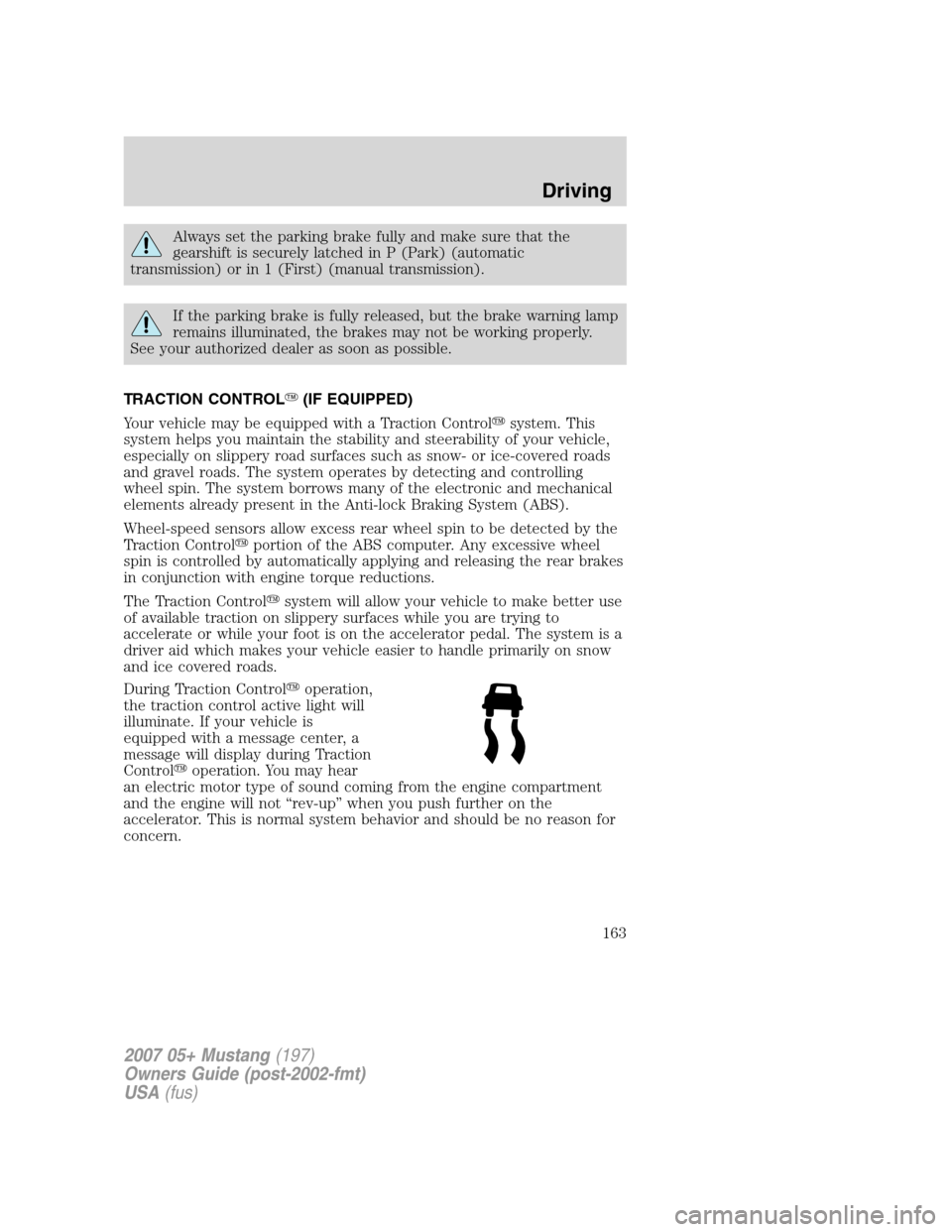

Always set the parking brake fully and make sure that the
gearshift is securely latched in P (Park) (automatic
transmission) or in 1 (First) (manual transmission).
If the parking brake is fully released, but the brake warning lamp
remains illuminated, the brakes may not be working properly.
See your authorized dealer as soon as possible.
TRACTION CONTROL(IF EQUIPPED)
Your vehicle may be equipped with a Traction Controlsystem. This
system helps you maintain the stability and steerability of your vehicle,
especially on slippery road surfaces such as snow- or ice-covered roads
and gravel roads. The system operates by detecting and controlling
wheel spin. The system borrows many of the electronic and mechanical
elements already present in the Anti-lock Braking System (ABS).
Wheel-speed sensors allow excess rear wheel spin to be detected by the
Traction Controlportion of the ABS computer. Any excessive wheel
spin is controlled by automatically applying and releasing the rear brakes
in conjunction with engine torque reductions.
The Traction Controlsystem will allow your vehicle to make better use
of available traction on slippery surfaces while you are trying to
accelerate or while your foot is on the accelerator pedal. The system is a
driver aid which makes your vehicle easier to handle primarily on snow
and ice covered roads.
During Traction Controloperation,
the traction control active light will
illuminate. If your vehicle is
equipped with a message center, a
message will display during Traction
Controloperation. You may hear
an electric motor type of sound coming from the engine compartment
and the engine will not “rev-up” when you push further on the
accelerator. This is normal system behavior and should be no reason for
concern.
2007 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Driving
163

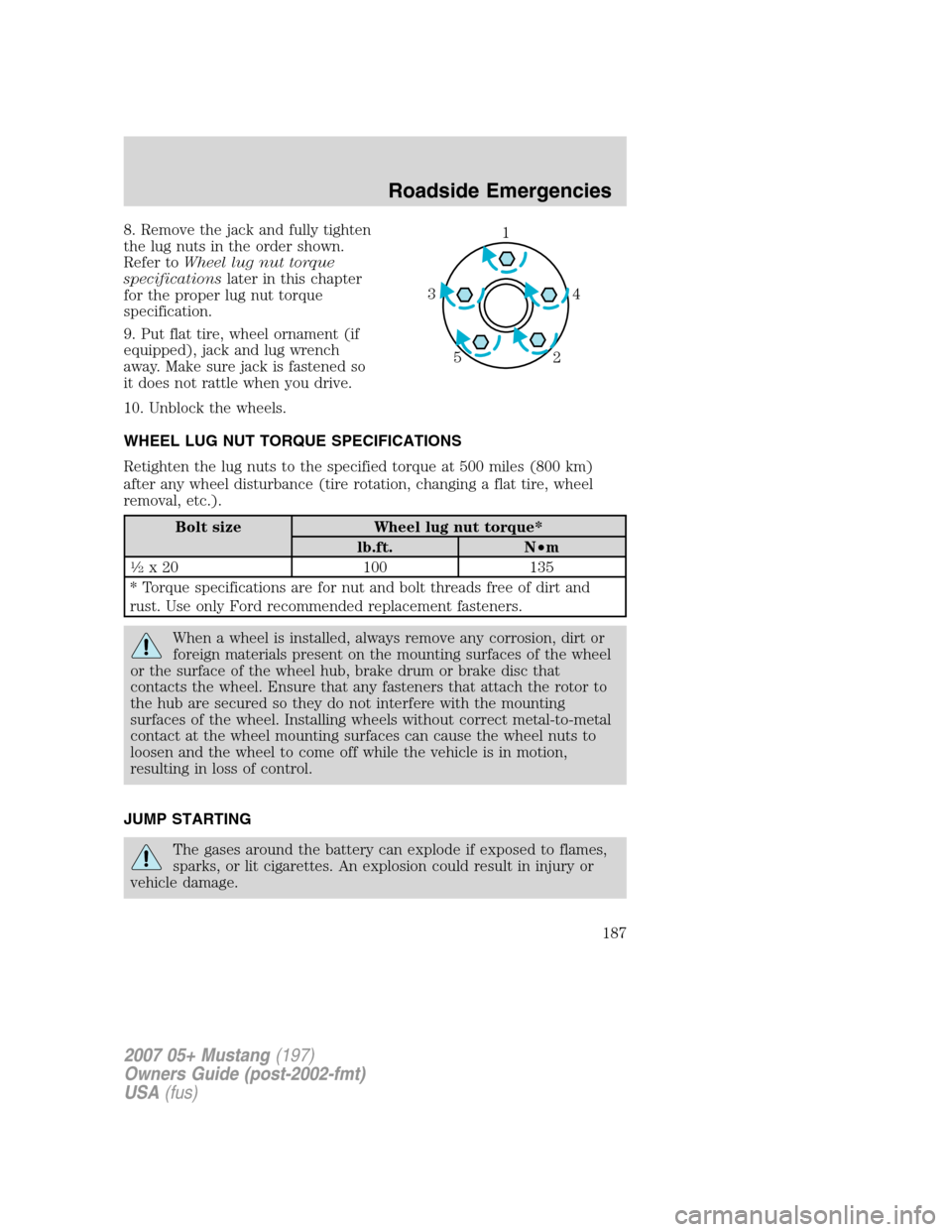

8. Remove the jack and fully tighten
the lug nuts in the order shown.
Refer toWheel lug nut torque
specificationslater in this chapter
for the proper lug nut torque
specification.
9. Put flat tire, wheel ornament (if
equipped), jack and lug wrench
away. Make sure jack is fastened so
it does not rattle when you drive.
10. Unblock the wheels.
WHEEL LUG NUT TORQUE SPECIFICATIONS
Retighten the lug nuts to the specified torque at 500 miles (800 km)
after any wheel disturbance (tire rotation, changing a flat tire, wheel
removal, etc.).
Bolt size Wheel lug nut torque*
lb.ft. N•m
12x 20 100 135
* Torque specifications are for nut and bolt threads free of dirt and
rust. Use only Ford recommended replacement fasteners.
When a wheel is installed, always remove any corrosion, dirt or
foreign materials present on the mounting surfaces of the wheel
or the surface of the wheel hub, brake drum or brake disc that
contacts the wheel. Ensure that any fasteners that attach the rotor to
the hub are secured so they do not interfere with the mounting
surfaces of the wheel. Installing wheels without correct metal-to-metal
contact at the wheel mounting surfaces can cause the wheel nuts to
loosen and the wheel to come off while the vehicle is in motion,
resulting in loss of control.
JUMP STARTING
The gases around the battery can explode if exposed to flames,
sparks, or lit cigarettes. An explosion could result in injury or
vehicle damage.
1
4 3
2 5
2007 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA(fus)
Roadside Emergencies
187
