FORD MUSTANG 2009 5.G Owner's Manual

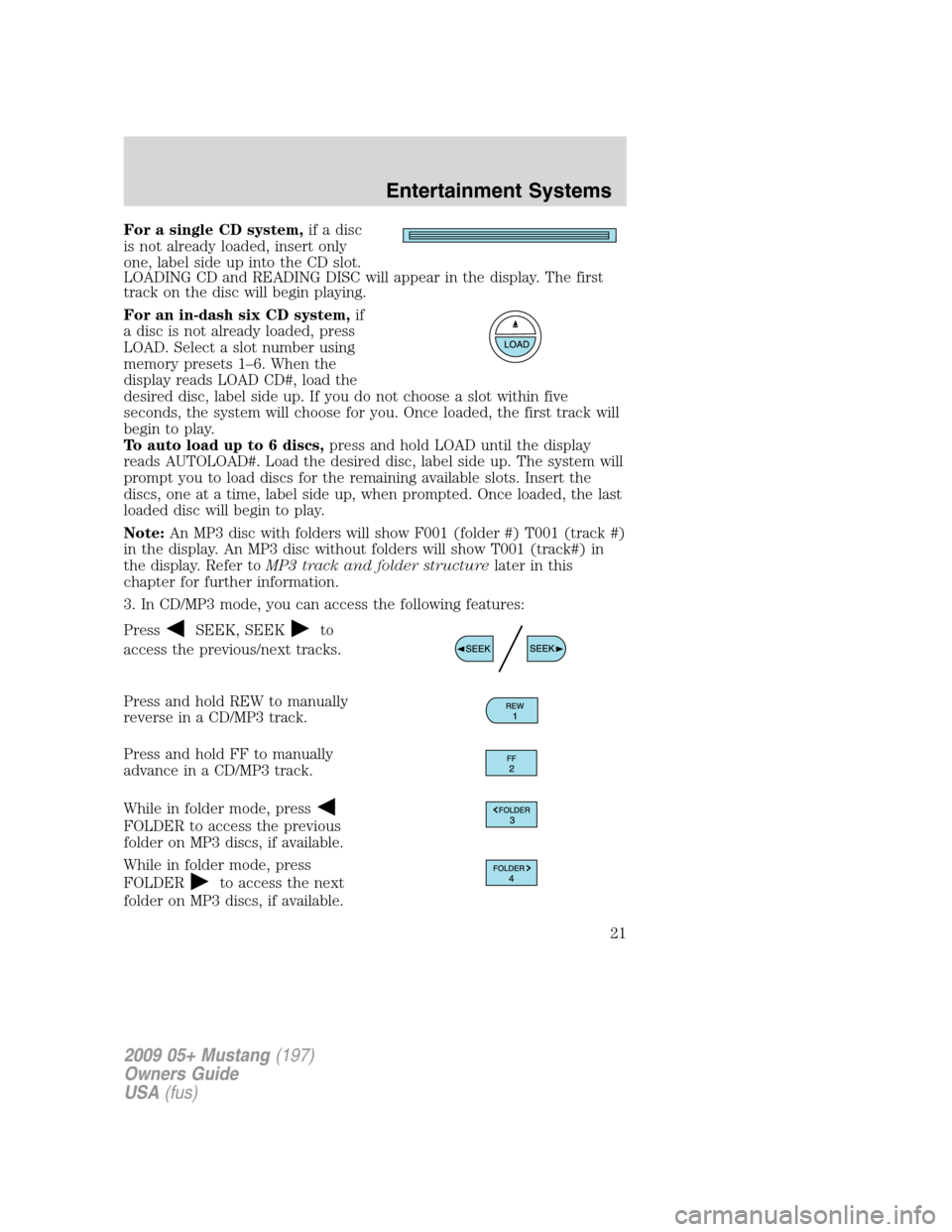

For a single CD system,if a disc
is not already loaded, insert only
one, label side up into the CD slot.
LOADING CD and READING DISC will appear in the display. The first
track on the disc will begin playing.
For an in-dash six CD system,if
a disc is not already loaded, press
LOAD. Select a slot number using
memory presets 1–6. When the
display reads LOAD CD#, load the
desired disc, label side up. If you do not choose a slot within five
seconds, the system will choose for you. Once loaded, the first track will
begin to play.
To auto load up to 6 discs,press and hold LOAD until the display
reads AUTOLOAD#. Load the desired disc, label side up. The system will
prompt you to load discs for the remaining available slots. Insert the
discs, one at a time, label side up, when prompted. Once loaded, the last
loaded disc will begin to play.
Note:An MP3 disc with folders will show F001 (folder #) T001 (track #)
in the display. An MP3 disc without folders will show T001 (track#) in
the display. Refer toMP3 track and folder structurelater in this
chapter for further information.
3. In CD/MP3 mode, you can access the following features:
Press
SEEK, SEEKto
access the previous/next tracks.
Press and hold REW to manually
reverse in a CD/MP3 track.
Press and hold FF to manually
advance in a CD/MP3 track.
While in folder mode, press
FOLDER to access the previous
folder on MP3 discs, if available.
While in folder mode, press
FOLDER
to access the next
folder on MP3 discs, if available.
2009 05+ Mustang(197)
Owners Guide
USA(fus)
Entertainment Systems
21

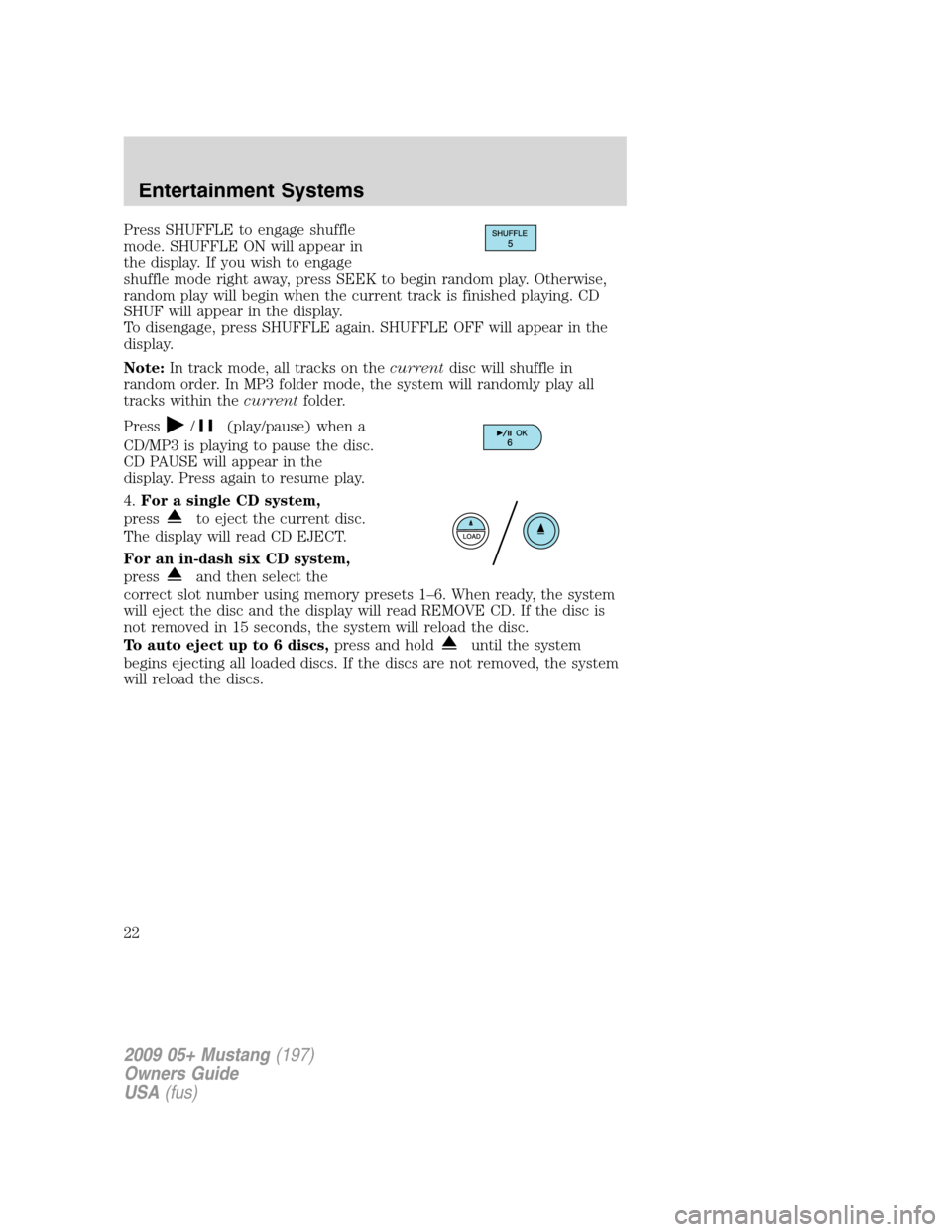

Press SHUFFLE to engage shuffle
mode. SHUFFLE ON will appear in
the display. If you wish to engage
shuffle mode right away, press SEEK to begin random play. Otherwise,
random play will begin when the current track is finished playing. CD
SHUF will appear in the display.
To disengage, press SHUFFLE again. SHUFFLE OFF will appear in the
display.
Note:In track mode, all tracks on thecurrentdisc will shuffle in
random order. In MP3 folder mode, the system will randomly play all
tracks within thecurrentfolder.
Press
/(play/pause) when a
CD/MP3 is playing to pause the disc.
CD PAUSE will appear in the
display. Press again to resume play.
4.For a single CD system,
press
to eject the current disc.
The display will read CD EJECT.
For an in-dash six CD system,
press
and then select the
correct slot number using memory presets 1–6. When ready, the system
will eject the disc and the display will read REMOVE CD. If the disc is
not removed in 15 seconds, the system will reload the disc.
To auto eject up to 6 discs,press and hold
until the system
begins ejecting all loaded discs. If the discs are not removed, the system
will reload the discs.
2009 05+ Mustang(197)
Owners Guide
USA(fus)
Entertainment Systems
22

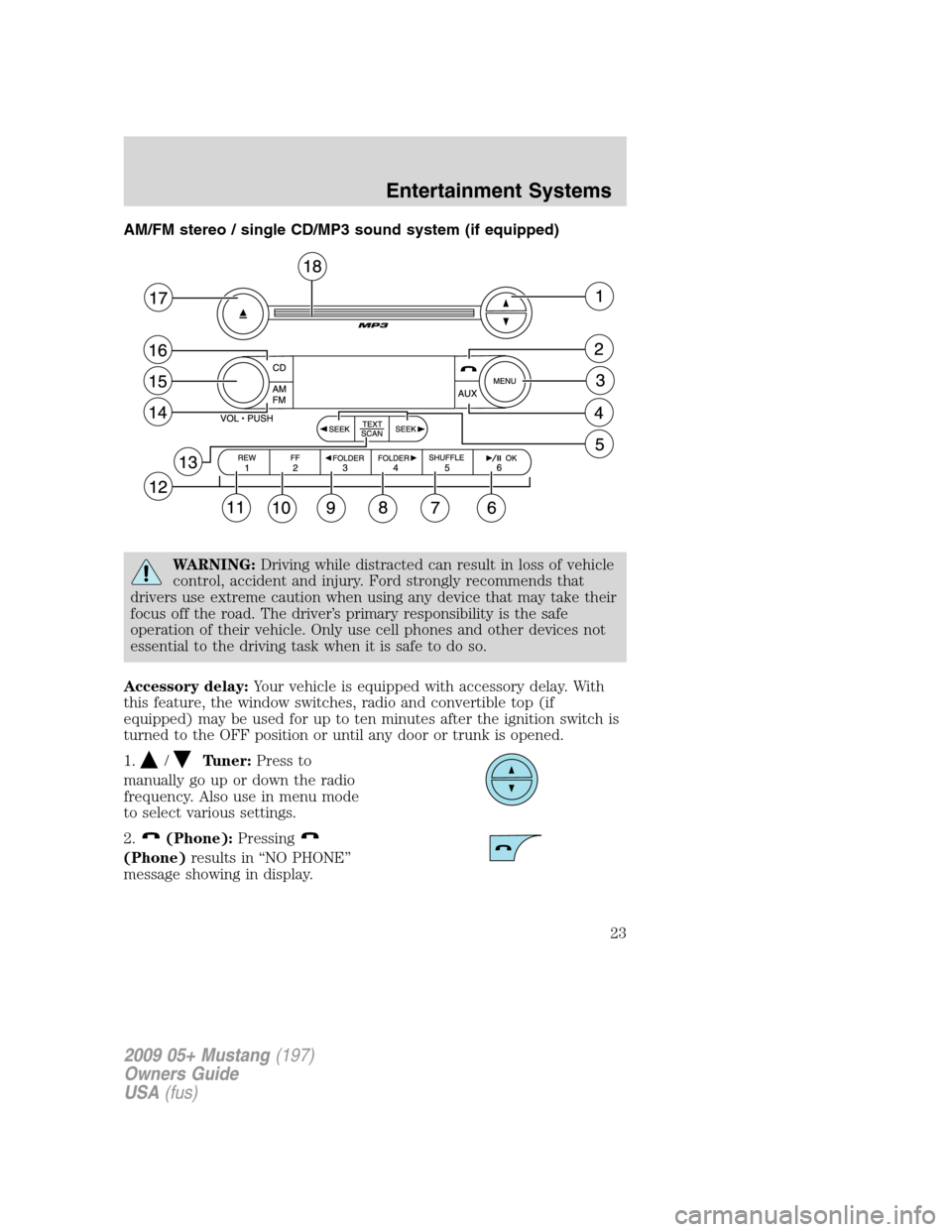

AM/FM stereo / single CD/MP3 sound system (if equipped)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device that may take their
focus off the road. The driver’s primary responsibility is the safe
operation of their vehicle. Only use cell phones and other devices not
essential to the driving task when it is safe to do so.
Accessory delay:Your vehicle is equipped with accessory delay. With
this feature, the window switches, radio and convertible top (if
equipped) may be used for up to ten minutes after the ignition switch is
turned to the OFF position or until any door or trunk is opened.
1.
/Tuner:Press to
manually go up or down the radio
frequency. Also use in menu mode
to select various settings.
2.
(Phone):Pressing
(Phone)results in “NO PHONE”
message showing in display.
2009 05+ Mustang(197)
Owners Guide
USA(fus)
Entertainment Systems
23

3.Menu:Press to cycle through the
following modes:
BASS:Press
//SEEK, SEEKto adjust the bass setting.
Press OK to close and return to the main menu.
TREBLE:Press
//SEEK, SEEKto adjust the treble
setting. Press OK to close and return to the main menu.
BALANCE:Press
//SEEK, SEEKto adjust the audio
between the left and right speakers. Press OK to close and return to the
main menu.
FADE:Press
//SEEK, SEEKto adjust the audio between
the front and rear speakers. Press OK to close and return to the main
menu.
SSV (Speed sensitive volume):Radio volume changes automatically
and slightly with vehicle speed to compensate for road and wind noise.
Recommended level is 1–3. Level 0 turns the feature off and level 7 is
the maximum setting.
Press MENU to access and use
//SEEK, SEEKto adjust
the volume setting. The level will appear in the display. Press OK to
close and return to the main menu.
RBDS:Available only in FM mode. This feature allows you to search
RBDS-equipped stations for a certain category of music format:
CLASSIC, COUNTRY, INFORM, JAZZ/RB, ROCK, etc.
To activate,press MENU repeatedly until RBDS (ON/OFF) appears in
the display. Use
/to toggle RBDS ON/OFF. When RBDS is OFF,
you will not be able to search for RBDS equipped stations or view the
station name or type.
To search for specific RBDS music categories:When the desired
category appears in the display, press
/to find the desired type,
then press and release or press and hold SCAN to begin the search.
To view the station name or type:When the desired category appears
in the display, press TEXT/SCAN to toggle between displaying the station
type (COUNTRY, ROCK, etc.) or the station name (WYCD, WXYZ, etc.).
2009 05+ Mustang(197)
Owners Guide
USA(fus)
Entertainment Systems
24

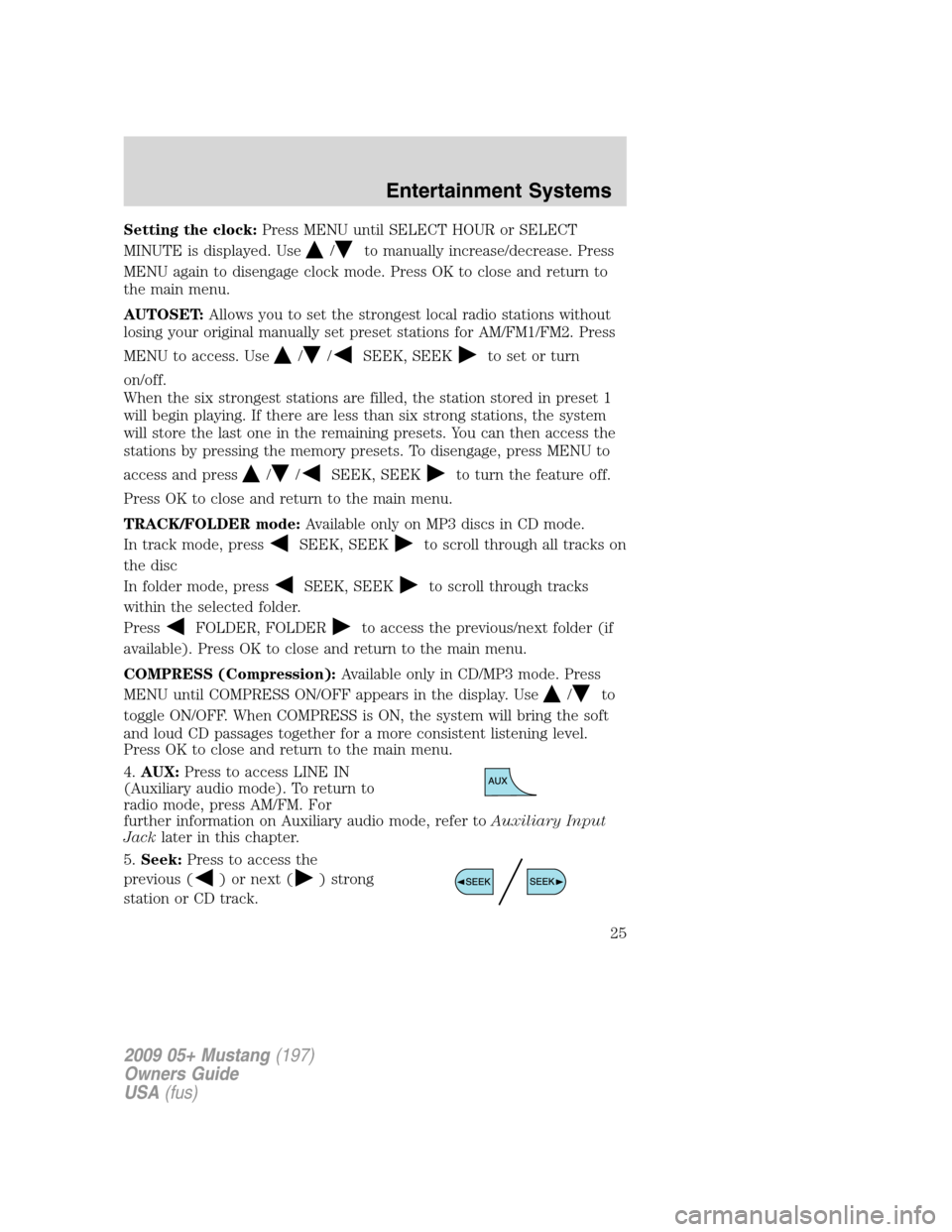

Setting the clock:Press MENU until SELECT HOUR or SELECT
MINUTE is displayed. Use
/to manually increase/decrease. Press
MENU again to disengage clock mode. Press OK to close and return to
the main menu.
AUTOSET:Allows you to set the strongest local radio stations without
losing your original manually set preset stations for AM/FM1/FM2. Press
MENU to access. Use
//SEEK, SEEKto set or turn
on/off.
When the six strongest stations are filled, the station stored in preset 1
will begin playing. If there are less than six strong stations, the system
will store the last one in the remaining presets. You can then access the
stations by pressing the memory presets. To disengage, press MENU to
access and press
//SEEK, SEEKto turn the feature off.
Press OK to close and return to the main menu.
TRACK/FOLDER mode:Available only on MP3 discs in CD mode.
In track mode, press
SEEK, SEEKto scroll through all tracks on
the disc
In folder mode, press
SEEK, SEEKto scroll through tracks
within the selected folder.
Press
FOLDER, FOLDERto access the previous/next folder (if
available). Press OK to close and return to the main menu.
COMPRESS (Compression):Available only in CD/MP3 mode. Press
MENU until COMPRESS ON/OFF appears in the display. Use
/to
toggle ON/OFF. When COMPRESS is ON, the system will bring the soft
and loud CD passages together for a more consistent listening level.
Press OK to close and return to the main menu.
4.AUX:Press to access LINE IN
(Auxiliary audio mode). To return to
radio mode, press AM/FM. For
further information on Auxiliary audio mode, refer toAuxiliary Input
Jacklater in this chapter.
5.Seek:Press to access the
previous (
) or next () strong
station or CD track.
2009 05+ Mustang(197)
Owners Guide
USA(fus)
Entertainment Systems
25

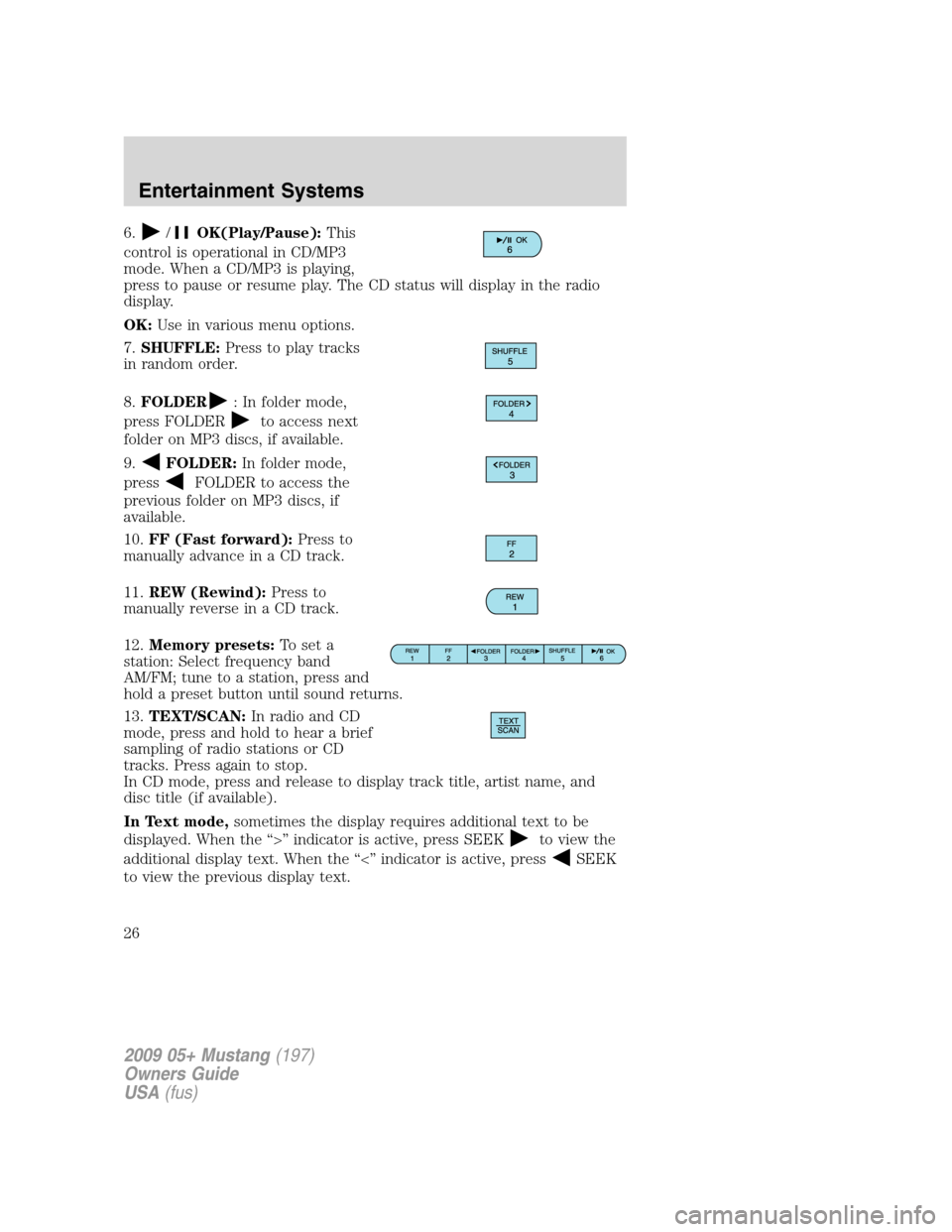

6./OK(Play/Pause):This
control is operational in CD/MP3
mode. When a CD/MP3 is playing,
press to pause or resume play. The CD status will display in the radio
display.
OK:Use in various menu options.
7.SHUFFLE:Press to play tracks
in random order.
8.FOLDER
: In folder mode,
press FOLDER
to access next
folder on MP3 discs, if available.
9.
FOLDER:In folder mode,
press
FOLDER to access the
previous folder on MP3 discs, if
available.
10.FF (Fast forward):Press to
manually advance in a CD track.
11.REW (Rewind):Press to
manually reverse in a CD track.
12.Memory presets:To set a
station: Select frequency band
AM/FM; tune to a station, press and
hold a preset button until sound returns.
13.TEXT/SCAN:In radio and CD
mode, press and hold to hear a brief
sampling of radio stations or CD
tracks. Press again to stop.
In CD mode, press and release to display track title, artist name, and
disc title (if available).
In Text mode,sometimes the display requires additional text to be
displayed. When the “>” indicator is active, press SEEK
to view the
additional display text. When the “<” indicator is active, press
SEEK
to view the previous display text.
2009 05+ Mustang(197)
Owners Guide
USA(fus)
Entertainment Systems
26

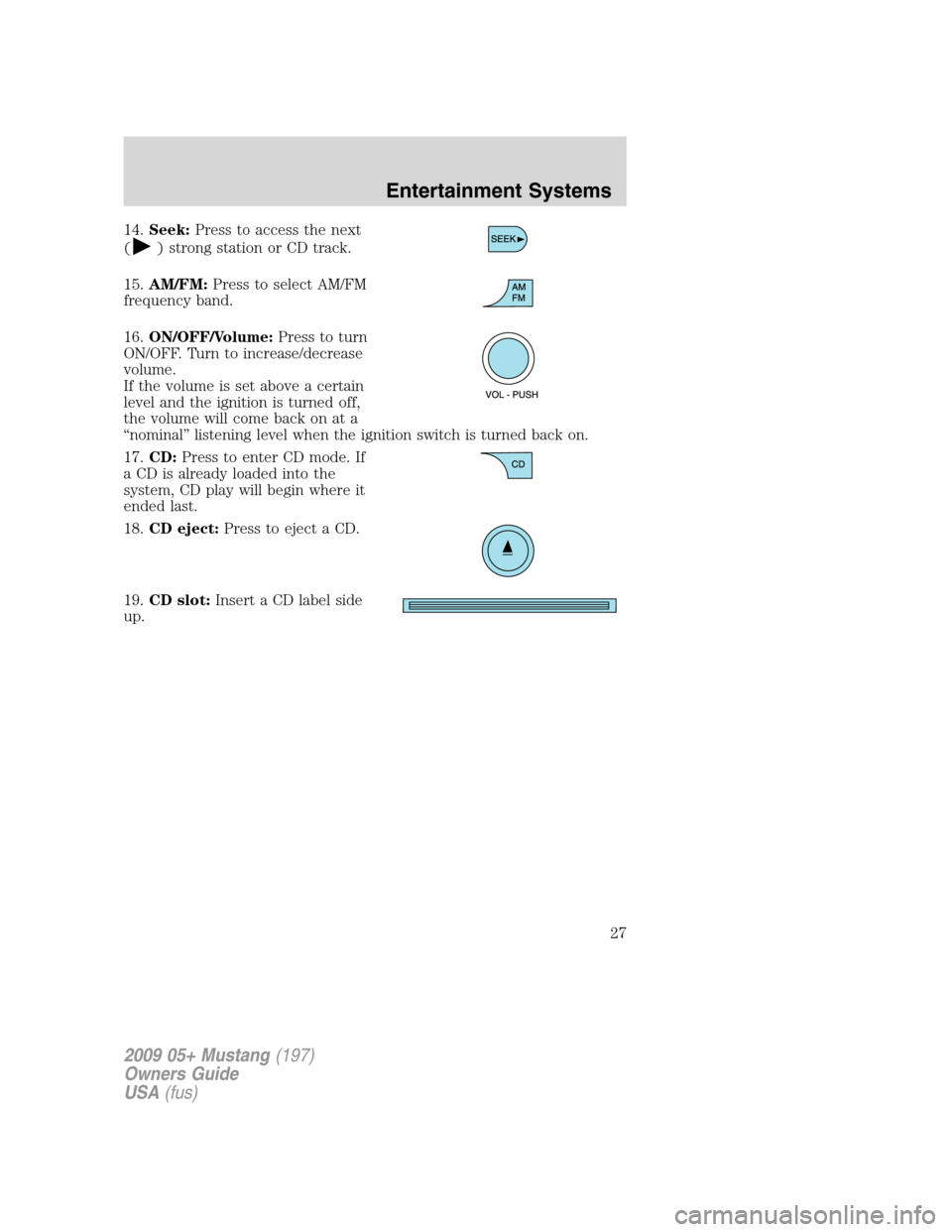

14.Seek:Press to access the next
(
) strong station or CD track.
15.AM/FM:Press to select AM/FM
frequency band.
16.ON/OFF/Volume:Press to turn
ON/OFF. Turn to increase/decrease
volume.
If the volume is set above a certain
level and the ignition is turned off,
the volume will come back on at a
“nominal” listening level when the ignition switch is turned back on.
17.CD:Press to enter CD mode. If
a CD is already loaded into the
system, CD play will begin where it
ended last.
18.CD eject:Press to eject a CD.
19.CD slot:Insert a CD label side
up.
2009 05+ Mustang(197)
Owners Guide
USA(fus)
Entertainment Systems
27

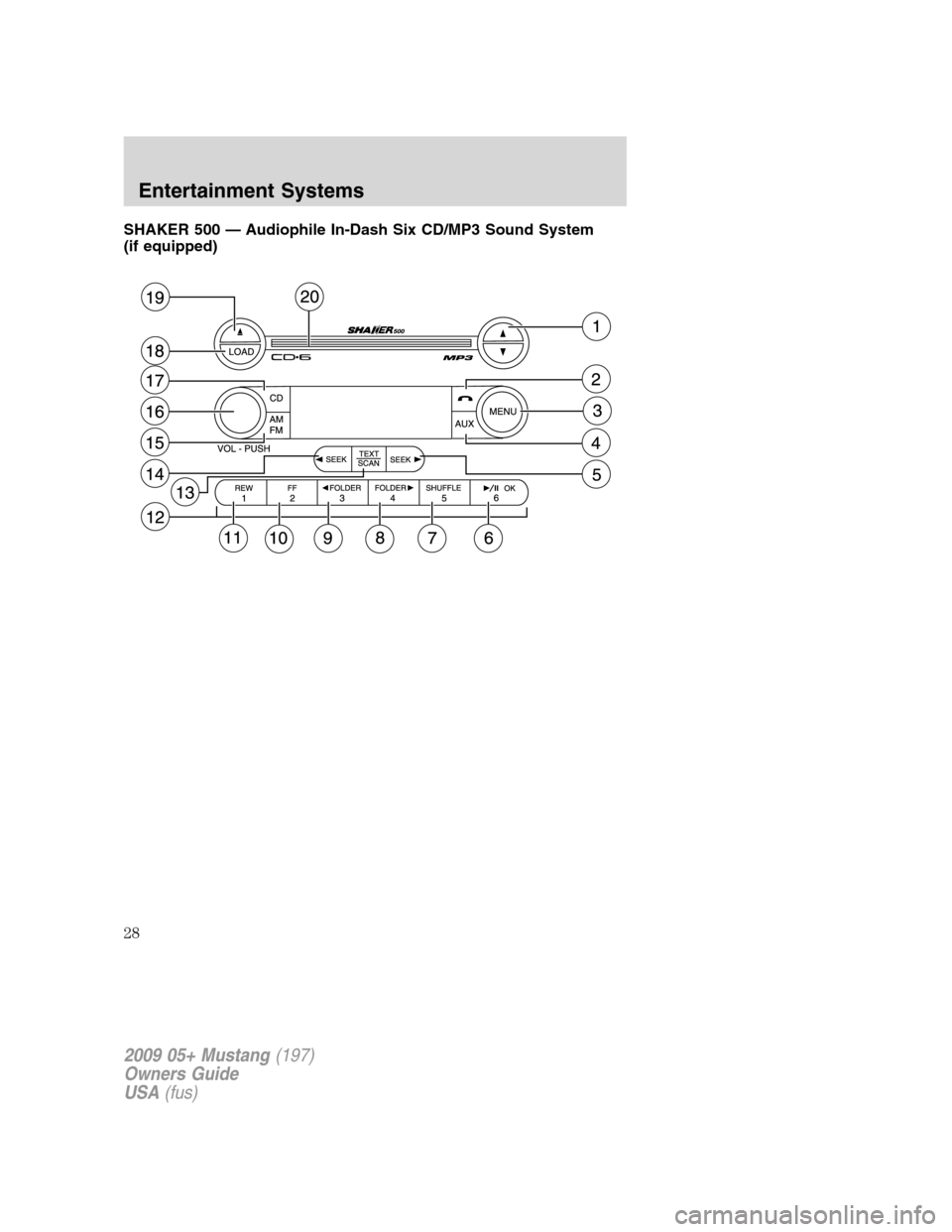

SHAKER 500 — Audiophile In-Dash Six CD/MP3 Sound System
(if equipped)
2009 05+ Mustang(197)
Owners Guide
USA(fus)
Entertainment Systems
28

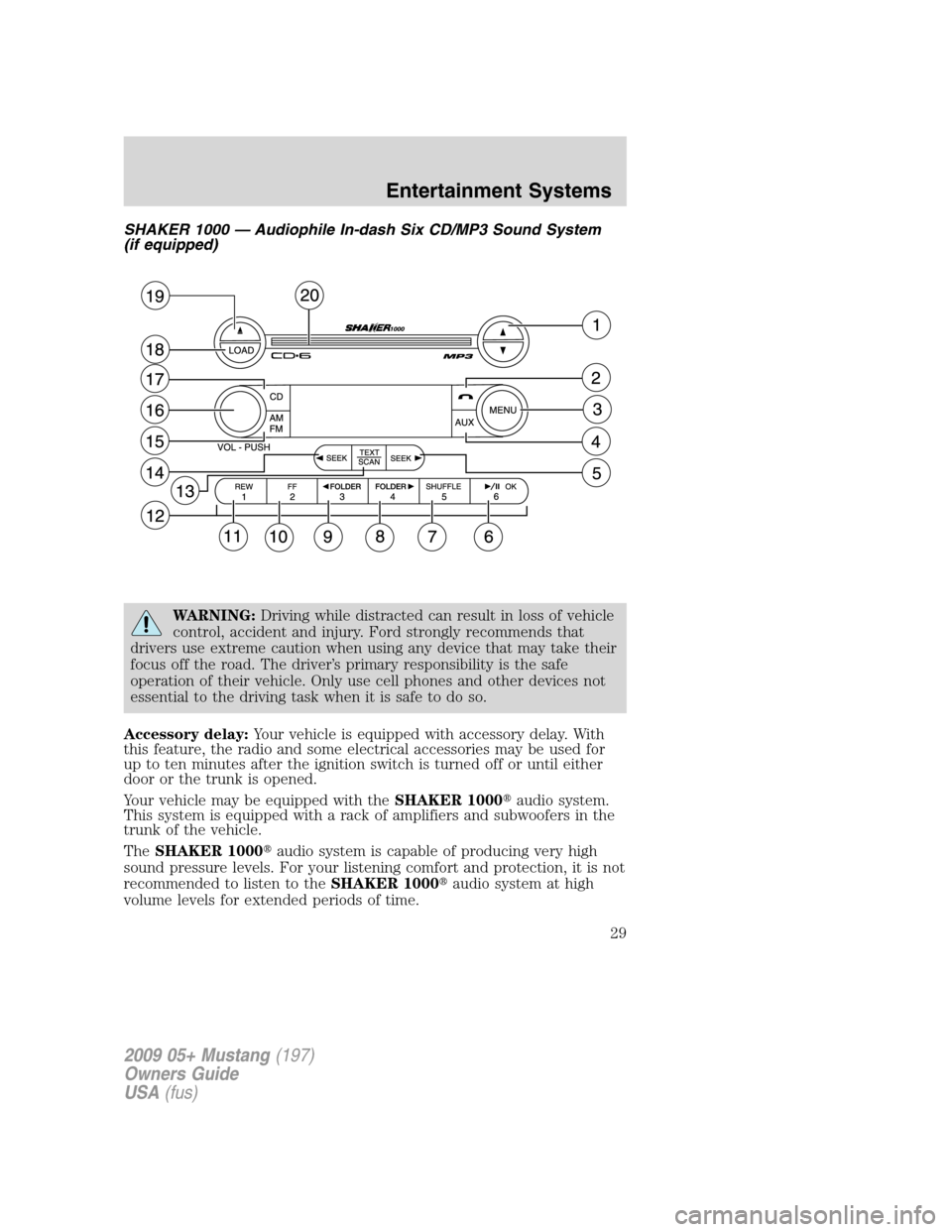

SHAKER 1000 — Audiophile In-dash Six CD/MP3 Sound System
(if equipped)
WARNING:Driving while distracted can result in loss of vehicle
control, accident and injury. Ford strongly recommends that
drivers use extreme caution when using any device that may take their
focus off the road. The driver’s primary responsibility is the safe
operation of their vehicle. Only use cell phones and other devices not
essential to the driving task when it is safe to do so.
Accessory delay:Your vehicle is equipped with accessory delay. With
this feature, the radio and some electrical accessories may be used for
up to ten minutes after the ignition switch is turned off or until either
door or the trunk is opened.
Your vehicle may be equipped with theSHAKER 1000audio system.
This system is equipped with a rack of amplifiers and subwoofers in the
trunk of the vehicle.
TheSHAKER 1000audio system is capable of producing very high
sound pressure levels. For your listening comfort and protection, it is not
recommended to listen to theSHAKER 1000audio system at high
volume levels for extended periods of time.
2009 05+ Mustang(197)
Owners Guide
USA(fus)
Entertainment Systems
29

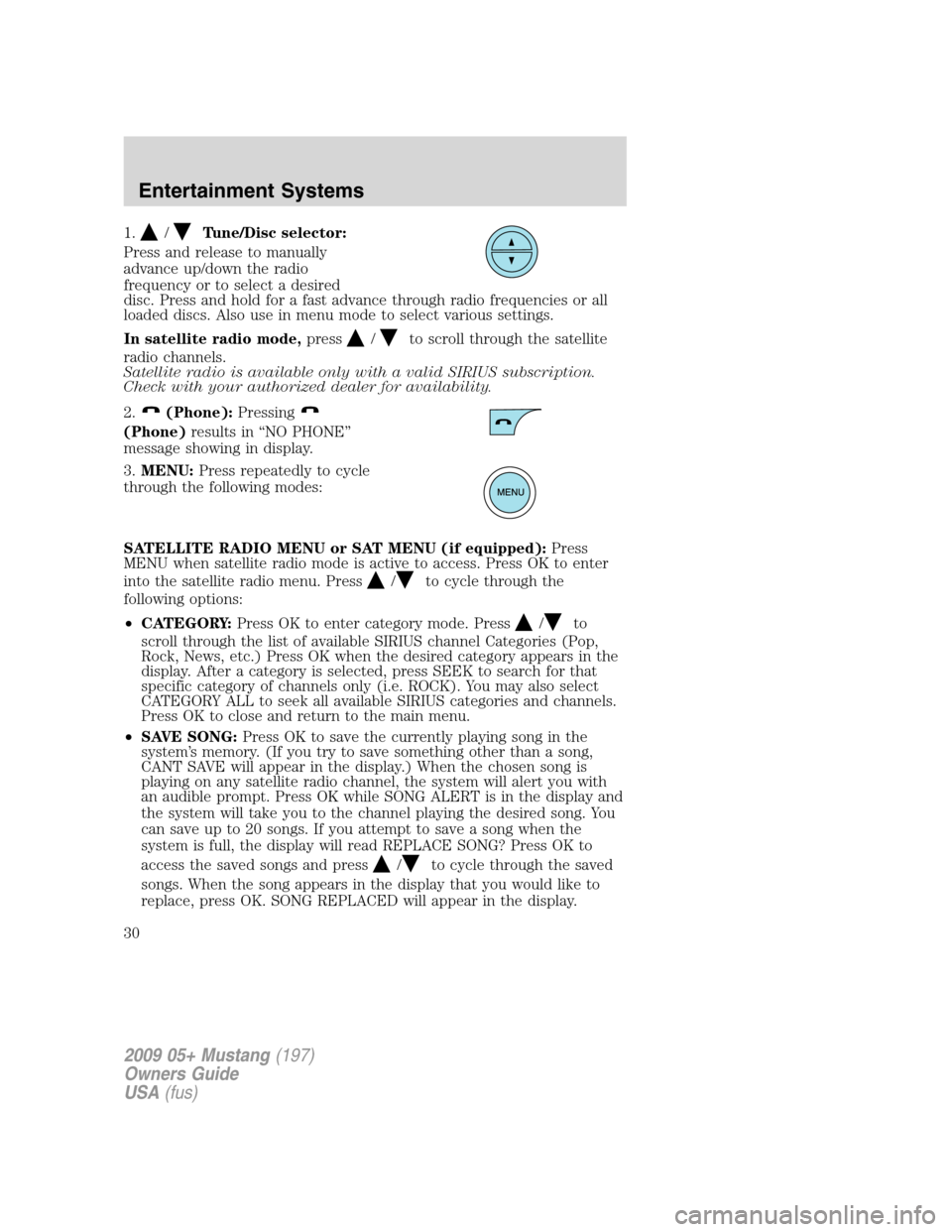

1./Tune/Disc selector:
Press and release to manually
advance up/down the radio
frequency or to select a desired
disc. Press and hold for a fast advance through radio frequencies or all
loaded discs. Also use in menu mode to select various settings.
In satellite radio mode,press
/to scroll through the satellite
radio channels.
Satellite radio is available only with a valid SIRIUS subscription.
Check with your authorized dealer for availability.
2.
(Phone):Pressing
(Phone)results in “NO PHONE”
message showing in display.
3.MENU:Press repeatedly to cycle
through the following modes:
SATELLITE RADIO MENU or SAT MENU (if equipped):Press
MENU when satellite radio mode is active to access. Press OK to enter
into the satellite radio menu. Press
/to cycle through the
following options:
•CATEGORY:Press OK to enter category mode. Press
/to
scroll through the list of available SIRIUS channel Categories (Pop,
Rock, News, etc.) Press OK when the desired category appears in the
display. After a category is selected, press SEEK to search for that
specific category of channels only (i.e. ROCK). You may also select
CATEGORY ALL to seek all available SIRIUS categories and channels.
Press OK to close and return to the main menu.
•SAVE SONG:Press OK to save the currently playing song in the
system’s memory. (If you try to save something other than a song,
CANT SAVE will appear in the display.) When the chosen song is
playing on any satellite radio channel, the system will alert you with
an audible prompt. Press OK while SONG ALERT is in the display and
the system will take you to the channel playing the desired song. You
can save up to 20 songs. If you attempt to save a song when the
system is full, the display will read REPLACE SONG? Press OK to
access the saved songs and press
/to cycle through the saved
songs. When the song appears in the display that you would like to
replace, press OK. SONG REPLACED will appear in the display.
2009 05+ Mustang(197)
Owners Guide
USA(fus)
Entertainment Systems
30
