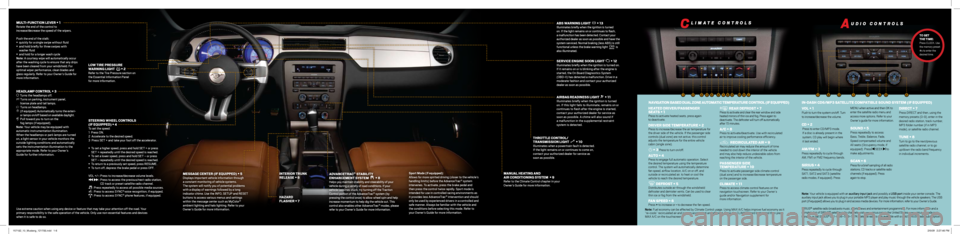

FORD MUSTANG 2010 5.G Quick Reference Guide

headLamp ControL • 3Turns the headlamps off. Turns on parking, instrument panel,
license plate and tail lamps.
Turns on headlamps. (if equipped) Automatically turns the exteri-
or lamps on/off based on available daylight.

Pull toward you to turn on the
fog lamps (if equipped).
Note: Your vehicle may be equipped with
automatic instrumentation illumination.
When the headlamps or park lamps are turned
on, a light sensor in your vehicle monitors the
outside lighting conditions and automatically
sets the instrumentation illumination to the
appropriate mode. Refer to your Owner’s
Guide for further information.
VoL • 1 Push to turn the system on/off. Turn
to increase/decrease the volume.
Cd • 2 Press to enter CD/MP3 mode.
If a disc is already present in the
system, CD play will begin where
it last ended.
am/Fm • 3 Press repeatedly to cycle through
AM, FM1 or FM2 frequency bands.
SIrIUS • 4 Press repeatedly to cycle through
SAT1, SAT2 and SAT3 (satellite
radio modes, if equipped). Press MENU when active and then OK to
enter the satellite radio menu and
access more options. Refer to your
Owner’s guide for more information.
SoUnd • 5Press repeatedly to access:
Bass, Treble, Balance, Fade,
Speed compensated volume and
All seats (Occupancy mode, if
equipped). Press
SEEK to
make adjustments.
SC an • 6Press for a brief sampling of all radio
stations, CD tracks or satellite radio
channels (if equipped). Press
again to stop.
dIre Ct • 7Press DIRECT and then, using the
memory presets (0-9), enter in the
desired radio station, track number,
MP3 folder number (if in MP3
mode), or satellite radio channel.
tUne • 8Turn to go to the next/previous
satellite radio channel, or to go
up/down the radio band frequency
in individual increments.
In-da Sh Cd6/mp3 S ateLLIte CompatIbLe SoUnd S yS tem (IF eqUIpped)
Note: Your vehicle is equipped with an auxiliary input jack and possibly a USB port inside your center console. The
auxiliary input jack allows you to plug in your portable MP3 player and play music through the vehicle speakers. The USB
port (if equipped) allows you to plug in and access media devices. For more information, refer to your Owner’s Guide.
SIRIUS
® satellite radio broadcasts music, sports, news and entertainment programming. For more information and a
complete list of SIRIUS® satellite radio channels, visit www.sirius.com in the United States, www.sirius-canada.ca in
Canada, or call SIRIUS® at 1–888–539–7474. Satellite radio is only available with a valid SIRIUS® radio subscription.
438176
Audio controls
To seT
The Time: Press CLOCK. Use
the memory preset
#s to enter the
desired time.

hea Ted driver/passenger
Seat S • 1
Press to activate heated seats, press again
to deactivate.
drIVer SIde temperatUre • 2 Press to increase/decrease the air temperature for
the driver side of the vehicle. If the passenger side
controls (dual zone) are not active, this control
adjusts the temperature for the entire vehicle
cabin (single zone).
• 3 Press to turn on/off.
a Uto • 4 Press to engage full automatic operation. Select
the desired temperature using the temperature
control. The system will automatically determine
fan speed, airflow location, A/C on or off, and
outside or recirculated air, to heat or cool the
vehicle to reach the desired temperature.
defros T • 5 Distributes outside air through the windshield
defroster and demister vents. Can be used to clear
thin ice or fog from the windshield.
Fan Speed • 6 Press + to increase or - to decrease the fan speed.
climAte controls
naVI gat Ion ba Sed d UaL zone a Utomat IC temperat Ure Contro L ( IF eq UIpped)
rear defros T • 7 Press to activate and clear the rear window and side
heated mirrors of thin ice and fog. Press again to
deactivate. The defroster will turn off automatically
after 15 minutes.
a/C • 8 Press to activate/deactivate. Use with recirculated
air to improve cooling performance efficiency.
recirculaTed air • 9 Recirculated air may reduce the amount of time
needed to cool down the interior of the vehicle
and may also help reduce undesirable odors from
reaching the interior of the vehicle.
passenger side
temperatUre • 10
Press to activate passenger side climate control
(dual zone) and to increase/decrease temperature
on the passenger side.
CLImate • 11 Press to access climate control features on the
navigation touchscreen. Refer to your Owner’s
guide and/or Navigation supplement for
more information.
Note: Fuel economy can be affected by Climate Control usage. Using MAX A/C helps improve fuel economy as it
“re-cools” recirculated air and is more economical and efficient. Press the CLIMATE hard button and then press
MAX A/C on the touchscreen.
Use extreme caution when using any device or feature that may take your attention off the road. Your
primary responsibility is the safe operation of the vehicle. Only use non-essential features and devices
when it is safe to do so.
aIrb ag readIne SS LIght • 11Illuminates briefly when the ignition is turned
on. If this light fails to illuminate, remains on or
continues to flash after the engine is started,
contact your authorized dealer for service as
soon as possible. A chime will also sound if
a malfunction in the supplemental restraint
system is detected.
hazard
FLaSher • 7
inTerior Trunk
reLea
Se • 6
25
service engine soon lighT • 12Illuminates briefly when the ignition is turned on.
If it remains on or is blinking after the engine is
started, the On Board Diagnostics System
(OBD-II) has detected a malfunction. Drive in a
moderate fashion and contact your authorized
dealer as soon as possible.
abS WarnIng LIght • 13Illuminates briefly when the ignition is turned
on. If the light remains on or continues to flash,
a malfunction has been detected. Contact your
authorized dealer as soon as possible and have the
system serviced. Normal braking (less ABS) is still
functional unless the brake warning light
is
also illuminated.
mUL tI-FUnC tIon LeVer • 1Rotate the end of the control to
increase/decrease the speed of the wipers.

Push the end of the stalk:
• quickly for a single swipe without fluid
• and hold briefly for three swipes with
washer fluid
• and hold for a longer wash cycle
Note: A courtesy wipe will automatically occur
after the washing cycle to ensure that any drips
have been cleared from your windshield. For
optimal wiper performance, clean blades and
glass regularly. Refer to your Owner’s Guide for
more information.
Thro TTle conTrol/
Transmission lighT • 10Illuminates when a powertrain fault is detected.
If the light remains on or continues to come on,
contact your authorized dealer for service as
soon as possible.
SteerIng WheeL ControLS
(IF eqUIpped) • 4
To set the speed:
1 Press ON.
2 Accelerate to the desired speed.
3 Press SET + and take your foot off the accelerator.
• To set a higher speed, press and hold SET + or press
SET + repeatedly until the desired speed is reached.
• To set a lower speed, press and hold SET – or press
SET – repeatedly until the desired speed is reached.
• To return to a previously set speed, press RESUME.
• To turn off, depress the brake pedal or press OFF.
VOL +/-: Press to increase/decrease volume levels.
: Press to access the previous/next radio station,
CD track or preset satellite radio channel.
: Press repeatedly to access all possible media sources.: Press to access SYNC® voice recognition, if equipped.: Press to access SYNC® phone features, if equipped.
me SSage Center (IF eqUIpped) • 5Displays important vehicle information through
a constant monitoring of vehicle systems.
The system will notify you of potential problems
with a display of warnings followed by a long
indicator chime. Use the INFO, SETUP and RESET
buttons to access various menus and settings
within the message center such as MyColor
®
ambient lighting and halo lighting. Refer to your
Owner’s Guide for more information.
advanceTrac® S tabILIty
enhanCement S yS tem • 8Helps you maintain stability and steerability of your
vehicle during a variety of road conditions. If your
vehicle becomes stuck, try turning off the Traction
Control portion of the AdvanceTrac
® system (by
pressing the control once) to allow wheel spin and help
increase momentum to help dig the vehicle out. This
control also enables other AdvanceTrac
® modes, please
refer to your Owner’s Guide for more information. Sport Mode (if equipped):

Allows for more spirited driving (closer to the vehicle’s
handling limits) before the AdvanceTrac
® system
intervenes. To activate, press the brake pedal and
then press the control twice rapidly. Sport mode is
intended for use in controlled racing environments as
it provides less AdvanceTrac
® intervention and should
only be used by experienced drivers in a controlled and
safe manner. Always be familiar with the vehicle and
the conditions before selecting this mode. Refer to
your Owner’s Guide for more information.
manual hea Ting and
aIr CondItIonIng S yS tem • 9
Refer to the Climate Control chapter in your
Owner’s Guide for more information.
11234567891011
Lo W tIre pre SSUre
WarnIng LIght • 2Refer to the Tire Pressure section on
the Essential Information Panel
for more information.
157182_10_Mustang_121708.indd 1-62/5/09 2:27:46 PM

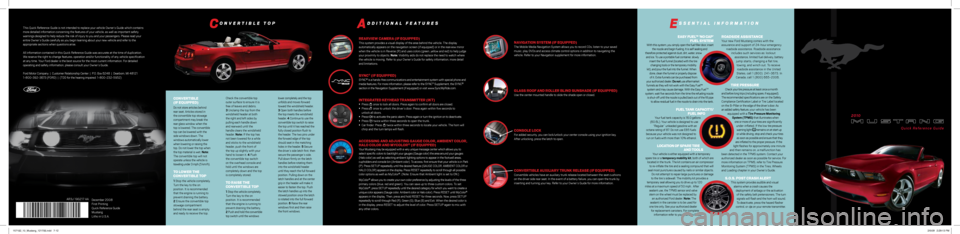

rearVIeW C amera (IF eqUIpped) This system provides a visual display of the area behind the vehicle. The display
automatically appears on the navigation screen (if equipped) or in the rearview mirror
when the vehicle is in Reverse (R) and uses colors (green, yellow and red) to help judge
your proximity to objects. Note: Visibility aids do not replace the need to watch where
the vehicle is moving. Refer to your Owner’s Guide for safety information, more detail
and limitations.
SynC® (IF e qUIpped)SYNC® is a hands-free communications and entertainment system with special phone and
media features. For more information, please refer to the SYNC® Supplement, the SYNC®
section in the Navigation Supplement (if equipped) or visit www.SyncMyRide.com.
Integrated keyhead tranSmItter (Ikt)• Press once to lock all doors. Press again to confirm all doors are closed.
• Press once to unlock the driver’s door. Press again within five seconds to
unlock all doors.
• Press
to activate the panic alarm. Press again or turn the ignition on to deactivate.
• Press twice within three seconds to open the trunk.
• Car finder: Press twice within three seconds to locate your vehicle. The horn will
chirp and the turn lamps will flash.
aCCe SSIng and adjUS tIng gaUge CoL or, ambIent CoL or,
haL o CoL or and myCoL or® (IF eqUIpped)Your Mustang may be equipped with a very unique message center which allows you to
select specific colors to backlight your gauges (Gauge color) the area around your gauges
(Halo color) as well as selecting ambient lighting options to appear in the footwell areas,
cupholders and console bin (Ambient color). To access, first ensure that your vehicle is in Park
(P). Press SETUP repeatedly until the desired feature (GAUGE COLOR, AMBIENT COLOR or
HALO COLOR) appears in the display. Press RESET repeatedly to scroll through all possible
color options as well as MyColor
®. (Note: Ensure that Ambient light is set to ON.)
MyColor
® allows you to create your own color preference by adjusting the levels of the three
primary colors (blue, red and green). You can save up to three custom colors. To set
MyColor
®, press SETUP repeatedly until the desired category for which you want to create a
unique color appears (Gauge color, Ambient color or Halo color). Press RESET until MyColor®
appears in the display. Then, press and hold RESET for three seconds. Now, press SETUP
repeatedly to scroll through Red (R), Green (G), Blue (B) and Exit. When the desired color is
in the display, press RESET to adjust the level of color. Press SETUP again to mix with
any other colors.
na VIgatIon S yS tem (IF eqUIpped)The Mobile Media Navigation System allows you to record CDs, listen to your saved
music, play DVDs and access climate control options in addition to navigating the
vehicle. Refer to your Navigation supplement for more information.
gLa SS rooF and roLLer bLInd SUnShade (IF eqUIpped)Use the center mounted handle to slide the shade open or closed.
console lockFor added security, you can lock/unlock your center console using your ignition key.
After unlocking, press the latch to open.
ConVertIbLe a UxILIary tr Unk reLea Se (IF eqUIpped)Convertible vehicles have an auxiliary trunk release located between the seat cushions
on the driver side rear seat. In the event of a battery failure, you can open the trunk by
inserting and turning your key. Refer to your Owner’s Guide for more information.
AdditionAl FeA turesessentiAl inFormA tion
ConVertIbLe
(IF eqUIpped)
Do not store articles behind
rear seat. Articles stored in
the convertible top stowage
compartment may break the
rear glass window when the
top is lowered. The convertible
top can be lowered with the
side windows down. The
windows automatically lower
when lowering or raising the
top. Do not lower the top when
the top material is wet. Note:
The convertible top will not
operate unless the vehicle is
traveling under 3 mph (5 km/h).
t o L oWer the
ConVertIbLe top
1 Stop the vehicle completely.
Turn the key to the on
position. It is recommended
that the engine is running to
prevent draining the battery.
2 Ensure the convertible top
stowage compartment
behind the rear seat is empty
and ready to receive the top. Check the convertible top
outer surface to ensure it is
free of leaves and debris.

3 Unclamp the top from the
windshield header at both
the right and left sides by
pulling each handle down
and rearward until the
handle clears the windshield
header. Note: If the top has
not been lowered for a while
and sticks to the windshield
header, push the front of
the top up slightly with your
hand to loosen it. 4 Push
the convertible top switch
on the overhead console and
hold until the windows are
completely down and the top
is completely stored.To raise The
ConVertIbLe top
1 Stop the vehicle completely. Turn the key to the on
position. It is recommended
that the engine is running to
prevent draining the battery.

2 Push and hold the convertible
top switch until the windows lower completely and the top
unfolds and moves forward
toward the windshield header.
3
Open both handles before
the top meets the windshield
header. 4 Continue to use the
convertible top switch to raise
the top until it has reached the
fully closed position flush to
the header. The two pins under
the forward edge of the top
should seat in the matching
holes in the header. 5 Secure
the driver’s side latch first, then
secure the passenger’s side.
Pull down firmly on the latch
handles before rotating them
into the windshield header
until they reach the full forward
position. Pulling down on the
latch handles and at the center
grip in the header will make it
easier to fasten the top. Push
the latch handles up into the
stowed position once the latch
is rotated into the full forward
position. 6 Raise the rear
windows first and then raise
the front windows.
convertible t op
Quick Reference Guide
This Quick Reference Guide is not intended to replace your vehicle Owner’s Guide which contains
more detailed information concerning the features of your vehicle, as well as important safety
warnings designed to help reduce the risk of injury to you and your passengers. Please read your
entire Owner’s Guide carefully as you begin learning about your new vehicle and refer to the
appropriate sections when questions arise.
All information contained in this Quick Reference Guide was accurate at the time of duplication.
We reserve the right to change features, operation and/or functionality of any vehicle specification
at any time. Your Ford dealer is the best source for the most current information. For detailed
operating and safety information, please consult your Owner’s Guide.
Ford Motor Company | Customer Relationship Center | P.O. Box 6248 | Dearborn, MI 48121
1-800-392-3673 (FORD) | (TDD for the hearing impaired: 1-800-232-5952)
AR3J 19G217 AADecember 2008
First Printing
Quick Reference Guide
Mustang
Litho in U.S.A.
eaSy FUeL ™ ‘no C ap’
FUeL S yS tem
With this system, you simply open the fuel filler door, insert
the nozzle and begin fueling. It is self sealing and
therefore protected against dust, dirt, water, snow and ice. To use a portable fuel container, slowly insert the fuel funnel (located with the tire changing tools or the temporary mobility
kit), and pour the fuel into the funnel. When done, clean the funnel or properly dispose of it. Extra funnels can be purchased from
your authorized dealer. Do not use aftermarket funnels as they will not work with the Easy Fuel™ system and may cause damage. With the Easy Fuel
TM
system, wait five seconds from the time the refueling nozzle is shut-off until the nozzle is pulled back out of the fill pipe to allow residual fuel in the nozzle to drain into the tank.
FUeL t ank Capa CIty/
fuel info
Your fuel tank capacity is 16.0 gallons
(60.6L). Your vehicle is designed to use “Regular” unleaded gasoline with an
octane rating of 87. Do not use E85 fuels
because your vehicle was not designed to run on fuels with more than 10% ethanol.
l oca Tion of spare Tire
and Tools
Your vehicle is either equipped with a temporary
spare tire or a temporary mobility kit, both of which are located in the trunk. The kit contains an air compressor to re-inflate the tire and a sealing compound that will
seal most punctures caused by nails or similar objects. Do not attempt to repair large punctures or damage
to the tire’s sidewall. The mobility kit provides a
temporary seal allowing you to drive up to 120
miles at a maximum speed of 50 mph. After sealant use, the TPMS sensor and valve
stem on the wheel must be replaced by an authorized Ford dealer. Note: The
sealant in the canister is to be used for
one tire only. See your authorized dealer for replacement canisters. For complete information refer to your Owner’s Guide.
roadside a ssisTanceYour new Ford Mustang comes with the
assurance and support of 24-hour emergency
roadside assistance. Roadside assistance includes such services as: lockout assistance, limited fuel delivery, battery jump starts, changing a flat tire, towing, and winch out. To receive roadside assistance in the United
States, call 1 (800) 241-3673. In
Canada, call 1 (800) 665-2006.
Tire pressureCheck your tire pressure at least once a month
and before long trips (including spare, if equipped).
The recommended specifications are on the Safety
Compliance Certification Label or Tire Label located
on the B-Pillar or the edge of the driver’s door. As
an added safety feature, your vehicle has been equipped with a Tire Pressure Monitoring
System (TPMS) that illuminates when one or more of your tires are significantly under-inflated. If the low tire pressure warning light
remains on at start up
or while driving, stop and check your tires
as soon as possible and ensure that they
are inflated to the proper pressure. If the
light flashes for approximately one minute
and then remains on, a malfunction has
been detected in the TPMS system. Contact your
authorized dealer as soon as possible for service. For
more information on TPMS, refer to Tire Pressure
Monitoring System (TPMS) in the Tires, Wheels
and Loading chapter in your Owner’s Guide.
s. o.s. pos T crash aler TThis system provides audible and visual
alarms when a crash causes the deployment of airbags or the activation of the safety belt pretensioners. The turn
signals will flash and the horn will sound.
To deactivate, press the hazard flasher
control, or
on your remote transmitter.
2010
157182_10_Mustang_121708.indd 7-122/5/09 2:29:13 PM
