FORD MUSTANG 2010 5.G Shelby GT500 Supplement Manual

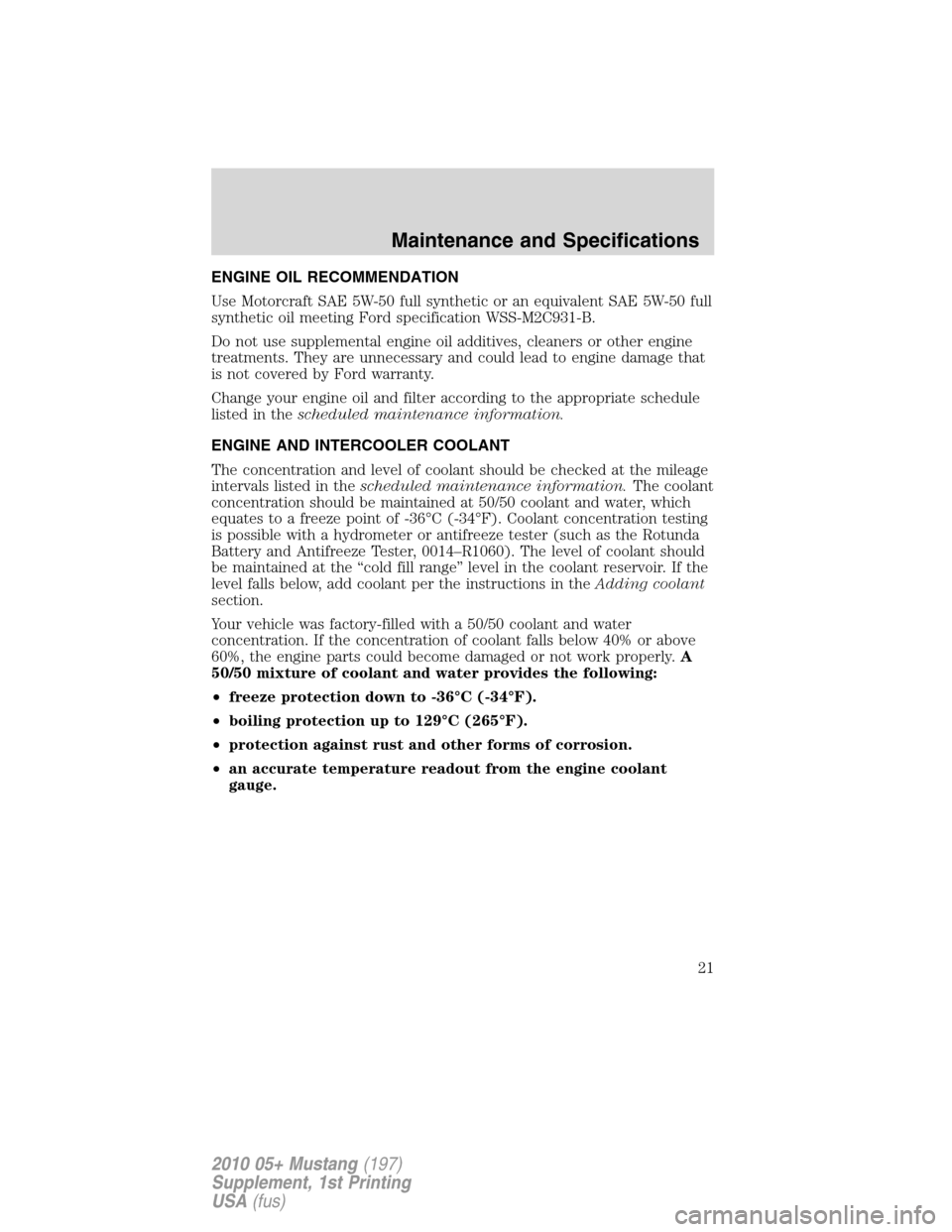

ENGINE OIL RECOMMENDATION
Use Motorcraft SAE 5W-50 full synthetic or an equivalent SAE 5W-50 full
synthetic oil meeting Ford specification WSS-M2C931-B.
Do not use supplemental engine oil additives, cleaners or other engine
treatments. They are unnecessary and could lead to engine damage that
is not covered by Ford warranty.
Change your engine oil and filter according to the appropriate schedule
listed in thescheduled maintenance information.
ENGINE AND INTERCOOLER COOLANT
The concentration and level of coolant should be checked at the mileage
intervals listed in thescheduled maintenance information.The coolant
concentration should be maintained at 50/50 coolant and water, which
equates to a freeze point of -36°C (-34°F). Coolant concentration testing
is possible with a hydrometer or antifreeze tester (such as the Rotunda
Battery and Antifreeze Tester, 0014–R1060). The level of coolant should
be maintained at the “cold fill range” level in the coolant reservoir. If the
level falls below, add coolant per the instructions in theAdding coolant
section.
Your vehicle was factory-filled with a 50/50 coolant and water
concentration. If the concentration of coolant falls below 40% or above
60%, the engine parts could become damaged or not work properly.A
50/50 mixture of coolant and water provides the following:
•freeze protection down to -36°C (-34°F).
•boiling protection up to 129°C (265°F).
•protection against rust and other forms of corrosion.
•an accurate temperature readout from the engine coolant
gauge.
Maintenance and Specifications
21
2010 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

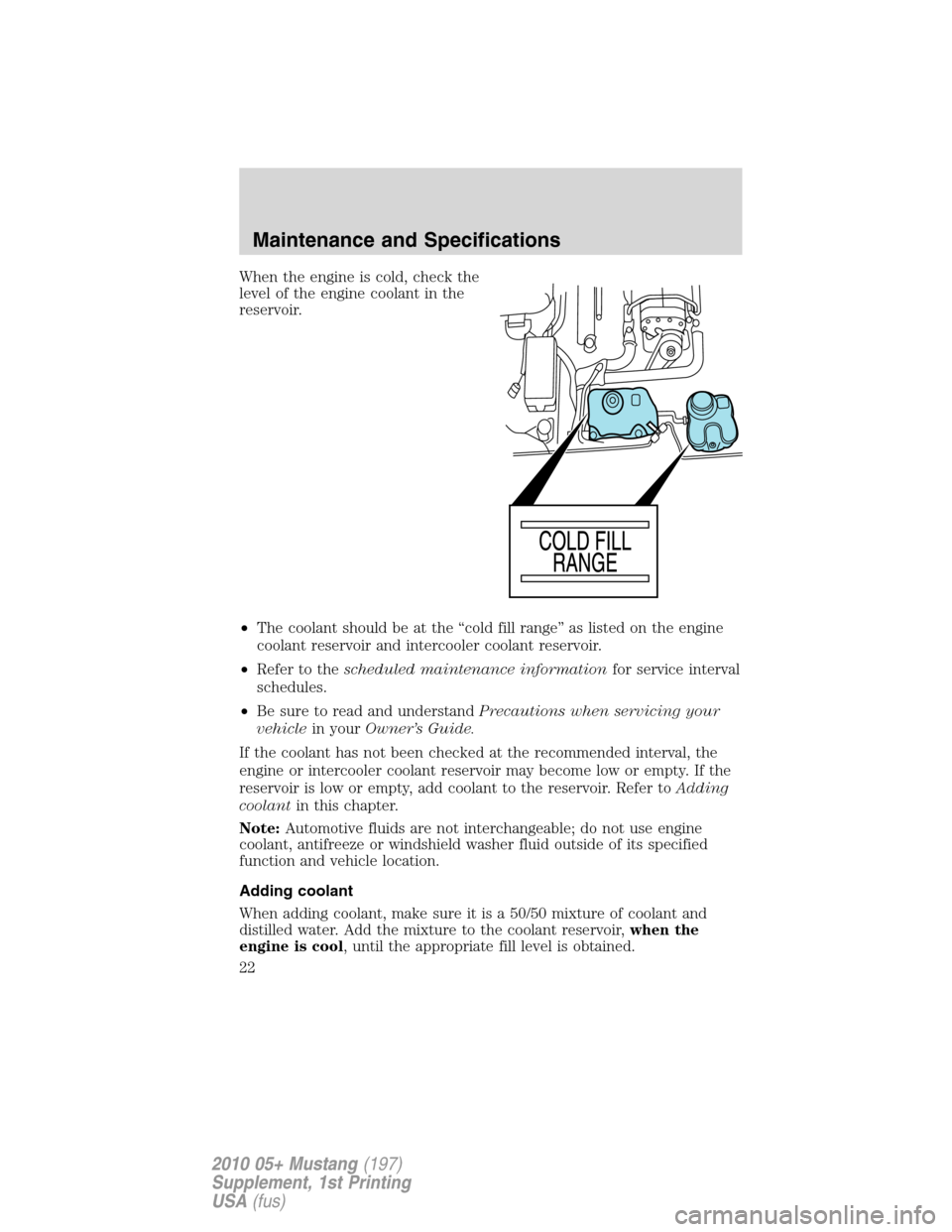

When the engine is cold, check the
level of the engine coolant in the
reservoir.
•The coolant should be at the “cold fill range” as listed on the engine
coolant reservoir and intercooler coolant reservoir.
•Refer to thescheduled maintenance informationfor service interval
schedules.
•Be sure to read and understandPrecautions when servicing your
vehiclein yourOwner’s Guide.
If the coolant has not been checked at the recommended interval, the
engine or intercooler coolant reservoir may become low or empty. If the
reservoir is low or empty, add coolant to the reservoir. Refer toAdding
coolantin this chapter.
Note:Automotive fluids are not interchangeable; do not use engine
coolant, antifreeze or windshield washer fluid outside of its specified
function and vehicle location.
Adding coolant
When adding coolant, make sure it is a 50/50 mixture of coolant and
distilled water. Add the mixture to the coolant reservoir,when the
engine is cool, until the appropriate fill level is obtained.
Maintenance and Specifications
22
2010 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

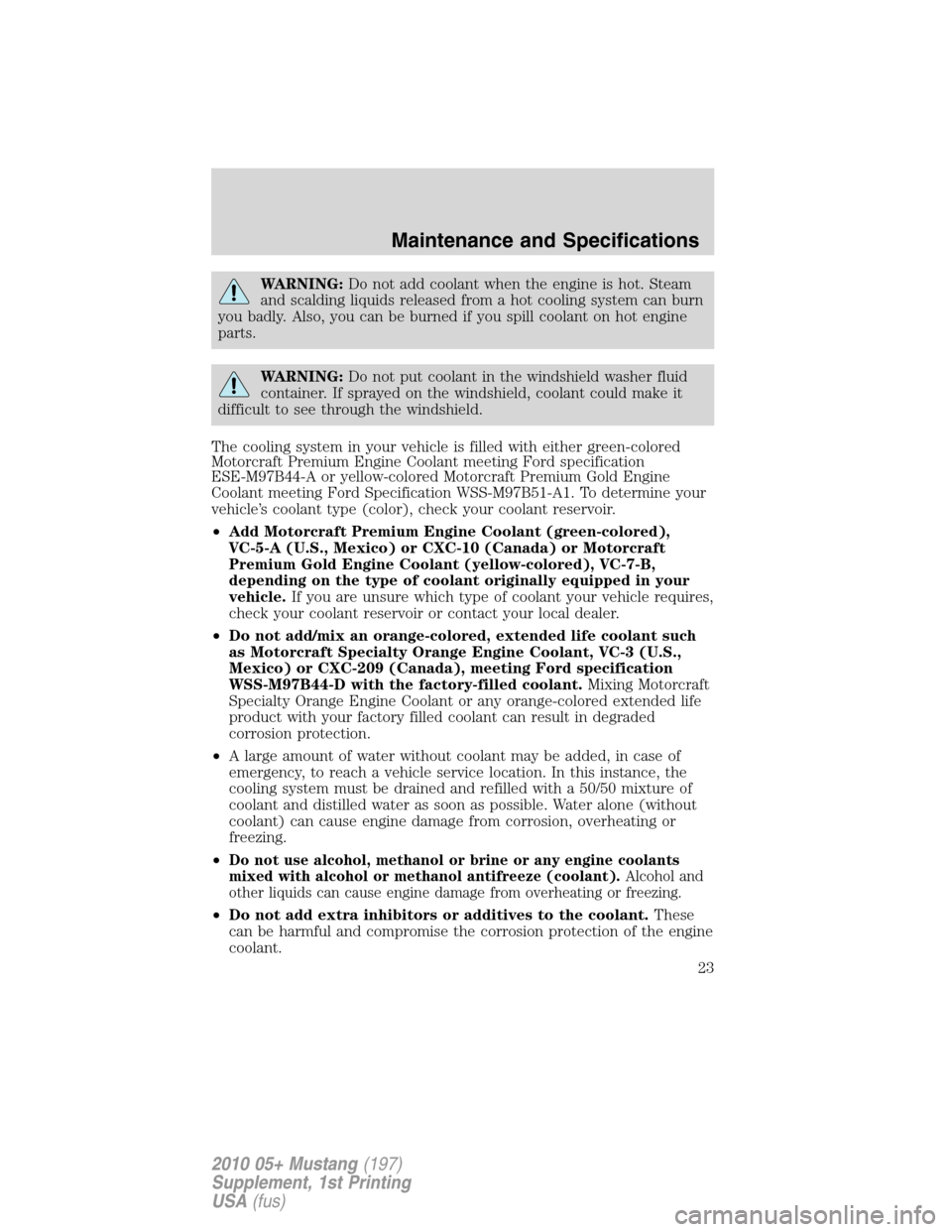

WARNING:Do not add coolant when the engine is hot. Steam
and scalding liquids released from a hot cooling system can burn
you badly. Also, you can be burned if you spill coolant on hot engine
parts.
WARNING:Do not put coolant in the windshield washer fluid
container. If sprayed on the windshield, coolant could make it
difficult to see through the windshield.
The cooling system in your vehicle is filled with either green-colored
Motorcraft Premium Engine Coolant meeting Ford specification
ESE-M97B44-A or yellow-colored Motorcraft Premium Gold Engine
Coolant meeting Ford Specification WSS-M97B51-A1. To determine your
vehicle’s coolant type (color), check your coolant reservoir.
•Add Motorcraft Premium Engine Coolant (green-colored),
VC-5-A (U.S., Mexico) or CXC-10 (Canada) or Motorcraft
Premium Gold Engine Coolant (yellow-colored), VC-7-B,
depending on the type of coolant originally equipped in your
vehicle.If you are unsure which type of coolant your vehicle requires,
check your coolant reservoir or contact your local dealer.
•Do not add/mix an orange-colored, extended life coolant such
as Motorcraft Specialty Orange Engine Coolant, VC-3 (U.S.,
Mexico) or CXC-209 (Canada), meeting Ford specification
WSS-M97B44-D with the factory-filled coolant.Mixing Motorcraft
Specialty Orange Engine Coolant or any orange-colored extended life
product with your factory filled coolant can result in degraded
corrosion protection.
•A large amount of water without coolant may be added, in case of
emergency, to reach a vehicle service location. In this instance, the
cooling system must be drained and refilled with a 50/50 mixture of
coolant and distilled water as soon as possible. Water alone (without
coolant) can cause engine damage from corrosion, overheating or
freezing.
•
Do not use alcohol, methanol or brine or any engine coolants
mixed with alcohol or methanol antifreeze (coolant).Alcohol and
other liquids can cause engine damage from overheating or freezing.
•Do not add extra inhibitors or additives to the coolant.These
can be harmful and compromise the corrosion protection of the engine
coolant.
Maintenance and Specifications
23
2010 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

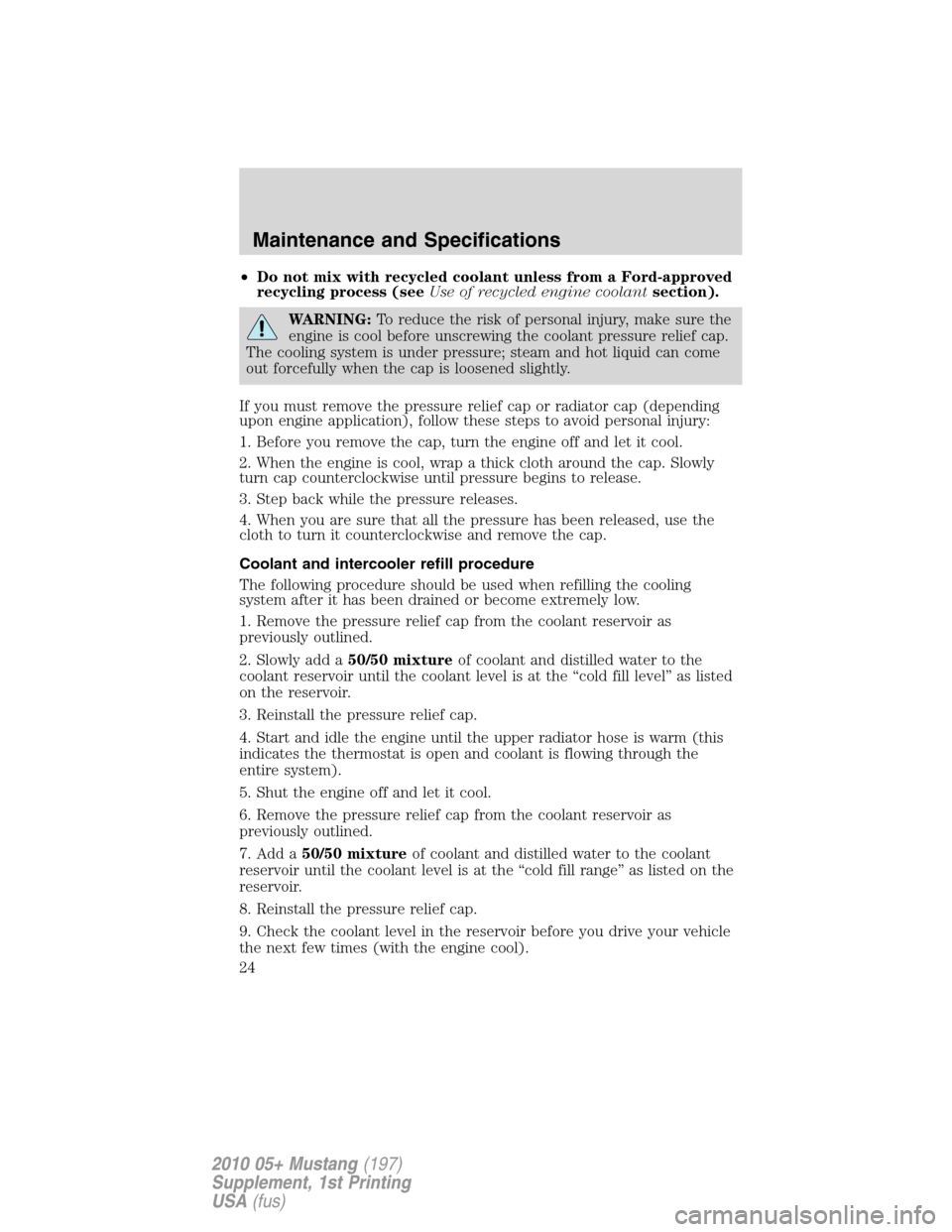

•Do not mix with recycled coolant unless from a Ford-approved
recycling process (seeUse of recycled engine coolantsection).
WARNING:To reduce the risk of personal injury, make sure the
engine is cool before unscrewing the coolant pressure relief cap.
The cooling system is under pressure; steam and hot liquid can come
out forcefully when the cap is loosened slightly.
If you must remove the pressure relief cap or radiator cap (depending
upon engine application), follow these steps to avoid personal injury:
1. Before you remove the cap, turn the engine off and let it cool.
2. When the engine is cool, wrap a thick cloth around the cap. Slowly
turn cap counterclockwise until pressure begins to release.
3. Step back while the pressure releases.
4. When you are sure that all the pressure has been released, use the
cloth to turn it counterclockwise and remove the cap.
Coolant and intercooler refill procedure
The following procedure should be used when refilling the cooling
system after it has been drained or become extremely low.
1. Remove the pressure relief cap from the coolant reservoir as
previously outlined.
2. Slowly add a50/50 mixtureof coolant and distilled water to the
coolant reservoir until the coolant level is at the “cold fill level” as listed
on the reservoir.
3. Reinstall the pressure relief cap.
4. Start and idle the engine until the upper radiator hose is warm (this
indicates the thermostat is open and coolant is flowing through the
entire system).
5. Shut the engine off and let it cool.
6. Remove the pressure relief cap from the coolant reservoir as
previously outlined.
7. Add a50/50 mixtureof coolant and distilled water to the coolant
reservoir until the coolant level is at the “cold fill range” as listed on the
reservoir.
8. Reinstall the pressure relief cap.
9. Check the coolant level in the reservoir before you drive your vehicle
the next few times (with the engine cool).
Maintenance and Specifications
24
2010 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

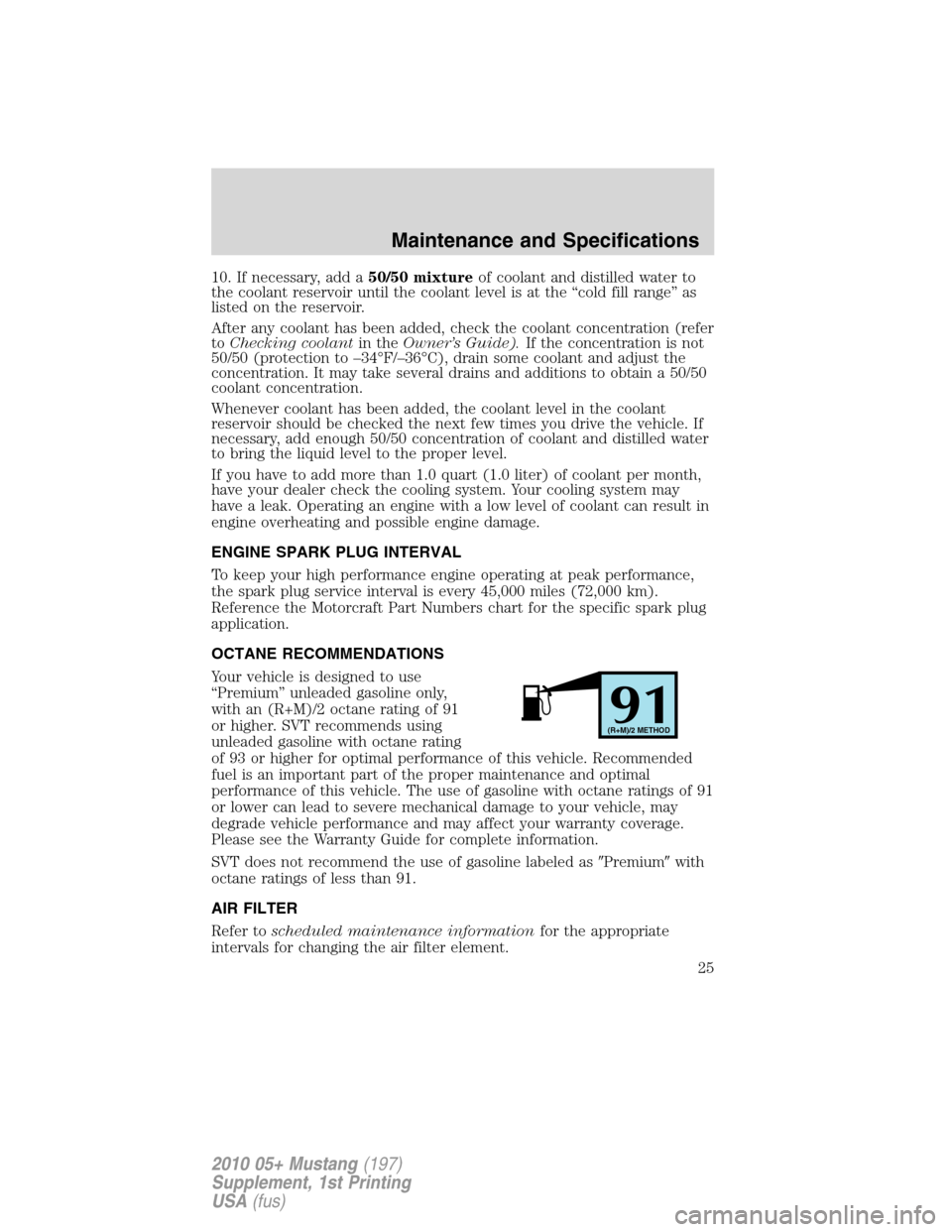

10. If necessary, add a50/50 mixtureof coolant and distilled water to
the coolant reservoir until the coolant level is at the “cold fill range” as
listed on the reservoir.
After any coolant has been added, check the coolant concentration (refer
toChecking coolantin theOwner’s Guide).If the concentration is not
50/50 (protection to –34°F/–36°C), drain some coolant and adjust the
concentration. It may take several drains and additions to obtain a 50/50
coolant concentration.
Whenever coolant has been added, the coolant level in the coolant
reservoir should be checked the next few times you drive the vehicle. If
necessary, add enough 50/50 concentration of coolant and distilled water
to bring the liquid level to the proper level.
If you have to add more than 1.0 quart (1.0 liter) of coolant per month,
have your dealer check the cooling system. Your cooling system may
have a leak. Operating an engine with a low level of coolant can result in
engine overheating and possible engine damage.
ENGINE SPARK PLUG INTERVAL
To keep your high performance engine operating at peak performance,
the spark plug service interval is every 45,000 miles (72,000 km).
Reference the Motorcraft Part Numbers chart for the specific spark plug
application.
OCTANE RECOMMENDATIONS
Your vehicle is designed to use
“Premium” unleaded gasoline only,
with an (R+M)/2 octane rating of 91
or higher. SVT recommends using
unleaded gasoline with octane rating
of 93 or higher for optimal performance of this vehicle. Recommended
fuel is an important part of the proper maintenance and optimal
performance of this vehicle. The use of gasoline with octane ratings of 91
or lower can lead to severe mechanical damage to your vehicle, may
degrade vehicle performance and may affect your warranty coverage.
Please see the Warranty Guide for complete information.
SVT does not recommend the use of gasoline labeled asPremiumwith
octane ratings of less than 91.
AIR FILTER
Refer toscheduled maintenance informationfor the appropriate
intervals for changing the air filter element.
91(R+M)/2 METHOD
Maintenance and Specifications
25
2010 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

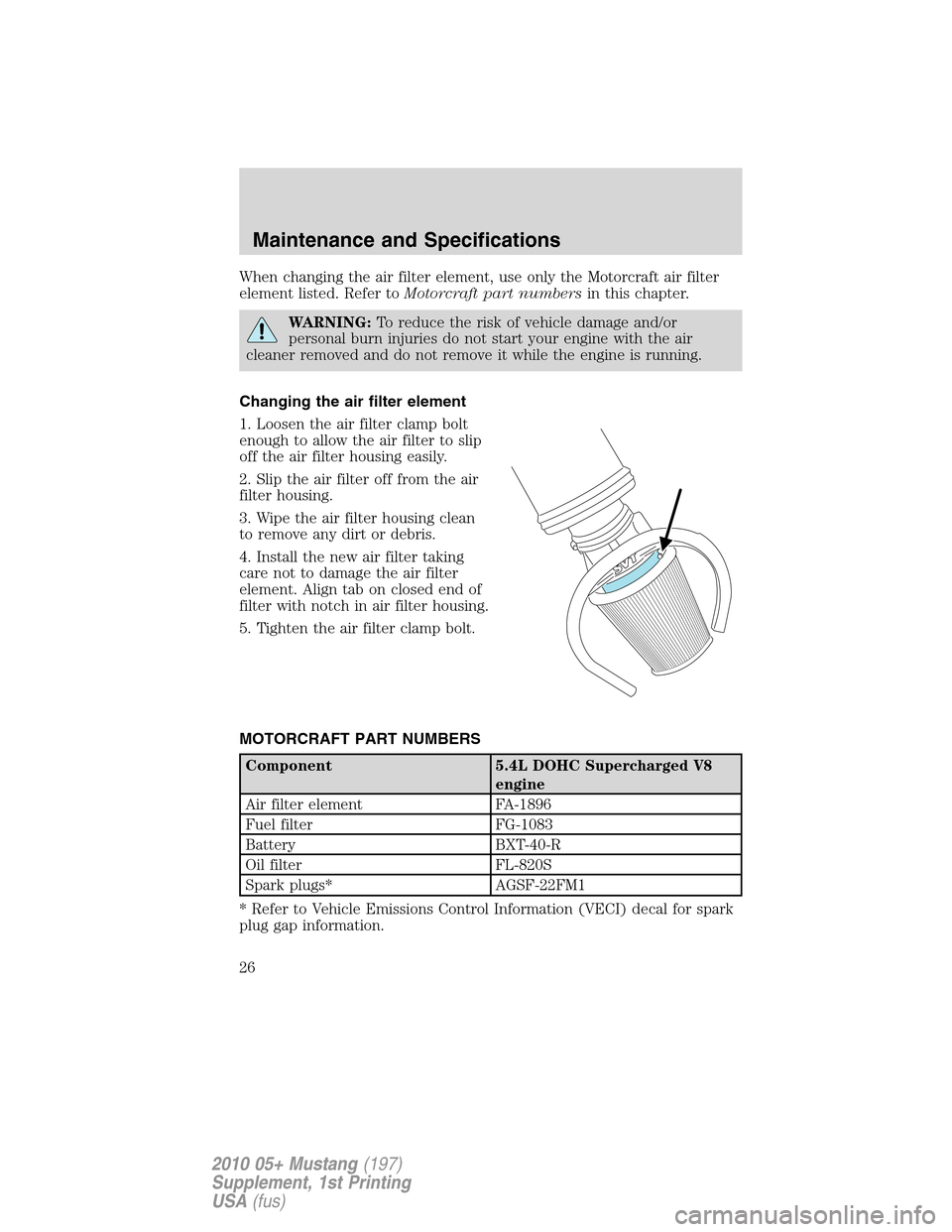

When changing the air filter element, use only the Motorcraft air filter
element listed. Refer toMotorcraft part numbersin this chapter.
WARNING:To reduce the risk of vehicle damage and/or
personal burn injuries do not start your engine with the air
cleaner removed and do not remove it while the engine is running.
Changing the air filter element
1. Loosen the air filter clamp bolt
enough to allow the air filter to slip
off the air filter housing easily.
2. Slip the air filter off from the air
filter housing.
3. Wipe the air filter housing clean
to remove any dirt or debris.
4. Install the new air filter taking
care not to damage the air filter
element. Align tab on closed end of
filter with notch in air filter housing.
5. Tighten the air filter clamp bolt.
MOTORCRAFT PART NUMBERS
Component 5.4L DOHC Supercharged V8
engine
Air filter element FA-1896
Fuel filter FG-1083
Battery BXT-40-R
Oil filter FL-820S
Spark plugs* AGSF-22FM1
* Refer to Vehicle Emissions Control Information (VECI) decal for spark
plug gap information.
Maintenance and Specifications
26
2010 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

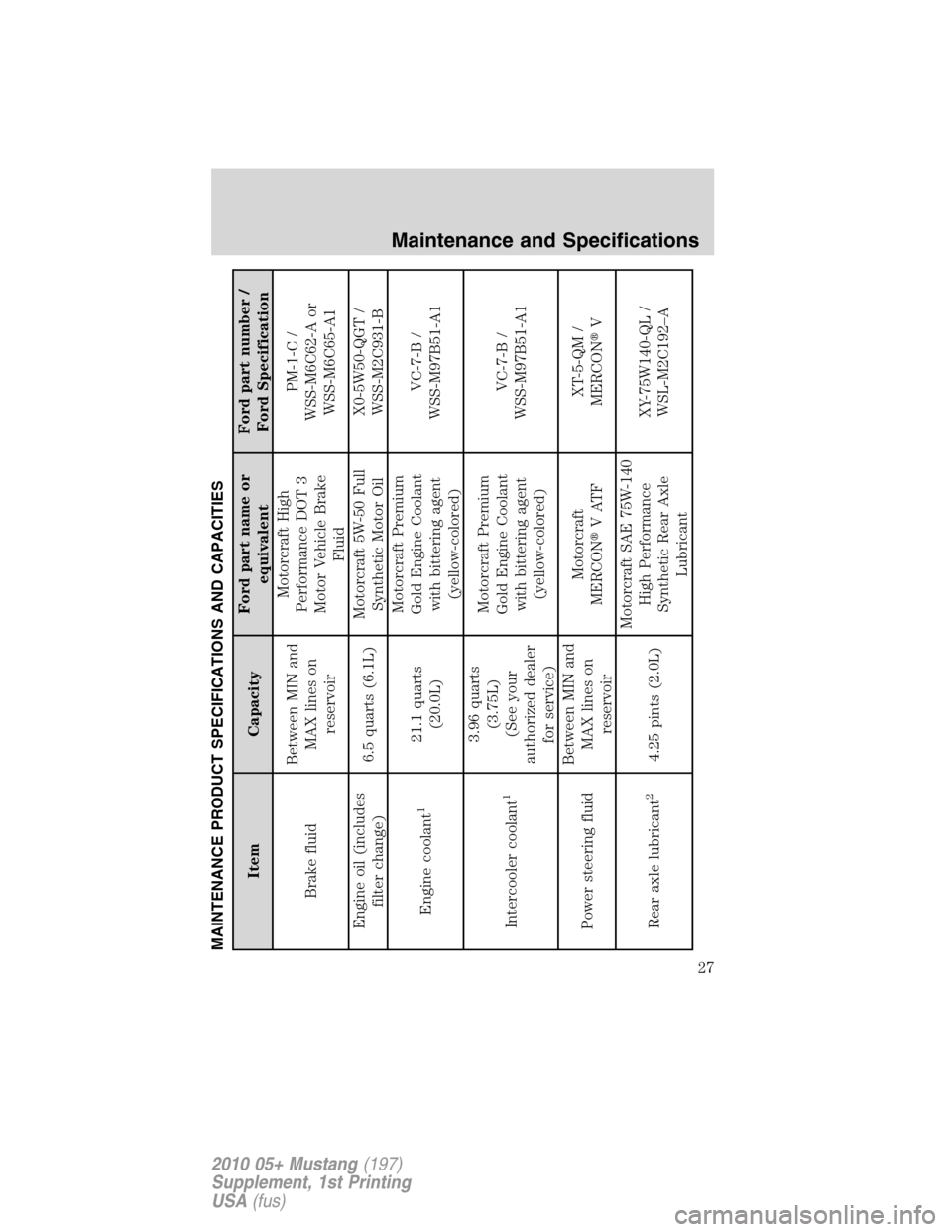

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Item CapacityFord part name or
equivalentFord part number /
Ford Specification
Brake fluidBetween MIN and
MAX lines on
reservoirMotorcraft High
Performance DOT 3
Motor Vehicle Brake
FluidPM-1-C /
WSS-M6C62-A or
WSS-M6C65-A1
Engine oil (includes
filter change)6.5 quarts (6.1L)Motorcraft 5W-50 Full
Synthetic Motor OilX0-5W50-QGT /
WSS-M2C931-B
Engine coolant
1
21.1 quarts
(20.0L)Motorcraft Premium
Gold Engine Coolant
with bittering agent
(yellow-colored)VC-7-B /
WSS-M97B51-A1
Intercooler coolant
1
3.96 quarts
(3.75L)
(See your
authorized dealer
for service)Motorcraft Premium
Gold Engine Coolant
with bittering agent
(yellow-colored)VC-7-B /
WSS-M97B51-A1
Power steering fluidBetween MIN and
MAX lines on
reservoirMotorcraft
MERCON
VATFXT-5-QM /
MERCON
V
Rear axle lubricant
2
4.25 pints (2.0L)Motorcraft SAE 75W-140
High Performance
Synthetic Rear Axle
LubricantXY-75W140-QL /
WSL-M2C192–A
Maintenance and Specifications
27
2010 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

Item CapacityFord part name or
equivalentFord part number /
Ford Specification
Fuel tank16.0 gallons
(60.5L)——
Transmission fluid
3
6.35 pints (3.5L)
4
Motorcraft
MERCON
VATFXT-5-QM /
MERCON
V
Windshield washer fluid 4.0 quarts (3.8L)Motorcraft Premium
Windshield Washer
ConcentrateZC-32-A /
WSB-M8B16–A2
1Add the coolant type originally equipped in your vehicle.2Rear axle lubricants do not need to be checked or changed unless a leak is suspected, service is
required or the axle assembly has been submerged in water. The axle lubricant should be changed
any time the rear axle has been submerged in water, using SAE 75W-140 High Performance rear
axle lube, meeting Ford specification WSL-M2C192–A.
Fill 1/4-9/16 in. (6-14 mm) below bottom of fill hold. Add 4 oz. (118 ml) of Additive Friction
Modifier C3AZ-19B546-A or equivalent meeting Ford specification EST-M2C118-A for complete
refill of Traction-Lok axles.3The Tremec TR-6060 6–Speed manual transmission on your Shelby GT500 uses MERCON
V
automatic transmission fluid. Ensure that the correct MERCON
V ATF automatic transmission
fluid is used as indicated on the label on your transmission.4Service refill capacity is determined by filling the transmission to the bottom of the filler hole with
the vehicle on a level surface.
Maintenance and Specifications
28
2010 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

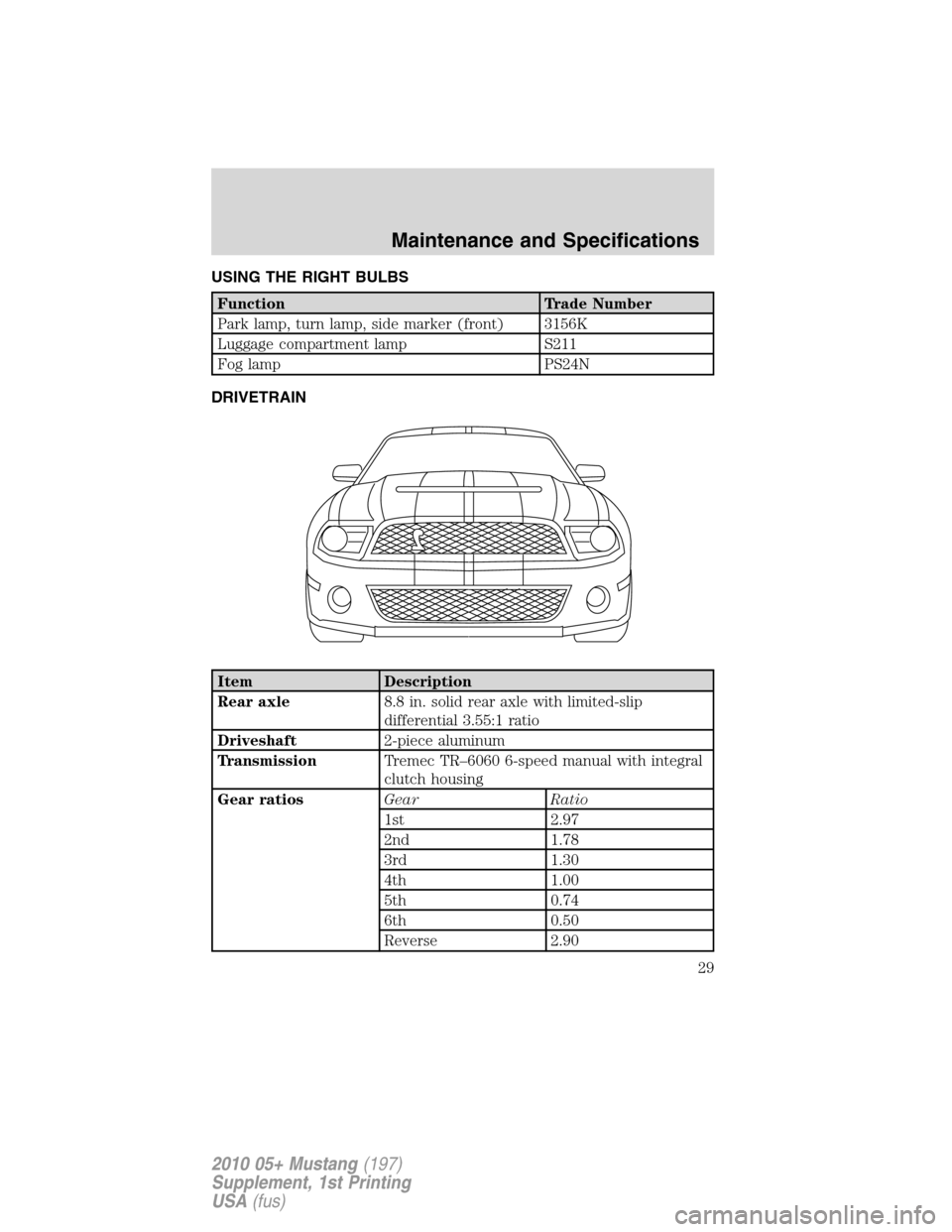

USING THE RIGHT BULBS
Function Trade Number
Park lamp, turn lamp, side marker (front) 3156K
Luggage compartment lamp S211
Fog lamp PS24N
DRIVETRAIN
Item Description
Rear axle8.8 in. solid rear axle with limited-slip
differential 3.55:1 ratio
Driveshaft2-piece aluminum
TransmissionTremec TR–6060 6-speed manual with integral
clutch housing
Gear ratiosGear Ratio
1st 2.97
2nd 1.78
3rd 1.30
4th 1.00
5th 0.74
6th 0.50
Reverse 2.90
Maintenance and Specifications
29
2010 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)

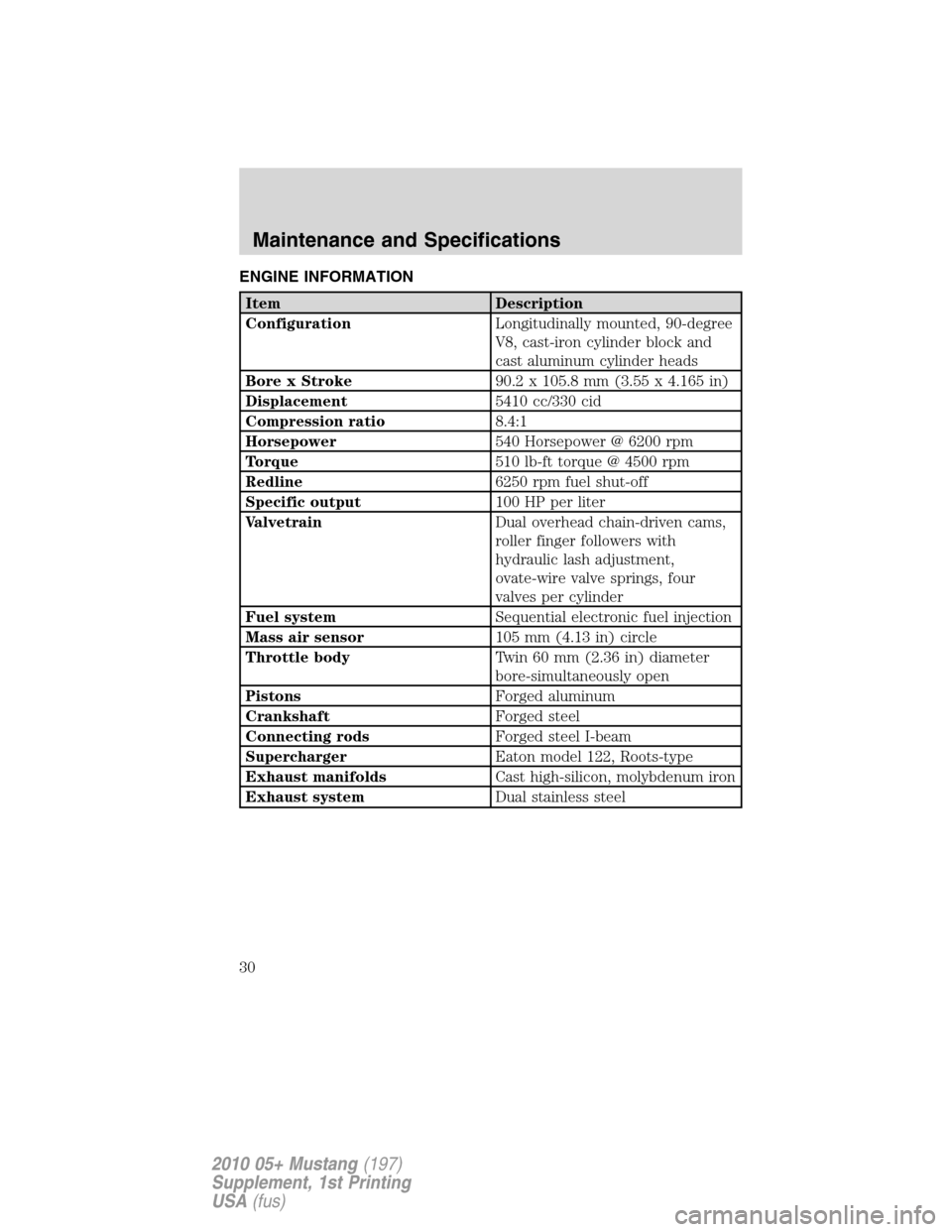

ENGINE INFORMATION
Item Description
ConfigurationLongitudinally mounted, 90-degree
V8, cast-iron cylinder block and
cast aluminum cylinder heads
Bore x Stroke90.2 x 105.8 mm (3.55 x 4.165 in)
Displacement5410 cc/330 cid
Compression ratio8.4:1
Horsepower540 Horsepower @ 6200 rpm
Torque510 lb-ft torque @ 4500 rpm
Redline6250 rpm fuel shut-off
Specific output100 HP per liter
ValvetrainDual overhead chain-driven cams,
roller finger followers with
hydraulic lash adjustment,
ovate-wire valve springs, four
valves per cylinder
Fuel systemSequential electronic fuel injection
Mass air sensor105 mm (4.13 in) circle
Throttle bodyTwin 60 mm (2.36 in) diameter
bore-simultaneously open
PistonsForged aluminum
CrankshaftForged steel
Connecting rodsForged steel I-beam
SuperchargerEaton model 122, Roots-type
Exhaust manifoldsCast high-silicon, molybdenum iron
Exhaust systemDual stainless steel
Maintenance and Specifications
30
2010 05+ Mustang(197)
Supplement, 1st Printing
USA(fus)
