FORD MUSTANG 2011 5.G Owners Manual

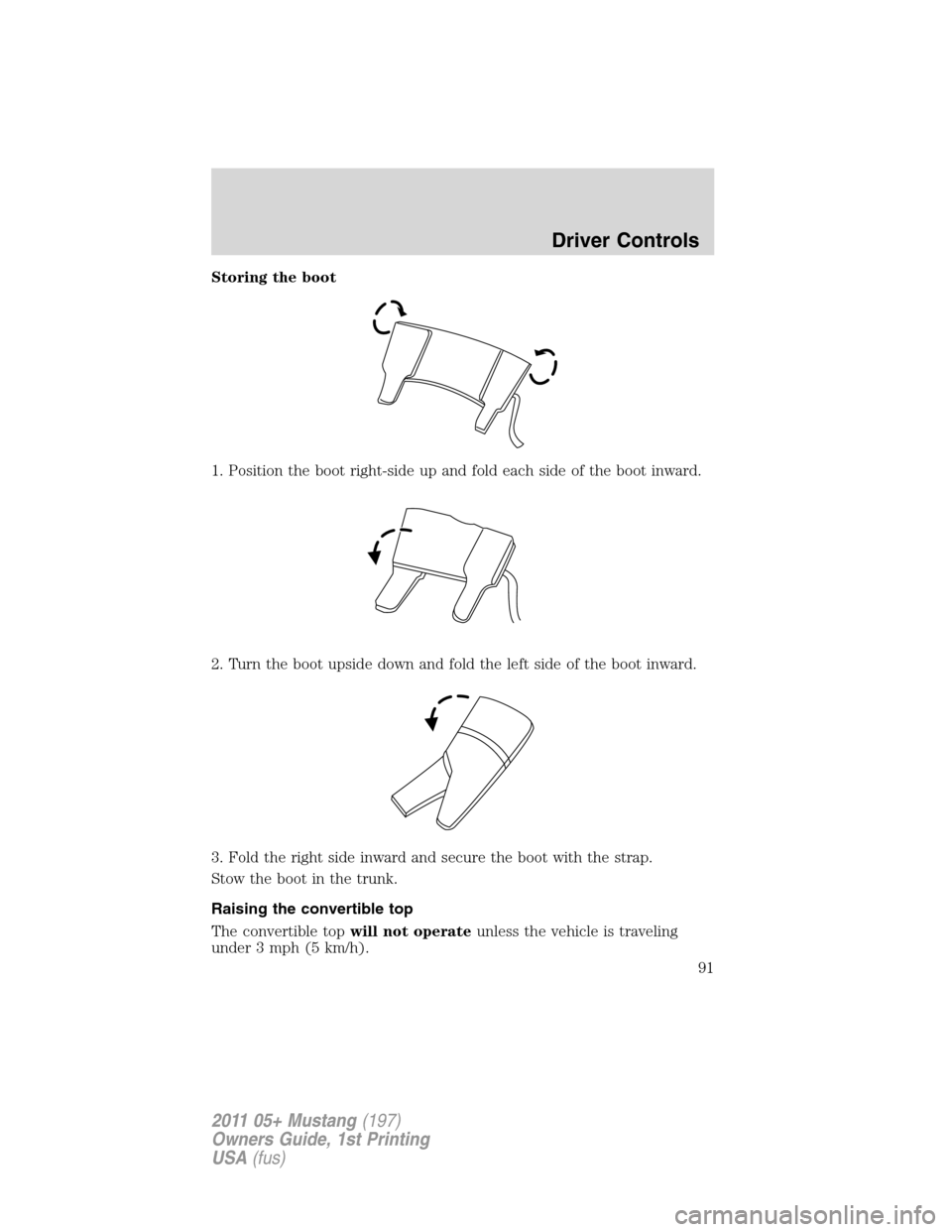

Storing the boot
1. Position the boot right-side up and fold each side of the boot inward.
2. Turn the boot upside down and fold the left side of the boot inward.
3. Fold the right side inward and secure the boot with the strap.
Stow the boot in the trunk.
Raising the convertible top
The convertible topwill not operateunless the vehicle is traveling
under 3 mph (5 km/h).
Driver Controls
91
2011 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)

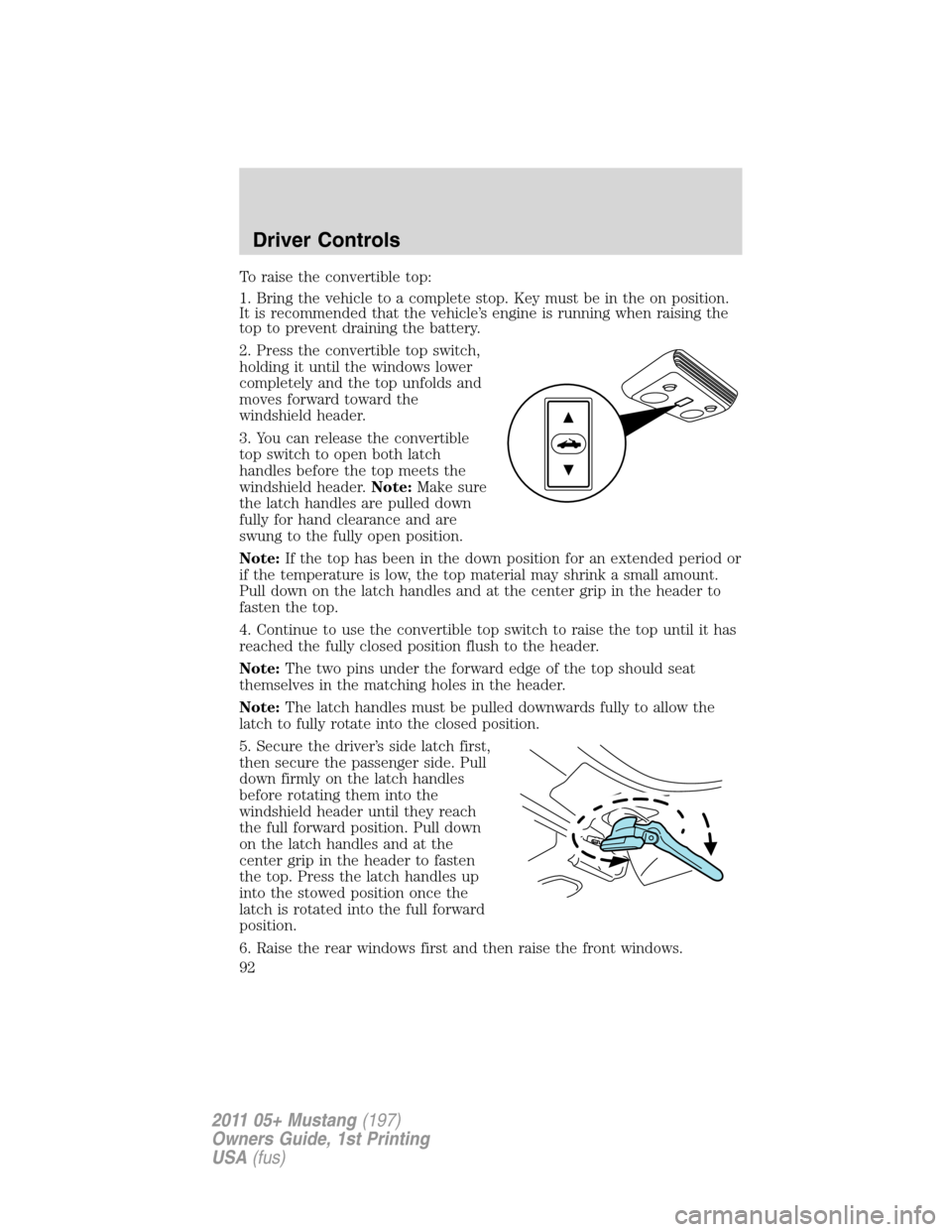

To raise the convertible top:
1. Bring the vehicle to a complete stop. Key must be in the on position.
It is recommended that the vehicle’s engine is running when raising the
top to prevent draining the battery.
2. Press the convertible top switch,
holding it until the windows lower
completely and the top unfolds and
moves forward toward the
windshield header.
3. You can release the convertible
top switch to open both latch
handles before the top meets the
windshield header.Note:Make sure
the latch handles are pulled down
fully for hand clearance and are
swung to the fully open position.
Note:If the top has been in the down position for an extended period or
if the temperature is low, the top material may shrink a small amount.
Pull down on the latch handles and at the center grip in the header to
fasten the top.
4. Continue to use the convertible top switch to raise the top until it has
reached the fully closed position flush to the header.
Note:The two pins under the forward edge of the top should seat
themselves in the matching holes in the header.
Note:The latch handles must be pulled downwards fully to allow the
latch to fully rotate into the closed position.
5. Secure the driver’s side latch first,
then secure the passenger side. Pull
down firmly on the latch handles
before rotating them into the
windshield header until they reach
the full forward position. Pull down
on the latch handles and at the
center grip in the header to fasten
the top. Press the latch handles up
into the stowed position once the
latch is rotated into the full forward
position.
6. Raise the rear windows first and then raise the front windows.
Driver Controls
92
2011 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)

ROLLER BLIND SUN SHADE (IF EQUIPPED)
If your vehicle is equipped with a glass roof, the roller blind sun shade
will cover the glass roof inside your vehicle.
Use the center-mounted cup handle
to slide the shade open or closed.
INTERIOR TRUNK CONTROL
The remote trunk release button is
located on the instrument panel.
Press the button to unlatch the
trunk.
Interior trunk control lockout (convertible vehicles only)
This feature helps prevent unauthorized access to the trunk when the
convertible top is open, by disabling the interior trunk control.
This is useful when you want to leave the convertible top open, but still
prevent access to the trunk.
To operate this feature (the vehicle must be off and accessory power
delay not active):
Lock the vehicle using the integrated keyhead transmitter or the power
door lock switch. The interior trunk control will now be disabled.
To enable the interior trunk control:
•use the integrated keyhead transmitter to unlock the vehicle,
•or turn the ignition on.
The interior trunk control will now work normally.
Driver Controls
93
2011 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)

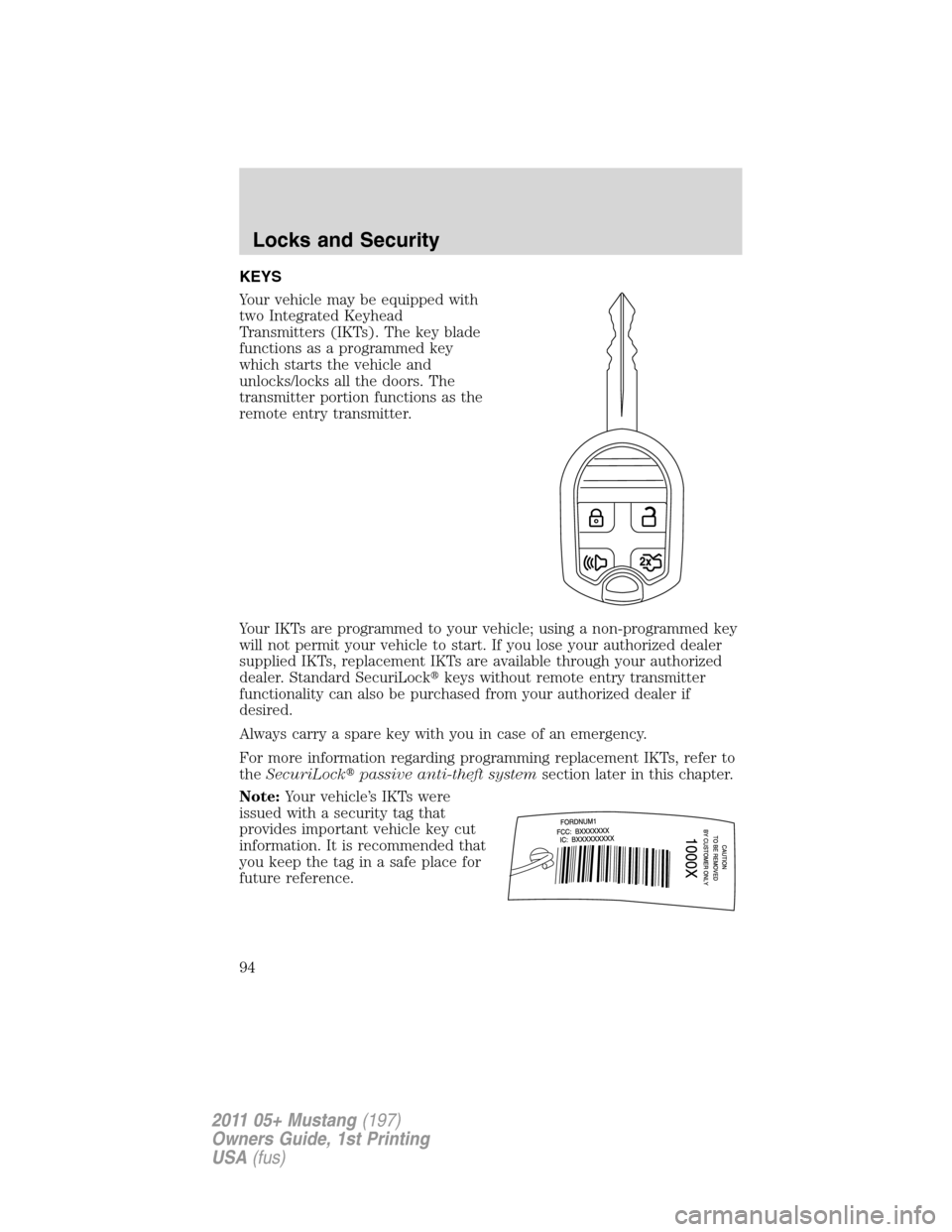

KEYS
Your vehicle may be equipped with
two Integrated Keyhead
Transmitters (IKTs). The key blade
functions as a programmed key
which starts the vehicle and
unlocks/locks all the doors. The
transmitter portion functions as the
remote entry transmitter.
Your IKTs are programmed to your vehicle; using a non-programmed key
will not permit your vehicle to start. If you lose your authorized dealer
supplied IKTs, replacement IKTs are available through your authorized
dealer. Standard SecuriLock
keys without remote entry transmitter
functionality can also be purchased from your authorized dealer if
desired.
Always carry a spare key with you in case of an emergency.
For more information regarding programming replacement IKTs, refer to
theSecuriLock
passive anti-theft systemsection later in this chapter.
Note:Your vehicle’s IKTs were
issued with a security tag that
provides important vehicle key cut
information. It is recommended that
you keep the tag in a safe place for
future reference.
Locks and Security
94
2011 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)

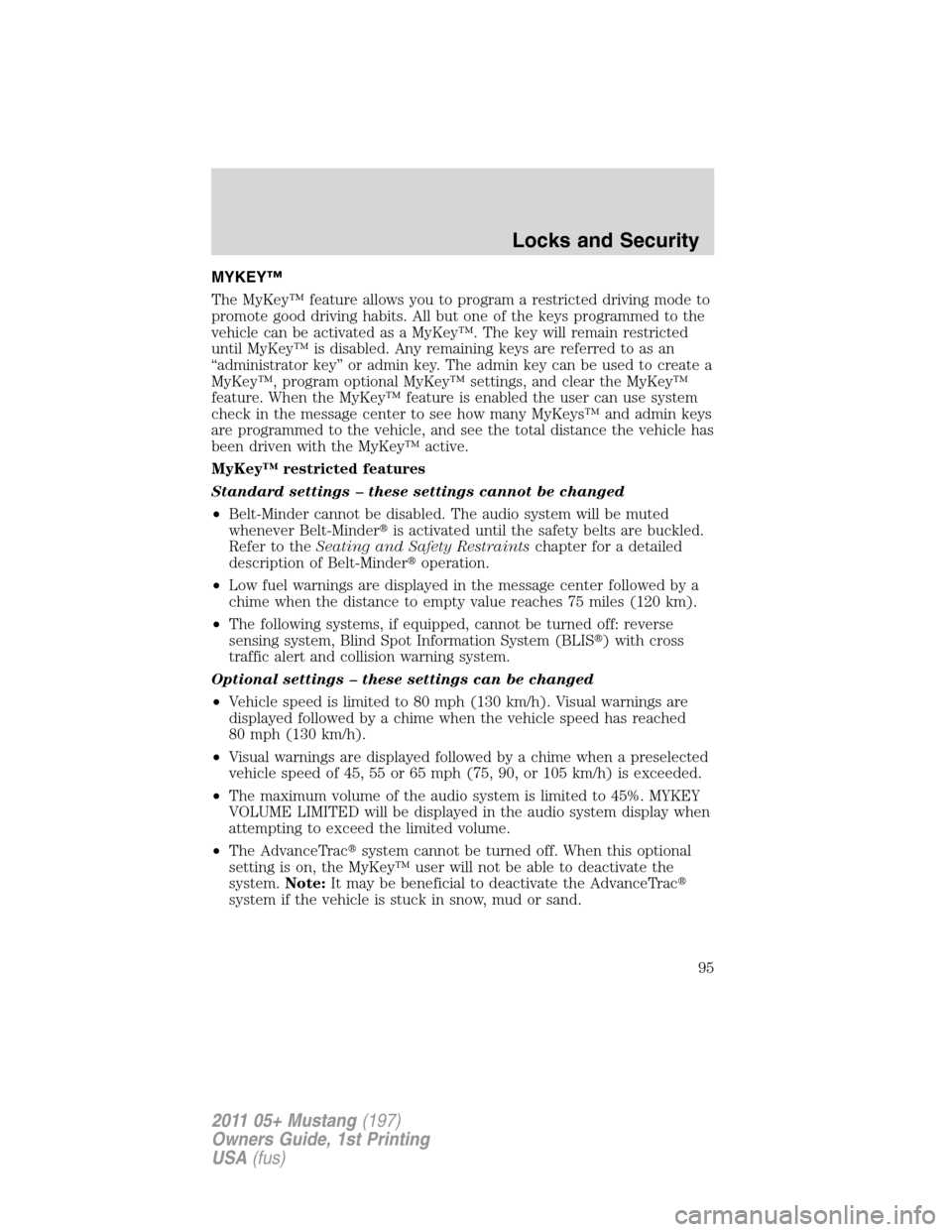

MYKEY™
The MyKey™ feature allows you to program a restricted driving mode to
promote good driving habits. All but one of the keys programmed to the
vehicle can be activated as a MyKey™. The key will remain restricted
until MyKey™ is disabled. Any remaining keys are referred to as an
“administrator key” or admin key. The admin key can be used to create a
MyKey™, program optional MyKey™ settings, and clear the MyKey™
feature. When the MyKey™ feature is enabled the user can use system
check in the message center to see how many MyKeys™ and admin keys
are programmed to the vehicle, and see the total distance the vehicle has
been driven with the MyKey™ active.
MyKey™ restricted features
Standard settings – these settings cannot be changed
•Belt-Minder cannot be disabled. The audio system will be muted
whenever Belt-Minder
is activated until the safety belts are buckled.
Refer to theSeating and Safety Restraintschapter for a detailed
description of Belt-Minder
operation.
•Low fuel warnings are displayed in the message center followed by a
chime when the distance to empty value reaches 75 miles (120 km).
•The following systems, if equipped, cannot be turned off: reverse
sensing system, Blind Spot Information System (BLIS
) with cross
traffic alert and collision warning system.
Optional settings – these settings can be changed
•Vehicle speed is limited to 80 mph (130 km/h). Visual warnings are
displayed followed by a chime when the vehicle speed has reached
80 mph (130 km/h).
•Visual warnings are displayed followed by a chime when a preselected
vehicle speed of 45, 55 or 65 mph (75, 90, or 105 km/h) is exceeded.
•The maximum volume of the audio system is limited to 45%. MYKEY
VOLUME LIMITED will be displayed in the audio system display when
attempting to exceed the limited volume.
•The AdvanceTrac
system cannot be turned off. When this optional
setting is on, the MyKey™ user will not be able to deactivate the
system.Note:It may be beneficial to deactivate the AdvanceTrac

system if the vehicle is stuck in snow, mud or sand.
Locks and Security
95
2011 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)

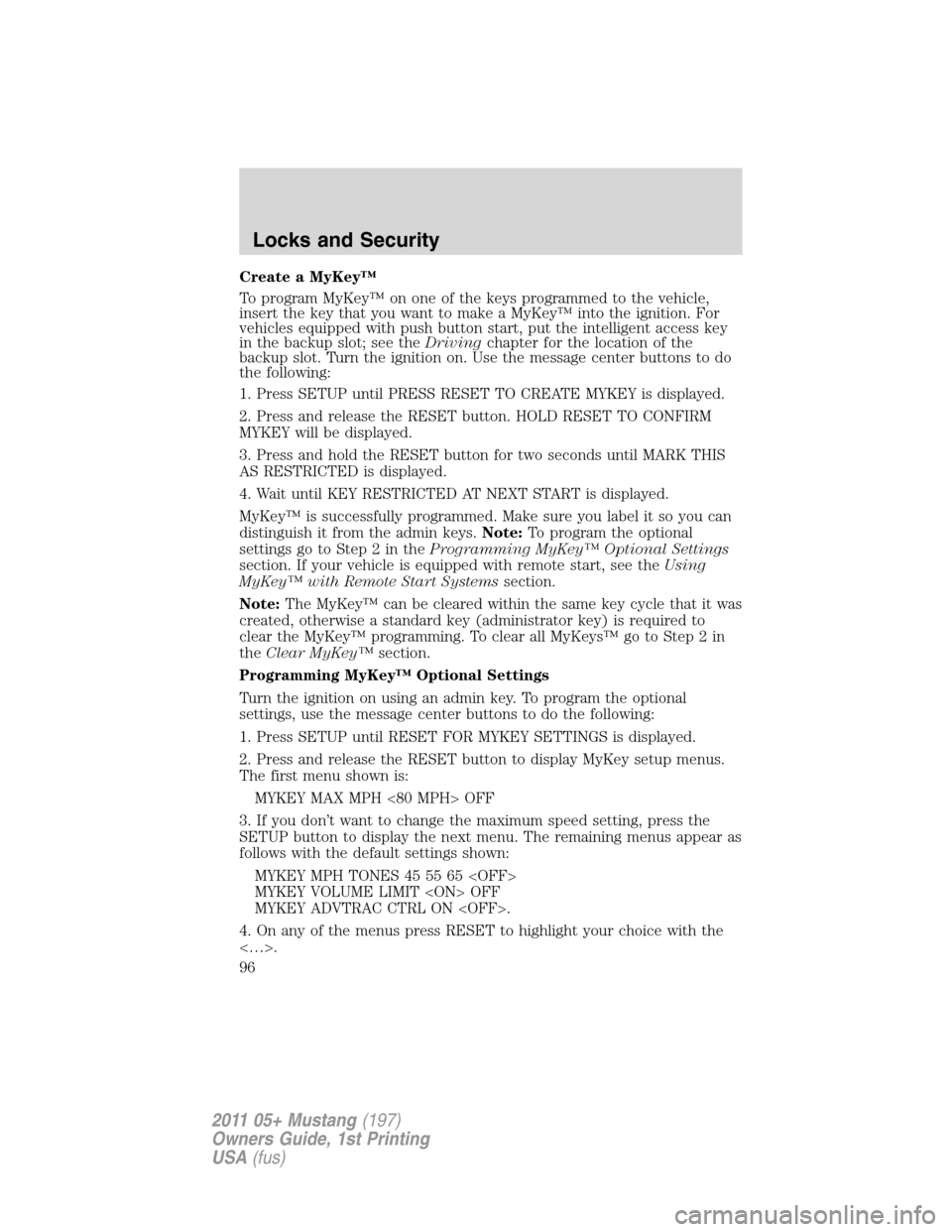

Create a MyKey™
To program MyKey™ on one of the keys programmed to the vehicle,
insert the key that you want to make a MyKey™ into the ignition. For
vehicles equipped with push button start, put the intelligent access key
in the backup slot; see theDrivingchapter for the location of the
backup slot. Turn the ignition on. Use the message center buttons to do
the following:
1. Press SETUP until PRESS RESET TO CREATE MYKEY is displayed.
2. Press and release the RESET button. HOLD RESET TO CONFIRM
MYKEY will be displayed.
3. Press and hold the RESET button for two seconds until MARK THIS
AS RESTRICTED is displayed.
4. Wait until KEY RESTRICTED AT NEXT START is displayed.
MyKey™ is successfully programmed. Make sure you label it so you can
distinguish it from the admin keys.Note:To program the optional
settings go to Step 2 in theProgramming MyKey™ Optional Settings
section. If your vehicle is equipped with remote start, see theUsing
MyKey™ with Remote Start Systemssection.
Note:The MyKey™ can be cleared within the same key cycle that it was
created, otherwise a standard key (administrator key) is required to
clear the MyKey™ programming. To clear all MyKeys™ go to Step 2 in
theClear MyKey™section.
Programming MyKey™ Optional Settings
Turn the ignition on using an admin key. To program the optional
settings, use the message center buttons to do the following:
1. Press SETUP until RESET FOR MYKEY SETTINGS is displayed.
2. Press and release the RESET button to display MyKey setup menus.
The first menu shown is:
MYKEY MAX MPH <80 MPH> OFF
3. If you don’t want to change the maximum speed setting, press the
SETUP button to display the next menu. The remaining menus appear as
follows with the default settings shown:
MYKEY MPH TONES 45 55 65
MYKEY VOLUME LIMIT OFF
MYKEY ADVTRAC CTRL ON .
4. On any of the menus press RESET to highlight your choice with the
<…>.
Locks and Security
96
2011 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)

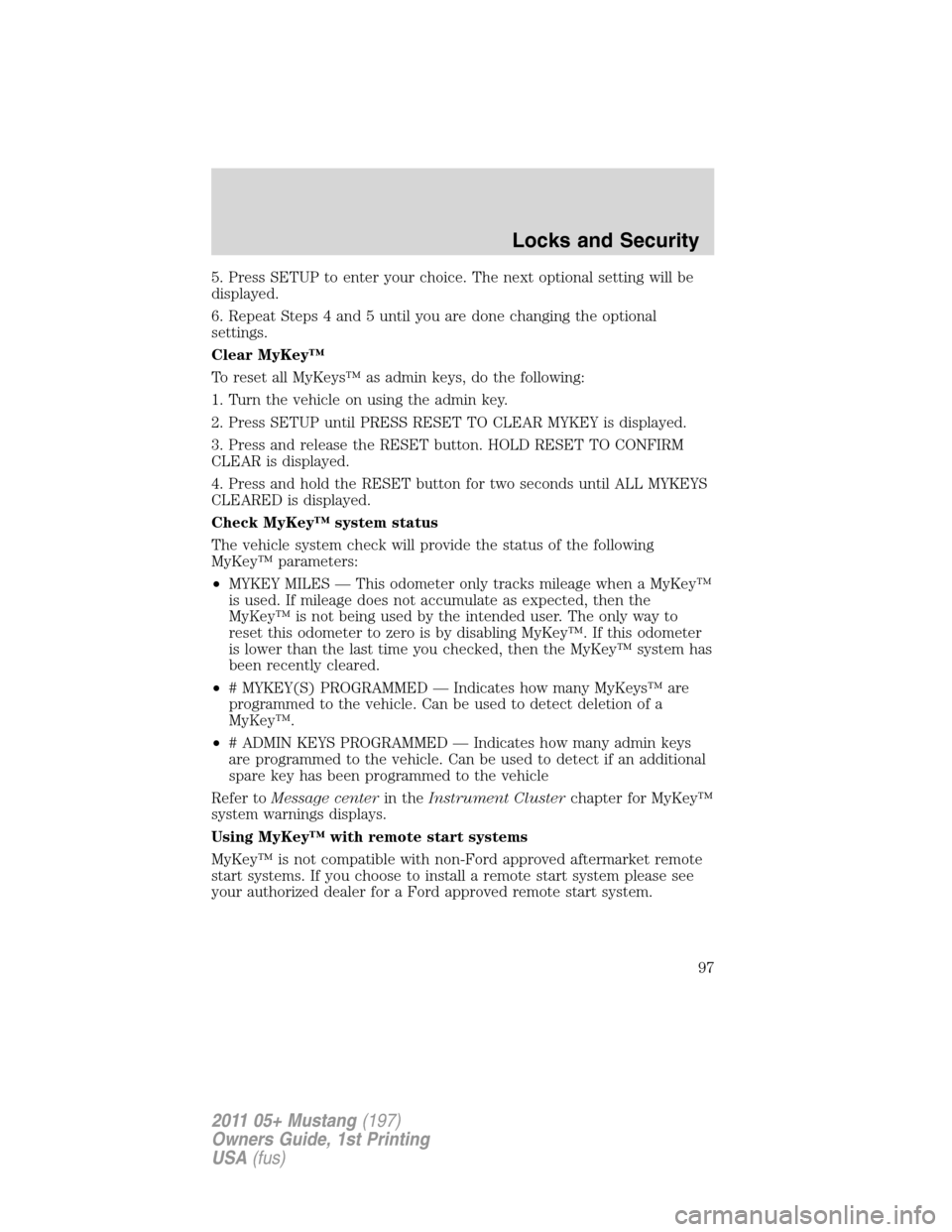

5. Press SETUP to enter your choice. The next optional setting will be
displayed.
6. Repeat Steps 4 and 5 until you are done changing the optional
settings.
Clear MyKey™
To reset all MyKeys™ as admin keys, do the following:
1. Turn the vehicle on using the admin key.
2. Press SETUP until PRESS RESET TO CLEAR MYKEY is displayed.
3. Press and release the RESET button. HOLD RESET TO CONFIRM
CLEAR is displayed.
4. Press and hold the RESET button for two seconds until ALL MYKEYS
CLEARED is displayed.
Check MyKey™ system status
The vehicle system check will provide the status of the following
MyKey™ parameters:
•MYKEY MILES — This odometer only tracks mileage when a MyKey™
is used. If mileage does not accumulate as expected, then the
MyKey™ is not being used by the intended user. The only way to
reset this odometer to zero is by disabling MyKey™. If this odometer
is lower than the last time you checked, then the MyKey™ system has
been recently cleared.
•# MYKEY(S) PROGRAMMED — Indicates how many MyKeys™ are
programmed to the vehicle. Can be used to detect deletion of a
MyKey™.
•# ADMIN KEYS PROGRAMMED — Indicates how many admin keys
are programmed to the vehicle. Can be used to detect if an additional
spare key has been programmed to the vehicle
Refer toMessage centerin theInstrument Clusterchapter for MyKey™
system warnings displays.
Using MyKey™ with remote start systems
MyKey™ is not compatible with non-Ford approved aftermarket remote
start systems. If you choose to install a remote start system please see
your authorized dealer for a Ford approved remote start system.
Locks and Security
97
2011 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)

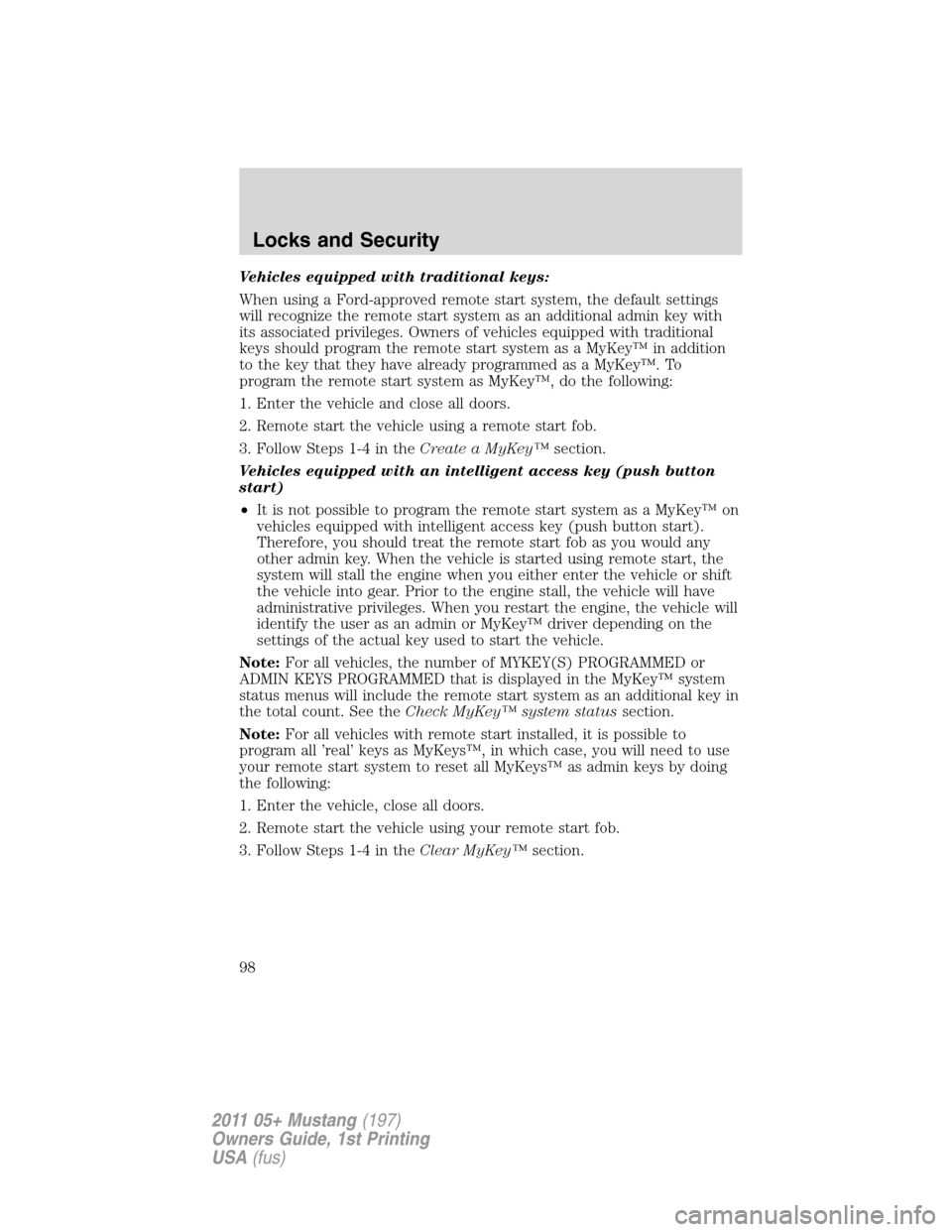

Vehicles equipped with traditional keys:
When using a Ford-approved remote start system, the default settings
will recognize the remote start system as an additional admin key with
its associated privileges. Owners of vehicles equipped with traditional
keys should program the remote start system as a MyKey™ in addition
to the key that they have already programmed as a MyKey™. To
program the remote start system as MyKey™, do the following:
1. Enter the vehicle and close all doors.
2. Remote start the vehicle using a remote start fob.
3. Follow Steps 1-4 in theCreate a MyKey™section.
Vehicles equipped with an intelligent access key (push button
start)
•It is not possible to program the remote start system as a MyKey™ on
vehicles equipped with intelligent access key (push button start).
Therefore, you should treat the remote start fob as you would any
other admin key. When the vehicle is started using remote start, the
system will stall the engine when you either enter the vehicle or shift
the vehicle into gear. Prior to the engine stall, the vehicle will have
administrative privileges. When you restart the engine, the vehicle will
identify the user as an admin or MyKey™ driver depending on the
settings of the actual key used to start the vehicle.
Note:For all vehicles, the number of MYKEY(S) PROGRAMMED or
ADMIN KEYS PROGRAMMED that is displayed in the MyKey™ system
status menus will include the remote start system as an additional key in
the total count. See theCheck MyKey™ system statussection.
Note:For all vehicles with remote start installed, it is possible to
program all ’real’ keys as MyKeys™, in which case, you will need to use
your remote start system to reset all MyKeys™ as admin keys by doing
the following:
1. Enter the vehicle, close all doors.
2. Remote start the vehicle using your remote start fob.
3. Follow Steps 1-4 in theClear MyKey™section.
Locks and Security
98
2011 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)

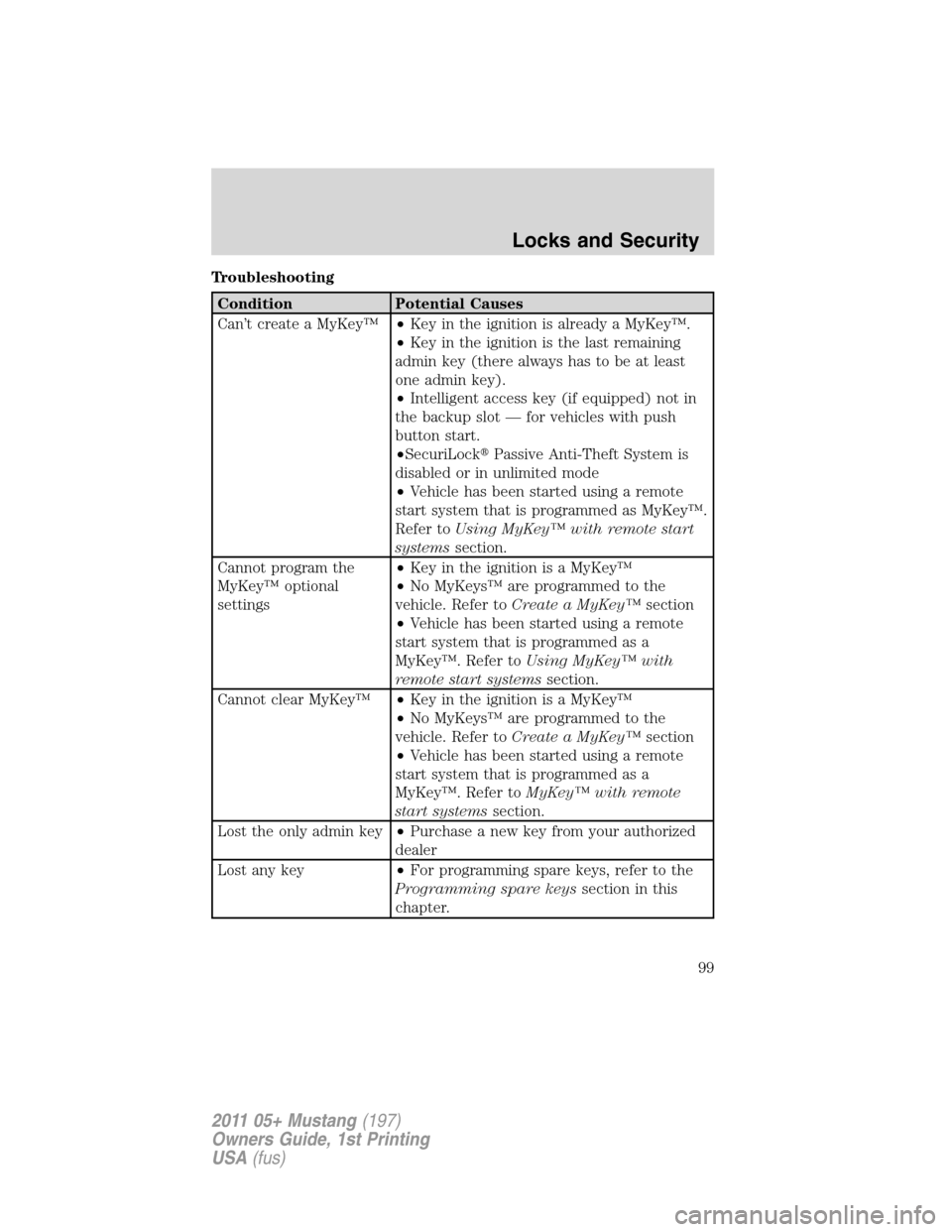

Troubleshooting
Condition Potential Causes
Can’t create a MyKey™•Key in the ignition is already a MyKey™.
•Key in the ignition is the last remaining
admin key (there always has to be at least
one admin key).
•Intelligent access key (if equipped) not in
the backup slot — for vehicles with push
button start.
•SecuriLock
Passive Anti-Theft System is
disabled or in unlimited mode
•Vehicle has been started using a remote
start system that is programmed as MyKey™.
Refer toUsing MyKey™ with remote start
systemssection.
Cannot program the
MyKey™ optional
settings•Key in the ignition is a MyKey™
•No MyKeys™ are programmed to the
vehicle. Refer toCreate a MyKey™section
•Vehicle has been started using a remote
start system that is programmed as a
MyKey™. Refer toUsing MyKey™ with
remote start systemssection.
Cannot clear MyKey™•Key in the ignition is a MyKey™
•No MyKeys™ are programmed to the
vehicle. Refer toCreate a MyKey™section
•Vehicle has been started using a remote
start system that is programmed as a
MyKey™. Refer toMyKey™ with remote
start systemssection.
Lost the only admin key•Purchase a new key from your authorized
dealer
Lost any key•For programming spare keys, refer to the
Programming spare keyssection in this
chapter.
Locks and Security
99
2011 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)

Condition Potential Causes
I accidentally
programmed all keys as
MyKeys™•Vehicle has a remote start system that is
recognized as an admin key. Refer to the
Using MyKey™ with rmote start systems
section to reset all MyKeys™ as admin keys.
No MyKey™ function
with intelligent access
key (push button start)
(if equipped)•An admin key is present at vehicle start
•No MyKeys™ are programmed to the
vehicle. Refer toCreate a MyKey™section
MyKey™ programmed
total includes one
additional key•Unknown key has been programmed to the
vehicle as a MyKey™.
•Vehicle is equipped with a remote start
system. Refer toUsing MyKey™ with
remote start systemssection.
Admin keys
programmed total
includes one additional
key•Unknown key has been programmed to the
vehicle as admin key.
•Vehicle is equipped with a remote start
system. Refer toUsing MyKey™ with
remote start systemssection.
MyKey™ miles do not
accumulate•MyKey™ is not being used by the intended
user.
•MyKey™ system has been recently cleared.
POWER DOOR LOCKS
The power door lock controls are located on the driver and front
passenger door panels.
Press the
control to unlock all
doors.
Press the
control to lock all
doors.
Locking and unlocking with keys
Your vehicle’s keys are designed to lock and unlock the driver’s door, as
well as open the trunk.
Locks and Security
100
2011 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)
