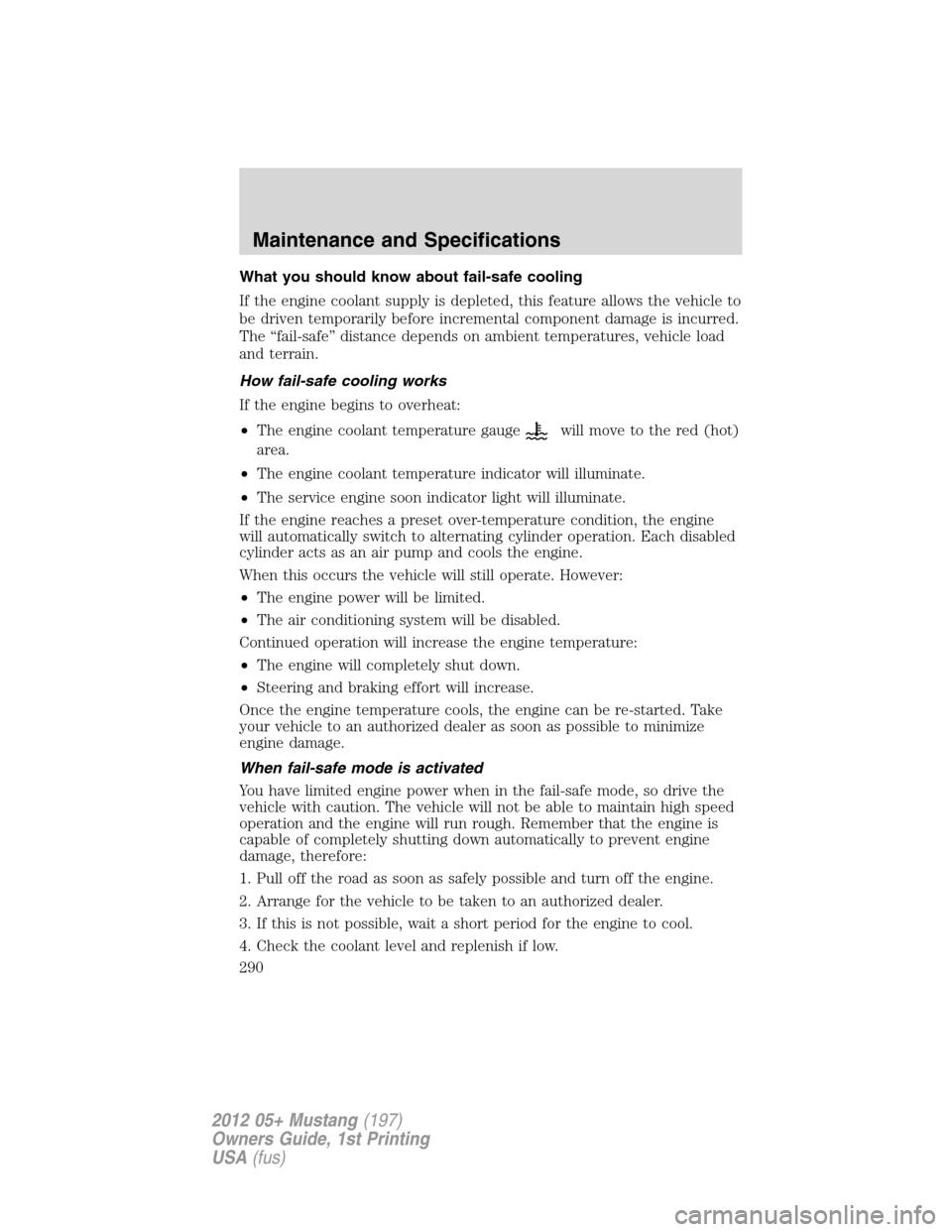

What you should know about fail-safe cooling
If the engine coolant supply is depleted, this feature allows the vehicle to
be driven temporarily before incremental component damage is incurred.
The “fail-safe” distance depends on ambient temperatures, vehicle load
and terrain.
How fail-safe cooling works
If the engine begins to overheat:
•The engine coolant temperature gauge
will move to the red (hot)
area.
•The engine coolant temperature indicator will illuminate.
•The service engine soon indicator light will illuminate.
If the engine reaches a preset over-temperature condition, the engine
will automatically switch to alternating cylinder operation. Each disabled
cylinder acts as an air pump and cools the engine.
When this occurs the vehicle will still operate. However:
•The engine power will be limited.
•The air conditioning system will be disabled.
Continued operation will increase the engine temperature:
•The engine will completely shut down.
•Steering and braking effort will increase.
Once the engine temperature cools, the engine can be re-started. Take
your vehicle to an authorized dealer as soon as possible to minimize
engine damage.
When fail-safe mode is activated
You have limited engine power when in the fail-safe mode, so drive the
vehicle with caution. The vehicle will not be able to maintain high speed
operation and the engine will run rough. Remember that the engine is
capable of completely shutting down automatically to prevent engine
damage, therefore:
1. Pull off the road as soon as safely possible and turn off the engine.
2. Arrange for the vehicle to be taken to an authorized dealer.
3. If this is not possible, wait a short period for the engine to cool.
4. Check the coolant level and replenish if low.
Maintenance and Specifications
290
2012 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)

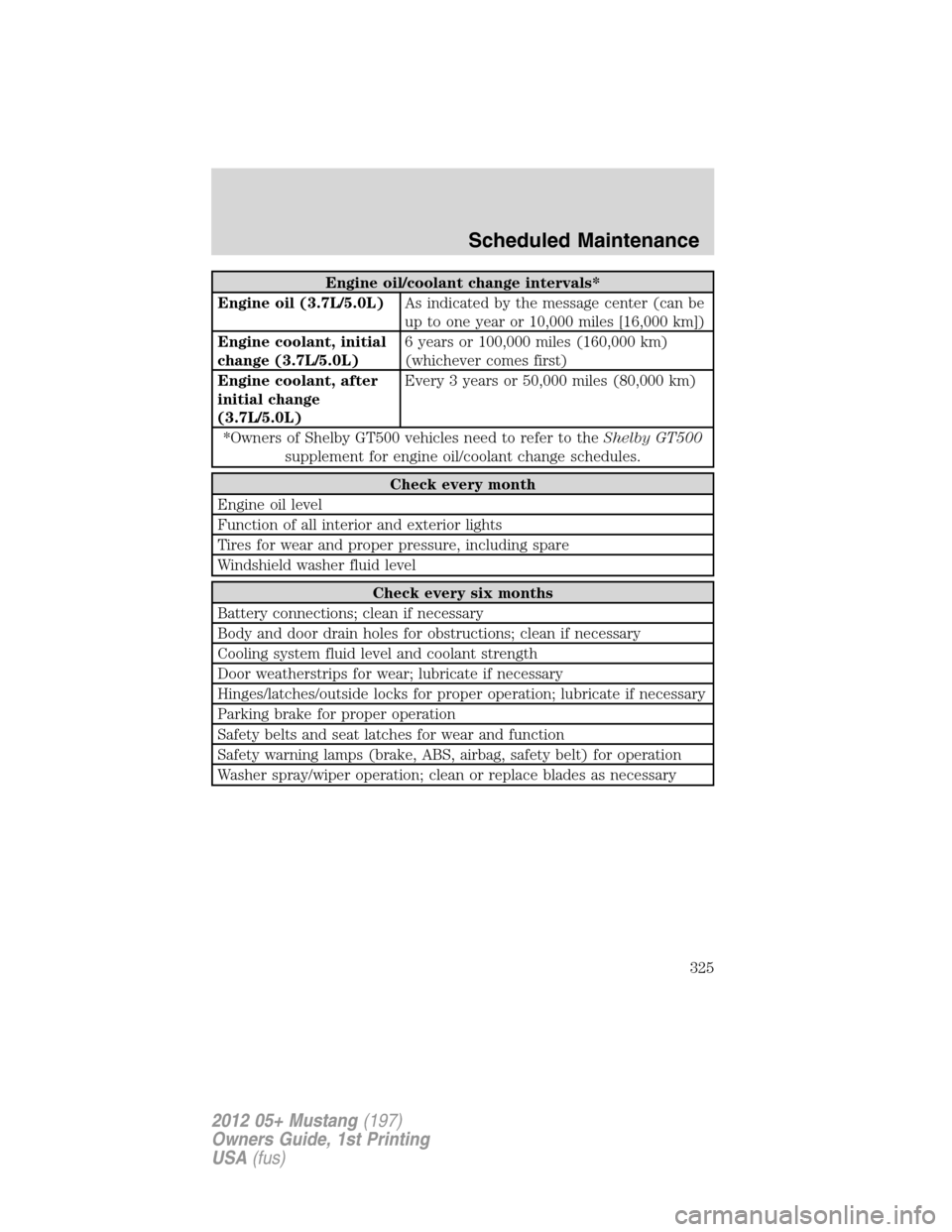

Engine oil/coolant change intervals*
Engine oil (3.7L/5.0L)As indicated by the message center (can be
up to one year or 10,000 miles [16,000 km])
Engine coolant, initial
change (3.7L/5.0L)6 years or 100,000 miles (160,000 km)
(whichever comes first)
Engine coolant, after
initial change
(3.7L/5.0L)Every 3 years or 50,000 miles (80,000 km)
*Owners of Shelby GT500 vehicles need to refer to theShelby GT500
supplement for engine oil/coolant change schedules.
Check every month
Engine oil level
Function of all interior and exterior lights
Tires for wear and proper pressure, including spare
Windshield washer fluid level
Check every six months
Battery connections; clean if necessary
Body and door drain holes for obstructions; clean if necessary
Cooling system fluid level and coolant strength
Door weatherstrips for wear; lubricate if necessary
Hinges/latches/outside locks for proper operation; lubricate if necessary
Parking brake for proper operation
Safety belts and seat latches for wear and function
Safety warning lamps (brake, ABS, airbag, safety belt) for operation
Washer spray/wiper operation; clean or replace blades as necessary
Scheduled Maintenance
325
2012 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)

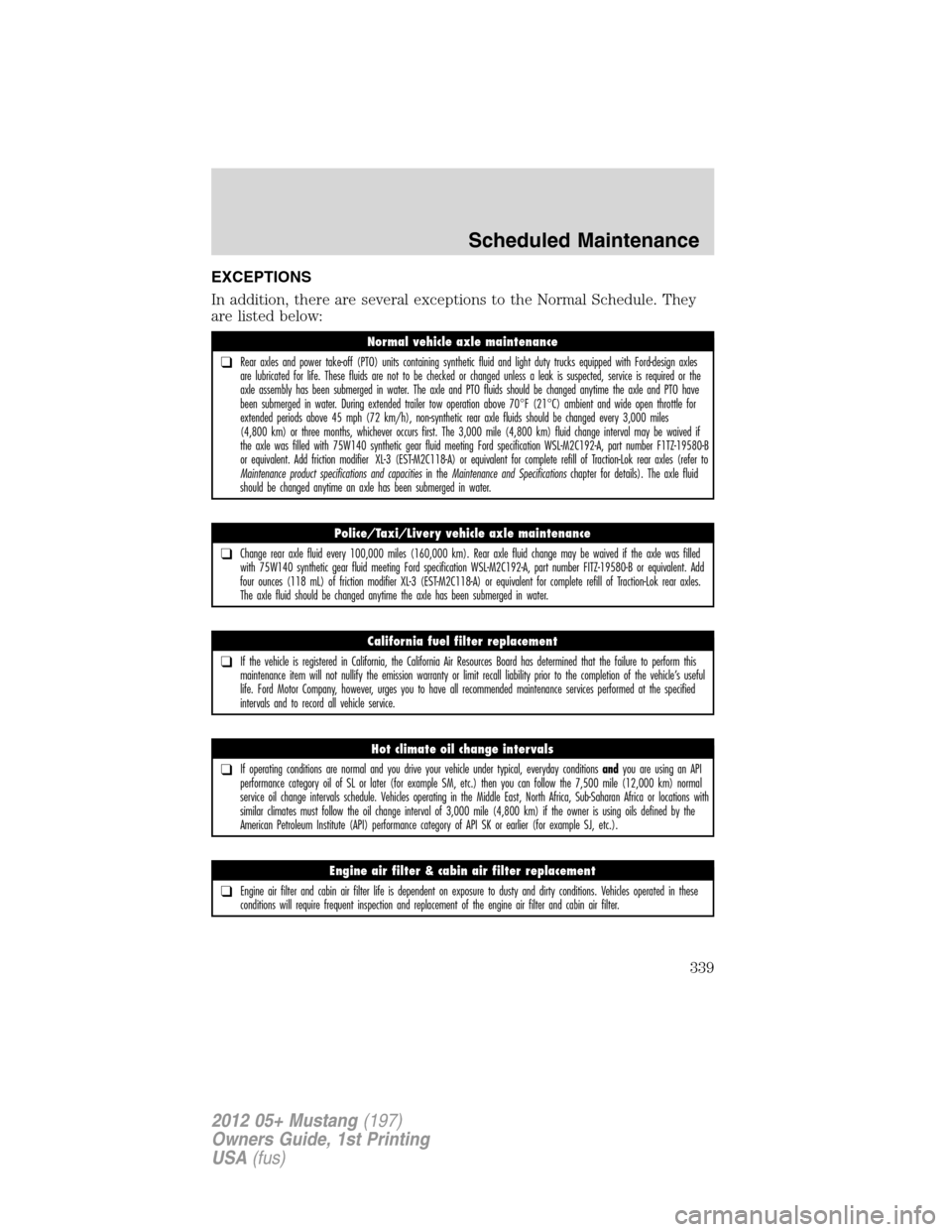

EXCEPTIONS
In addition, there are several exceptions to the Normal Schedule. They
are listed below:
Normal vehicle axle maintenance
❑Rear axles and power take-off (PTO) units containing synthetic fluid and light duty trucks equipped with Ford-design axles
are lubricated for life. These fluids are not to be checked or changed unless a leak is suspected, service is required or the
axle assembly has been submerged in water. The axle and PTO fluids should be changed anytime the axle and PTO have
been submerged in water. During extended trailer tow operation above 70°F (21°C) ambient and wide open throttle for
extended periods above 45 mph (72 km/h), non-synthetic rear axle fluids should be changed every 3,000 miles
(4,800 km) or three months, whichever occurs first. The 3,000 mile (4,800 km) fluid change interval may be waived if
the axle was filled with 75W140 synthetic gear fluid meeting Ford specification WSL-M2C192-A, part number F1TZ-19580-B
or equivalent. Add friction modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear axles (refer to
Maintenance product specifications and capacitiesin theMaintenance and Specificationschapter for details). The axle fluid
should be changed anytime an axle has been submerged in water.
Police/Taxi/Livery vehicle axle maintenance
❑Change rear axle fluid every 100,000 miles (160,000 km). Rear axle fluid change may be waived if the axle was filled
with 75W140 synthetic gear fluid meeting Ford specification WSL-M2C192-A, part number FITZ-19580-B or equivalent. Add
four ounces (118 mL) of friction modifier XL-3 (EST-M2C118-A) or equivalent for complete refill of Traction-Lok rear axles.
The axle fluid should be changed anytime the axle has been submerged in water.
California fuel filter replacement
❑If the vehicle is registered in California, the California Air Resources Board has determined that the failure to perform this
maintenance item will not nullify the emission warranty or limit recall liability prior to the completion of the vehicle’s useful
life. Ford Motor Company, however, urges you to have all recommended maintenance services performed at the specified
intervals and to record all vehicle service.
Hot climate oil change intervals
❑If operating conditions are normal and you drive your vehicle under typical, everyday conditionsandyou are using an API
performance category oil of SL or later (for example SM, etc.) then you can follow the 7,500 mile (12,000 km) normal
service oil change intervals schedule. Vehicles operating in the Middle East, North Africa, Sub-Saharan Africa or locations with
similar climates must follow the oil change interval of 3,000 mile (4,800 km) if the owner is using oils defined by the
American Petroleum Institute (API) performance category of API SK or earlier (for example SJ, etc.).
Engine air filter & cabin air filter replacement
❑Engine air filter and cabin air filter life is dependent on exposure to dusty and dirty conditions. Vehicles operated in these
conditions will require frequent inspection and replacement of the engine air filter and cabin air filter.
Scheduled Maintenance
339
2012 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)

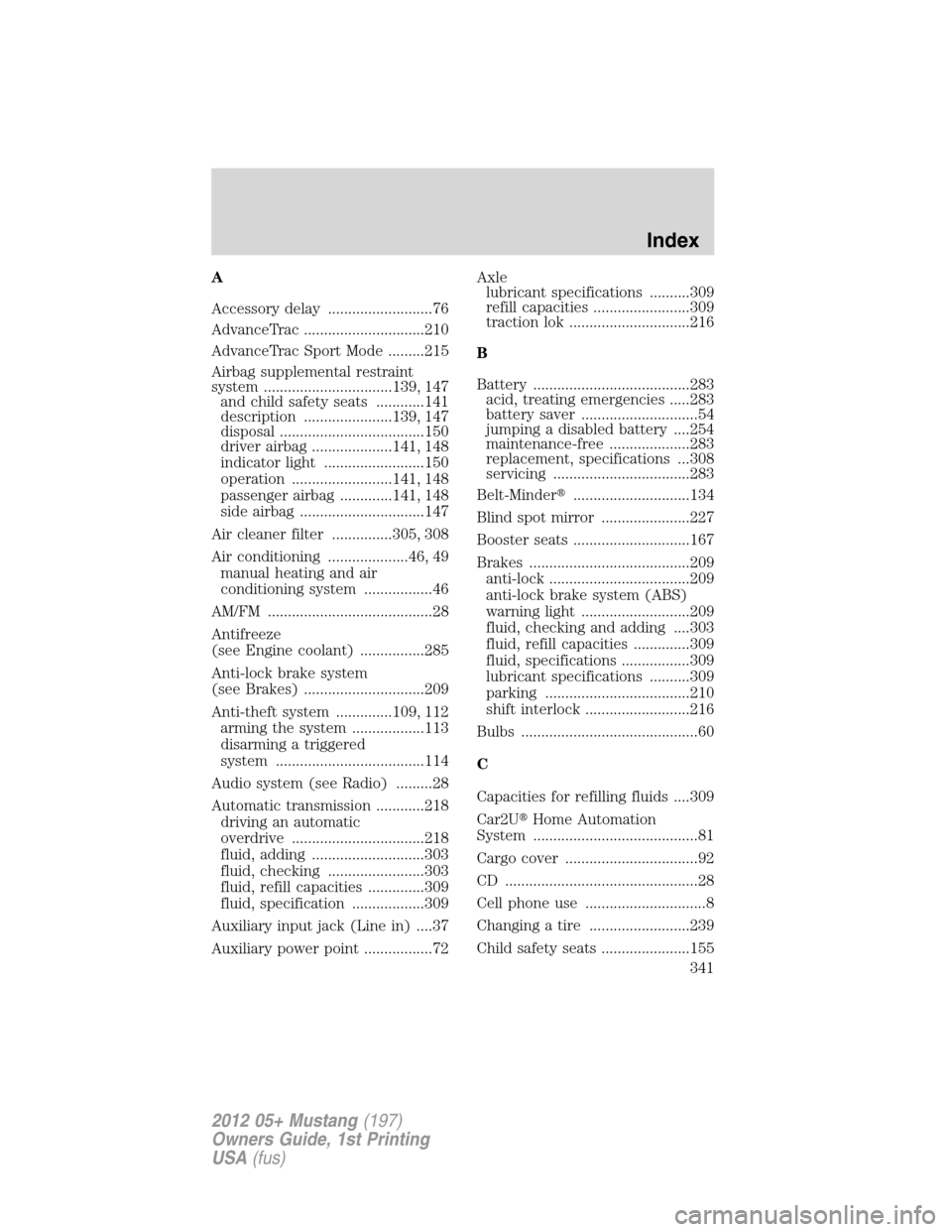

A
Accessory delay ..........................76
AdvanceTrac ..............................210
AdvanceTrac Sport Mode .........215
Airbag supplemental restraint
system ................................139, 147
and child safety seats ............141
description ......................139, 147
disposal ....................................150
driver airbag ....................141, 148
indicator light .........................150
operation .........................141, 148
passenger airbag .............141, 148
side airbag ...............................147
Air cleaner filter ...............305, 308
Air conditioning ....................46, 49
manual heating and air
conditioning system .................46
AM/FM .........................................28
Antifreeze
(see Engine coolant) ................285
Anti-lock brake system
(see Brakes) ..............................209
Anti-theft system ..............109, 112
arming the system ..................113
disarming a triggered
system .....................................114
Audio system (see Radio) .........28
Automatic transmission ............218
driving an automatic
overdrive .................................218
fluid, adding ............................303
fluid, checking ........................303
fluid, refill capacities ..............309
fluid, specification ..................309
Auxiliary input jack (Line in) ....37
Auxiliary power point .................72Axle
lubricant specifications ..........309
refill capacities ........................309
traction lok ..............................216
B
Battery .......................................283
acid, treating emergencies .....283
battery saver .............................54
jumping a disabled battery ....254
maintenance-free ....................283
replacement, specifications ...308
servicing ..................................283
Belt-Minder.............................134
Blind spot mirror ......................227
Booster seats .............................167
Brakes ........................................209
anti-lock ...................................209
anti-lock brake system (ABS)
warning light ...........................209
fluid, checking and adding ....303
fluid, refill capacities ..............309
fluid, specifications .................309
lubricant specifications ..........309
parking ....................................210
shift interlock ..........................216
Bulbs ............................................60
C
Capacities for refilling fluids ....309
Car2UHome Automation
System .........................................81
Cargo cover .................................92
CD ................................................28
Cell phone use ..............................8
Changing a tire .........................239
Child safety seats ......................155
Index
341
2012 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)

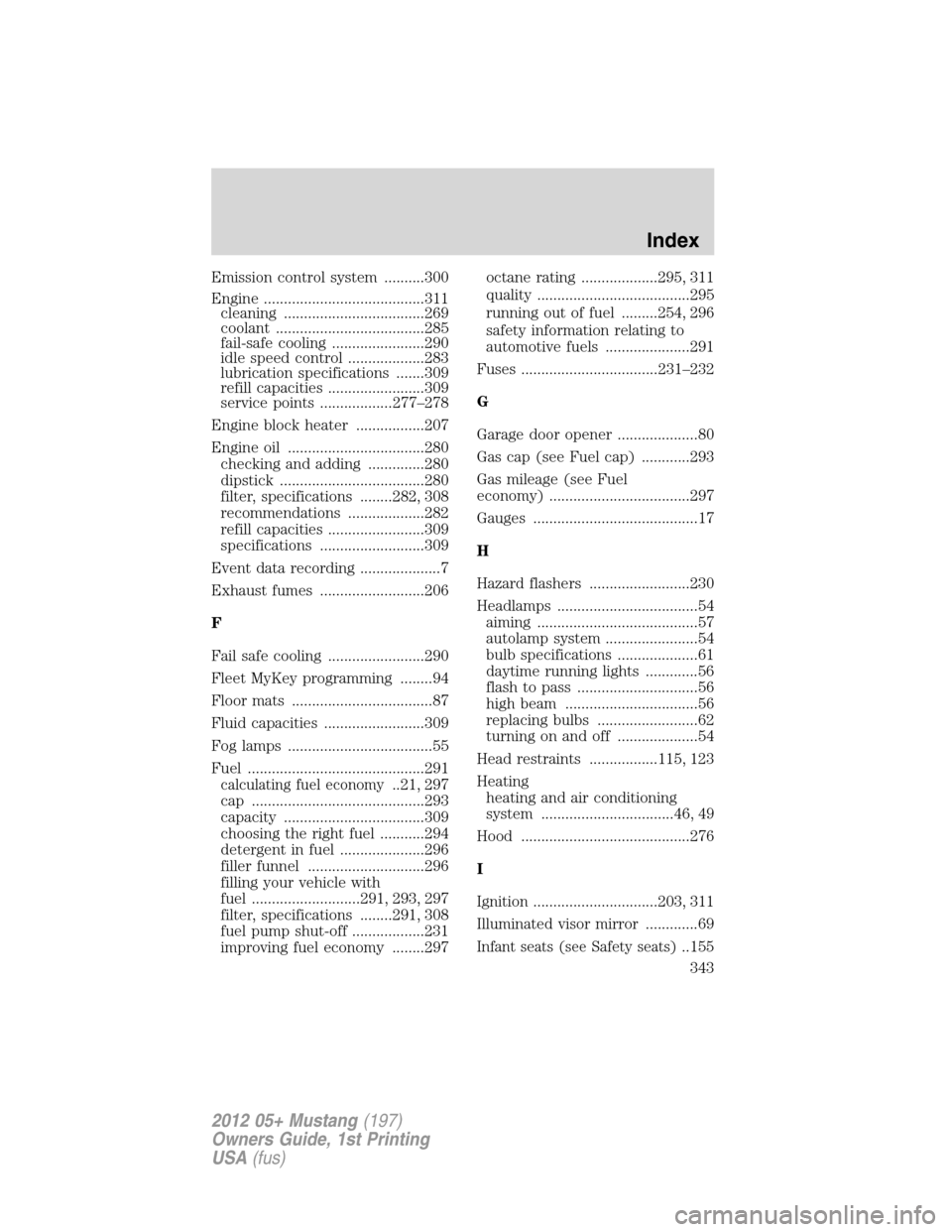

Emission control system ..........300
Engine ........................................311
cleaning ...................................269
coolant .....................................285
fail-safe cooling .......................290
idle speed control ...................283
lubrication specifications .......309
refill capacities ........................309
service points ..................277–278
Engine block heater .................207
Engine oil ..................................280
checking and adding ..............280
dipstick ....................................280
filter, specifications ........282, 308
recommendations ...................282
refill capacities ........................309
specifications ..........................309
Event data recording ....................7
Exhaust fumes ..........................206
F
Fail safe cooling ........................290
Fleet MyKey programming ........94
Floor mats ...................................87
Fluid capacities .........................309
Fog lamps ....................................55
Fuel ............................................291
calculating fuel economy..21, 297
cap ...........................................293
capacity ...................................309
choosing the right fuel ...........294
detergent in fuel .....................296
filler funnel .............................296
filling your vehicle with
fuel ...........................291, 293, 297
filter, specifications ........291, 308
fuel pump shut-off ..................231
improving fuel economy ........297octane rating ...................295, 311
quality ......................................295
running out of fuel .........254, 296
safety information relating to
automotive fuels .....................291
Fuses ..................................231–232
G
Garage door opener ....................80
Gas cap (see Fuel cap) ............293
Gas mileage (see Fuel
economy) ...................................297
Gauges .........................................17
H
Hazard flashers .........................230
Headlamps ...................................54
aiming ........................................57
autolamp system .......................54
bulb specifications ....................61
daytime running lights .............56
flash to pass ..............................56
high beam .................................56
replacing bulbs .........................62
turning on and off ....................54
Head restraints .................115, 123
Heating
heating and air conditioning
system .................................46, 49
Hood ..........................................276
I
Ignition ...............................203, 311
Illuminated visor mirror .............69
Infant seats (see Safety seats)..155
Index
343
2012 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)

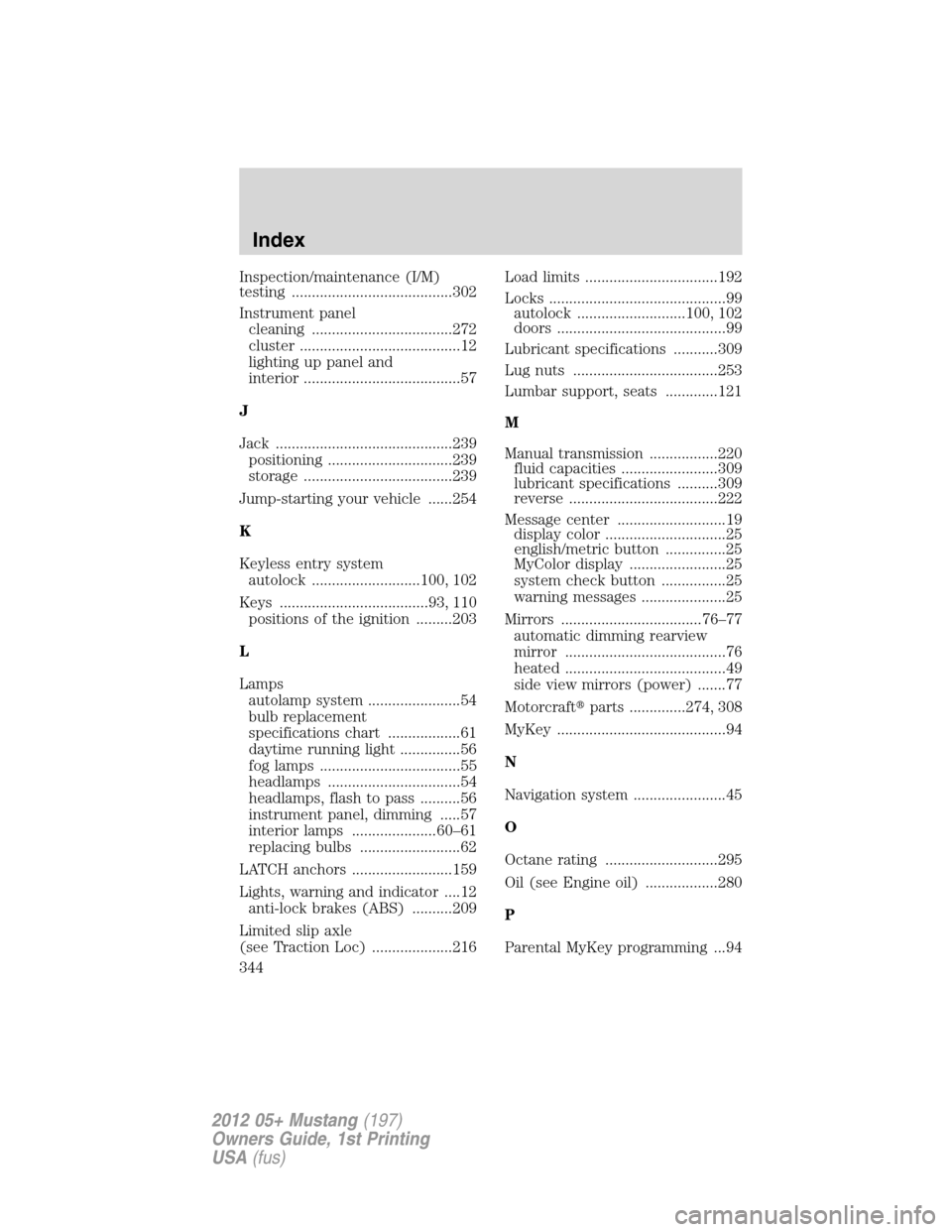

Inspection/maintenance (I/M)
testing ........................................302
Instrument panel
cleaning ...................................272
cluster ........................................12
lighting up panel and
interior .......................................57
J
Jack ............................................239
positioning ...............................239
storage .....................................239
Jump-starting your vehicle ......254
K
Keyless entry system
autolock ...........................100, 102
Keys .....................................93, 110
positions of the ignition .........203
L
Lamps
autolamp system .......................54
bulb replacement
specifications chart ..................61
daytime running light ...............56
fog lamps ...................................55
headlamps .................................54
headlamps, flash to pass ..........56
instrument panel, dimming .....57
interior lamps .....................60–61
replacing bulbs .........................62
LATCH anchors .........................159
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........209
Limited slip axle
(see Traction Loc) ....................216Load limits .................................192
Locks ............................................99
autolock ...........................100, 102
doors ..........................................99
Lubricant specifications ...........309
Lug nuts ....................................253
Lumbar support, seats .............121
M
Manual transmission .................220
fluid capacities ........................309
lubricant specifications ..........309
reverse .....................................222
Message center ...........................19
display color ..............................25
english/metric button ...............25
MyColor display ........................25
system check button ................25
warning messages .....................25
Mirrors ...................................76–77
automatic dimming rearview
mirror ........................................76
heated ........................................49
side view mirrors (power) .......77
Motorcraftparts ..............274, 308
MyKey ..........................................94
N
Navigation system .......................45
O
Octane rating ............................295
Oil (see Engine oil) ..................280
P
Parental MyKey programming ...94
Index
344
2012 05+ Mustang(197)
Owners Guide, 1st Printing
USA(fus)
