At every oil change interval as indicated by the information display
1
Inspect the exhaust system and heat shields.
Inspect rear axle and U-joints. Lubricate if your vehicle has grease fittings.
Inspect the half-shaft boots.
Inspect the steering linkage, ball joints, suspension, tie-rod ends, driveshaft and U-joints.
Lubricate any areas with grease fittings.
Inspect the wheels and related components for abnormal noise, wear, looseness or
drag.
1 Do not exceed one year or 10,000 mi (16,000 km) between service intervals.
2 Reset the Intelligent Oil-Life Monitor after engine oil and filter changes. Brake Fluid Maintenance
1
Change the brake fluid. 2
Every 3 Years
1 Perform this maintenance item every 3 years. Do not exceed the designated time for
the interval.
2 Brake fluid servicing requires special equipment available at your authorized dealer. Other Maintenance Items
1
Replace the cabin air filter.
Every
20,000 mi
(32,000 km)
Replace the engine air filter.
Every
30,000 mi
(48,000 km)
Replace the spark plugs.
Every
100,000 mi
(160,000 km) Inspect the accessory drive belts. 2
Change the automatic transmission fluid and filter.
Every
150,000 mi
(240,000 km) Change the manual transmission fluid.
Replace the accessory drive belts.
405
Mustang (CZG) Canada/United States of America, Vehicles Built From: 15-07-2019, enUSA, Edition date: 201906, Second-Printing Scheduled Maintenance

Other Maintenance Items
1
Change the rear axle fluid.
Change the engine coolant. 3
At 200,000 mi
(322,000 km)
1 Perform these maintenance items within
3,000 mi (4,800 km) of the last engine oil and
filter change. Do not exceed the designated distance for the interval.
2 After initial inspection, inspect every other oil change until replaced.
3 Initial replacement at 10 years or
200,000 mi (322,000 km), then every five years or
100,000 mi (160,000 km).
SPECIAL OPERATING
CONDITIONS SCHEDULED
MAINTENANCE
If you operate your vehicle primarily
in any
of the following conditions, you need to
perform extra maintenance, as indicated.
If you operate your vehicle
occasionally
under any of these conditions, it is not
necessary to perform the extra
maintenance. For specific
recommendations, see your dealership
service advisor or technician. Towing a Trailer or Using a Car-top Carrier
Change engine oil and filter as indicated by the information
display and perform services listed in the Normal Sched-
uled Maintenance chart.
As required
Inspect rear axle and U-joints. Lubricate if equipped with
grease fittings.
Inspect frequently, service
as required
See axle maintenance items under
Exceptions.
Change manual transmission fluid.
Every
60,000 mi
(96,000 km) Replace spark plugs.
406
Mustang (CZG) Canada/United States of America, Vehicles Built From: 15-07-2019, enUSA, Edition date: 201906, Second-Printing Scheduled Maintenance

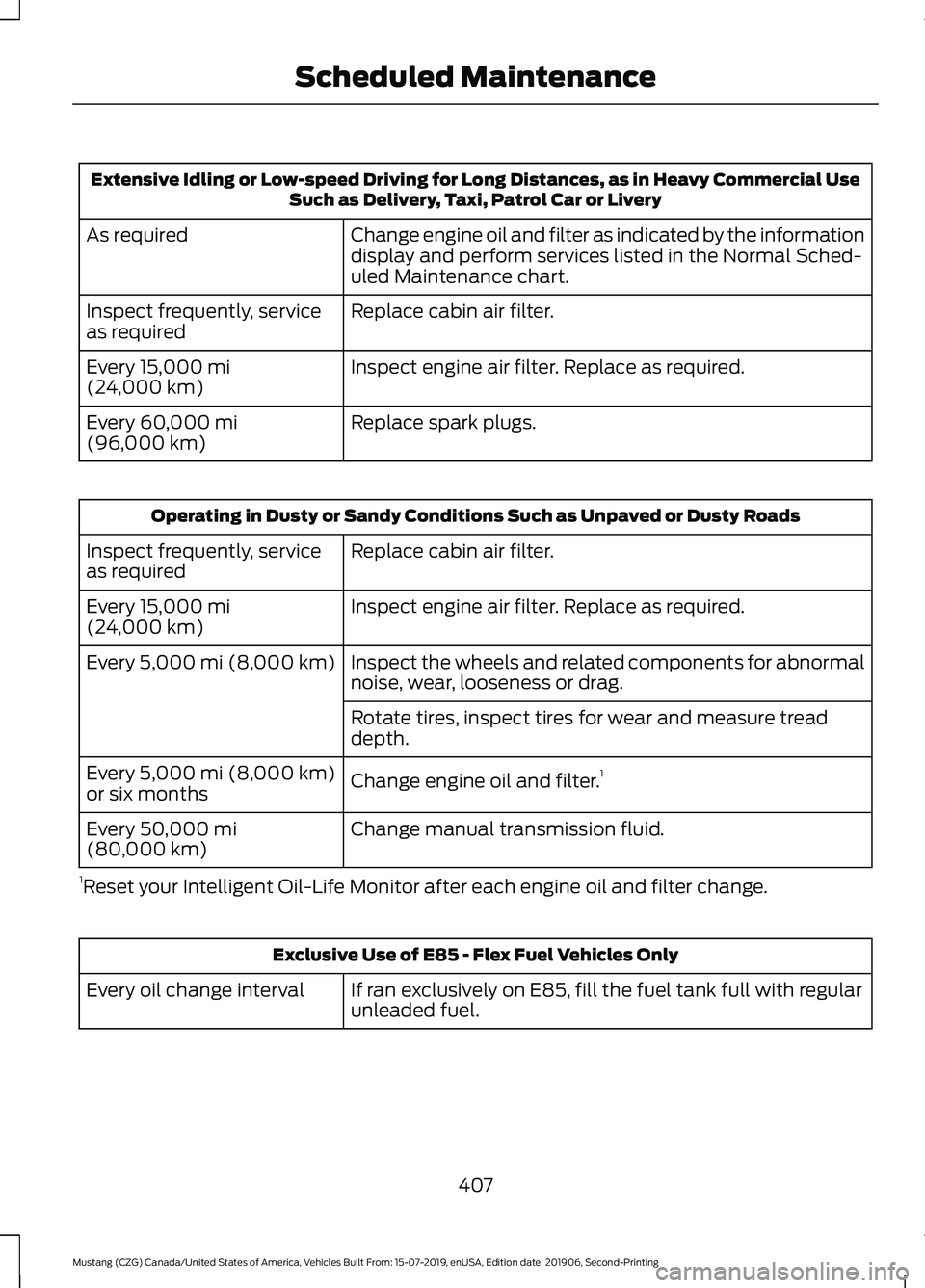

Extensive Idling or Low-speed Driving for Long Distances, as in Heavy Commercial Use
Such as Delivery, Taxi, Patrol Car or Livery
Change engine oil and filter as indicated by the information
display and perform services listed in the Normal Sched-
uled Maintenance chart.
As required
Replace cabin air filter.
Inspect frequently, service
as required
Inspect engine air filter. Replace as required.
Every 15,000 mi
(24,000 km)
Replace spark plugs.
Every
60,000 mi
(96,000 km) Operating in Dusty or Sandy Conditions Such as Unpaved or Dusty Roads
Replace cabin air filter.
Inspect frequently, service
as required
Inspect engine air filter. Replace as required.
Every
15,000 mi
(24,000 km)
Inspect the wheels and related components for abnormal
noise, wear, looseness or drag.
Every
5,000 mi (8,000 km)
Rotate tires, inspect tires for wear and measure tread
depth.
Change engine oil and filter. 1
Every
5,000 mi (8,000 km)
or six months
Change manual transmission fluid.
Every
50,000 mi
(80,000 km)
1 Reset your Intelligent Oil-Life Monitor after each engine oil and filter change. Exclusive Use of E85 - Flex Fuel Vehicles Only
If ran exclusively on E85, fill the fuel tank full with regular
unleaded fuel.
Every oil change interval
407
Mustang (CZG) Canada/United States of America, Vehicles Built From: 15-07-2019, enUSA, Edition date: 201906, Second-Printing Scheduled Maintenance

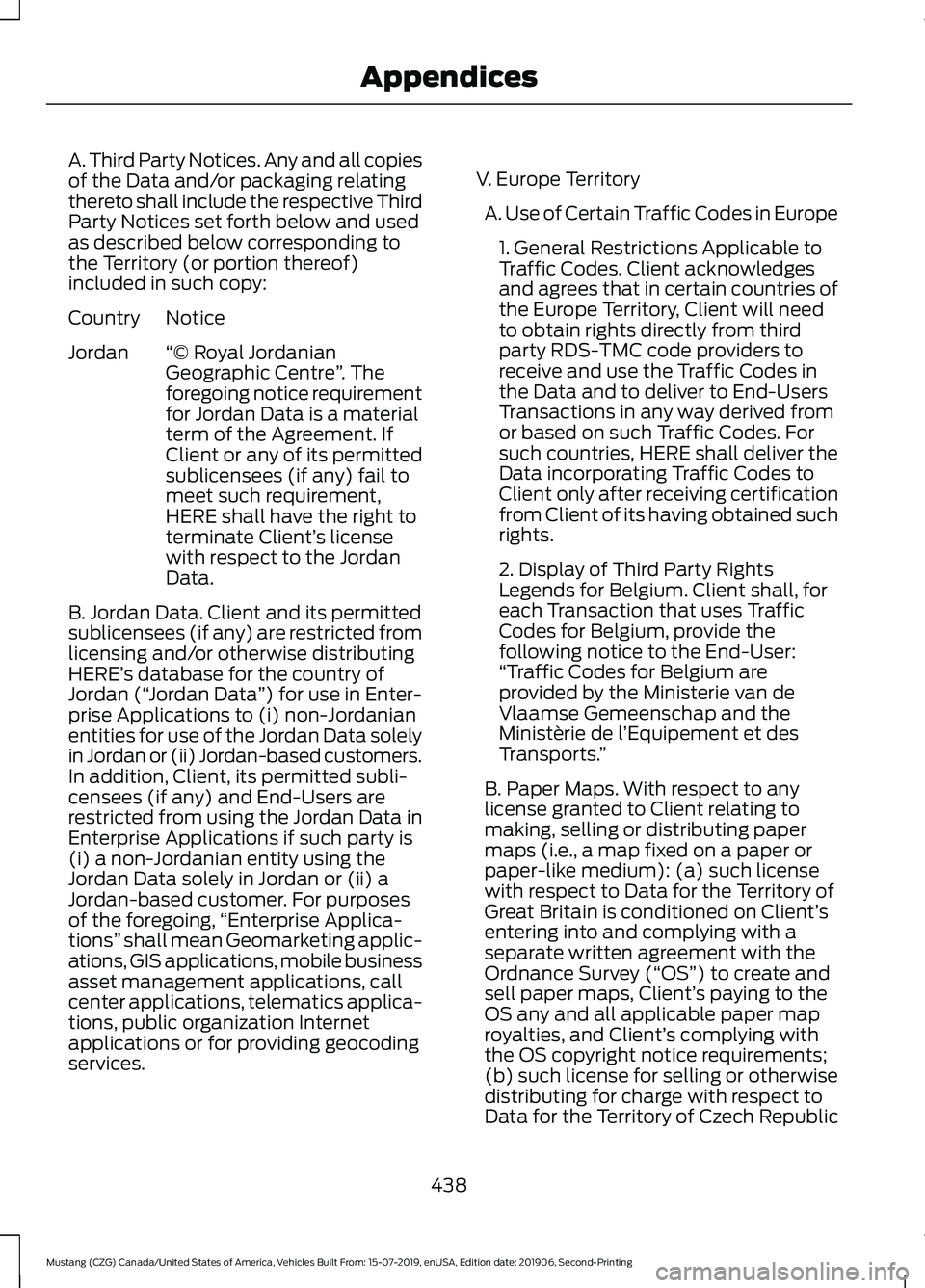

A. Third Party Notices. Any and all copies
of the Data and/or packaging relating
thereto shall include the respective Third
Party Notices set forth below and used
as described below corresponding to
the Territory (or portion thereof)
included in such copy:
Notice
Country
“© Royal Jordanian
Geographic Centre ”. The
foregoing notice requirement
for Jordan Data is a material
term of the Agreement. If
Client or any of its permitted
Jordan
sublicensees (if any) fail to
meet such requirement,
HERE shall have the right to
terminate Client’ s license
with respect to the Jordan
Data.
B. Jordan Data. Client and its permitted
sublicensees (if any) are restricted from
licensing and/or otherwise distributing
HERE’ s database for the country of
Jordan (“ Jordan Data ”) for use in Enter-
prise Applications to (i) non-Jordanian
entities for use of the Jordan Data solely
in Jordan or (ii) Jordan-based customers.
In addition, Client, its permitted subli-
censees (if any) and End-Users are
restricted from using the Jordan Data in
Enterprise Applications if such party is
(i) a non-Jordanian entity using the
Jordan Data solely in Jordan or (ii) a
Jordan-based customer. For purposes
of the foregoing, “Enterprise Applica-
tions” shall mean Geomarketing applic-
ations, GIS applications, mobile business
asset management applications, call
center applications, telematics applica-
tions, public organization Internet
applications or for providing geocoding
services. V. Europe Territory
A. Use of Certain Traffic Codes in Europe 1. General Restrictions Applicable to
Traffic Codes. Client acknowledges
and agrees that in certain countries of
the Europe Territory, Client will need
to obtain rights directly from third
party RDS-TMC code providers to
receive and use the Traffic Codes in
the Data and to deliver to End-Users
Transactions in any way derived from
or based on such Traffic Codes. For
such countries, HERE shall deliver the
Data incorporating Traffic Codes to
Client only after receiving certification
from Client of its having obtained such
rights.
2. Display of Third Party Rights
Legends for Belgium. Client shall, for
each Transaction that uses Traffic
Codes for Belgium, provide the
following notice to the End-User:
“Traffic Codes for Belgium are
provided by the Ministerie van de
Vlaamse Gemeenschap and the
Ministèrie de l ’Equipement et des
Transports. ”
B. Paper Maps. With respect to any
license granted to Client relating to
making, selling or distributing paper
maps (i.e., a map fixed on a paper or
paper-like medium): (a) such license
with respect to Data for the Territory of
Great Britain is conditioned on Client’ s
entering into and complying with a
separate written agreement with the
Ordnance Survey (“OS ”) to create and
sell paper maps, Client’ s paying to the
OS any and all applicable paper map
royalties, and Client’ s complying with
the OS copyright notice requirements;
(b) such license for selling or otherwise
distributing for charge with respect to
Data for the Territory of Czech Republic
438
Mustang (CZG) Canada/United States of America, Vehicles Built From: 15-07-2019, enUSA, Edition date: 201906, Second-Printing Appendices

A
A/C
See: Climate Control........................................... 111
About This Manual...........................................7
ABS See: Brakes........................................................... 154
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes................................................................ 154
Accessories....................................................397
Accessories See: Replacement Parts
Recommendation............................................ 14
ACC See: Using Adaptive Cruise Control............168
Adjusting the Headlamps........................248 Horizontal Aim Adjustment........................... 250
Vertical Aim Adjustment................................ 248
Adjusting the Steering Wheel...................68
Airbag Disposal
...............................................49
Air Conditioning See: Climate Control........................................... 111
Air Filter See: Changing the Engine Air Filter - 2.3L
EcoBoost™/5.0L.......................................... 239
See: Changing the Engine Air Filter - 5.0L, Bullitt................................................................. 239
Alarm See: Anti-Theft Alarm......................................... 67
Ambient Lighting............................................76
Anti-Theft Alarm
............................................67
Arming the Alarm................................................. 67
Disarming the Alarm........................................... 67
Appendices.....................................................419
Apps
..................................................................379
SiriusXM Traffic and Travel Link.................... 381
Using Apps on an Android Device..............380
Using Apps on an iOS Device....................... 380
Using Mobile Navigation on an Android Device............................................................... 380
At a Glance........................................................18
Audible Warnings and Indicators.............89 Beltminder Warning............................................ 89
Direction Indicator Left On............................... 89
Headlamps On Warning Tone......................... 89
Keyless Warning Alert........................................ 89
Parking Brake On Warning Tone.................... 89Transmission Not in Park..................................
89
Audio Control..................................................68 You can operate the following functions
with the control:.............................................. 68
Audio System
................................................324
General Information......................................... 324
Audio Unit - Vehicles With: SYNC 3.......................................................................326
Accessing the Sound Settings....................... 327
Adjusting the Volume....................................... 327
Changing Radio Stations................................. 327
Ejecting the CD.................................................... 327
Inserting a CD...................................................... 327
Playing or Pausing Media................................ 327
Switching the Audio Unit On and Off.........327
Using Seek, Fast Forward and Reverse............................................................. 328
Audio Unit - Vehicles With: SYNC
.........324
Accessing the Apps Menu.............................. 325
Accessing the Clock Settings........................ 325
Accessing the Media Source Menu.............325
Accessing the Phone Features..................... 325
Accessing the Settings Menu........................ 325
Accessing the Sound Settings...................... 325
Adjusting the Volume....................................... 325
Changing Radio Stations................................ 325
Listening to the Radio...................................... 326
Muting the Audio............................................... 326
Playing or Pausing Media............................... 326
Switching the Audio Unit On and Off........326
Switching the Display On and Off...............326
Using Seek, Fast Forward and Reverse............................................................. 326
Using the Display Control............................... 326
Using the Number Block................................. 326
Autolamps.........................................................74 Windshield Wiper Activated
Headlamps......................................................... 74
Automatic Climate Control
........................112
Setting the Blower Motor Speed................... 112
Setting the Temperature................................... 113
Switching Auto Mode On and Off.................113
Switching Defrost On and Off......................... 113
Switching Maximum Air Conditioning On and Off................................................................ 113
Switching Maximum Defrost On and Off........................................................................\
. 113
449
Mustang (CZG) Canada/United States of America, Vehicles Built From: 15-07-2019, enUSA, Edition date: 201906, Second-Printing Index

Fuel Consumption.........................................141
Advertised Capacity........................................... 141
Calculating Fuel Economy.............................. 142
Filling the Fuel Tank........................................... 142
Fuel Filler Funnel Location........................137
Fuel Filter
........................................................250
Fuel Quality.....................................................136 Choosing the Right Fuel................................... 136
Fuel Shutoff..................................................209
Fuses..................................................................221
Fuse Specification Chart............................221 Passenger Compartment Fuse Panel........227
Power Distribution Box..................................... 221
G
Garage Door Opener....................................125
Garage Door Opener See: Universal Garage Door Opener............125
Gauges...............................................................83 Engine Coolant Temperature Gauge............85
Fuel Gauge.............................................................. 85
Gauge Package..................................................... 85
Information Bar..................................................... 85
Information Display............................................. 84
Type 1........................................................................\
83
Type 2....................................................................... 84
Gearbox See: Transmission............................................... 147
General Information on Radio Frequencies...................................................50
Intelligent Access................................................. 50
General Maintenance Information.......400 Multi-Point Inspection..................................... 403
Owner Checks and Services......................... 402
Protecting Your Investment.......................... 400
Why Maintain Your Vehicle?........................ 400
Why Maintain Your Vehicle at Your Dealership?.................................................... 400
Getting Assistance Outside the U.S. and Canada
...........................................................217
Getting the Services You Need................214 Away From Home............................................... 214
Glasses Holder
..............................................130
Global Opening...............................................79
Opening the Windows....................................... 80H
Handbrake
See: Parking Brake.............................................. 155
Hazard Flashers...........................................209
Headlamp Adjusting See: Adjusting the Headlamps..................... 248
Headlamp Exit Delay.....................................74
Headrest See: Head Restraints.......................................... 118
Head Restraints
.............................................118
Adjusting the Head Restraint.......................... 119
Front Seat Non-Adjustable Head Restraints ........................................................................\
....... 119
Tilting Head Restraints .................................... 120
Heated Exterior Mirrors................................116
Heated Rear Window...................................116
Heated Steering Wheel................................70
Heating See: Climate Control........................................... 111
Hill Start Assist..............................................155 Switching the System On and Off...............156
Using Hill Start Assist....................................... 156
Hints on Controlling the Interior Climate - Vehicles With: Automatic
Temperature Control
.................................115
Defogging the Side Windows in Cold
Weather.............................................................. 116
General Hints......................................................... 115
Quickly Cooling the Interior.............................. 115
Quickly Heating the Interior............................. 115
Recommended Settings for Cooling............115
Recommended Settings for Heating...........115
Hints on Controlling the Interior Climate - Vehicles With: Manual Temperature
Control
............................................................114
Defogging the Side Windows in Cold
Weather.............................................................. 115
General Hints......................................................... 114
Quickly Cooling the Interior.............................. 114
Quickly Heating the Interior............................. 114
Recommended Settings for Cooling............114
Recommended Settings for Heating...........114
Vehicle Stationary for Extended Periods During Extreme High Ambient
Temperatures................................................... 114
Hints on Driving With Anti-Lock Brakes............................................................154
454
Mustang (CZG) Canada/United States of America, Vehicles Built From: 15-07-2019, enUSA, Edition date: 201906, Second-Printing Index

Hood Lock
See: Opening and Closing the Hood...........232
Horn.....................................................................70
I
In California (U.S. Only)..............................215
Information Display Control - Vehicles With: SYNC 3................................................69
Quick Action Menus............................................ 70
Information Display Control - Vehicles With: SYNC....................................................69
Information Displays....................................90
General Information........................................... 90
Information Messages
...............................100
Adaptive Cruise Control.................................. 100
Airbag....................................................................... 101
Alarm........................................................................\
101
Battery and Charging System......................... 101
Blind Spot Information and Cross Traffic Alert System.................................................... 102
Doors and Locks................................................. 103
Drive Control........................................................ 103
Electronic Stability Control............................. 103
Engine..................................................................... 103
Exhaust Mode...................................................... 104
Fuel........................................................................\
.. 104
Hill Start Assist................................................... 104
Keys and Intelligent Access............................ 104
Maintenance........................................................ 105
MyKey..................................................................... 106
Park Aid.................................................................. 106
Park Brake.............................................................. 107
Pre-Collision Assist............................................ 107
Rear Axle................................................................ 107
Remote Start........................................................ 107
Seats....................................................................... 108
Starting System ................................................. 108
Steering System................................................. 108
Suspension System.......................................... 109
Tire Mobility Kit................................................... 109
Tire Pressure Monitoring System.................109
Traction Control.................................................. 109
Transmission......................................................... 110
Installing Child Restraints...........................22 Child Seats.............................................................. 22
Using Lap and Shoulder Belts......................... 22Using Lower Anchors and Tethers for
CHildren (LATCH)........................................... 24
Using Tether Straps............................................. 26
Instrument Cluster
........................................83
Instrument Lighting Dimmer......................74
Instrument Panel............................................18
Interior Air Quality..........................................117
Interior Lamps
.................................................76
Interior Luggage Compartment Release............................................................65
Interior Mirror....................................................81 Auto-Dimming Mirror........................................... 81
Introduction.........................................................7
J
Jump Starting the Vehicle.........................210 Connecting the Jumper Cables..................... 210
Installing the Battery Shield............................ 212
Preparing Your Vehicle..................................... 210
Removing the Battery Shield......................... 210
Removing the Jumper Cables......................... 211
Starting the Engine.............................................. 211
K
Keyless Starting
..............................................131
Ignition Modes...................................................... 131
Keys and Remote Controls........................50
L
Lane Keeping System..................................175 Switching the System On and Off................176
Lighting Control
...............................................73
Flashing the Headlamp High Beam...............74
Headlamp High Beam........................................ 73
Lighting...............................................................73 General Information............................................ 73
Limited Slip Differential.............................153 Traction-Lok ™ and TORSEN™ Axles.........153
Load Carrying
.................................................192
Load Limit........................................................192
Special Loading Instructions - for all
vehicles............................................................. 196
Vehicle Loading - with and without a Trailer.................................................................. 192
Locating the Cabin Air Filter.......................117
455
Mustang (CZG) Canada/United States of America, Vehicles Built From: 15-07-2019, enUSA, Edition date: 201906, Second-Printing Index

Locking and Unlocking................................60
Activating Intelligent Access............................. 61
Autolock................................................................... 62
Battery Saver......................................................... 65
Illuminated Entry.................................................. 64
Illuminated Exit..................................................... 65
Locking and Unlocking the Doors with the Key Blade............................................................ 63
Opening the Luggage Compartment...........64
Power Door Locks................................................ 60
Remote Control.................................................... 60
Smart Unlocks ...................................................... 62
Lug Nuts See: Changing a Road Wheel....................... 289
M
Maintenance..................................................232 General Information.......................................... 232
Manual Climate Control...............................111 Directing the Airflow............................................ 111
Setting the Blower Motor Speed.................... 111
Setting the Temperature.................................... 111
Switching Maximum Air Conditioning On and Off................................................................ 112
Switching Maximum Defrost On and Off........................................................................\
. 112
Switching Recirculated Air On and Off........................................................................\
. 112
Switching the Air Conditioning On and Off........................................................................\
.. 111
Switching the Climate Control On and Off........................................................................\
. 112
Manual Seats.................................................120
Manual Transmission Fluid Check........244
Manual Transmission..................................147
Parking Your Vehicle.......................................... 148
Recommended Shift Speeds......................... 147
Reverse................................................................... 148
Using the Clutch.................................................. 147
Media Hub
......................................................333
Memory Function...........................................121
Easy Entry and Exit Feature............................ 122
Linking a PreSet Position to your Remote Control or Intelligent Access Key
Fob....................................................................... 122
Saving a PreSet Position.................................. 122Message Center
See: Information Displays................................ 90
Mirrors See: Windows and Mirrors................................ 79
Mobile Communications Equipment.......15
Motorcraft Parts - 2.3L EcoBoost™.................................................298
Motorcraft Parts - 5.0L, Bullitt...............300
Motorcraft Parts - 5.0L.............................299
MyKey – Troubleshooting...........................58
MyKey ™
.............................................................56
Principle of Operation........................................ 56
N
Navigation.......................................................374 Changing the Format of the Map................376
cityseeker.............................................................. 378
Michelin Travel Guide....................................... 379
Navigation Map Accuracy and Updates............................................................ 379
Route Guidance.................................................. 376
Setting a Destination........................................ 375
SiriusXM Traffic and Travel Link................... 379
Zoom
...................................................................... 376
Network Connectivity................................320
Connecting the Vehicle to a Mobile
Network............................................................ 320
Network Connectivity – Troubleshooting.........................................321
Normal Scheduled Maintenance..........403 Intelligent Oil-Life Monitor™........................ 403
Normal Maintenance Intervals.................... 404
O
Oil Change Indicator Reset......................238
Oil Check See: Engine Oil Check....................................... 237
Opening and Closing the Hood..............232 Closing the Hood................................................ 233
Opening the Hood............................................. 232
Opening the Convertible Top..................202 Using the Tonneau Caps................................. 203
Ordering Additional Owner's Literature.......................................................219
Obtaining a French Owner ’s Manual..........219
456
Mustang (CZG) Canada/United States of America, Vehicles Built From: 15-07-2019, enUSA, Edition date: 201906, Second-Printing Index

Vehicles Sold in the United States: Using
Roadside Assistance...................................208
Roadside Emergencies.............................208
Running-In See: Breaking-In................................................ 206
Running Out of Fuel.....................................137 Adding Fuel From a Portable Fuel
Container.......................................................... 138
Filling a Portable Fuel Container................... 137
S
Safety Canopy ™ - Coupe...........................46
Safety Precautions......................................136
Satellite Radio
..............................................330
Satellite Radio Electronic Serial Number
(ESN).................................................................. 331
Satellite Radio Reception Factors................331
SiriusXM Satellite Radio Service................... 331
Troubleshooting................................................. 332
Scheduled Maintenance Record..........408
Scheduled Maintenance
..........................400
Seatbelt Extensions......................................38
Seatbelt Reminder........................................36 Belt-Minder™........................................................ 36
Seatbelts...........................................................32 Principle of Operation......................................... 32
Seatbelt Warning Lamp and Indicator Chime...............................................................35
Conditions of operation..................................... 36
Seats..................................................................118
Security
..............................................................66
Settings...........................................................382 911 Assist............................................................... 382
Ambient Lighting............................................... 383
Audio...................................................................... 382
Automatic Updates.......................................... 382
Bluetooth.............................................................. 382
Charge Settings.................................................. 383
Clock....................................................................... 382
Display................................................................... 383
Driver Assist......................................................... 382
FordPass............................................................... 382
General.................................................................. 382
Message Center................................................. 383
Mobile Apps......................................................... 382
Multi Contour Seats.......................................... 383
Navigation............................................................ 383Personal Profiles................................................
383
Phone..................................................................... 382
Seats...................................................................... 383
Sound..................................................................... 382
Valet Mode........................................................... 383
Vehicle................................................................... 382
Voice Control....................................................... 383
Setting the Cruise Control Speed...........167 Changing the Set Speed.................................. 167
Side Airbags
.....................................................45
Sitting in the Correct Position...................118
Snow Chains See: Using Snow Chains................................. 285
Spare Wheel See: Changing a Road Wheel....................... 289
Special Notices
................................................14
New Vehicle Limited Warranty......................... 14
On Board Diagnostics Data Link Connector............................................................ 15
Special Instructions.............................................. 14
Special Operating Conditions Scheduled Maintenance..............................................406
Exceptions........................................................... 408
Speed Control See: Cruise Control............................................. 167
Stability Control
............................................158
Principle of Operation....................................... 158
Starting a Gasoline Engine
........................132
Automatic Engine Shutdown......................... 133
Failure to Start..................................................... 133
Fast Restart........................................................... 133
Guarding Against Exhaust Fumes................134
Important Ventilating Information...............134
Stopping the Engine When Your Vehicle is Moving................................................................134
Stopping the Engine When Your Vehicle is Stationary......................................................... 134
Starting and Stopping the Engine...........131 General Information........................................... 131
Steering............................................................184 Adaptive Learning.............................................. 185
Electric Power Steering.................................... 184
Steering Wheel Lock....................................132 Unlocking the Steering Wheel....................... 132
Steering Wheel
...............................................68
Storage Compartments.............................130
Sun Visors..........................................................81 Illuminated Vanity Mirror................................... 82
458
Mustang (CZG) Canada/United States of America, Vehicles Built From: 15-07-2019, enUSA, Edition date: 201906, Second-Printing Index

Headlamp High Beam Indicator.....................
87
Heads Up Display................................................. 87
Hood Ajar................................................................. 87
Lane Keeping System Lamp............................ 87
Launch Control...................................................... 87
Low Beam Malfunction...................................... 87
Low Fuel Level Warning Lamp........................ 87
Low Tire Pressure Warning Lamp.................. 87
Low Washer Fluid Level Warning Lamp................................................................... 88
Oil Pressure Warning Lamp............................. 88
Parking Lamps...................................................... 88
Powertrain Fault................................................... 88
Service Engine Soon........................................... 88
Shift Indicator........................................................ 88
Stability Control and Traction Control Indicator............................................................. 88
Stability Control and Traction Control Off Warning Lamp................................................. 89
Trunk Ajar................................................................ 89
Washer Fluid Check....................................250
Washers See: Cleaning the Exterior.............................. 255
See: Wipers and Washers................................... 71
Waxing..............................................................257
Welcome Lighting
..........................................76
What Is Automatic High Beam Control.............................................................77
What Is Cruise Control
................................167
What Is the Cabin Air Filter.........................117
Wheel Nuts See: Changing a Road Wheel....................... 289
Wheels and Tires
.........................................263
General Information......................................... 263
Technical Specifications................................. 295
Wi-Fi Hotspot................................................323
Windows and Mirrors....................................79
Windshield Washers
......................................72
Windshield Wipers..........................................71
Intermittent Wipe.................................................. 71
Speed Dependent Wipers.................................. 71
Winter Tires See: Using Winter Tires................................... 284
Wiper Blades See: Checking the Wiper Blades.................250
Wipers and Washers......................................71
461
Mustang (CZG) Canada/United States of America, Vehicles Built From: 15-07-2019, enUSA, Edition date: 201906, Second-Printing Index
