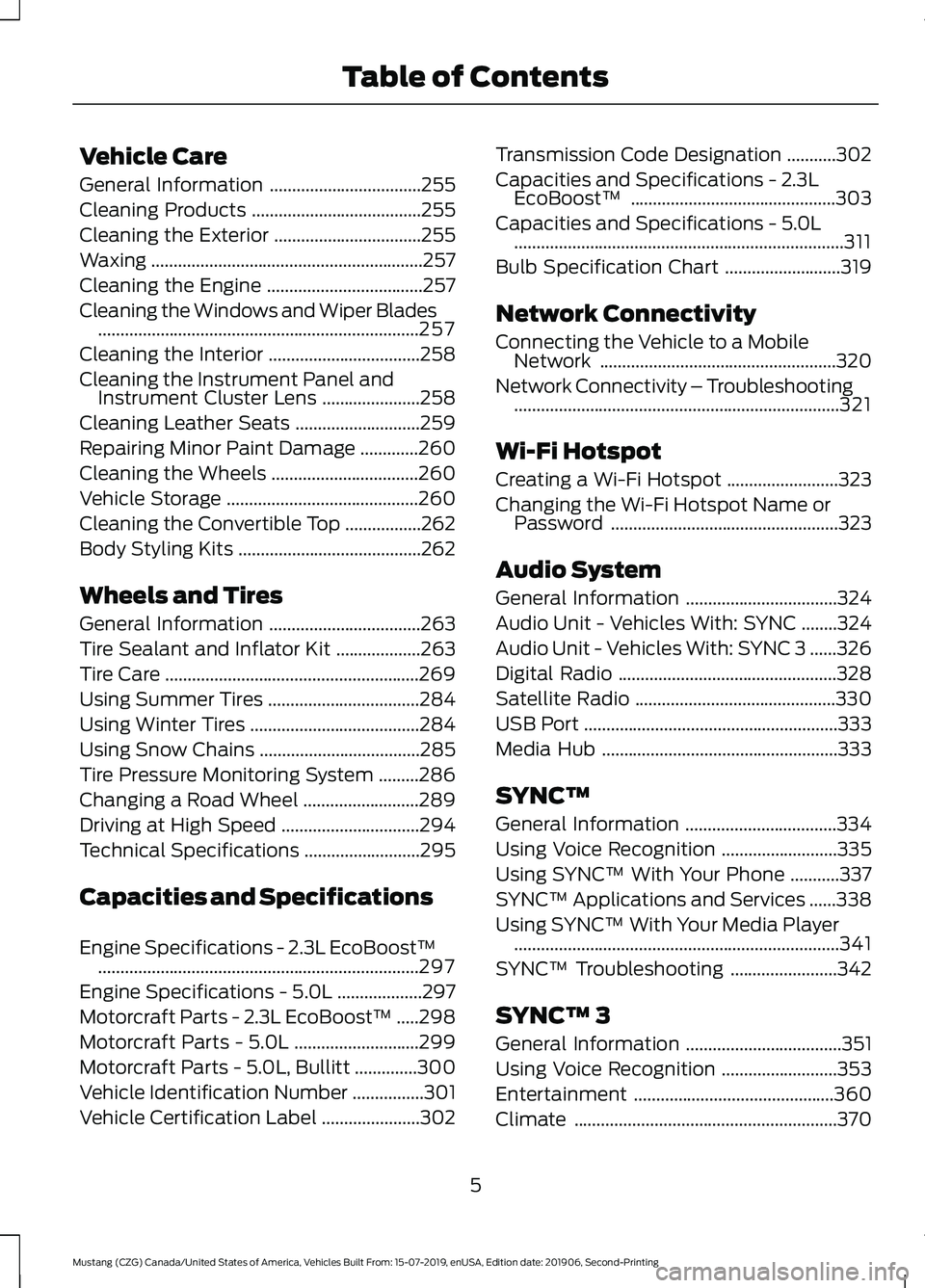

Vehicle Care
General Information
..................................255
Cleaning Products ......................................
255
Cleaning the Exterior .................................
255
Waxing .............................................................
257
Cleaning the Engine ...................................
257
Cleaning the Windows and Wiper Blades ........................................................................\
257
Cleaning the Interior ..................................
258
Cleaning the Instrument Panel and Instrument Cluster Lens ......................
258
Cleaning Leather Seats ............................
259
Repairing Minor Paint Damage .............
260
Cleaning the Wheels .................................
260
Vehicle Storage ...........................................
260
Cleaning the Convertible Top .................
262
Body Styling Kits .........................................
262
Wheels and Tires
General Information ..................................
263
Tire Sealant and Inflator Kit ...................
263
Tire Care .........................................................
269
Using Summer Tires ..................................
284
Using Winter Tires ......................................
284
Using Snow Chains ....................................
285
Tire Pressure Monitoring System .........
286
Changing a Road Wheel ..........................
289
Driving at High Speed ...............................
294
Technical Specifications ..........................
295
Capacities and Specifications
Engine Specifications - 2.3L EcoBoost™ ........................................................................\
297
Engine Specifications - 5.0L ...................
297
Motorcraft Parts - 2.3L EcoBoost™ .....
298
Motorcraft Parts - 5.0L ............................
299
Motorcraft Parts - 5.0L, Bullitt ..............
300
Vehicle Identification Number ................
301
Vehicle Certification Label ......................
302Transmission Code Designation
...........
302
Capacities and Specifications - 2.3L EcoBoost™ ..............................................
303
Capacities and Specifications - 5.0L ........................................................................\
..
311
Bulb Specification Chart ..........................
319
Network Connectivity
Connecting the Vehicle to a Mobile Network .....................................................
320
Network Connectivity – Troubleshooting ........................................................................\
.
321
Wi-Fi Hotspot
Creating a Wi-Fi Hotspot .........................
323
Changing the Wi-Fi Hotspot Name or Password ...................................................
323
Audio System
General Information ..................................
324
Audio Unit - Vehicles With: SYNC ........
324
Audio Unit - Vehicles With: SYNC 3 ......
326
Digital Radio .................................................
328
Satellite Radio .............................................
330
USB Port .........................................................
333
Media Hub .....................................................
333
SYNC™
General Information ..................................
334
Using Voice Recognition ..........................
335
Using SYNC™ With Your Phone ...........
337
SYNC™ Applications and Services ......
338
Using SYNC™ With Your Media Player ........................................................................\
.
341
SYNC™ Troubleshooting ........................
342
SYNC™ 3
General Information ...................................
351
Using Voice Recognition ..........................
353
Entertainment .............................................
360
Climate ...........................................................
370
5
Mustang (CZG) Canada/United States of America, Vehicles Built From: 15-07-2019, enUSA, Edition date: 201906, Second-Printing Table of Contents

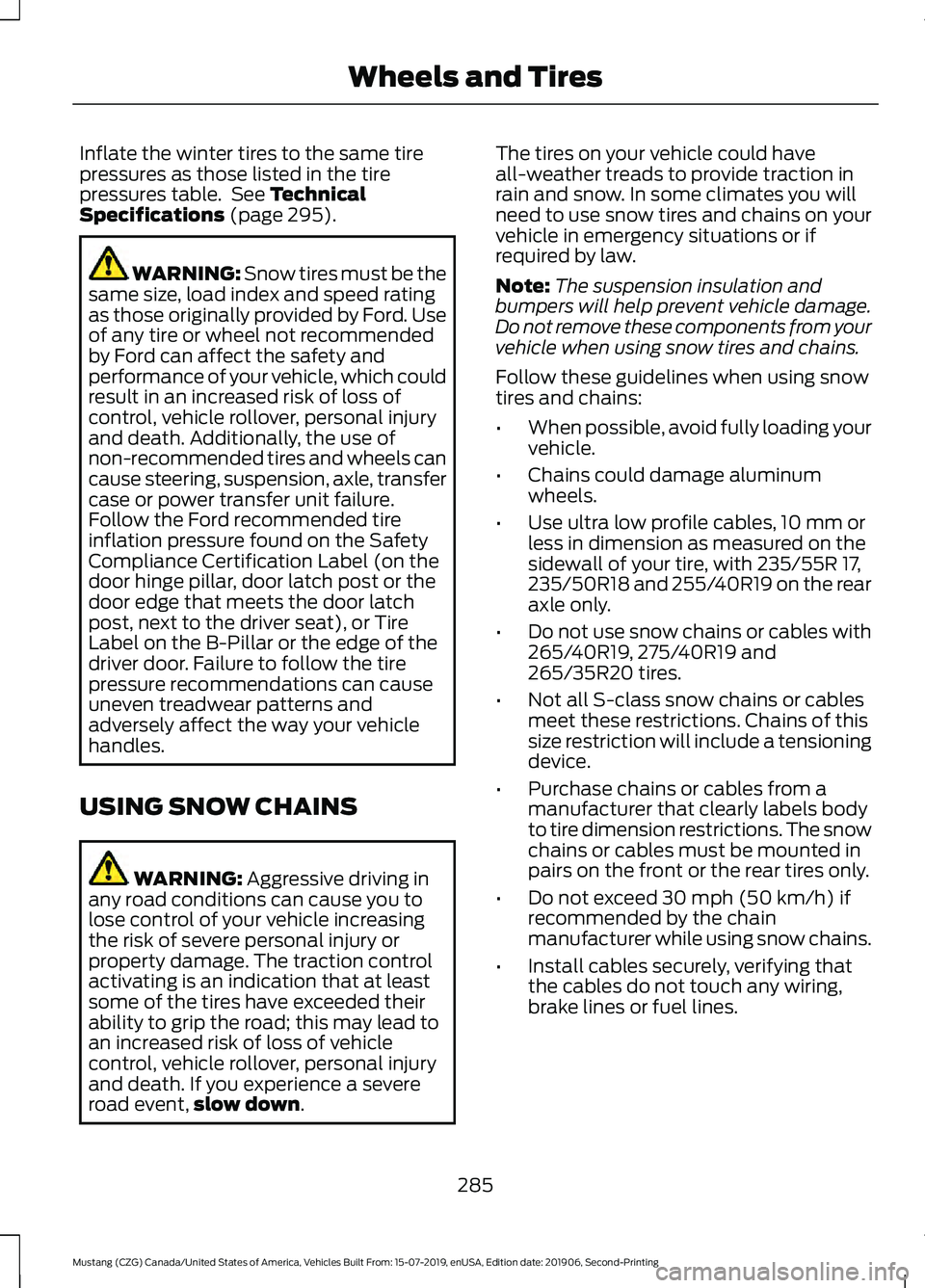

Inflate the winter tires to the same tire
pressures as those listed in the tire
pressures table. See Technical
Specifications (page 295). WARNING:
Snow tires must be the
same size, load index and speed rating
as those originally provided by Ford. Use
of any tire or wheel not recommended
by Ford can affect the safety and
performance of your vehicle, which could
result in an increased risk of loss of
control, vehicle rollover, personal injury
and death. Additionally, the use of
non-recommended tires and wheels can
cause steering, suspension, axle, transfer
case or power transfer unit failure.
Follow the Ford recommended tire
inflation pressure found on the Safety
Compliance Certification Label (on the
door hinge pillar, door latch post or the
door edge that meets the door latch
post, next to the driver seat), or Tire
Label on the B-Pillar or the edge of the
driver door. Failure to follow the tire
pressure recommendations can cause
uneven treadwear patterns and
adversely affect the way your vehicle
handles.
USING SNOW CHAINS WARNING:
Aggressive driving in
any road conditions can cause you to
lose control of your vehicle increasing
the risk of severe personal injury or
property damage. The traction control
activating is an indication that at least
some of the tires have exceeded their
ability to grip the road; this may lead to
an increased risk of loss of vehicle
control, vehicle rollover, personal injury
and death. If you experience a severe
road event, slow down
. The tires on your vehicle could have
all-weather treads to provide traction in
rain and snow. In some climates you will
need to use snow tires and chains on your
vehicle in emergency situations or if
required by law.
Note:
The suspension insulation and
bumpers will help prevent vehicle damage.
Do not remove these components from your
vehicle when using snow tires and chains.
Follow these guidelines when using snow
tires and chains:
• When possible, avoid fully loading your
vehicle.
• Chains could damage aluminum
wheels.
• Use ultra low profile cables, 10 mm or
less in dimension as measured on the
sidewall of your tire, with 235/55R 17,
235/50R18 and 255/40R19 on the rear
axle only.
• Do not use snow chains or cables with
265/40R19, 275/40R19 and
265/35R20 tires.
• Not all S-class snow chains or cables
meet these restrictions. Chains of this
size restriction will include a tensioning
device.
• Purchase chains or cables from a
manufacturer that clearly labels body
to tire dimension restrictions. The snow
chains or cables must be mounted in
pairs on the front or the rear tires only.
• Do not exceed
30 mph (50 km/h) if
recommended by the chain
manufacturer while using snow chains.
• Install cables securely, verifying that
the cables do not touch any wiring,
brake lines or fuel lines.
285
Mustang (CZG) Canada/United States of America, Vehicles Built From: 15-07-2019, enUSA, Edition date: 201906, Second-Printing Wheels and Tires

•
Drive cautiously. If you hear the cables
rub or bang against the vehicle, stop
and retighten them. If this does not
work, remove the cables to prevent
vehicle damage.
• Remove the tire chains when they are
no longer needed. Do not use tire
chains on dry roads.
If you have any questions regarding snow
chains or cables, please contact your
authorized dealer.
TIRE PRESSURE MONITORING
SYSTEM WARNING: The tire pressure
monitoring system is not a substitute for
manually checking tire pressures. You
should periodically check tire pressures
using a pressure gauge. Failure to
correctly maintain tire pressures could
increase the risk of tire failure, loss of
control, vehicle rollover and personal
injury.
Note: You should only use tire sealants in
roadside emergencies as they could cause
damage to the tire pressure monitoring
system sensor.
Note: If the tire pressure monitoring system
sensor becomes damaged, it will not
function. Each tire, including the spare (if
provided), should be checked
monthly when cold and inflated
to the inflation pressure recommended by
the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If
your vehicle has tires of a different size
than the size indicated on the vehicle
placard or tire inflation pressure label, you
should determine the proper tire inflation
pressure for those tires). As an added safety feature, your vehicle
has been equipped with a Tire Pressure
Monitoring System (TPMS) that
illuminates a low tire pressure telltale
when one or more of your tires is
significantly under-inflated. Accordingly,
when the low tire pressure telltale
illuminates, you should stop and check
your tires as soon as possible, and inflate
them to the proper pressure. Driving on a
significantly under-inflated tire causes the
tire to overheat and can lead to tire failure.
Under-inflation also reduces fuel efficiency
and tire tread life, and could affect the
vehicle
’s handling and stopping ability.
Please note that the TPMS is not a
substitute for proper tire maintenance, and
it is the driver ’s responsibility to maintain
correct tire pressure, even if under-inflation
has not reached the level to trigger
illumination of the TPMS low tire pressure
telltale.
Your vehicle has also been equipped with
a TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is
combined with the low tire pressure
telltale. When the system detects a
malfunction, the telltale will flash for
approximately one minute and then remain
continuously illuminated. This sequence
will continue upon subsequent vehicle
start-ups as long as the malfunction exists.
When the malfunction indicator is
illuminated, the system will not be able to
detect or signal low tire pressure as
intended. TPMS malfunctions could occur
for a variety of reasons, including the
installation of replacement or alternate
tires or wheels on the vehicle that prevent
the TPMS from functioning properly.
Always check the TPMS malfunction
telltale after replacing one or more tires or
wheels on your vehicle to ensure that the
replacement or alternate tires and wheels
allow the TPMS to continue to function
properly.
286
Mustang (CZG) Canada/United States of America, Vehicles Built From: 15-07-2019, enUSA, Edition date: 201906, Second-Printing Wheels and Tires

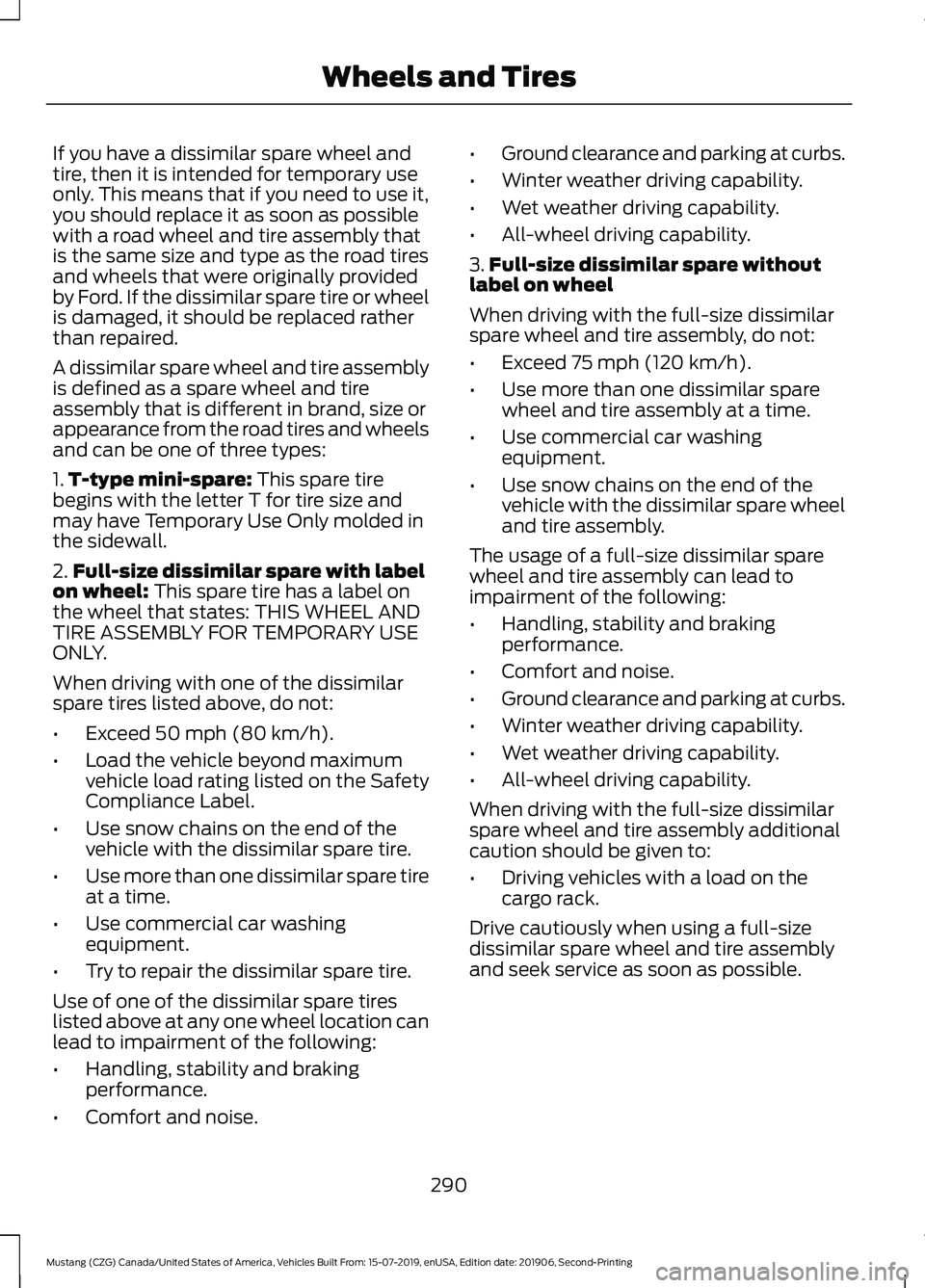

If you have a dissimilar spare wheel and
tire, then it is intended for temporary use
only. This means that if you need to use it,
you should replace it as soon as possible
with a road wheel and tire assembly that
is the same size and type as the road tires
and wheels that were originally provided
by Ford. If the dissimilar spare tire or wheel
is damaged, it should be replaced rather
than repaired.
A dissimilar spare wheel and tire assembly
is defined as a spare wheel and tire
assembly that is different in brand, size or
appearance from the road tires and wheels
and can be one of three types:
1.
T-type mini-spare: This spare tire
begins with the letter T for tire size and
may have Temporary Use Only molded in
the sidewall.
2. Full-size dissimilar spare with label
on wheel:
This spare tire has a label on
the wheel that states: THIS WHEEL AND
TIRE ASSEMBLY FOR TEMPORARY USE
ONLY.
When driving with one of the dissimilar
spare tires listed above, do not:
• Exceed
50 mph (80 km/h).
• Load the vehicle beyond maximum
vehicle load rating listed on the Safety
Compliance Label.
• Use snow chains on the end of the
vehicle with the dissimilar spare tire.
• Use more than one dissimilar spare tire
at a time.
• Use commercial car washing
equipment.
• Try to repair the dissimilar spare tire.
Use of one of the dissimilar spare tires
listed above at any one wheel location can
lead to impairment of the following:
• Handling, stability and braking
performance.
• Comfort and noise. •
Ground clearance and parking at curbs.
• Winter weather driving capability.
• Wet weather driving capability.
• All-wheel driving capability.
3. Full-size dissimilar spare without
label on wheel
When driving with the full-size dissimilar
spare wheel and tire assembly, do not:
• Exceed
75 mph (120 km/h).
• Use more than one dissimilar spare
wheel and tire assembly at a time.
• Use commercial car washing
equipment.
• Use snow chains on the end of the
vehicle with the dissimilar spare wheel
and tire assembly.
The usage of a full-size dissimilar spare
wheel and tire assembly can lead to
impairment of the following:
• Handling, stability and braking
performance.
• Comfort and noise.
• Ground clearance and parking at curbs.
• Winter weather driving capability.
• Wet weather driving capability.
• All-wheel driving capability.
When driving with the full-size dissimilar
spare wheel and tire assembly additional
caution should be given to:
• Driving vehicles with a load on the
cargo rack.
Drive cautiously when using a full-size
dissimilar spare wheel and tire assembly
and seek service as soon as possible.
290
Mustang (CZG) Canada/United States of America, Vehicles Built From: 15-07-2019, enUSA, Edition date: 201906, Second-Printing Wheels and Tires

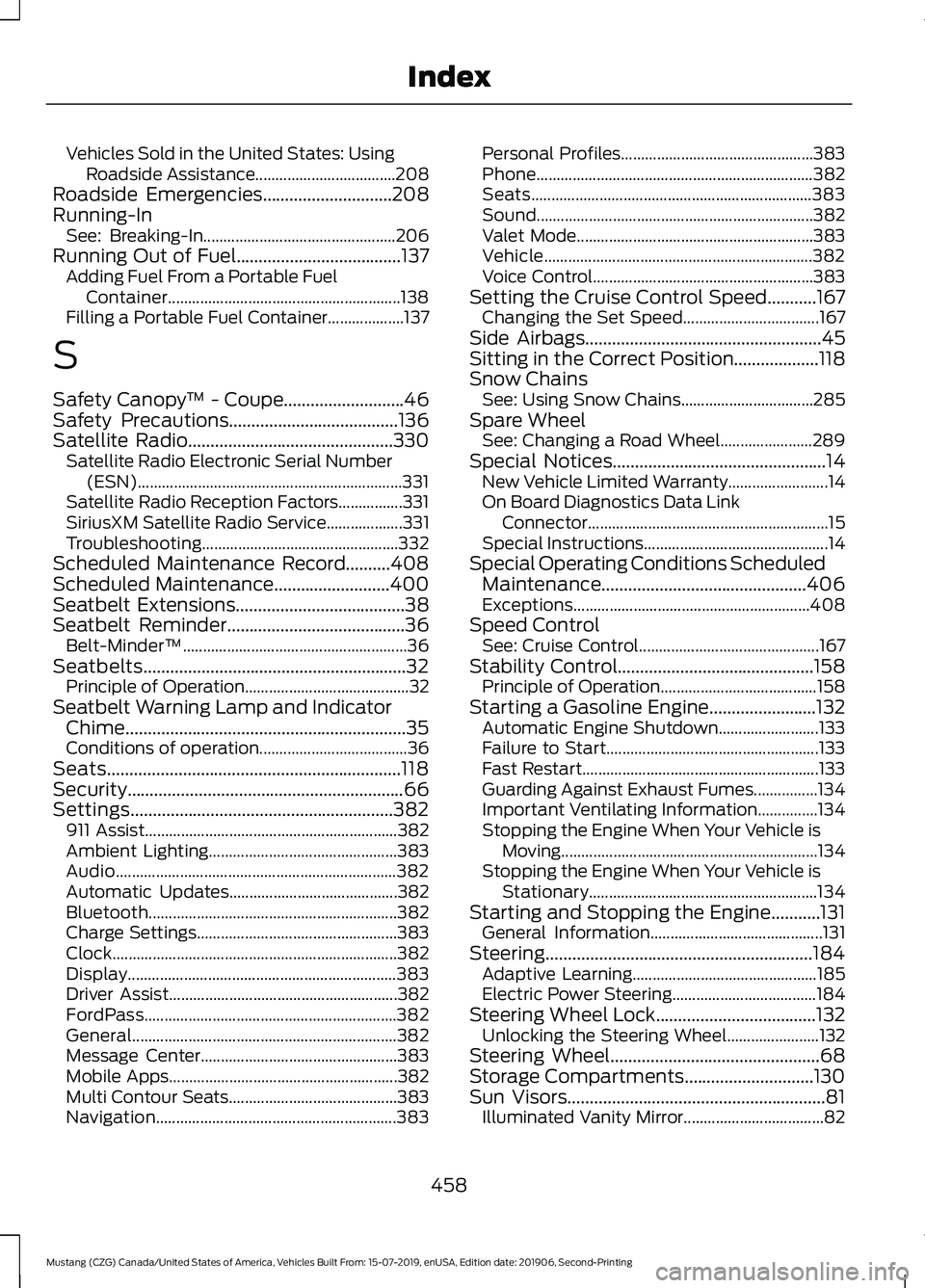

Vehicles Sold in the United States: Using
Roadside Assistance...................................208
Roadside Emergencies.............................208
Running-In See: Breaking-In................................................ 206
Running Out of Fuel.....................................137 Adding Fuel From a Portable Fuel
Container.......................................................... 138
Filling a Portable Fuel Container................... 137
S
Safety Canopy ™ - Coupe...........................46
Safety Precautions......................................136
Satellite Radio
..............................................330
Satellite Radio Electronic Serial Number
(ESN).................................................................. 331
Satellite Radio Reception Factors................331
SiriusXM Satellite Radio Service................... 331
Troubleshooting................................................. 332
Scheduled Maintenance Record..........408
Scheduled Maintenance
..........................400
Seatbelt Extensions......................................38
Seatbelt Reminder........................................36 Belt-Minder™........................................................ 36
Seatbelts...........................................................32 Principle of Operation......................................... 32
Seatbelt Warning Lamp and Indicator Chime...............................................................35
Conditions of operation..................................... 36
Seats..................................................................118
Security
..............................................................66
Settings...........................................................382 911 Assist............................................................... 382
Ambient Lighting............................................... 383
Audio...................................................................... 382
Automatic Updates.......................................... 382
Bluetooth.............................................................. 382
Charge Settings.................................................. 383
Clock....................................................................... 382
Display................................................................... 383
Driver Assist......................................................... 382
FordPass............................................................... 382
General.................................................................. 382
Message Center................................................. 383
Mobile Apps......................................................... 382
Multi Contour Seats.......................................... 383
Navigation............................................................ 383Personal Profiles................................................
383
Phone..................................................................... 382
Seats...................................................................... 383
Sound..................................................................... 382
Valet Mode........................................................... 383
Vehicle................................................................... 382
Voice Control....................................................... 383
Setting the Cruise Control Speed...........167 Changing the Set Speed.................................. 167
Side Airbags
.....................................................45
Sitting in the Correct Position...................118
Snow Chains See: Using Snow Chains................................. 285
Spare Wheel See: Changing a Road Wheel....................... 289
Special Notices
................................................14
New Vehicle Limited Warranty......................... 14
On Board Diagnostics Data Link Connector............................................................ 15
Special Instructions.............................................. 14
Special Operating Conditions Scheduled Maintenance..............................................406
Exceptions........................................................... 408
Speed Control See: Cruise Control............................................. 167
Stability Control
............................................158
Principle of Operation....................................... 158
Starting a Gasoline Engine
........................132
Automatic Engine Shutdown......................... 133
Failure to Start..................................................... 133
Fast Restart........................................................... 133
Guarding Against Exhaust Fumes................134
Important Ventilating Information...............134
Stopping the Engine When Your Vehicle is Moving................................................................134
Stopping the Engine When Your Vehicle is Stationary......................................................... 134
Starting and Stopping the Engine...........131 General Information........................................... 131
Steering............................................................184 Adaptive Learning.............................................. 185
Electric Power Steering.................................... 184
Steering Wheel Lock....................................132 Unlocking the Steering Wheel....................... 132
Steering Wheel
...............................................68
Storage Compartments.............................130
Sun Visors..........................................................81 Illuminated Vanity Mirror................................... 82
458
Mustang (CZG) Canada/United States of America, Vehicles Built From: 15-07-2019, enUSA, Edition date: 201906, Second-Printing Index

Using Adaptive Cruise Control................168
Automatic Cancellation..................................... 171
Blocked Sensor.................................................... 172
Canceling the Set Speed................................... 171
Changing the Set Speed................................... 171
Detection Issues................................................... 171
Following a Vehicle............................................ 169
Hilly Condition Usage......................................... 171
Overriding the Set Speed................................ 170
Resuming the Set Speed................................... 171
Setting the Adaptive Cruise Speed.............169
Setting the Gap Distance................................ 170
Switching Adaptive Cruise Control Off........171
Switching Adaptive Cruise Control On........................................................................\
169
Switching to Normal Cruise Control............173
System Not Available........................................ 172
Using MyKey With Remote Start Systems..........................................................58
Using Snow Chains.....................................285
Using Stability Control...............................159 Electronic Stability Control ............................ 159
Using Summer Tires...................................284
Using SYNC™ With Your Media Player.............................................................341
Audio Voice Commands................................. 342
Media Sources..................................................... 341
Using SYNC™ With Your Phone.............337 Accessing Features through the Phone
Menu.................................................................. 338
Pairing a Phone................................................... 337
Phone Controls................................................... 338
Phone Voice Commands................................ 337
Using Traction Control................................157 Switching the System Off ............................... 157
System Indicator Lights and Messages........................................................... 157
Using Voice Recognition...........................335
Audio Voice Commands................................. 354
Climate Voice Commands............................. 355
Initiating a Voice Session................................ 335
Mobile App Voice Commands...................... 358
Navigation Voice Commands........................ 357
Phone Voice Commands................................ 355
SiriusXM Traffic and Travel Link Voice Commands..................................................... 358
System Interaction and Feedback..............336
Voice Settings Commands............................ 359Using Winter Tires
.......................................284
Utilizing the Mediation/Arbitration Program (Canada Only)
..........................217
V
Vehicle Care
...................................................255
General Information......................................... 255
Vehicle Certification Label
.......................302
Vehicle Identification Number.................301
Vehicle Storage............................................260 Body....................................................................... 260
Brakes..................................................................... 261
Cooling system.................................................... 261
Disconnecting Your 12 Volt Battery..............261
Engine..................................................................... 261
Fuel system........................................................... 261
General.................................................................. 260
Miscellaneous...................................................... 261
Plugging in Your HYBRID................................. 261
Removing Vehicle From Storage.................262
Tires........................................................................\
. 261
Ventilation See: Climate Control........................................... 111
VIN See: Vehicle Identification Number.............301
Voice Control
...................................................68
W
Warning Lamps and Indicators................85 Adaptive Cruise Control Indicator.................86
Airbag Warning Lamp........................................ 86
Anti-Lock Brake System Warning Lamp................................................................... 86
Automatic Headlamp High Beam Indicator............................................................. 86
Battery..................................................................... 86
Blind Spot Information System Indicator............................................................. 86
Brake System Warning Lamp.......................... 86
Cruise Control Indicator..................................... 86
Direction Indicator................................................ 87
Door Ajar Warning Lamp................................... 87
Engine Coolant Temperature Warning Lamp.................................................................... 87
Fasten Seatbelt Warning Lamp...................... 87
Front Fog Lamp Indicator.................................. 87
460
Mustang (CZG) Canada/United States of America, Vehicles Built From: 15-07-2019, enUSA, Edition date: 201906, Second-Printing Index
