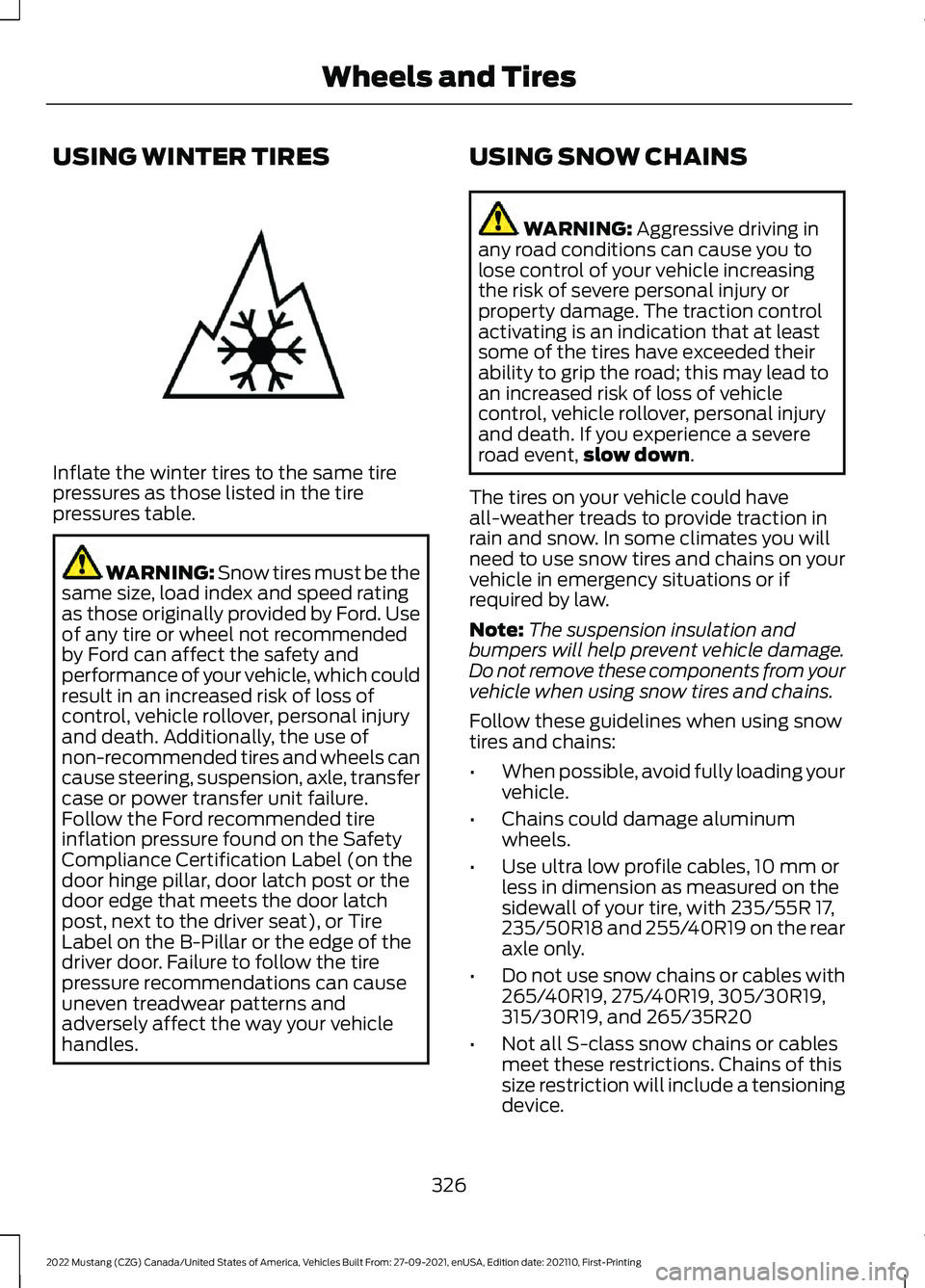

USING WINTER TIRES
Inflate the winter tires to the same tire
pressures as those listed in the tire
pressures table.
WARNING: Snow tires must be the
same size, load index and speed rating
as those originally provided by Ford. Use
of any tire or wheel not recommended
by Ford can affect the safety and
performance of your vehicle, which could
result in an increased risk of loss of
control, vehicle rollover, personal injury
and death. Additionally, the use of
non-recommended tires and wheels can
cause steering, suspension, axle, transfer
case or power transfer unit failure.
Follow the Ford recommended tire
inflation pressure found on the Safety
Compliance Certification Label (on the
door hinge pillar, door latch post or the
door edge that meets the door latch
post, next to the driver seat), or Tire
Label on the B-Pillar or the edge of the
driver door. Failure to follow the tire
pressure recommendations can cause
uneven treadwear patterns and
adversely affect the way your vehicle
handles. USING SNOW CHAINS WARNING:
Aggressive driving in
any road conditions can cause you to
lose control of your vehicle increasing
the risk of severe personal injury or
property damage. The traction control
activating is an indication that at least
some of the tires have exceeded their
ability to grip the road; this may lead to
an increased risk of loss of vehicle
control, vehicle rollover, personal injury
and death. If you experience a severe
road event, slow down
.
The tires on your vehicle could have
all-weather treads to provide traction in
rain and snow. In some climates you will
need to use snow tires and chains on your
vehicle in emergency situations or if
required by law.
Note: The suspension insulation and
bumpers will help prevent vehicle damage.
Do not remove these components from your
vehicle when using snow tires and chains.
Follow these guidelines when using snow
tires and chains:
• When possible, avoid fully loading your
vehicle.
• Chains could damage aluminum
wheels.
• Use ultra low profile cables, 10 mm or
less in dimension as measured on the
sidewall of your tire, with 235/55R 17,
235/50R18 and 255/40R19 on the rear
axle only.
• Do not use snow chains or cables with
265/40R19, 275/40R19, 305/30R19,
315/30R19, and 265/35R20
• Not all S-class snow chains or cables
meet these restrictions. Chains of this
size restriction will include a tensioning
device.
326
2022 Mustang (CZG) Canada/United States of America, Vehicles Built From: 27-09-2021, enUSA, Edition date: 202110, First-Printing Wheels and TiresE278852

•
Purchase chains or cables from a
manufacturer that clearly labels body
to tire dimension restrictions. The snow
chains or cables must be mounted in
pairs on the front or the rear tires only.
• Do not exceed 30 mph (50 km/h) if
recommended by the chain
manufacturer while using snow chains.
• Install cables securely, verifying that
the cables do not touch any wiring,
brake lines or fuel lines.
• Drive cautiously. If you hear the cables
rub or bang against the vehicle, stop
and retighten them. If this does not
work, remove the cables to prevent
vehicle damage.
• Remove the tire chains when they are
no longer needed. Do not use tire
chains on dry roads.
If you have any questions regarding snow
chains or cables, please contact your
authorized dealer.
TIRE PRESSURE MONITORING
SYSTEM WARNING:
The tire pressure
monitoring system is not a substitute for
manually checking tire pressures. You
should periodically check tire pressures
using a pressure gauge. Failure to
correctly maintain tire pressures could
increase the risk of tire failure, loss of
control, vehicle rollover and personal
injury. WARNING:
If the tire pressure
monitor sensor becomes damaged it
may not function.
Note: You should only use tire sealants in
roadside emergencies as they could cause
damage to the tire pressure monitoring
system sensor. Each tire, including the spare (if
provided), should be checked
monthly when cold and inflated
to the inflation pressure recommended by
the vehicle manufacturer on the vehicle
placard or tire inflation pressure label. (If
your vehicle has tires of a different size
than the size indicated on the vehicle
placard or tire inflation pressure label, you
should determine the proper tire inflation
pressure for those tires).
As an added safety feature, your vehicle
has been equipped with a Tire Pressure
Monitoring System (TPMS) that
illuminates a low tire pressure telltale
when one or more of your tires is
significantly under-inflated. Accordingly,
when the low tire pressure telltale
illuminates, you should stop and check
your tires as soon as possible, and inflate
them to the proper pressure. Driving on a
significantly under-inflated tire causes the
tire to overheat and can lead to tire failure.
Under-inflation also reduces fuel efficiency
and tire tread life, and could affect the
vehicle ’s handling and stopping ability.
Please note that the TPMS is not a
substitute for proper tire maintenance, and
it is the driver ’s responsibility to maintain
correct tire pressure, even if under-inflation
has not reached the level to trigger
illumination of the TPMS low tire pressure
telltale.
Your vehicle has also been equipped with
a TPMS malfunction indicator to indicate
when the system is not operating properly.
The TPMS malfunction indicator is
combined with the low tire pressure
telltale. When the system detects a
malfunction, the telltale will flash for
approximately one minute and then remain
continuously illuminated. This sequence
will continue upon subsequent vehicle
start-ups as long as the malfunction exists.
327
2022 Mustang (CZG) Canada/United States of America, Vehicles Built From: 27-09-2021, enUSA, Edition date: 202110, First-Printing Wheels and Tires

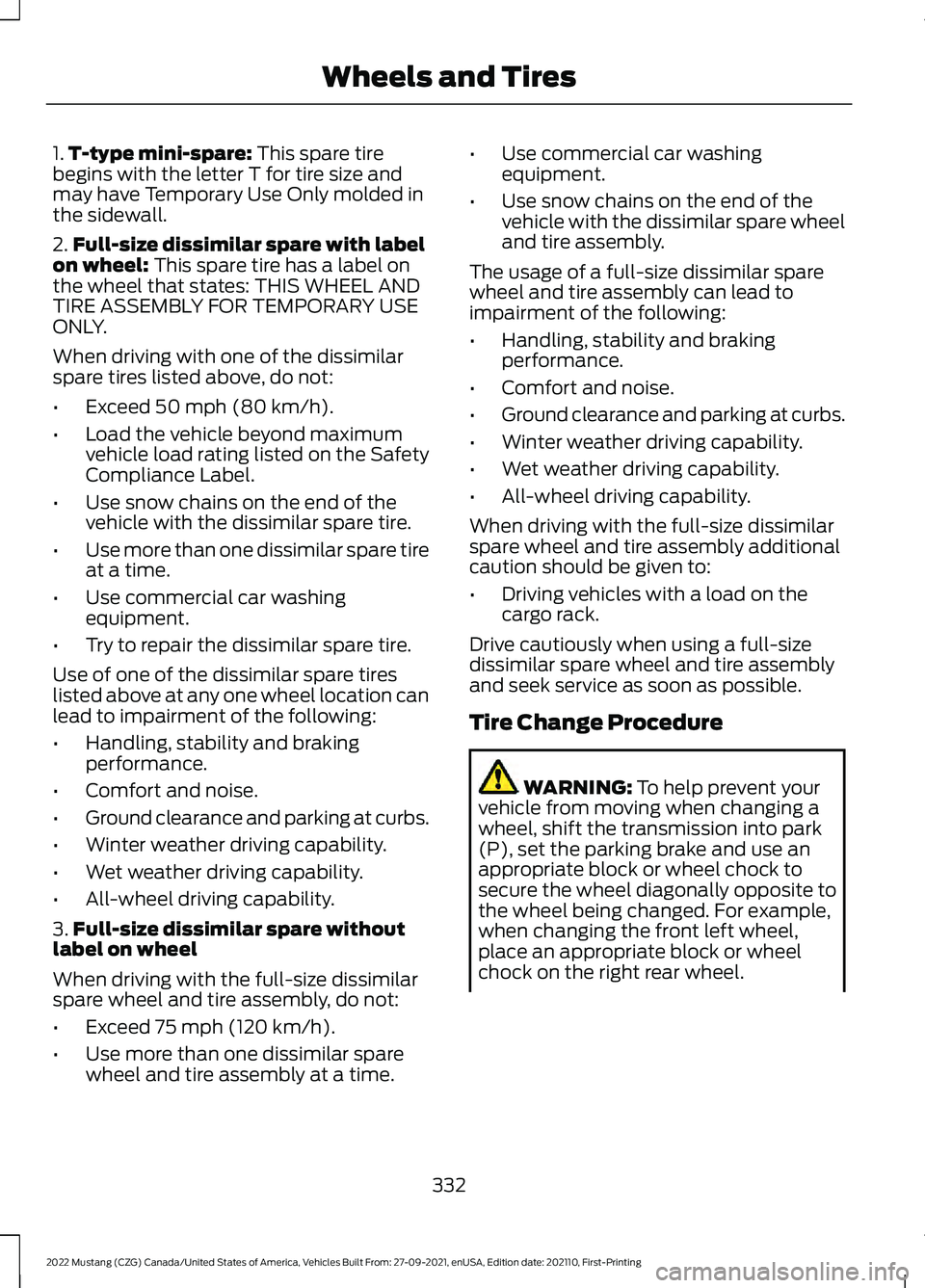

1.
T-type mini-spare: This spare tire
begins with the letter T for tire size and
may have Temporary Use Only molded in
the sidewall.
2. Full-size dissimilar spare with label
on wheel:
This spare tire has a label on
the wheel that states: THIS WHEEL AND
TIRE ASSEMBLY FOR TEMPORARY USE
ONLY.
When driving with one of the dissimilar
spare tires listed above, do not:
• Exceed
50 mph (80 km/h).
• Load the vehicle beyond maximum
vehicle load rating listed on the Safety
Compliance Label.
• Use snow chains on the end of the
vehicle with the dissimilar spare tire.
• Use more than one dissimilar spare tire
at a time.
• Use commercial car washing
equipment.
• Try to repair the dissimilar spare tire.
Use of one of the dissimilar spare tires
listed above at any one wheel location can
lead to impairment of the following:
• Handling, stability and braking
performance.
• Comfort and noise.
• Ground clearance and parking at curbs.
• Winter weather driving capability.
• Wet weather driving capability.
• All-wheel driving capability.
3. Full-size dissimilar spare without
label on wheel
When driving with the full-size dissimilar
spare wheel and tire assembly, do not:
• Exceed
75 mph (120 km/h).
• Use more than one dissimilar spare
wheel and tire assembly at a time. •
Use commercial car washing
equipment.
• Use snow chains on the end of the
vehicle with the dissimilar spare wheel
and tire assembly.
The usage of a full-size dissimilar spare
wheel and tire assembly can lead to
impairment of the following:
• Handling, stability and braking
performance.
• Comfort and noise.
• Ground clearance and parking at curbs.
• Winter weather driving capability.
• Wet weather driving capability.
• All-wheel driving capability.
When driving with the full-size dissimilar
spare wheel and tire assembly additional
caution should be given to:
• Driving vehicles with a load on the
cargo rack.
Drive cautiously when using a full-size
dissimilar spare wheel and tire assembly
and seek service as soon as possible.
Tire Change Procedure WARNING:
To help prevent your
vehicle from moving when changing a
wheel, shift the transmission into park
(P), set the parking brake and use an
appropriate block or wheel chock to
secure the wheel diagonally opposite to
the wheel being changed. For example,
when changing the front left wheel,
place an appropriate block or wheel
chock on the right rear wheel.
332
2022 Mustang (CZG) Canada/United States of America, Vehicles Built From: 27-09-2021, enUSA, Edition date: 202110, First-Printing Wheels and Tires

Replacing a Lost Key or Remote
Control.............................................................62
Replacing the Cabin Air Filter...................133
Reporting Safety Defects (Canada Only)..............................................................245
Reporting Safety Defects (U.S. Only)..............................................................245
Reprogramming the Garage Door Opener...........................................................144
Resuming the Set Speed..........................186
Roadside Assistance..................................234
Roadside Emergencies..............................234
Running-In See: Breaking-In.................................................. 231
Running Out of Fuel....................................154
S
Safety Canopy ™ - Coupe
...........................54
Safety Precautions.......................................153
Satellite Radio...............................................379
Scheduled Maintenance..........................449
Seatbelt Extensions......................................46
Seatbelt Reminder
........................................44
Seatbelts...........................................................40 Principle of Operation........................................ 40
Seatbelt Warning Lamp and Indicator Chime..............................................................43
Seats.................................................................134
Security...............................................................73
Settings............................................................431
Setting the Cruise Control Speed..........185
Side Airbags
.....................................................53
Sitting in the Correct Position..................134
Snow Chains See: Using Snow Chains................................. 326
Spare Wheel See: Changing a Road Wheel......................... 331
Special Notices
...............................................20
Special Operating Conditions Scheduled Maintenance..............................................455
Speed Control See: Cruise Control............................................ 185
Stability Control
............................................176
Principle of Operation....................................... 176
Starting a Gasoline Engine.......................148
Starting and Stopping the Engine..........147 General Information........................................... 147Steering...........................................................203
Steering Wheel Lock...................................148
Steering Wheel................................................75
Storage Compartments
.............................146
Sun Visors.........................................................88
Supplementary Restraints System.........48 Principle of Operation........................................ 48
Suspension Specifications - Mach 1........................................................................\
342
Switching Automatic High Beam Control On and Off.....................................................84
Switching Cruise Control On and Off...................................................................185
Switching the Heated Steering Wheel On and Off......................................................77
Symbols Glossary
...........................................13
SYNC™ 3.......................................................400
General Information........................................ 400
SYNC™ 3 Troubleshooting......................433
SYNC™ Applications and Services........................................................387
SYNC™...........................................................383 General Information......................................... 383
SYNC™ Troubleshooting
..........................391
T
Technical Specifications See: Capacities and Specifications............338
The Better Business Bureau (BBB) Auto Line Program (U.S. Only)
.......................242
Tire Care.........................................................308
Tire Inflation When Punctured See: Tire Sealant and Inflator Kit................302
Tire Pressure Monitoring System...........327
Tire Repair Kit See: Tire Sealant and Inflator Kit................302
Tire Sealant and Inflator Kit....................302
Tires See: Wheels and Tires..................................... 302
Towing a Trailer - Mach 1...........................220
Towing a Trailer
............................................220
Towing the Vehicle on Four Wheels..........................................................228
Towing.............................................................220
Track Use - Mach 1
.......................................279
Track Use........................................................286
524
2022 Mustang (CZG) Canada/United States of America, Vehicles Built From: 27-09-2021, enUSA, Edition date: 202110, First-Printing Index

Traction Control.............................................175
Principle of Operation....................................... 175
Transmission..................................................164 Technical Specifications - Mach 1................169
Transporting the Vehicle - Mach 1.........224
Transporting the Vehicle...........................239
U
Under Hood Overview - 2.3L EcoBoost™................................................260
Under Hood Overview - 5.0L, Mach 1
........................................................................\
262
Under Hood Overview - 5.0L...................261
USB Port.........................................................382
Using Adaptive Cruise Control................186
Using MyKey With Remote Start Systems..........................................................65
Using Snow Chains
.....................................326
Using Stability Control................................177
Using Summer Tires
...................................323
Using SYNC™ With Your Media Player............................................................390
Using SYNC™ With Your Phone...........386
Using Traction Control................................175
Using Voice Recognition...........................384
Using Winter Tires
.......................................326
Utilizing the Mediation/Arbitration Program (Canada Only)........................243
V
Vehicle Care
...................................................292
General Information......................................... 292
General Information - Mach 1........................ 292
Vehicle Identification Number
...............346
Vehicle Storage............................................299
Vehicle Wi-Fi Hotspot................................372
Ventilation See: Climate Control.......................................... 127
VIN See: Vehicle Identification Number............346
Voice Control....................................................75
W
Warning Lamps and Indicators................94
Washer Fluid Check
....................................276 Washers
See: Cleaning the Exterior.............................. 294
See: Cleaning the Exterior - Mach 1............294
See: Wipers and Washers................................. 78
Waxing.............................................................296
Welcome Lighting..........................................83
What Is a Connected Vehicle..................368
What Is Automatic High Beam Control............................................................84
What Is Cruise Control
...............................185
What Is MyKey.................................................63
What Is Remote Start.................................124
What Is the Cabin Air Filter.......................133
What Is the Garage Door Opener............141
Wheel Nuts See: Changing a Road Wheel......................... 331
Wheels and Tires
.........................................302
General Information......................................... 302
Technical Specifications................................. 337
Wi Fi See: Changing the Vehicle Wi-Fi Hotspot
Name or Password....................................... 372
See: Connecting the Vehicle to a Wi-Fi Network........................................................... 368
See: Creating a Vehicle Wi-Fi Hotspot.......372
See: Vehicle Wi-Fi Hotspot............................. 372
Windows and Mirrors
...................................86
Windshield Washers.....................................79
Windshield Wipers.........................................78
Winter Tires See: Using Winter Tires................................... 326
Wiper Blades See: Checking the Wiper Blades................... 277
Wipers and Washers.....................................78
Wrecker Towing See: Transporting the Vehicle - Mach 1......224
525
2022 Mustang (CZG) Canada/United States of America, Vehicles Built From: 27-09-2021, enUSA, Edition date: 202110, First-Printing Index
