display FORD MUSTANG 2023 Owners Manual

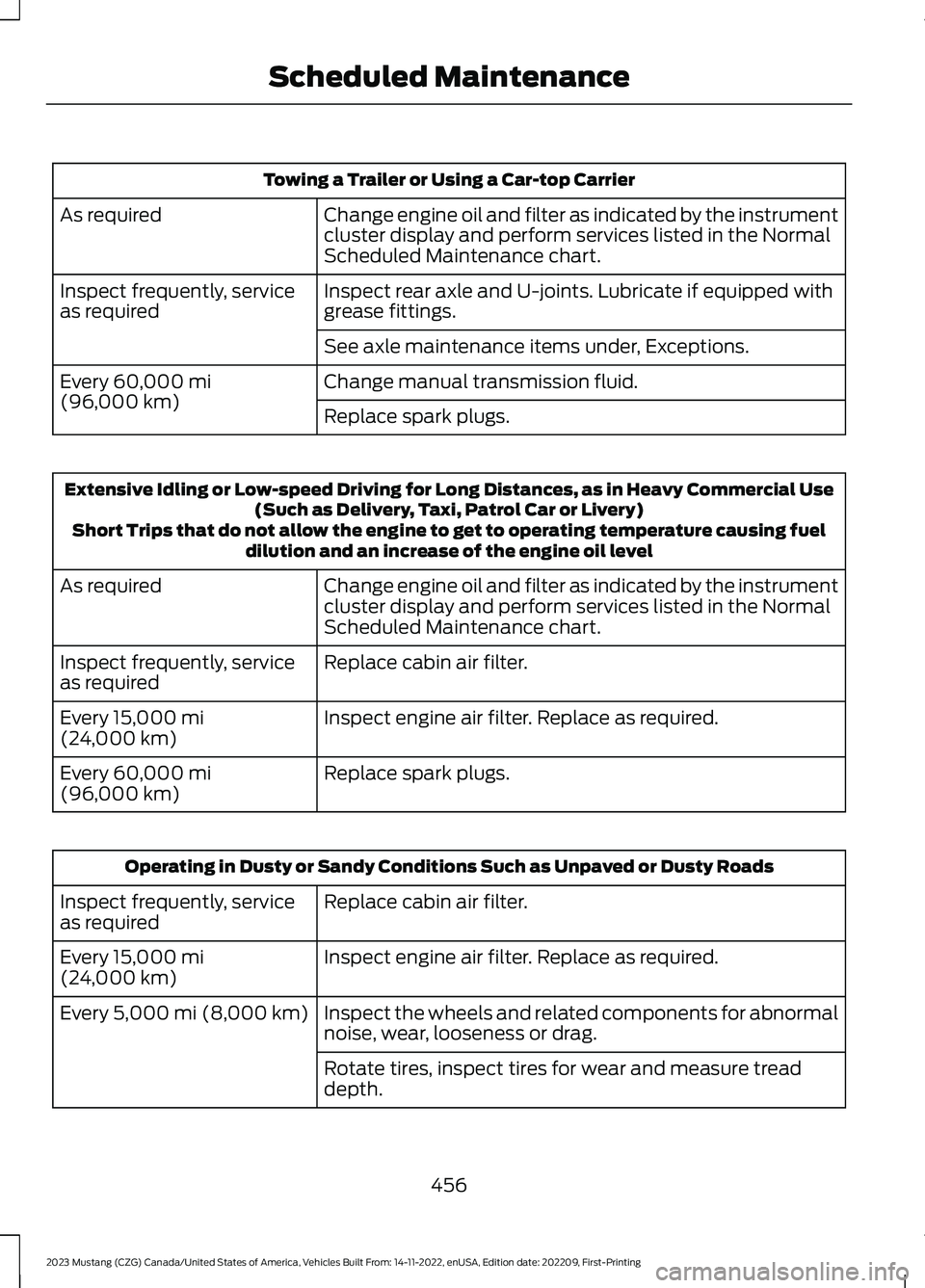

Towing a Trailer or Using a Car-top Carrier
Change engine oil and filter as indicated by the instrumentcluster display and perform services listed in the NormalScheduled Maintenance chart.
As required
Inspect rear axle and U-joints. Lubricate if equipped withgrease fittings.Inspect frequently, serviceas required
See axle maintenance items under, Exceptions.
Change manual transmission fluid.Every 60,000 mi(96,000 km)Replace spark plugs.
Extensive Idling or Low-speed Driving for Long Distances, as in Heavy Commercial Use(Such as Delivery, Taxi, Patrol Car or Livery)Short Trips that do not allow the engine to get to operating temperature causing fueldilution and an increase of the engine oil level
Change engine oil and filter as indicated by the instrumentcluster display and perform services listed in the NormalScheduled Maintenance chart.
As required
Replace cabin air filter.Inspect frequently, serviceas required
Inspect engine air filter. Replace as required.Every 15,000 mi(24,000 km)
Replace spark plugs.Every 60,000 mi(96,000 km)
Operating in Dusty or Sandy Conditions Such as Unpaved or Dusty Roads
Replace cabin air filter.Inspect frequently, serviceas required
Inspect engine air filter. Replace as required.Every 15,000 mi(24,000 km)
Inspect the wheels and related components for abnormalnoise, wear, looseness or drag.Every 5,000 mi (8,000 km)
Rotate tires, inspect tires for wear and measure treaddepth.
456
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingScheduled Maintenance

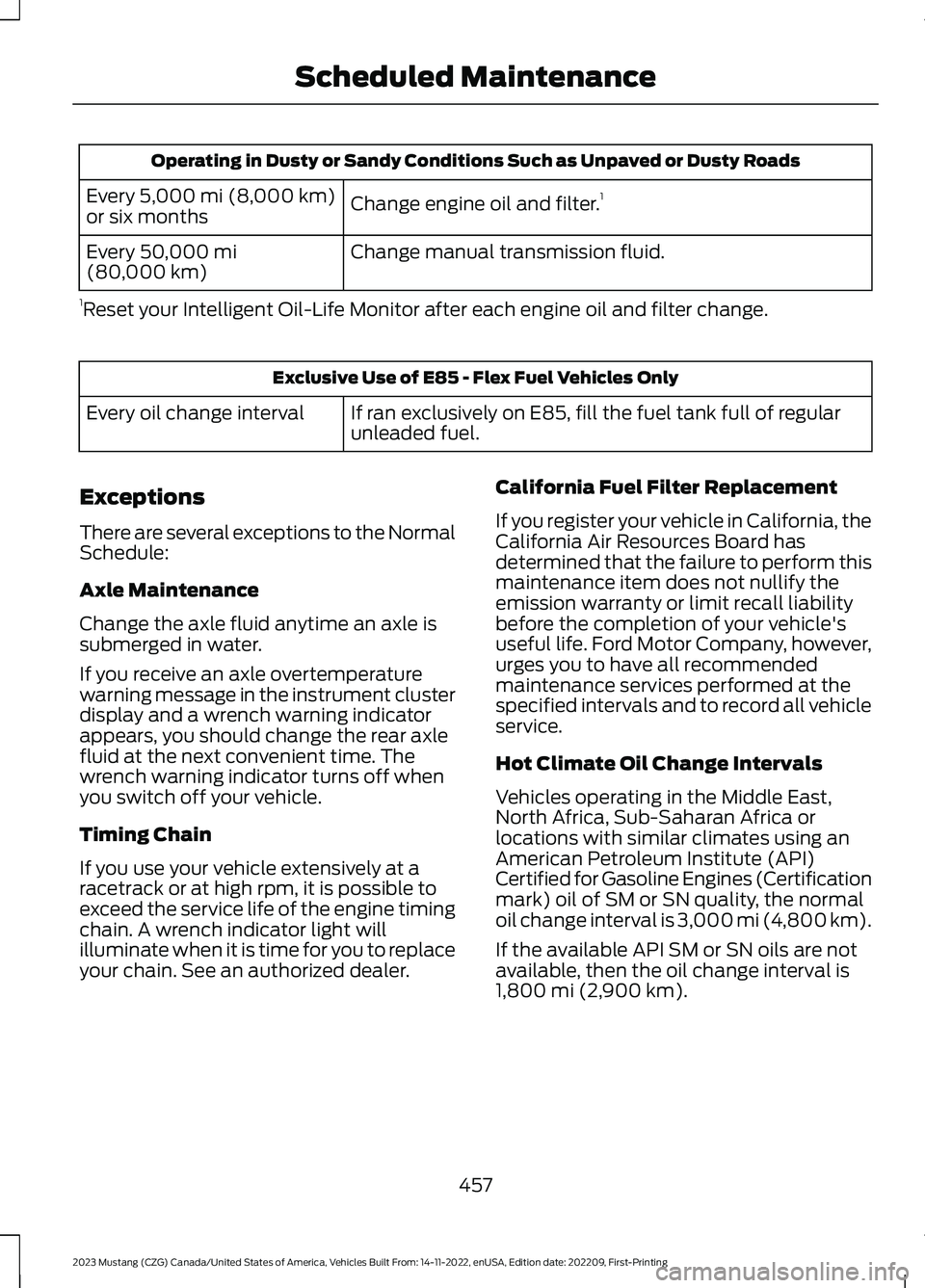

Operating in Dusty or Sandy Conditions Such as Unpaved or Dusty Roads
Change engine oil and filter.1Every 5,000 mi (8,000 km)or six months
Change manual transmission fluid.Every 50,000 mi(80,000 km)
1Reset your Intelligent Oil-Life Monitor after each engine oil and filter change.
Exclusive Use of E85 - Flex Fuel Vehicles Only
If ran exclusively on E85, fill the fuel tank full of regularunleaded fuel.Every oil change interval
Exceptions
There are several exceptions to the NormalSchedule:
Axle Maintenance
Change the axle fluid anytime an axle issubmerged in water.
If you receive an axle overtemperaturewarning message in the instrument clusterdisplay and a wrench warning indicatorappears, you should change the rear axlefluid at the next convenient time. Thewrench warning indicator turns off whenyou switch off your vehicle.
Timing Chain
If you use your vehicle extensively at aracetrack or at high rpm, it is possible toexceed the service life of the engine timingchain. A wrench indicator light willilluminate when it is time for you to replaceyour chain. See an authorized dealer.
California Fuel Filter Replacement
If you register your vehicle in California, theCalifornia Air Resources Board hasdetermined that the failure to perform thismaintenance item does not nullify theemission warranty or limit recall liabilitybefore the completion of your vehicle'suseful life. Ford Motor Company, however,urges you to have all recommendedmaintenance services performed at thespecified intervals and to record all vehicleservice.
Hot Climate Oil Change Intervals
Vehicles operating in the Middle East,North Africa, Sub-Saharan Africa orlocations with similar climates using anAmerican Petroleum Institute (API)Certified for Gasoline Engines (Certificationmark) oil of SM or SN quality, the normaloil change interval is 3,000 mi (4,800 km).
If the available API SM or SN oils are notavailable, then the oil change interval is1,800 mi (2,900 km).
457
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingScheduled Maintenance

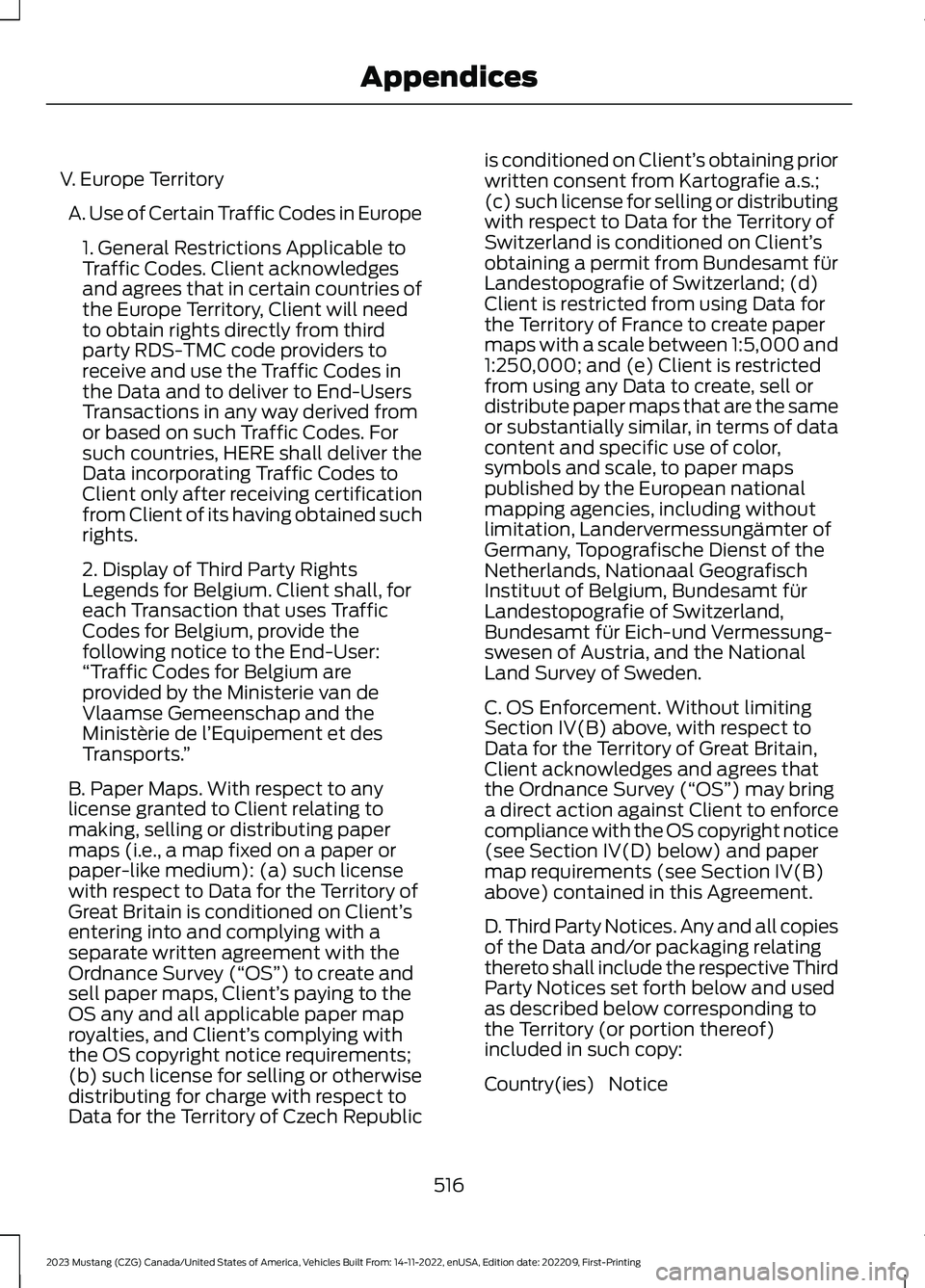

V. Europe Territory
A. Use of Certain Traffic Codes in Europe
1. General Restrictions Applicable toTraffic Codes. Client acknowledgesand agrees that in certain countries ofthe Europe Territory, Client will needto obtain rights directly from thirdparty RDS-TMC code providers toreceive and use the Traffic Codes inthe Data and to deliver to End-UsersTransactions in any way derived fromor based on such Traffic Codes. Forsuch countries, HERE shall deliver theData incorporating Traffic Codes toClient only after receiving certificationfrom Client of its having obtained suchrights.
2. Display of Third Party RightsLegends for Belgium. Client shall, foreach Transaction that uses TrafficCodes for Belgium, provide thefollowing notice to the End-User:“Traffic Codes for Belgium areprovided by the Ministerie van deVlaamse Gemeenschap and theMinistèrie de l’Equipement et desTransports.”
B. Paper Maps. With respect to anylicense granted to Client relating tomaking, selling or distributing papermaps (i.e., a map fixed on a paper orpaper-like medium): (a) such licensewith respect to Data for the Territory ofGreat Britain is conditioned on Client’sentering into and complying with aseparate written agreement with theOrdnance Survey (“OS”) to create andsell paper maps, Client’s paying to theOS any and all applicable paper maproyalties, and Client’s complying withthe OS copyright notice requirements;(b) such license for selling or otherwisedistributing for charge with respect toData for the Territory of Czech Republic
is conditioned on Client’s obtaining priorwritten consent from Kartografie a.s.;(c) such license for selling or distributingwith respect to Data for the Territory ofSwitzerland is conditioned on Client’sobtaining a permit from Bundesamt fürLandestopografie of Switzerland; (d)Client is restricted from using Data forthe Territory of France to create papermaps with a scale between 1:5,000 and1:250,000; and (e) Client is restrictedfrom using any Data to create, sell ordistribute paper maps that are the sameor substantially similar, in terms of datacontent and specific use of color,symbols and scale, to paper mapspublished by the European nationalmapping agencies, including withoutlimitation, Landervermessungämter ofGermany, Topografische Dienst of theNetherlands, Nationaal GeografischInstituut of Belgium, Bundesamt fürLandestopografie of Switzerland,Bundesamt für Eich-und Vermessung-swesen of Austria, and the NationalLand Survey of Sweden.
C. OS Enforcement. Without limitingSection IV(B) above, with respect toData for the Territory of Great Britain,Client acknowledges and agrees thatthe Ordnance Survey (“OS”) may bringa direct action against Client to enforcecompliance with the OS copyright notice(see Section IV(D) below) and papermap requirements (see Section IV(B)above) contained in this Agreement.
D. Third Party Notices. Any and all copiesof the Data and/or packaging relatingthereto shall include the respective ThirdParty Notices set forth below and usedas described below corresponding tothe Territory (or portion thereof)included in such copy:
NoticeCountry(ies)
516
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingAppendices

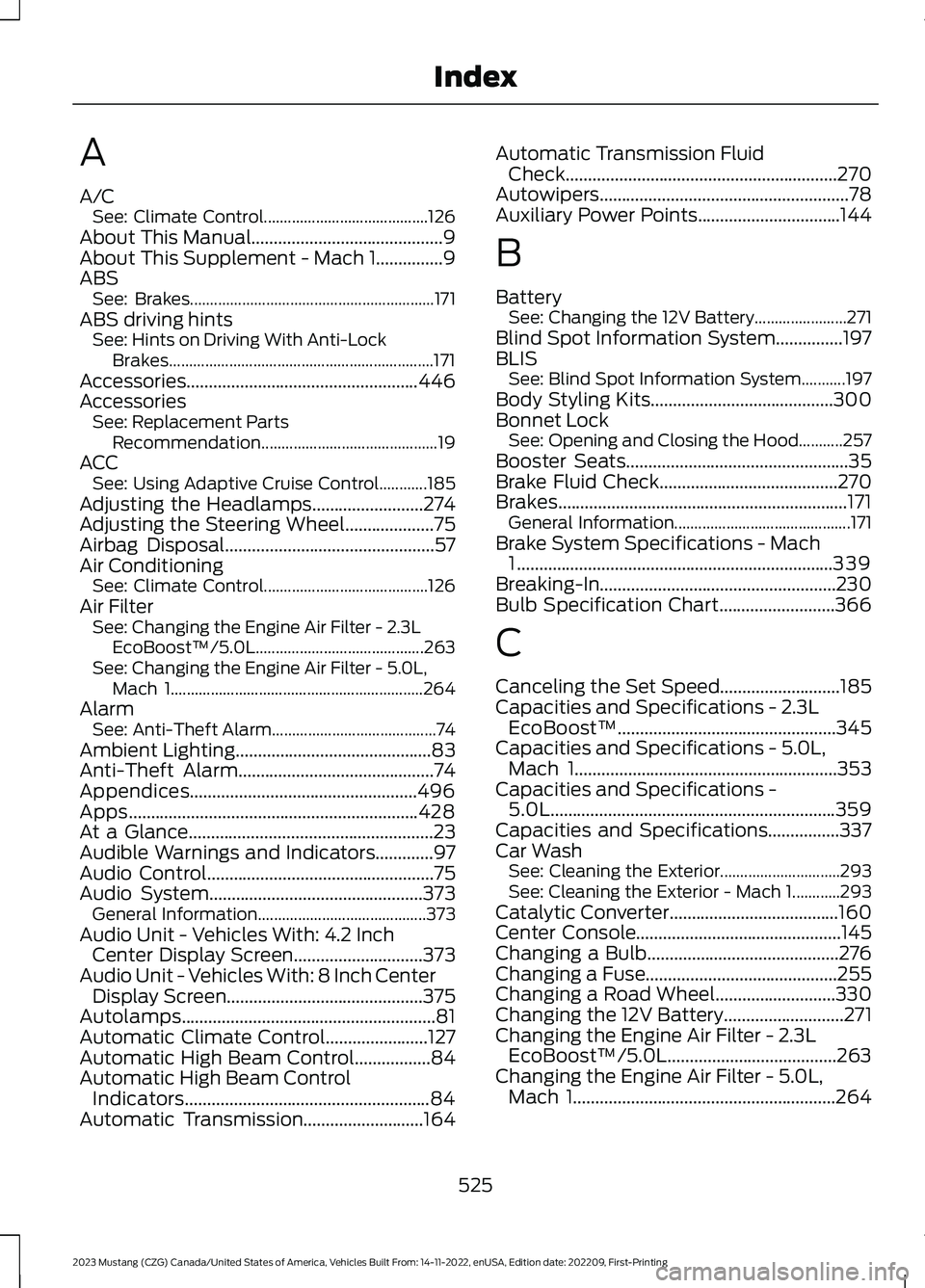

A
A/CSee: Climate Control.........................................126About This Manual...........................................9About This Supplement - Mach 1...............9ABSSee: Brakes.............................................................171ABS driving hintsSee: Hints on Driving With Anti-LockBrakes..................................................................171Accessories....................................................446AccessoriesSee: Replacement PartsRecommendation............................................19ACCSee: Using Adaptive Cruise Control............185Adjusting the Headlamps.........................274Adjusting the Steering Wheel....................75Airbag Disposal...............................................57Air ConditioningSee: Climate Control.........................................126Air FilterSee: Changing the Engine Air Filter - 2.3LEcoBoost™/5.0L..........................................263See: Changing the Engine Air Filter - 5.0L,Mach 1...............................................................264AlarmSee: Anti-Theft Alarm.........................................74Ambient Lighting............................................83Anti-Theft Alarm............................................74Appendices...................................................496Apps.................................................................428At a Glance.......................................................23Audible Warnings and Indicators.............97Audio Control...................................................75Audio System................................................373General Information..........................................373Audio Unit - Vehicles With: 4.2 InchCenter Display Screen.............................373Audio Unit - Vehicles With: 8 Inch CenterDisplay Screen............................................375Autolamps.........................................................81Automatic Climate Control.......................127Automatic High Beam Control.................84Automatic High Beam ControlIndicators.......................................................84Automatic Transmission...........................164
Automatic Transmission FluidCheck.............................................................270Autowipers........................................................78Auxiliary Power Points................................144
B
BatterySee: Changing the 12V Battery.......................271Blind Spot Information System...............197BLISSee: Blind Spot Information System...........197Body Styling Kits.........................................300Bonnet LockSee: Opening and Closing the Hood...........257Booster Seats..................................................35Brake Fluid Check........................................270Brakes.................................................................171General Information............................................171Brake System Specifications - Mach1.......................................................................339Breaking-In.....................................................230Bulb Specification Chart..........................366
C
Canceling the Set Speed...........................185Capacities and Specifications - 2.3LEcoBoost™.................................................345Capacities and Specifications - 5.0L,Mach 1...........................................................353Capacities and Specifications -5.0L................................................................359Capacities and Specifications................337Car WashSee: Cleaning the Exterior..............................293See: Cleaning the Exterior - Mach 1............293Catalytic Converter......................................160Center Console..............................................145Changing a Bulb...........................................276Changing a Fuse...........................................255Changing a Road Wheel...........................330Changing the 12V Battery...........................271Changing the Engine Air Filter - 2.3LEcoBoost™/5.0L......................................263Changing the Engine Air Filter - 5.0L,Mach 1...........................................................264
525
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingIndex

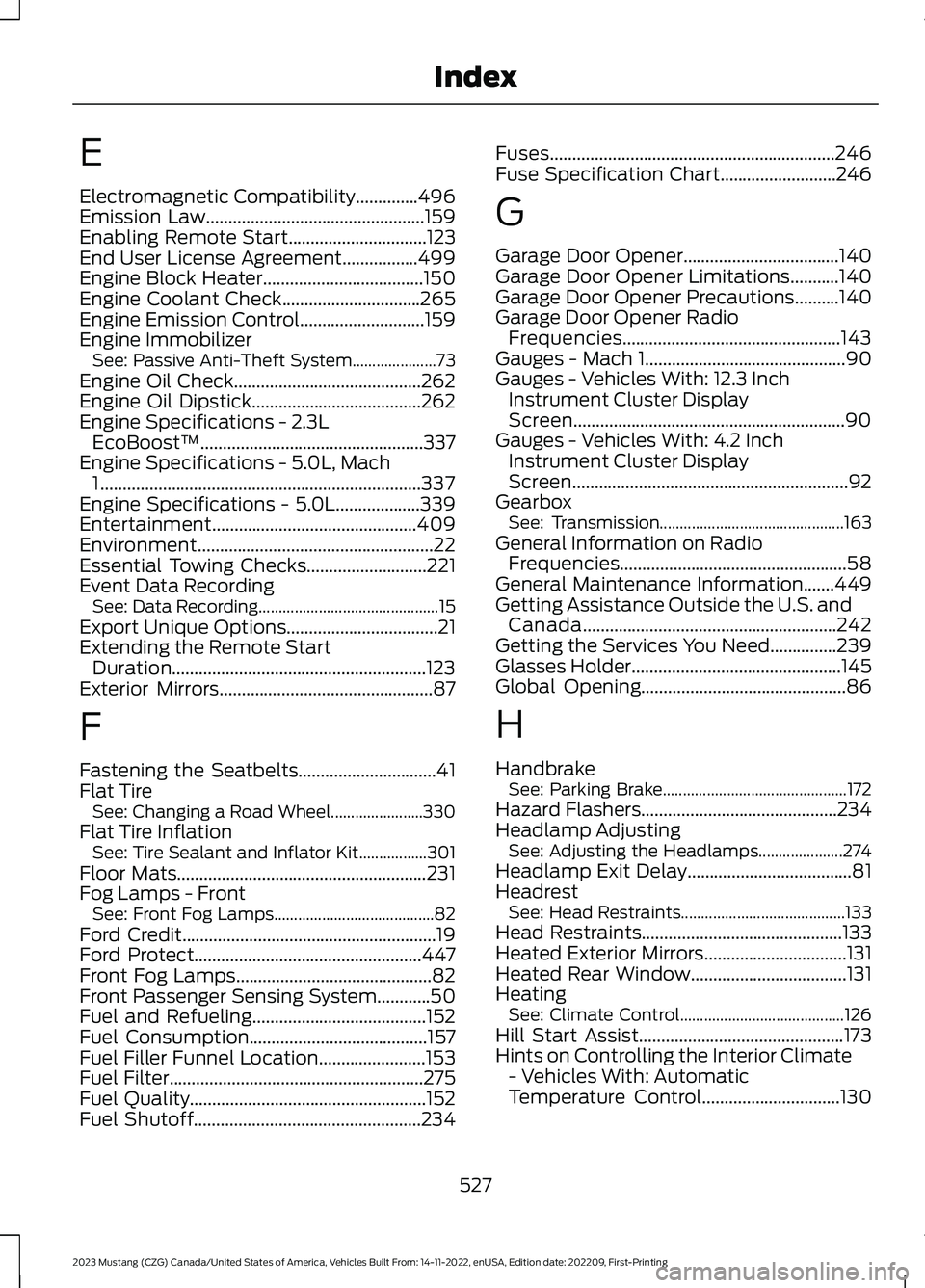

E
Electromagnetic Compatibility..............496Emission Law.................................................159Enabling Remote Start...............................123End User License Agreement.................499Engine Block Heater....................................150Engine Coolant Check...............................265Engine Emission Control............................159Engine ImmobilizerSee: Passive Anti-Theft System.....................73Engine Oil Check..........................................262Engine Oil Dipstick......................................262Engine Specifications - 2.3LEcoBoost™..................................................337Engine Specifications - 5.0L, Mach1........................................................................337Engine Specifications - 5.0L...................339Entertainment..............................................409Environment.....................................................22Essential Towing Checks...........................221Event Data RecordingSee: Data Recording.............................................15Export Unique Options..................................21Extending the Remote StartDuration.........................................................123Exterior Mirrors................................................87
F
Fastening the Seatbelts...............................41Flat TireSee: Changing a Road Wheel.......................330Flat Tire InflationSee: Tire Sealant and Inflator Kit.................301Floor Mats........................................................231Fog Lamps - FrontSee: Front Fog Lamps........................................82Ford Credit.........................................................19Ford Protect...................................................447Front Fog Lamps............................................82Front Passenger Sensing System............50Fuel and Refueling.......................................152Fuel Consumption........................................157Fuel Filler Funnel Location........................153Fuel Filter.........................................................275Fuel Quality.....................................................152Fuel Shutoff...................................................234
Fuses................................................................246Fuse Specification Chart..........................246
G
Garage Door Opener...................................140Garage Door Opener Limitations...........140Garage Door Opener Precautions..........140Garage Door Opener RadioFrequencies.................................................143Gauges - Mach 1.............................................90Gauges - Vehicles With: 12.3 InchInstrument Cluster DisplayScreen.............................................................90Gauges - Vehicles With: 4.2 InchInstrument Cluster DisplayScreen..............................................................92GearboxSee: Transmission..............................................163General Information on RadioFrequencies...................................................58General Maintenance Information.......449Getting Assistance Outside the U.S. andCanada.........................................................242Getting the Services You Need...............239Glasses Holder...............................................145Global Opening..............................................86
H
HandbrakeSee: Parking Brake..............................................172Hazard Flashers............................................234Headlamp AdjustingSee: Adjusting the Headlamps.....................274Headlamp Exit Delay.....................................81HeadrestSee: Head Restraints.........................................133Head Restraints.............................................133Heated Exterior Mirrors................................131Heated Rear Window...................................131HeatingSee: Climate Control.........................................126Hill Start Assist..............................................173Hints on Controlling the Interior Climate- Vehicles With: AutomaticTemperature Control...............................130
527
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingIndex

Hints on Controlling the Interior Climate- Vehicles With: Manual TemperatureControl...........................................................129Hints on Driving With Anti-LockBrakes..............................................................171Hood LockSee: Opening and Closing the Hood...........257Horn......................................................................77How Does the Garage Door OpenerWork...............................................................140
I
In California (U.S. Only)............................240Information Display Control - VehiclesWith: SYNC 3.................................................76Information Display Control - VehiclesWith: SYNC....................................................76Information Displays....................................98General Information - Mach 1..........................98General Information - Vehicles With: 12.3Inch Instrument Cluster DisplayScreen...............................................................108General Information - Vehicles With: 4.2Inch Instrument Cluster DisplayScreen................................................................102Information Messages.................................112Installing Child Restraints - Mach 1..........27Installing Child Restraints - VehiclesWith: GT500 Track Package...................34Installing Child Restraints - VehiclesWithout: GT500 Track Package............28Instrument Cluster........................................90Instrument Lighting Dimmer......................81Instrument Panel............................................23Interior Air Quality.........................................132Interior Lamps.................................................83Interior Luggage CompartmentRelease............................................................72Interior Mirror...................................................88Introduction........................................................9
J
Jump Starting the Vehicle........................235
K
Keyless Starting............................................146Keys and Remote Controls.........................58
L
Lane Keeping System.................................193Lighting Control..............................................80Lighting..............................................................80General Information...........................................80Limited Slip Differential.............................170Load Carrying.................................................214Load Limit........................................................214Locating the Cabin Air Filter......................132Locking and Unlocking.................................67Lug NutsSee: Changing a Road Wheel.......................330
M
Maintenance..................................................257General Information..........................................257Manual Climate Control.............................126Manual Seats.................................................135Manual Transmission Fluid Check -6-Speed Manual Transmission –3160...............................................................269Manual Transmission Fluid Check -6-Speed Manual Transmission –MT82.............................................................270Manual Transmission..................................163Memory Function.........................................136Message CenterSee: Information Displays.................................98MirrorsSee: Windows and Mirrors...............................86Mobile CommunicationsEquipment.....................................................20Motorcraft Parts - 2.3LEcoBoost™.................................................342Motorcraft Parts - 5.0L, Mach 1..............344Motorcraft Parts - 5.0L..............................343MyKey Settings...............................................63Configurable MyKey Settings..........................63Non-Configurable MyKey Settings................63MyKey – Troubleshooting...........................65MyKey – Frequently Asked Questions.........66
528
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingIndex
