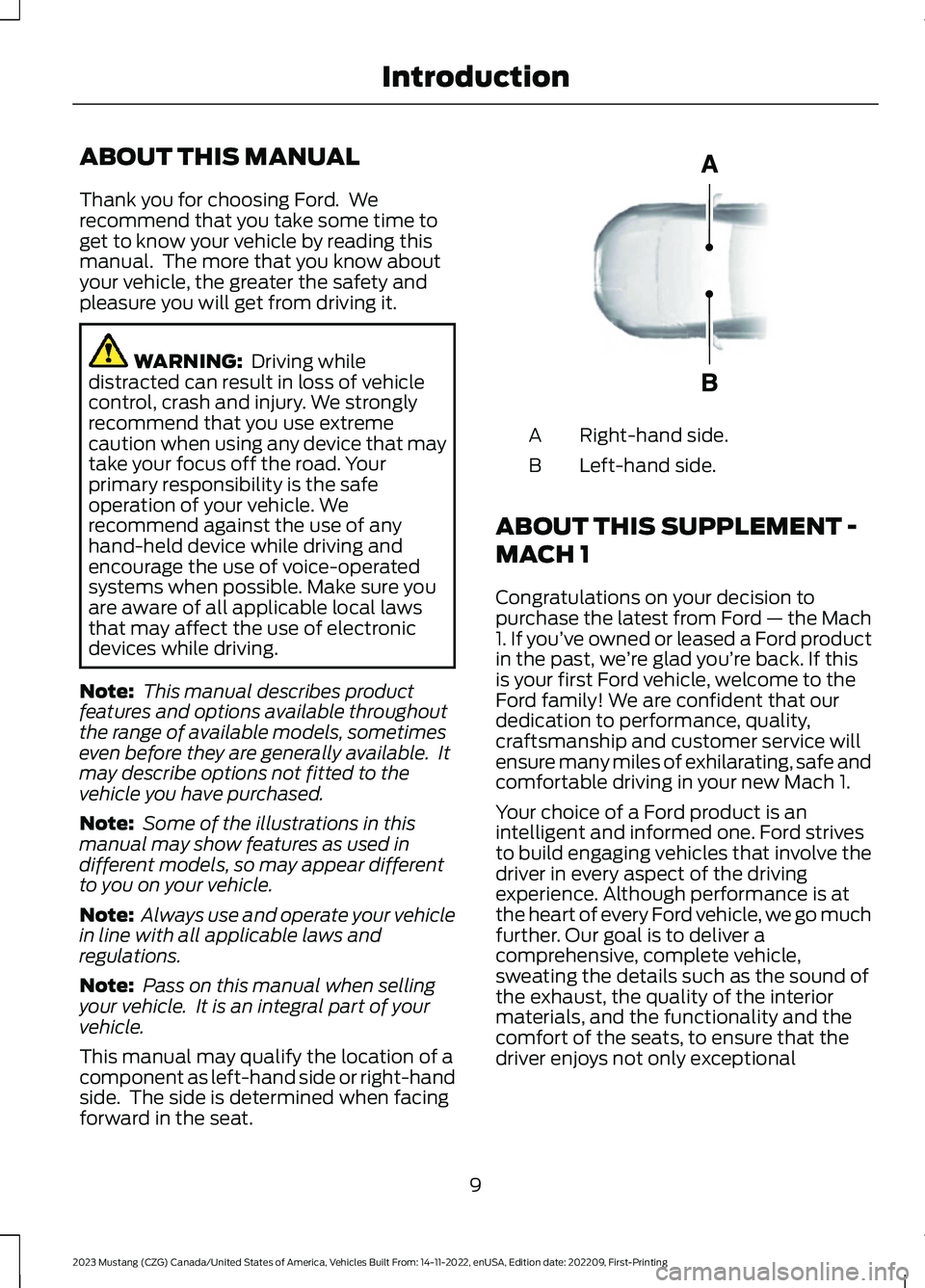

ABOUT THIS MANUAL
Thank you for choosing Ford. Werecommend that you take some time toget to know your vehicle by reading thismanual. The more that you know aboutyour vehicle, the greater the safety andpleasure you will get from driving it.
WARNING: Driving whiledistracted can result in loss of vehiclecontrol, crash and injury. We stronglyrecommend that you use extremecaution when using any device that maytake your focus off the road. Yourprimary responsibility is the safeoperation of your vehicle. Werecommend against the use of anyhand-held device while driving andencourage the use of voice-operatedsystems when possible. Make sure youare aware of all applicable local lawsthat may affect the use of electronicdevices while driving.
Note: This manual describes productfeatures and options available throughoutthe range of available models, sometimeseven before they are generally available. Itmay describe options not fitted to thevehicle you have purchased.
Note: Some of the illustrations in thismanual may show features as used indifferent models, so may appear differentto you on your vehicle.
Note: Always use and operate your vehiclein line with all applicable laws andregulations.
Note: Pass on this manual when sellingyour vehicle. It is an integral part of yourvehicle.
This manual may qualify the location of acomponent as left-hand side or right-handside. The side is determined when facingforward in the seat.
Right-hand side.A
Left-hand side.B
ABOUT THIS SUPPLEMENT -
MACH 1
Congratulations on your decision topurchase the latest from Ford — the Mach1. If you’ve owned or leased a Ford productin the past, we’re glad you’re back. If thisis your first Ford vehicle, welcome to theFord family! We are confident that ourdedication to performance, quality,craftsmanship and customer service willensure many miles of exhilarating, safe andcomfortable driving in your new Mach 1.
Your choice of a Ford product is anintelligent and informed one. Ford strivesto build engaging vehicles that involve thedriver in every aspect of the drivingexperience. Although performance is atthe heart of every Ford vehicle, we go muchfurther. Our goal is to deliver acomprehensive, complete vehicle,sweating the details such as the sound ofthe exhaust, the quality of the interiormaterials, and the functionality and thecomfort of the seats, to ensure that thedriver enjoys not only exceptional
9
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingIntroductionE154903

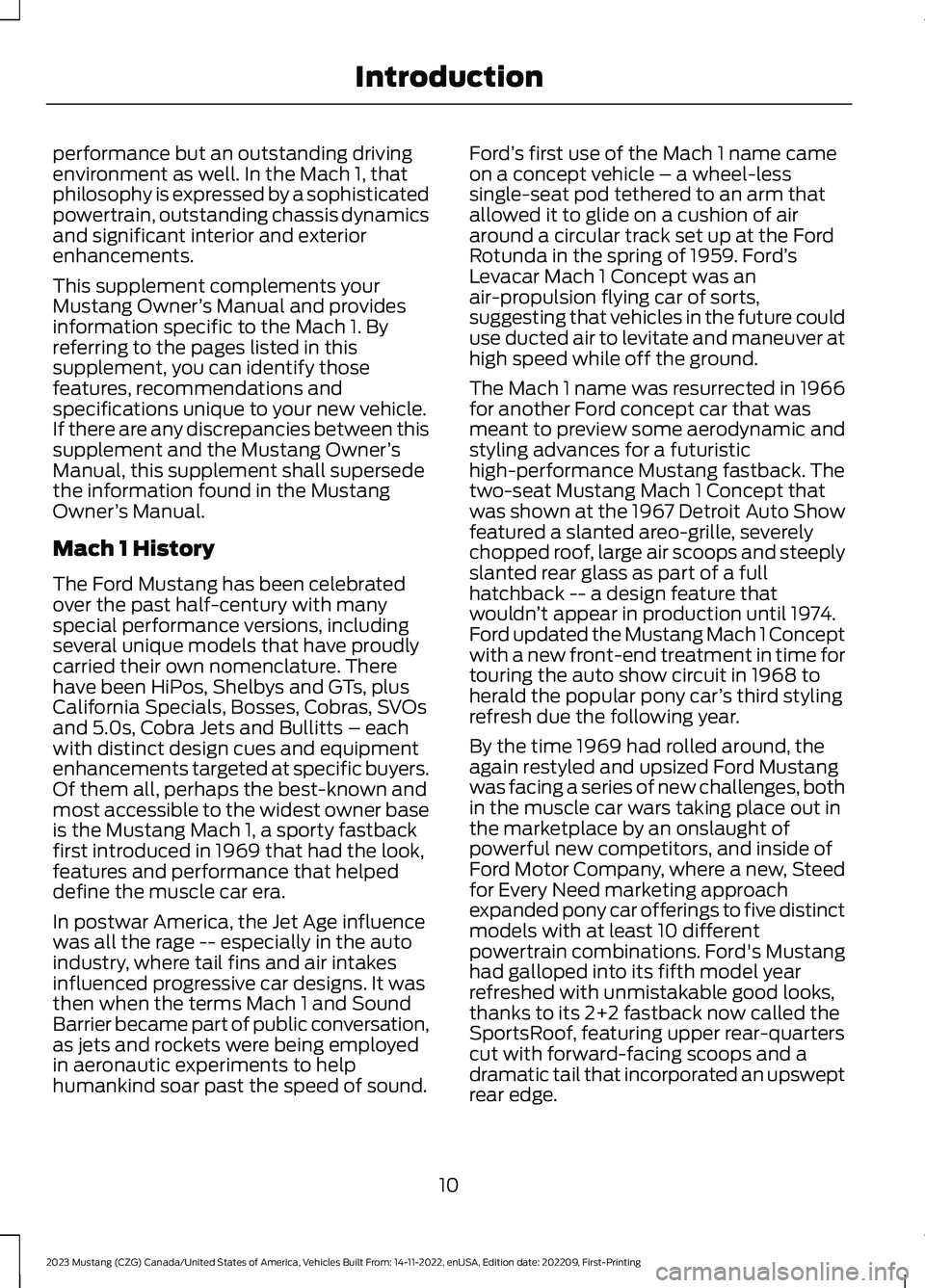

performance but an outstanding drivingenvironment as well. In the Mach 1, thatphilosophy is expressed by a sophisticatedpowertrain, outstanding chassis dynamicsand significant interior and exteriorenhancements.
This supplement complements yourMustang Owner’s Manual and providesinformation specific to the Mach 1. Byreferring to the pages listed in thissupplement, you can identify thosefeatures, recommendations andspecifications unique to your new vehicle.If there are any discrepancies between thissupplement and the Mustang Owner’sManual, this supplement shall supersedethe information found in the MustangOwner’s Manual.
Mach 1 History
The Ford Mustang has been celebratedover the past half-century with manyspecial performance versions, includingseveral unique models that have proudlycarried their own nomenclature. Therehave been HiPos, Shelbys and GTs, plusCalifornia Specials, Bosses, Cobras, SVOsand 5.0s, Cobra Jets and Bullitts – eachwith distinct design cues and equipmentenhancements targeted at specific buyers.Of them all, perhaps the best-known andmost accessible to the widest owner baseis the Mustang Mach 1, a sporty fastbackfirst introduced in 1969 that had the look,features and performance that helpeddefine the muscle car era.
In postwar America, the Jet Age influencewas all the rage -- especially in the autoindustry, where tail fins and air intakesinfluenced progressive car designs. It wasthen when the terms Mach 1 and SoundBarrier became part of public conversation,as jets and rockets were being employedin aeronautic experiments to helphumankind soar past the speed of sound.
Ford’s first use of the Mach 1 name cameon a concept vehicle – a wheel-lesssingle-seat pod tethered to an arm thatallowed it to glide on a cushion of airaround a circular track set up at the FordRotunda in the spring of 1959. Ford’sLevacar Mach 1 Concept was anair-propulsion flying car of sorts,suggesting that vehicles in the future coulduse ducted air to levitate and maneuver athigh speed while off the ground.
The Mach 1 name was resurrected in 1966for another Ford concept car that wasmeant to preview some aerodynamic andstyling advances for a futuristichigh-performance Mustang fastback. Thetwo-seat Mustang Mach 1 Concept thatwas shown at the 1967 Detroit Auto Showfeatured a slanted areo-grille, severelychopped roof, large air scoops and steeplyslanted rear glass as part of a fullhatchback -- a design feature thatwouldn’t appear in production until 1974.Ford updated the Mustang Mach 1 Conceptwith a new front-end treatment in time fortouring the auto show circuit in 1968 toherald the popular pony car’s third stylingrefresh due the following year.
By the time 1969 had rolled around, theagain restyled and upsized Ford Mustangwas facing a series of new challenges, bothin the muscle car wars taking place out inthe marketplace by an onslaught ofpowerful new competitors, and inside ofFord Motor Company, where a new, Steedfor Every Need marketing approachexpanded pony car offerings to five distinctmodels with at least 10 differentpowertrain combinations. Ford's Mustanghad galloped into its fifth model yearrefreshed with unmistakable good looks,thanks to its 2+2 fastback now called theSportsRoof, featuring upper rear-quarterscut with forward-facing scoops and adramatic tail that incorporated an upsweptrear edge.
10
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingIntroduction

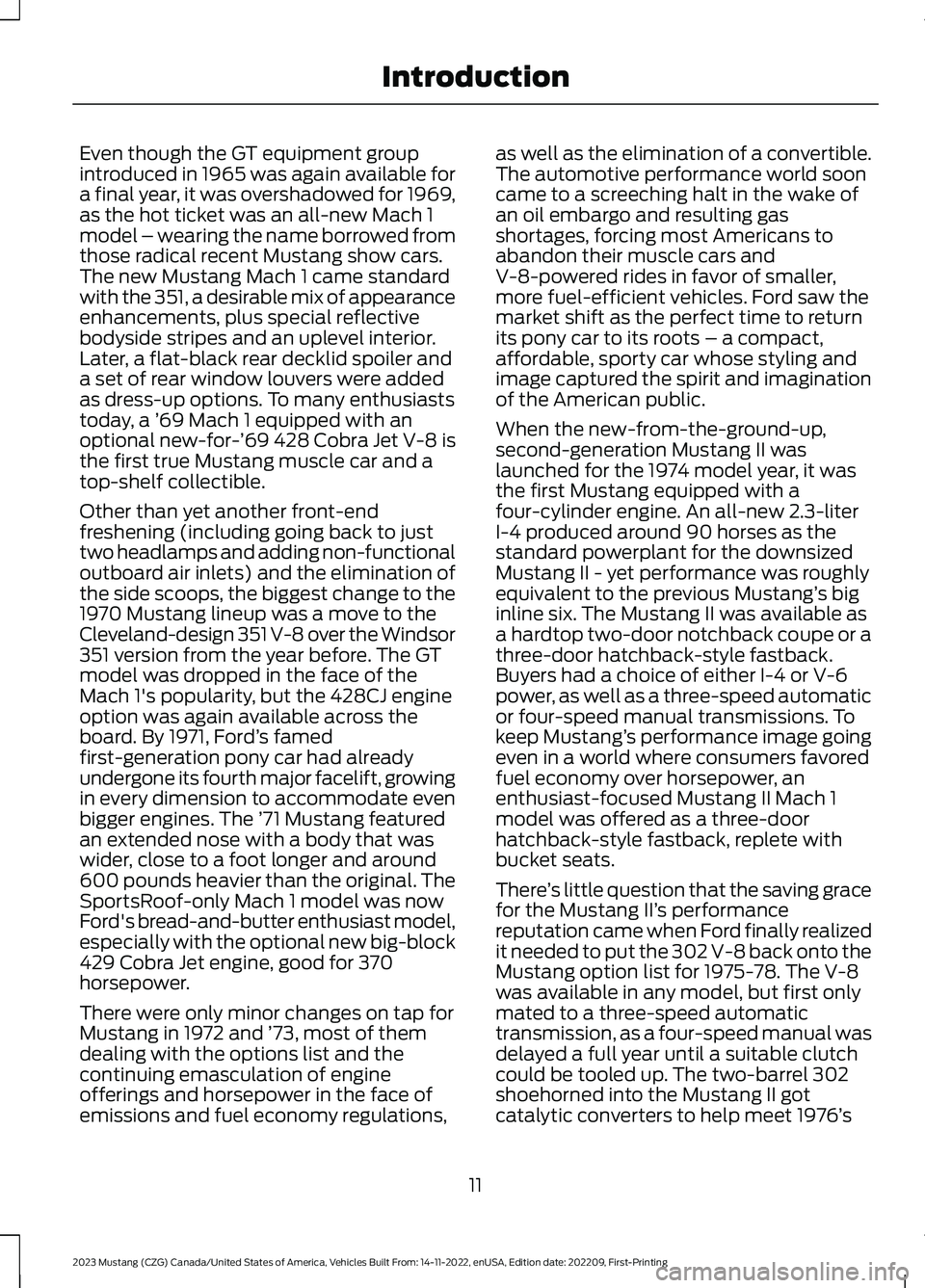

Even though the GT equipment groupintroduced in 1965 was again available fora final year, it was overshadowed for 1969,as the hot ticket was an all-new Mach 1model – wearing the name borrowed fromthose radical recent Mustang show cars.The new Mustang Mach 1 came standardwith the 351, a desirable mix of appearanceenhancements, plus special reflectivebodyside stripes and an uplevel interior.Later, a flat-black rear decklid spoiler anda set of rear window louvers were addedas dress-up options. To many enthusiaststoday, a ’69 Mach 1 equipped with anoptional new-for-’69 428 Cobra Jet V-8 isthe first true Mustang muscle car and atop-shelf collectible.
Other than yet another front-endfreshening (including going back to justtwo headlamps and adding non-functionaloutboard air inlets) and the elimination ofthe side scoops, the biggest change to the1970 Mustang lineup was a move to theCleveland-design 351 V-8 over the Windsor351 version from the year before. The GTmodel was dropped in the face of theMach 1's popularity, but the 428CJ engineoption was again available across theboard. By 1971, Ford’s famedfirst-generation pony car had alreadyundergone its fourth major facelift, growingin every dimension to accommodate evenbigger engines. The ’71 Mustang featuredan extended nose with a body that waswider, close to a foot longer and around600 pounds heavier than the original. TheSportsRoof-only Mach 1 model was nowFord's bread-and-butter enthusiast model,especially with the optional new big-block429 Cobra Jet engine, good for 370horsepower.
There were only minor changes on tap forMustang in 1972 and ’73, most of themdealing with the options list and thecontinuing emasculation of engineofferings and horsepower in the face ofemissions and fuel economy regulations,
as well as the elimination of a convertible.The automotive performance world sooncame to a screeching halt in the wake ofan oil embargo and resulting gasshortages, forcing most Americans toabandon their muscle cars andV-8-powered rides in favor of smaller,more fuel-efficient vehicles. Ford saw themarket shift as the perfect time to returnits pony car to its roots – a compact,affordable, sporty car whose styling andimage captured the spirit and imaginationof the American public.
When the new-from-the-ground-up,second-generation Mustang II waslaunched for the 1974 model year, it wasthe first Mustang equipped with afour-cylinder engine. An all-new 2.3-literI-4 produced around 90 horses as thestandard powerplant for the downsizedMustang II - yet performance was roughlyequivalent to the previous Mustang’s biginline six. The Mustang II was available asa hardtop two-door notchback coupe or athree-door hatchback-style fastback.Buyers had a choice of either I-4 or V-6power, as well as a three-speed automaticor four-speed manual transmissions. Tokeep Mustang’s performance image goingeven in a world where consumers favoredfuel economy over horsepower, anenthusiast-focused Mustang II Mach 1model was offered as a three-doorhatchback-style fastback, replete withbucket seats.
There’s little question that the saving gracefor the Mustang II’s performancereputation came when Ford finally realizedit needed to put the 302 V-8 back onto theMustang option list for 1975-78. The V-8was available in any model, but first onlymated to a three-speed automatictransmission, as a four-speed manual wasdelayed a full year until a suitable clutchcould be tooled up. The two-barrel 302shoehorned into the Mustang II gotcatalytic converters to help meet 1976’s
11
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingIntroduction

tighter emissions standards, and saw anincrease to 139 horsepower – nearly equalto the ’73’s standard V-8 power level. TheMach 1’s optional Competition Suspensionpackage offered stiffer springs, adjustableshock absorbers and fatter front and rearstabilizer bars to improve handling, andkept it a popular enthusiast choice over allfive years of Mustang II's production. Bythe dawn of the third-generation Mustang,the Mach name would not return again tothe Mustang line until some 25 years later.
After the 1979-93 Fox Body Mustang yearshad come and gone with the reintroductionof a GT model, new sheet metal on arevamped SN-95 platform helped torekindle consumer interest in afourth-generation Ford Mustang.Enthusiasts lavished their attention uponthe 1993-1999 Mustang Cobraperformance model developed by the FordSpecial Vehicle Team skunkworks group,while Ford engineers looked to specialtymodels to fill the mid-market slot betweenthe standard Mustang GT and theupmarket Cobra.

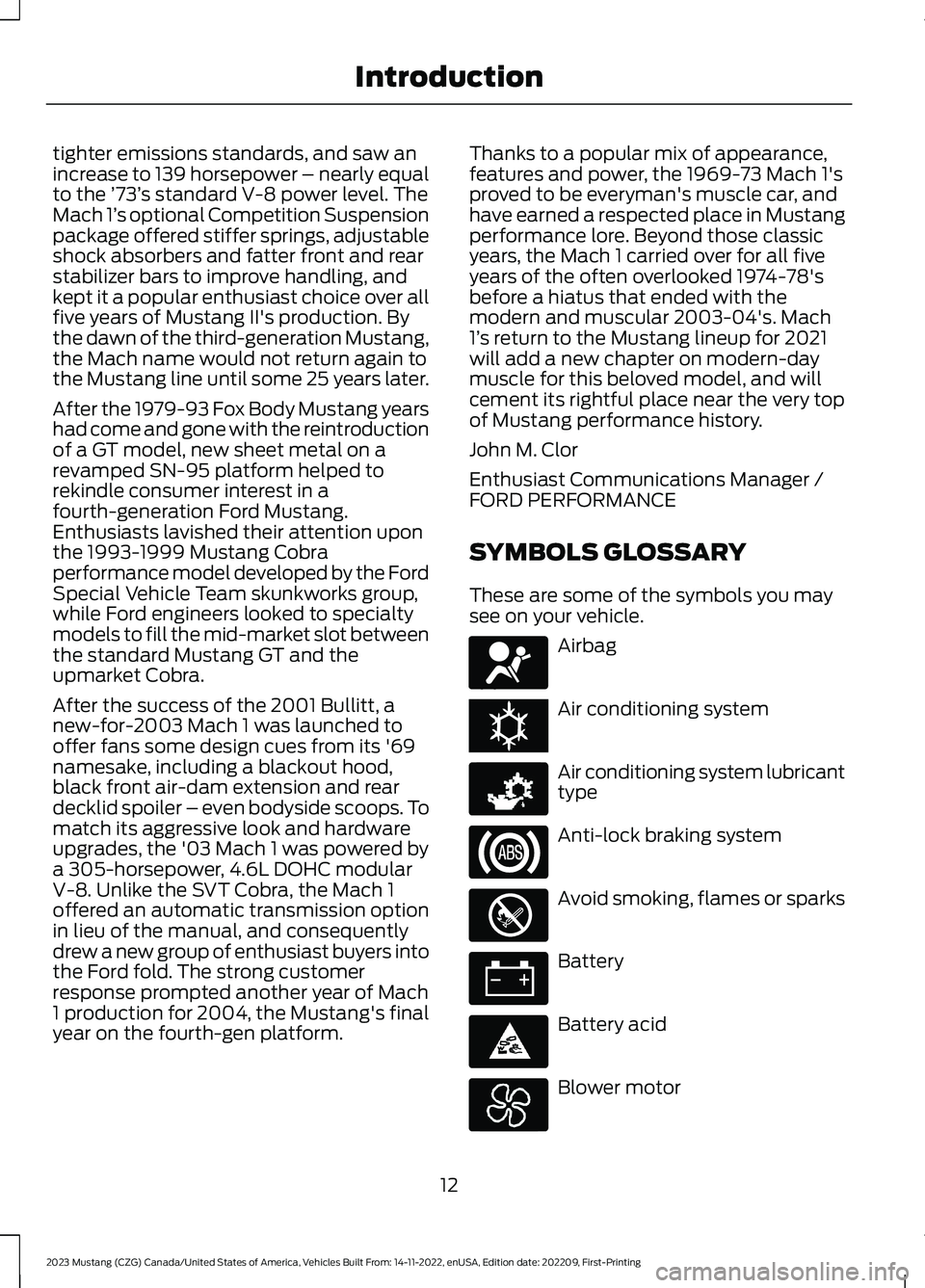

After the success of the 2001 Bullitt, anew-for-2003 Mach 1 was launched tooffer fans some design cues from its '69namesake, including a blackout hood,black front air-dam extension and reardecklid spoiler – even bodyside scoops. Tomatch its aggressive look and hardwareupgrades, the '03 Mach 1 was powered bya 305-horsepower, 4.6L DOHC modularV-8. Unlike the SVT Cobra, the Mach 1offered an automatic transmission optionin lieu of the manual, and consequentlydrew a new group of enthusiast buyers intothe Ford fold. The strong customerresponse prompted another year of Mach1 production for 2004, the Mustang's finalyear on the fourth-gen platform.
Thanks to a popular mix of appearance,features and power, the 1969-73 Mach 1'sproved to be everyman's muscle car, andhave earned a respected place in Mustangperformance lore. Beyond those classicyears, the Mach 1 carried over for all fiveyears of the often overlooked 1974-78'sbefore a hiatus that ended with themodern and muscular 2003-04's. Mach1’s return to the Mustang lineup for 2021will add a new chapter on modern-daymuscle for this beloved model, and willcement its rightful place near the very topof Mustang performance history.
John M. Clor
Enthusiast Communications Manager /FORD PERFORMANCE
SYMBOLS GLOSSARY
These are some of the symbols you maysee on your vehicle.
Airbag
Air conditioning system
Air conditioning system lubricanttype
Anti-lock braking system
Avoid smoking, flames or sparks
Battery
Battery acid
Blower motor
12
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingIntroductionE67017 E162384 E231157 E67020 E139220 E67021 E139227

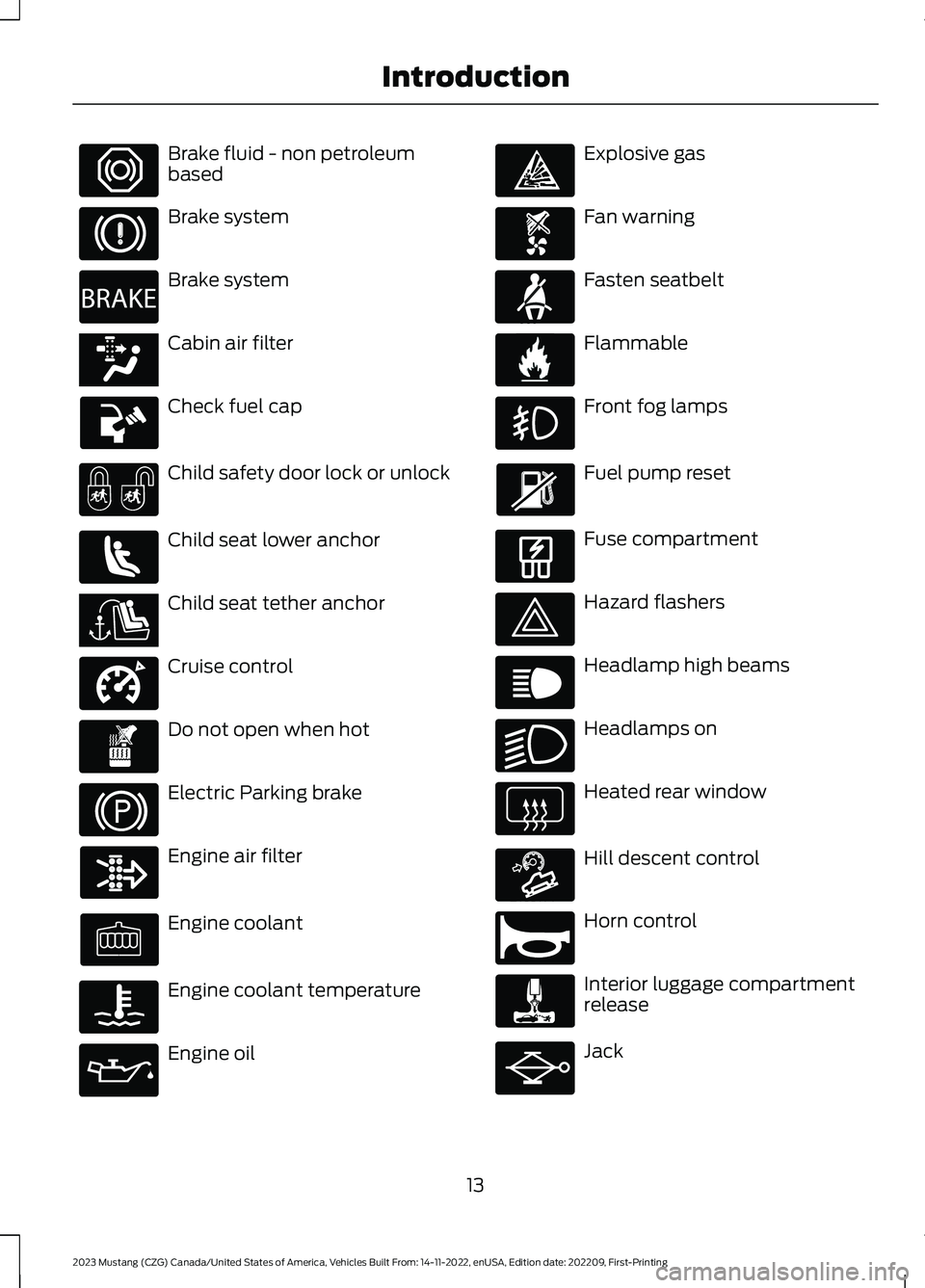

Brake fluid - non petroleumbased
Brake system
Brake system
Cabin air filter
Check fuel cap
Child safety door lock or unlock
Child seat lower anchor
Child seat tether anchor
Cruise control
Do not open when hot
Electric Parking brake
Engine air filter
Engine coolant
Engine coolant temperature
Engine oil
Explosive gas
Fan warning
Fasten seatbelt
Flammable
Front fog lamps
Fuel pump reset
Fuse compartment
Hazard flashers
Headlamp high beams
Headlamps on
Heated rear window
Hill descent control
Horn control
Interior luggage compartmentrelease
Jack
13
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingIntroductionE139209 E67024 E270480 E139223 E139211 E141128 E332905 E139219 E139212 E103308 E67022 E139221 E139228 E71880 E231160 E139214 E75790 E67019 E270968 E163171 E270945 E139231

Keep out of reach of children
Lighting control
Low fuel level
Low tire pressure warning
Maintain correct fluid level
Malfunction Indicator Lamp(MIL)
Note operating instructions
Panic alarm
Parking aid
Parking lamps
Passenger airbag activated
Passenger airbag deactivated
Power steering fluid
Power windows front/rear
Power window lockout
Requires registered technician
Safety alert
See Owner's Manual
See Service Manual
Side airbag
Shield the eyes
Stability control
Stability control off
Trail control
Turn Signal
Windshield defrosting system
Windshield wiping system
Windshield wash and wipe
14
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingIntroductionE161353 E139232 E139229 E67028 E72343 E139213 E71341 E270849 E270850 E139216 E139225 E231159 E65963 E72021 E231158 E167012 E138639 E130458 E332910 E67018 E73953 E270969 E270967

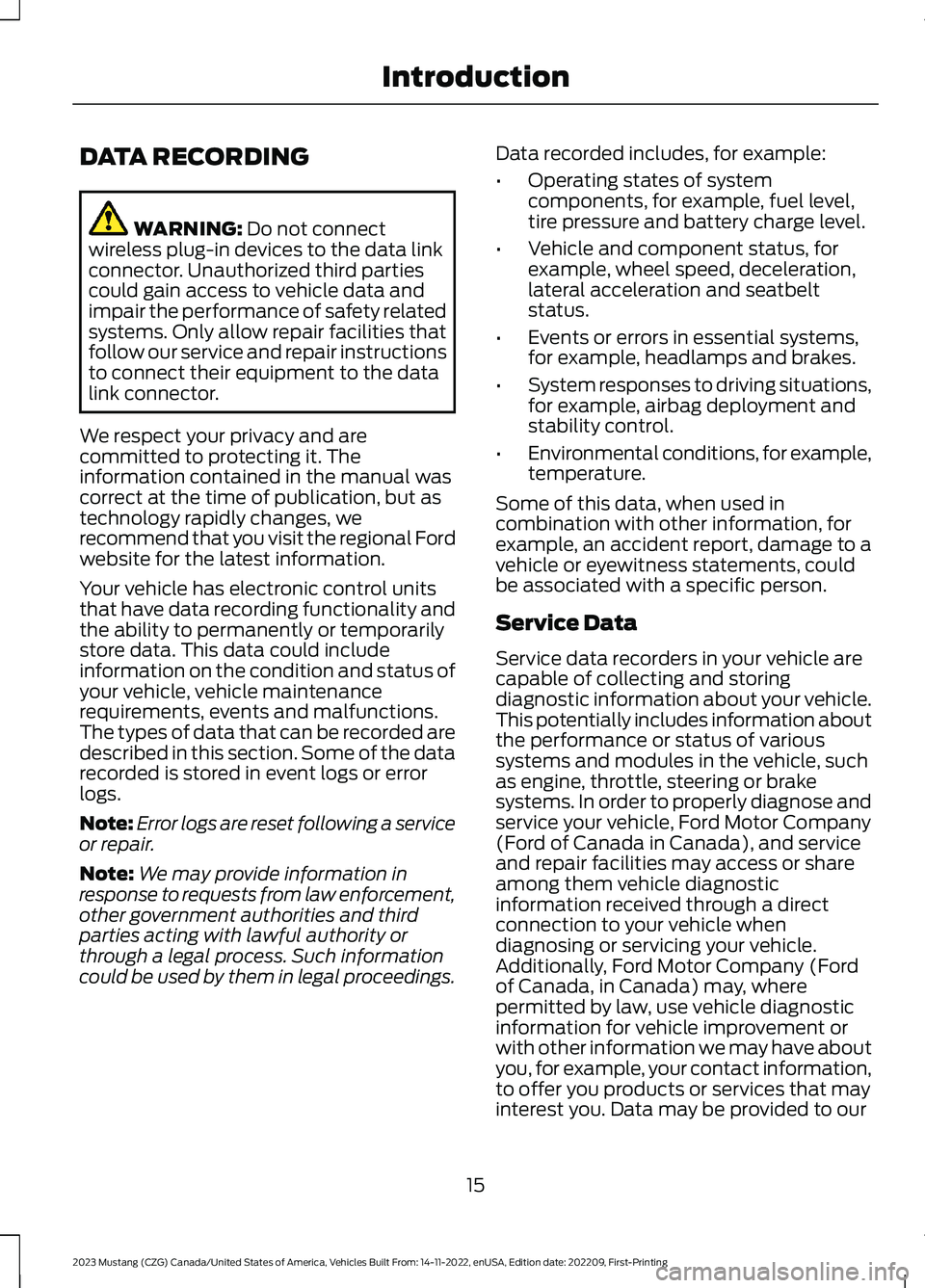

DATA RECORDING
WARNING: Do not connectwireless plug-in devices to the data linkconnector. Unauthorized third partiescould gain access to vehicle data andimpair the performance of safety relatedsystems. Only allow repair facilities thatfollow our service and repair instructionsto connect their equipment to the datalink connector.
We respect your privacy and arecommitted to protecting it. Theinformation contained in the manual wascorrect at the time of publication, but astechnology rapidly changes, werecommend that you visit the regional Fordwebsite for the latest information.
Your vehicle has electronic control unitsthat have data recording functionality andthe ability to permanently or temporarilystore data. This data could includeinformation on the condition and status ofyour vehicle, vehicle maintenancerequirements, events and malfunctions.The types of data that can be recorded aredescribed in this section. Some of the datarecorded is stored in event logs or errorlogs.
Note:Error logs are reset following a serviceor repair.
Note:We may provide information inresponse to requests from law enforcement,other government authorities and thirdparties acting with lawful authority orthrough a legal process. Such informationcould be used by them in legal proceedings.
Data recorded includes, for example:
•Operating states of systemcomponents, for example, fuel level,tire pressure and battery charge level.
•Vehicle and component status, forexample, wheel speed, deceleration,lateral acceleration and seatbeltstatus.
•Events or errors in essential systems,for example, headlamps and brakes.
•System responses to driving situations,for example, airbag deployment andstability control.
•Environmental conditions, for example,temperature.
Some of this data, when used incombination with other information, forexample, an accident report, damage to avehicle or eyewitness statements, couldbe associated with a specific person.
Service Data
Service data recorders in your vehicle arecapable of collecting and storingdiagnostic information about your vehicle.This potentially includes information aboutthe performance or status of varioussystems and modules in the vehicle, suchas engine, throttle, steering or brakesystems. In order to properly diagnose andservice your vehicle, Ford Motor Company(Ford of Canada in Canada), and serviceand repair facilities may access or shareamong them vehicle diagnosticinformation received through a directconnection to your vehicle whendiagnosing or servicing your vehicle.Additionally, Ford Motor Company (Fordof Canada, in Canada) may, wherepermitted by law, use vehicle diagnosticinformation for vehicle improvement orwith other information we may have aboutyou, for example, your contact information,to offer you products or services that mayinterest you. Data may be provided to our
15
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingIntroduction

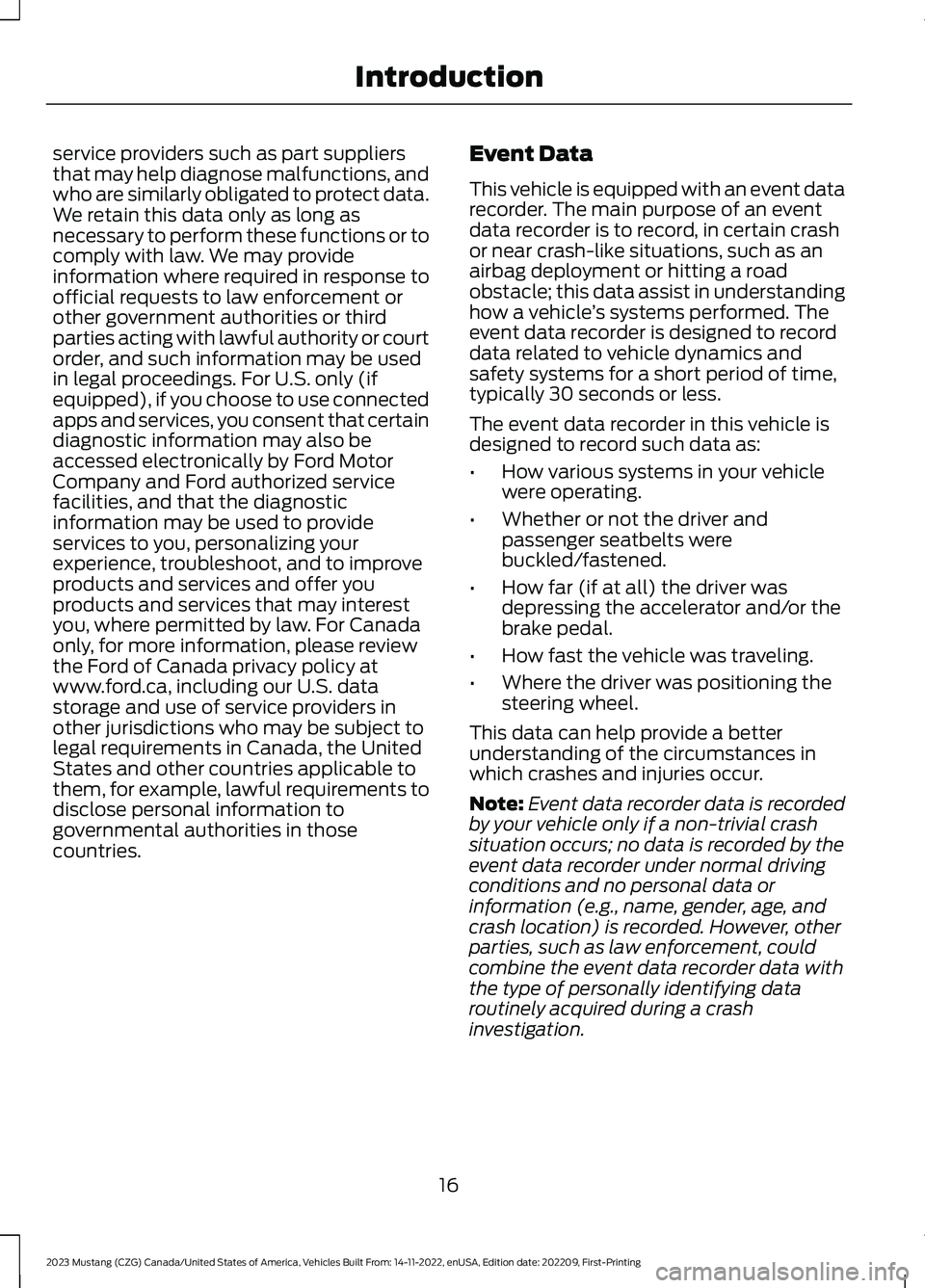

service providers such as part suppliersthat may help diagnose malfunctions, andwho are similarly obligated to protect data.We retain this data only as long asnecessary to perform these functions or tocomply with law. We may provideinformation where required in response toofficial requests to law enforcement orother government authorities or thirdparties acting with lawful authority or courtorder, and such information may be usedin legal proceedings. For U.S. only (ifequipped), if you choose to use connectedapps and services, you consent that certaindiagnostic information may also beaccessed electronically by Ford MotorCompany and Ford authorized servicefacilities, and that the diagnosticinformation may be used to provideservices to you, personalizing yourexperience, troubleshoot, and to improveproducts and services and offer youproducts and services that may interestyou, where permitted by law. For Canadaonly, for more information, please reviewthe Ford of Canada privacy policy atwww.ford.ca, including our U.S. datastorage and use of service providers inother jurisdictions who may be subject tolegal requirements in Canada, the UnitedStates and other countries applicable tothem, for example, lawful requirements todisclose personal information togovernmental authorities in thosecountries.
