Page 292 of 535

Start Option
Allows you to select the type of countdownthe information display shows beforestarting an event.
Status Screen
Provides the status of your chosenperformance-related settings.
View/Clear Results
Allows you to view and clear the last andsaved results of the Acceleration Timer,Brake Performance, and All Time Bestresults.
Track Use Maintenance Intervals
Follow these maintenance intervals forwhen you use your vehicle on a track or ina high speed event.
Vehicle Use and ExampleInterval
Change the engine oil and filterOne track weekend or approximately 4hours of track use
Change the rear axle fluidEvery 500 mi (800 km)1
1 Change the fluid every 500 mi (800 km) or when a message appears in the informationdisplay stating that the axle fluid is over temperature.
Timing Chain
If you use your vehicle extensively at a racetrack or at high rpm, it is possible to exceedthe service life of the engine timing chain.A wrench indicator light illuminates whenit is time for you to replace your chain.Have your vehicle checked as soon aspossible.
Adjustable Camber Front StrutTop Mounts (If Equipped)
Your vehicle has adjustable strut mountswhich you can use to adjust the camber ofyour vehicle before and after a track eventto the specifications listed in the RoadCourse Alignment Recommendations tablepreviously shown.
Note:After your track day is complete,return your car to the street alignment andtire pressures.
Aerodynamics (If Equipped)
Adjustable Rear Wing
The rear wing generates aerodynamicdown-force at speeds greater than 50 mph(80 km/h).
Regularly inspect the rear wing panel andattachment points for damage orlooseness.
You can adjust the wing using the holepattern at the top of the stanchion.
Moving the wing up increases rear downforce and overall understeer. Moving thewing down decreases the rear down forceand overall understeer.
288
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingTrack Use (If Equipped)

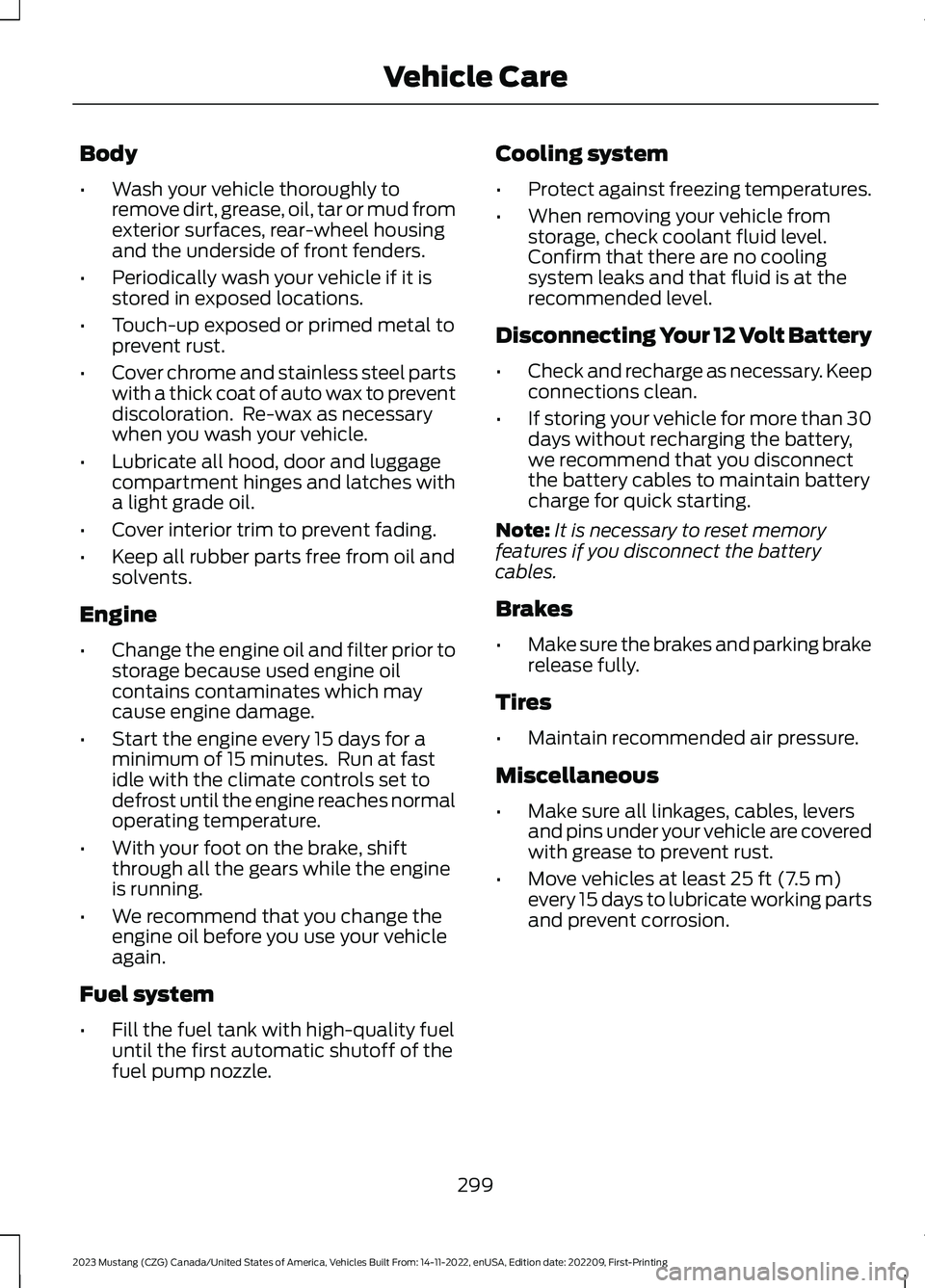

Page 303 of 535

Body
•Wash your vehicle thoroughly toremove dirt, grease, oil, tar or mud fromexterior surfaces, rear-wheel housingand the underside of front fenders.
•Periodically wash your vehicle if it isstored in exposed locations.
•Touch-up exposed or primed metal toprevent rust.
•Cover chrome and stainless steel partswith a thick coat of auto wax to preventdiscoloration. Re-wax as necessarywhen you wash your vehicle.
•Lubricate all hood, door and luggagecompartment hinges and latches witha light grade oil.
•Cover interior trim to prevent fading.
•Keep all rubber parts free from oil andsolvents.
Engine
•Change the engine oil and filter prior tostorage because used engine oilcontains contaminates which maycause engine damage.
•Start the engine every 15 days for aminimum of 15 minutes. Run at fastidle with the climate controls set todefrost until the engine reaches normaloperating temperature.
•With your foot on the brake, shiftthrough all the gears while the engineis running.
•We recommend that you change theengine oil before you use your vehicleagain.
Fuel system
•Fill the fuel tank with high-quality fueluntil the first automatic shutoff of thefuel pump nozzle.
Cooling system
•Protect against freezing temperatures.
•When removing your vehicle fromstorage, check coolant fluid level.Confirm that there are no coolingsystem leaks and that fluid is at therecommended level.
Disconnecting Your 12 Volt Battery
•Check and recharge as necessary. Keepconnections clean.
•If storing your vehicle for more than 30days without recharging the battery,we recommend that you disconnectthe battery cables to maintain batterycharge for quick starting.
Note:It is necessary to reset memoryfeatures if you disconnect the batterycables.
Brakes
•Make sure the brakes and parking brakerelease fully.
Tires
•Maintain recommended air pressure.
Miscellaneous
•Make sure all linkages, cables, leversand pins under your vehicle are coveredwith grease to prevent rust.
•Move vehicles at least 25 ft (7.5 m)every 15 days to lubricate working partsand prevent corrosion.
299
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingVehicle Care
Page 306 of 535

General Information
WARNING: Failure to follow theseguidelines could result in an increasedrisk of loss of vehicle control, injury ordeath.
Note:Do not use the kit if you have severelydamaged a tire. Only seal punctures withinthe tire tread with the kit.
Do not attempt to repair punctures largerthan ¼ inch (6 millimeters) or damage tothe tire's sidewall. The tire may notcompletely seal.
Loss of air pressure may adversely affecttire performance. For this reason:
Note:Do not drive the vehicle above50 mph (80 km/h).
Note:Do not drive further than 120 mi(200 km). Drive only to the closestauthorized dealer or tire repair shop to haveyour tire inspected.
•Drive carefully and avoid abruptsteering maneuvers.
•Periodically monitor tire inflationpressure in the affected tire; if the tireis losing pressure, have the vehicletowed.
•Read the information in the Tips forUse of the Kit section to make sure safeoperation of the kit and your vehicle.
Tips for Use of the Kit
To ensure safe operation of the kit:
•Read all instructions and cautions fully.
•Before operating the kit, make sureyour vehicle is safely off the road andaway from moving traffic. Switch onthe hazard lights.
•Always set the parking brake to ensurethe vehicle does not moveunexpectedly.
•Do not remove any foreign objects,such as nails or screws, from the tire.
•When using the kit, leave the enginerunning (only if the vehicle is outdoorsor in a well-ventilated area) so thecompressor does not drain thevehicle's battery.
•Do not allow the compressor tooperate continuously for more than 15minutes. This will help prevent thecompressor from overheating.
•Never leave the kit unattended duringoperation.
•Sealant compound contains latex.Those with latex sensitivities shoulduse appropriate precautions to avoidan allergic reaction.
•Keep the kit away from children.
•Only use the kit when the ambienttemperature is between -22°F (-30°C)and 158°F (70°C).
•Only use the sealing compound beforethe use-by date. The use-by date is ona label on the sealant canister, whichyou can see through the rectangularviewing window on the bottom of thecompressor. Check the use-by dateregularly and replace the canister whenthe sealant expires.
•Do not store the kit unsecured insidethe passenger compartment of thevehicle as it may cause injury during asudden stop or crash. Always store thekit in its original location.
•After sealant use, an authorized dealermust replace the tire pressuremonitoring system sensor and valvestem on the wheel.
•Operating the kit could cause anelectrical disturbance in radio, CD andDVD player operation.
302
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingWheels and Tires

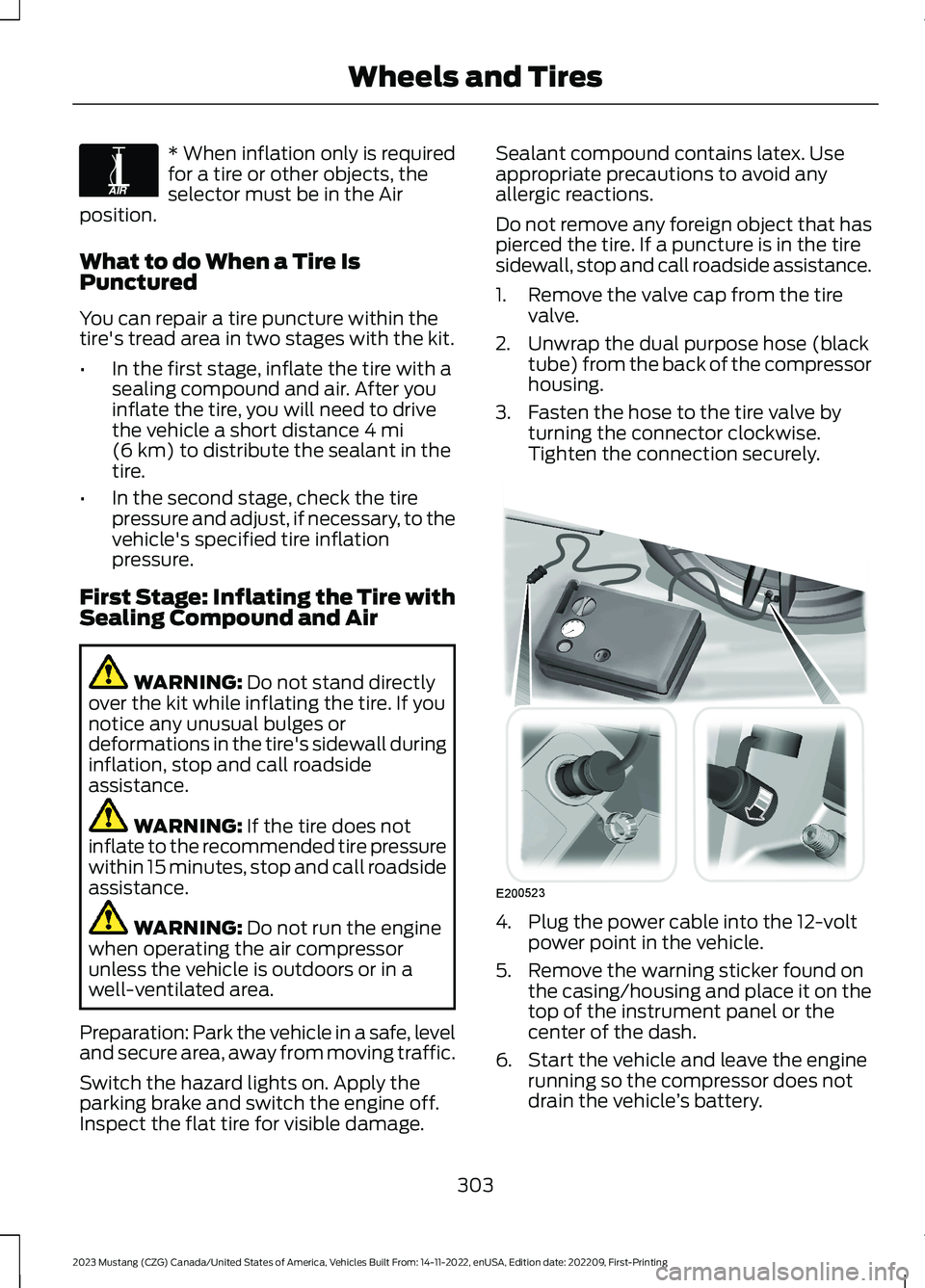

Page 307 of 535

* When inflation only is requiredfor a tire or other objects, theselector must be in the Airposition.
What to do When a Tire IsPunctured
You can repair a tire puncture within thetire's tread area in two stages with the kit.
•In the first stage, inflate the tire with asealing compound and air. After youinflate the tire, you will need to drivethe vehicle a short distance 4 mi(6 km) to distribute the sealant in thetire.
•In the second stage, check the tirepressure and adjust, if necessary, to thevehicle's specified tire inflationpressure.
First Stage: Inflating the Tire withSealing Compound and Air
WARNING: Do not stand directlyover the kit while inflating the tire. If younotice any unusual bulges ordeformations in the tire's sidewall duringinflation, stop and call roadsideassistance.
WARNING: If the tire does notinflate to the recommended tire pressurewithin 15 minutes, stop and call roadsideassistance.
WARNING: Do not run the enginewhen operating the air compressorunless the vehicle is outdoors or in awell-ventilated area.
Preparation: Park the vehicle in a safe, leveland secure area, away from moving traffic.
Switch the hazard lights on. Apply theparking brake and switch the engine off.Inspect the flat tire for visible damage.
Sealant compound contains latex. Useappropriate precautions to avoid anyallergic reactions.
Do not remove any foreign object that haspierced the tire. If a puncture is in the tiresidewall, stop and call roadside assistance.
1.Remove the valve cap from the tirevalve.
2.Unwrap the dual purpose hose (blacktube) from the back of the compressorhousing.
3.Fasten the hose to the tire valve byturning the connector clockwise.Tighten the connection securely.
4.Plug the power cable into the 12-voltpower point in the vehicle.
5.Remove the warning sticker found onthe casing/housing and place it on thetop of the instrument panel or thecenter of the dash.
6.Start the vehicle and leave the enginerunning so the compressor does notdrain the vehicle’s battery.
303
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingWheels and TiresE175978 E200523

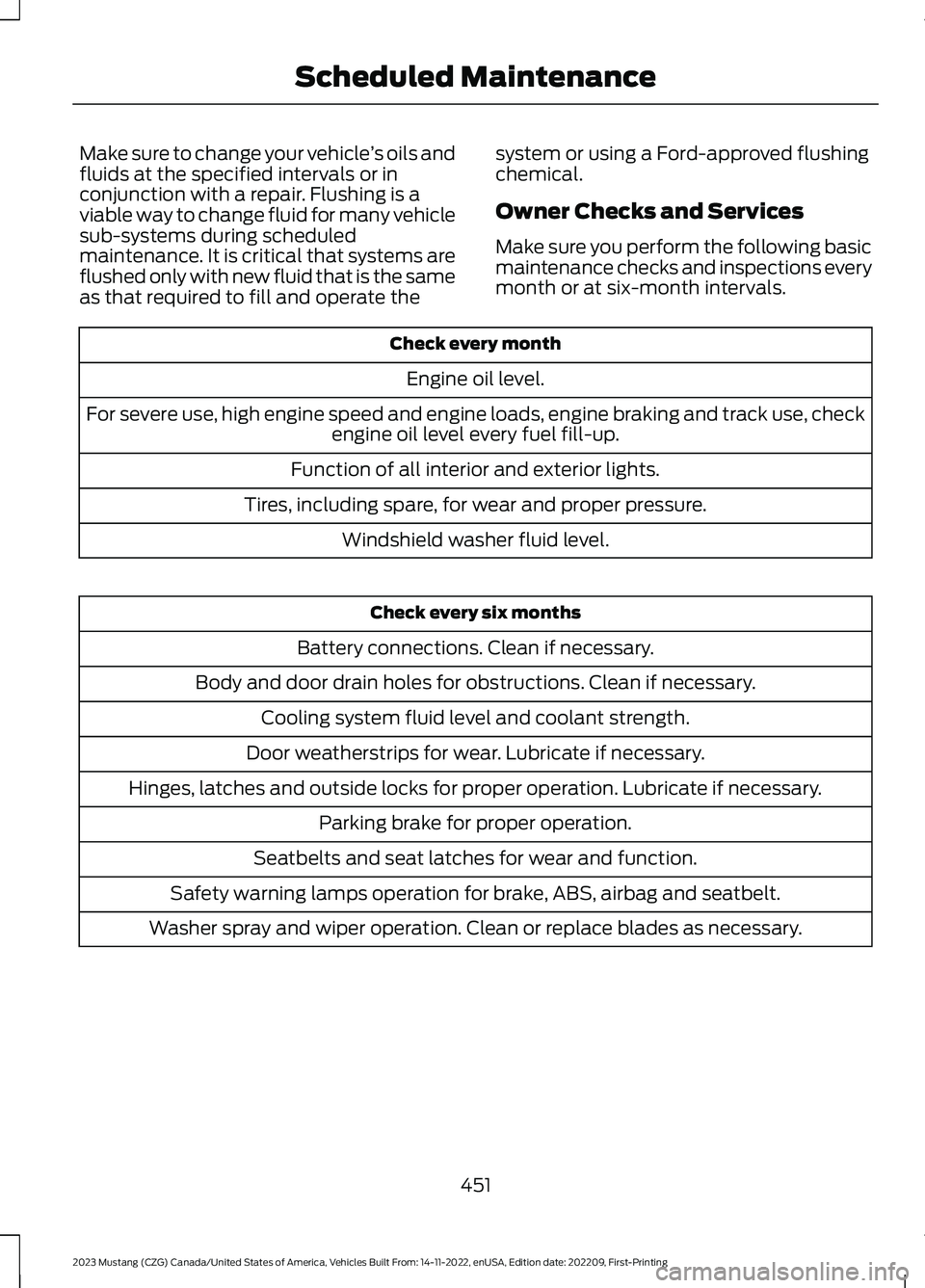

Page 455 of 535

Make sure to change your vehicle’s oils andfluids at the specified intervals or inconjunction with a repair. Flushing is aviable way to change fluid for many vehiclesub-systems during scheduledmaintenance. It is critical that systems areflushed only with new fluid that is the sameas that required to fill and operate the
system or using a Ford-approved flushingchemical.
Owner Checks and Services
Make sure you perform the following basicmaintenance checks and inspections everymonth or at six-month intervals.
Check every month
Engine oil level.
For severe use, high engine speed and engine loads, engine braking and track use, checkengine oil level every fuel fill-up.
Function of all interior and exterior lights.
Tires, including spare, for wear and proper pressure.
Windshield washer fluid level.
Check every six months
Battery connections. Clean if necessary.
Body and door drain holes for obstructions. Clean if necessary.
Cooling system fluid level and coolant strength.
Door weatherstrips for wear. Lubricate if necessary.
Hinges, latches and outside locks for proper operation. Lubricate if necessary.
Parking brake for proper operation.
Seatbelts and seat latches for wear and function.
Safety warning lamps operation for brake, ABS, airbag and seatbelt.
Washer spray and wiper operation. Clean or replace blades as necessary.
451
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingScheduled Maintenance

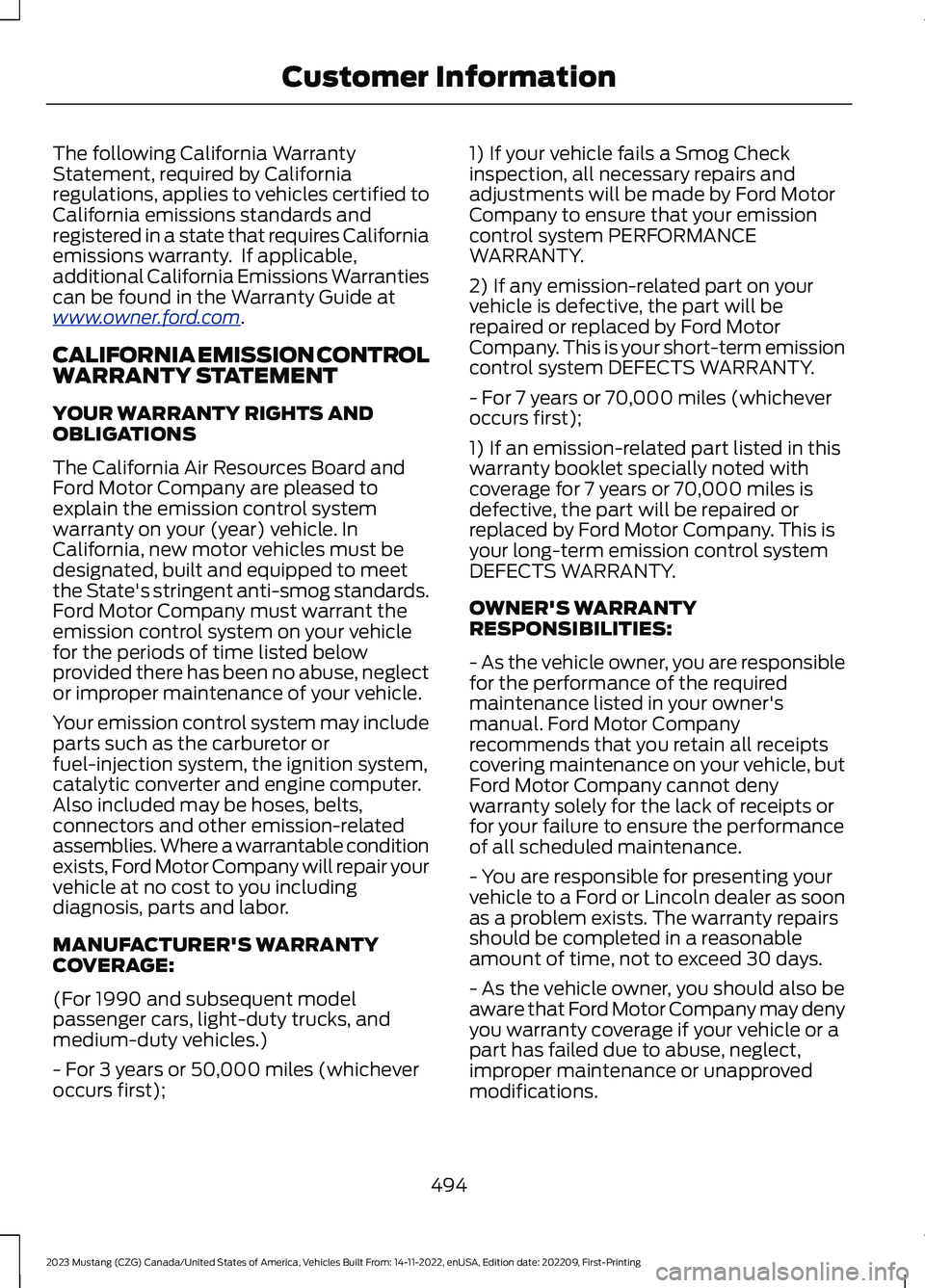

Page 498 of 535

The following California WarrantyStatement, required by Californiaregulations, applies to vehicles certified toCalifornia emissions standards andregistered in a state that requires Californiaemissions warranty. If applicable,additional California Emissions Warrantiescan be found in the Warranty Guide atwww.owner.ford.com.
CALIFORNIA EMISSION CONTROLWARRANTY STATEMENT
YOUR WARRANTY RIGHTS ANDOBLIGATIONS
The California Air Resources Board andFord Motor Company are pleased toexplain the emission control systemwarranty on your (year) vehicle. InCalifornia, new motor vehicles must bedesignated, built and equipped to meetthe State's stringent anti-smog standards.Ford Motor Company must warrant theemission control system on your vehiclefor the periods of time listed belowprovided there has been no abuse, neglector improper maintenance of your vehicle.
Your emission control system may includeparts such as the carburetor orfuel-injection system, the ignition system,catalytic converter and engine computer.Also included may be hoses, belts,connectors and other emission-relatedassemblies. Where a warrantable conditionexists, Ford Motor Company will repair yourvehicle at no cost to you includingdiagnosis, parts and labor.
MANUFACTURER'S WARRANTYCOVERAGE:
(For 1990 and subsequent modelpassenger cars, light-duty trucks, andmedium-duty vehicles.)
- For 3 years or 50,000 miles (whicheveroccurs first);
1) If your vehicle fails a Smog Checkinspection, all necessary repairs andadjustments will be made by Ford MotorCompany to ensure that your emissioncontrol system PERFORMANCEWARRANTY.
2) If any emission-related part on yourvehicle is defective, the part will berepaired or replaced by Ford MotorCompany. This is your short-term emissioncontrol system DEFECTS WARRANTY.
- For 7 years or 70,000 miles (whicheveroccurs first);
1) If an emission-related part listed in thiswarranty booklet specially noted withcoverage for 7 years or 70,000 miles isdefective, the part will be repaired orreplaced by Ford Motor Company. This isyour long-term emission control systemDEFECTS WARRANTY.
OWNER'S WARRANTYRESPONSIBILITIES:
- As the vehicle owner, you are responsiblefor the performance of the requiredmaintenance listed in your owner'smanual. Ford Motor Companyrecommends that you retain all receiptscovering maintenance on your vehicle, butFord Motor Company cannot denywarranty solely for the lack of receipts orfor your failure to ensure the performanceof all scheduled maintenance.
- You are responsible for presenting yourvehicle to a Ford or Lincoln dealer as soonas a problem exists. The warranty repairsshould be completed in a reasonableamount of time, not to exceed 30 days.
- As the vehicle owner, you should also beaware that Ford Motor Company may denyyou warranty coverage if your vehicle or apart has failed due to abuse, neglect,improper maintenance or unapprovedmodifications.
494
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingCustomer Information
Page 529 of 535

A
A/CSee: Climate Control.........................................126About This Manual...........................................9About This Supplement - Mach 1...............9ABSSee: Brakes.............................................................171ABS driving hintsSee: Hints on Driving With Anti-LockBrakes..................................................................171Accessories....................................................446AccessoriesSee: Replacement PartsRecommendation............................................19ACCSee: Using Adaptive Cruise Control............185Adjusting the Headlamps.........................274Adjusting the Steering Wheel....................75Airbag Disposal...............................................57Air ConditioningSee: Climate Control.........................................126Air FilterSee: Changing the Engine Air Filter - 2.3LEcoBoost™/5.0L..........................................263See: Changing the Engine Air Filter - 5.0L,Mach 1...............................................................264AlarmSee: Anti-Theft Alarm.........................................74Ambient Lighting............................................83Anti-Theft Alarm............................................74Appendices...................................................496Apps.................................................................428At a Glance.......................................................23Audible Warnings and Indicators.............97Audio Control...................................................75Audio System................................................373General Information..........................................373Audio Unit - Vehicles With: 4.2 InchCenter Display Screen.............................373Audio Unit - Vehicles With: 8 Inch CenterDisplay Screen............................................375Autolamps.........................................................81Automatic Climate Control.......................127Automatic High Beam Control.................84Automatic High Beam ControlIndicators.......................................................84Automatic Transmission...........................164
Automatic Transmission FluidCheck.............................................................270Autowipers........................................................78Auxiliary Power Points................................144
B
BatterySee: Changing the 12V Battery.......................271Blind Spot Information System...............197BLISSee: Blind Spot Information System...........197Body Styling Kits.........................................300Bonnet LockSee: Opening and Closing the Hood...........257Booster Seats..................................................35Brake Fluid Check........................................270Brakes.................................................................171General Information............................................171Brake System Specifications - Mach1.......................................................................339Breaking-In.....................................................230Bulb Specification Chart..........................366
C
Canceling the Set Speed...........................185Capacities and Specifications - 2.3LEcoBoost™.................................................345Capacities and Specifications - 5.0L,Mach 1...........................................................353Capacities and Specifications -5.0L................................................................359Capacities and Specifications................337Car WashSee: Cleaning the Exterior..............................293See: Cleaning the Exterior - Mach 1............293Catalytic Converter......................................160Center Console..............................................145Changing a Bulb...........................................276Changing a Fuse...........................................255Changing a Road Wheel...........................330Changing the 12V Battery...........................271Changing the Engine Air Filter - 2.3LEcoBoost™/5.0L......................................263Changing the Engine Air Filter - 5.0L,Mach 1...........................................................264
