stop start FORD MUSTANG 2023 Owner's Guide

WARNING: Keep batteries out ofreach of children. Batteries containsulfuric acid. Avoid contact with skin,eyes or clothing. Shield your eyes whenworking near the battery to protectagainst possible splashing of acidsolution. In case of acid contact with skinor eyes, flush immediately with water fora minimum of 15 minutes and get promptmedical attention. If acid is swallowed,call a physician immediately.
WARNING: Battery posts,terminals and related accessoriescontain lead and lead compounds,chemicals known to the State ofCalifornia to cause cancer andreproductive harm.Wash your handsafter handling.
WARNING: This vehicle may havemore than one battery. Removing thebattery cables from only one batterydoes not disconnect your vehicleelectrical system. Make sure youdisconnect the battery cables from allbatteries when disconnecting power.Failure to do so may cause seriouspersonal injury or property damage.
WARNING: For vehicles withAuto-Start-Stop the battery requirementis different. You must replace the batterywith one of exactly the samespecification.
The battery is in the engine compartment.See Under Hood Overview (page 259).
Your vehicle has a maintenance-freebattery. It does not require additionalwater during service.
If the vehicle battery has a cover and venthose, make sure you correctly install it aftercleaning or replacing the battery.
For longer, trouble-free operation, keep thetop of the battery clean and dry and thebattery cables tightly fastened to thebattery terminals. If any corrosion ispresent on the battery or terminals, removethe cables from the terminals and cleanwith a wire brush. You can neutralize theacid with a solution of baking soda andwater.
We recommend that you disconnect thenegative battery cable terminal from thebattery if you plan to store your vehicle foran extended period.
Note:If you only disconnect the negativebattery cable terminal, make sure it isisolated or placed away from the batteryterminal to avoid unintended connection orarcing.
If you replace the battery make sure itmatches the electrical requirements ofyour vehicle.
If you disconnect or replace the batteryand your vehicle has an automatictransmission, it must relearn its adaptivestrategy. Because of this, the transmissionmay shift firmly when first driven. This isnormal operation while the transmissionfully updates its operation to optimumshift feel.
Battery Sensor Reset
When you install a new battery, reset thebattery sensor by doing the following:
1.Switch the ignition on, and leave theengine off.
Note:Complete Steps 2 and 3 within 10seconds.
2.Flash the high beam headlamps fivetimes, ending with the high beams off.
3.Press and release the brake pedal threetimes.
272
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingMaintenance

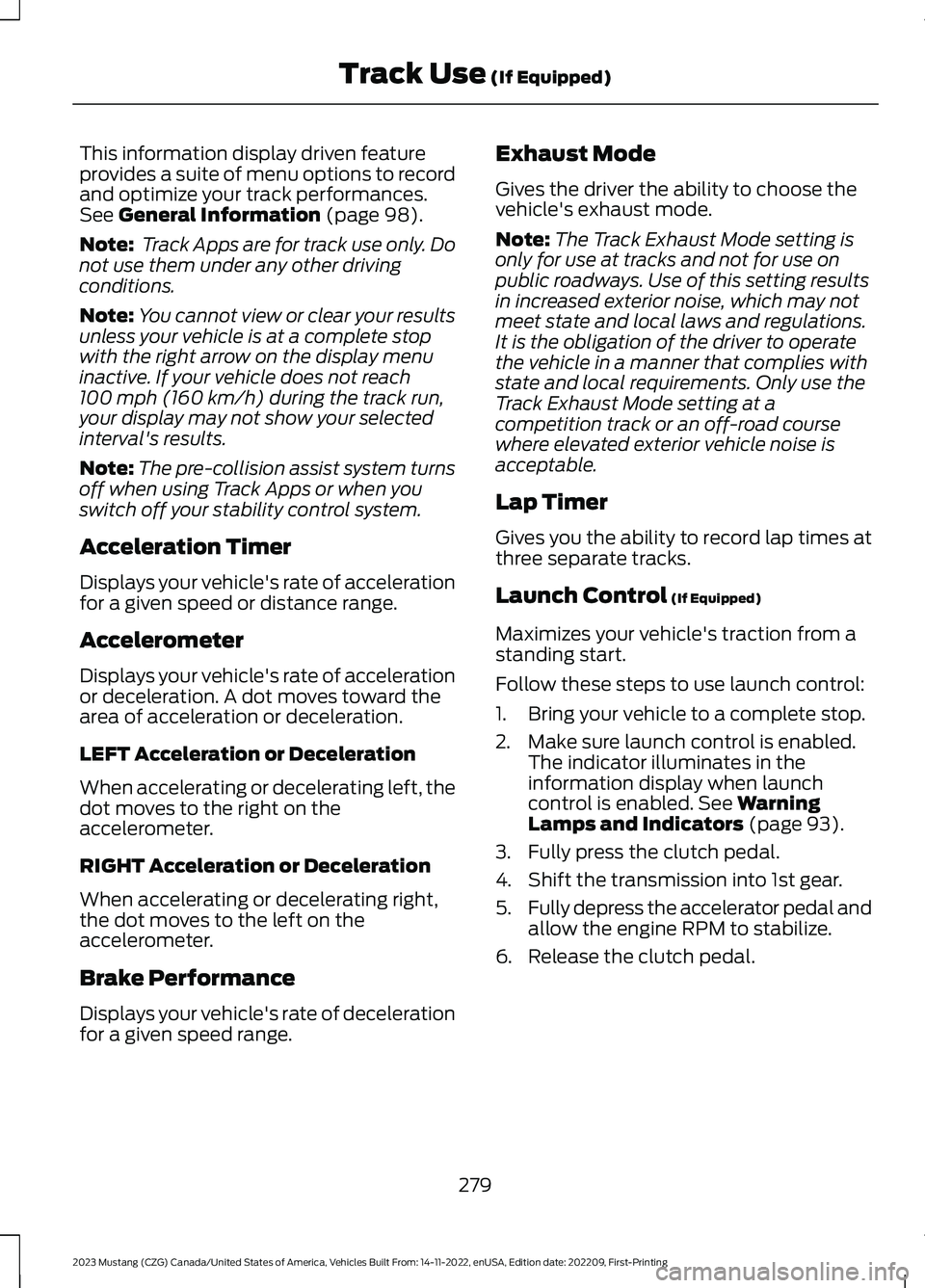

This information display driven featureprovides a suite of menu options to recordand optimize your track performances.See General Information (page 98).
Note: Track Apps are for track use only. Donot use them under any other drivingconditions.
Note:You cannot view or clear your resultsunless your vehicle is at a complete stopwith the right arrow on the display menuinactive. If your vehicle does not reach100 mph (160 km/h) during the track run,your display may not show your selectedinterval's results.
Note:The pre-collision assist system turnsoff when using Track Apps or when youswitch off your stability control system.
Acceleration Timer
Displays your vehicle's rate of accelerationfor a given speed or distance range.
Accelerometer
Displays your vehicle's rate of accelerationor deceleration. A dot moves toward thearea of acceleration or deceleration.
LEFT Acceleration or Deceleration
When accelerating or decelerating left, thedot moves to the right on theaccelerometer.
RIGHT Acceleration or Deceleration
When accelerating or decelerating right,the dot moves to the left on theaccelerometer.
Brake Performance
Displays your vehicle's rate of decelerationfor a given speed range.
Exhaust Mode
Gives the driver the ability to choose thevehicle's exhaust mode.
Note:The Track Exhaust Mode setting isonly for use at tracks and not for use onpublic roadways. Use of this setting resultsin increased exterior noise, which may notmeet state and local laws and regulations.It is the obligation of the driver to operatethe vehicle in a manner that complies withstate and local requirements. Only use theTrack Exhaust Mode setting at acompetition track or an off-road coursewhere elevated exterior vehicle noise isacceptable.
Lap Timer
Gives you the ability to record lap times atthree separate tracks.
Launch Control (If Equipped)
Maximizes your vehicle's traction from astanding start.
Follow these steps to use launch control:
1.Bring your vehicle to a complete stop.
2.Make sure launch control is enabled.The indicator illuminates in theinformation display when launchcontrol is enabled. See WarningLamps and Indicators (page 93).
3.Fully press the clutch pedal.
4.Shift the transmission into 1st gear.
5.Fully depress the accelerator pedal andallow the engine RPM to stabilize.
6.Release the clutch pedal.
279
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingTrack Use (If Equipped)

Note:The pre-collision assist system turnsoff when using Track Apps or when youswitch off your stability control system.
Acceleration Timer
Displays your vehicle's rate of accelerationfor a given speed or distance range.
Accelerometer
Displays your vehicle's rate of accelerationor deceleration. A dot moves toward thearea of acceleration or deceleration.
LEFT Acceleration or Deceleration
When accelerating or decelerating left, thedot moves to the right on theaccelerometer.
RIGHT Acceleration or Deceleration
When accelerating or decelerating right,the dot moves to the left on theaccelerometer.
Brake Performance
Displays your vehicle's rate of decelerationfor a given speed range.
Exhaust Mode
Gives the driver the ability to choose thevehicle's exhaust mode.
Note:The Track Exhaust Mode setting isonly for use at tracks and not for use onpublic roadways. Use of this setting resultsin increased exterior noise, which may notmeet state and local laws and regulations.It is the obligation of the driver to operatethe vehicle in a manner that complies withstate and local requirements. Only use theTrack Exhaust Mode setting at acompetition track or an off-road coursewhere elevated exterior vehicle noise isacceptable.
Lap Timer
Gives you the ability to record lap times atthree separate tracks.
Launch Control (If Equipped)
Maximizes your vehicle's traction from astanding start.
Follow these steps to use launch control:
1.Bring your vehicle to a complete stop.
2.Make sure launch control is enabled.The indicator illuminates in theinstrument display when launch controlis enabled. See Warning Lamps andIndicators (page 93).
3.Fully press the clutch pedal.
4.Shift the transmission into first gear.
5.Fully depress the accelerator pedal andallow the engine RPM to stabilize.
6.Release the clutch pedal.
Line Lock
Line lock is a feature intended for use attracks only and should not be used onpublic roadways. Use of this feature mayresult in significantly increased rear tirewear. It is intended to condition the reartires to maximize traction prior to track use.Line lock maintains brake force at the frontwheels, allowing the rear wheels to spinwith minimal vehicle movement.
This feature is located in the Track Appsmenu. Make selections through the 5-wayinformation display control and OK buttonlocated on the steering wheel.
Using Line Lock
There are three line lock stages:
•Initiated.
•Engaged.
•Off.
286
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingTrack Use (If Equipped)

* When inflation only is requiredfor a tire or other objects, theselector must be in the Airposition.
What to do When a Tire IsPunctured
You can repair a tire puncture within thetire's tread area in two stages with the kit.
•In the first stage, inflate the tire with asealing compound and air. After youinflate the tire, you will need to drivethe vehicle a short distance 4 mi(6 km) to distribute the sealant in thetire.
•In the second stage, check the tirepressure and adjust, if necessary, to thevehicle's specified tire inflationpressure.
First Stage: Inflating the Tire withSealing Compound and Air
WARNING: Do not stand directlyover the kit while inflating the tire. If younotice any unusual bulges ordeformations in the tire's sidewall duringinflation, stop and call roadsideassistance.
WARNING: If the tire does notinflate to the recommended tire pressurewithin 15 minutes, stop and call roadsideassistance.
WARNING: Do not run the enginewhen operating the air compressorunless the vehicle is outdoors or in awell-ventilated area.
Preparation: Park the vehicle in a safe, leveland secure area, away from moving traffic.
Switch the hazard lights on. Apply theparking brake and switch the engine off.Inspect the flat tire for visible damage.
Sealant compound contains latex. Useappropriate precautions to avoid anyallergic reactions.
Do not remove any foreign object that haspierced the tire. If a puncture is in the tiresidewall, stop and call roadside assistance.
1.Remove the valve cap from the tirevalve.
2.Unwrap the dual purpose hose (blacktube) from the back of the compressorhousing.
3.Fasten the hose to the tire valve byturning the connector clockwise.Tighten the connection securely.
4.Plug the power cable into the 12-voltpower point in the vehicle.
5.Remove the warning sticker found onthe casing/housing and place it on thetop of the instrument panel or thecenter of the dash.
6.Start the vehicle and leave the enginerunning so the compressor does notdrain the vehicle’s battery.
303
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingWheels and TiresE175978 E200523

•Stand at a minimum of 12 ft(3.66 m) away from the wheeland tire assembly.
•Use both eye and earprotection.
Important: Remember to replacethe wheel valve stems when theroad tires are replaced on yourvehicle.
It is recommended that the twofront tires or two rear tiresgenerally be replaced as a pair.
The tire pressure sensors mountedin the wheels (originally installedon your vehicle) are not designedto be used in aftermarket wheels.
The use of wheels or tires notrecommended by Ford MotorCompany may affect the
operation of your tire pressuremonitoring system.
If the tire pressure monitoringsystem indicator is flashing, yoursystem is malfunctioning. Yourreplacement tire might beincompatible with your tirepressure monitoring system, orsome component of the systemmay be damaged.
Safety Practices
WARNING: If your vehicleis stuck in snow, mud or sand, donot rapidly spin the tires;spinning the tires can tear thetire and cause an explosion. Atire can explode in as little asthree to five seconds.
WARNING: Do not spin thewheels at over 34 mph(55 km/h). The tires may fail andinjure a passenger or bystander.
Driving habits have a great dealto do with your tire mileage andsafety.
*Observe posted speed limits.
*Avoid fast starts, stops and turns.
*Avoid potholes and objects onthe road.
*Do not run over curbs or hit thetire against a curb when parking.
Highway Hazards
No matter how carefully you drivethere’s always the possibility thatyou may eventually have a flat tireon the highway. Drive slowly to the
closest safe area out of traffic.This may further damage the flattire, but your safety is moreimportant.
320
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingWheels and Tires

•Purchase chains or cables from amanufacturer that clearly labels bodyto tire dimension restrictions. The snowchains or cables must be mounted inpairs on the front or the rear tires only.
•Do not exceed 30 mph (50 km/h) ifrecommended by the chainmanufacturer while using snow chains.
•Install cables securely, verifying thatthe cables do not touch any wiring,brake lines or fuel lines.
•Drive cautiously. If you hear the cablesrub or bang against the vehicle, stopand retighten them. If this does notwork, remove the cables to preventvehicle damage.
•Remove the tire chains when they areno longer needed. Do not use tirechains on dry roads.
If you have any questions regarding snowchains or cables, please contact yourauthorized dealer.
TIRE PRESSURE MONITORING
SYSTEM
WARNING: The tire pressuremonitoring system is not a substitute formanually checking tire pressures. Youshould periodically check tire pressuresusing a pressure gauge. Failure tocorrectly maintain tire pressures couldincrease the risk of tire failure, loss ofcontrol, vehicle rollover and personalinjury.
WARNING: If the tire pressuremonitor sensor becomes damaged itmay not function.
Note:You should only use tire sealants inroadside emergencies as they could causedamage to the tire pressure monitoringsystem sensor.
Each tire, including the spare (ifprovided), should be checkedmonthly when cold and inflatedto the inflation pressure recommended bythe vehicle manufacturer on the vehicleplacard or tire inflation pressure label. (Ifyour vehicle has tires of a different sizethan the size indicated on the vehicleplacard or tire inflation pressure label, youshould determine the proper tire inflationpressure for those tires).
As an added safety feature, your vehiclehas been equipped with a Tire PressureMonitoring System (TPMS) thatilluminates a low tire pressure telltalewhen one or more of your tires issignificantly under-inflated. Accordingly,when the low tire pressure telltaleilluminates, you should stop and checkyour tires as soon as possible, and inflatethem to the proper pressure. Driving on asignificantly under-inflated tire causes thetire to overheat and can lead to tire failure.Under-inflation also reduces fuel efficiencyand tire tread life, and could affect thevehicle’s handling and stopping ability.
Please note that the TPMS is not asubstitute for proper tire maintenance, andit is the driver’s responsibility to maintaincorrect tire pressure, even if under-inflationhas not reached the level to triggerillumination of the TPMS low tire pressuretelltale.
Your vehicle has also been equipped witha TPMS malfunction indicator to indicatewhen the system is not operating properly.The TPMS malfunction indicator iscombined with the low tire pressuretelltale. When the system detects amalfunction, the telltale will flash forapproximately one minute and then remaincontinuously illuminated. This sequencewill continue upon subsequent vehiclestart-ups as long as the malfunction exists.
326
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingWheels and TiresE139232

AppLink Issues
Possible Solution(s)Possible Cause(s)Issue
SYNC in order to findAppLink-capable apps onyour device. iPhone usersmust also connect toSYNC's USB port with anApple USB cable.
Ensure you have down-loaded and installed thelatest version of the appfrom your phone's app store.Ensure the app is running onyour phone. Some appsAppLink-enabled apps arenot installed and running onyour mobile device.
My phone is connected, butI still cannot find any apps.require you to register orlogin on the app on thephone before using themwith AppLink. Also, somemay have a Ford SYNCsetting, so check the app'ssettings menu on the phone.
Closing and restarting appsmay help SYNC find theapplication if you cannotdiscover it inside the vehicle.On an Android device, ifapps have an Exit or Quit
Sometime apps do notproperly close and re-opentheir connection to SYNC,over ignition cycles, forexample.
My phone is connected, myapp(s) are running, but I stillcannot find any apps.
option, select that thenrestart the app. If the appdoes not have that option,you can also manually ForceClose the app by going tothe phone's settings menu,selecting Apps. then findingthe particular app andchoosing Force stop.Remember to restart theapp afterwards, then selectFind New Apps on SYNC.
397
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingSYNCâ„¢ (If Equipped)

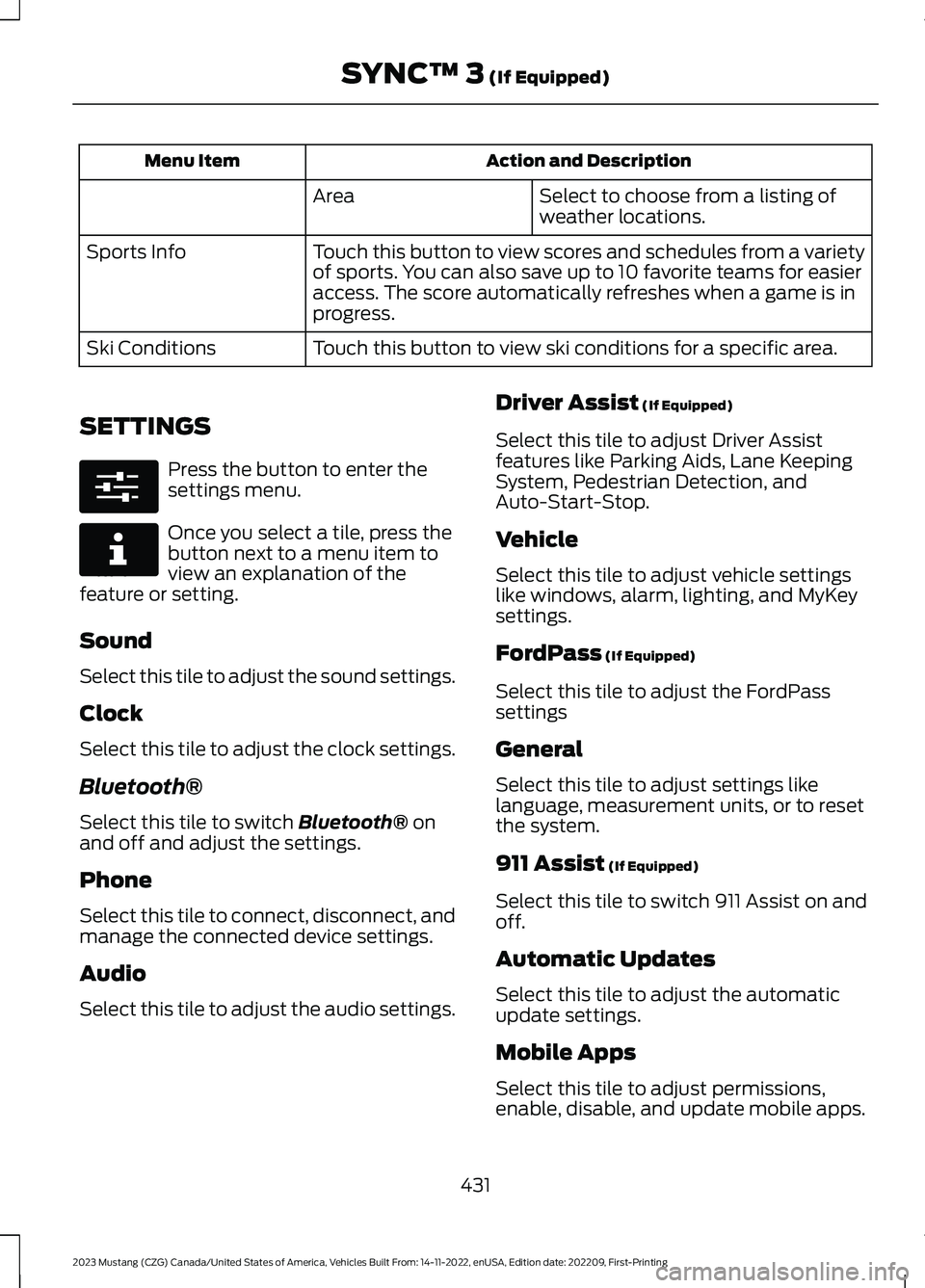

Action and DescriptionMenu Item
Select to choose from a listing ofweather locations.Area
Touch this button to view scores and schedules from a varietyof sports. You can also save up to 10 favorite teams for easieraccess. The score automatically refreshes when a game is inprogress.
Sports Info
Touch this button to view ski conditions for a specific area.Ski Conditions
SETTINGS
Press the button to enter thesettings menu.
Once you select a tile, press thebutton next to a menu item toview an explanation of thefeature or setting.
Sound
Select this tile to adjust the sound settings.
Clock
Select this tile to adjust the clock settings.
Bluetooth®
Select this tile to switch Bluetooth® onand off and adjust the settings.
Phone
Select this tile to connect, disconnect, andmanage the connected device settings.
Audio
Select this tile to adjust the audio settings.
Driver Assist (If Equipped)
Select this tile to adjust Driver Assistfeatures like Parking Aids, Lane KeepingSystem, Pedestrian Detection, andAuto-Start-Stop.
Vehicle
Select this tile to adjust vehicle settingslike windows, alarm, lighting, and MyKeysettings.
FordPass (If Equipped)
Select this tile to adjust the FordPasssettings
General
Select this tile to adjust settings likelanguage, measurement units, or to resetthe system.
911 Assist (If Equipped)
Select this tile to switch 911 Assist on andoff.
Automatic Updates
Select this tile to adjust the automaticupdate settings.
Mobile Apps
Select this tile to adjust permissions,enable, disable, and update mobile apps.
431
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingSYNCâ„¢ 3 (If Equipped)E280315 E268570

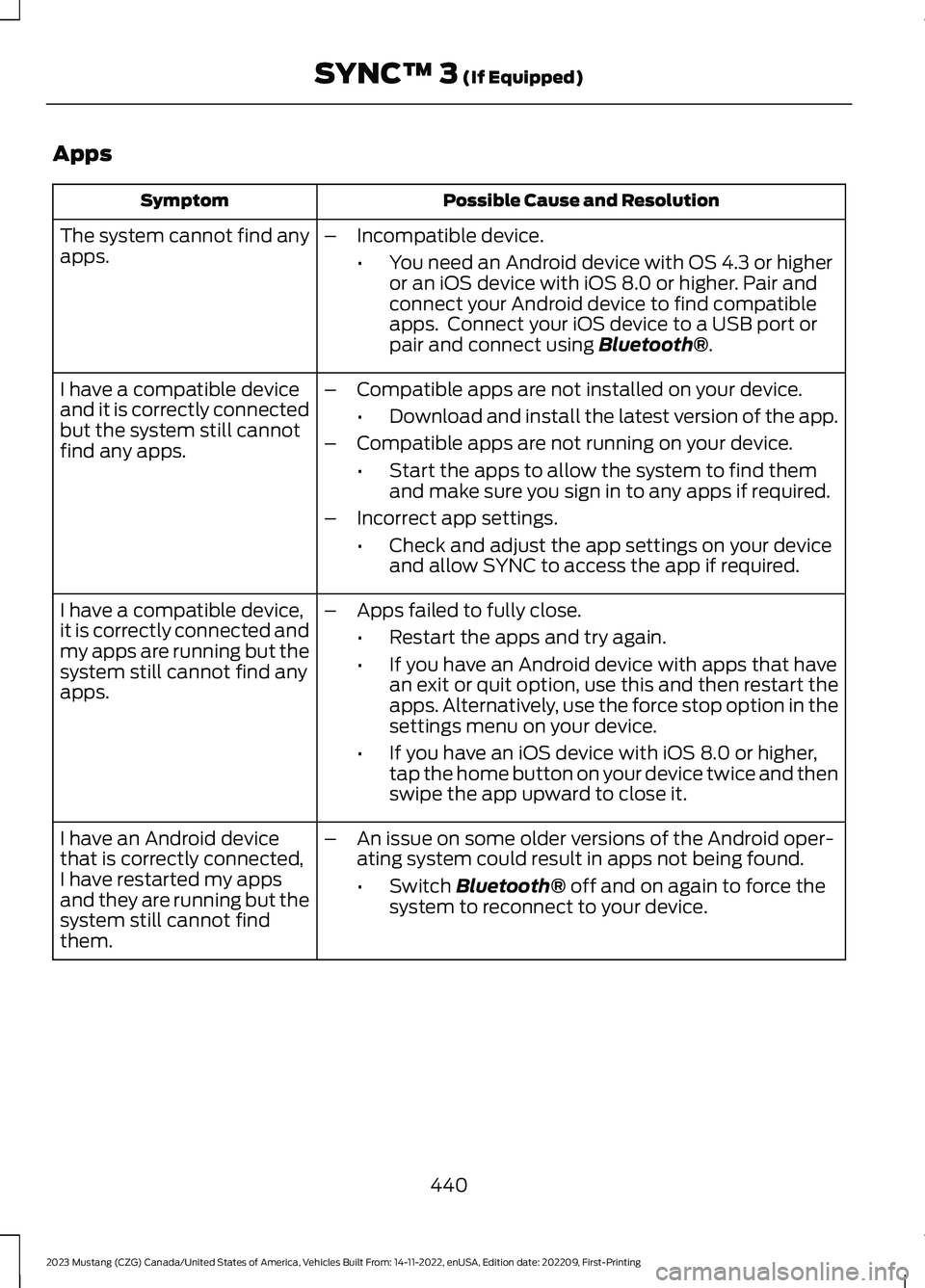

Apps
Possible Cause and ResolutionSymptom
The system cannot find anyapps.–Incompatible device.
•You need an Android device with OS 4.3 or higheror an iOS device with iOS 8.0 or higher. Pair andconnect your Android device to find compatibleapps. Connect your iOS device to a USB port orpair and connect using Bluetooth®.
I have a compatible deviceand it is correctly connectedbut the system still cannotfind any apps.
–Compatible apps are not installed on your device.
•Download and install the latest version of the app.
–Compatible apps are not running on your device.
•Start the apps to allow the system to find themand make sure you sign in to any apps if required.
–Incorrect app settings.
•Check and adjust the app settings on your deviceand allow SYNC to access the app if required.
I have a compatible device,it is correctly connected andmy apps are running but thesystem still cannot find anyapps.
–Apps failed to fully close.
•Restart the apps and try again.
•If you have an Android device with apps that havean exit or quit option, use this and then restart theapps. Alternatively, use the force stop option in thesettings menu on your device.
•If you have an iOS device with iOS 8.0 or higher,tap the home button on your device twice and thenswipe the app upward to close it.
I have an Android devicethat is correctly connected,I have restarted my appsand they are running but thesystem still cannot findthem.
–An issue on some older versions of the Android oper-ating system could result in apps not being found.
•Switch Bluetooth® off and on again to force thesystem to reconnect to your device.
440
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingSYNCâ„¢ 3 (If Equipped)

MyKey – Information Messages.....................65MyKey™.............................................................63MyKey Settings.....................................................63MyKey – Troubleshooting.................................65
N
Navigation......................................................423Normal Scheduled Maintenance..........452
O
Oil Change Indicator Reset......................263Oil CheckSee: Engine Oil Check......................................262Opening and Closing the Hood...............257Opening the Convertible Top..................228Ordering Additional Owner'sLiterature.....................................................244Overriding Automatic High BeamControl............................................................85
P
Parking Aids....................................................178Principle of Operation.......................................178Parking Brake..................................................172Passive Anti-Theft System.........................73PATSSee: Passive Anti-Theft System.....................73Perchlorate........................................................19Personal Safety Systemâ„¢..........................47Phone................................................................421Post-Crash Alert System...........................237Power Door LocksSee: Locking and Unlocking.............................67Power Seats...................................................136Power Steering Fluid Check......................271Power Windows.............................................86Pre-Collision Assist.....................................203Programming a MyKey................................64Programming the Garage Door Openerto Your Garage Door OpenerMotor...............................................................141Programming the Garage Door Openerto Your Gate Opener Motor....................142Programming the Garage Door Openerto Your Hand-Held Transmitter.............141
Protecting the Environment.......................22PunctureSee: Changing a Road Wheel.......................330
R
Radio Frequency CertificationLabels...........................................................459Blind Spot Information SystemSensors.............................................................459Body Control Module.......................................465Cruise Control Module....................................468Garage Door Opener..........................................471Keys and Remote Controls.............................472Radio Transceiver Module...............................477SYNC......................................................................482Tire Pressure Monitoring SystemSensors............................................................486Rear Axle..........................................................170Rear Parking Aid............................................179Rear Seats.......................................................138Rear View Camera.......................................180Rear View CameraSee: Rear View Camera...................................180Recommended Towing Weights...........220Reduced Engine Performance................230Refueling..........................................................155Remote Control..............................................58Remotely Starting the Engine..................123Remotely Stopping the Engine................124Remote Start Limitations..........................123Remote Start Remote ControlIndicators......................................................124Remote Start..................................................123Remote Start Settings......................................124Remote Start Settings................................124Setting the Remote Start Duration..............125Switching Climate Control Auto Mode Onand Off...............................................................124Switching Climate Control Last SettingsOn and Off........................................................124Switching the Heated Seat Settings On andOff........................................................................124Switching the Heated Steering WheelSettings On and Off......................................125Repairing Minor Paint Damage..............298Replacement PartsRecommendation........................................19
529
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingIndex
