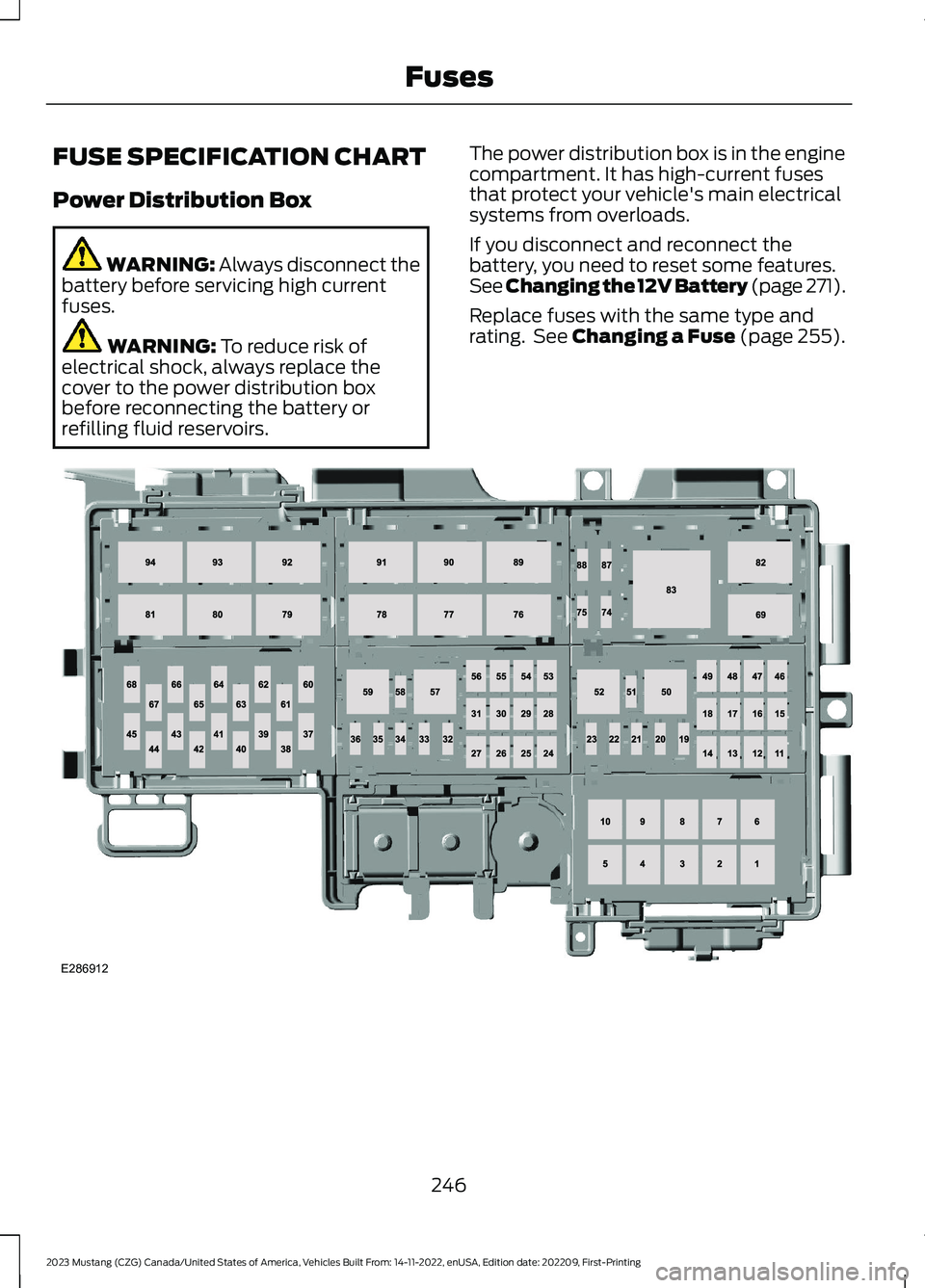

FUSE SPECIFICATION CHART
Power Distribution Box
WARNING: Always disconnect thebattery before servicing high currentfuses.
WARNING: To reduce risk ofelectrical shock, always replace thecover to the power distribution boxbefore reconnecting the battery orrefilling fluid reservoirs.
The power distribution box is in the enginecompartment. It has high-current fusesthat protect your vehicle's main electricalsystems from overloads.
If you disconnect and reconnect thebattery, you need to reset some features.See Changing the 12V Battery (page 271).
Replace fuses with the same type andrating. See Changing a Fuse (page 255).
246
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingFusesE286912
Page 258 of 535

Protected ComponentFuse RatingFuse or RelayNumber
In-vehicle temperature and humiditysensor.5A21
Auxiliary body module.5A22
Amplifier.30A23
Vehicle dynamics module.30A24
Ambient lighting module (base).20A25Auxiliary body module.
Right-hand front-window motor (powerdistribution module).30A26
Passenger door control unit.
Left-hand rear-window power (base).30A27
Not used (GT500).—
Right-hand rear-window power (base).30A28
Not used (GT500).—
Gateway module (base).15A29Not used (spare) (GT500).
Not used (spare)5A30
Remote keyless entry.10A31
Audio unit.20A32
Not used.—33
Run/start bus.30A34
Power distribution box run/start relay(base).5A35
Not used (GT500).—
Front camera (base).15A36
Not used (GT500).—
Heated steering wheel module (base).20A37
Not used (GT500).—
Note:Spare fuse amperage may vary.
254
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingFuses
Page 263 of 535

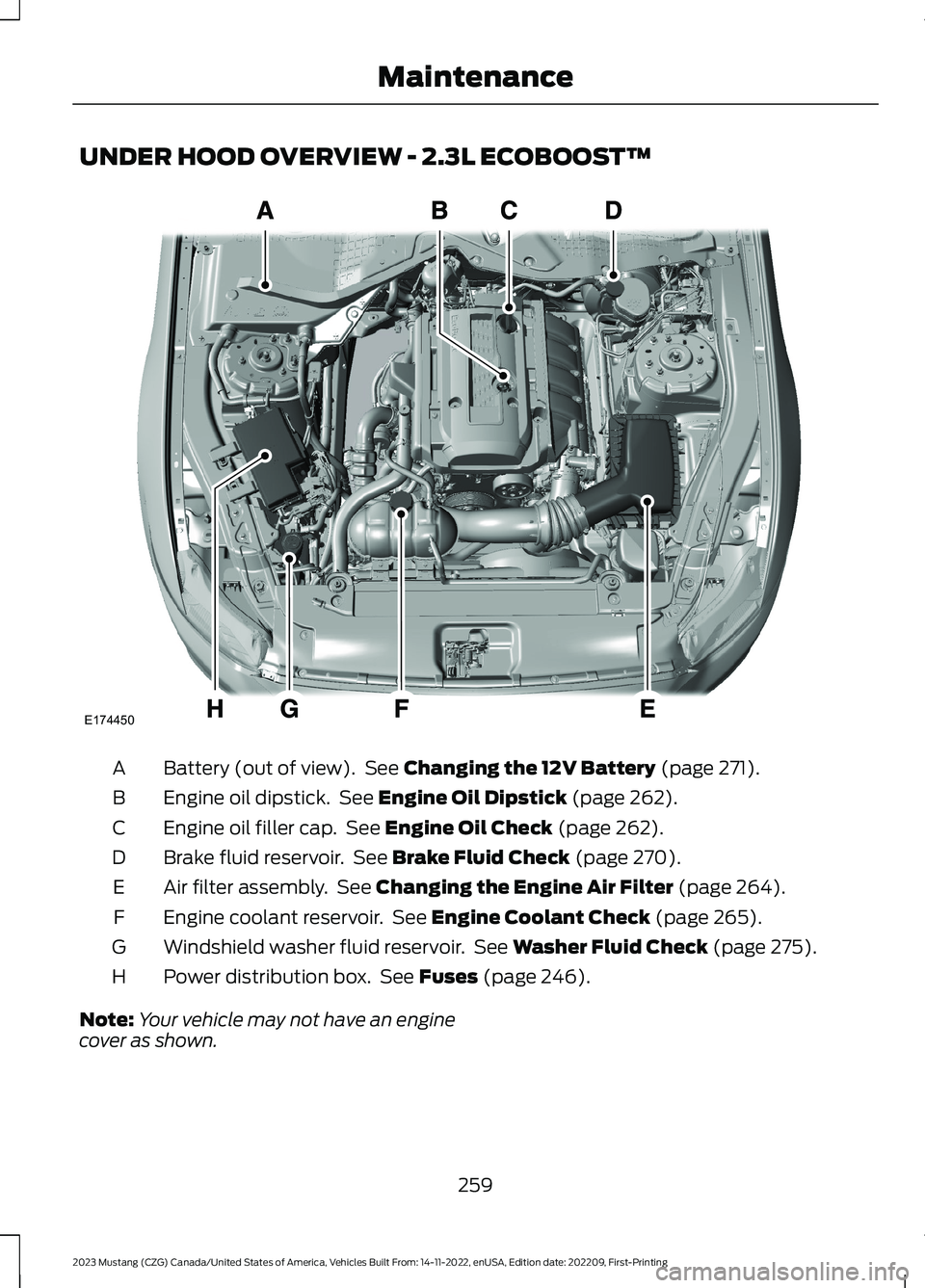

UNDER HOOD OVERVIEW - 2.3L ECOBOOST™
Battery (out of view). See Changing the 12V Battery (page 271).A
Engine oil dipstick. See Engine Oil Dipstick (page 262).B
Engine oil filler cap. See Engine Oil Check (page 262).C
Brake fluid reservoir. See Brake Fluid Check (page 270).D
Air filter assembly. See Changing the Engine Air Filter (page 264).E
Engine coolant reservoir. See Engine Coolant Check (page 265).F
Windshield washer fluid reservoir. See Washer Fluid Check (page 275).G
Power distribution box. See Fuses (page 246).H
Note:Your vehicle may not have an enginecover as shown.
259
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingMaintenanceE174450
Page 264 of 535

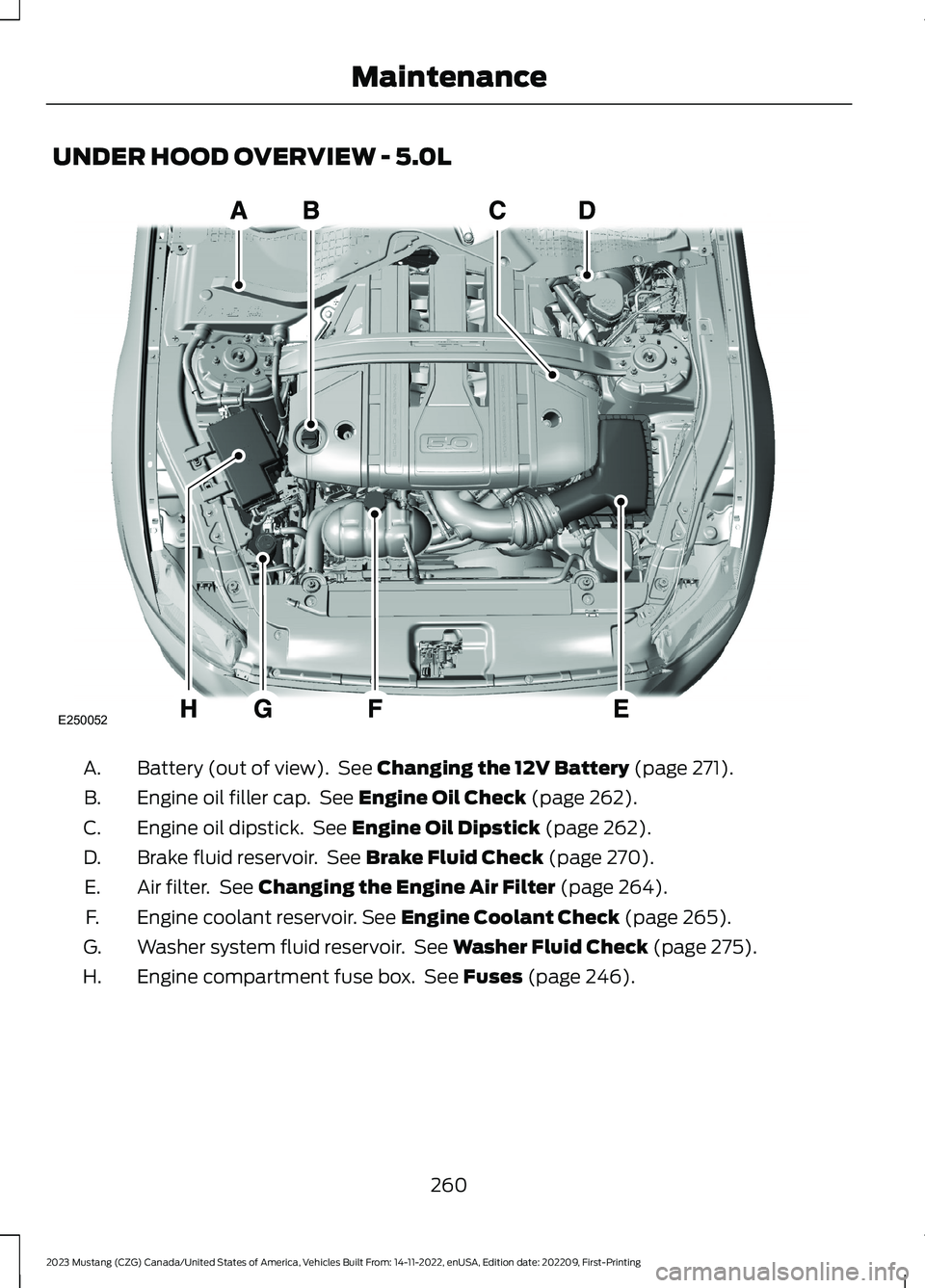

UNDER HOOD OVERVIEW - 5.0L
Battery (out of view). See Changing the 12V Battery (page 271).A.
Engine oil filler cap. See Engine Oil Check (page 262).B.
Engine oil dipstick. See Engine Oil Dipstick (page 262).C.
Brake fluid reservoir. See Brake Fluid Check (page 270).D.
Air filter. See Changing the Engine Air Filter (page 264).E.
Engine coolant reservoir. See Engine Coolant Check (page 265).F.
Washer system fluid reservoir. See Washer Fluid Check (page 275).G.
Engine compartment fuse box. See Fuses (page 246).H.
260
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingMaintenanceE250052
Page 265 of 535

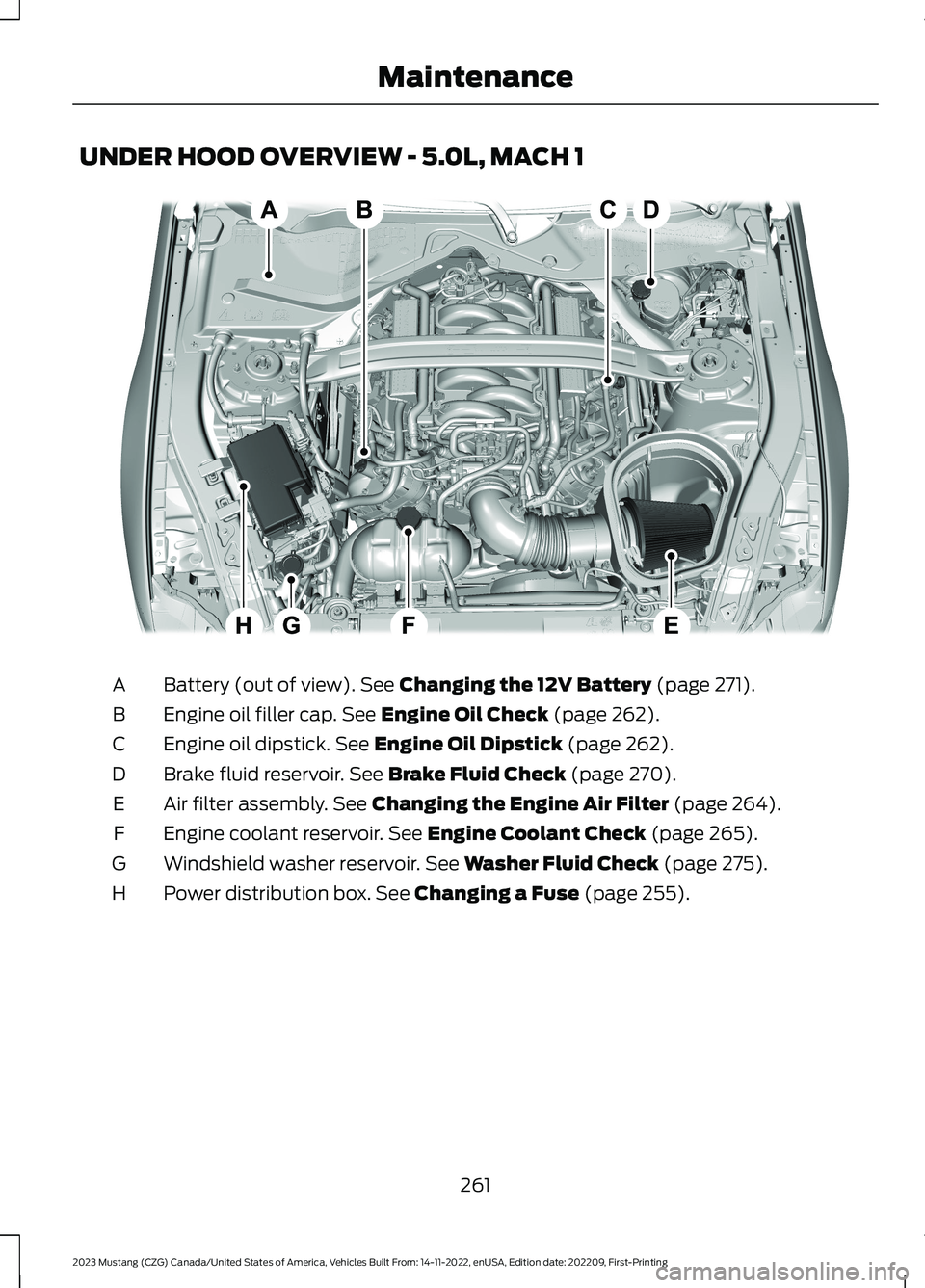

UNDER HOOD OVERVIEW - 5.0L, MACH 1
Battery (out of view). See Changing the 12V Battery (page 271).A
Engine oil filler cap. See Engine Oil Check (page 262).B
Engine oil dipstick. See Engine Oil Dipstick (page 262).C
Brake fluid reservoir. See Brake Fluid Check (page 270).D
Air filter assembly. See Changing the Engine Air Filter (page 264).E
Engine coolant reservoir. See Engine Coolant Check (page 265).F
Windshield washer reservoir. See Washer Fluid Check (page 275).G
Power distribution box. See Changing a Fuse (page 255).H
261
2023 Mustang (CZG) Canada/United States of America, Vehicles Built From: 14-11-2022, enUSA, Edition date: 202209, First-PrintingMaintenanceE296063
