If your vehicle starts to slow
down, you must provide steering
input to the wheel and press and
release the button to regain full system
performance.
Automatic cancellation can also occur if:
• The lane becomes too wide or too
narrow.
• The system cannot detect valid lane
markings.
• Lane markings cross over one another.
Note: The system disables until the next
key cycle if your vehicle slows down due to
driver inactivity twice within a key cycle.
LANE CENTERING INDICATORS Illuminates when you switch
lane centering on. The color of
the indicator changes to indicate
the system status.
Gray indicates the system is on but
inactive.
Green indicates the system is active and
applying steering torque assistance input
to keep your vehicle in the center of the
lane.
Amber with an audible tone and then gray
indicates a system automatic cancellation. INTELLIGENT ADAPTIVE
CRUISE CONTROL
HOW DOES INTELLIGENT
ADAPTIVE CRUISE CONTROL
WORK
Intelligent adaptive cruise control
combines speed sign recognition with
adaptive cruise control to adjust the cruise
set speed to the speed limit detected by
the speed sign recognition system. As the
system detects new speed signs, the set
speed updates.
Note:
The adaptive cruise control gap
setting operates normally.
INTELLIGENT ADAPTIVE CRUISE
CONTROL PRECAUTIONS WARNING: You are responsible for
controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in
the loss of control of your vehicle,
personal injury or death.
INTELLIGENT ADAPTIVE CRUISE
CONTROL REQUIREMENTS
Traffic sign recognition must be enabled
for intelligent adaptive cruise control to be
active.
INTELLIGENT ADAPTIVE CRUISE
CONTROL LIMITATIONS
The speed limit information provided by
the navigation map data could be
inaccurate or out of date.
231
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Adaptive Cruise ControlE308130 E297977

WHAT IS ACTIVE DRIVE
ASSIST
Active drive assist keeps your vehicle
centered in the lane and offers a
hands-free driving mode in certain
situations when using adaptive cruise
control.
HOW DOES ACTIVE DRIVE
ASSIST WORK
Active drive assist uses cameras to monitor
your vehicle position within a lane and
applies steering support to keep your
vehicle centered in the lane.
Using the cameras and location
information, active drive assist allows you
to remove your hands from the steering
wheel and offers a hands-free driving
mode in certain areas.
When active, active drive assist uses a
driver facing camera and infrared lighting
to monitor your eyes and head position to
detect if you are distracted. If the system
determines you are distracted, it alerts you
to return your eyes back to the road.
Camera and lighting areas.
A Note:
When active drive assist is active, in
certain crash or near crash-like situations,
such as an air bag deployment or hitting a
road obstacle, camera data may be
recorded through the vehicle event data
recorder. See Event Data (page 22).
Note: No data is recorded under normal
driving conditions.
ACTIVE DRIVE ASSIST
PRECAUTIONS WARNING: You are responsible for
controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in
the loss of control of your vehicle,
personal injury or death. WARNING:
Obstructions to the
driver facing camera or infrared lighting
could prevent the system from properly
operating. Keep the camera and lighting
areas free from obstruction. Failure to
follow this instruction could result in the
loss of control of your vehicle, personal
injury or death. WARNING:
Do not use the system
if any changes or modifications to the
steering wheel have been made. Any
changes or modifications to the steering
wheel could affect the functionality or
performance of the system. Failure to
follow this instruction could result in the
loss of control of your vehicle, personal
injury or death.
235
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Active Drive Assist
(If Equipped)AE319834

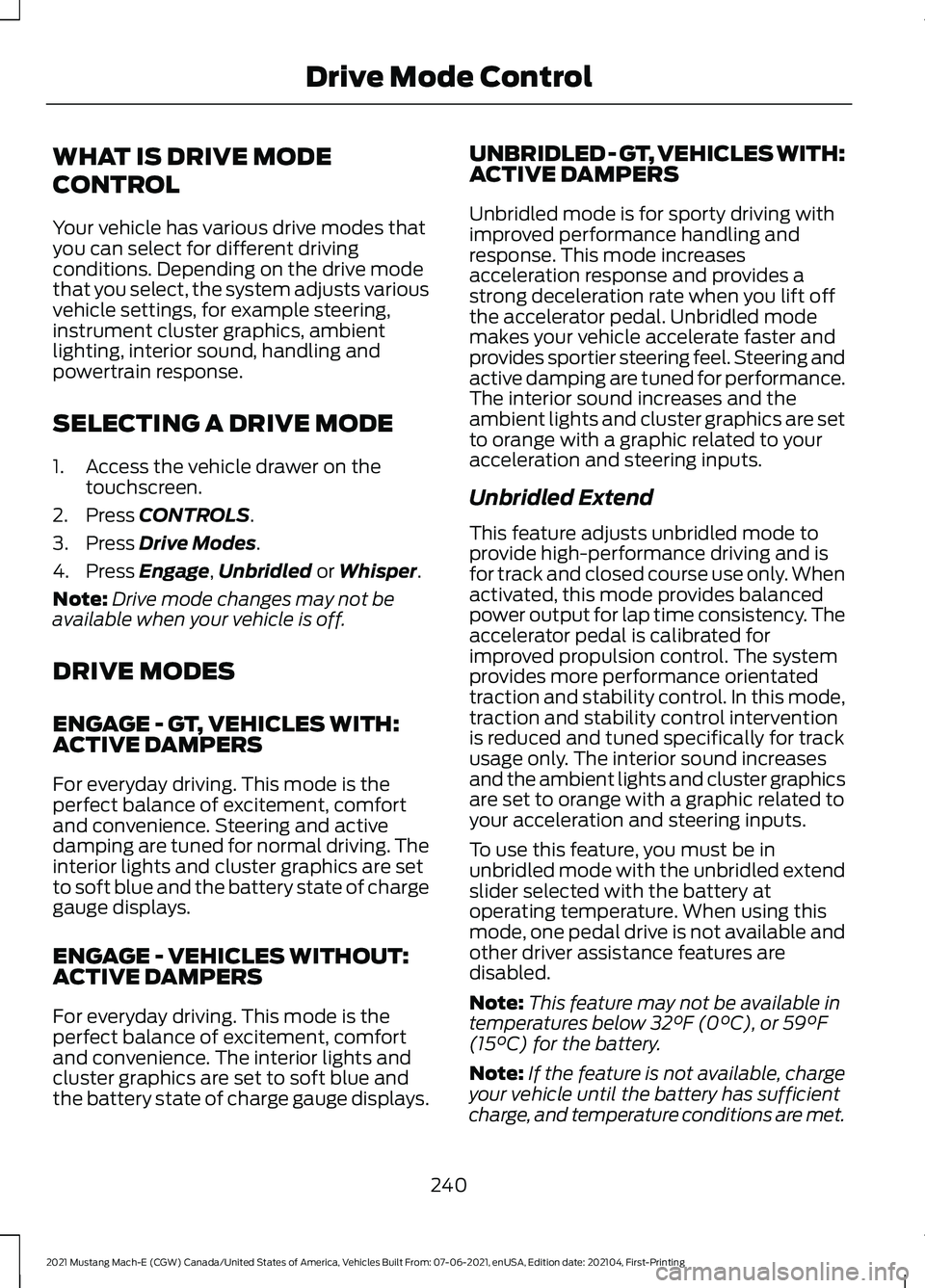

WHAT IS DRIVE MODE
CONTROL
Your vehicle has various drive modes that
you can select for different driving
conditions. Depending on the drive mode
that you select, the system adjusts various
vehicle settings, for example steering,
instrument cluster graphics, ambient
lighting, interior sound, handling and
powertrain response.
SELECTING A DRIVE MODE
1. Access the vehicle drawer on the
touchscreen.
2. Press CONTROLS.
3. Press
Drive Modes.
4. Press
Engage, Unbridled or Whisper.
Note: Drive mode changes may not be
available when your vehicle is off.
DRIVE MODES
ENGAGE - GT, VEHICLES WITH:
ACTIVE DAMPERS
For everyday driving. This mode is the
perfect balance of excitement, comfort
and convenience. Steering and active
damping are tuned for normal driving. The
interior lights and cluster graphics are set
to soft blue and the battery state of charge
gauge displays.
ENGAGE - VEHICLES WITHOUT:
ACTIVE DAMPERS
For everyday driving. This mode is the
perfect balance of excitement, comfort
and convenience. The interior lights and
cluster graphics are set to soft blue and
the battery state of charge gauge displays. UNBRIDLED - GT, VEHICLES WITH:
ACTIVE DAMPERS
Unbridled mode is for sporty driving with
improved performance handling and
response. This mode increases
acceleration response and provides a
strong deceleration rate when you lift off
the accelerator pedal. Unbridled mode
makes your vehicle accelerate faster and
provides sportier steering feel. Steering and
active damping are tuned for performance.
The interior sound increases and the
ambient lights and cluster graphics are set
to orange with a graphic related to your
acceleration and steering inputs.
Unbridled Extend
This feature adjusts unbridled mode to
provide high-performance driving and is
for track and closed course use only. When
activated, this mode provides balanced
power output for lap time consistency. The
accelerator pedal is calibrated for
improved propulsion control. The system
provides more performance orientated
traction and stability control. In this mode,
traction and stability control intervention
is reduced and tuned specifically for track
usage only. The interior sound increases
and the ambient lights and cluster graphics
are set to orange with a graphic related to
your acceleration and steering inputs.
To use this feature, you must be in
unbridled mode with the unbridled extend
slider selected with the battery at
operating temperature. When using this
mode, one pedal drive is not available and
other driver assistance features are
disabled.
Note:
This feature may not be available in
temperatures below
32°F (0°C), or 59°F
(15°C) for the battery.
Note: If the feature is not available, charge
your vehicle until the battery has sufficient
charge, and temperature conditions are met.
240
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Drive Mode Control

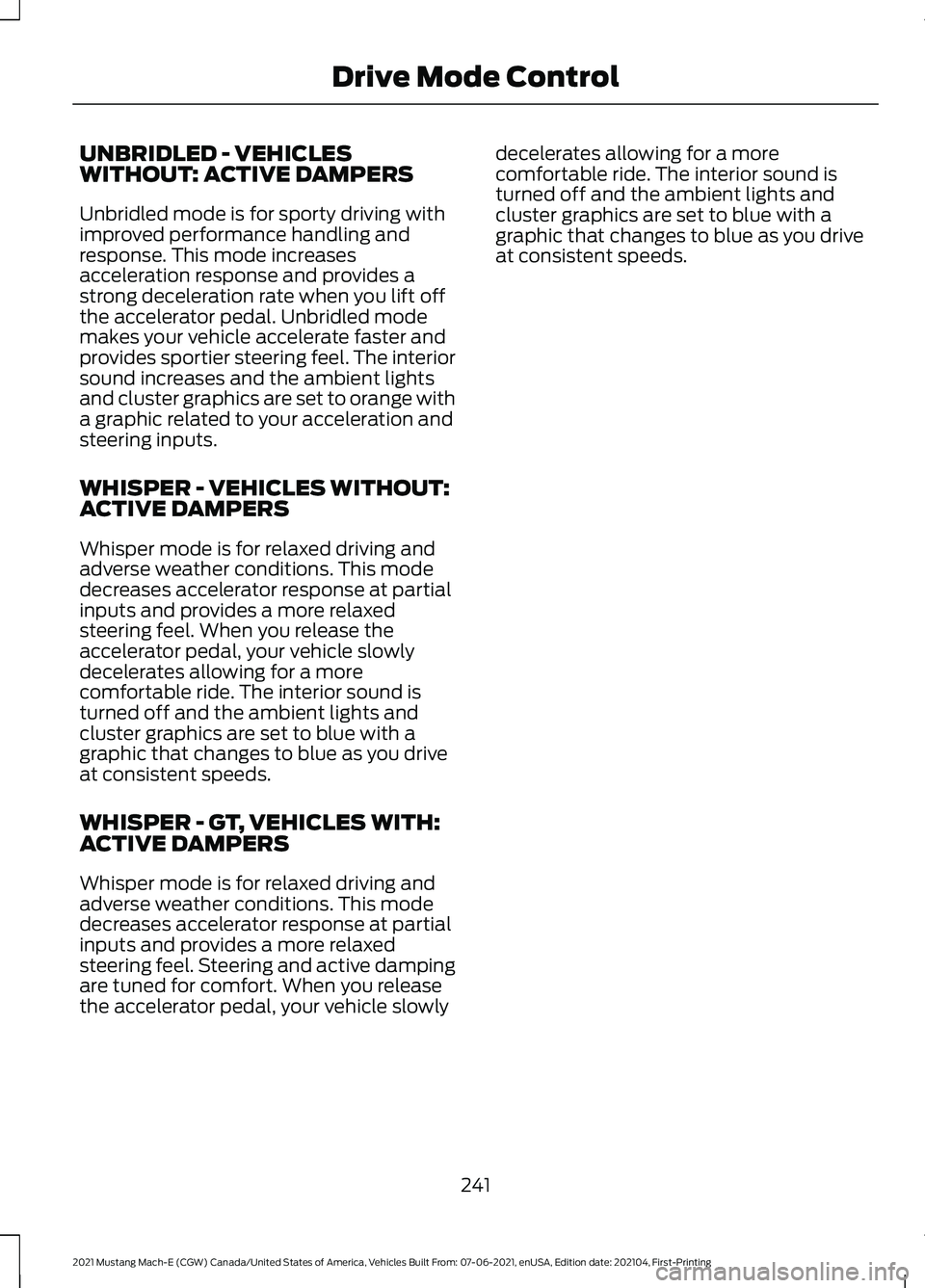

UNBRIDLED - VEHICLES
WITHOUT: ACTIVE DAMPERS
Unbridled mode is for sporty driving with
improved performance handling and
response. This mode increases
acceleration response and provides a
strong deceleration rate when you lift off
the accelerator pedal. Unbridled mode
makes your vehicle accelerate faster and
provides sportier steering feel. The interior
sound increases and the ambient lights
and cluster graphics are set to orange with
a graphic related to your acceleration and
steering inputs.
WHISPER - VEHICLES WITHOUT:
ACTIVE DAMPERS
Whisper mode is for relaxed driving and
adverse weather conditions. This mode
decreases accelerator response at partial
inputs and provides a more relaxed
steering feel. When you release the
accelerator pedal, your vehicle slowly
decelerates allowing for a more
comfortable ride. The interior sound is
turned off and the ambient lights and
cluster graphics are set to blue with a
graphic that changes to blue as you drive
at consistent speeds.
WHISPER - GT, VEHICLES WITH:
ACTIVE DAMPERS
Whisper mode is for relaxed driving and
adverse weather conditions. This mode
decreases accelerator response at partial
inputs and provides a more relaxed
steering feel. Steering and active damping
are tuned for comfort. When you release
the accelerator pedal, your vehicle slowly
decelerates allowing for a more
comfortable ride. The interior sound is
turned off and the ambient lights and
cluster graphics are set to blue with a
graphic that changes to blue as you drive
at consistent speeds.
241
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Drive Mode Control

WHAT IS THE LANE KEEPING
SYSTEM
The lane keeping system alerts you by
providing temporary steering assistance
or steering wheel vibration when it detects
an unintended lane departure.
HOW DOES THE LANE
KEEPING SYSTEM WORK
The lane keeping system uses a forward
looking camera mounted on the windshield
to monitor vehicle movement within the
travel lane.
When the camera detects a drift out of the
travel lane, the lane keeping system alerts
the driver by vibrating the steering wheel,
or aids the driver by providing a small
steering input to move the vehicle back
into the travel lane.
The driver can select one of three modes:
•
Alert (If Equipped)
• Aid
• Alert + Aid
LANE KEEPING SYSTEM
PRECAUTIONS WARNING: You are responsible for
controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in
the loss of control of your vehicle,
personal injury or death. WARNING: The system will not
operate if the sensor cannot track the
road lane markings. WARNING:
The sensor may
incorrectly track lane markings as other
structures or objects. This can result in
a false or missed warning. WARNING:
In cold and severe
weather conditions the system may not
function. Rain, snow and spray can all
limit sensor performance. WARNING:
The system may not
operate properly if the sensor is blocked.
Keep the windshield free from
obstruction. WARNING:
If damage occurs in the
immediate area surrounding the sensor,
have your vehicle checked as soon as
possible. WARNING:
The system may not
correctly operate if your vehicle is fitted
with a suspension kit not approved by
us. WARNING:
Large contrasts in
outside lighting can limit sensor
performance.
LANE KEEPING SYSTEM
LIMITATIONS
The lane keeping system only operates
when the vehicle speed is greater than
40 mph (64 km/h)
.
The system works when the camera can
detect at least one lane marking.
The lane keeping system may not correctly
operate in any of the following conditions:
• The lane keeping system does not
detect at least one lane marking.
• You switch the turn signal on.
243
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Lane Keeping System

WHAT IS PRE-COLLISION
ASSIST
Pre-collision assist detects and warns of
approaching hazards in the roadway. If
your vehicle is rapidly approaching another
stationary vehicle, a vehicle traveling in the
same direction as yours, or a pedestrian
within your driving path, the system
provides multiple levels of assistance to
help avoid a collision.
HOW DOES PRE-COLLISION
ASSIST WORK
The system warns the driver of potential
hazards by providing three levels of
assistance.
If your vehicle is rapidly approaching
potential hazards the system provides the
following levels of functionality:
1. Alert.
2. Brake Support.
3. Automatic Emergency Braking.
Alert: When active, a flashing
visual warning appears and an
audible warning tone sounds.
Brake Support
: The system is designed
to help reduce the impact speed by
preparing the brakes for rapid braking. The
system does not automatically apply the
brakes. If you press the brake pedal, the
system could apply additional braking up
to maximum braking force, even if you
lightly press the brake pedal.
Automatic Emergency Braking
:
Automatic emergency braking may
activate if the system determines that a
collision is imminent. Note:
If you perceive pre-collision assist
alerts as being too frequent or disturbing,
then you can reduce the alert sensitivity,
although the manufacturer recommends
using the highest sensitivity setting where
possible. Setting lower sensitivity would
lead to fewer and later system warnings.
Each system has various levels of
detection capabilities. See Pre-Collision
Assist Limitations
(page 258).
PRE-COLLISION ASSIST
PRECAUTIONS WARNING: You are responsible for
controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in
the loss of control of your vehicle,
personal injury or death. WARNING:
The system does not
detect vehicles moving in a different
direction or animals. Apply the brakes
when necessary. Failure to follow this
instruction could result in the loss of
control of your vehicle, personal injury or
death. WARNING:
The system does not
operate during hard acceleration or
steering. Failure to take care may lead
to a crash or personal injury. WARNING: The system may fail or
operate with reduced function during
cold and severe weather conditions.
Snow, ice, rain, spray and fog can
adversely affect the system. Keep the
front camera and radar free of snow and
ice. Failure to take care may result in the
loss of control of your vehicle, serious
personal injury or death.
257
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Pre-Collision AssistE156130 E329466

WHAT IS DRIVER ALERT
Driver alert alerts you if it determines that
you are becoming drowsy or if your driving
deteriorates.
HOW DOES DRIVER ALERT
WORK
Driver Alert calculates your alertness level
based on your driving behavior in relation
to the lane markings and other factors
through use of the front camera sensor
behind the interior mirror.
DRIVER ALERT PRECAUTIONS
WARNING: You are responsible for
controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in
the loss of control of your vehicle,
personal injury or death. WARNING: Take regular rest
breaks if you feel tired. Do not wait for
the system to warn you. WARNING:
Certain driving styles
may result in the system warning you
even if you are not feeling tired. WARNING:
In cold and severe
weather conditions the system may not
function. Rain, snow and spray can all
limit sensor performance. WARNING:
The system will not
operate if the sensor cannot track the
road lane markings. WARNING:
If damage occurs in the
immediate area surrounding the sensor,
have your vehicle checked as soon as
possible. WARNING:
The system may not
correctly operate if your vehicle is fitted
with a suspension kit not approved by
us. WARNING:
The system may not
operate properly if the sensor is blocked.
Keep the windshield free from
obstruction.
Note: If something is blocking the camera
or damaged the windshield, Driver Alert may
not function.
DRIVER ALERT LIMITATIONS
Driver alert may not function correctly if:
• The sensor cannot track the road lane
markings.
• Your vehicle's speed is less than
approximately
40 mph (65 km/h).
265
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Driver AlertE309385

WHAT IS SPEED SIGN
RECOGNITION
Speed sign recognition detects speed limit
signs to inform you of the current speed
limit. Detected speed signs appear in the
information display.
HOW DOES SPEED SIGN
RECOGNITION WORK
Speed sign recognition uses a sensor
behind the interior mirror to detect speed
signs.
If your vehicle has speed sign recognition
with navigation, stored speed sign data
may influence the indicated speed limit
value.
SPEED SIGN RECOGNITION
PRECAUTIONS
WARNING: You are responsible for
controlling your vehicle at all times. The
system is designed to be an aid and does
not relieve you of your responsibility to
drive with due care and attention. Failure
to follow this instruction could result in
the loss of control of your vehicle,
personal injury or death. WARNING: In cold and severe
weather conditions the system may not
function. Rain, snow and spray can all
limit sensor performance. WARNING:
The system may not
operate properly if the sensor is blocked.
Keep the windshield free from
obstruction. Note:
Do not carry out windshield repairs
in the immediate area surrounding the
sensor.
Note: If your vehicle has a suspension kit
not approved by us, the system may not
correctly function.
Note: The system may not detect all speed
signs and may incorrectly read signs.
Note: Always fit our original parts when
replacing headlamp bulbs. Other bulbs may
reduce system performance.
SPEED SIGN RECOGNITION
LIMITATIONS
Speed sign recognition may not operate
correctly due to:
• Outdated map data.
• Incorrect recognition of speed limits by
the sensor of signs on parallel roads or
exit ramps.
• Missed recognition of faded, dirty, or
distorted signs.
SPEED SIGN RECOGNITION
INDICATORS When the system detects a speed limit
sign, it appears in the information display.
267
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Speed Sign RecognitionE317824

ELECTRIC VEHICLE
MAXIMIZING YOUR DRIVING
RANGE
Driving in Cold Weather
Keep your vehicle charged before heading
out into cold weather.
Use the heated seats and steering wheel
for comfort along with moderate cabin
temperature and fan settings to reduce
energy needed for climate control.
Preconditioning Your Vehicle
You can precondition your vehicle by using
departure and comfort settings to warm
or cool your cabin and the high voltage
battery when your vehicle is plugged in. By
using energy from your charging source
prior to your departure, battery
temperature can be managed for best
driving performance and less energy will
be needed for heating or cooling of the
cabin at the start of your drive. This helps
maximize your driving range. See Setting
the Charging Schedule and Preferences
(page 174).
Note: You can also access departure and
comfort settings using the FordPass App.
Note: Lower cabin temperature settings on
the climate control system results in better
trip range.
Parking Your Vehicle
At temperatures just above the freezing
point and lower, plug your vehicle in when
not in use to maintain high voltage battery
performance.
When possible park your vehicle under a
covered area or in a garage. This will help
to moderate temperatures which affect
performance of the high voltage battery
and require energy to heat or cool the
cabin. Driving Style
Range is reduced when driving aggressively
or at consistently high speeds. Aggressive
driving for extended periods could also
result in reducing your battery
’s efficiency
and lifespan. Use the trip application on
your touchscreen to see your driving scores.
See
Trip Data (page 124).
DRIVING THROUGH SHALLOW
WATER WARNING:
Do not attempt to
cross a deep or flowing body of water.
Failure to follow this instruction could
result in the loss of control of your
vehicle, personal injury or death.
Note: Driving through standing water can
cause vehicle damage.
Before driving through standing water,
check the depth. Never drive through water
that is higher than the bottom of the front
rocker area of your vehicle. When driving through standing water, drive
very slowly and do not stop your vehicle.
Your brake performance and traction could
be limited. After driving through water and
as soon as it is safe to do so:
282
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Driving Hints E266447

ROADSIDE ASSISTANCE
Vehicles Sold in the United States:
Getting Roadside Assistance
To fully assist you should you have a
vehicle concern, Ford Motor Company
offers a complimentary roadside
assistance program. This program is
separate from the New Vehicle Limited
Warranty.
The service is available:
•
24 hours a day, seven days a week.
• For the coverage period supplied with
your vehicle.
Roadside Assistance covers:
• 12 V battery jump start.
• Lock-out assistance (key replacement
cost is the customer's responsibility).
• In the event your vehicle's high-voltage
battery does not have enough power
to move, as a Mach-E roadside
customer, you can choose where you
would like your vehicle towed (within
a 35 mi (56 km) radius):
• Nearest public charger.
• EV Certified Ford or Lincoln Dealer.
• Your home residence.
Vehicles Sold in the United States:
Using Roadside Assistance
Complete the roadside assistance
identification card and place it in your
wallet for quick reference. This card is in
the Owner's Manual kit.
United States vehicle customers who
require Roadside Assistance, call
1-800-241-3673. If you need to arrange roadside assistance
for yourself, Ford Motor Company
reimburses a reasonable amount for
towing to the nearest dealership within
35 mi (56 km)
. To obtain reimbursement
information, United States vehicle
customers call 1-800-241-3673.
Customers need to submit their original
receipts.
Vehicles Sold in Canada: Getting
Roadside Assistance
To fully assist you should you have a
vehicle concern, Ford Motor Company of
Canada, Limited offers a complimentary
roadside assistance program. This
program is eligible within Canada or the
continental United States.
The service is available 24 hours a day,
seven days a week.
This program is separate from the New
Vehicle Limited Warranty, but the coverage
is concurrent with the powertrain coverage
period of your vehicle. Canadian roadside
coverage and benefits may differ from the
U.S. coverage.
If you require more information, please call
us in Canada at 1-800-665-2006, or visit
our website at
www .f or d . c a .
SWITCHING THE HAZARD
FLASHERS ON AND OFF
The hazard flashers operate with the
power on or off. The battery loses charge
and may have insufficient power to restart
your vehicle. The hazard flasher button is on
the center console. Press the
button to turn on the hazard
flashers if your vehicle is creating a safety
hazard for other road users.
When you switch the hazard flashers on,
all front and rear direction indicators flash.
284
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Crash and Breakdown Information
