stop start FORD MUSTANG MACH-E 2021 Owners Manual

Instrument Cluster
Instrument Cluster Overview
...................118
What Is the Speedometer .........................
118
What Is the Vehicle Range Display ........
118
What Is the High Voltage Battery Gauge ........................................................................\
..
119
What Are the Instrument Cluster Warning Lamps .........................................
119
Instrument Cluster Warning Lamps ......
120
What Are the Instrument Cluster Indicators .....................................................
121
Instrument Cluster Indicators ..................
121
Instrument Cluster Display
What Is Brake Coach ..................................
123
Trip Computer
Accessing the Trip Computer ..................
124
Resetting the Trip Computer ...................
124
Trip Data ..........................................................
124
Remote Start
What Is Remote Start ................................
125
Remote Start Limitations .........................
125
Enabling Remote Start ..............................
125
Remotely Starting and Stopping the Vehicle .........................................................
125
Extending the Remote Start Duration ........................................................................\
.
125
Remote Start Settings ...............................
126
Climate Control
Identifying the Climate Control Unit ......
127
Switching Climate Control On and Off ........................................................................\
..
127
Switching Recirculated Air On and Off ........................................................................\
..
127
Switching Air Conditioning On and Off ........................................................................\
..
127
Switching Defrost On and Off .................
127Switching Maximum Defrost On and Off
........................................................................\
.
128
Switching Maximum Cooling On and Off ........................................................................\
.
128
Switching the Heated Wiper Park On and Off .................................................................
128
Switching the Heated Rear Window On and Off ........................................................
128
Switching the Heated Mirrors On and Off ........................................................................\
.
128
Setting the Blower Motor Speed ...........
128
Setting the Temperature ..........................
128
Directing the Flow of Air ............................
129
Auto Mode ......................................................
129
Climate Control Hints ................................
130
Interior Air Quality
What Is the Cabin Air Filter .......................
132
Replacing the Cabin Air Filter ..................
132
Front Seats
Front Seat Precautions ..............................
133
Sitting in the Correct Position .................
133
Manual Seats ................................................
134
Power Seats ..................................................
136
Heated Seats ................................................
139
Rear Seats
Manual Seats ................................................
140
Rear Occupant Alert System
What is the Rear Occupant Alert System ........................................................................\
.
142
How Does the Rear Occupant Alert System Work .............................................
142
Rear Occupant Alert System Precautions ........................................................................\
.
142
Rear Occupant Alert System Limitations ........................................................................\
.
142
Switching Rear Occupant Alert System On and Off .................................................
142
4
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Table of Contents

OPENING THE DOORS FROM
INSIDE YOUR VEHICLE
Pull the interior door handle twice to
unlock and open a rear door. The first pull
unlocks the door and the second pull
opens the door.
AUTOUNLOCK
WHAT IS AUTOUNLOCK
Autounlock is an unlocking feature that
unlocks the vehicle doors when your
vehicle comes to a stop.
AUTOUNLOCK REQUIREMENTS
Autounlock unlocks all the doors when all
of the following occur:
•
The vehicle is on, all the doors are
closed and your vehicle is moving at a
speed greater than 12 mph (20 km/h).
• Your vehicle comes to a stop.
• You open the driver door within 10
minutes of switching the vehicle off or
to the accessory position.
AUTOLOCK
WHAT IS AUTOLOCK
Autolock is a locking feature that locks
your vehicle doors when you start driving.
AUTOLOCK REQUIREMENTS
Autolock locks all the doors when all of the
following occur:
• All doors are closed.
• The vehicle is on.
• Your vehicle reaches a speed greater
than 12 mph (20 km/h). MISLOCK
(IF EQUIPPED)
WHAT IS MISLOCK
Mislock is a locking feature that warns you
if your vehicle has not locked.
MISLOCK LIMITATIONS
When you press the lock button once, the
direction indicators do not flash if any door
or the liftgate or hood is open.
1. If any door or the liftgate is open.
2. The hood is open.
SWITCHING MISLOCK ON AND
OFF
1. Access the vehicle drawer on the touchscreen.
2. Press
SETTINGS.
3. Press
Vehicle.
4. Press
Locks.
5. Switch
Mislock Chirp on or off.
DOORS AND LOCKS AUDIBLE
WARNINGS
Door Ajar Audible Warning
Sounds when a door is not fully closed and
your vehicle is moving.
78
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Doors and Locks

SECURITY – TROUBLESHOOTING
SECURITY – INFORMATION MESSAGES
Action
Message
The system has not detected a correctly coded key.
No Key Detected
The system has malfunctioned. Have your vehicle checked
as soon as possible.
Starting System Fault
Displays when the alarm has been triggered due to unauthor-
ized entry.
Vehicle Alarm To Stop
Alarm, Start Vehicle.
Alarm Announcement
97
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Security

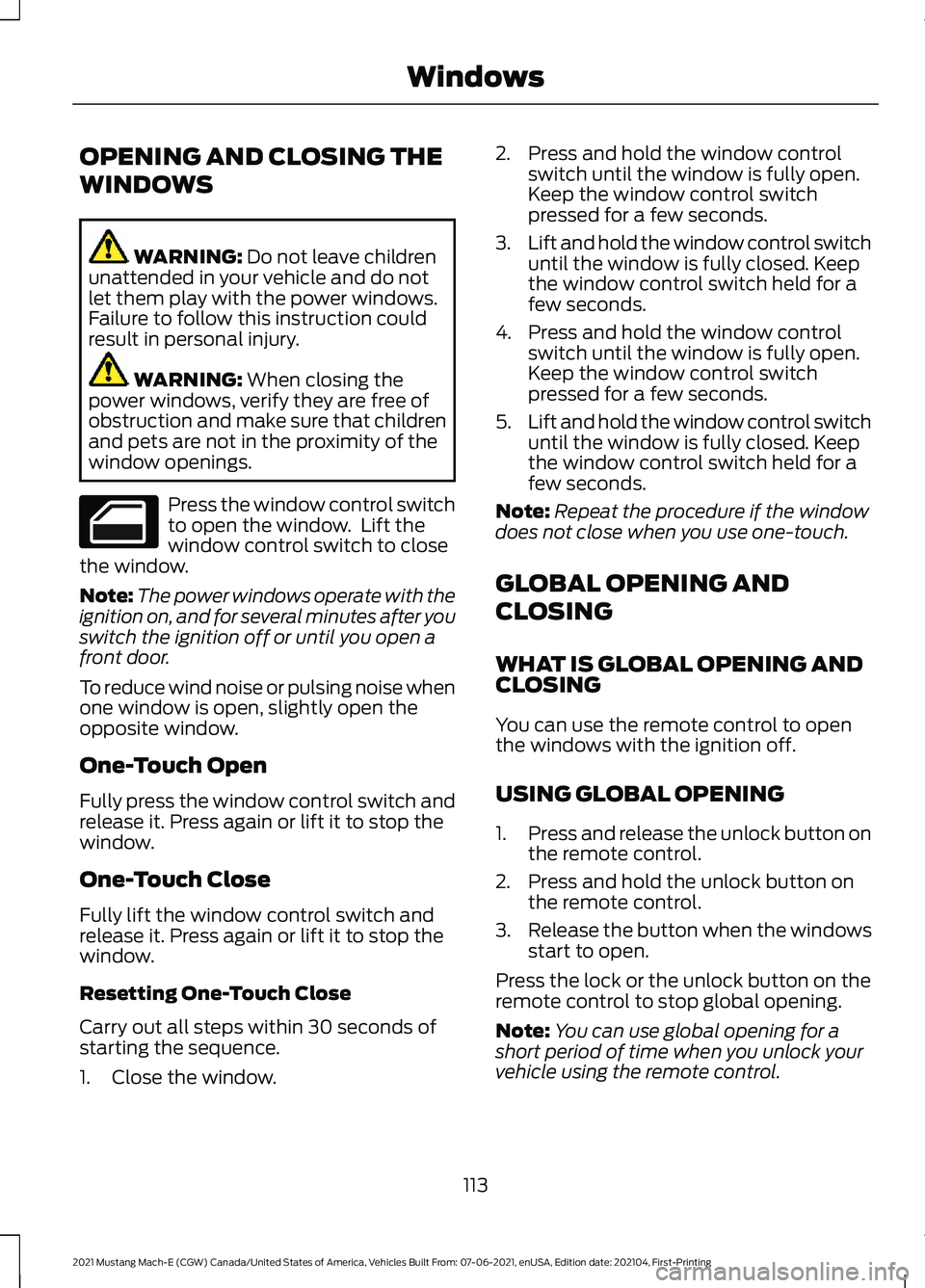

OPENING AND CLOSING THE
WINDOWS
WARNING: Do not leave children
unattended in your vehicle and do not
let them play with the power windows.
Failure to follow this instruction could
result in personal injury. WARNING:
When closing the
power windows, verify they are free of
obstruction and make sure that children
and pets are not in the proximity of the
window openings. Press the window control switch
to open the window. Lift the
window control switch to close
the window.
Note: The power windows operate with the
ignition on, and for several minutes after you
switch the ignition off or until you open a
front door.
To reduce wind noise or pulsing noise when
one window is open, slightly open the
opposite window.
One-Touch Open
Fully press the window control switch and
release it. Press again or lift it to stop the
window.
One-Touch Close
Fully lift the window control switch and
release it. Press again or lift it to stop the
window.
Resetting One-Touch Close
Carry out all steps within 30 seconds of
starting the sequence.
1. Close the window. 2. Press and hold the window control
switch until the window is fully open.
Keep the window control switch
pressed for a few seconds.
3. Lift and hold the window control switch
until the window is fully closed. Keep
the window control switch held for a
few seconds.
4. Press and hold the window control switch until the window is fully open.
Keep the window control switch
pressed for a few seconds.
5. Lift and hold the window control switch
until the window is fully closed. Keep
the window control switch held for a
few seconds.
Note: Repeat the procedure if the window
does not close when you use one-touch.
GLOBAL OPENING AND
CLOSING
WHAT IS GLOBAL OPENING AND
CLOSING
You can use the remote control to open
the windows with the ignition off.
USING GLOBAL OPENING
1. Press and release the unlock button on
the remote control.
2. Press and hold the unlock button on the remote control.
3. Release the button when the windows
start to open.
Press the lock or the unlock button on the
remote control to stop global opening.
Note: You can use global opening for a
short period of time when you unlock your
vehicle using the remote control.
113
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Windows

SWITCHING GLOBAL OPENING ON
AND OFF
1. Access the vehicle drawer on the
touchscreen.
2. Press Settings.
3. Press
Vehicle.
4. Press
Windows.
5. Switch
Remote Open on or off.
USING GLOBAL CLOSING WARNING:
When closing the
power windows, verify they are free of
obstruction and make sure that children
and pets are not in the proximity of the
window openings.
1. Press and hold the lock button on the remote control.
2. Release the button when the windows
start to close.
Press the lock or the unlock button on the
remote control to stop global closing.
Note: Bounce-back is on during global
closing. See
What Is Window
Bounce-Back (page 114).
SWITCHING GLOBAL CLOSING ON
AND OFF
1. Access the vehicle drawer on the touchscreen.
2. Press
Settings.
3. Press
Vehicle.
4. Press
Windows.
5. Switch
Remote Close on or off. WINDOW BOUNCE-BACK
WHAT IS WINDOW BOUNCE-BACK
The window stops and reverses if it detects
an obstruction when closing.
OVERRIDING WINDOW BOUNCE-
BACK
WARNING:
If you override
bounce-back, the window does not
reverse if it detects an obstacle. Take
care when closing the windows to avoid
personal injury or damage to your
vehicle.
1. Close the window until it reaches the point of resistance and let it reverse.
2. Lift and hold the window control switch
within two seconds to override
bounce-back and close the window.
Bounce-back is now disabled and you
can close the window manually.
Note: The window goes past the point of
resistance and you can fully close it.
Note: If the window does not close, have
your vehicle checked as soon as possible.
LOCKING THE REAR WINDOW
CONTROLS Press the window control switch
to lock or unlock the rear window
controls. It illuminates when you
lock the rear window controls.
114
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Windows

FOLDING THE EXTERIOR
MIRRORS - VEHICLES WITH:
POWER FOLDING MIRRORS (IF
EQUIPPED)
Power-Folding Mirrors
(If Equipped)
To fold both mirrors, switch your vehicle
on, with the push button start in accessory
mode or your vehicle running. For tight parking conditions,
press the control switch to fold
the mirrors.
Press the control switch again to unfold
the mirrors.
Note: Do not stop the mirrors midway
through their movement. Wait until the
mirrors stop moving and press the control
again.
Note: The left-hand and right-hand mirrors
move at different rates. For example, one
mirror may stop when the other one
continues to move. This is normal. Moving
the mirrors 10 or more times within one
minute, or repeated folding and unfolding
of the mirrors when holding the control
down during full travel, may disable the
system to protect the motors from
overheating. Wait approximately three
minutes with your vehicle running, and up
to 10 minutes with your vehicle off, for the
system to reset and operate as normal.
Loose Mirror
If the power-folding mirrors are manually
folded, they may not properly work even
after you re-position them. You need to
reset them if:
• The mirrors vibrate when you drive.
• The mirrors feel loose. •
The mirrors do not stay in the folded or
unfolded position.
• One of the mirrors is not in its normal
driving position.
To reset the power-fold feature, use the
power-folding mirror control to fold and
unfold the mirrors. A loud noise could occur
when you reset the power-folding mirrors,
this sound is normal. Repeat this process
as needed each time the mirrors are
manually folded.
117
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Exterior Mirrors

Low Washer Fluid Level
It illuminates when the washer
fluid is low.
Powertrain Malfunction It illuminates when the
powertrain requires service. Have
the system checked as soon as
possible.
Stop Safely It illuminates if an electrical
component requires service or a
failure that causes your vehicle
to shutdown or enter into a limited
operating mode.
Vehicle Plugged In It illuminates when your vehicle
is plugged in.
WHAT ARE THE INSTRUMENT
CLUSTER INDICATORS
Indicators notify you of various features
that are active on your vehicle.
INSTRUMENT CLUSTER
INDICATORS
Adaptive Cruise Control See Adaptive Cruise Control
(page 222).
Automatic Headlamp High Beam See
Automatic High Beam
Control Indicators (page 109). Auto Hold Active See
Auto Hold (page 198).
Auto Hold Unavailable See
Auto Hold (page 198).
Blind Spot Information System See
Blind Spot Information
System (page 251).
Cruise Control See
Adaptive Cruise Control
(page 222).
Headlamp High Beam See
Using the High Beam
Headlamps (page 105).
Parking Lamps See
Headlamp Indicators
(page 105).
Ready to Drive See
Starting and Powering
Off (page 155).
Stability Control and Traction
Control See
Traction Control (page
199). See Stability Control
(page 201).
121
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Instrument ClusterE132353 E288355 E228962 E144524 E323448 E323449 E323542 E71340 E224090 E138639 E225466

WHAT IS REMOTE START
The system allows you to remotely start
your vehicle and to adjust the interior
temperature according to the settings that
you chose.
Note:
If your vehicle is plugged in during the
remote start operation, it will draw power
from the power source and not the vehicle's
battery.
REMOTE START LIMITATIONS
Remote start does not work under the
following conditions:
• The alarm horn is sounding.
• The hood is open.
• The vehicle is not in park (P).
• The vehicle is on.
• Remote start has been disabled in the
touchscreen.
• The high voltage or 12 volt battery is
below the minimum operating voltage.
Note: To use remote start with the Ford
Pass, enable the modem. See Enabling
and Disabling the Modem (page 350). To
use remote start with Phone as a Key,
enable the modem and set up Phone As A
Key. See
Programming Your Phone (page
70).
ENABLING REMOTE START
1. Access the vehicle drawer on the touchscreen.
2. Press
SETTINGS.
3. Press
Vehicle.
4. Press
Remote Start Setup.
5. Switch
Remote Start on or off. Note:
To remote start with FordPass or
Phone as a Key, make sure that the modem
is enabled and Phone as a Key is setup. See
Enabling and Disabling the Modem (page
350). See Programming Your Phone (page
70
).
REMOTELY STARTING AND
STOPPING THE VEHICLE
Remotely Starting the Vehicle
Using your Phone as a Key control screen,
press and hold the start button with your
authorized phone within
131 ft (40 m) of
the vehicle.
Note: You can also use the FordPass App
to start the vehicle.
Note: The direction indicators flash twice.
Note: The parking lamps turn on when the
vehicle is running.
Note: The horn sounds if the system fails
to start.
Note: All other vehicle systems remain off
when you have remotely started the vehicle.
Note: The vehicle remains secured when
you have remotely started the vehicle. A
valid key must be inside your vehicle to
switch the vehicle on and drive your vehicle.
Remotely Stopping the Vehicle
Using your Phone as a Key control screen,
press the remote stop button.
Note: You can also use the FordPass App
to stop the vehicle.
EXTENDING THE REMOTE
START DURATION
Using your Phone as a Key control screen
press the button showing addition time.
125
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Remote Start

STARTING AND POWERING
OFF PRECAUTIONS
•
The system may not function if the
remote control is close to metal
objects or electronic devices, for
example, keys or a cell phone.
• A valid remote control must be inside
your vehicle to switch the power on and
start your vehicle.
• Remote controls left inside your vehicle
when locked are disabled. A message
may appear in the information display
indicating that there is no key detected
when you try to start your vehicle.
Press the unlock button on the remote
control to enable it, and then start your
vehicle.
• Make sure all occupants fasten their
seat belt.
• Make sure the headlamps and
electrical accessories are off.
• Make sure the parking brake is on.
• Make sure the transmission is in park
(P).
STARTING THE VEHICLE
1. Fully press the brake pedal.
Note: Do not touch the accelerator pedal.2. Press the push button start. You can also start your vehicle using Valet
Mode or a Backup Start Passcode. See
Phone as a Key (page 70).
POWERING OFF WARNING:
Do not switch off your
vehicle when it is moving. This results in
a significant decrease in braking and
steering assistance. If the vehicle is
switched off, some electrical circuits, for
example airbags, could also turn off.
Failure to follow this instruction could
result in the loss of control of your
vehicle, personal injury or death.
Note: If you unintentionally switch your
vehicle off, shift into neutral (N) and restart
your vehicle.
When your vehicle is not moving and is
started, or the power is in accessory mode,
press and release the push button start
without pressing the brake pedal. This
shuts off the vehicle and all electrical
accessories.
When your vehicle is moving, press the
push button start three times within two
seconds, or press and hold for at least one
second. Shift into neutral (N) and use the
brakes to bring your vehicle to a safe stop.
When your vehicle comes to a complete
stop, shift into park (P).
RESTARTING THE VEHICLE
AFTER POWERING OFF
Fast Restart
The fast restart feature allows you to
restart your vehicle within 10 seconds of
switching it off, even if it does not detect
a valid remote control.
155
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Starting and Powering OffE328849

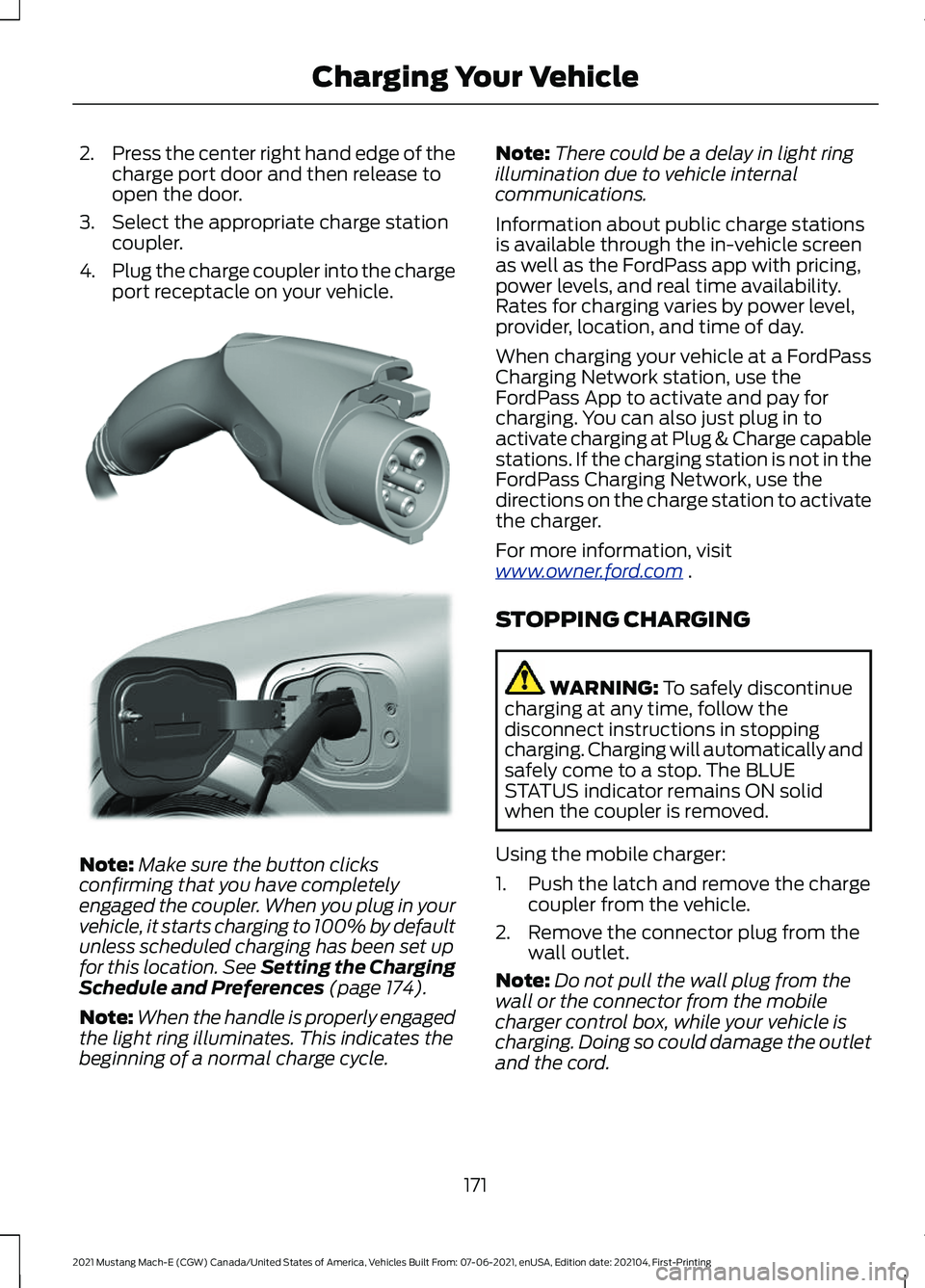

2.
Press the center right hand edge of the
charge port door and then release to
open the door.
3. Select the appropriate charge station coupler.
4. Plug the charge coupler into the charge
port receptacle on your vehicle. Note:
Make sure the button clicks
confirming that you have completely
engaged the coupler. When you plug in your
vehicle, it starts charging to 100% by default
unless scheduled charging has been set up
for this location. See Setting the Charging
Schedule and Preferences (page 174).
Note: When the handle is properly engaged
the light ring illuminates. This indicates the
beginning of a normal charge cycle. Note:
There could be a delay in light ring
illumination due to vehicle internal
communications.
Information about public charge stations
is available through the in-vehicle screen
as well as the FordPass app with pricing,
power levels, and real time availability.
Rates for charging varies by power level,
provider, location, and time of day.
When charging your vehicle at a FordPass
Charging Network station, use the
FordPass App to activate and pay for
charging. You can also just plug in to
activate charging at Plug & Charge capable
stations. If the charging station is not in the
FordPass Charging Network, use the
directions on the charge station to activate
the charger.
For more information, visit
www . o wner .f or d . c om .
STOPPING CHARGING WARNING:
To safely discontinue
charging at any time, follow the
disconnect instructions in stopping
charging. Charging will automatically and
safely come to a stop. The BLUE
STATUS indicator remains ON solid
when the coupler is removed.
Using the mobile charger:
1. Push the latch and remove the charge coupler from the vehicle.
2. Remove the connector plug from the wall outlet.
Note: Do not pull the wall plug from the
wall or the connector from the mobile
charger control box, while your vehicle is
charging. Doing so could damage the outlet
and the cord.
171
2021 Mustang Mach-E (CGW) Canada/United States of America, Vehicles Built From: 07-06-2021, enUSA, Edition date: 202104, First-Printing Charging Your VehicleE335725 E329078
