Protected ComponentRatingItem
Heated rear window.30 A76
Not used.—77
Front driver side electronicdoor.20 A78
Front passenger side elec-tronic door.20 A79
Not used.—80
Rear window washer pump.10 A81
Not used.—82
Not used.—83
Not used (spare).40 A84
Rain sensor.5 A85
Not used.—86
Not used.—87
Not used.—88
319
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMFuses

BATTERY FUSE BOX
LOCATING THE BATTERY FUSEBOX
ACCESSING THE BATTERY FUSEBOX
1.Press the top right-hand side of thecover, then pull the raised section onthe bottom left-hand side toward you.
2.Pull both wires out of the opening toreveal the inline fuses.
3.Remove the caps that cover the inlinefuses.
320
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMFusesE348774 E348774 E348775 E348776

IDENTIFYING THE FUSES IN THEBATTERY FUSE BOXProtectedComponentRatingItem
Frunk.20 A1
Frunk.20 A2
BODY CONTROL MODULE
FUSE BOX
LOCATING THE BODY CONTROLMODULE FUSE BOX
ACCESSING THE BODY CONTROLMODULE FUSE BOX
321
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMFuses12E348777 E329070 E329071

IDENTIFYING THE FUSES IN THE BODY CONTROL MODULE FUSE BOX
Protected ComponentFuseRatingFuseLocation
Not used.5 A1
Not used.5 A2
Extended power module.10 A3
Multi-function display.10 A4
Not used.20 A5
Not used.10 A6
Passenger door module.30 A7
Not used.5 A8
Auto-dimming exterior mirror.5 A9
Extended power module.10 A10
Power liftgate.5 A11Hands-free liftgate actuation module.Telematics control unit module.
Anti-theft alarm.5 A12Keyless keypad switch.Front driver door activation switch.Rear driver door activation switch.
322
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMFusesE293328

Protected ComponentFuseRatingFuseLocation
Not used.15 A13
Driver door module.30 A14
Not used.15 A15
Active suspension (GT).15 A16
SYNC.15 A17
Wireless accessory charging module.7.5 A18Driver status monitor.Front passenger door activation switch.Rear passenger door activation switch.
Headlamp switch pack.7.5 A19Bluetooth low energy module.Push button start.
Anti-theft alarm horn.10 A20
Gateway module.7.5 A21Climate control.Gear shift module.
Instrument cluster.7.5 A22Steering column control module.
Audio unit.20 A23
Not used.20 A24
Not used.30 ACircuitBreaker
25
323
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMFuses

IDENTIFYING FUSE TYPES
Micro 2.A
Micro 3.B
Maxi.C
Mini.D
M Case.E
J Case.F
J Case Low Profile.G
Slotted M Case.H
FUSES – TROUBLESHOOTING
FUSES – FREQUENTLY ASKEDQUESTIONS
When do I need to check a fuse?
•If electrical components in the vehicleare not working.
When do I need to replace a fuse?
•If a fuse has blown.
How do I identify a blown fuse?
•You can identify a blown fuse by abroken wire within the fuse.
324
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMFuses E267379

Motor electronic coolant reservoir. See Checking the Coolant (page 326).A
Battery coolant reservoir. See Checking the Coolant (page 326).B
Brake fluid reservoir. See Checking the Brake Fluid (page 197).C
Under hood fuse box. See Under Hood Fuse Box (page 314).D
Windshield washer fluid reservoir. See Adding Washer Fluid (page 110).E
Note:Some of these components areunderneath the luggage compartment coverand cannot be seen unless the cover isremoved. See Installing and Removingthe Luggage Compartment Cover (page297).
CHECKING THE COOLANT
WARNING: Do not remove thecoolant reservoir cap when the vehicleis on or the cooling system is hot. Wait10 minutes for the cooling system to cooldown. Cover the coolant reservoir capwith a thick cloth to prevent thepossibility of scalding and slowly removethe cap. Failure to follow this instructioncould result in personal injury.
WARNING: Do not put coolant inthe windshield washer reservoir. Ifsprayed on the windshield, coolant couldmake it difficult to see through thewindshield.
WARNING: Do not add coolantfurther than the MAX mark.
Note: Coolant expands when it is hot. Thelevel may extend beyond the MAX mark.
Your vehicle has a battery cooling systemand a motor electrical cooling system. SeeUnder Hood Overview (page 325). Theluggage compartment covers need to beremoved in order to access the reservoirs.See Installing and Removing theLuggage Compartment Cover (page 297).
When the electric motor is cold, check theconcentration and level of the coolant atthe intervals listed in the scheduledmaintenance information. See ScheduledMaintenance (page 410).
Maintain coolant concentration within48% to 50%, which equates to a freezepoint between -29–-35°F (-34–-37°C).Check coolant concentration using arefractometer. We do not recommend theuse of hydrometers or coolant test stripsfor measuring coolant concentration.
Adding Coolant
It is very important to use predilutedcoolant approved to the correctspecification in order to avoid plugging thesmall passageways in the electric motorcooling system. See Cooling SystemCapacity and Specification (page 366).
Do not mix different colors or types ofcoolant in your vehicle. Mixing of coolantsor using an incorrect coolant may harm theelectric motor or cooling systemcomponents and may cause damage thatthe vehicle warranty may not cover.
Note:Automotive fluids are notinterchangeable.
Note:Do not use stop leak pellets, coolingsystem sealants, or non-specified additivesas they can cause damage to the electricmotor cooling or heating systems.
326
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMMaintenance

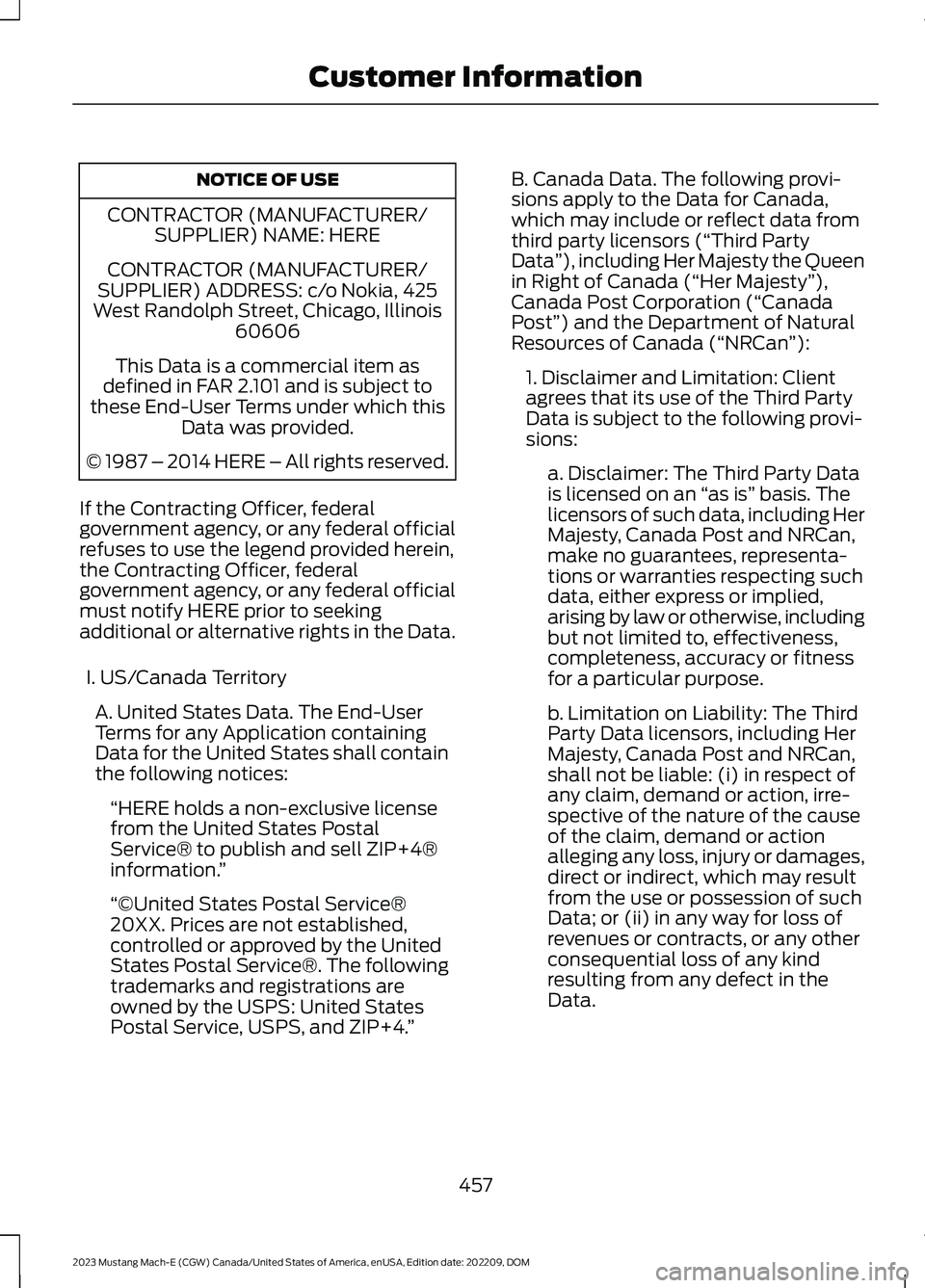

NOTICE OF USE
CONTRACTOR (MANUFACTURER/SUPPLIER) NAME: HERE
CONTRACTOR (MANUFACTURER/SUPPLIER) ADDRESS: c/o Nokia, 425West Randolph Street, Chicago, Illinois60606
This Data is a commercial item asdefined in FAR 2.101 and is subject tothese End-User Terms under which thisData was provided.
© 1987 – 2014 HERE – All rights reserved.
If the Contracting Officer, federalgovernment agency, or any federal officialrefuses to use the legend provided herein,the Contracting Officer, federalgovernment agency, or any federal officialmust notify HERE prior to seekingadditional or alternative rights in the Data.
I. US/Canada Territory
A. United States Data. The End-UserTerms for any Application containingData for the United States shall containthe following notices:
“HERE holds a non-exclusive licensefrom the United States PostalService® to publish and sell ZIP+4®information.”
“©United States Postal Service®20XX. Prices are not established,controlled or approved by the UnitedStates Postal Service®. The followingtrademarks and registrations areowned by the USPS: United StatesPostal Service, USPS, and ZIP+4.”
B. Canada Data. The following provi-sions apply to the Data for Canada,which may include or reflect data fromthird party licensors (“Third PartyData”), including Her Majesty the Queenin Right of Canada (“Her Majesty”),Canada Post Corporation (“CanadaPost”) and the Department of NaturalResources of Canada (“NRCan”):
1. Disclaimer and Limitation: Clientagrees that its use of the Third PartyData is subject to the following provi-sions:
a. Disclaimer: The Third Party Datais licensed on an “as is” basis. Thelicensors of such data, including HerMajesty, Canada Post and NRCan,make no guarantees, representa-tions or warranties respecting suchdata, either express or implied,arising by law or otherwise, includingbut not limited to, effectiveness,completeness, accuracy or fitnessfor a particular purpose.
b. Limitation on Liability: The ThirdParty Data licensors, including HerMajesty, Canada Post and NRCan,shall not be liable: (i) in respect ofany claim, demand or action, irre-spective of the nature of the causeof the claim, demand or actionalleging any loss, injury or damages,direct or indirect, which may resultfrom the use or possession of suchData; or (ii) in any way for loss ofrevenues or contracts, or any otherconsequential loss of any kindresulting from any defect in theData.
457
2023 Mustang Mach-E (CGW) Canada/United States of America, enUSA, Edition date: 202209, DOMCustomer Information

Automatic High Beam Control –Troubleshooting..........................................116Automatic High Beam Control –Information Messages..................................116Automatic Locking Mode...........................50Disengaging Automatic Locking Mode........50Engaging Automatic Locking Mode..............50What Is Automatic Locking Mode.................50When to Use Automatic LockingMode....................................................................50Automatic Return to Park (P).................194Automatic Return to Park (P)Limitations.......................................................194How Does Automatic Return to Park (P)Work...................................................................194What Is Automatic Return to Park(P).......................................................................194Auto Mode.......................................................139Auto Mode Indicators........................................139Switching Auto Mode On and Off................139Switching Dual Mode On and Off................140Autounlock........................................................81Autounlock Requirements.................................81What Is Autounlock..............................................81Autowipers.....................................................106Adjusting the Sensitivity of the RainSensor................................................................107Autowipers Settings..........................................106What Are Autowipers.......................................106AWDSee: All-Wheel Drive.........................................196
B
Battery Fuse Box..........................................320Accessing the Battery Fuse Box...................320Identifying the Fuses in the Battery FuseBox.......................................................................321Locating the Battery Fuse Box.....................320Blind Spot Assist.........................................266Blind Spot Assist Indicators...........................267Blind Spot Assist Limitations........................267How Does Blind Spot Assist Work...............267What Is Blind Spot Assist...............................266Blind Spot Information System...............271Blind Spot Information System –Troubleshooting.............................................273
Blind Spot Information SystemIndicators......................................................272Blind Spot Information SystemLimitations....................................................271Blind Spot Information SystemPrecautions..................................................271Blind Spot Information SystemRequirements..............................................271Blind Spot Information System –Troubleshooting.........................................273Blind Spot Information System –Information Messages.................................273BlueCruise Alerts.........................................254BlueCruise AutomaticCancellation...............................................254BlueCruise.......................................................251BlueCruise – Troubleshooting......................258In-Lane Repositioning......................................257Lane Change Assist..........................................255Lane Change Assist -Troubleshooting.............................................257BlueCruise Indicators.................................255BlueCruise Limitations...............................253BlueCruise Precautions..............................251BlueCruise Requirements.........................252BlueCruise Settings.....................................253BlueCruise – Troubleshooting................258BlueCruise – Information Messages..........258Bluetooth®....................................................396Body Control Module Fuse Box...............321Accessing the Body Control Module FuseBox.......................................................................321Identifying the Fuses in the Body ControlModule Fuse Box...........................................322Locating the Body Control Module FuseBox.......................................................................321Body Styling Kit Precautions...................336Body Styling Kits..........................................336Bonnet LockSee: Opening and Closing the Hood..........325Booster Seats..................................................45Brake Coach.....................................................131Brake Fluid Specification..........................198Brake Over Accelerator...............................197Brake Precautions.........................................197Brakes................................................................197Anti-Lock Braking System...............................197Brakes – Troubleshooting...............................198
