Page 81 of 398
LIGHTING CONTROL
Sedan
Utility
A. Off
B. Parking lamps, instrument panel lamps, license plate lamps and tail
lamps.
C. Headlamps
P
ABC
80Lighting
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)
Page 82 of 398

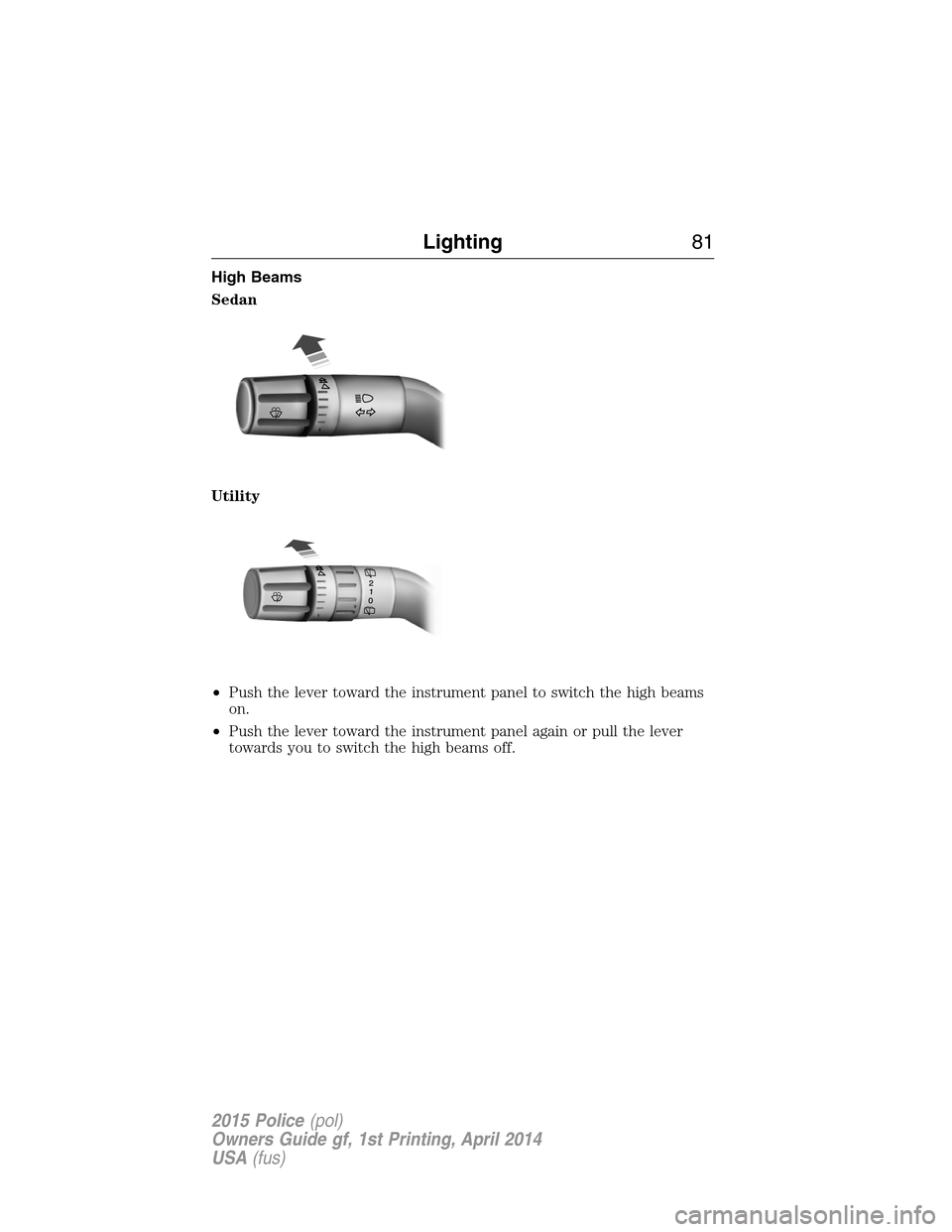

High Beams
Sedan
Utility
•Push the lever toward the instrument panel to switch the high beams
on.
•Push the lever toward the instrument panel again or pull the lever
towards you to switch the high beams off.
Lighting81
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)
Page 83 of 398
Headlamp Flasher
Sedan
Utility
Pull toward you slightly to activate and release to deactivate.
SPOT LIGHT CONTROL (IF EQUIPPED)
•Use the switch on the chrome
handle to turn the spot light on
and off.
•Rotate and twist the handle to
adjust the position of the spot
light.
82Lighting
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)
Page 84 of 398
INSTRUMENT LIGHTING DIMMER
Sedan
•Press repeatedly or press and
hold until the desired level is
reached.
•If the vehicle is not equipped
with the Dark Car feature, press
and hold the top of the control to
the full on position to activate
the “dome on” feature. This will
turn on the interior courtesy lights. Press and hold the bottom of the
control to turn off the interior courtesy lights.
•If equipped with the Dark Car feature, courtesy illumination is
disabled. Press and hold the bottom of the control to turn off the
instrument cluster lights and the information display lights.
Utility
•Press repeatedly or press and
hold the top control to brighten
the instrument cluster and
information display lighting.
•Press repeatedly or press and
hold the bottom control to dim
the instrument cluster and
information display lighting. If
equipped with the Dark Car
feature, you may turn off the
instrument cluster and
information display lighting.
Note:If the battery is disconnected, discharged, or a new battery is
installed, the dimmer will set the illuminated components to the
maximum setting automatically.
DAYTIME RUNNING LAMPS (IF EQUIPPED)
WARNING:Always remember to turn on your headlamps at
dusk or during inclement weather. The Daytime Running Lamp
(DRL) system does not activate the tail lamps and generally may not
provide adequate lighting during these conditions. Failure to activate
your headlamps under these conditions may result in a collision.
Lighting83
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)
Page 85 of 398
The system turns the headlamps on with a reduced output.
To activate:
•the ignition must be in the on position and
•the lighting control is in the off, autolamp, or parking lamp position
and
•the transmission is not in PARK.
DIRECTION INDICATORS
Sedan
Utility
•To operate the left direction indicator, push the lever down until it
stops.
•To operate the right direction indicator, push the lever up until it
stops.
Note:Tap the lever up or down to make the direction indicators flash
only three times to indicate a lane change.
84Lighting
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)
Page 86 of 398
INTERIOR LAMPS
Dome Lamp Control (Utility)
Press the control to switch on the interior
courtesy lights. The lights will remain on until
the control is pressed again.
Front Row Map Lamps (If Equipped)
The front row map lamp lights when:
•any door is opened.
•the dome lamp button on the
instrument panel is activated
(Utility).
•the instrument panel dimmer button is pressed until the courtesy
lamp comes on (Sedan).
•the remote entry controls are pressed and the ignition is off.
To manually turn on the map lamps, press the outer edge of the clear
lens.
Note:If equipped with Dark Car feature, courtesy illumination is
disabled.
Lighting85
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)
Page 87 of 398
Dome Task Lamp (If Equipped)
A. Night-vision red light on
B. OFF position
C. White light on
The police vehicle may be equipped with one or two red/white dome task
lamps. The lamp may be located in the headliner between the driver and
front seat passenger. The lamp may be located in the headliner at the
rear of the vehicle.
Note:Always remember to return the dome lamp switch to the OFF
position when finished to prevent discharging the vehicle battery.
Third Row Cargo Lamp (Utility) (If Equipped)
The cargo lamp can also be turned on and off manually by
pressing the control switch.
Note:Always remember to switch off the lamp (press the
control switch ) when finished to prevent discharging the
vehicle battery.
ABC
86Lighting
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)
Page 88 of 398

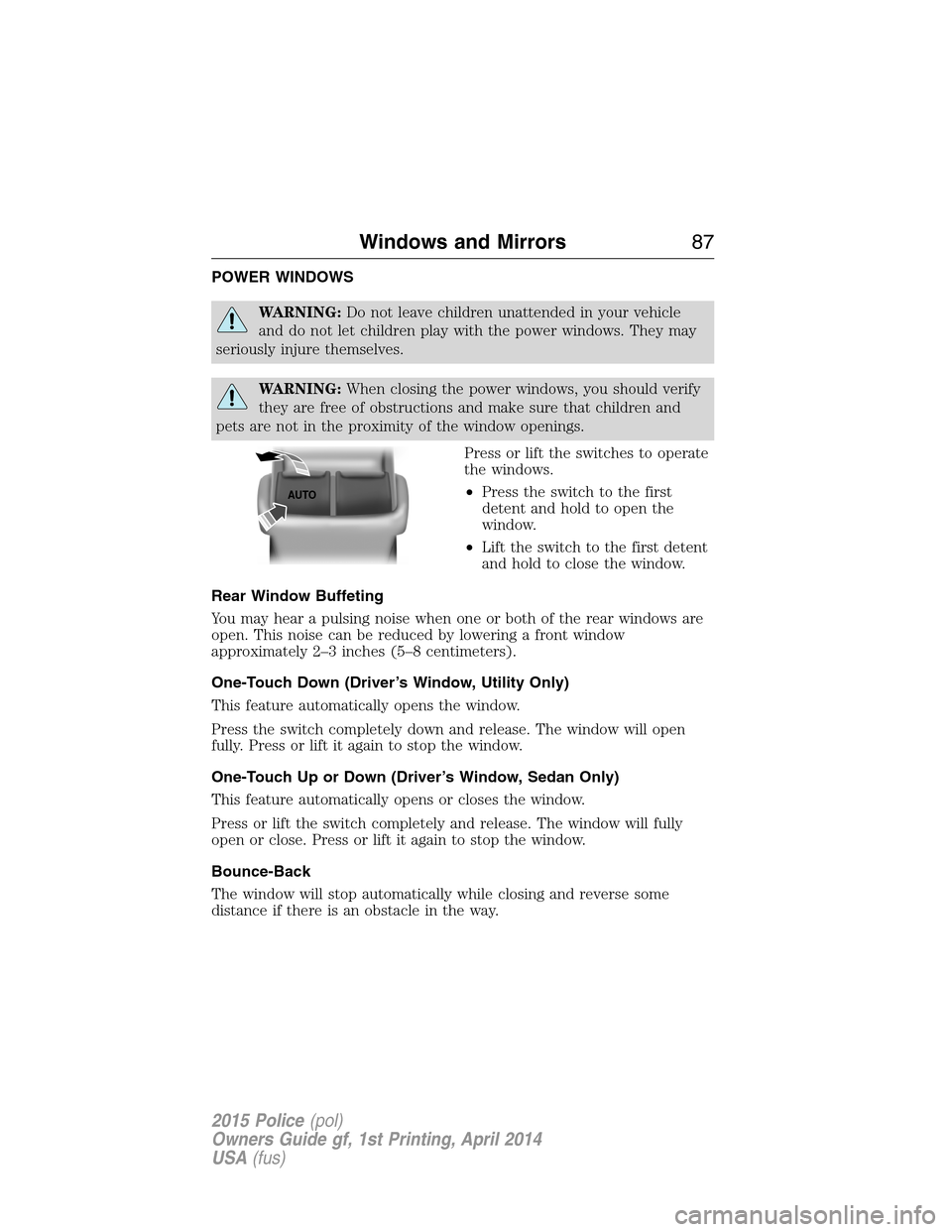

POWER WINDOWS
WARNING:Do not leave children unattended in your vehicle
and do not let children play with the power windows. They may
seriously injure themselves.
WARNING:When closing the power windows, you should verify
they are free of obstructions and make sure that children and
pets are not in the proximity of the window openings.
Press or lift the switches to operate
the windows.
•Press the switch to the first
detent and hold to open the
window.
•Lift the switch to the first detent
and hold to close the window.
Rear Window Buffeting
You may hear a pulsing noise when one or both of the rear windows are
open. This noise can be reduced by lowering a front window
approximately 2–3 inches (5–8 centimeters).
One-Touch Down (Driver’s Window, Utility Only)
This feature automatically opens the window.
Press the switch completely down and release. The window will open
fully. Press or lift it again to stop the window.
One-Touch Up or Down (Driver’s Window, Sedan Only)
This feature automatically opens or closes the window.
Press or lift the switch completely and release. The window will fully
open or close. Press or lift it again to stop the window.
Bounce-Back
The window will stop automatically while closing and reverse some
distance if there is an obstacle in the way.
AUTO
Windows and Mirrors87
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)
Page 89 of 398

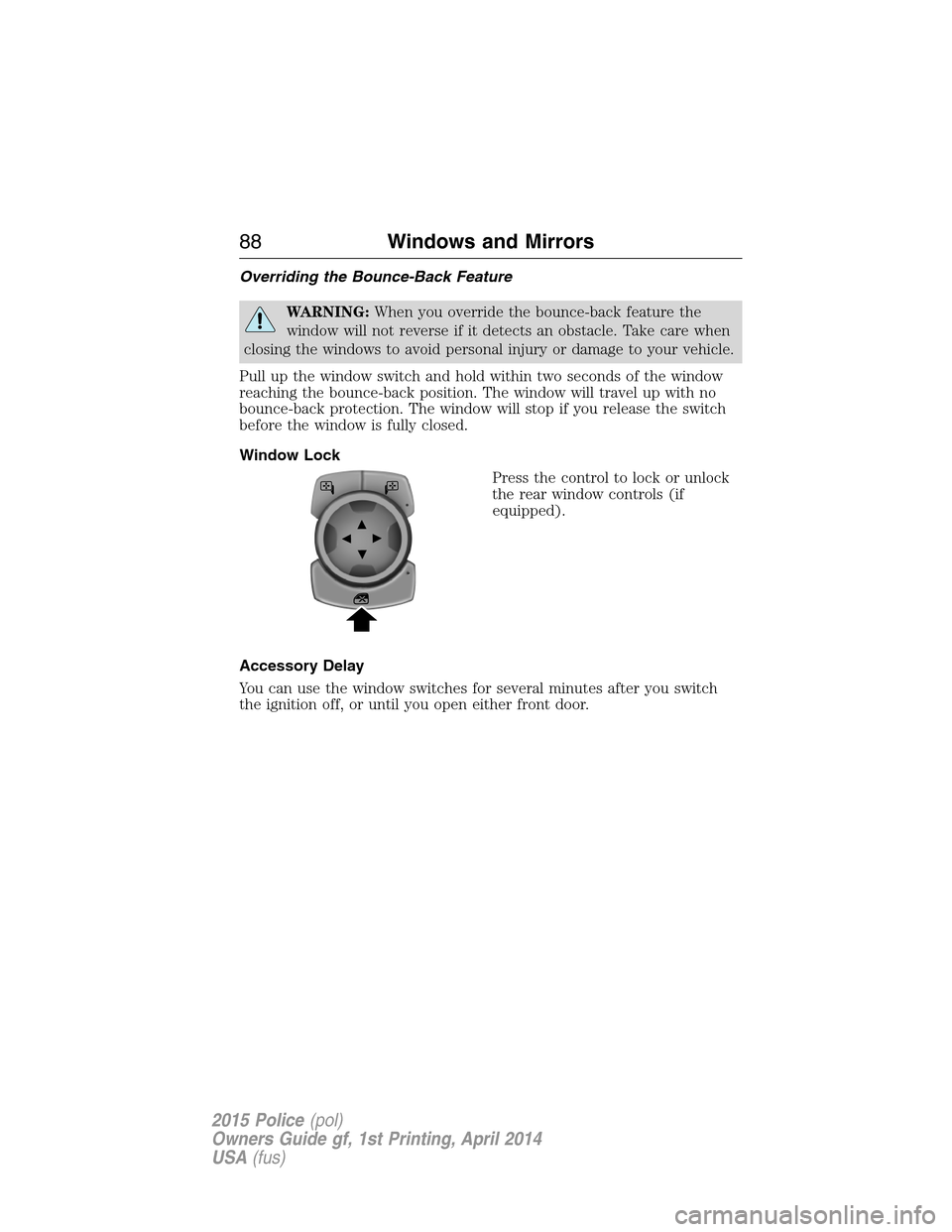

Overriding the Bounce-Back Feature
WARNING:When you override the bounce-back feature the
window will not reverse if it detects an obstacle. Take care when
closing the windows to avoid personal injury or damage to your vehicle.
Pull up the window switch and hold within two seconds of the window
reaching the bounce-back position. The window will travel up with no
bounce-back protection. The window will stop if you release the switch
before the window is fully closed.
Window Lock
Press the control to lock or unlock
the rear window controls (if
equipped).
Accessory Delay
You can use the window switches for several minutes after you switch
the ignition off, or until you open either front door.
88Windows and Mirrors
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)
Page 90 of 398

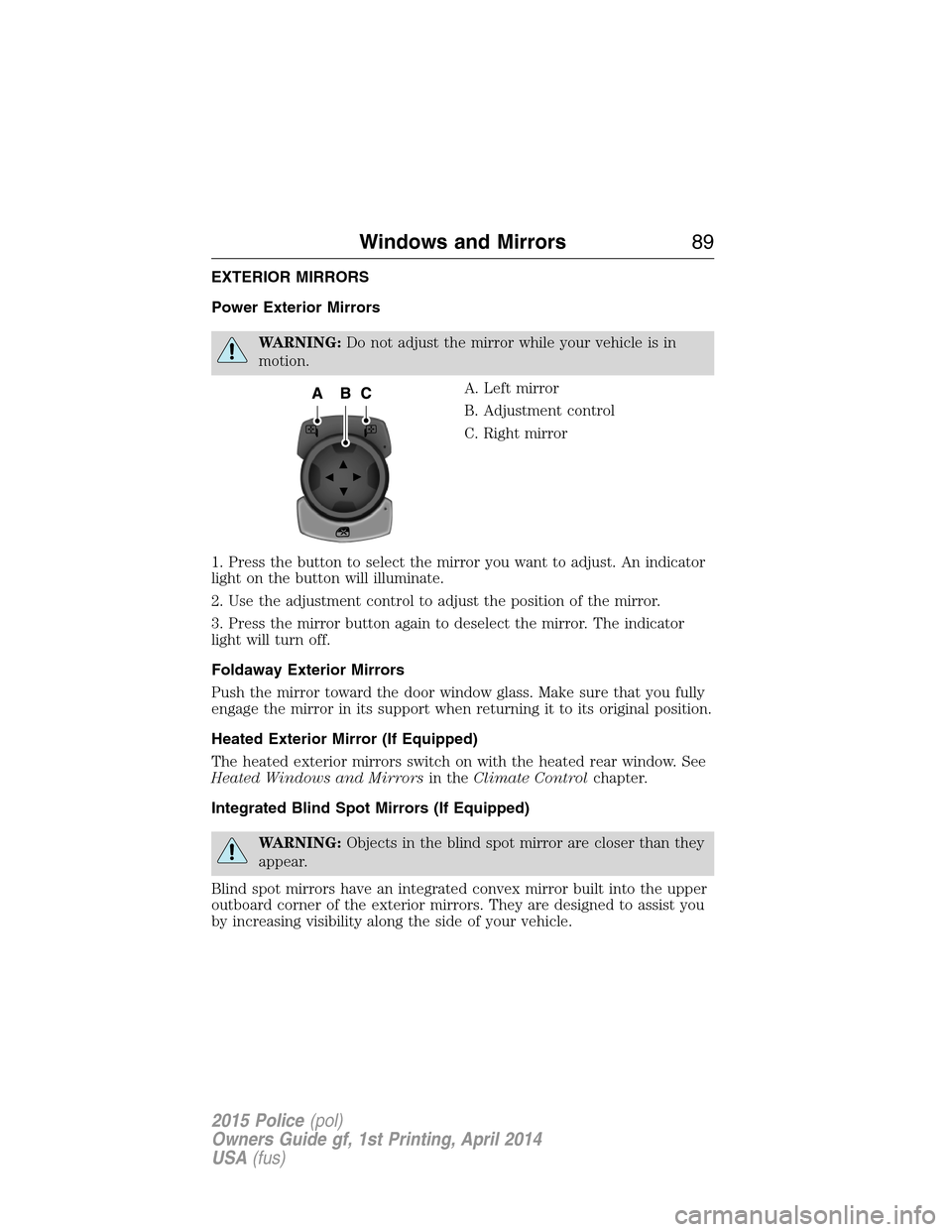

EXTERIOR MIRRORS
Power Exterior Mirrors
WARNING:Do not adjust the mirror while your vehicle is in
motion.
A. Left mirror
B. Adjustment control
C. Right mirror
1. Press the button to select the mirror you want to adjust. An indicator
light on the button will illuminate.
2. Use the adjustment control to adjust the position of the mirror.
3. Press the mirror button again to deselect the mirror. The indicator
light will turn off.
Foldaway Exterior Mirrors
Push the mirror toward the door window glass. Make sure that you fully
engage the mirror in its support when returning it to its original position.
Heated Exterior Mirror (If Equipped)
The heated exterior mirrors switch on with the heated rear window. See
Heated Windows and Mirrorsin theClimate Controlchapter.
Integrated Blind Spot Mirrors (If Equipped)
WARNING:Objects in the blind spot mirror are closer than they
appear.
Blind spot mirrors have an integrated convex mirror built into the upper
outboard corner of the exterior mirrors. They are designed to assist you
by increasing visibility along the side of your vehicle.
Windows and Mirrors89
2015 Police(pol)
Owners Guide gf, 1st Printing, April 2014
USA(fus)
