Using Traction Control................................125
Stability Control
Principle of Operation.................................126
Using Stability Control................................127
Parking Aids
Principle of Operation.................................128
Rear Parking Aid
............................................128
Rear View Camera........................................129
Cruise Control
Principle of Operation.................................133
Using Cruise Control....................................133
Driving Aids
Blind Spot Information System...............135
Cross Traffic Alert
..........................................137
Steering.............................................................141
Load Carrying
Rear Loadspace Hatches..........................142
Rear Under Floor Storage
..........................142
Roof Racks and Load Carriers.................142
Load Limit
........................................................143
Towing
Towing a Trailer.............................................149
Recommended Towing Weights
............150
Essential Towing Checks............................151
Towing the Vehicle on Four Wheels......153
Driving Hints
Breaking-In......................................................155
Economical Driving......................................155
Driving Through Water................................156
Floor Mats
.......................................................156 Roadside Emergencies
Roadside Assistance
...................................158
Hazard Warning Flashers..........................159
Fuel Shutoff
....................................................159
Jump Starting the Vehicle.........................160
Post-Crash Alert System...........................162
Transporting the Vehicle............................162
Customer Assistance
Getting the Services You Need...............164
In California (U.S. Only).............................165
The Better Business Bureau (BBB) Auto Line Program (U.S. Only)......................166
Utilizing the Mediation/Arbitration Program (Canada Only)........................167
Getting Assistance Outside the U.S. and Canada.........................................................167
Ordering Additional Owner's Literature.....................................................168
Reporting Safety Defects (U.S. Only)
.............................................................169
Reporting Safety Defects (Canada Only)
.............................................................169
Fuses
Fuse Specification Chart
.............................171
Changing a Fuse............................................179
Maintenance
General Information
.....................................181
Opening and Closing the Hood................181
Under Hood Overview - 3.5L Ecoboost™.................................................183
Under Hood Overview - 3.7L....................184
Engine Oil Dipstick
.......................................185
Engine Oil Check...........................................185
Oil Change Indicator Reset.......................186
Engine Coolant Check................................186
Automatic Transmission Fluid Check............................................................190
Brake Fluid Check.........................................192
3
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Table of Contents
Page 7 of 360
Power Steering Fluid Check......................193
Washer Fluid Check.....................................193
Changing the 12V Battery..........................193
Checking the Wiper Blades......................195
Changing the Wiper Blades......................195
Adjusting the Headlamps.........................196
Removing a Headlamp...............................197
Changing a Bulb............................................197
Bulb Specification Chart
..........................200
Changing the Engine Air Filter................203
Vehicle Care
General Information
...................................204
Cleaning Products
.......................................204
Cleaning the Exterior
..................................205
Waxing............................................................206
Cleaning the Engine
...................................206
Cleaning the Windows and Wiper Blades..........................................................207
Cleaning the Interior...................................207
Cleaning the Instrument Panel and Instrument Cluster Lens.......................208
Cleaning Leather Seats.............................208
Repairing Minor Paint Damage
..............209
Cleaning the Alloy Wheels.......................209
Vehicle Storage
............................................209
Wheels and Tires
General Information.....................................212
Tire Care
...........................................................214
Using Snow Chains.....................................228
Tire Pressure Monitoring System...........229
Changing a Road Wheel............................233
Technical Specifications...........................238
Capacities and Specific- ations
Engine Specifications - 3.5L Ecoboost™................................................239
Engine Specifications - 3.7L....................239 Motorcraft Parts - 3.5L Ecoboost™......240
Motorcraft Parts - 3.7L................................241
Vehicle Identification Number
................242
Vehicle Certification Label.......................243
Transmission Code Designation............243
Capacities and Specifications - 3.5L Ecoboost™................................................244
Capacities and Specifications - 3.7L
.....248
Audio System
General Information
...................................253
Audio Unit - Vehicles With: AM/FM/CD/ SYNC............................................................254
Digital Radio
..................................................256
Satellite Radio
..............................................259
USB Port
..........................................................261
Media Hub.......................................................261
SYNC™
General Information
...................................262
Using Voice Recognition...........................264
Using SYNC™ With Your Phone............266
SYNC™ Applications and Services
......278
Using SYNC™ With Your Media Player...........................................................283
SYNC™ Troubleshooting
.........................292
Ford Protect
Ford Protect
..................................................300
Scheduled Maintenance
General Maintenance Information.......302
Normal Scheduled Maintenance
..........305
Special Operating Conditions Scheduled Maintenance.............................................308
Scheduled Maintenance Record..............311
Decommissioning the Vehicle
Decommissioning Requirements
...........321
4
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Table of Contents
Page 11 of 360
Brake system
Cabin air filter
Check fuel cap
Child safety door lock or unlock
Child seat lower anchor
Child seat tether anchor
Cruise control
Do not open when hot
Engine air filter
Engine coolant
Engine coolant temperature
Engine oil
Explosive gas
Fan warning
Fasten seatbelt Front airbag
Front fog lamps
Fuel pump reset
Fuse compartment
Hazard warning flashers
Heated rear window
Heated windshield
Interior luggage compartment
release
Jack
Keep out of reach of children
Lighting control
Low tire pressure warning
Maintain correct fluid level
Note operating instructions
Panic alarm
8
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Introduction E71340 E161353
Page 71 of 360
EXTERIOR MIRRORS
Power Exterior Mirrors
WARNING
Do not adjust the mirrors when your
vehicle is moving.
Left-hand mirror.
A
Adjustment control.
B
Right-hand mirror.
C
To adjust your mirrors, switch your vehicle
on (with the ignition in accessory mode or
the engine running) and then:
1. Select the mirror you want to adjust. The control lights.
2. Use the adjustment control to adjust the position of the mirror.
3. Press the mirror control again. The control light turns off.
Fold-Away Exterior Mirrors
Push the mirror toward the door window
glass. Make sure that you fully engage the
mirror in its support when returning it to its
original position. Heated Exterior Mirrors (If Equipped)
See Heated Windows and Mirrors (page
92
).
Integrated Blind Spot Mirror
(If
Equipped) WARNING
Objects in the blind spot mirror are
closer than they appear.
Blind spot mirrors have an integrated
convex mirror built into the upper outboard
corner of the exterior mirrors. They can
assist you by increasing visibility along the
side of your vehicle.
Check the main mirror first before a lane
change, then check the blind spot mirror.
If no vehicles are present in the blind spot
mirror and the traffic in the adjacent lane
is at a safe distance, signal that you are
going to change lanes. Glance over your
shoulder to verify traffic is clear, and
carefully change lanes.
68
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Windows and MirrorsE144073
Page 75 of 360
Speedometer
Your vehicle is shipped with a certified
digital speedometer and analog gauge. If
your local procedures require calibration,
utilize the distance per time on-road test
or a radar-based speed test. If a
dynamometer calibration is required,
reference the calibration procedure found
at www.Fleet.Ford.com or check OASIS
for updated information.
Fuel Gauge
Note:
The fuel gauge may vary slightly
when your vehicle is moving or on a gradient.
Switch the ignition on. The fuel gauge will
indicate approximately how much fuel is
left in the fuel tank. The arrow adjacent to
the fuel pump symbol indicates on which
side of your vehicle the fuel filler door is
located.
The needle should move toward F when
you refuel your vehicle. If the needle points
to E after adding fuel, this indicates your
vehicle needs service soon.
After refueling some variability in needle
position is normal:
• It may take a short time for the needle
to reach full after leaving the gas
station. This is normal and depends
upon the slope of pavement at the gas
station.
• The fuel amount dispensed into the
tank is a little less or more than the
gauge indicated. This is normal and
depends upon the slope of pavement
at the gas station.
• If the gas station nozzle shuts off
before the tank is full, try a different
gas pump nozzle.
• There is a small reserve left in the tank
when the fuel gauge reaches empty. Low Fuel Reminder
A low fuel reminder triggers when the
distance to empty reaches, 75 mi (120 km),
50 mi (80 km), 25 mi (40 km), 12 mi
(20 km), 0 mi (0 km).
Variations:
Note: The low fuel reminder can appear at
different fuel gauge positions depending on
fuel economy conditions. This variation is
normal.
Engine Coolant Temperature
Gauge
Indicates engine coolant temperature. At
normal operating temperature, the level
indicator will be in the normal range. If the
engine coolant temperature exceeds the
normal range, stop your vehicle as soon as
safely possible, switch off the engine and
let the engine cool. WARNING
Never remove the coolant reservoir
cap while the engine is running or hot.
WARNING LAMPS AND
INDICATORS
The following warning lamps and
indicators alert you to a vehicle condition
that may become serious. Some lamps
illuminate when you start your vehicle to
make sure they work. If any lamps remain
on after starting your vehicle, refer to the
respective system warning lamp for further
information.
Note:
Some warning indicators appear in
the information display and function the
same as a warning lamp, but do not display
when you start your vehicle.
72
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Instrument Cluster
Page 76 of 360

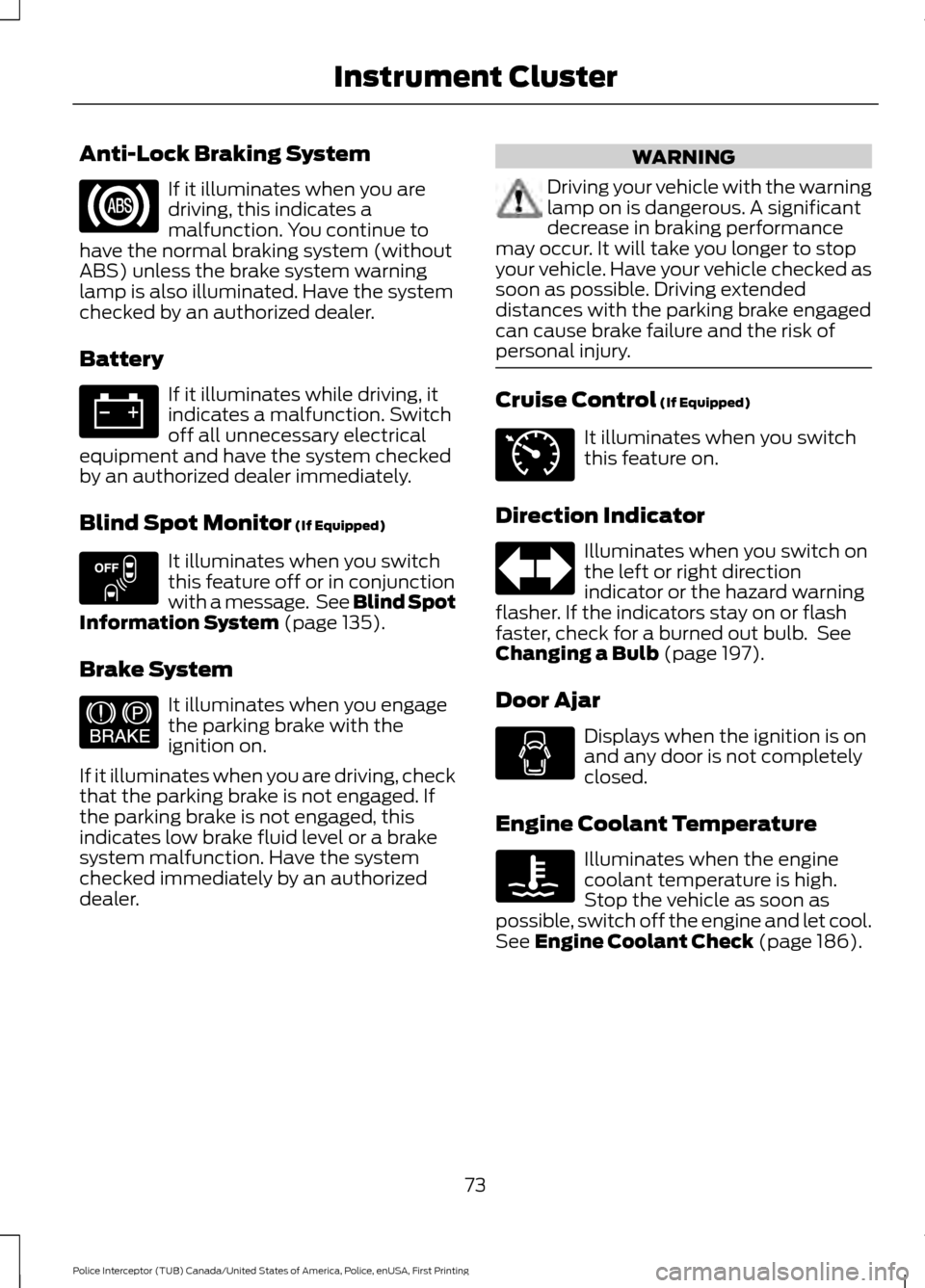

Anti-Lock Braking System
If it illuminates when you are
driving, this indicates a
malfunction. You continue to
have the normal braking system (without
ABS) unless the brake system warning
lamp is also illuminated. Have the system
checked by an authorized dealer.
Battery If it illuminates while driving, it
indicates a malfunction. Switch
off all unnecessary electrical
equipment and have the system checked
by an authorized dealer immediately.
Blind Spot Monitor (If Equipped) It illuminates when you switch
this feature off or in conjunction
with a message. See Blind Spot
Information System
(page 135).
Brake System It illuminates when you engage
the parking brake with the
ignition on.
If it illuminates when you are driving, check
that the parking brake is not engaged. If
the parking brake is not engaged, this
indicates low brake fluid level or a brake
system malfunction. Have the system
checked immediately by an authorized
dealer. WARNING
Driving your vehicle with the warning
lamp on is dangerous. A significant
decrease in braking performance
may occur. It will take you longer to stop
your vehicle. Have your vehicle checked as
soon as possible. Driving extended
distances with the parking brake engaged
can cause brake failure and the risk of
personal injury. Cruise Control
(If Equipped)
It illuminates when you switch
this feature on.
Direction Indicator Illuminates when you switch on
the left or right direction
indicator or the hazard warning
flasher. If the indicators stay on or flash
faster, check for a burned out bulb. See
Changing a Bulb
(page 197).
Door Ajar Displays when the ignition is on
and any door is not completely
closed.
Engine Coolant Temperature Illuminates when the engine
coolant temperature is high.
Stop the vehicle as soon as
possible, switch off the engine and let cool.
See
Engine Coolant Check (page 186).
73
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Instrument Cluster E151262 E144522 E71340
Page 77 of 360
Engine Oil
If it illuminates with the engine
running or when you are driving,
this indicates a malfunction.
Stop your vehicle as soon as it is safe to
do so and switch the engine off. Check the
engine oil level. See Engine Oil Check
(page 185).
Note: Do not resume your journey if it
illuminates despite the level being correct.
Have the system checked by an authorized
dealer immediately.
Fasten Seatbelt It illuminates and a chime
sounds to remind you to fasten
your seatbelt. See
Seatbelt
Reminder (page 33).
Front Airbag If it fails to illuminate when you
start your vehicle, continues to
flash or remains on, it indicates
a malfunction. Have the system checked
by an authorized dealer.
High Beam It illuminates when you switch
the high beam headlamps on. It
flashes when you use the
headlamp flasher.
Hood Ajar
(If Equipped) Displays when the ignition is on
and the hood is not completely
closed.
Liftgate Ajar Lights when the liftgate is not
completely closed. Liftgate Lock Release Lights when liftgate is currently
unlocked due to actuation of
liftgate.
Low Fuel Level It illuminates when the fuel level
is low or the fuel tank is nearly
empty. Refuel as soon as
possible.
Low Tire Pressure Warning It illuminates when your tire
pressure is low. If the lamp
remains on with the engine
running or when driving, check your tire
pressure as soon as possible.
It also illuminates momentarily when you
switch the ignition on to confirm the lamp
is functional. If it does not illuminate when
you switch the ignition on, or begins to
flash at any time, have the system checked
by an authorized dealer.
Low Washer Fluid It illuminates when the
windshield washer fluid is low.
Parking Lamps It illuminates when you switch
the parking lamps on.
Police Engine Idle feature
(If Equipped) Illuminates when Police Engine
Idle feature is armed and active.
74
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Instrument Cluster E159324 E162453 E206359 E132353 E224045
Page 78 of 360
Powertrain Fault
Illuminates when the system
detects a powertrain or an AWD
fault. Contact an authorized
dealer as soon as possible.
Service Engine Soon If the service engine soon
indicator light stays illuminated
after you start the engine, it
indicates that the On Board Diagnostics
system (OBD) has detected a malfunction
of the vehicle emissions control system.
Refer to On board diagnostics (OBD) in
the Fuel and Refueling chapter for more
information about having your vehicle
serviced. See Emission Control System
(page 111).
If the light is blinking, engine misfire is
occurring which could damage your
catalytic converter. Drive in a moderate
fashion (avoid heavy acceleration and
deceleration) and have your vehicle
serviced immediately. WARNING
Under engine misfire conditions,
excessive exhaust temperatures
could damage the catalytic
converter, the fuel system, interior floor
coverings or other vehicle components,
possibly causing a fire. Have your vehicle
checked as soon as possible. The service engine soon indicator light
illuminates when you first switch on the
ignition before engine start to check the
bulb and to indicate whether the vehicle
is ready for Inspection/Maintenance (I/M)
testing. Normally, the service engine soon light
stays on until you crank the engine, then
turns itself off if no malfunctions are
present. However, if after 15 seconds the
service engine soon light blinks eight times,
it means that the vehicle is not ready for
I/M testing. See
Emission Control
System (page 111).
Silent Mode
(If Equipped) Illuminates when Silent Mode is
armed and active.
Stability Control It flashes when the system is
active. If it remains illuminated
or does not illuminate when you
switch the ignition on, this indicates a
malfunction. During a malfunction the
system switches off. Have the system
checked by an authorized dealer
immediately. See
Using Stability
Control (page 127).
Stability Control Off It illuminates when you switch
the system off. It goes out when
you switch the system back on
or when you switch the ignition off. See
Using Stability Control
(page 127).
AUDIBLE WARNINGS AND
INDICATORS
Key in Ignition Warning Chime
Sounds when you open the driver's door
and you have left the key in the ignition.
75
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Instrument Cluster E231847 E138639 E130458
Page 86 of 360

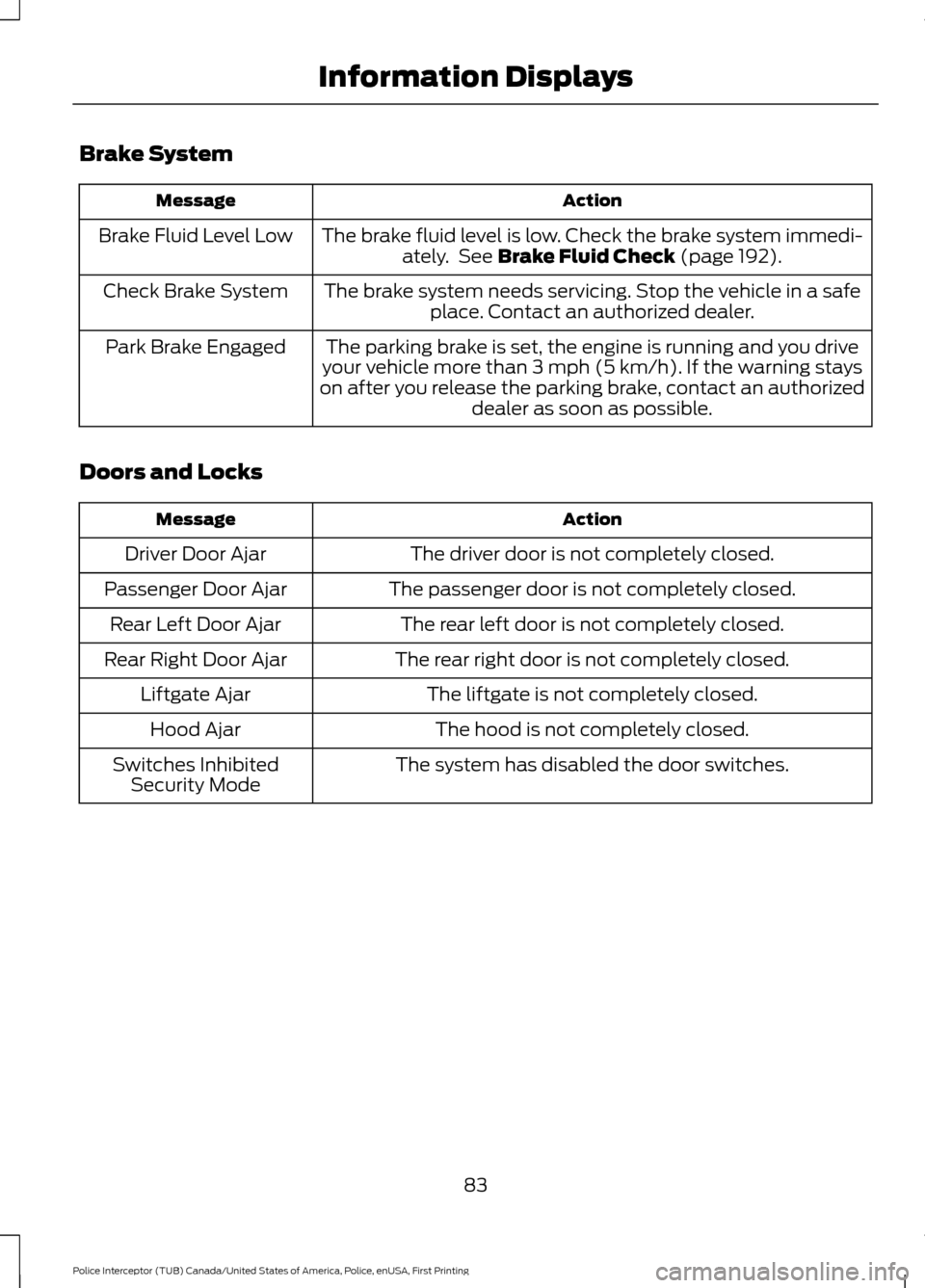

Brake System
Action
Message
The brake fluid level is low. Check the brake system immedi-ately. See Brake Fluid Check (page 192).
Brake Fluid Level Low
The brake system needs servicing. Stop the vehicle in a safeplace. Contact an authorized dealer.
Check Brake System
The parking brake is set, the engine is running and you drive
your vehicle more than
3 mph (5 km/h). If the warning stays
on after you release the parking brake, contact an authorized dealer as soon as possible.
Park Brake Engaged
Doors and Locks Action
Message
The driver door is not completely closed.
Driver Door Ajar
The passenger door is not completely closed.
Passenger Door Ajar
The rear left door is not completely closed.
Rear Left Door Ajar
The rear right door is not completely closed.
Rear Right Door Ajar
The liftgate is not completely closed.
Liftgate Ajar
The hood is not completely closed.
Hood Ajar
The system has disabled the door switches.
Switches Inhibited
Security Mode
83
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Information Displays
Page 87 of 360
Engine
Action
Message
Displays when the engine temperature is too high. Stop yourvehicle in a safe place and allow the engine to cool. If the
problem persists, contact an authorized dealer. See Engine
Coolant Check (page 186).
High Engine Temper-
ature Stop Safely
Engine service is required. Contact an authorized dealer.
Engine Fault Service
Now
Check the engine oil level. See Engine Oil Check (page 185).
Engine Oil Level Low
Check Level
The engine has reduced power to help reduce high engine temperature.
Power Reduced to
Lower Engine Temp
Fuel Action
Message
An early reminder of a low fuel condition.
Fuel Level Low
The fuel fill inlet may not be properly closed.
Check Fuel Fill Inlet
Keys and Intelligent Access Action
Message
A reminder to press the brake while starting your vehicle.
To START Press Brake
The system does not detect the key.
No Key Detected
When you press the Start Stop button to shut off the engine,the system does not detect an Intelligent Access key inside your vehicle.
Restart Now or Key is
Needed
Your vehicle is in the run ignition state.
Full Accessory Power
Active
There is a problem with your vehicle ’s starting system. Contact
an authorized dealer for service.
Starting System Fault
You have successfully programmed an intelligent access keyto the system.
Key Program Successful
84
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Information Displays
