Brake system
Cabin air filter
Check fuel cap
Child safety door lock or unlock
Child seat lower anchor
Child seat tether anchor
Cruise control
Do not open when hot
Engine air filter
Engine coolant
Engine coolant temperature
Engine oil
Explosive gas
Fan warning
Fasten seatbelt Front airbag
Front fog lamps
Fuel pump reset
Fuse compartment
Hazard warning flashers
Heated rear window
Heated windshield
Interior luggage compartment
release
Jack
Keep out of reach of children
Lighting control
Low tire pressure warning
Maintain correct fluid level
Note operating instructions
Panic alarm
8
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Introduction E71340 E161353

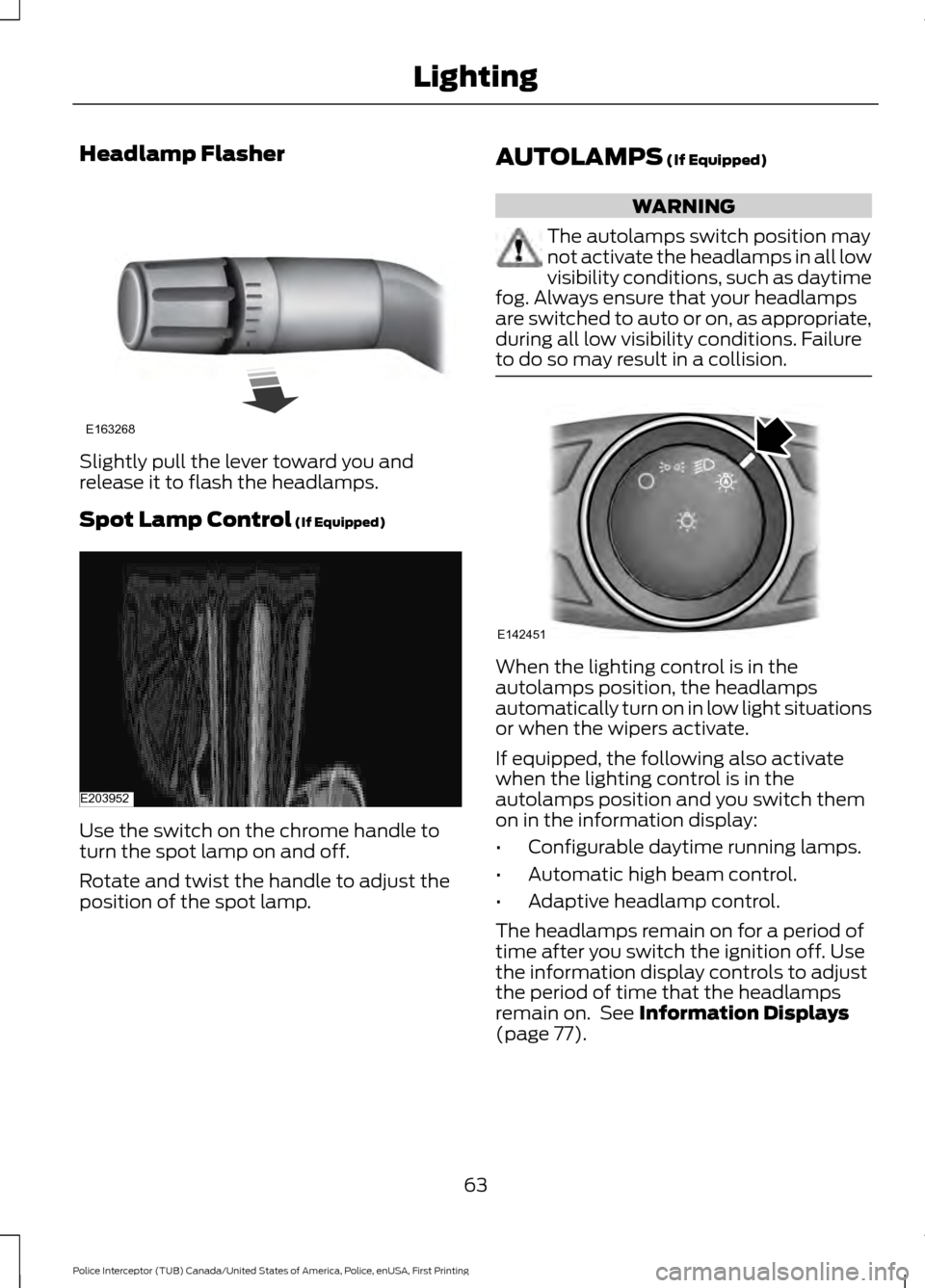

Headlamp Flasher
Slightly pull the lever toward you and
release it to flash the headlamps.
Spot Lamp Control (If Equipped)
Use the switch on the chrome handle to
turn the spot lamp on and off.
Rotate and twist the handle to adjust the
position of the spot lamp. AUTOLAMPS
(If Equipped) WARNING
The autolamps switch position may
not activate the headlamps in all low
visibility conditions, such as daytime
fog. Always ensure that your headlamps
are switched to auto or on, as appropriate,
during all low visibility conditions. Failure
to do so may result in a collision. When the lighting control is in the
autolamps position, the headlamps
automatically turn on in low light situations
or when the wipers activate.
If equipped, the following also activate
when the lighting control is in the
autolamps position and you switch them
on in the information display:
•
Configurable daytime running lamps.
• Automatic high beam control.
• Adaptive headlamp control.
The headlamps remain on for a period of
time after you switch the ignition off. Use
the information display controls to adjust
the period of time that the headlamps
remain on. See
Information Displays
(page 77).
63
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing LightingE163268 E203952 E142451

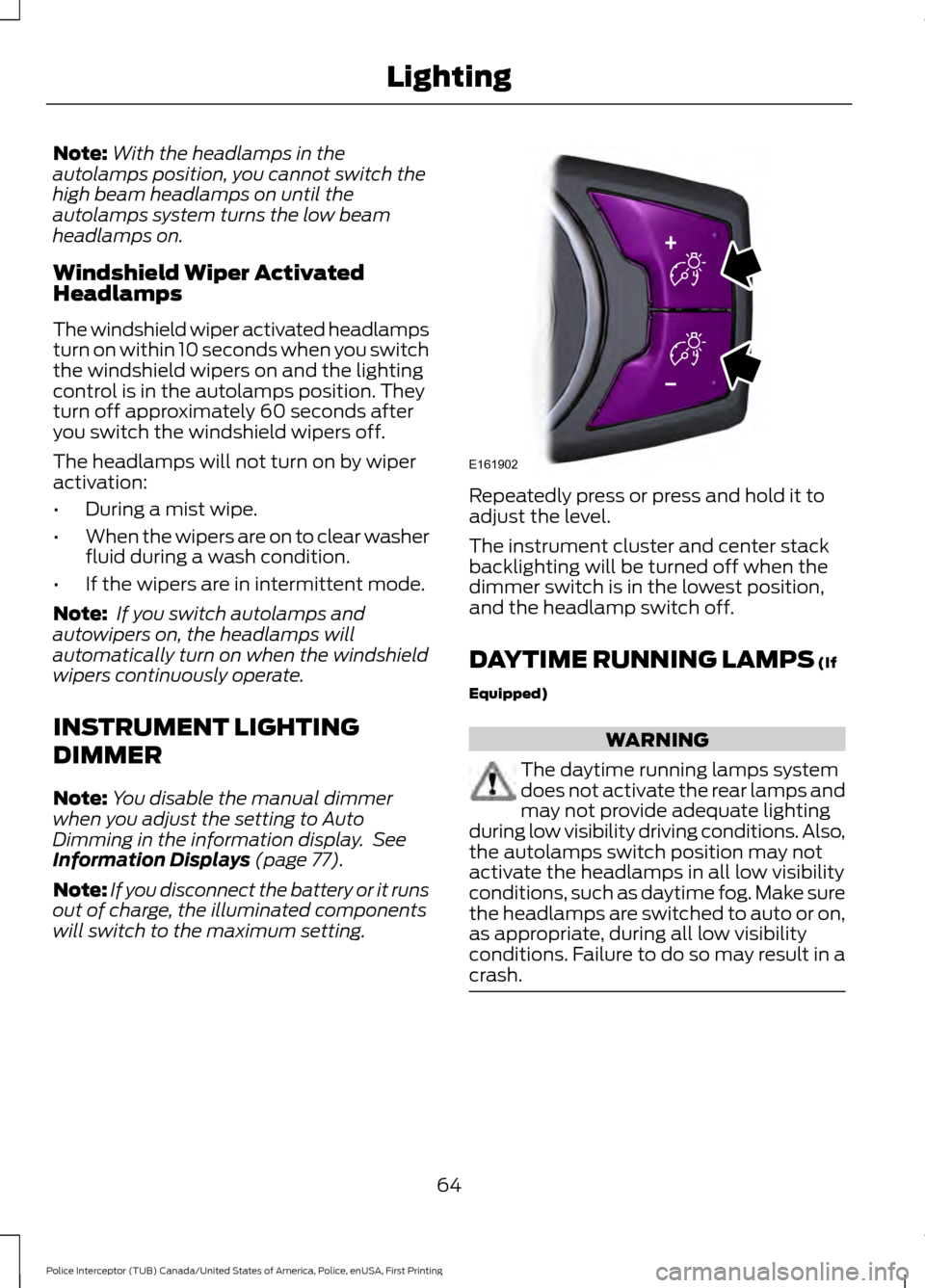

Note:
With the headlamps in the
autolamps position, you cannot switch the
high beam headlamps on until the
autolamps system turns the low beam
headlamps on.
Windshield Wiper Activated
Headlamps
The windshield wiper activated headlamps
turn on within 10 seconds when you switch
the windshield wipers on and the lighting
control is in the autolamps position. They
turn off approximately 60 seconds after
you switch the windshield wipers off.
The headlamps will not turn on by wiper
activation:
• During a mist wipe.
• When the wipers are on to clear washer
fluid during a wash condition.
• If the wipers are in intermittent mode.
Note: If you switch autolamps and
autowipers on, the headlamps will
automatically turn on when the windshield
wipers continuously operate.
INSTRUMENT LIGHTING
DIMMER
Note: You disable the manual dimmer
when you adjust the setting to Auto
Dimming in the information display. See
Information Displays (page 77).
Note: If you disconnect the battery or it runs
out of charge, the illuminated components
will switch to the maximum setting. Repeatedly press or press and hold it to
adjust the level.
The instrument cluster and center stack
backlighting will be turned off when the
dimmer switch is in the lowest position,
and the headlamp switch off.
DAYTIME RUNNING LAMPS
(If
Equipped) WARNING
The daytime running lamps system
does not activate the rear lamps and
may not provide adequate lighting
during low visibility driving conditions. Also,
the autolamps switch position may not
activate the headlamps in all low visibility
conditions, such as daytime fog. Make sure
the headlamps are switched to auto or on,
as appropriate, during all low visibility
conditions. Failure to do so may result in a
crash. 64
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing LightingE161902

Car Wash
See: Cleaning the Exterior.............................. 205
Center Console...............................................99
Center Console..................................................... 99
Console Mounting Plates.................................. 99
Universal Top Tray............................................... 99
Changing a Bulb............................................197 Front Direction Indicator.................................. 198
Front Fog Lamp.................................................. 199
Headlamp............................................................. 198
Headlamp High Beam...................................... 198
LED Lamps.......................................................... 200
License Plate Lamp.......................................... 200
Rear Direction Indicator and Reversing Lamp.................................................................. 199
Changing a Fuse............................................179 Fuses........................................................................\
179
Changing a Road Wheel............................233 Dissimilar Spare Wheel and Tire Assembly
Information...................................................... 233
Tire Change Procedure.................................... 234
Changing the 12V Battery..........................193
Changing the Engine Air Filter................203
Changing the Wiper Blades
......................195
Front Wiper Blades............................................ 195
Rear Window Wiper Blade.............................. 195
Checking the Wiper Blades......................195
Child Restraint and Seatbelt Maintenance.................................................34
Child Restraint Positioning.........................25
Child Safety.......................................................16 General Information............................................. 16
Child Safety Locks..........................................27 Left-Hand Side..................................................... 28
Right-Hand Side................................................... 28
Cleaning Leather Seats.............................208
Cleaning Products
.......................................204
Cleaning the Alloy Wheels.......................209
Cleaning the Engine
...................................206
Cleaning the Exterior..................................205
Exterior Chrome Parts..................................... 205
Exterior Plastic Parts........................................ 205
Stripes or Graphics........................................... 205
Underbody........................................................... 206
Under Hood......................................................... 206
Cleaning the Instrument Panel and Instrument Cluster Lens........................208
Cleaning the Interior...................................207 Cleaning the Windows and Wiper
Blades...........................................................207
Climate Control
..............................................90
Coolant Check See: Engine Coolant Check............................ 186
Crash Sensors and Airbag Indicator........43 Airbags and Police Equipment....................... 44
Cross Traffic Alert
..........................................137
False Alerts........................................................... 140
Switching the System Off and On...............140
System Errors....................................................... 140
System Lights, Messages and Audible Alerts.................................................................. 139
System Limitations............................................ 140
Using the System................................................ 137
Cruise Control
..................................................58
Principle of Operation....................................... 133
Cruise control See: Using Cruise Control................................ 133
Customer Assistance
..................................164
D
Data Recording
..................................................9
Event Data Recording.......................................... 10
Service Data Recording........................................ 9
Daytime Running Lamps
............................64
Decommissioning Requirements...........321
Police Engine Idle feature................................ 321
Decommissioning the Vehicle
.................321
Digital Radio..................................................256
HD Radio Reception and Station
Troubleshooting............................................. 257
Direction Indicators
.......................................65
Doors and Locks.............................................52
Driver and Passenger Airbags...................38 Children and Airbags.......................................... 38
Proper Driver and Front Passenger Seating Adjustment........................................................ 38
Driving Aids
.....................................................135
Driving Hints...................................................155
Driving Through Water................................156
DRL See: Daytime Running Lamps......................... 64
E
Economical Driving......................................155
350

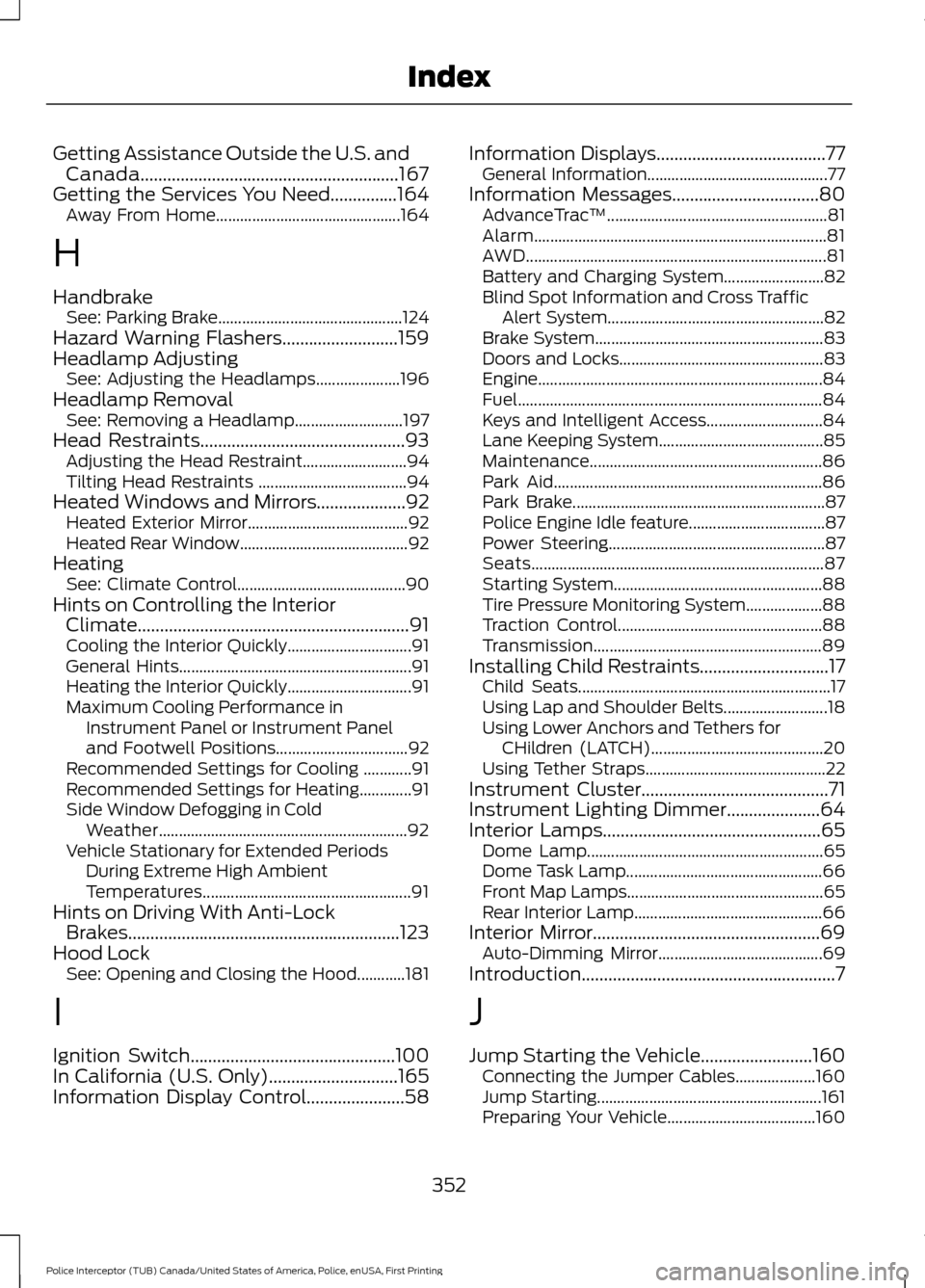

Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Index

Getting Assistance Outside the U.S. and
Canada..........................................................167
Getting the Services You Need...............164 Away From Home.............................................. 164
H
Handbrake See: Parking Brake.............................................. 124
Hazard Warning Flashers..........................159
Headlamp Adjusting See: Adjusting the Headlamps..................... 196
Headlamp Removal See: Removing a Headlamp........................... 197
Head Restraints
..............................................93
Adjusting the Head Restraint.......................... 94
Tilting Head Restraints ..................................... 94
Heated Windows and Mirrors....................92 Heated Exterior Mirror........................................ 92
Heated Rear Window.......................................... 92
Heating See: Climate Control.......................................... 90
Hints on Controlling the Interior Climate.............................................................91
Cooling the Interior Quickly............................... 91
General Hints.......................................................... 91
Heating the Interior Quickly............................... 91
Maximum Cooling Performance in Instrument Panel or Instrument Panel
and Footwell Positions................................. 92
Recommended Settings for Cooling ............91
Recommended Settings for Heating.............91
Side Window Defogging in Cold Weather.............................................................. 92
Vehicle Stationary for Extended Periods During Extreme High Ambient
Temperatures.................................................... 91
Hints on Driving With Anti-Lock Brakes.............................................................123
Hood Lock See: Opening and Closing the Hood............181
I
Ignition Switch
..............................................100
In California (U.S. Only).............................165
Information Display Control......................58 Information Displays
......................................77
General Information............................................. 77
Information Messages.................................80 AdvanceTrac ™....................................................... 81
Alarm........................................................................\
. 81
AWD........................................................................\
... 81
Battery and Charging System......................... 82
Blind Spot Information and Cross Traffic Alert System...................................................... 82
Brake System......................................................... 83
Doors and Locks................................................... 83
Engine....................................................................... 84
Fuel........................................................................\
.... 84
Keys and Intelligent Access............................. 84
Lane Keeping System......................................... 85
Maintenance.......................................................... 86
Park Aid................................................................... 86
Park Brake............................................................... 87
Police Engine Idle feature.................................. 87
Power Steering...................................................... 87
Seats........................................................................\
. 87
Starting System.................................................... 88
Tire Pressure Monitoring System................... 88
Traction Control................................................... 88
Transmission......................................................... 89
Installing Child Restraints.............................17 Child Seats............................................................... 17
Using Lap and Shoulder Belts.......................... 18
Using Lower Anchors and Tethers for CHildren (LATCH)........................................... 20
Using Tether Straps............................................. 22
Instrument Cluster..........................................71
Instrument Lighting Dimmer.....................64
Interior Lamps.................................................65 Dome Lamp........................................................... 65
Dome Task Lamp................................................. 66
Front Map Lamps................................................. 65
Rear Interior Lamp............................................... 66
Interior Mirror
...................................................69
Auto-Dimming Mirror......................................... 69
Introduction.........................................................7
J
Jump Starting the Vehicle
.........................160
Connecting the Jumper Cables.................... 160
Jump Starting........................................................ 161
Preparing Your Vehicle..................................... 160
352
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Index
