Introduction
About This Manual...........................................7
Symbols Glossary
.............................................7
Data Recording
..................................................9
California Proposition 65..............................11
Perchlorate.........................................................11
Ford Credit
..........................................................11
Replacement Parts Recommendation.......................................12
Special Notices................................................12
Mobile Communications Equipment.....................................................14
Export Unique Options
.................................14
Environment
Protecting the Environment........................15
Child Safety
General Information
.......................................16
Installing Child Restraints
.............................17
Booster Seats
..................................................23
Child Restraint Positioning.........................25
Child Safety Locks..........................................27
Seatbelts
Principle of Operation..................................29
Fastening the Seatbelts..............................30
Seatbelt Height Adjustment......................32
Seatbelt Warning Lamp and Indicator Chime
..............................................................32
Seatbelt Reminder
.........................................33
Child Restraint and Seatbelt Maintenance................................................34
Seatbelt Extension
........................................35
Personal Safety System ™
Personal Safety System ™
..........................36Supplementary Restraints
System
Principle of Operation...................................37
Driver and Passenger Airbags...................38
Front Passenger Sensing System............39
Side Airbags
......................................................41
Passenger Knee Airbag................................42
Safety Canopy ™
.............................................42
Crash Sensors and Airbag Indicator........43
Airbag Disposal..............................................48
Keys and Remote Controls
Principle of Operation..................................49
General Information on Radio Frequencies.................................................49
Remote Control
..............................................49
Replacing a Lost Key or Remote Control............................................................51
Doors and Locks
Locking and Unlocking.................................52
Manual Liftgate
...............................................54
Security
Anti-Theft Alarm
............................................56
Steering Wheel
Adjusting the Steering Wheel....................57
Audio Control...................................................57
Cruise Control
..................................................58
Information Display Control......................58
Pedals
Adjusting the Pedals.....................................59
Wipers and Washers
Windshield Wipers........................................60
Windshield Washers
.....................................60
Rear Window Wiper and Washers..........60
1
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Table of Contents

Seatbelt Locking Modes
WARNINGS
After any vehicle crash, the seatbelt
system at all passenger seating
positions must be checked by an
authorized dealer to verify that the
automatic locking retractor feature for
child seats is still functioning properly. In
addition, all seatbelts should be checked
for proper function. The belt and retractor assembly
must be replaced if the seatbelt
assembly automatic locking retractor
feature or any other seatbelt function is
not operating properly when checked by
an authorized dealer. Failure to replace the
belt and retractor assembly could increase
the risk of injury in crashes. All safety restraints in the vehicle are
combination lap and shoulder belts. The
driver seatbelt has the first type of locking
mode. The front outboard passenger and
rear seat seatbelts have both types of
locking modes described as follows:
Vehicle Sensitive Mode
This is the normal retractor mode, which
allows free shoulder belt length
adjustment to your movements and
locking in response to vehicle movement.
For example, if the driver brakes suddenly
or turns a corner sharply, or the vehicle
receives an impact of about 5 mph
(8 km/h) or more, the combination
seatbelts will lock to help reduce forward
movement of the driver and passengers.
In addition, the retractor is designed to lock
if the webbing is pulled out too quickly. If
this occurs, let the belt retract slightly and
pull webbing out again in a slow and
controlled manner. Automatic Locking Mode
In this mode, the shoulder belt is
automatically pre-locked. The belt will still
retract to remove any slack in the shoulder
belt. The automatic locking mode is not
available on the driver seatbelt.
When to Use the Automatic Locking
Mode
This mode should be used any time a child
safety seat, except a booster, is installed
in passenger front or rear seating positions.
Children 12 years old and under should be
properly restrained in a rear seating
position whenever possible. See
Child
Safety (page 16).
How to Use the Automatic Locking
Mode 1. Buckle the combination lap and
shoulder belt.
2. Grasp the shoulder portion and pull downward until the entire belt is pulled
out.
Allow the belt to retract. As the belt
retracts, you will hear a clicking sound. This
indicates the seatbelt is now in the
automatic locking mode.
31
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing SeatbeltsE142591

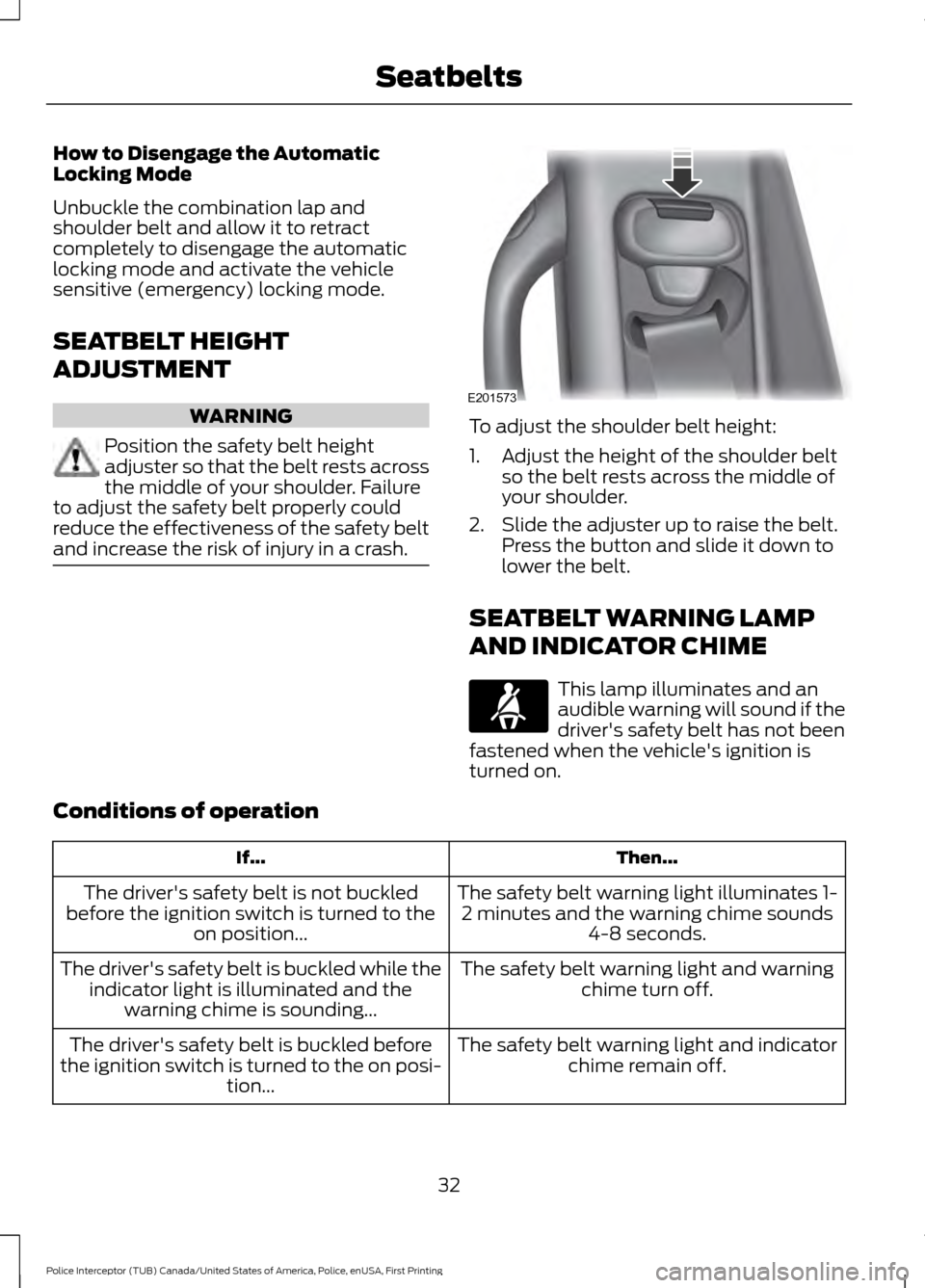

How to Disengage the Automatic
Locking Mode
Unbuckle the combination lap and
shoulder belt and allow it to retract
completely to disengage the automatic
locking mode and activate the vehicle
sensitive (emergency) locking mode.
SEATBELT HEIGHT
ADJUSTMENT
WARNING
Position the safety belt height
adjuster so that the belt rests across
the middle of your shoulder. Failure
to adjust the safety belt properly could
reduce the effectiveness of the safety belt
and increase the risk of injury in a crash. To adjust the shoulder belt height:
1. Adjust the height of the shoulder belt
so the belt rests across the middle of
your shoulder.
2. Slide the adjuster up to raise the belt. Press the button and slide it down to
lower the belt.
SEATBELT WARNING LAMP
AND INDICATOR CHIME This lamp illuminates and an
audible warning will sound if the
driver's safety belt has not been
fastened when the vehicle's ignition is
turned on.
Conditions of operation Then...
If...
The safety belt warning light illuminates 1-2 minutes and the warning chime sounds 4-8 seconds.
The driver's safety belt is not buckled
before the ignition switch is turned to the on position...
The safety belt warning light and warningchime turn off.
The driver's safety belt is buckled while the
indicator light is illuminated and the warning chime is sounding...
The safety belt warning light and indicatorchime remain off.
The driver's safety belt is buckled before
the ignition switch is turned to the on posi- tion...
32
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing SeatbeltsE201573

DRIVER AND PASSENGER
AIRBAGS
WARNINGS
Never place your arm or any objects
over an airbag module. Placing your
arm over a deploying airbag can
result in serious arm fractures or other
injuries. Objects placed on or over the
airbag inflation area may cause those
objects to be propelled by the airbag into
your face and torso causing serious injury. Airbags can kill or injure a child in a
child seat. Never place a rear-facing
child seat in front of an active airbag.
If you must use a forward-facing child seat
in the front seat, move the seat upon which
the child seat is installed all the way back. The driver and front passenger airbags will
deploy during significant frontal and near
frontal crashes.
The driver and passenger front airbag
system consists of:
•
Driver and passenger airbag modules.
• Front passenger sensing system. · Crash sensors and monitoring
system with readiness indicator.
See Crash Sensors and Airbag
Indicator (page 43). Proper Driver and Front Passenger
Seating Adjustment WARNING
National Highway Traffic Safety
Administration (NHTSA)
recommends a minimum distance
of at least 10 inches (25 centimeters)
between an occupant’ s chest and the
driver airbag module. To properly position yourself away from
the airbag:
•
Move your seat to the rear as far as you
can while still reaching the pedals
comfortably.
• Recline the seat slightly (one or two
degrees) from the upright position.
After all occupants have adjusted their
seats and put on safety belts, it is very
important that they continue to sit
properly. A properly seated occupant sits
upright, leaning against the seat back, and
centered on the seat cushion, with their
feet comfortably extended on the floor.
Sitting improperly can increase the chance
of injury in a crash event. For example, if
an occupant slouches, lies down, turns
sideways, sits forward, leans forward or
sideways, or puts one or both feet up, the
chance of injury during a crash is greatly
increased.
Children and Airbags WARNING
Airbags can kill or injure a child in a
child seat. Never place a rear-facing
child seat in front of an active airbag.
If you must use a forward-facing child seat
in the front seat, move the seat upon which
the child seat is installed all the way back. 38
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Supplementary Restraints SystemE151127

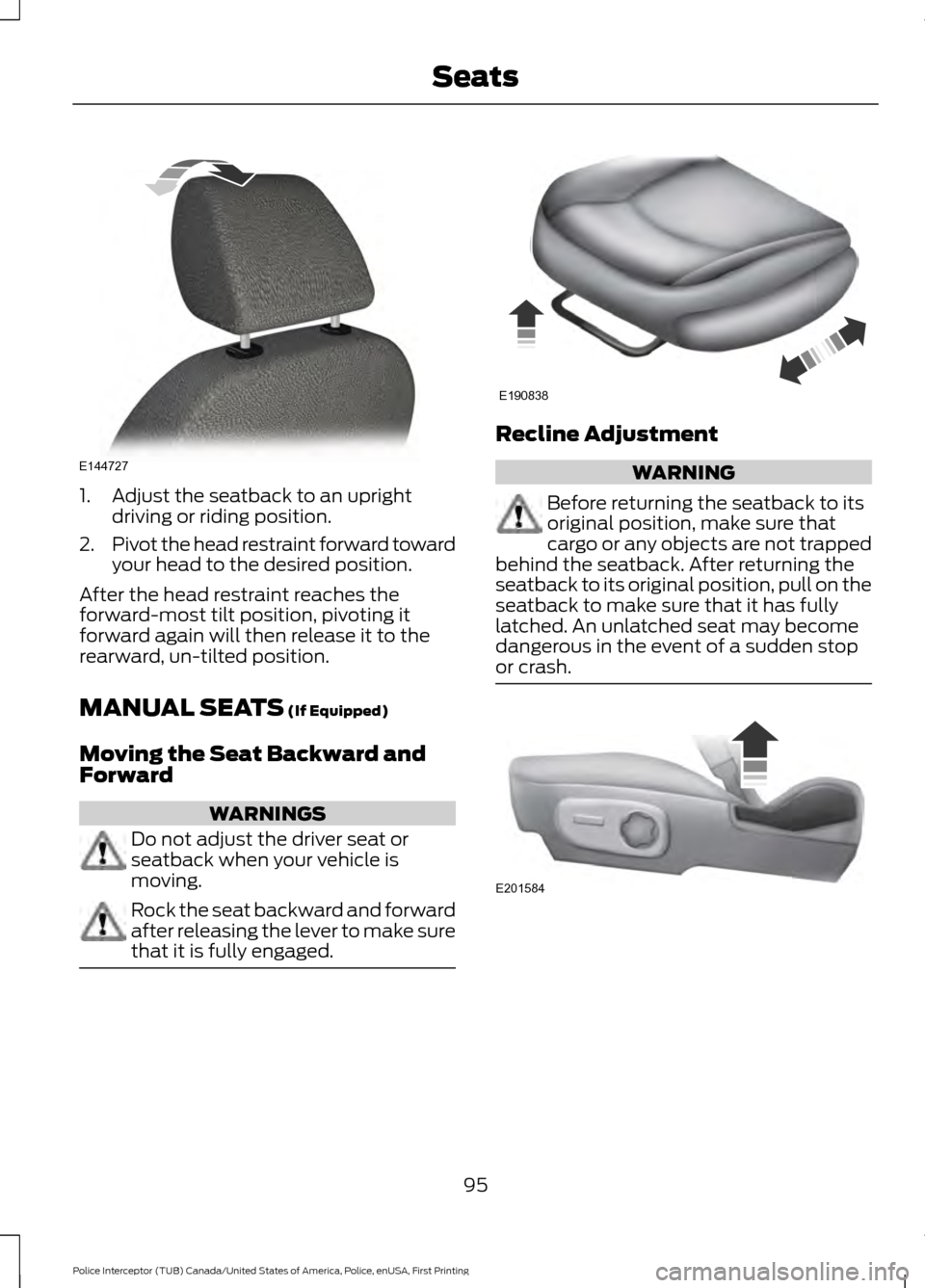

1. Adjust the seatback to an upright
driving or riding position.
2. Pivot the head restraint forward toward
your head to the desired position.
After the head restraint reaches the
forward-most tilt position, pivoting it
forward again will then release it to the
rearward, un-tilted position.
MANUAL SEATS (If Equipped)
Moving the Seat Backward and
Forward WARNINGS
Do not adjust the driver seat or
seatback when your vehicle is
moving.
Rock the seat backward and forward
after releasing the lever to make sure
that it is fully engaged. Recline Adjustment
WARNING
Before returning the seatback to its
original position, make sure that
cargo or any objects are not trapped
behind the seatback. After returning the
seatback to its original position, pull on the
seatback to make sure that it has fully
latched. An unlatched seat may become
dangerous in the event of a sudden stop
or crash. 95
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing SeatsE144727 E190838 E201584

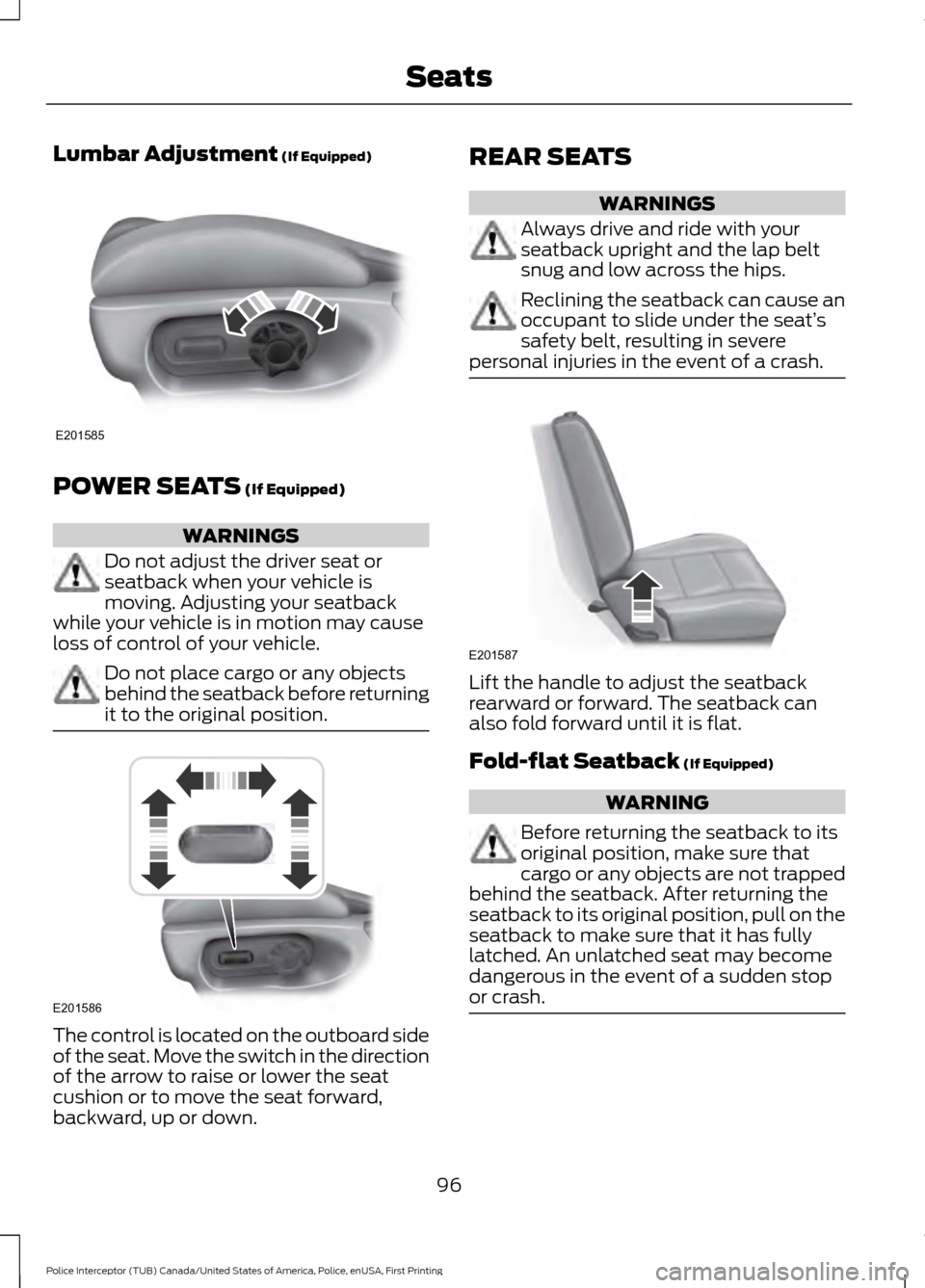

Lumbar Adjustment (If Equipped)
POWER SEATS
(If Equipped)
WARNINGS
Do not adjust the driver seat or
seatback when your vehicle is
moving. Adjusting your seatback
while your vehicle is in motion may cause
loss of control of your vehicle. Do not place cargo or any objects
behind the seatback before returning
it to the original position.
The control is located on the outboard side
of the seat. Move the switch in the direction
of the arrow to raise or lower the seat
cushion or to move the seat forward,
backward, up or down. REAR SEATS WARNINGS
Always drive and ride with your
seatback upright and the lap belt
snug and low across the hips.
Reclining the seatback can cause an
occupant to slide under the seat’
s
safety belt, resulting in severe
personal injuries in the event of a crash. Lift the handle to adjust the seatback
rearward or forward. The seatback can
also fold forward until it is flat.
Fold-flat Seatback
(If Equipped)
WARNING
Before returning the seatback to its
original position, make sure that
cargo or any objects are not trapped
behind the seatback. After returning the
seatback to its original position, pull on the
seatback to make sure that it has fully
latched. An unlatched seat may become
dangerous in the event of a sudden stop
or crash. 96
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing SeatsE201585 E201586 E201587

A
A/C
See: Climate Control.......................................... 90
About This Manual...........................................7
ABS See: Brakes............................................................ 123
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes................................................................. 123
Accessories See: Replacement Parts
Recommendation............................................ 12
Adjusting the Headlamps.........................196 Vertical Aim Adjustment................................. 196
Adjusting the Pedals
.....................................59
Adjusting the Steering Wheel....................57
Airbag Disposal..............................................48
Air Conditioning See: Climate Control.......................................... 90
Air Filter See: Changing the Engine Air Filter............203
Alarm See: Anti-Theft Alarm........................................ 56
All-Wheel Drive..............................................116
Anti-Theft Alarm
............................................56
Alarm System........................................................ 56
Arming the Alarm................................................. 56
Disarming the Alarm........................................... 56
Triggering the Alarm........................................... 56
Appendices....................................................322
Audible Warnings and Indicators
.............75
Automatic Transmission Warning
Chime................................................................... 76
Headlamps On Warning Chime...................... 76
Key in Ignition Warning Chime......................... 75
Parking Brake On Warning Chime.................. 76
Audio Control
...................................................57
Media........................................................................\
58
Seek, Next or Previous....................................... 58
Type One.................................................................. 57
Type Two.................................................................. 57
Audio System
................................................253
General Information......................................... 253
Audio Unit - Vehicles With: AM/FM/CD/ SYNC.............................................................254 Autolamps........................................................63
Windshield Wiper Activated
Headlamps........................................................ 64
Automatic Transmission
.............................114
If Your Vehicle Gets Stuck In Mud or
Snow.................................................................... 114
Understanding the Positions of Your Automatic Transmission.............................. 114
Automatic Transmission Fluid Check.............................................................190
Adding Transmission Fluid .............................. 191
Checking the Transmission Fluid Level.....................................................................191
Auxiliary Power Points.................................98 12 Volt DC Power Point...................................... 98
Locations................................................................ 98
AWD See: All-Wheel Drive.......................................... 116
B
Battery See: Changing the 12V Battery...................... 193
Blind Spot Information System...............135 Switching the System Off and On................137
System Errors........................................................ 137
Using the System................................................ 135
Bonnet Lock See: Opening and Closing the Hood............181
Booster Seats
..................................................23
Types of Booster Seats...................................... 24
Brake Fluid Check.........................................192
Brakes................................................................123 General Information........................................... 123
Breaking-In......................................................155
Bulb Specification Chart
..........................200
C
Cabin Air Filter.................................................92
California Proposition 65..............................11
Capacities and Specifications - 3.5L Ecoboost™.................................................244
Specifications..................................................... 245
Capacities and Specifications - 3.7L.................................................................248
Specifications..................................................... 249
Capacities and Specifications................239
349
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Index

Car Wash
See: Cleaning the Exterior.............................. 205
Center Console...............................................99
Center Console..................................................... 99
Console Mounting Plates.................................. 99
Universal Top Tray............................................... 99
Changing a Bulb............................................197 Front Direction Indicator.................................. 198
Front Fog Lamp.................................................. 199
Headlamp............................................................. 198
Headlamp High Beam...................................... 198
LED Lamps.......................................................... 200
License Plate Lamp.......................................... 200
Rear Direction Indicator and Reversing Lamp.................................................................. 199
Changing a Fuse............................................179 Fuses........................................................................\
179
Changing a Road Wheel............................233 Dissimilar Spare Wheel and Tire Assembly
Information...................................................... 233
Tire Change Procedure.................................... 234
Changing the 12V Battery..........................193
Changing the Engine Air Filter................203
Changing the Wiper Blades
......................195
Front Wiper Blades............................................ 195
Rear Window Wiper Blade.............................. 195
Checking the Wiper Blades......................195
Child Restraint and Seatbelt Maintenance.................................................34
Child Restraint Positioning.........................25
Child Safety.......................................................16 General Information............................................. 16
Child Safety Locks..........................................27 Left-Hand Side..................................................... 28
Right-Hand Side................................................... 28
Cleaning Leather Seats.............................208
Cleaning Products
.......................................204
Cleaning the Alloy Wheels.......................209
Cleaning the Engine
...................................206
Cleaning the Exterior..................................205
Exterior Chrome Parts..................................... 205
Exterior Plastic Parts........................................ 205
Stripes or Graphics........................................... 205
Underbody........................................................... 206
Under Hood......................................................... 206
Cleaning the Instrument Panel and Instrument Cluster Lens........................208
Cleaning the Interior...................................207 Cleaning the Windows and Wiper
Blades...........................................................207
Climate Control
..............................................90
Coolant Check See: Engine Coolant Check............................ 186
Crash Sensors and Airbag Indicator........43 Airbags and Police Equipment....................... 44
Cross Traffic Alert
..........................................137
False Alerts........................................................... 140
Switching the System Off and On...............140
System Errors....................................................... 140
System Lights, Messages and Audible Alerts.................................................................. 139
System Limitations............................................ 140
Using the System................................................ 137
Cruise Control
..................................................58
Principle of Operation....................................... 133
Cruise control See: Using Cruise Control................................ 133
Customer Assistance
..................................164
D
Data Recording
..................................................9
Event Data Recording.......................................... 10
Service Data Recording........................................ 9
Daytime Running Lamps
............................64
Decommissioning Requirements...........321
Police Engine Idle feature................................ 321
Decommissioning the Vehicle
.................321
Digital Radio..................................................256
HD Radio Reception and Station
Troubleshooting............................................. 257
Direction Indicators
.......................................65
Doors and Locks.............................................52
Driver and Passenger Airbags...................38 Children and Airbags.......................................... 38
Proper Driver and Front Passenger Seating Adjustment........................................................ 38
Driving Aids
.....................................................135
Driving Hints...................................................155
Driving Through Water................................156
DRL See: Daytime Running Lamps......................... 64
E
Economical Driving......................................155
350
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Index

Removing the Jumper Cables.........................
161
K
Keys and Remote Controls.........................49 Principle of Operation........................................ 49
L
Lighting Control..............................................62
Headlamp Flasher............................................... 63
High Beams............................................................ 62
Spot Lamp Control.............................................. 63
Lighting..............................................................62 General Information............................................ 62
Load Carriers See: Roof Racks and Load Carriers..............142
Load Carrying.................................................142
Load Limit
........................................................143
Special Loading Instructions for Owners of
Pick-up Trucks and Utility-type
Vehicles............................................................. 148
Vehicle Loading - with and without a Trailer.................................................................. 143
Locking and Unlocking.................................52 Battery Saver......................................................... 54
Hidden Rear Door Locks.................................... 52
Illuminated Entry.................................................. 54
Illuminated Exit..................................................... 54
Independent Liftgate Locking Feature.........53
Locking and Unlocking the Doors with the Key Blade............................................................ 53
Opening a Rear Door From the Inside..........54
Power Door Locks................................................ 52
Remote Control..................................................... 52
Lug Nuts See: Changing a Road Wheel........................ 233
M
Maintenance...................................................181 General Information........................................... 181
Manual Climate Control..............................90
Manual Liftgate
...............................................54
Closing the Liftgate............................................. 55
Opening the Liftgate........................................... 55
Manual Seats
..................................................95
Lumbar Adjustment........................................... 96Moving the Seat Backward and
Forward............................................................... 95
Recline Adjustment............................................. 95
Media Hub
.......................................................261
Message Center See: Information Displays.................................. 77
Mirrors See: Heated Windows and Mirrors................92
See: Windows and Mirrors................................ 67
Mobile Communications Equipment......14
Motorcraft Parts - 3.5L Ecoboost™.................................................240
Motorcraft Parts - 3.7L................................241
N
Normal Scheduled Maintenance
..........305
Intelligent Oil-Life Monitor™........................ 305
Normal Maintenance Intervals.................... 306
O
Oil Change Indicator Reset.......................186
Oil Check See: Engine Oil Check....................................... 185
Opening and Closing the Hood................181 Closing the Hood................................................ 182
Opening the Hood............................................... 181
Ordering Additional Owner's Literature
......................................................168
Obtaining a French Owner ’s Manual..........169
Overhead Console
.........................................99
P
Parking Aids
....................................................128
Principle of Operation....................................... 128
Parking Brake
.................................................124
Passenger Knee Airbag................................42
Pedals.................................................................59
Perchlorate.........................................................11
Personal Safety System ™
..........................36
How Does the Personal Safety System
Work?.................................................................. 36
Police Engine Idle Feature.........................103 Switching the System Off............................... 103
Switching the System On................................ 103
Post-Crash Alert System...........................162
353
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Index

Power Door Locks
See: Locking and Unlocking............................. 52
Power Seats.....................................................96
Power Steering Fluid Check......................193
Power Windows..............................................67 Accessory Delay.................................................... 67
Bounce-Back.......................................................... 67
One-Touch Down................................................. 67
One-Touch Up....................................................... 67
Window Lock.......................................................... 67
Protecting the Environment........................15
R
Rear Loadspace Hatches...........................142
Rear Parking Aid
............................................128
Obstacle Distance Indicator........................... 129
Rear Seats
........................................................96
Fold-flat Seatback.............................................. 96
Rear Under Floor Storage..........................142 Load Floor.............................................................. 142
Load Safe Label.................................................. 142
Rear View Camera........................................129 Camera Guidelines.............................................. 131
Manual Zoom....................................................... 132
Obstacle Distance Indicator............................ 131
Rear Camera Delay............................................ 132
Using the Rear View Camera System.........130
Rear View Camera See: Rear View Camera.................................... 129
Rear Window Wiper and Washers..........60 Rear Camera Washer........................................... 61
Rear Window Washer.......................................... 61
Rear Window Wiper............................................ 60
Recommended Towing Weights
............150
Refueling..........................................................107 System Warnings............................................... 109
Remote Control
..............................................49
Car Finder................................................................. 51
Changing the Remote Control Battery........50
Opening the Liftgate With the Liftgate Button .................................................................. 51
Sounding the Panic Alarm................................. 51
Removing a Headlamp
...............................197
Repairing Minor Paint Damage..............209
Replacement Parts Recommendation........................................12
Collision Repairs.................................................... 12Scheduled Maintenance and Mechanical
Repairs.................................................................. 12
Warranty on Replacement Parts..................... 12
Replacing a Lost Key or Remote Control..............................................................51
Reporting Safety Defects (Canada Only)..............................................................169
Reporting Safety Defects (U.S. Only)..............................................................169
Roadside Assistance
...................................158
Vehicles Sold in Canada: Getting Roadside
Assistance........................................................ 158
Vehicles Sold in Canada: Roadside Assistance Program Coverage.................159
Vehicles Sold in Canada: Using Roadside Assistance........................................................ 159
Vehicles Sold in the United States: Getting Roadside Assistance.................................... 158
Vehicles Sold in the United States: Using Roadside Assistance.................................... 158
Roadside Emergencies...............................158
Roof Racks and Load Carriers..................142 Adjusting the Crossbar..................................... 143
Thumbwheel Kit.................................................. 142
Running-In See: Breaking-In.................................................. 155
Running Out of Fuel....................................106 Adding Fuel From a Portable Fuel
Container.......................................................... 107
Filling a Portable Fuel Container................... 107
S
Safety Canopy ™
.............................................42
Safety Precautions......................................104
Satellite Radio..............................................259 Satellite Radio Electronic Serial Number
(ESN)................................................................ 260
Satellite Radio Reception Factors..............259
SIRIUS® Satellite Radio Service.................. 259
Troubleshooting................................................ 260
Scheduled Maintenance Record..............311
Scheduled Maintenance...........................302
Seatbelt Extension
........................................35
Seatbelt Height Adjustment......................32
Seatbelt Reminder
.........................................33
Belt-Minder™........................................................ 33
354
Police Interceptor (TUB) Canada/United States of America, Police, enUSA, First Printing Index
