FORD PROBE 1996 2.G Owners Manual

141
*
[AS25896(ALL)05/94]
q
Using the Automatic Music Search (ªAMSº)
function with cassette tape player
*
[AS25897(ALL)03/95]
Press and hold the ªAMSº button (ªAMSº
will appear in the display). Then, push the
left (
h) button to rewind to the beginning
of the current selection or press the right
(
g) button to fast forward to the beginning
of the next selection.
*
[AS25900(ALL)02/95]
q
Fast forwarding the tape
*
[AS26000(ALL)03/95]
Push the right (
g) button to fast forward
the tape.
*
[AS26100(ALL)02/95]
q
Rewinding the tape
*
[AS26200(ALL)03/95]
Push the left (
h) button to rewind the
tape.
*
[AS26900(ALL)02/95]
q
How to change the side of the tape being
played
*
[AS27000(ALL)03/95]
The alternate track (other side) of the tape
can be selected at any time by pushing both
fast-wind buttons (
hand
g) at the
same time.
*
[AS27100(ALL)02/95]
How to eject the tape
*
[AS27250(ALL)02/95]
To stop the tape and eject the cassette, press the
ªEJECTº button. The radio will resume playing.
*
[AS27300(ALL)02/95]
Using the DolbyHB noise reduction feature
*
[AS27400(ALL)02/95]
NOTE: Noise reduction system manufactured
under license from Dolby Labs
Licensing Corporation. ªDolbyº and
double-D symbol are trademarks of
Dolby Laboratories Licensing
Corporation.
*
[AS27550(ALL)05/95]
Push station memory button 3 to activate DolbyH
B Noise Reduction.
File:prasp.ex
Update:Fri Jun 23 19:35:26 1995

142
*
[AS27600(ALL)02/95]
Tips on Caring for the Cassette Player and
Tapes
*
[AS27700(ALL)02/95]
In order to keep your cassette tape player
performing the way it was meant to, read and
follow these simple precautions:
*
[AS27750(ALL)02/95]
q
Using a Ford Cassette Cleaning Cartridge to
clean the tape player head after 10-12 hours
of play will help maintain the best playback
sound and proper tape operation.
*
[AS27800(ALL)02/95]
q
Only cassettes that are 90 minutes long or
less should be used. Tapes longer than 90
minutes are thinner and subject to breakage
or may jam the tape player mechanism.
*
[AS27900(ALL)02/95]
q
Protect cassettes from exposure to direct
sunlight, high humidity and extreme heat or
cold. If they are exposed to extreme
conditions, allow them to reach a moderate
temperature before playing.
*
[AS28001(ALL)02/95]
q
If a tape is loose inside the cassette, tighten it
before playing by putting your finger or a
pencil into one of the holes and turning the
hub until the tape is tight.
*
[AS28101(ALL)02/95]
q
Loose labels on cassette tapes can become
lodged in the mechanism. Remove any loose
label material before inserting a cassette.
*
[AS28200(ALL)03/95]
q
Do not leave a tape in the cassette tape
player when not in use. High heat in the
vehicle can cause the cassette to warp.
File:prasp.ex
Update:Fri Jun 23 19:35:26 1995

143 %
*
[AS28400(ALL)03/95]
Clock Operation
*
[AS28500(ALL)07/90]
How to view the clock mode
*
[AS28650(ALL)07/93]
Press the ªCLOCKº button to alternate the
frequency and time in the display. In the clock
mode, pressing any radio function will
automatically display the radio frequency for
approximatedly ten seconds before changing
back to the clock mode.
*
[AS28800(ALL)07/90]
How to set the clock
*
[AS28900(ALL)04/92]
1. Turn the radio on.
*
[AS29025(ALL)03/95]
2. Press and hold in the ªCLOCKº button,
press the ªSEEKº button left (
b) to advance
the hours and right (
a) to advance the
minutes.
*
[AS29200(ALL)07/90]
NOTE: The clock displays 12-hour time with
no AM/PM indications.
*
[AS35200(ALL)06/95]
Common Radio Reception Conditions
*
[AS35300(ALL)02/95]
Several conditions prevent FM reception from
being completely clear and noise-free, such as
the following:
*
[AS35400(ALL)04/95]
1. Distance/Strength
*
[AS35500(ALL)02/95]
The strength of the FM signal is directly related
to the distance the signal must travel. The
listenable range of an average FM signal is
approximately 25 miles (40 kilometers). Beyond
this distance, the radio is operating in a fringe
area and the signal becomes weaker.
File:prasp.ex
Update:Fri Jun 23 19:35:26 1995

144
*
[AS35550(ALL)06/90]
NOTE: Always make sure your antenna
(whether you have a power antenna or
a manually adjustable antenna) is fully
extended to the maximum length for
proper reception. If your antenna is not
fully extended, you may experience
signal loss while traveling in fringe
reception areas.
*
[AS35600(ALL)04/95]
2. Terrain
*
[AS35700(ALL)02/95]
The terrain (hilly, mountainous, tall buildings) of
the area over which the signal travels may
prevent the FM signal from being noise-free.
*
[AS35800(ALL)11/92]
Repeated pops and hisses which are heard
during an otherwise clear broadcast can occur
near the station because of the ªline of sightº
characteristic of FM radio waves.
*
[AS35900(ALL)01/95]
If there is a building or large structure between
the antenna and station, some of the signal
ªbendsº around the building, but certain spots
receive almost no signal. Moving out of the
ªshadowº of the structure will allow the station
to return to normal.
*
[AS36000(ALL)01/95]
When the radio waves are reflected off objects or
structures, the reflected signal cancels the normal
signal, causing the antenna to pick up noise and
distortion. Cancellation effects are most
prominent in metropolitan areas, but also can
become quite severe in hilly terrain and
depressed roadways.
*
[AS36100(ALL)01/95]
To minimize these conditions, a stereo/mono
blend circuit has been incorporated into this
system. This feature automatically switches a
weak stereo signal to a clearer monaural signal,
which improves the quality of reception.
File:prasp.ex
Update:Fri Jun 23 19:35:26 1995

145
*
[AS36200(ALL)01/95]
Several sources of static are normal conditions
on AM frequencies. These can be caused by
power lines, electric fences, traffic lights and
thunderstorms.
*
[AS36300(ALL)01/95]
Another reception phenomenon isStrong Signal
Capture and Overload. This can occur when
listening to a weak station and when passing
another broadcast tower. The close station may
capture the more distant station, although the
displayed frequency does not change. While
passing the tower, the station may switch back
and forth a few times before returning to the
original station.
*
[AS36400(ALL)01/95]
When several broadcast towers are present
(common in metropolitan areas) several stations
may overload the receiver, resulting in
considerable station changing, mixing and
distortion.
*
[AS36500(ALL)01/95]
Automatic gain control circuitry for both AM
and FM bands has been incorporated into this
system to reduce strong signal capture and
overload.
%
*
[AS36600(ALL)08/89]
All About Radio Frequencies
*
[AS36700(ALL)06/95]
The Federal Communications Commission (FCC)
and the Canadian Radio Telecommunications
Commission (CRTC) establish the frequencies
AM and FM radio stations may use for their
broadcasts. The allowable frequencies are, AM:
530, 540...1600, 1610 kHz in 10 kHz steps; FM:
87.9, 88.1...107.7, 107.9 MHz in 0.2 MHz steps.
*
[AS36800(ALL)06/95]
Not all frequencies will be assigned to a given
area. This radio will tune to each of these
frequencies using manual tune and no fine
tuning is necessary as radio stations may not use
other frequencies.
File:prasp.ex
Update:Fri Jun 23 19:35:26 1995

146
*
[AS36900(ALL)02/95]
Some FM radio stations advertise a
ªrounded-offº frequency which is not the
frequency they actually broadcast on. For
example, a radio station that is assigned a
frequency of 98.7 MHz may call itself ªRadio 99º
even though 99.0 MHz is not an allowable FM
broadcast frequency.
*
[AS37000(ALL)01/95]
Important Warranty and Service
Information
*
[AS37050(ALL)07/90]
q
Warranty
*
[AS37100(ALL)03/95]
Your sound system is warranted for three years
or 36,000 miles (60,000 kilometers), whichever
comes first. Consult your vehicle warranty
booklet for further information. Ask your dealer
for a copy of this limited warranty.
*
[AS37150(ALL)07/90]
q
Service
*
[AS37200(ALL)01/95]
At Ford Electronics, we stand behind our audio
systems with a comprehensive service and repair
program. If anything should go wrong with
your Ford audio system, return to your dealer
for service. There is a nationwide network of
qualified Ford authorized repair centers to assist
you.
File:prasp.ex
Update:Fri Jun 23 19:35:26 1995

147
Driving Your Probe
*
[DR00400(ALL)09/93]
Procedures for driving your vehicle will vary
depending on which type oftransaxleyour
vehicle has. You may be familiar with the term
ªtransmission.º We usetransaxlebecause it is a
more accurate term for vehicles that have
front-wheel drive.
[DR00500(ALL)03/94]
Your vehicle has one of two types of transaxles:
[DR00600(ALL)01/92]
q
a manual five-speed overdrive
[DR00700(ALL)02/89]
q
an automatic four-speed overdrive
*
[DR01600(ALL)01/95]
Driving with an Automatic
Overdrive Transaxle
*
[DR01800(ALL)01/95]
Putting Your Vehicle in Gear
[DR01900(ALL)03/94]
The automatic transaxle on your vehicle is an
electrically controlled four speed. The highest
gear is Overdrive. The Overdrive position is
reflected by D in the shift selector indicator.
[DR02000(ALL)04/93]
The automatic transaxle uses the conventional
selector lever, and an Overdrive OFF button. All
normal driving is done with the selector in the
D position.
File:prdrp.ex
Update:Fri Jun 23 19:35:02 1995

148 [DR02205(ALL)06/93]

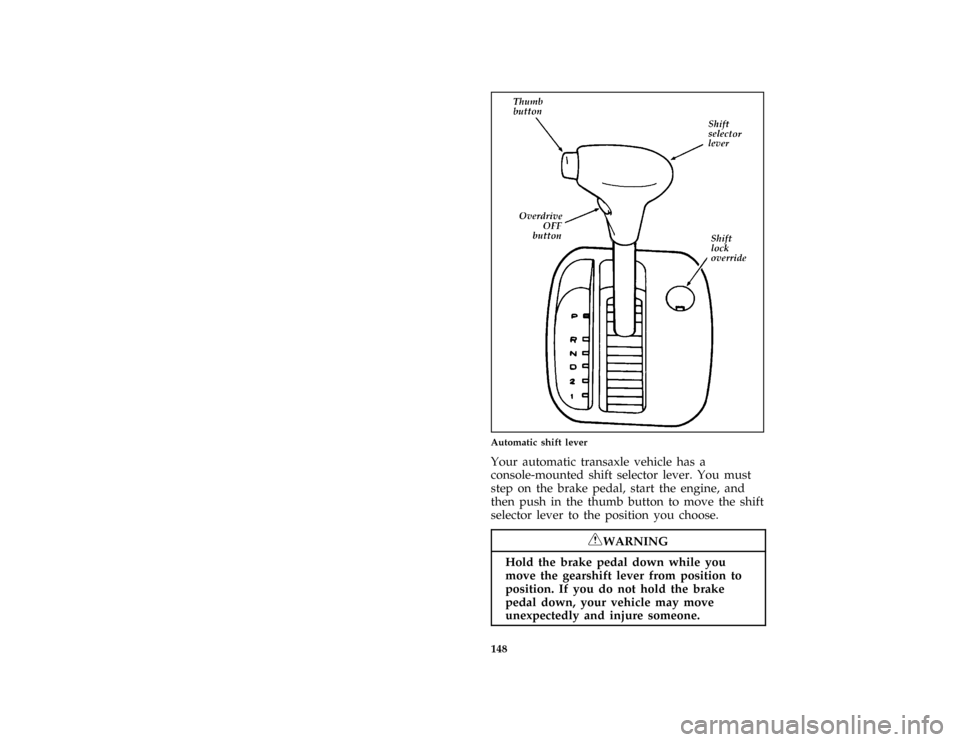

two third page art:0032064-DAutomatic shift lever
*
[DR02400(ALL)03/94]
Your automatic transaxle vehicle has a
console-mounted shift selector lever. You must
step on the brake pedal, start the engine, and
then push in the thumb button to move the shift
selector lever to the position you choose.
*
[DR02500(ALL)05/95]
RWARNING
Hold the brake pedal down while you
move the gearshift lever from position to
position. If you do not hold the brake
pedal down, your vehicle may move
unexpectedly and injure someone.
File:prdrp.ex
Update:Fri Jun 23 19:35:02 1995

149 [DR02550(ALL)03/94]
NOTE: If the shift selector lever will not move
with the key on and the brake pedal
depressed refer toShift lock systemin
the Index.
*
[DR02600(ALL)11/94]
Once the gearshift is secure in the desired
position, release the brake pedal and use the
accelerator as necessary.
%*
[DR02900(ALL)06/92]
Backing Up
*
[DR03000(ALL)02/95]
With the gearshift in the R (Reverse) position,
the vehicle will move backward. You should
always come to a complete stop before shifting
into or out of R (Reverse).
*
[DR03100(ALL)01/95]
Driving
[DR03200(ALL)05/93]
When to use Overdrive (D with Overdrive
activated)
[DR03300(ALL)01/94]
Overdrive is the usual driving position for an
automatic overdrive transaxle. It works the same
way Drive (Overdrive OFF) works, automatically
upshifting or downshifting as the vehicle speeds
or slows.
[DR03400(ALL)01/94]
However, Overdrive also shifts into a fourth
gear Ð an overdrive gear Ð when your vehicle
cruises at a consistent speed for any length of
time. This fourth gear will increase your fuel
economy when you travel at cruising speeds.
[DR03500(ALL)05/95]
Overdrive may not be appropriate for certain
terrain. If the transaxle shifts back and forth
between third and fourth gears while you are
driving on hilly roads, select Drive (Overdrive
OFF) by cancelling Overdrive as outlined below.
File:prdrp.ex
Update:Fri Jun 23 19:35:02 1995

150 [DR03620(ALL)01/92]Cancelling Overdrive
[DR03625(ALL)06/93]
The Overdrive Off (O/D OFF) button is located
on the gearshift. The Overdrive Off (O/D OFF)
light is located in the instrument cluster.
[DR03630(ALL)05/95]
The O/D OFF light is not illuminated during
normal vehicle operation. This allows the
transaxle to upshift and downshift from 1st
through 4th gears. When the O/D OFF button is
pressed, Overdrive is cancelled and the O/D
OFF light in the instrument cluster illuminates.
When the O/D OFF light is illuminated, the
transaxle will upshift and downshift from 1st
through 3rd gears.
[DR03660(ALL)01/92]
one inch art:0032053-A
Overdrive OFF indicator light
[DR03665(ALL)06/93]
To return the transaxle to normal operation (1st
through 4th gears) press the O/D OFF button
again. The O/D OFF button may be used to
cancel Overdrive any time the vehicle is being
driven. Each time your vehicle is started, the
Overdrive system will automatically be in the
normal ªoverdrive onº mode and the light will
not be illuminated.
[DR03670(ALL)06/93]
If the light does not come on when the O/D
OFF button is pressed, or if the light flashes
when you are driving, have your vehicle
serviced at the first opportunity. If this
condition persists, damage could occur to the
transaxle.
File:prdrp.ex
Update:Fri Jun 23 19:35:02 1995
