FORD PROBE 1996 2.G Owners Manual

172 [RE02500(ALL)02/92]

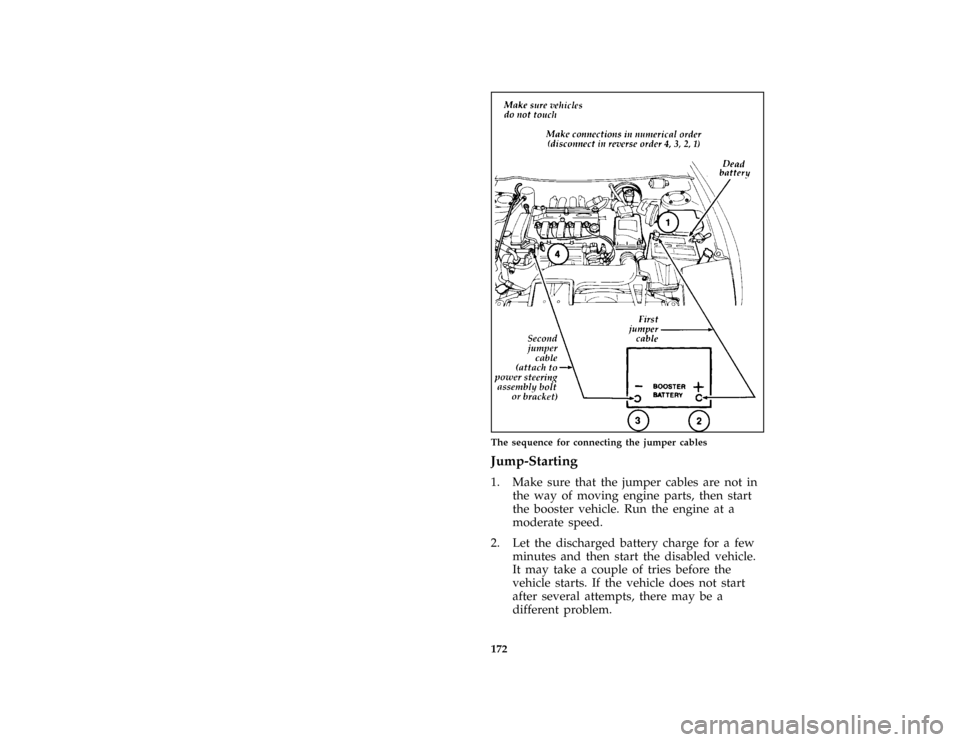

two third page art:0030135-CThe sequence for connecting the jumper cables
*
[RE02800(ALL)03/95]
Jump-Starting
*
[RE02900(ALL)03/95]
1. Make sure that the jumper cables are not in
the way of moving engine parts, then start
the booster vehicle. Run the engine at a
moderate speed.
*
[RE03000(ALL)03/95]
2. Let the discharged battery charge for a few
minutes and then start the disabled vehicle.
It may take a couple of tries before the
vehicle starts. If the vehicle does not start
after several attempts, there may be a
different problem.
File:prrep.ex
Update:Fri Jun 23 19:34:36 1995

173
*
[RE03100(ALL)03/95]
3. When both vehicles are running, let them
idle for a few minutes to charge the
discharged battery.
*
[RE03200(ALL)03/95]
Removing jumper cables
[RE03300(ALL)01/95]
1.Always remove the jumper cables in
reverse order.Remove the negative (-) end
of the jumper cable from the metallic surface
on the engine or frame of the disabled
vehicle.
*
[RE03400(ALL)05/95]
2. Remove the negative (-) cable from the
booster battery.
*
[RE03500(ALL)03/95]
3. Remove the positive (+) cable from the
booster battery.
*
[RE03600(ALL)05/95]
4. Remove the other end of the positive (+)
cable from the discharged battery.
*
[RE03700(ALL)04/95]
After the vehicle is started, let it idle for a while
to let the engine ªrelearnº its idle conditions.
Drive it around for a while with all electrical
accessories turned off to let the battery recharge.
You may need to use a battery charger to fully
recharge the battery.
*
[RE03750(ALL)03/95]
If you need to replace your battery, seeBattery
in theServicing Your Vehiclechapter.
*
[RE03800(ALL)03/95]
Changing a Tire
*
[RE03900(ALL)01/95]
If you get a flat tire while you are driving, do
not apply the brake heavily. Instead, gradually
decrease the speed. Hold the steering wheel
firmly and slowly move to a safe place on the
side of the road. Park on a level spot, turn off
the ignition, set the parking brake, and turn on
the hazard flashers.
File:prrep.ex
Update:Fri Jun 23 19:34:36 1995

174
*
[RE04000(ALL)03/95]
The Temporary Spare Tire
*
[RE04100(ALL)03/95]
You may have a high pressure temporary spare
tire. This spare tire is smaller than a regular tire
and is designed for emergency use only. Use it
only when you get a flat tire and replace it as
soon as you can. This spare tire is marked with
the words ªTEMPORARY USE ONLYº so that
you can easily identify it.
*
[RE04200(ALL)01/93]
RWARNING
If you use the temporary spare tire
continuously or do not follow these
precautions, the tire could fail, causing
you to lose control of the vehicle, possibly
injuring yourself or others.
*
[RE04300(ALL)01/95]
When you drive with the temporary spare tire,
DO NOT:
*
[RE04400(ALL)01/95]
q
exceed 50 mph (80 km/h) under any
circumstances.
*
[RE04500(ALL)01/95]
q
load your vehicle so that it is heavier than
the maximum vehicle load rating listed on
the tire decal.
*
[RE04700(ALL)01/95]
q
use tire chains on this tire.
*
[RE04800(ALL)01/95]
q
try to repair the temporary spare tire or
remove it from its wheel.
*
[RE04900(ALL)01/95]
q
use the wheel for any other type of vehicle.
*
[RE05000(ALL)01/95]
q
drive through an automatic car wash with
this tire. Because the temporary spare tire is
smaller than a conventional tire, it reduces
the ground clearance. Your vehicle may get
caught in the rails and it could be damaged.
File:prrep.ex
Update:Fri Jun 23 19:34:36 1995

175
*
[RE05100(ALL)03/95]
Spare Tire Location
[RE05200(ALL)08/91]
The temporary spare tire is stored in the luggage
compartment, under the mat and floorboard.
[RE05300(ALL)01/92]

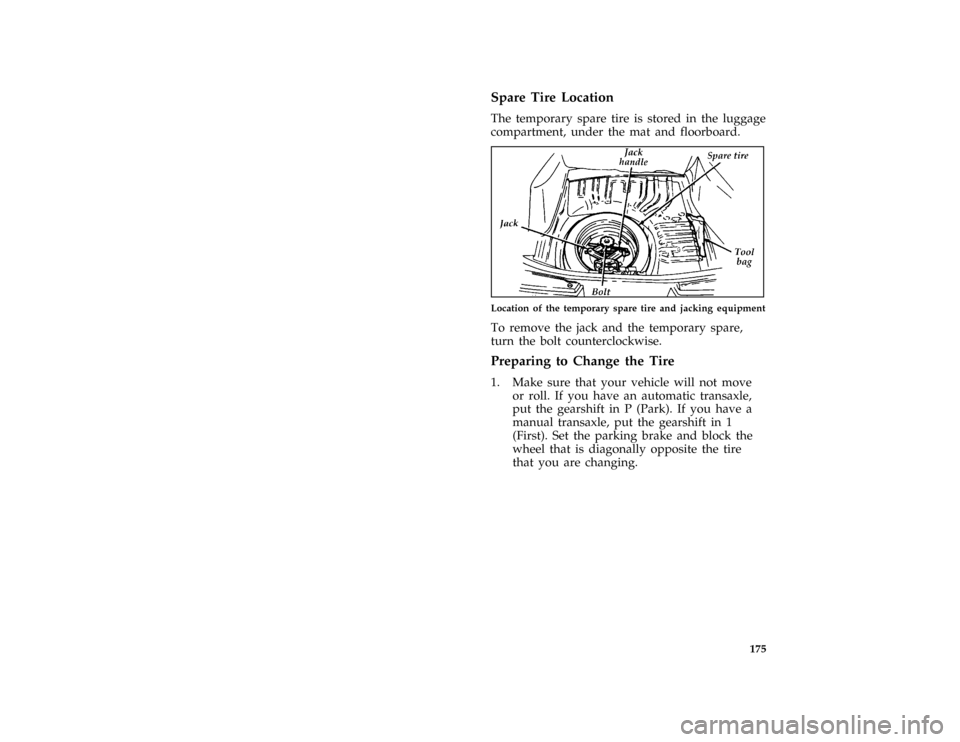

one third page art:0032099-A
Location of the temporary spare tire and jacking equipment
[RE05650(ALL)01/92]
To remove the jack and the temporary spare,
turn the bolt counterclockwise.
*
[RE07600(ALL)03/95]
Preparing to Change the Tire
*
[RE07700(ALL)02/92]
1. Make sure that your vehicle will not move
or roll. If you have an automatic transaxle,
put the gearshift in P (Park). If you have a
manual transaxle, put the gearshift in 1
(First). Set the parking brake and block the
wheel that is diagonally opposite the tire
that you are changing.
File:prrep.ex
Update:Fri Jun 23 19:34:36 1995

176 [RE07800(ALL)02/89]
one third page art:0030146-ABlocking the wheel diagonally opposite the tire being
changed
[RE08090(ALL)05/95]
When one of the front wheels is off the ground,
the transaxle alone will not prevent the vehicle
from moving or slipping off the jack, even if the
vehicle is in P (Park) or 1 (First). To prevent the
vehicle from moving when you change one of
the front tires, put a block behind the wheel that
is diagonally opposite to the tire.
*
[RE08100(ALL)05/95]
RWARNING
If the vehicle slips off the jack, you or
someone else could be seriously injured.
*
[RE08200(ALL)05/95]
2. Get out the spare tire and jack.
[RE08300(ALL)03/94]
3. Remove any wheelcovers or hubcaps with
the tapered end of a wheel nut wrench.
Insert the handle of the wrench and twist it
against the inner wheelcover flange. Remove
any chrome nuts or plastic caps covering the
wheel lug nuts.
File:prrep.ex
Update:Fri Jun 23 19:34:36 1995

177 [RE08500(ALL)01/92]
4. Loosen the wheel lug nuts by pulling up on
the handle of the wrench one half-turn
counterclockwise. Do not remove the wheel
lug nuts until you raise the tire off the
ground. For information about removing
anti-theft lug nuts, seeRemoving and
Replacing the Anti-Theft Wheel Lug Nutsin
this section.
*
[RE08600(ALL)05/95]
Removing and Replacing the Tire
%*
[RE08700(ALL)11/94]
1. Find the jack notch next to the door of the
tire that you are changing. Put the jack in
the jack notch and turn the handle of the
jack clockwise until the wheel is completely
off the ground.
*
[RE08800(ALL)05/95]
RWARNING
To lessen the risk of personal injury, do
not put any part of your body under the
vehicle while changing a tire. Do not start
the engine when your vehicle is on the
jack. The jack is only meant for changing
the tire.
File:prrep.ex
Update:Fri Jun 23 19:34:36 1995

178 [RE09000(ALL)05/95]

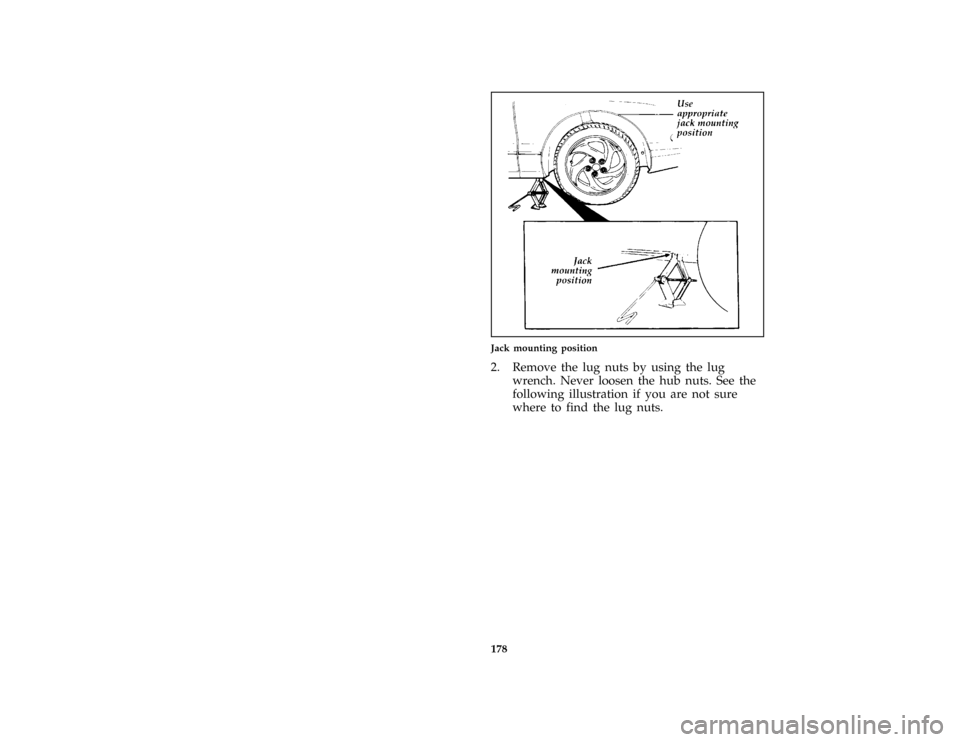

half page art:0030149-DJack mounting position
[RE09300(ALL)01/95]
2. Remove the lug nuts by using the lug
wrench. Never loosen the hub nuts. See the
following illustration if you are not sure
where to find the lug nuts.
File:prrep.ex
Update:Fri Jun 23 19:34:36 1995

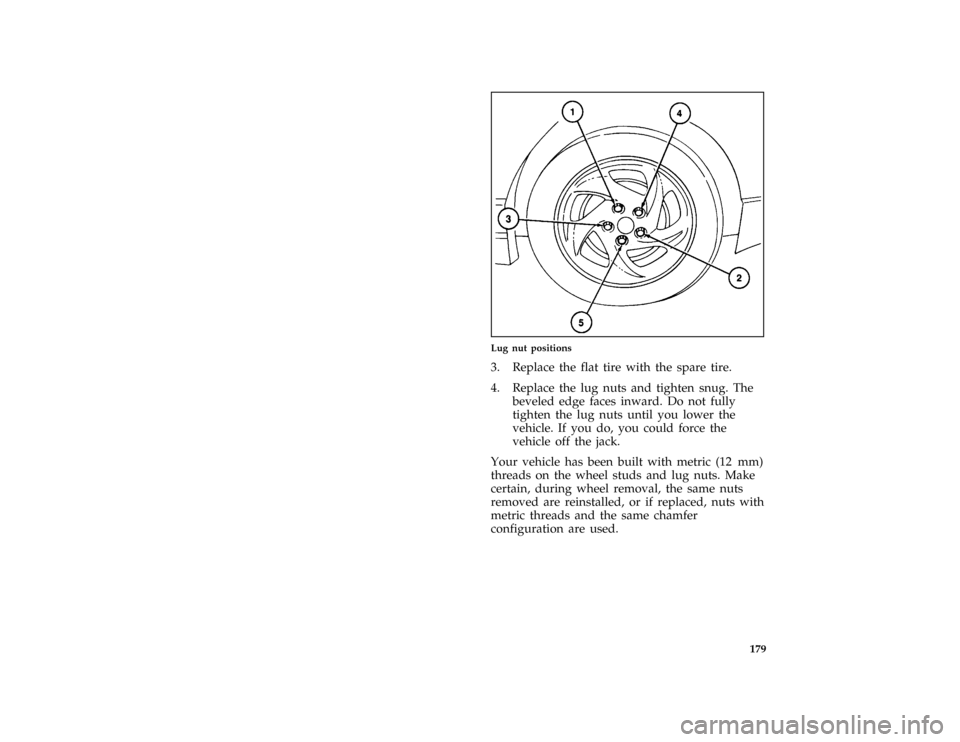

179 [RE09400(ALL)06/94]
half page art:0032086-B
Lug nut positions
*
[RE09700(ALL)01/95]
3. Replace the flat tire with the spare tire.
[RE09800(ALL)01/95]
4. Replace the lug nuts and tighten snug. The
beveled edge faces inward. Do not fully
tighten the lug nuts until you lower the
vehicle. If you do, you could force the
vehicle off the jack.
[RE09990(ALL)05/95]
Your vehicle has been built with metric (12 mm)
threads on the wheel studs and lug nuts. Make
certain, during wheel removal, the same nuts
removed are reinstalled, or if replaced, nuts with
metric threads and the same chamfer
configuration are used.
File:prrep.ex
Update:Fri Jun 23 19:34:36 1995

180
*
[RE10000(ALL)05/95]
RWARNING
Installation of an English thread nut on a
metric stud (or vice-versa) will not
properly secure the wheel to the hub.
Damaged studs may result in wheel
separation and possible injury.
*
[RE10200(ALL)01/95]
5. Lower the vehicle by turning the jack handle
counterclockwise.
[RE10300(ALL)01/95]
6. Remove the jack and fully tighten the lug
nuts in the order shown in the illustration
under step 2.
[RE10700(ALL)01/95]
7. Put the tire, jack, and wrench away.
[RE10750(ALL)01/95]
8. Unblock the wheels.
*
[RE12150(ALL)12/91]
If the Engine Cranks but Does
Not Start or Starting After a
Collision
*
[RE12200(ALL)03/95]
If the engine cranks but does not start or if you
have had a collision, the fuel pump shut-off
switch may have been triggered. The shut-off
switch is a device that stops the fuel pump
when your vehicle has been involved in a
substantial jolt.
*
[RE12250(ALL)01/95]
For information on how to check and reset the
fuel pump shut-off switch, seeFuel pump shut-off
switchin the Index.
File:prrep.ex
Update:Fri Jun 23 19:34:36 1995

181
*
[RE12300(ALL)05/95]

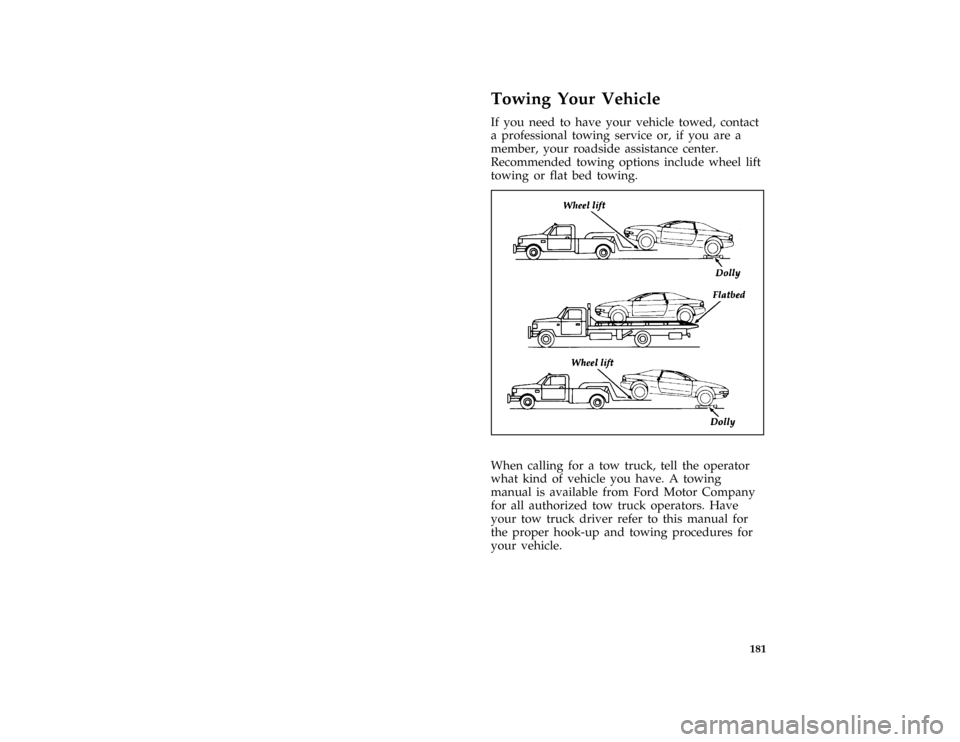

Towing Your Vehicle
*
[RE12400(ALL)06/95]
If you need to have your vehicle towed, contact
a professional towing service or, if you are a
member, your roadside assistance center.
Recommended towing options include wheel lift
towing or flat bed towing.
[RE12450(ALL)05/95]
half page art:0032391-A*
[RE12500(ALL)05/95]
When calling for a tow truck, tell the operator
what kind of vehicle you have. A towing
manual is available from Ford Motor Company
for all authorized tow truck operators. Have
your tow truck driver refer to this manual for
the proper hook-up and towing procedures for
your vehicle.
File:prrep.ex
Update:Fri Jun 23 19:34:36 1995
