Safety Restraints
29
[SR12655(R )05/95]1.
Insert the ignition key into the switch.
[SR12660(R )05/95]2.
Rotate the ignition key counterclockwise until it points to the
ON printed on the instrument panel.
[SR12665(R )05/95]3.
Remove the ignition key from the switch.
[SR12670(R )05/95]4.
Check that the amber OFF light is not illuminated when the
ignition switch is placed in ON.
[SR12675(R )05/95]
RWARNING
If the light is illuminated when the passenger air bag
switch is in the ON position and the ignition switch is in
ON, have the passenger air bag switch serviced at your
Ford or Lincoln-Mercury dealer immediately.
[SR12680(R )05/95]
The amber OFF light warns the driver and any passengers that
the passenger air bag is turned off. The passenger air bag
should be turned off ONLY when the rear-facing infant seat is
installed at the right front or center front seats.
[SR12685(R )05/95]
RWARNING
Keep the passenger air bag turned on unless there is a
rear-facing infant seat installed in the front seat. When
the passenger air bag switch is turned off, the passenger
air bag will not inflate in a collision.
File:03unsrr.ex
Update:Wed May 1 13:43:56 1996
Page 32 of 369
30
%*
[SR12700(ALL)01/95]
How the Air Bag Supplemental Restraint System
Operates
[SR12750(R )06/95]
The Air Bag Supplemental Restraint System consists of the
driver air bag, passenger air bag (if equipped), impact sensors, a
system diagnostic module, a readiness light and tone, and the
electrical wiring which connects the components.
[SR12775(R )09/95]
24 pica art:0090169-B

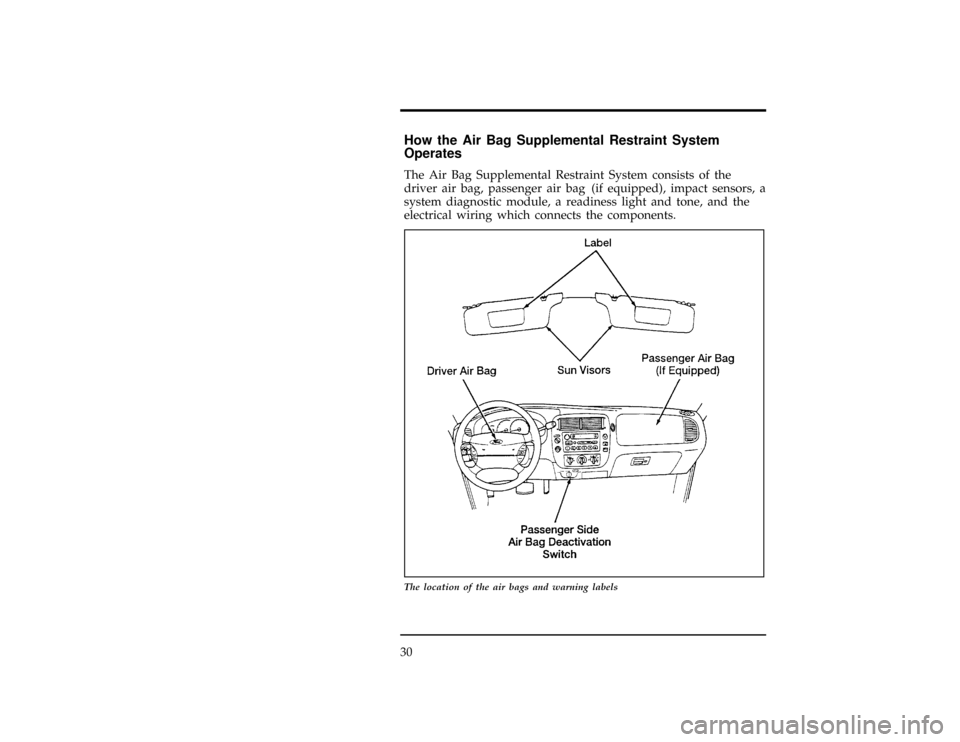

The location of the air bags and warning labels
File:03unsrr.ex
Update:Wed May 1 13:43:56 1996
Page 33 of 369
Safety Restraints
31
[SR12900(ALL)06/95]
The driver air bag is in the center of the steering wheel. The
right front passenger seat air bag (if equipped) is in the upper
right hand section of the instrument panel ledge above the
glove compartment.
*
[SR13010(ALL)07/95]
If a collision occurs, the sensors sense the severity of the impact
and activate the air bags if necessary. The air bag system is
designed to deploy in frontal and front-angled collisions more
severe than hitting a parked vehicle (of similar size and weight)
head-on at about 28 mph (45 km/h). Because the system senses
the crash severity rather than vehicle speed, some frontal
collisions at speeds above 28 mph (45 km/h) will not inflate the
air bag.
*
[SR13020(ALL)07/95]
When the sensors activate the system, the air bags inflate
rapidly, filling with non-toxic nitrogen gas in a fraction of a
second. Immediately after inflation, the air bags deflate by
releasing the nitrogen gas through vent holes. The whole
process takes place in a matter of seconds.
*
[SR13030(ALL)07/95]
RWARNING
Air bag system components get hot after inflation. Do
not touch them after inflation.
%*
[SR13050(ALL)05/95]
The air bag system uses a readiness light on the instrument
cluster and a tone to indicate the condition of the system. When
you turn the ignition key to the ON position, this light will
illuminate for approximately six (6) seconds and then turn off.
This indicates that the system is operating normally. NOTE:
Maintenance of the air bag system is not required.
File:03unsrr.ex
Update:Wed May 1 13:43:56 1996
Page 34 of 369
32
*
[SR13060(ALL)05/95]
17-1/2 pica
art:0050087-A

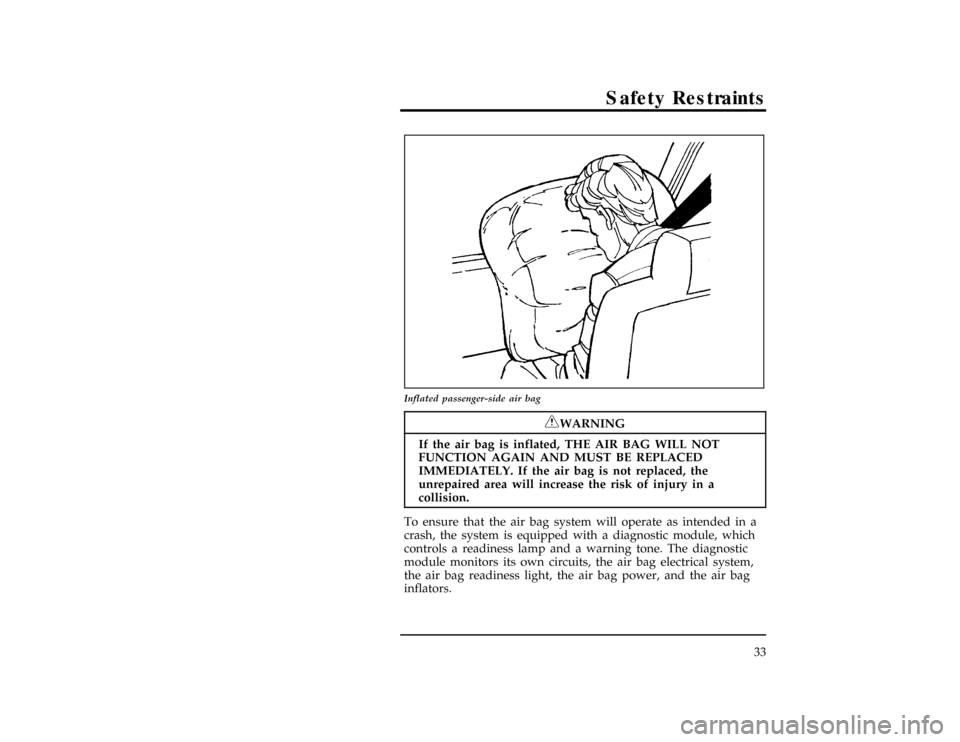

Inflated driver-side air bag
File:03unsrr.ex
Update:Wed May 1 13:43:56 1996
Page 35 of 369
Safety Restraints
33
*
[SR13070(ALL)05/95]
17-1/2 pica
art:0050088-A

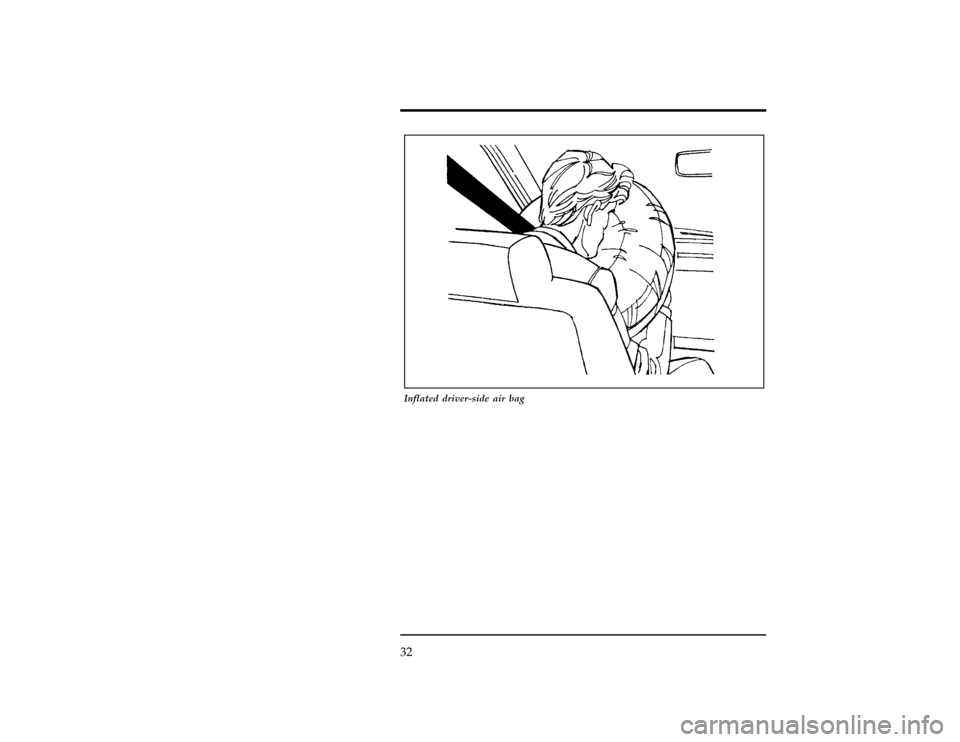

Inflated passenger-side air bag
*
[SR13080(ALL)07/95]
RWARNING
If the air bag is inflated, THE AIR BAG WILL NOT
FUNCTION AGAIN AND MUST BE REPLACED
IMMEDIATELY. If the air bag is not replaced, the
unrepaired area will increase the risk of injury in a
collision.
*
[SR13090(ALL)07/95]
To ensure that the air bag system will operate as intended in a
crash, the system is equipped with a diagnostic module, which
controls a readiness lamp and a warning tone. The diagnostic
module monitors its own circuits, the air bag electrical system,
the air bag readiness light, the air bag power, and the air bag
inflators.
File:03unsrr.ex
Update:Wed May 1 13:43:56 1996
Page 36 of 369
34
%*
[SR13100(ALL)06/95]
A problem with the system is indicated by one or more of the
following:
*
[SR13125(ALL)06/95]
n
the readiness light will either flash or stay lit,
*
[SR13150(ALL)06/95]
n
or it will not light immediately after ignition is turned on,
*
[SR13175(ALL)06/95]
n
or a group of five beeps will be heard. The tone pattern will
repeat periodically until the problem and light are repaired.
[SR13225(ALL)08/95]
If any of these things happen, have the air bag system serviced
at your Ford or Lincoln-Mercury dealer immediately. Unless
serviced, the air bag supplemental restraint system may not
function properly in the event of a collision.
*
[SR13300(ALL)07/95]
RWARNING
Do not attempt to service, repair, or modify the Air Bag
Supplemental Restraint System or its fuses. See your
Ford or Lincoln-Mercury dealer.
%*
[SR13680(ALL)07/95]
Disposal of supplemental air bag equipped vehicles
*
[SR13700(ALL)06/95]
For disposal of air bags or air bag equipped vehicles, see your
local Ford or Lincoln-Mercury dealer. Air bagsMUSTbe
disposed of by qualified personnel.
%*
[SR14300(ALL)05/95]
Safety Restraints for Children
*
[SR14400(ALL)02/95]
In the U.S. and Canada, you are required by law to use safety
restraints for children. If small children ride in your vehicle Ð
this generally includes children who are four years old or
younger and who weigh 40 pounds (18 kg) or less Ð you must
put them in safety seats that are made specially for children.
Safety belts alone do not provide maximum protection for these
children. Check your local and state laws for specific
requirements.
File:03unsrr.ex
Update:Wed May 1 13:43:56 1996
Page 37 of 369
Safety Restraints
35
*
[SR14500(ALL)08/95]
RWARNING
Never let a passenger hold a child on his or her lap
while the vehicle is moving. The passenger cannot
protect the child from injury in a collision.
*
[SR14550(ALL)07/95]
RWARNING
To prevent the risk of injury, make sure children sit
where they can be properly restrained.
*
[SR14600(R )09/95]
RWARNING
It is extremely dangerous to ride in a cargo area, inside
or outside of a vehicle. In a collision, people riding in
these areas are more likely to be seriously injured or
killed.
*
[SR14605(R )09/95]
RWARNING
Do not allow people to ride in any area of your vehicle
that is not equipped with seats and safety belts.
*
[SR14610(R )09/95]
RWARNING
Be sure everyone in your vehicle is in a seat and using a
safety belt properly.
*
[SR14700(ALL)08/95]
RWARNING
Carefully follow all of the manufacturer's instructions
included with the safety seat you put in your vehicle. If
you do not install and use the safety seat properly, the
child may be injured in a sudden stop or collision.
File:03unsrr.ex
Update:Wed May 1 13:43:56 1996
Page 38 of 369
36
*
[SR14800(ALL)06/95]
When possible, put children in the rear seat of your vehicle.
Accident statistics suggest that children are safer when properly
restrained in the rear seating positions than in the front seating
positions.
*
[SR14900(R )05/95]
RWARNING
Do not install a child seat in a center facing jump seat.
*
[SR15000(ALL)08/95]
RWARNING
Safety belts and seats can become hot in a vehicle that
has been closed up in sunny weather; they could burn a
small child. Check seat covers and buckles before you
place a child anywhere near them.
*
[SR15025(ALL)08/95]
RWARNING
Never leave a child unattended in your vehicle.
%*
[SR15900(ALL)01/95]
Safety Seats for Children
*
[SR16000(ALL)05/95]
Use a safety seat that is recommended for the size and weight
of the child. Always follow the safety seat manufacturer's
instructions when installing and using the safety seat.
*
[SR16015(ALL)08/95]
Ford recommends the use of a child safety seat having a top
tether strap. Install the child safety seat in a seating position
which is capable of providing a tether anchorage. For more
information on top tether straps seeAttaching Safety Seats With
Tether Strapsin this chapter.
*
[SR16025(ALL)08/95]
When installing a child safety seat, be sure to use the correct
safety belt buckle for that seating position, and make sure the
tongue is securely fastened in the buckle. For a shoulder/lap
belt combination with a sliding tongue, make sure the retractor
is in the automatic locking mode.
File:03unsrr.ex
Update:Wed May 1 13:43:56 1996
Page 39 of 369
Safety Restraints
37
*
[SR16090(ALL)07/95]
All child restraint systems are designed to be secured in vehicle
seats by lap belts or by the lap portion of a lap-shoulder belt.
*
[SR16100(ALL)06/95]
RWARNING
If you do not properly secure the safety seat, the child
occupying the seat may be injured during a collision or
sudden stop. An unsecured safety seat could also injure
other passengers.
*
[SR16200(ALL)08/95]
RWARNING
Carefully follow all of the manufacturer's instructions
included with the safety seat you put in your vehicle. If
you do not install and use the safety seat properly, the
child may be injured in a sudden stop or collision.
*
[SR16250(ALL)06/95]
RWARNING
Seatbacks should be upright for use with child safety
seats.
*
[SR16275(ALL)07/95]

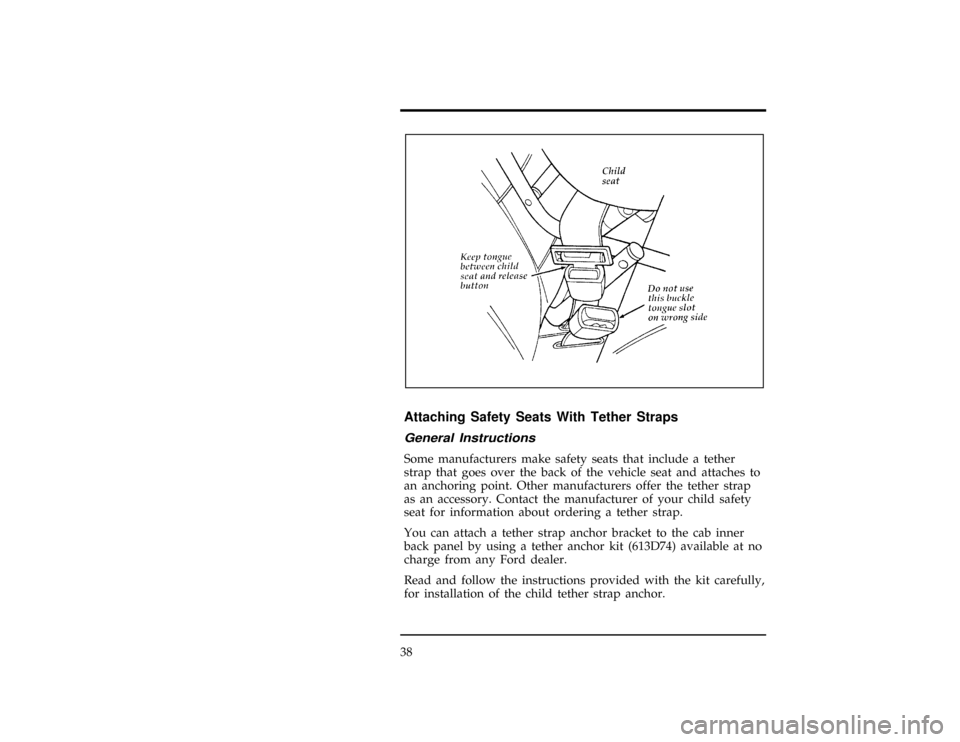

RWARNING
Always keep the buckle release button pointing upward
and away from the child seat, with the tongue between
the child seat and the release button as shown in the
following illustration.
File:03unsrr.ex
Update:Wed May 1 13:43:56 1996
Page 40 of 369
38
[SR16280(ALL)06/95]
17-1/2 pica
art:0011286-A%*
[SR18400(ALL)06/95]
Attaching Safety Seats With Tether Straps
*
[SR18410(ALL)06/95]
General Instructions
*
[SR18413(ALL)06/95]
Some manufacturers make safety seats that include a tether
strap that goes over the back of the vehicle seat and attaches to
an anchoring point. Other manufacturers offer the tether strap
as an accessory. Contact the manufacturer of your child safety
seat for information about ordering a tether strap.
*
[SR18415(R )06/95]
You can attach a tether strap anchor bracket to the cab inner
back panel by using a tether anchor kit (613D74) available at no
charge from any Ford dealer.
[SR18420(ALL)09/95]
Read and follow the instructions provided with the kit carefully,
for installation of the child tether strap anchor.
