Speedometer
*
[LG12700(ALL)01/95]
The speedometer tells you how many miles (kilometers) per
hour your vehicle is moving.
*
[LG12753(ALL)08/95]
Some vehicles are equipped with a vehicle speed (mph/km/h)
limiting device that is contained within the Powertrain Control
Module (PCM). The purpose of this device is to maintain peak
vehicle speed below a specified limit. (Vehicle speed limits may
vary based on engine displacement.)
*
[LG12756(ALL)05/95]
If you are experiencing an ªengine cut-outº condition at high
speeds, it may be the result of this limiting device. It is a
normal condition and can be avoided by reducing
vehicle/engine speed.
[LG12790(ALL)08/94]

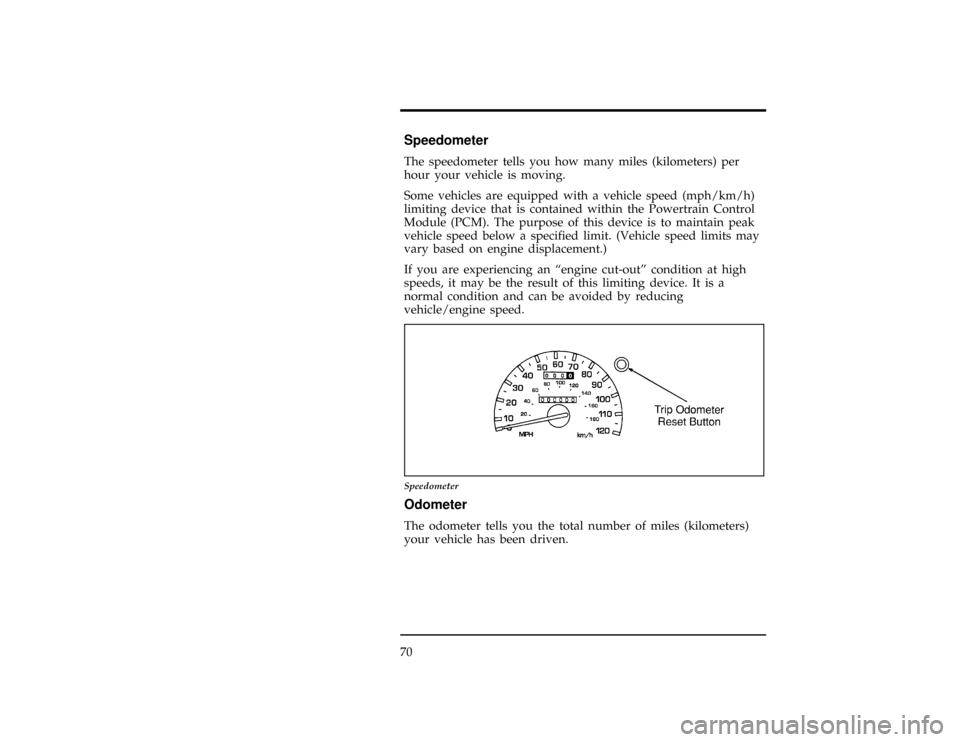

10-1/2 pica art:0020873-F
Speedometer
%*
[LG12801(ALL)01/95]
Odometer
*
[LG12900(ALL)01/95]
The odometer tells you the total number of miles (kilometers)
your vehicle has been driven.
File:05unlgr.ex
Update:Wed May 1 13:45:37 1996

Warning Lights and Gauges
71
%*
[LG13000(ALL)11/94]
Trip Odometer
*
[LG13100(ALL)03/93]
If you want to track your mileage up to 999.9 miles
(kilometers), use the trip odometer. Simply set the trip odometer
to zero by pressing the reset button firmly when beginning the
distance you wish to measure.
%*
[LG13200(R )05/94]
Tachometer (If equipped)
*
[LG13300(ALL)05/95]
The tachometer will show you the engine's speed measured in
revolutions per minute (RPM).
*
[LG13400(ALL)05/95]
The tachometer may move slightly when the key is placed in
the ACC or ON position, with the engine off. This is normal
and does not affect the performance of the tachometer when the
engine is running.
*
[LG13525(ALL)09/95]
Some vehicles are equipped with an engine speed (RPM)
limiting device contained within the Powertrain Control Module
(PCM). The purpose of this device is to maintain peak engine
speed (RPM) below a specified limit. This feature is only
evident on automatic transmission vehicles when shifting
manually (1, 2, D) and on all manual transmission units. (Engine
speed limits may vary based on engine displacement.)
*
[LG13550(ALL)05/95]
If you are experiencing an ªengine cut-outº condition at high
speeds, it may be the result of this limiting device. It is a
normal condition and can be avoided by reducing
vehicle/engine speed.
File:05unlgr.ex
Update:Wed May 1 13:45:37 1996

72
[LG13650(ALL)05/94]

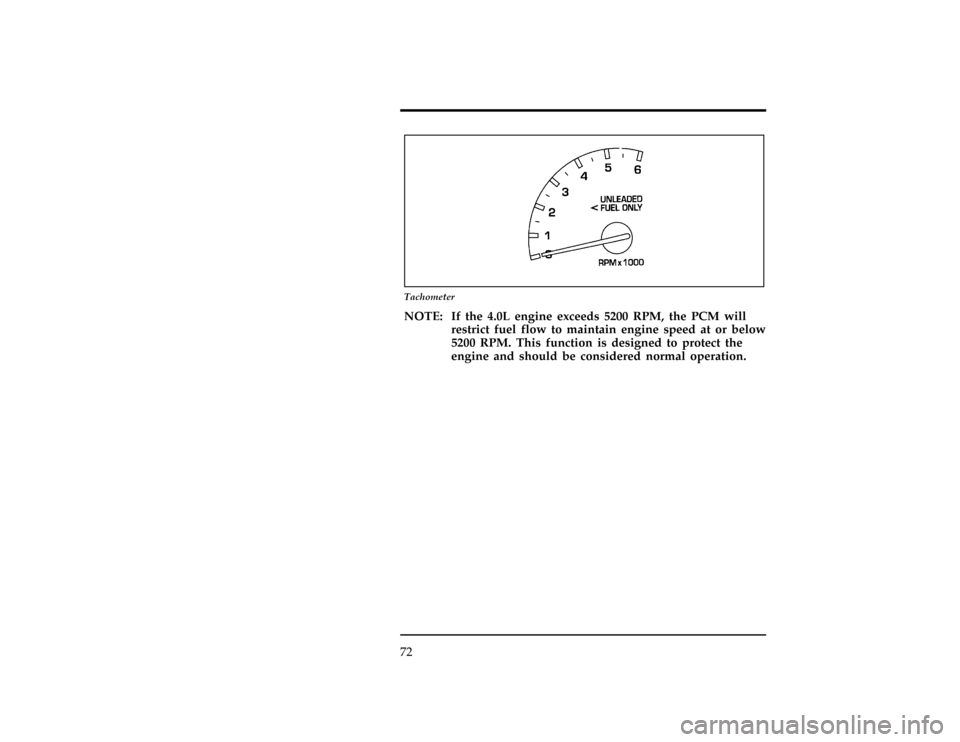

10-1/2 pica art:0020528-E
Tachometer
[LG13675(ALL)03/93]
NOTE: If the 4.0L engine exceeds 5200 RPM, the PCM will
restrict fuel flow to maintain engine speed at or below
5200 RPM. This function is designed to protect the
engine and should be considered normal operation.
File:05unlgr.ex
Update:Wed May 1 13:45:37 1996

73

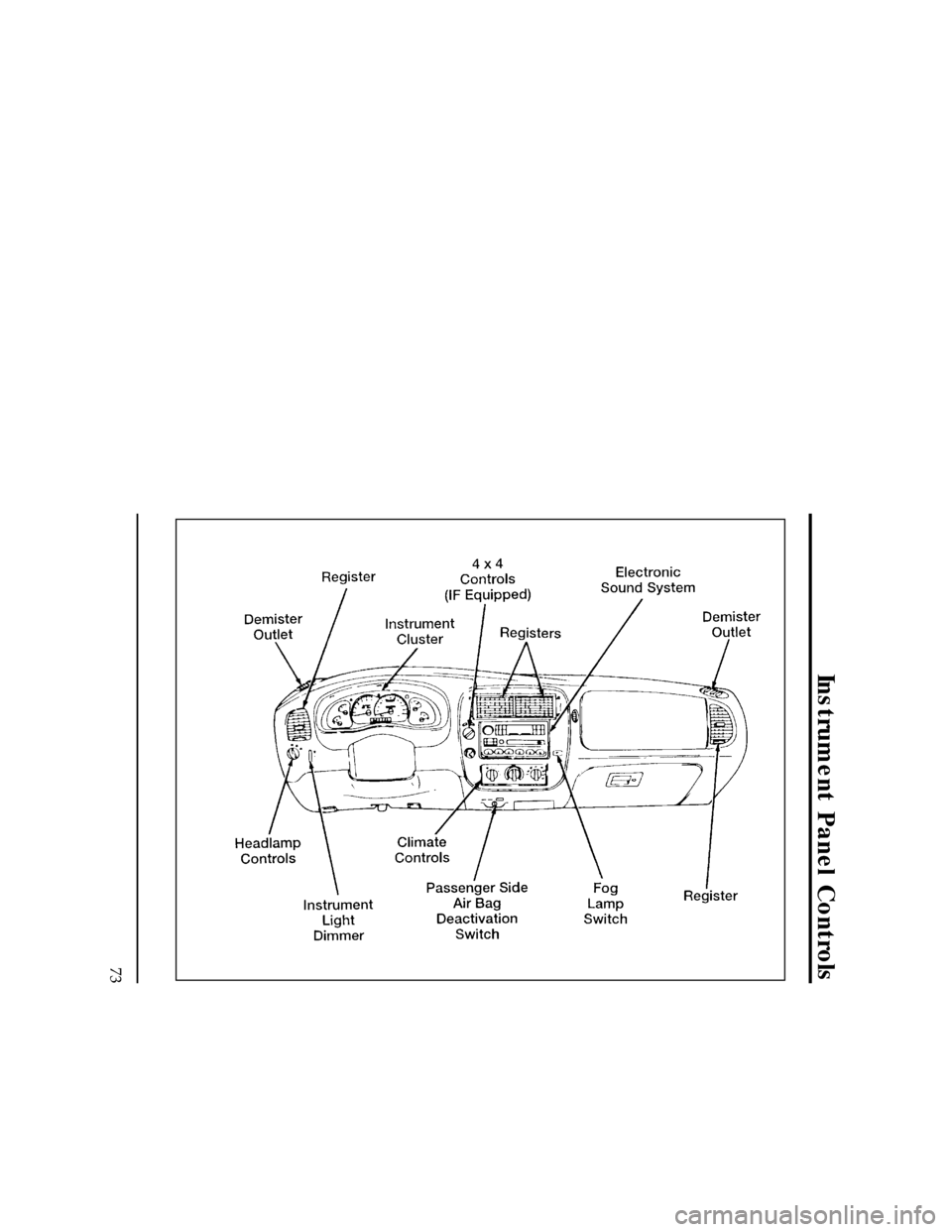

Instrument Panel Controls
[IP00225(R )09/95]
33-1/2 pica
art:0090207-BFile:06unipr.ex
Update:Wed May 1 13:46:22 1996

74
[IP00350(R )10/94]
The main controls for the climate control system, lights, lamps,
clock, and radio are on the instrument panel.
%*
[IP00475(ALL)09/95]
NOTE: Any cleaner or polish that increases the gloss (shine)
of the upper part of the instrument panel should be
avoided. The dull finish in this area is to help protect
the driver from undesirable windshield reflection.
%*
[IP00500(ALL)06/95]
The Climate Control Systems
*
[IP00601(ALL)12/91]
Your vehicle is equipped with a control assembly designed to
handle either a combination A/C-Heater System or a
Heater-Only System.
%*
[IP00801(ALL)10/93]
Instrument Panel Registers
*
[IP00901(ALL)02/95]
There are four registers in the instrument panel. Each of these
registers contains a louver assembly which can be manually
adjusted to direct airflow up, down, left and right. An
illustration of the register locations follows.
[IP01201(ALL)04/94]

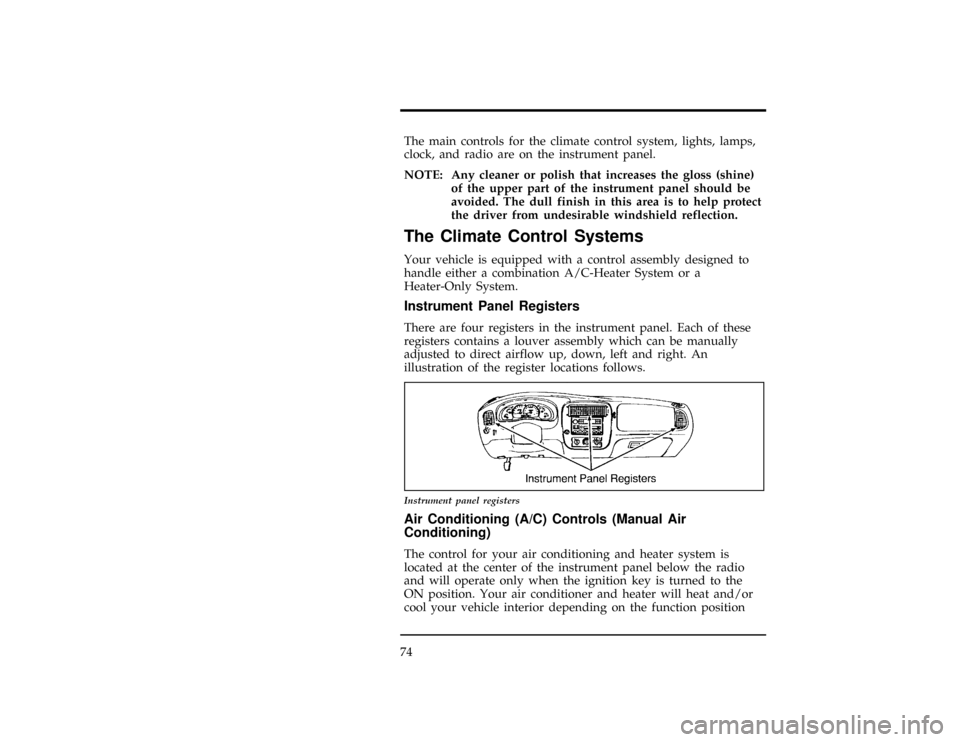

7-1/2 pica art:0020099-D
Instrument panel registers
[IP01400(ALL)12/91]
Air Conditioning (A/C) Controls (Manual Air
Conditioning)
*
[IP01450(ALL)02/95]
The control for your air conditioning and heater system is
located at the center of the instrument panel below the radio
and will operate only when the ignition key is turned to the
ON position. Your air conditioner and heater will heat and/or
cool your vehicle interior depending on the function position
File:06unipr.ex
Update:Wed May 1 13:46:22 1996

Instrument Panel Controls
75 and temperature you select. The function selector control knob
allows you to select heating or cooling and determine where the
air will be directed. The temperature control knob setting
determines the temperature of the air that flows into the vehicle.
[IP01500(ALL)03/95]

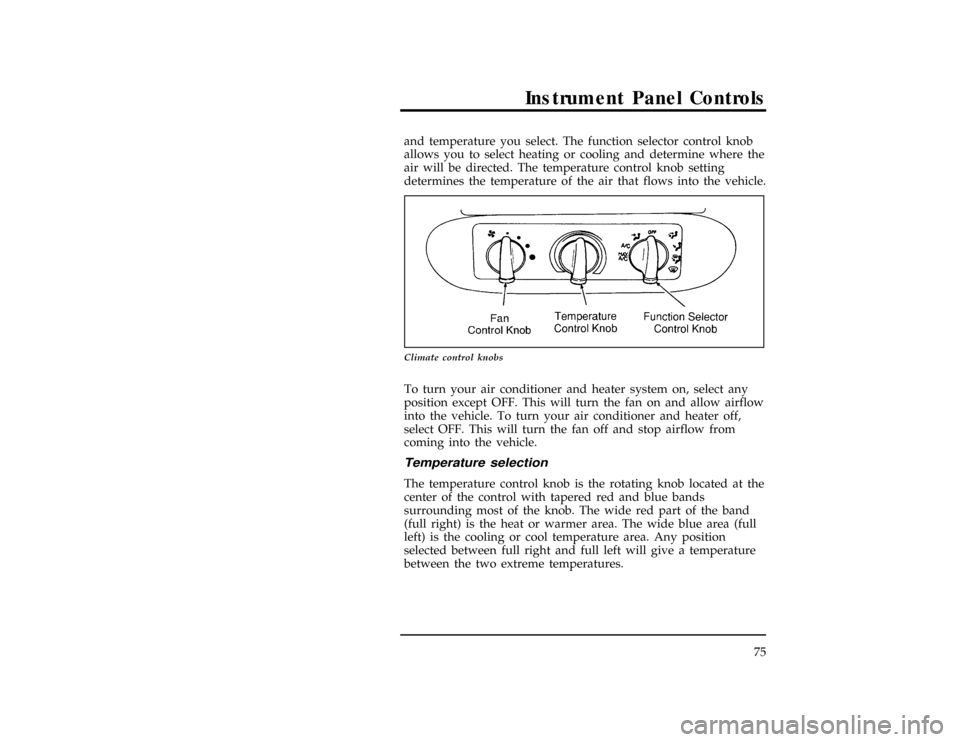

10-1/2 pica
art:0020589-G
Climate control knobs
*
[IP01550(ALL)03/95]
To turn your air conditioner and heater system on, select any
position except OFF. This will turn the fan on and allow airflow
into the vehicle. To turn your air conditioner and heater off,
select OFF. This will turn the fan off and stop airflow from
coming into the vehicle.
*
[IP01600(ALL)10/95]
Temperature selection
[IP01650(ALL)03/95]
The temperature control knob is the rotating knob located at the
center of the control with tapered red and blue bands
surrounding most of the knob. The wide red part of the band
(full right) is the heat or warmer area. The wide blue area (full
left) is the cooling or cool temperature area. Any position
selected between full right and full left will give a temperature
between the two extreme temperatures.
File:06unipr.ex
Update:Wed May 1 13:46:22 1996

76
*
[IP01700(ALL)03/95]
HFan speed adjustment
[IP01750(ALL)03/95]
The
H(left) knob on the control is the fan control knob which
controls the volume of air flow. Rotate the
Hknob to the right
to increase fan speed and increase the amount of air entering
the vehicle. Four fan speed positions are available and are
indicated by dots beside the
Hcontrol knob. The largest dot is
high speed position.
*
[IP01800(ALL)08/94]
Airflow selections
[IP01850(ALL)08/95]
Q(Panel)
[IP01900(ALL)03/95]
UseQto bring outside air through the instrument panel
registers. You can heat the air in this position by rotating the
temperature knob into the red area. The air CANNOT be cooled
below the outside temperature regardless of the temperature
knob setting. Select A/C or MAX A/C to get cool air through
the instrument panel registers.
*
[IP01950(ALL)08/95]
A/C
[IP02000(ALL)06/94]
Select A/C to get refrigerated outside air through the
instrument panel registers. The A/C position is used for cooling
except when it is extremely hot or fast cooling of the vehicle is
needed. Then, select MAX A/C for fast cooling and return to
A/C when you are comfortable.
*
[IP02050(ALL)08/95]
MAX A/C
[IP02100(ALL)05/95]
The MAX A/C position produces cool air more rapidly to
provide faster cooling of your vehicle. This is possible because
cooler air is drawn from inside the passenger area and
refrigerated again instead of using warmer outside air. Using
inside air will also make the fan sound louder and is normal
when using MAX A/C. The air flow will be from the
instrument panel registers.
File:06unipr.ex
Update:Wed May 1 13:46:22 1996

Instrument Panel Controls
77
[IP02150(ALL)08/95]
S(Panel and Floor)
[IP02200(ALL)03/95]
SelectSto direct airflow to the floor and through the
instrument panel registers at the same time. This selection can
be used to either heat or cool your vehicle. The air conditioner
will operate to cool the air if the outside temperature is about
50ÊF (10ÊC) orwarmer.
*
[IP02250(ALL)08/95]
R(Floor)
[IP02300(ALL)03/95]
SelectRto direct air to the floor. The air cannot be cooled in
theRposition but can be heated by rotating the temperature
knob into the red area.
[IP02350(ALL)08/95]
P(Floor and Defrost)
[IP02400(ALL)03/95]
SelectPto direct air to the floor and windshield defrosters at
the same time. If the outside temperature is about50ÊF (10ÊC)
or warmer, the air will also be dehumidified to remove
moisture. This feature will help prevent fogging in humid
weather. The air can be cooled or heated.
%*
[IP02450(ALL)08/95]
V(Defrost)
[IP02500(ALL)03/95]
SelectVto obtain maximum airflow to the windshield. Rotate
the temperature knob into the red area for the air temperature
required to defrost. When the outside temperature is about50ÊF
(10ÊC) or warmer, the airwill be dehumidified to remove
moisture. Rotate the
Hknob to increase the airflow.
*
[IP02550(ALL)04/95]
Operating tips
*
[IP02600(ALL)02/95]
The following tips will help you to get the most satisfaction
from your air conditioning and heater system.
[IP02650(ALL)03/95]
n
In humid weather, selectVbefore starting your engine.
This will help to prevent windshield fogging. After a few
minutes of operation, you may select another function.
[IP02700(ALL)03/95]
n
To prevent humidity buildup inside your vehicle, always
drive with the air conditioner or heater system turned on.
File:06unipr.ex
Update:Wed May 1 13:46:22 1996

78
*
[IP02750(ALL)03/95]
n
Do not put objects under the front seats that interfere with
the flow of air to the back seat area.
[IP02800(ALL)03/95]
n
Remove any snow, ice, or leaves from the air intake area of
your air conditioner and heater system that could block the
air intake. The intake area is located at the bottom of the
windshield.
*
[IP02900(R )08/94]
Heater Controls (Heater-Only Vehicles)
[IP02950(R )03/95]
The control for your heater system is located at the center of the
instrument panel below the radio. The heater will operate only
when the ignition key is turned to the ON position. Your heater
will heat and/or ventilate your vehicle interior depending on
the function position and temperature you select. The function
selector control knob allows you to select heating or ventilation
and determine where the air will be directed. The temperature
control knob setting determines the temperature of the air that
flows into the vehicle.
[IP03000(R )06/95]

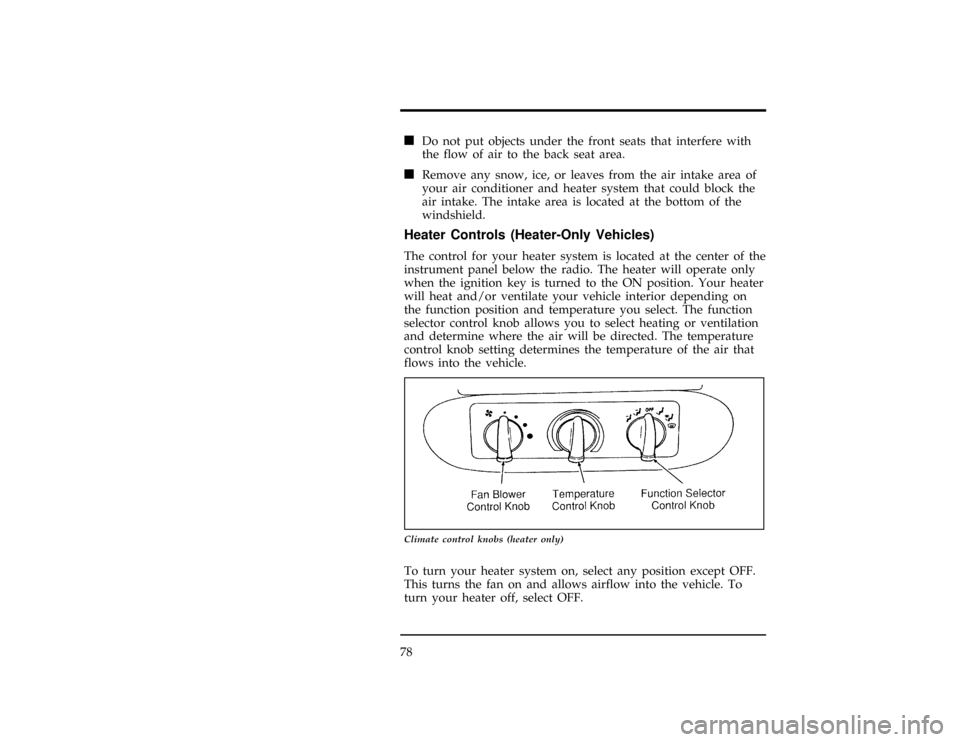

10-1/2 pica
art:0090206-A
Climate control knobs (heater only)
[IP03050(R )03/95]
To turn your heater system on, select any position except OFF.
This turns the fan on and allows airflow into the vehicle. To
turn your heater off, select OFF.
File:06unipr.ex
Update:Wed May 1 13:46:22 1996

Instrument Panel Controls
79
*
[IP03100(R )10/95]
Temperature selection
[IP03150(R )03/95]
The temperature control knob is the rotating knob located at the
center of the control with tapered red and blue bands
surrounding most of the knob. The wide red part of the band
(full right) is the heat or warmer area. The wide blue area (full
left) is the cool or unheated temperature area. Any position
selected between full right and full left will give a temperature
between the two extreme temperatures. The cool temperature
you select will not be cooler than the outside temperature.
*
[IP03200(R )03/95]
HFan speed adjustment
[IP03250(R )03/95]
The
H(left) knob on the control is the fan control knob which
controls the volume of airflow. Rotate the
Hknob to the right
to increase fan speed and increase the amount of air entering
the vehicle. Four fan speed positons are available and are
indicated by dots beside the
Hcontrol knob. The largest dot is
high speed position.
*
[IP03300(R )08/94]
Airflow selections
[IP03350(R )08/95]
Q(Panel)
[IP03400(R )03/95]
UseQto bring outside air through the instrument panel
registers. You can heat the air in this position by rotating the
temperature knob into the RED area. The air cannot be cooled
below the outside temperature regardless of the temperature
knob setting.
[IP03450(R )03/95]
S(Panel & Floor)
[IP03500(R )03/95]
SelectSto get airflow to the floor and through the instrument
panel registers at the same time. This selection can be used to
either heat or ventilate your vehicle.
*
[IP03550(R )08/95]
R(Floor)
[IP03600(R )03/95]
SelectRto direct air to the floor. The air cannot be cooled in
theRposition but can be heated by rotating the temperature
knob into the red area.
File:06unipr.ex
Update:Wed May 1 13:46:22 1996
