FORD RANGER 1997 2.G Owners Manual

88
[CF50000(R)01/96]
Console (If equipped)
*
[CF50100(R)01/96]
Your vehicle may have a full console. The full console has the
features shown in the illustration below.
[CF59700(R)01/96]
17-1/2 pica
art:0090211-A
The features on the console Ð bucket seats
File:05uncfr.ex
Update:Thu Mar 20 08:51:14 1997

Controls and Features
89
[CF59800(R)01/96]
17-1/2 pica
art:0020896-C
Storage armrest Ð 60/40 split bench
[CF66700(R)01/96]
Floor Mounted Cupholders (If equipped)
[CF66900(R)03/96]
If your vehicle has a bench seat, you may have floor mounted
cupholders. On manual transmission vehicles, the cupholders are
located on the floor on either side of the gearshift lever. On
automatic transmission vehicles, a removable consolette is
located on the floor. The consolette may be removed when the
center bench seat position is occupied.
[CF67000(R)01/96]
The inside of the cupholders can be adjusted to various heights
to accommodate different size cups. They can also be removed
to allow access and cleaning of the rubber padding at the
bottom of the cupholder.
File:05uncfr.ex
Update:Thu Mar 20 08:51:14 1997

90
[CF67200(R)05/96]
10-1/2 pica art:0020897-E
Floor mounted cupholders Ð manual transmission
[CF67300(R)01/96]
17-1/2 pica
art:0020962-B
Floor mounted cupholders Ð automatic transmission
File:05uncfr.ex
Update:Thu Mar 20 08:51:14 1997

Controls and Features
91
[CF67400(R)01/96]
To remove the automatic transmission consolette:
[CF67500(R)01/96]1.
Pull the adjustable portion of each cupholder from the
consolette.
[CF67600(R)01/96]2.
Remove the rubber pad at the bottom of each cupholder.
[CF67700(R)01/96]3.
Using a quarter, turn the slotted head at the bottom of each
cupholder 90Ê (one quarter turn).
[CF67800(R)01/96]4.
Lift the consolette from the floor and secure it in a safe
place.
[CF67900(R)05/96]
Power Point Electrical Outlets
[CF67910(R)05/96]
The two power point outlets should be used in place of the
cigarette lighter for optional electrical accessories.
[CF67912(R)06/96]
The instrument panel power point is located to the right of the
radio.
[CF67915(R)05/96]
Vehicles equipped with the Passenger Air Bag Deactivate switch
do not come equipped with an auxiliary power point to the left
of the ashtray.
[CF67920(R)01/96]
NOTE: Do not plug optional electrical accessories into the
cigarette lighter. Use the power point.
File:05uncfr.ex
Update:Thu Mar 20 08:51:14 1997

92
[CF67925(R)05/96]
13-1/2 pica
art:0090227-A

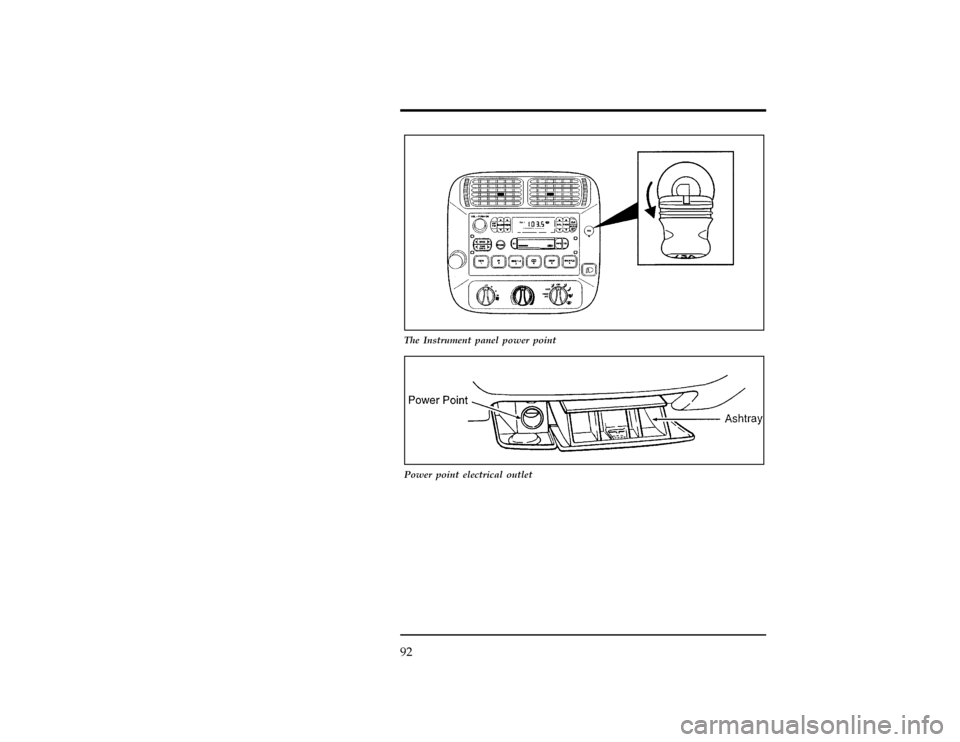

The Instrument panel power point
[CF67930(R)01/96]
7-1/2 pica art:0020260-E
Power point electrical outlet
File:05uncfr.ex
Update:Thu Mar 20 08:51:14 1997

Controls and Features
93
*
[CF80000(R)05/96]
Remote Entry System (If equipped)
[CF80010(R)01/96]
If your vehicle has the remote entry system, you can lock or
unlock the vehicle doors without using a key. The remote also
has a personal alarm feature. The buttons for the system are
located on the hand held transmitter that came with your
vehicle.
[CF80016(R)01/96]
The system will work with up to four transmitters. Your vehicle
came with one transmitter. Additional transmitters can be
ordered from your dealer.
*
[CF80018(R)01/96]
The remote entry features only operate with the ignition in the
OFF position.
File:05uncfr.ex
Update:Thu Mar 20 08:51:14 1997

94
[CF80020(R)05/96]
7-1/2 pica art:0090226-A

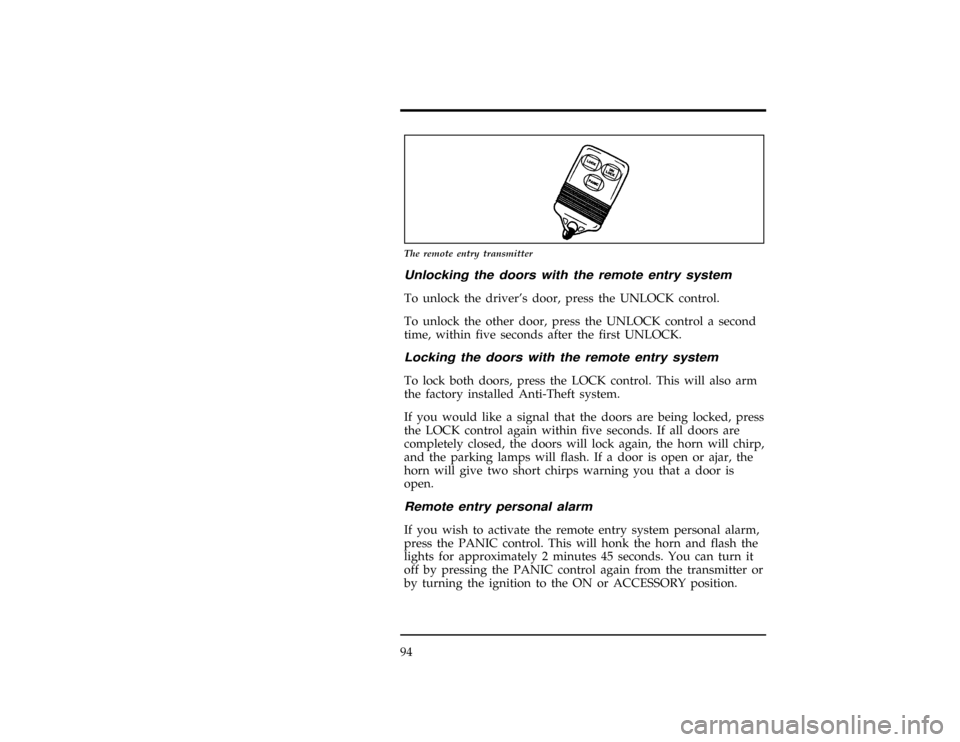

The remote entry transmitter
%*
[CF80080(R)05/96]
Unlocking the doors with the remote entry system
*
[CF80082(R)04/96]
To unlock the driver's door, press the UNLOCK control.
[CF80086(R)05/96]
To unlock the other door, press the UNLOCK control a second
time, within five seconds after the first UNLOCK.
*
[CF80100(R)05/96]
Locking the doors with the remote entry system
[CF80110(R)05/96]
To lock both doors, press the LOCK control. This will also arm
the factory installed Anti-Theft system.
[CF80114(R)05/96]
If you would like a signal that the doors are being locked, press
the LOCK control again within five seconds. If all doors are
completely closed, the doors will lock again, the horn will chirp,
and the parking lamps will flash. If a door is open or ajar, the
horn will give two short chirps warning you that a door is
open.
%*
[CF80200(R)05/96]
Remote entry personal alarm
[CF80210(R)05/96]
If you wish to activate the remote entry system personal alarm,
press the PANIC control. This will honk the horn and flash the
lights for approximately 2 minutes 45 seconds. You can turn it
off by pressing the PANIC control again from the transmitter or
by turning the ignition to the ON or ACCESSORY position.
File:05uncfr.ex
Update:Thu Mar 20 08:51:14 1997

Controls and Features
95
*
[CF80212(R)05/96]
When you use the remote entry UNLOCK or PANIC controls,
the illuminated entry system turns on the vehicle's interior
lights for 25 seconds. You can turn these lights off with the
remote entry LOCK control or by turning the ignition to the
ON or ACCESSORY position.
[CF80214(R)01/96]
7-1/2 pica art:0021160-A% [CF80300(R)04/96]
Arming and Disarming the Alarm System with Remote
Entry
[CF80310(R)05/96]
Your Remote Entry System will automatically arm the factory
installed Anti-Theft System when the doors are locked, and
automatically disarm it when the doors are unlocked. The
remote will also reset the anti-theft alarm (when the driver's
door is unlocked or the PANIC control is pressed on a
programmed remote entry transmitter) if it was triggered.
*
[CF80320(R)01/96]
The remote entry system may not arm and disarm non-factory
installed anti-theft systems.
%*
[CF80500(R)05/96]
Replacing the Batteries
*
[CF80510(R)05/96]
The remote is powered by two coin type three-volt lithium 2016
batteries (included) that should last for several years of normal
use. If you notice a significant decrease in operating range, the
batteries should be replaced. Replacement batteries can be
purchased at most pharmacies, watch stores or at your Ford or
Lincoln-Mercury dealer.
File:05uncfr.ex
Update:Thu Mar 20 08:51:14 1997

96
*
[CF80520(R)01/96]
NOTE: The operating range of the remote entry system can
also be affected by weather conditions (such as very
cold temperatures) or structures around the vehicle
(buildings, other vehicles, radio and TV towers, etc.).
Typical operating range will allow you to be up to 33
feet (10 meters) away from your vehicle.
[CF80530(R)01/96]
7-1/2 pica art:0021161-A

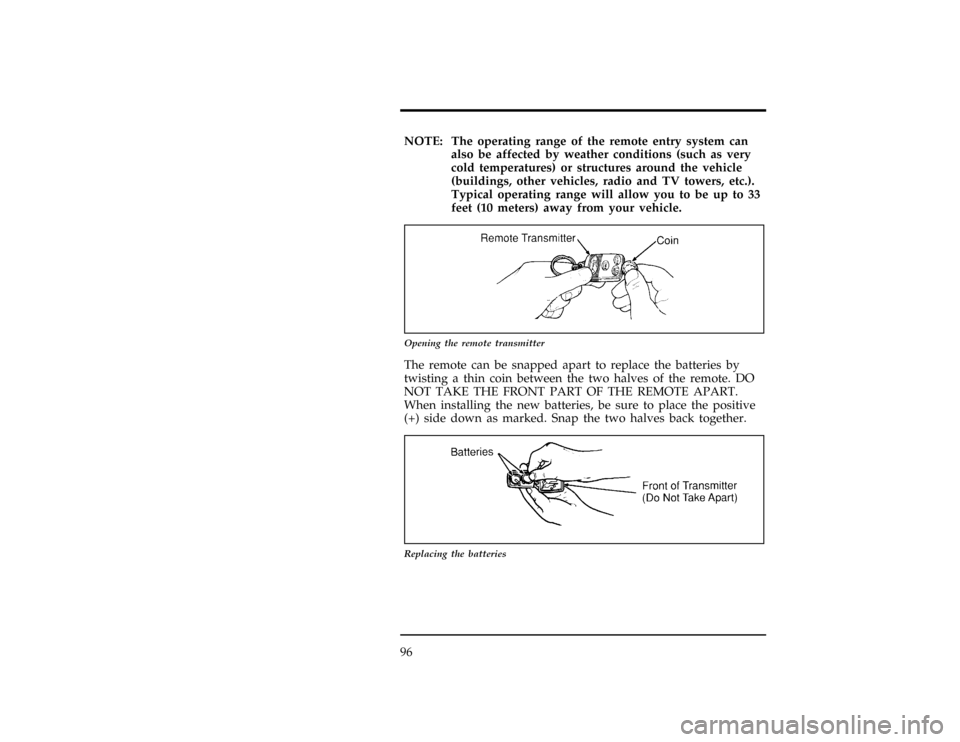

Opening the remote transmitter
*
[CF80540(R)05/96]
The remote can be snapped apart to replace the batteries by
twisting a thin coin between the two halves of the remote. DO
NOT TAKE THE FRONT PART OF THE REMOTE APART.
When installing the new batteries, be sure to place the positive
(+) side down as marked. Snap the two halves back together.
[CF80550(R)01/96]
7-1/2 pica art:0021162-A
Replacing the batteries
File:05uncfr.ex
Update:Thu Mar 20 08:51:14 1997

Controls and Features
97
%*
[CF80560(R)05/96]
Replacing lost transmitters
[CF80562(R)01/96]
In the event a transmitter is lost, you should take your vehicle's
transmitters to your dealer to have the remote entry system
deprogrammed for the lost transmitter. This is necessary to
prevent further unauthorized use of the lost transmitter.
*
[CF80564(R)01/96]
You can also purchase additional transmitters (up to 4
transmitters can be used) from your dealer. You will need to
take all your transmitters to the dealer so they can program
them to the remote entry system all at the same time.
%*
[CF80570(R)01/96]
Illuminated Entry System (If equipped)
*
[CF80574(R)01/96]
This system will provide illumination of the vehicle's interior
courtesy lamps when either outside front door handle is pulled
or when the remote entry system is used to unlock the door or
sound the personal alarm. The system will automatically turn
off after approximately 25 seconds or when the ignition is
turned to the RUN or ACC position.
[CF80578(R)04/96]
NOTE: The inside lights will not turn off if you have turned
them on with the dimmer thumbwheel or if any door
is open.
%*
[CF80600(R)01/96]
Battery Saver
[CF80610(R)04/96]
When the ignition is turned off, the vehicle will turn off battery
voltage to all of these lights after 40 minutes: glove box, engine
compartment, overhead console, mirror, courtesy and
interior (including cargo) lamps.
*
[CF80630(R)01/96]
This will prevent draining of the battery if these lights have
been left on inadvertently or if a door is not completely closed.
Battery voltage to these lamps will be restored when the remote
entry transmitter is used, any door is opened, or the ignition
key is turned on again.
