FORD RANGER 1997 2.G Owners Manual

98
%*
[CF81000(R)03/96]
Anti-Theft Alarm System (If equipped)
*
[CF81100(R)01/96]
When armed, this system helps protect your vehicle against
break-ins or theft.
%*
[CF81110(R)01/96]
When an unauthorized entry occurs, the system triggers and
will:
[CF81122(R)01/96]
n
flash the parking lamps and theft indicator lamp
*
[CF81124(R)01/96]
n
honk the horn
*
[CF81126(R)01/96]
n
disable the starting circuit to prevent the vehicle from being
started
%*
[CF81200(R)01/96]
Arming the System
[CF81210(R)04/96]
The system is ready to arm any time the ignition switch is
turned OFF and the alarm is not triggered or sounding. Any of
the following events will prearm the anti-theft system:
[CF81212(R)05/96]
n
Pressing the remote entry transmitter LOCK control to lock
the doors (with the doors open or closed),
[CF81216(R)05/96]
n
Opening a door and pressing the power door lock control to
lock the doors.
[CF81250(R)01/96]
If a door is open, the anti-theft system is prearmed and waiting
for all doors to close. The THEFT indicator in the instrument
panel will light continuously while the system is prearmed.
[CF81264(R)01/96]
n
Close all doors
[CF81300(R)01/96]
Once all doors are closed, if any were open, the system will
begin a 30 second countdown to become armed. The 30 second
countdown allows people who may still be in the vehicle time
to exit without triggering the alarm. The THEFT indicator will
glow steadily until the system is armed. When the system is
armed, the THEFT indicator will begin to flash with short
flashes every 2 seconds until the system is triggered or
disarmed.
File:05uncfr.ex
Update:Thu Mar 20 08:51:14 1997

Controls and Features
99
[CF81340(R)01/96]
Remember, all doors must be fully closed for the anti-theft
system to arm. If a door has been left open or ajar, and you
press the remote entry transmitter twice to confirm the doors
are locked, two short horn chirps will warn you that the
anti-theft system is not arming.
[CF81360(R)05/96]
When you get a single horn chirp by pressing the LOCK control
twice within 5 seconds on your remote entry transmitter, you
can be assured that all doors are locked and the anti-theft
system is arming.
% [CF81400(R)01/96]
Disarming the System
[CF81410(R)04/96]
An armed or activated system can be disarmed if you:
[CF81420(R)05/96]
n
Unlock the doors by pressing the remote entry transmitter
UNLOCK control.
[CF81435(R)01/96]
n
Unlock any door with a key.
[CF81439(R)04/96]
n
Turn ignition to the ON or ACC position.
[CF81440(R)04/96]
n
Pressing the remote entry PANIC button will disarm the
anti-theft system only when the anti-theft alarm is triggered
and sounding.
[CF81442(R)04/96]
When unlocking the vehicle with a key, turn the key all the
way to the end of its travel or the system may not disarm.
*
[CF81448(R)01/96]
NOTE: The flashing lights and honking horn will shut off
automatically within 2 minutes 45 seconds after the
system is triggered. It will trigger again if another
intrusion occurs. However, the starter circuit remains
disabled until the system is disarmed.
*
[CF81450(R)01/96]
The anti-theft system is designed to work with the factory
installed remote entry system. It may not work with other
remote entry systems.
File:05uncfr.ex
Update:Thu Mar 20 08:51:14 1997

101
Seating and Safety Restraints
%*
[SS00125(R)05/96]
Seats
%*
[SS00200(R)01/96]
Adjusting the Front Seat Manually
[SS00210(R)01/96]
Regular Cab
*
[SS00220(R)01/96]
To move the front seat forward or rearward:
*
[SS00222(R)01/96]1.
Find the adjustment lever at the lower left corner of the
front seat.
*
[SS00224(R)01/96]2.
Push the lever to the left to unlock the seat.
*
[SS00226(R)01/96]3.
Move the seat to the desired position.
[SS00228(R)01/96]4.
Release the lever to lock the seat in its new position. Make
sure the seat locks securely in place.
[SS00240(R)01/96]

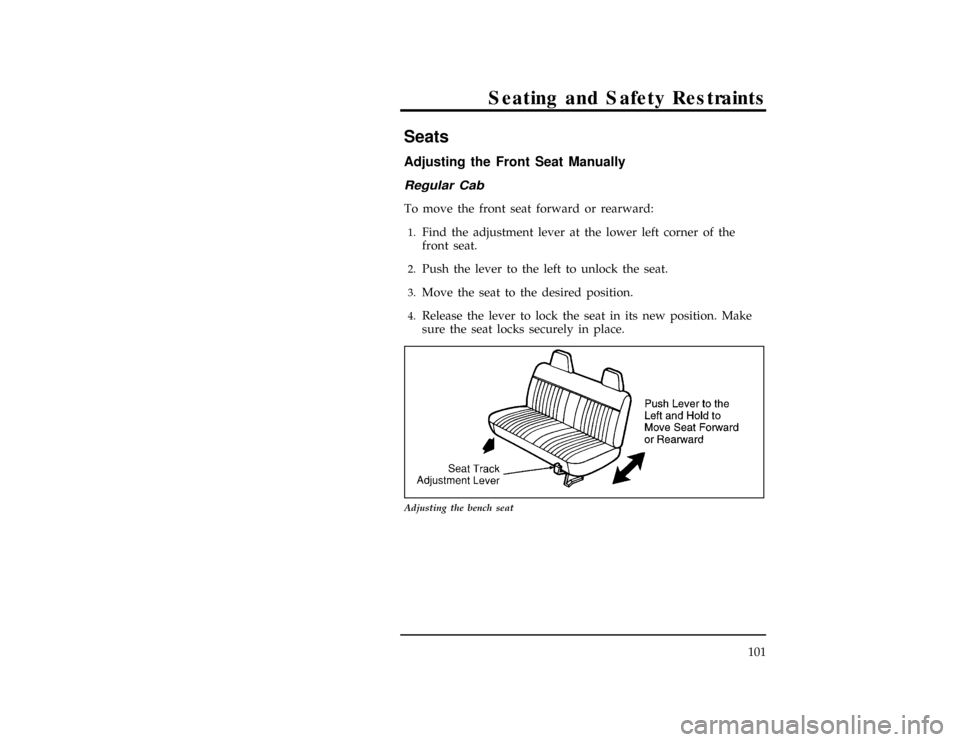

10-1/2 pica
art:0020859-C
Adjusting the bench seat
File:06unssr.ex
Update:Fri Mar 21 09:43:41 1997

102
[SS00250(R)01/96]

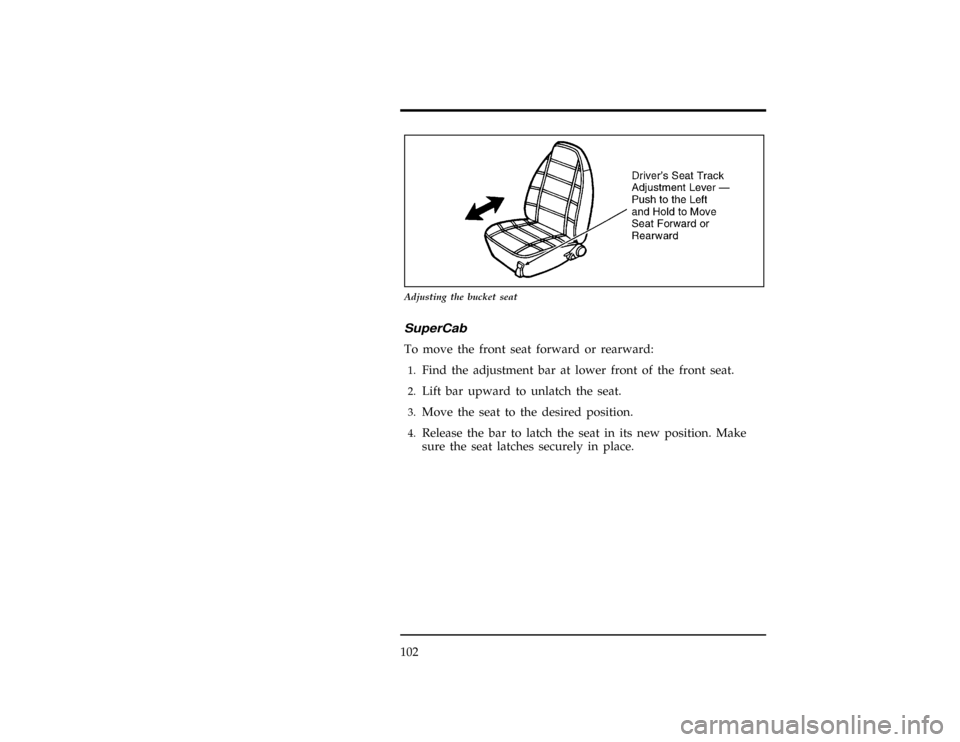

10-1/2 pica
art:0020911-C
Adjusting the bucket seat
[SS00260(R)01/96]
SuperCab
*
[SS00262(R)01/96]
To move the front seat forward or rearward:
[SS00264(R)01/96]1.
Find the adjustment bar at lower front of the front seat.
[SS00266(R)01/96]2.
Lift bar upward to unlatch the seat.
*
[SS00268(R)01/96]3.
Move the seat to the desired position.
[SS00270(R)01/96]4.
Release the bar to latch the seat in its new position. Make
sure the seat latches securely in place.
File:06unssr.ex
Update:Fri Mar 21 09:43:41 1997

Seating and Safety Restraints
103
[SS00280(R)01/96]

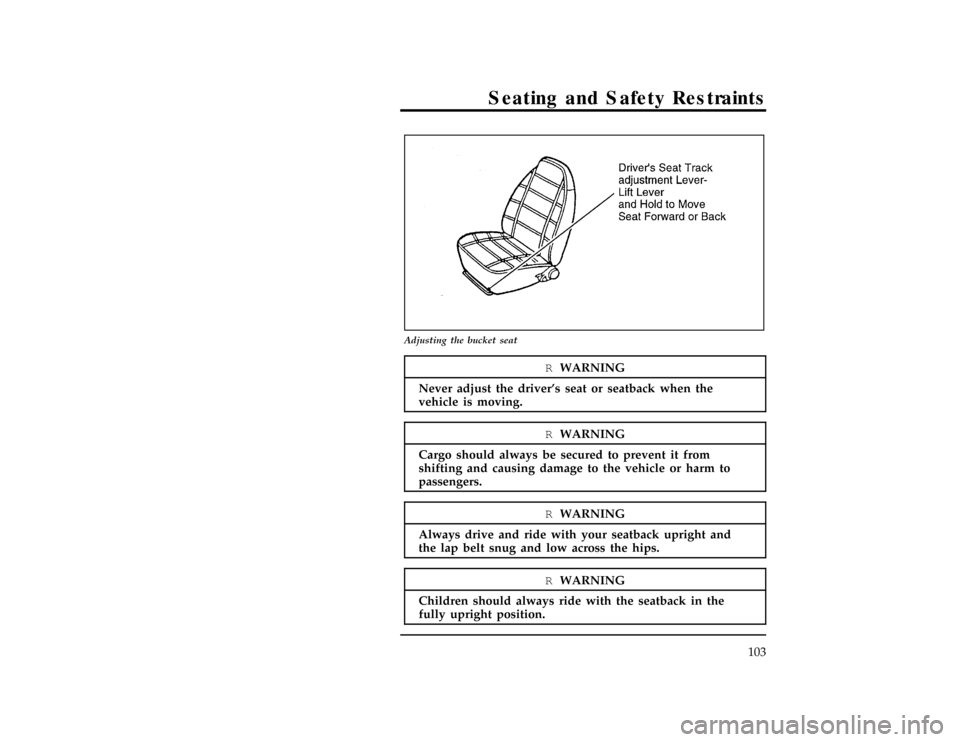

13-1/2 pica
art:0021273-A
Adjusting the bucket seat
*
[SS00290(R)05/96]
RWARNING
Never adjust the driver's seat or seatback when the
vehicle is moving.
*
[SS00300(R)05/96]
RWARNING
Cargo should always be secured to prevent it from
shifting and causing damage to the vehicle or harm to
passengers.
*
[SS00310(R)02/96]
RWARNING
Always drive and ride with your seatback upright and
the lap belt snug and low across the hips.
*
[SS00320(R)02/96]
RWARNING
Children should always ride with the seatback in the
fully upright position.
File:06unssr.ex
Update:Fri Mar 21 09:43:41 1997

104
[SS00330(R)01/96]
Reclining Bucket Seats (If equipped)
[SS00332(R)01/96]
If your vehicle is equipped with the optional reclining bucket
seat, you can tilt the seatback up to 30 degrees rearward.
*
[SS00334(R)01/96]1.
On the side of the seat, find the handle for the recliner.
*
[SS00336(R)01/96]2.
Lift the handle up and hold it in place.
*
[SS00338(R)01/96]3.
Lean against the back of the seat and adjust it to the position
you want.
*
[SS00340(R)01/96]4.
Release the handle to lock the seatback in position.
*
[SS00342(R)01/96]5.
To return the seatback to upright position, lift the handle
and lean forward. Then release the handle.
[SS00354(R)01/96]
Lifting the recliner handle of an unoccupied seat will allow the
seat back to fold forward for access to the rear. Pushing the seat
back with the release handle raised returns the seat back to the
upright position.
[SS00356(R)01/96]

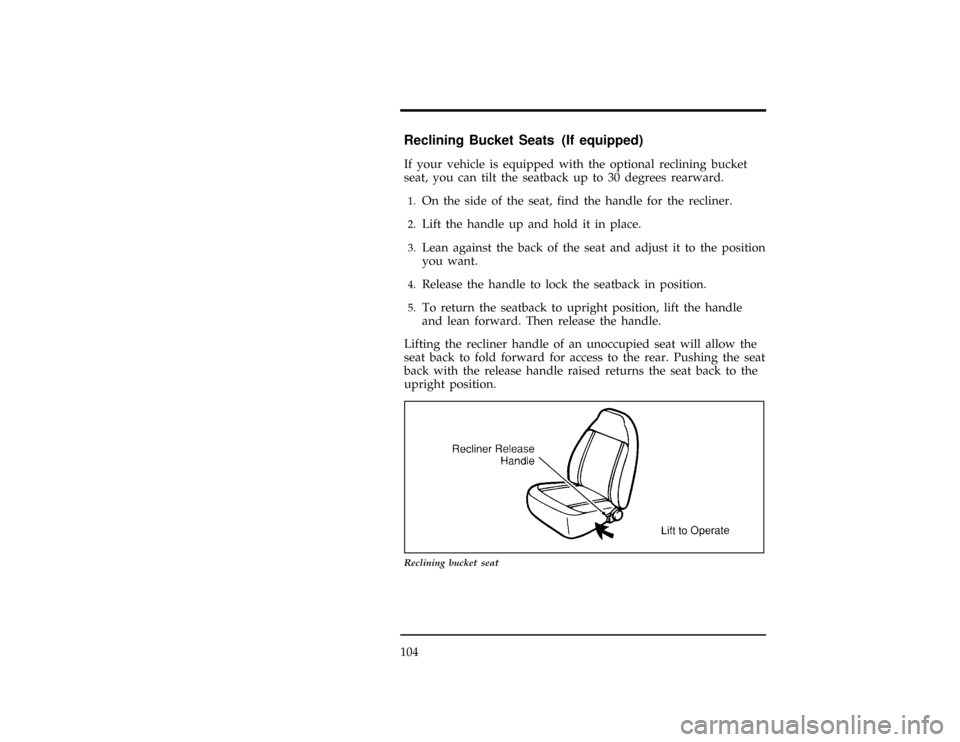

10-1/2 pica
art:0021165-A
Reclining bucket seat
File:06unssr.ex
Update:Fri Mar 21 09:43:41 1997

Seating and Safety Restraints
105
*
[SS00549(R)01/96]
Center Facing Jump Seat Ð SuperCab Only
[SS00551(R)01/96]
To open the seat, pull inboard and down on the seat handle. To
stow the seat, pull seat bottom back to the fully upright
position. The jump seats should be kept in the stored position
for easier access to the rear cab area.
[SS00560(R)01/96]

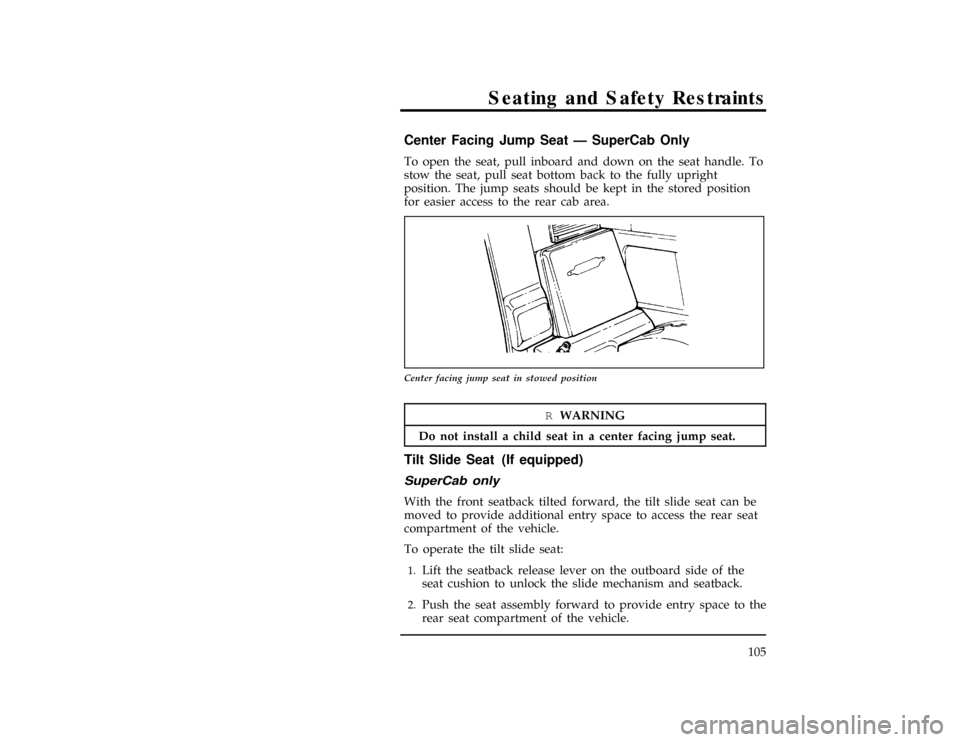

10-1/2 pica
art:0020232-B
Center facing jump seat in stowed position
*
[SS00570(R)01/96]
RWARNING
Do not install a child seat in a center facing jump seat.
[SS00580(R)01/96]
Tilt Slide Seat (If equipped)
[SS00590(R)01/96]
SuperCab only
[SS00610(R)01/96]
With the front seatback tilted forward, the tilt slide seat can be
moved to provide additional entry space to access the rear seat
compartment of the vehicle.
*
[SS00620(R)01/96]
To operate the tilt slide seat:
[SS00622(R)01/96]1.
Lift the seatback release lever on the outboard side of the
seat cushion to unlock the slide mechanism and seatback.
*
[SS00624(R)01/96]2.
Push the seat assembly forward to provide entry space to the
rear seat compartment of the vehicle.
File:06unssr.ex
Update:Fri Mar 21 09:43:41 1997

106
*
[SS00630(R)02/96]
RWARNING
Check to see that the seat and seatback are latched
securely in position. Keep floor area free of objects that
would prevent proper seat engagement. Never attempt to
adjust the seat while the vehicle is in motion.
*
[SS00640(R)02/96]
RWARNING
Check to see that the seat and seatback are latched
securely in position. Keep floor area free of objects that
would prevent proper seat engagement. Never attempt to
adjust the seat while the vehicle is in motion.
[SS00650(R)01/96]3.
With the seatback still forward, using the seat cushion push
the seat rearward to the desired position and return the
seatback to its upright position. This will lock the seat track.
[SS00652(R)01/96]
NOTE: Whenever the seatback is returned to the upright
position, the seat will lock in that seat position.
*
[SS00654(R)01/96]
NOTE: The seat can no longer be moved rearward when in
its latched position.
File:06unssr.ex
Update:Fri Mar 21 09:43:41 1997

Seating and Safety Restraints
107
[SS00656(R)01/96]

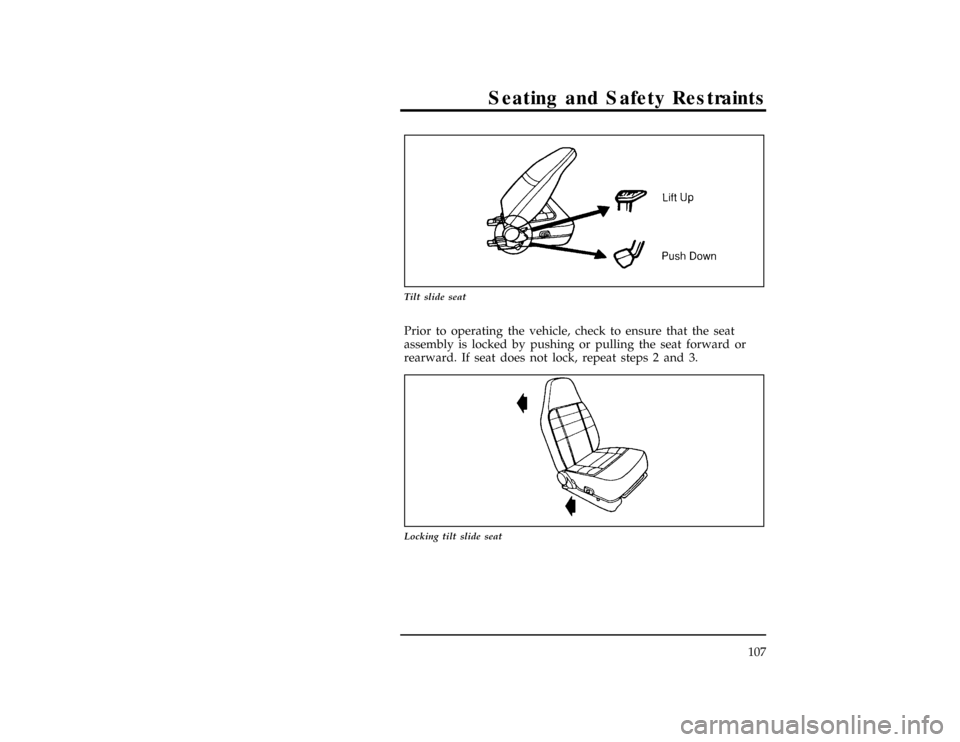

10-1/2 pica
art:0021166-A
Tilt slide seat
*
[SS00670(R)01/96]
Prior to operating the vehicle, check to ensure that the seat
assembly is locked by pushing or pulling the seat forward or
rearward. If seat does not lock, repeat steps 2 and 3.
[SS00675(R)01/96]
10-1/2 pica
art:0021167-B
Locking tilt slide seat
File:06unssr.ex
Update:Fri Mar 21 09:43:41 1997

108
*
[SS00680(R)01/96]
To operate the seat adjuster:
[SS00681(R)01/96]4.
To adjust the seats forward or rearward, locate the release
bar at the lower front area of the seat cushion. Lift the
release bar and hold until the desired seat position is
obtained, then release the bar to relock the seat.
[SS00690(R)01/96]

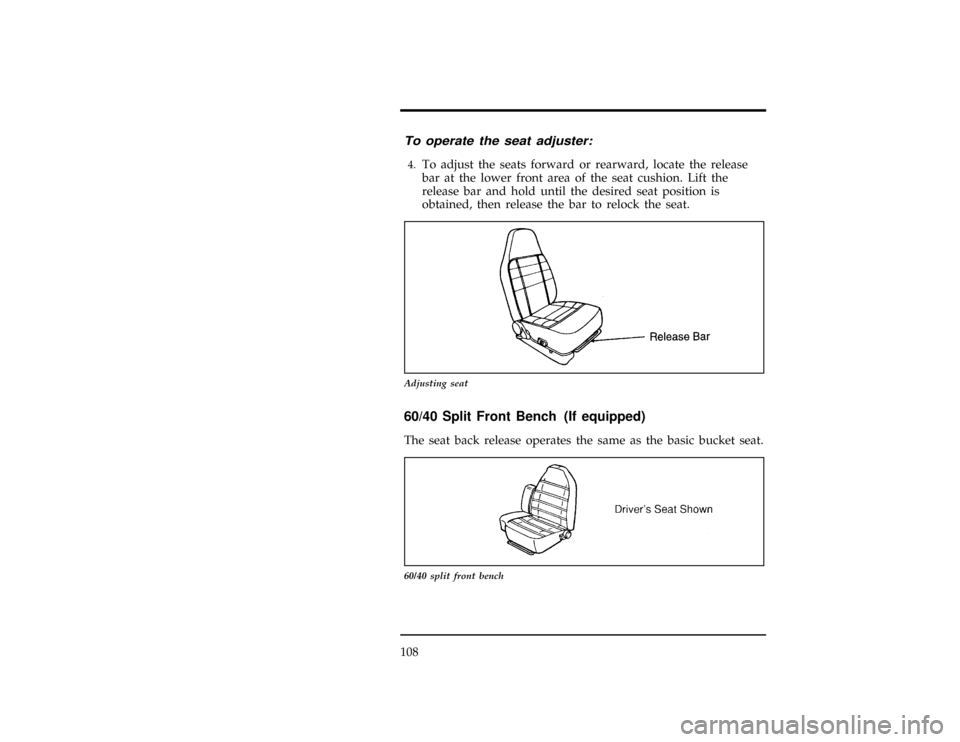

10-1/2 pica
art:0021168-B
Adjusting seat
[SS00700(R)01/96]
60/40 Split Front Bench (If equipped)
[SS00704(R)01/96]
The seat back release operates the same as the basic bucket seat.
[SS00720(R)01/96]
7-1/2 pica art:0020241-D
60/40 split front bench
